USER MANUAL Burgermeister Klarstein

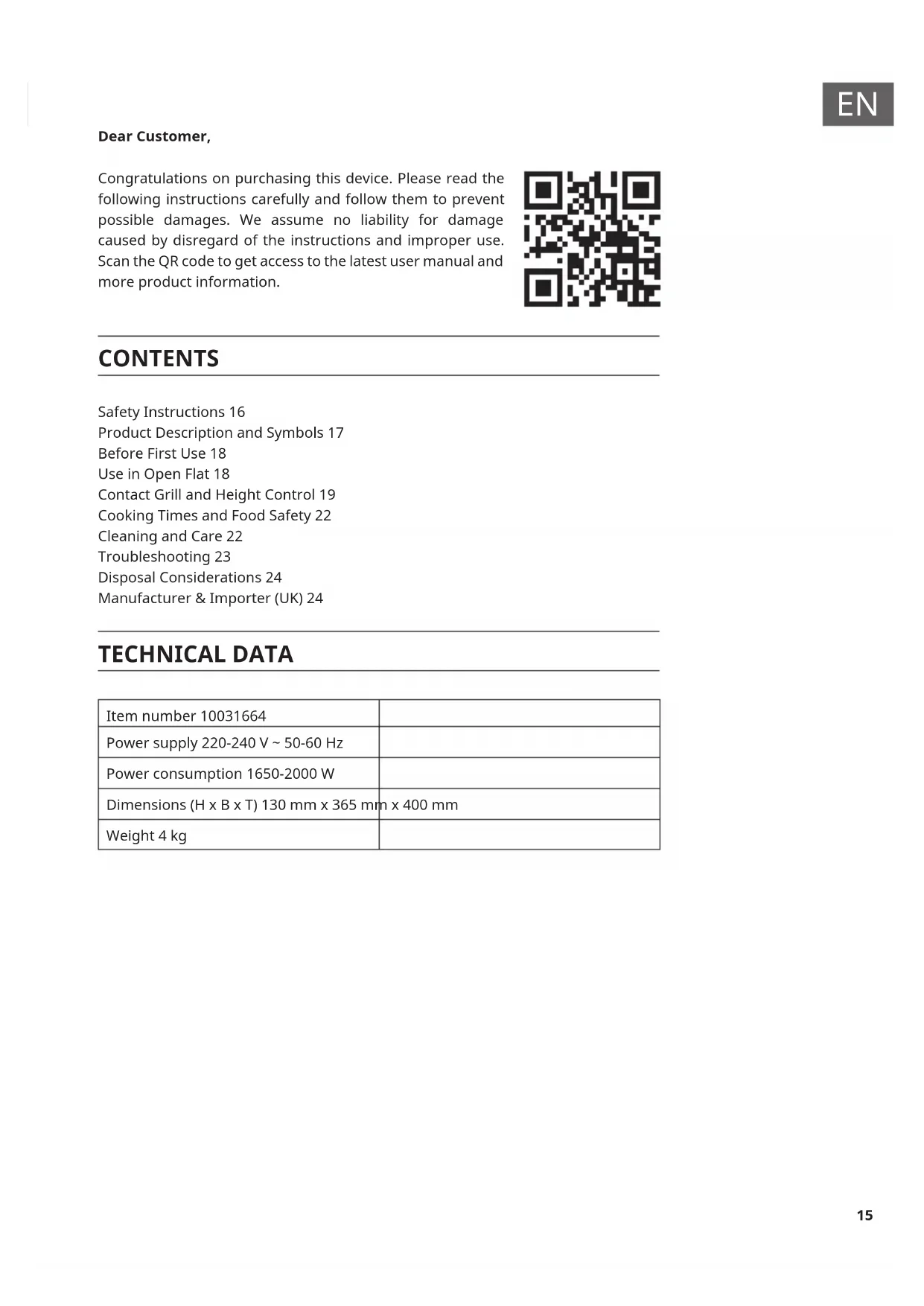

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Safety Instructions 16 Product Description and Symbols 17 Before First Use 18 Use in Open Flat 18 Contact Grill and Height Control 19 Cooking Times and Food Safety 22 Cleaning and Care 22 Troubleshooting 23 Disposal Considerations 24 Manufacturer & Importer (UK) 24 TECHNICAL DATA Item number 10031664 Power supply 220-240 V ~ 50-60 Hz Power consumption 1650-2000 W Dimensions (H x B x T) 130 mm x 365 mm x 400 mm Weight 4 kg16

• Connect the device so that the mains plug is easily accessible at all times.

• Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualied person.

• Repairs may only be carried out by qualied personnel, do not attempt to repair the device yourself.

• Do not connect the unit to a timer or a remote control power outlet.

• Never immerse the appliance, power cord or plug in water or other liquids.

• Do not handle the plug with wet hands.

• Do not pull the plug out of the socket by the cable, but hold it rmly by hand when pulling it o.

• Do not use the cable as a handle.

• Lay the cable in such a way that no one will trip over it.

• Do not let the cable run over sharp edges.

• Do not use the unit in wet rooms or in the rain.

• Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.

• Unplug the appliance from the wall outlet when it is no longer in use.

• Keep the appliance away from open re and heat sources.

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Keep children away from the grill and do not leave the appliance unattended during operation.

• Place the appliance on a stable, level surface.

• Make sure that there are no easily inammable objects or materials around the grill.

• Keep at least 30 cm away from walls.

• Do not touch the grill grate or other hot surfaces during operation.

• Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.

• Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.

• To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.

• Do not place the appliance on or near a stove.17

PRODUCT DESCRIPTION AND SYMBOLS

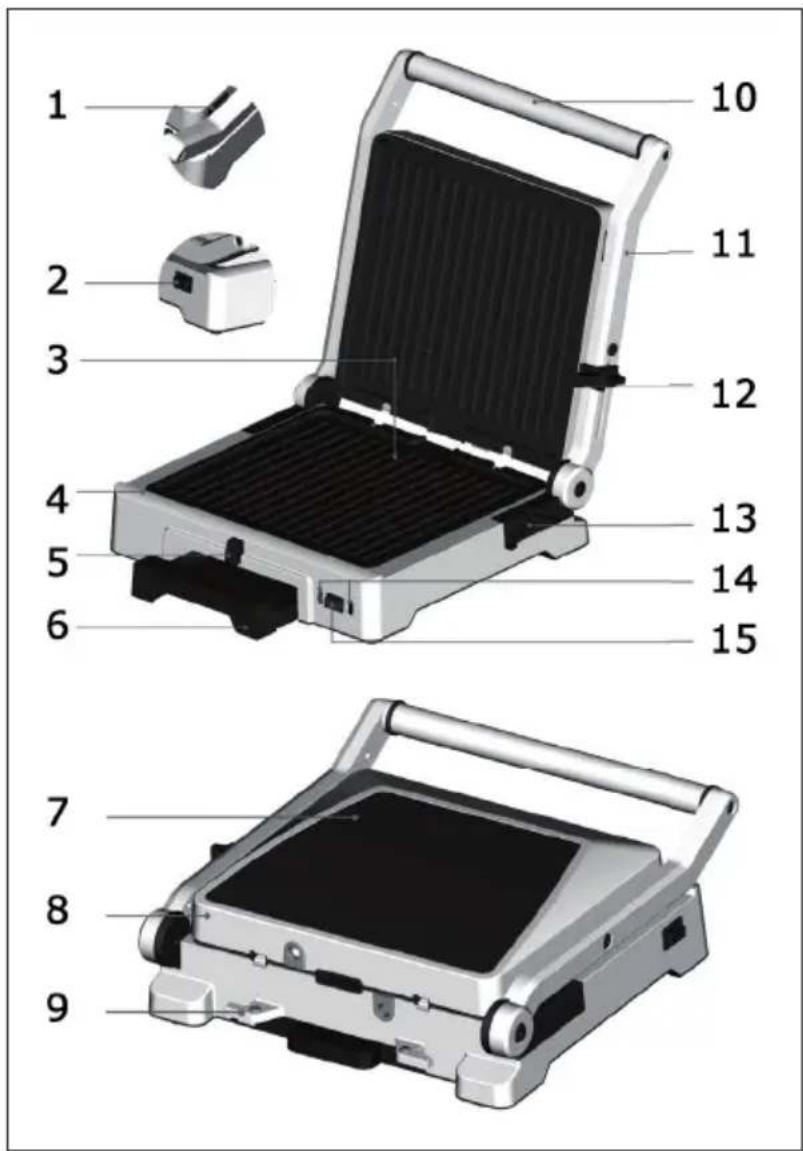

Part Description 1 Top Plate Release to remove the top cooking plate. 2 Bottom Plate Release to remover the bottom cooking plate. 3 Non-stick Cooking Plate 4 Bottom Housing 5 Temperature Knob 6 Removable Drip Tray 7 Decorative Cover 8 Top Housing 9 Cable Storage 10 Stainless Steel Brush 11 Arms 12 Lock Clip 13 Adjustable Height Settings 14 Green: Heat Indicator Light Red: Operation control light 15 On/O Switch Symbols on the Cover Open Grill Lock Unlock Contect Grill Heigh Setting18

Read these instructions before use and keep them safe. If you pass the grill on, pass on the instructions too.

Remove all packaging, but keep it until you are satised that the grill is working.

Clean the grill surfaces and drip tray with a soft damp cloth and then dry them.

Ensure the cooking plates are correctly inserted and securely locked into position.

Unwind the power cord completely and insert the power plug into a grounded wall outlet. The grill is now ready for the preheating cycle.

• Ensure the drip tray is correctly inserted into the grill.

• Ensure the cooking plates are correctly inserted and securely locked into position.

• Place the grill on a at, dry surface. Starting and Opening the Grill

1. Unwind the power cord completely and insert the power plug into a grounded

2. Turn the temperature knob to adjust the temperature, and you can select the

temperature from min to max, and then allow the grill to preheat.

3. Once the grill has preheated to the selected temperature, the green indicator

How to open the Grill

• Ensure the grill has completely preheated and the green indicator light illuminate

• Ensure the top cooking plate is closed. The adjustable height control clip, located on the right side of the top plate, should be in the UNLOCK position

• With your left hand, grip the handle. With your right hand, pull the adjustable height control clip towards you, into the OPEN GRILL position . Continue to pull the clip forward and simultaneously lift the handle to open, and then gently lower the top plate into the horizontal position.

4. Place food on either or both of the cooking plates.

5. When the food is cooked, remove from the cooking plates using heat proof

plastic or wooden utensils.

6. When you are done, turn the unit o, unplug the appliance and allow the grill

to cool down completely. Then remove the grill plates and the drip tray and clean the grill and all parts as described in the chapter CLEANING AND CARE.

• Ensure the drip tray is correctly inserted into the grill.

• Ensure the cooking plates are correctly inserted and securely locked into position.

• Place the grill on a at, dry surface.20

Starting the Grill and Setting the Height

1. Unwind the power cord completely and insert the power plug into a grounded

2. Turn the temperature knob to adjust the temperature, and you can select the

temperature from min to max, and then allow the grill to preheat.

3. Once the grill has preheated to the selected temperature, the green indicator

light illuminates. How to open the Grill

• Make sure that the grill is heated up and the indicator light is green.

• Ensure the top cooking plate is closed. The adjustable height control clip, located on the right side of the top plate, should be in the UNLOCK position

• Use the handle to open the top plate to a 105 degree position.

4. Place food on the bottom cooking plate.

5. Use the handle to close the top cooking plate .top cooking pate has two

features designed to produce optimum cooking results: Contact Grill with Floating Top Plate The top cooking plate is hinged, allowing the top plate to be positioned horizontally on the food surface. This ensures the front of the food is as evenly cooked as the back. It also allows the top plate to oat above the food surface, radiating heat to create open sandwich style melts.

1. If you place only a few parts on the grill, place the

food as centrally as possible or at the back of the grill.

2. Lower the cover and slide the slider to the position

3. Lower the lid until it disengages and then release it.

4. When the food is nished open the lid and slide the

slider to the position UNLOCK

5. Remove the food and lower the lid completely until

it snaps back into place.21

Adjustable Height Control This feature reduces the weight of the top plate on delicate foods like sh and accommodates varying thicknesses of food like artisan breads. Located on the right side of the top plate, the clip xes the top plate to a range of positions above the bottom plate.

1. If you place only a few parts on the grill, place the

food as centrally as possible or at the back of the grill.

2. Lower the lid and slide the slider to the position

HEIGHT SETTING . Senken Sie den Deckel dann ab.

3. If the distance to the food is still too great, hold the

handle and slide the slide step by step in direction to CONTECT GRILL until the distance to the food is correct and the lid snaps out.

4. When the food is nished open the lid and slide the

slider to the position UNLOCK

5. Remove the food and lower the lid completely until

it snaps back into place.

6. When you are done, turn the unit o, unplug the appliance and allow the grill

to cool down completely. Then remove the grill plates and the drip tray and clean the grill and all parts as described in the chapter CLEANING AND CARE. Important: Use only plastic or wood cooking utensils to remove the food. Otherwise, the non-stick coating may be damaged!22

COOKING TIMES AND FOOD SAFETY

Cooking Times For fresh or fully defrosted foods. There will be about 2-3 minutes for reaching the working temperature, then the cooking time is about 5-6 minutes.

• When cooking frozen foods, add 2-3 minutes.

• For seafood, meat and poultry add 3-6 minutes. These times are given purely as a guide, depending on the thickness of cut, and the density of the food. Food Safety

• Check that it’s cooked through before serving. If in doubt, cook it a bit more.

• Cook meat, poultry, and any derivatives like mince or burgers until the juices run clear.

• Cook sh until the esh is opaque throughout.

• When cooking pre-packed foods, follow any guidelines printed on the packaging or labels.

Before you clean the unit

• Firstly, ensure the grill is turned o, and then remove the power plug from the wall outlet.

• Only clean when the appliance has completely cooled down. Cleaning the outer body

• Wipe the outer body with a soft, damp sponge.

• Let all surface dry thoroughly prior to inserting the power plug into a wall outlet. Cleaning the drip tray

• After each use, slide out the drip tray and discard contents.

• Wash the tray in warm soapy water with a soft, damp sponge.

• Rinse and dry thoroughly. Always ensure to re-insert the drip tray into the grill.23

Cleaning the cooking plates

1. Wipe the cooking plates with a soft cloth to remove food residue.

2. Release and remove the cooking plates. Always ensure the grill is completely

3. Alternatively, place the cooking plates in the dishwasher.

4. Alternatively, wash the cooking plates in hot soapy water with a soft, damp

5. Rinse and dry thoroughly. Always ensure the cooking plates are correctly

re-insert and securely locked back into position after cleaning and prior to inserting the power plug into a wall outlet. Storage

• Ensure the grill, cooking plates and grip tray are clean and dry, the drip tray is correctly re-inserted into the grill, the cooking plates are correctly re-inserted and securely locked into position.

• The cooking plates are locked together by sliding the Adjustable Height Control clip to the LOCK position

• Wrap the power cord in the cord storage located on the back of the grill. Note: Do not immerse the appliance in water of other liquids. There is danger to life due to electric shock. TROUBLESHOOTING Problem Possible Cause Solution The operation indicator light does not light even though the unit is switched on. The plug has not been inserted. Plug the plug into the socket. The fuse is loose or broken. Check the fuse in your fuse box and replace if necessary. The socket is broken. Try a dierent outlet. It comes to a short circuit. There are too many devices connected to the electrical outlet. Do not plug the unit into any outlet that other devices are already connected to.24

Problem Possible Cause Solution Oil is running out of the device. The drip tray was not inserted correctly or incorrectly. Insert the drip tray correctly. The drip tray is full. Switch the device o, remove the drip tray and empty it. The device can not be folded over completely. The slider was released during ipping. Pull the slider all the way to the front and hold it while you fold the lid completely. Do not release the slide. DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom25
