Product type	Cordless impact wrench
Brand	Metabo
Model	SSW 18 LTX 800 BL
Rated voltage	18 V
Battery type	Li-Ion (Cordless Alliance System)
Recommended battery capacity	2.0 - 10.0 Ah
Max tightening torque	800 Nm
No-load speed	0 - 2200 rpm
Impact frequency	0 - 3200 bpm
Chuck	1/2" (12.7 mm) square
Weight (without battery)	2.1 kg
Length	198 mm
Height	250 mm
Width	80 mm
Sound level (LpA)	96 dB(A)
Vibration (ah)	12 m/s²
Protection class	II (double insulation)
Power supply	18 V Li-Ion battery
Main functions	Variable speed, motor brake, LED light, battery charge indicator
Maintenance and cleaning	Clean with a dry cloth; do not use chemicals
Safety	Wear hearing and eye protection; do not use in wet areas
Spare parts and repairability	Available via Metabo service; repairs by a specialist

Frequently Asked Questions - SSW 18 LTX 800 BL METABO

How to change the chuck of the Metabo SSW 18 LTX 800 BL impact wrench?

The 1/2" square chuck is secured by a locking ball. To change it, remove the battery, then use a hex key to unscrew the retaining screw located inside the chuck. Then pull the chuck outward. To install a new chuck, reverse the procedure, making sure to tighten the screw properly.

Which battery can I use with the SSW 18 LTX 800 BL model?

Use only Li-Ion batteries from Metabo's Cordless Alliance System (CAS), with a voltage of 18 V and a capacity between 2.0 Ah and 10.0 Ah. Batteries from other brands may not be compatible and could damage the tool.

How to adjust the tightening torque on the impact wrench?

This impact wrench does not have a conventional torque adjustment. Torque is controlled by the impact mechanism and the applied pressure. To avoid overtightening, use a lower speed or a torque-limiting attachment.

What to do if the impact wrench does not start?

First check that the battery is charged and correctly inserted. If the LED indicator flashes, consult the manual. If the problem persists, check the battery contacts and clean them. If the tool still does not start, contact Metabo after-sales service.

How to clean the Metabo SSW 18 LTX 800 BL impact wrench?

Disconnect the battery before any cleaning. Use a dry cloth to wipe the exterior. Never use chemicals or liquids. The ventilation slots can be cleaned with a soft brush.

What is the average battery life?

The lifespan of a Metabo Li-Ion battery is approximately 500 complete charge cycles. Heavy use, extreme temperatures, or deep discharge can reduce this. To maximize longevity, store the battery at room temperature and avoid leaving it completely discharged.

Can I use accessories from other brands?

Yes, provided they are compatible with a 1/2" square chuck and can withstand high torque (up to 800 Nm). Use quality screwdriver bits and sockets to avoid any risk of breakage.

How to know if the battery is fully charged?

On the Metabo charger, the control indicator lights up solid green when the battery is full. On the battery itself, press the indicator button to see the charge level via the LEDs.

What to do in case of overheating of the impact wrench?

Immediately stop the tool and remove the battery. Allow the device to cool for at least 15 minutes before using it again. Avoid prolonged use at full power and ensure that the ventilation slots are not blocked.

Where to find spare parts for the SSW 18 LTX 800 BL model?

Spare parts are available from authorized Metabo dealers or directly on the www.metabo.com website. Use the serial number of your tool to identify compatible parts. Repairs must be carried out by a specialist.

USER MANUAL SSW 18 LTX 800 BL METABO

Two Metabo miniators with ventilation grilles, one labeled 'AIR COOL EEO' and the other 'ASC 600s', shown in black (no additional text or symbols visible)

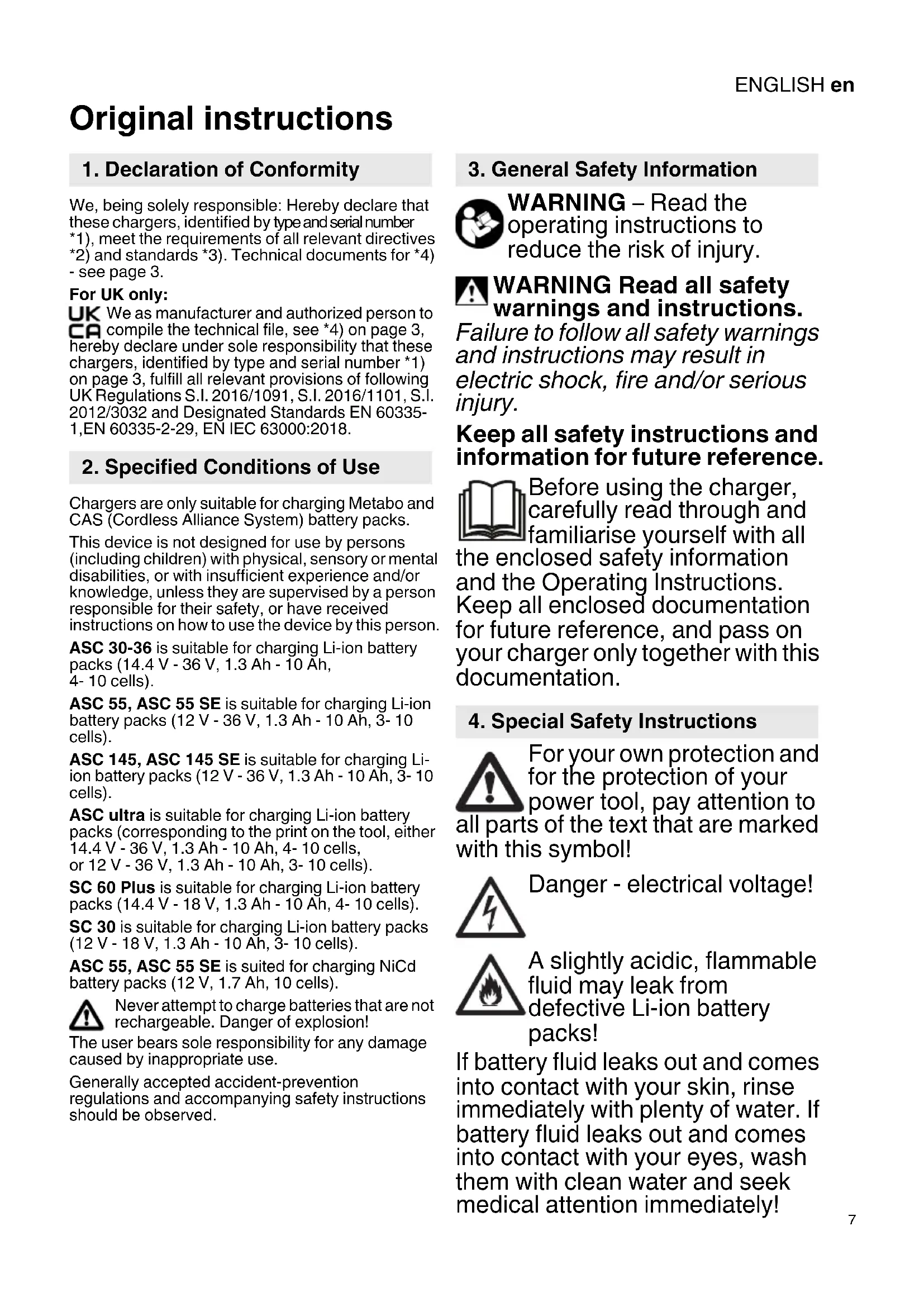

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information e Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C , the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs
C = battery pack capacity
l_C = charging current
t = charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Device of protection class II

\~ AC Power
