USER MANUAL GSE 5501 DSG Güde
Translation of the original instructions Electric generator
ENGLISH Please read the instructions carefully before starting the machine.
m = 311
m = 311 ;
5
Vc
LT
m = 311
6
1P
HB
REA
KEI
10
D
CRI
SE
仁
1
2
1 + u7 = 70%
1
m = 311
m = 311
m = 311
m = 311
1
13/14
m = 311
2 : x^ ( x) = y^ ( x) : 2 : x^ ( x) = y^ ( x) : y = x
1 + u7 = 7019
）
m = 311 ;
4
13/14
13/14
1
13/14
m = 311
1
D
12
VC
UT
2 : x^ ( x) = 10 , x^ = - 4.
12/14
1
2
1.
5
G
12/14
3
例
G
m = 311 ;
| CZ SK PL HU ES | | | |
| 1 | Pojistka proti nizkému stavu oleje | Pojistka proti nedostatku oleja | Zabepieczenie przybrakiem oleju | Figelmeztetés olajfogyára | Protección contra falta de aceite |
| 2 | Zámek zapalovani Zámok zapalovania Wymićznik zaplonu Gzyjústkapoló Cerradura de ignicón |
| 3 | Ukazatel napěti Zobrazenie napătia Wskaźnik napięcía Feszült ségólźes Pantalla de voltaje |
| 4 | Jiastěni 400 V vystup | Pojistka 400 V vystup | Zabepieczenie 400 W - wyjscie | Biztositěk, 400 V-os kimenet | Fusible 400V salutea |
| 5 | Volba 230V - 400V | Vyber 230V - 400V | Wybor 230V - 400V | 230-400V kivalasztása | Selección 230V - 400V |
| 6 | Jiastěni 230 V vystup | Pojistka 230V vystup | Zabepieczenie 230W - wyjscie | Biztositěk, 230 V-os kimenet | Fusible 230V salutea |
| 7 | Dekomprese | Dekomprese | Dekompresja | Dekompresszión | Descompresión |
| 8 | Zasuvka 2 x 230V | 2 x 230V zasuvka | 2 x 230V gniadzkow wtykowe | 2 x 230V-os dugaszolopalzat | Enchufe de 400V |
| 9 | Zasuvka 400V | 400V zasuvka | 400V gniadzkow wtykowe | 400V-os dugaszolopalzat | 2 x toma de corriente 230V |
| 10 | Jiastěni 12 V vystup | Pojistka 12V vystup | Zabepieczenie 12V - wyjscie | Biztositěk, 12 V-os kimenet | Fusible 12V salutea |
| 11 | Pripojka 12V | Pripojenie 12V | Podlączenie 12V | 12V-os csatlakozás | Conexión 12V |
| 12 | Ohřev motoru | Zahrievanie motora | Silnik - ogrzewanie | Fūtés motorja | Calentamentiro motor |
| 13 | Před použitim uzemněte | Pred použivaním uzemnite | Uziemić przyduziem | Hasznalat elott fódelje le | Conexión a tierra motor |
3
4
5
6
400V
230V
12V
STOP
4
第
1
2
3
4
5
4
第
6
7
8
野
1
2
10 min
START + STOP
3
2-3x
START + STOP

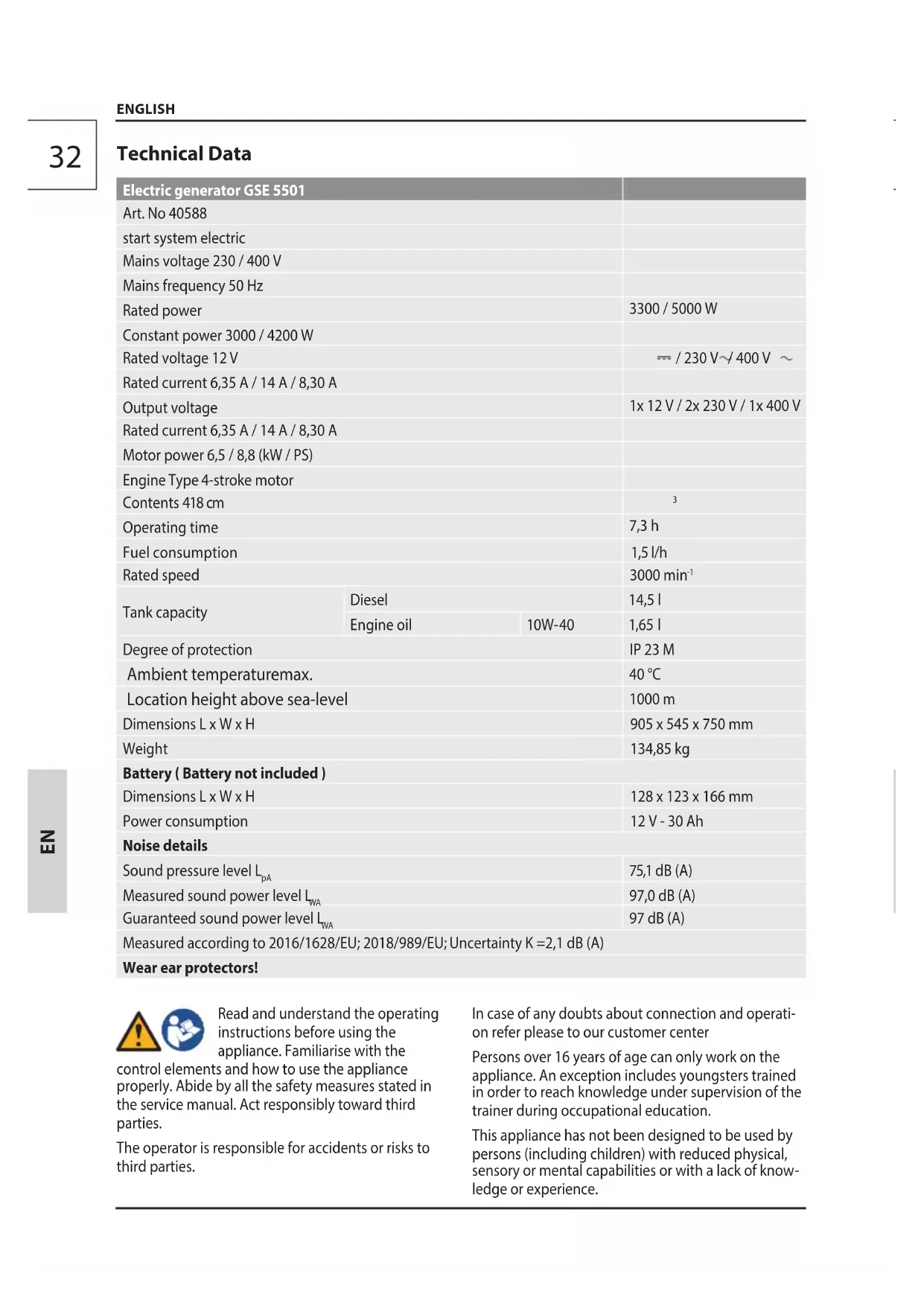

Technische Daten
| Electric generator GSE 5501 | |
| Art. No 40588 | |
| start system electric | |
| Mains voltage 230 / 400 V | |
| Mains frequency 50 Hz | |
| Rated power | 3300 / 5000 W |
| Constant power 3000 / 4200 W | |
| Rated voltage 12 V | = / 230 V~/ 400 V ~ |
| Rated current 6,35 A / 14 A / 8,30 A | |
| Output voltage | 1x 12 V / 2x 230 V / 1x 400 V |
| Rated current 6,35 A / 14 A / 8,30 A | |
| Motor power 6,5 / 8,8 (kW / PS) | |
| Engine Type 4-stroke motor | |
| Contents 418 cm | 3 |
| Operating time | 7,3 h |
| Fuel consumption | 1,5 l/h |
| Rated speed | 3000 min-1 |
| Tank capacity | Diesel | 14,5 l |
| Engine oil | 10W-40 | 1,65 l |
| Degree of protection | IP 23 M |
| Ambient temperaturemax. | 40 °C |
| Location height above sea-level | 1000 m |
| Dimensions L x W x H | 905 x 545 x 750 mm |
| Weight | 134,85 kg |
| Battery ( Battery not included ) | |
| Dimensions L x W x H | 128 x 123 x 166 mm |
| Power consumption | 12 V - 30 Ah |
| Noise details | |
| Sound pressure level LpA | 75,1 dB (A) |
| Measured sound power level LwA | 97,0 dB (A) |
| Guaranteed sound power level LwA | 97 dB (A) |
| Measured according to 2016/1628/EU; 2018/989/EU; Uncertainty K =2,1 dB (A) |
| Wear ear protectors! |
Read and understand the operating instructions before using the appliance. Familiarise with the
control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.
The operator is responsible for accidents or risks to third parties.
In case of any doubts about connection and operation refer please to our customer center
Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.
This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.
Children must be supervised in order not to play with the machine.
Specified Conditions of Use
This power unit has solely been designed for the operation of electrical equipment with a maximum power within the power unit performance data. Higher starting current of induction appliances must be considered.
The unit has been designed for operation of common effective and induction appliances such as light chains, electric hand tools (drills, electric chain saws, compressors).
When connected to a stationary device such as heating, electrical power, air conditioning equipment or for the supply of mobile homes, it is necessary to contact a professional electrician and heating manufacturer as far as connection and grounding is concerned.
Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.
Protective equipment, "Protective separation with potential balancing" is provided and integrated by the producer.
To be able to discharge static charges, the housing must be grounded.
Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.
The machine may only be used in a technically perfect condition and taking into account all safety information.
Residual Risk
Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.
Risk of fire!
Never operate the unit near highly flammable materials.
Fuel is highly flammable.
Keep the fuel in suitable containers only.
The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.
Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.
After use, let the unit cool down for at least 10 minutes before refuelling.
Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started.
Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated..
Replace all fuel tank and container caps securely.
Fuel tank to be emptied outdoors only.
Risk of poisoning!
Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!
Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.
Danger of burns!
Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.
Contacting hot parts of the unit may cause burns. Do not touch any hot parts, e.g. engine and muffler.
Let the unit cool down after its operation is over.
Risk of electric shock.
Direct electrical contact may cause electric shock.
Never touch the unit with wet hands.
Hearing damage
A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!
Emergency procedure
Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)
Connection, installation and operation
AVR
AVR Automatic voltage control makes sure the unit voltage fluctuation is within the values guaranteed by the power plant.
Caution: Before using the product it is essential to check whether the appliance is suitable to be operated with the unit. Specifications of the appliance must always match the details and safety instructions of the unit.
As far as electronically controlled equipment is concerned, it is necessary to ask in advance for information from the producer (HIFI, PC, TV, cameras, electronic hand equipment with continuous control or e.g. chargers) as the electric generator does not produce perfect sinusoid (due to the combustion engine).
Due to possible voltage fluctuation, we recommend not connecting any electronic equipment such as HiFi appliances or TV and PC as they could get damaged! Do not connect the appliance before the unit is running at full speed. Disconnect the appliance before turning the unit off.
Never connect another appliance when there is one being operated. This would inevitably lead to fluctuations able to destroy electronically controlled equipment.
The electric energy consumption is the critical point of an induction appliance ehen starting. Electric energy consumption can be 3-5 times higher than the rated power that must necessarily be considered.
WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
Keep children and bystanders away while operating a power tool. Minimum safe distance is 5m
Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.
Wear personal protective equipment.
Never plug 2 units at the same time.
No change can be made in respect of engine and unit setting.
It is strictly prohibited to disassemble, modify and purposely remove the protective equipment on the unit and fit other protective equipment instead.
The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.
Fuel is highly flammable. Refuel the engine only when switched off. The appliance may only be refuelled outdoors and not near open fire or burning cigarettes. Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated..
Oil products must not come into contact with skin, eyes and clothing.
Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler. Contacting hot parts of the unit may cause burns. Pay attention to the warnings on the advice.
Exhaust gases, fuel and lubricants are toxic. Do not operate the unit in closed spaces where dangers carbon monoxide gases may accumulate.
When operating the generator in rooms with good ventilation, the exhaust gases must be channeled directly outdoors through an exhaust hose.
WARNING! Toxic exhaust gases can escape despite the exhaust hose. Due to the fire hazard, never direct the exhaust hose towards inflammable materials.
Electrical safety
Check the device and its electrical components (including cables and plug connections) before use to make sure that there are no defects present.
The power generator may not be connected to other power sources, such as the power supply of the public grid. In specific cases, where a back-up connection to existing electrical systems is provided for, this may be done only by a qualified electrician, who takes into account the differences between the equipment operated on the public grid and the operation of the power generator.
Do not connect the unit with other energy sources.
Do not connect the unit to home network.
Electric supply cables and connected equipment must be in perfect condition.
Protection against electrical shock depends on circuit breakers specially matched to the generating set. If the circuit breakers require replacement they must be replaced with a circuit breaker having identical ratings and performance characteristics.
Due to the high mechanical loads, use only hardwearing rubber-cased cables (according to IEC 60245-4) or equivalent.
Extension cables (H07RN...) approved to be used outdoors and properly marked to be used outdoors only.
The resistance value of 1.5 may not be exceeded if extension cables or portable distributor systems are used.
When using extension cables, their total length may not exceed 50m in respect of 1.5mm2 and 100m in respect of 2.5mm2
Protective equipment, "Protective separation with potential balancing" is provided and integrated by the producer.
To be able to discharge static charges, the housing must be grounded.
WARNING! Local regulations for electrical safety must be observed
WARNING! When resupplying a facility, observe requirements and precautions with respect to the safety measures of this facility and the applicable guidelines.
Before start-up
Safe operation requires sufficient operator knowledge of the functions and positions of the controls and indicators or meters. Pay attention to the illustrated pages in the front section of the manual.
The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.
The unit may only be operated in the operating position (flat surface) as fuel or oil may leak or lubrication will no longer be provided.
Starting the engine
The unit is protected against low oil level. When the oil level is too low, the unit cannot be started (oil indicator turns on in case of attempted starting).
WARNING: When starting with the reserve starter, the motor may recoil suddenly as it starts up, resulting in hand injuries. Wear gloves!
Operation
Generating sets may only be loaded up to their rated power under the rated ambient conditions.
The equipment must not get exposed to moisture or dust. The allowed ambient temperature is from -10^ to +40^ , height: 1,000 m above the sea level, relative air humidity: 90% (non-condensing) If these values are not kept, power losses may result.
engine protection
The generator is fitted with an overload cut-out. This isolates the relevant sockets if an overload occurs. Important. If this happens, reduce the electric power you are taking from the generator or remove any defective connected appliances.
Always place the unit on a firm and flat surface! No turning or tilting or moving during operation.
The unit must never be uncovered.
Turn the unit immediately off in the following cases:
- When the engine is running restlessly or unstably
- When the electrical power output has decreased
- When the connected appliance gets overheated
- Excessive vibrations of the unit
- Sparking
- When there is smoke or fire
Abnormal vibrations or noise
- When the engine seems to be overloaded or is about to fail
Transport and storage
Secure the device against shifting and toppling during transport.
Take care to prevent from fuel and oil leakage during transport.
Handling equipment to be used only when handling the machine.
Machine to be stored in a dry place.
Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.
Symbols
Caution!
Warning against hot surfaces!
Danger of burns!
Warning against dangerous electric voltage
Read the operating instructions to reduce the risk of injury.
Wear ear protectors!
Wear eye protective goggles!
Ground before use
Wear ear protectors!
Switch the engine off before any work on the engine.
Risk of explosion!
Refuel the engine only when switched off.
Risk of poisoning!
Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.
Prohibited smoking and open fire using.
Keep dry at all times. Never expose tool to rain.
Always keep children and unauthorised persons out of reach of the appliance.
AC Current
Direct Current
Any damaged or disposed devices must be delivered to appropriate collection centres.
Dispose of old oil in an environmentally friendly manner.
Make sure the oil products do not enter the soil.
CE marking
Maintenance
Switch the engine off before any work on the engine. Wait until the unit has cooled down.
Carry out a visual inspection before switching the appliance on.
When the tank is fully drained through consumption of the tank contents, please contact a specialist workshop or service station to have the diesel engine vented
Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately.
Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!
Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.
Repairs and works specified in these Instructions may only be performed by qualified authorised staff.
Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.
If necessary, a list of spare parts can be found at www.guide.com.
Disposal
Any damaged or disposed devices must be delivered to appropriate collection centres.
Batteries, oil, diesel and similar substances may not be released into the environment
Make sure the oil products do not enter the soil.
Flat batteries must not be disposed of with household waste. Care for the environment and take them to the collection points provided in accordance with national or local regulations.
Guarantee
Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.
The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.
The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.
Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.
Service
Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.
Tel.: +49 (0) 79 04 / 700-360
Fax: +49 (0) 79 04 / 700-51999
E-Mail: support@ts.guide.com
Inspection and maintenance plan
Repairs and works specified in these Instructions may only be performed by qualified authorised staff. Use only original accessories and original spare parts.
| Regular servicing period Before any | start-up | After 1 month | After 3 months or 50 hours of operation | After 6 months | After 12 months |
| Engine oil(10W-40) | Inspection | ✓ | | | | |
| Change | | ✓ | | ✓ | |
| Diesel hoseExhaust systemCable starter | Inspection | ✓ | | | | |
| Air filter | Clean | | | ✓ | | |
| Change | | | ✓ | ✓ | |
| Diesel filter Clean | | | | | ✓ | |
| Battery Inspection | | | | ✓ | | |
Tip: To ensure reliable operation of the electric generator, we strongly recommend using fuel additives and performing 2-3 test operations after a longer time of not using the unit.
Failure removal
| Failures | Causes | Removal |
| The motor does not start. | Lack of fuel Add some fuel | |
| Bad fuel, Storage without emptying the diesel tank | Empty fuel tank and carburettor . Fill with diesel |
| Little oil in the engine Add oil | |
| Unit is not in a horizontal position. Lack of oil being signalled | Place the unit in a horizontal position |
| Engine running irregularly | Air in the fuel line Vent generators | |
| Wrong fuel (propellant) Make sure proper fuel has been used. | |
| Unit not producing any current. | Short circuit | An error that you can remove yourself. Contact the GÜDE service centre. |
| Broken cable |
| Loose cable |
| Engine stopping. | The Starting current is too big. | Reduce the appliance |
| Too long cable Shorten the cable | |
| E-starting not working. | Empty or defective battery Charge or replace the battery | |
\section*{Caracteristiques techniques}
We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.
In case of any change to the appliance not discussed with us the
Declaration expires.
