USER MANUAL Easy Slice FS1W120 WILFA

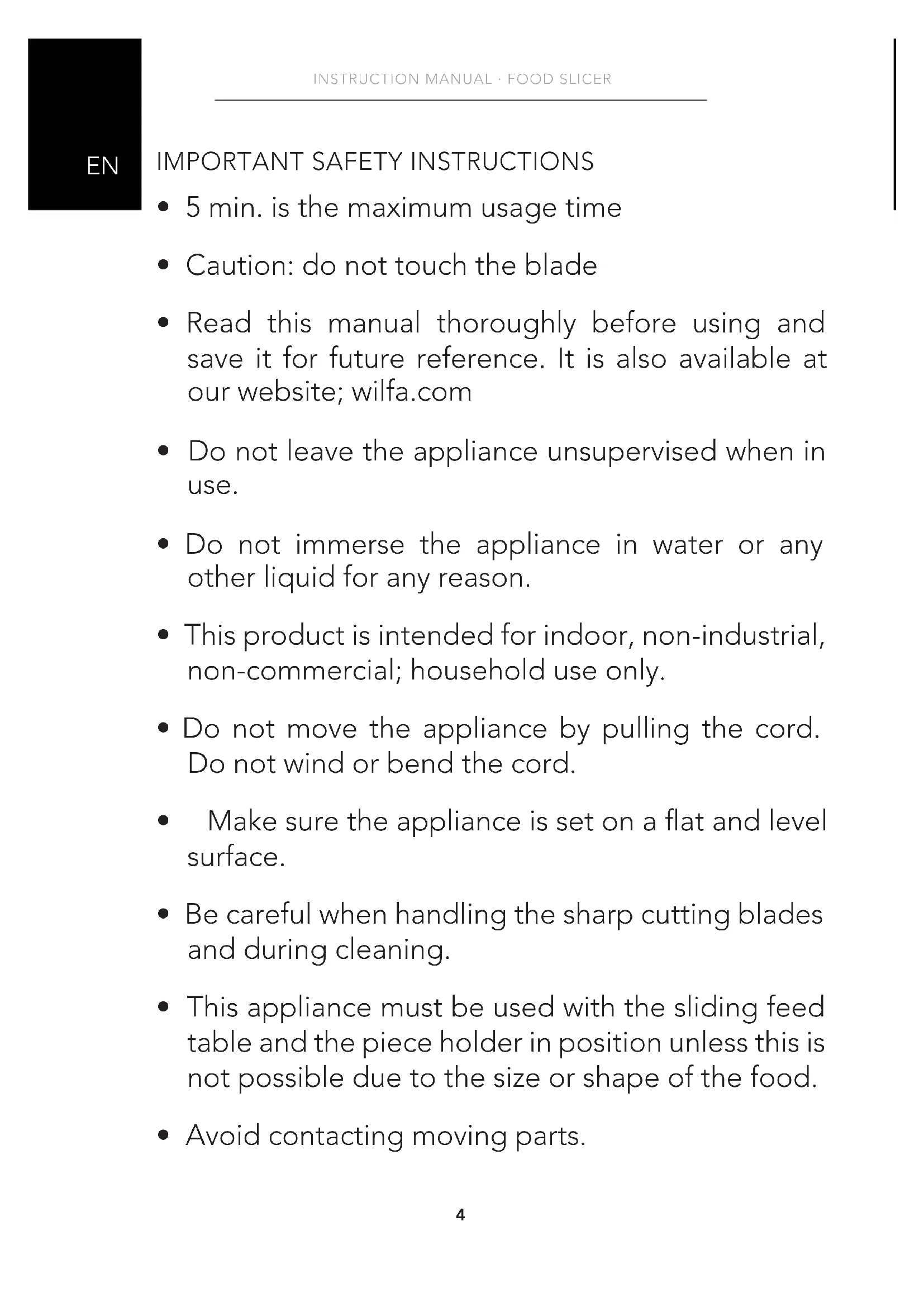

IMPORTANT SAFETY INSTRUCTIONS

• 5 min. is the maximum usage time
• Caution: do not touch the blade
• Read this manual thoroughly before using and save it for future reference. It is also available at our website; wilfa.com
• Do not leave the appliance unsupervised when in use.
• Do not immerse the appliance in water or any other liquid for any reason.
• This product is intended for indoor, non-industrial, non-commercial; household use only.
• Do not move the appliance by pulling the cord.
  Do not wind or bend the cord.
• Make sure the appliance is set on a flat and level surface.
• Be careful when handling the sharp cutting blades and during cleaning.
• This appliance must be used with the sliding feed table and the piece holder in position unless this is not possible due to the size or shape of the food.

• Avoid contacting moving parts.

• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions or is dropped or damaged in any manner.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling, or cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
• Operate this product only as specified in this manual described and observe all safety instructions. Misuse can cause injury.

SAFETY PRECAUTIONS FOR YOUR FOOD SLICER

• Only cut articles such as cheese, (boned) meat, and bread. Never cut frozen food.
• Never cut food only by using your hands. Always use the slide and its food pusher.

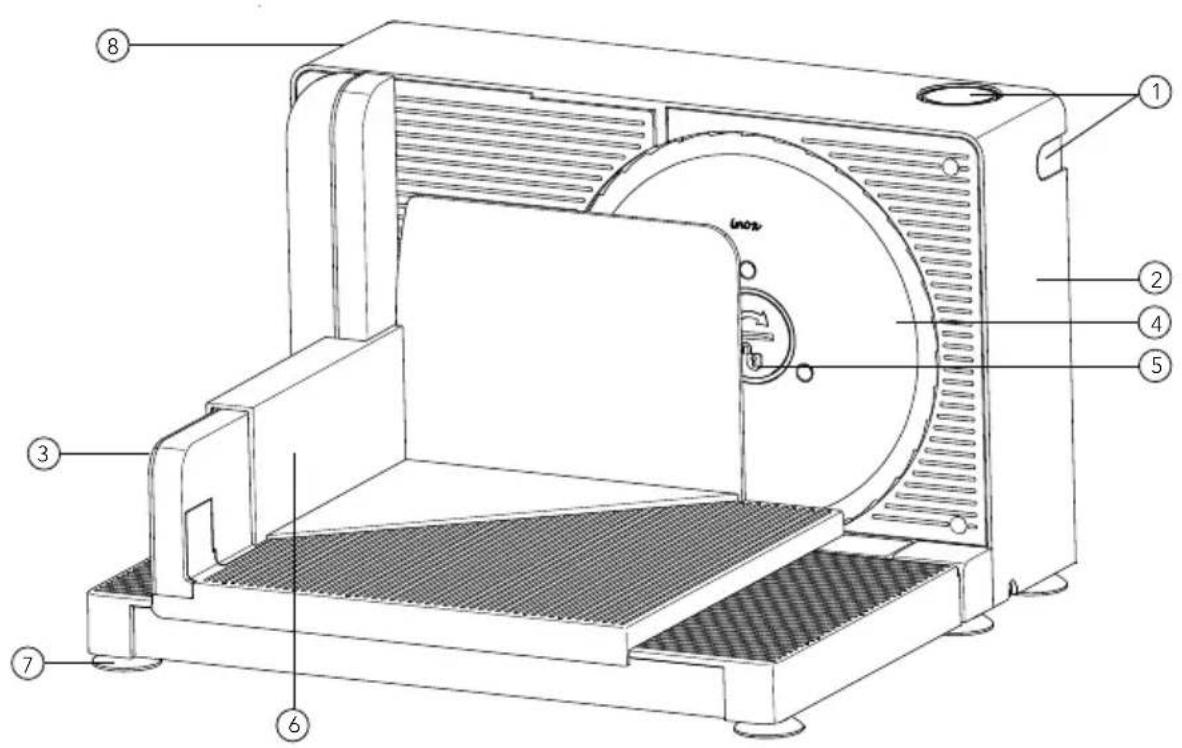

PRODUCT OVERVIEW

EN

1. On/off switch
2. Carriage
3. Support wing
4. Blade
5. Blade fixing screw
6. Food pusher
7. Feet with suction cup
8. Adjustment knob for slice thickness

ASSEMBLY

Carriage assembly, step 1: Align pins and slots (front and back), see arrows.

Carriage assembly, step 2: Push thumb guard straight down to lock in place.

Fold flat for storage, step 1: Raise thumb guard so that tall pin is out of the slot, see arrows.

Fold flat for storage, step 2: Fold thumb guard to right.

Fold flat for storage, step 3: Push thumb guard down onto carriage surface.

USE

1. Place your food slicer on a stable and flat surface.
2. Adjust the slice thickness as desired by turning the handle to the appropriate position.
3. Place the food on the carriage. For the best performance, move the carriage backwards and forwards smoothly and do not press the meat too hard against the blade. The duration of your forwards/cutting stroke should be 2-3 seconds. The duration of your backwards stroke should be about as long as the duration of your forwards/cutting stroke, at least three seconds or longer.
4. When using the slicer, always hold the food against the sliding carriage. Use the food pusher to hold the food against the blade. To ensure perfect slicing, do not press the food against the blade too firmly.
5. The slicer incorporates a "safety" feature. The On/Off button is on the top; turn the slicer on by pressing the button. But the button can only be pressed when the safety feature, on the side of the slicer with a padlock icon, is pressed in. With the slicer in front of you, the safety feature can be pressed with one finger, and the On/Off button on the top can be pressed with your thumb.
6. This food slicer has been designed to operate for short periods of time (max. 5 min.).

CLEANING AND MAINTENANCE

• Always unplug the device and turn the slice thickness adjustment knob to the zero position before cleaning. NEVER IMMERSE THE UNIT IN WATER, as this would damage the electrical components.
• Wipe the inside and outside of the appliance with paper towel or damp cloth. The appliance should not be washed in a dishwasher.
• Dry all parts well before putting away for storage.

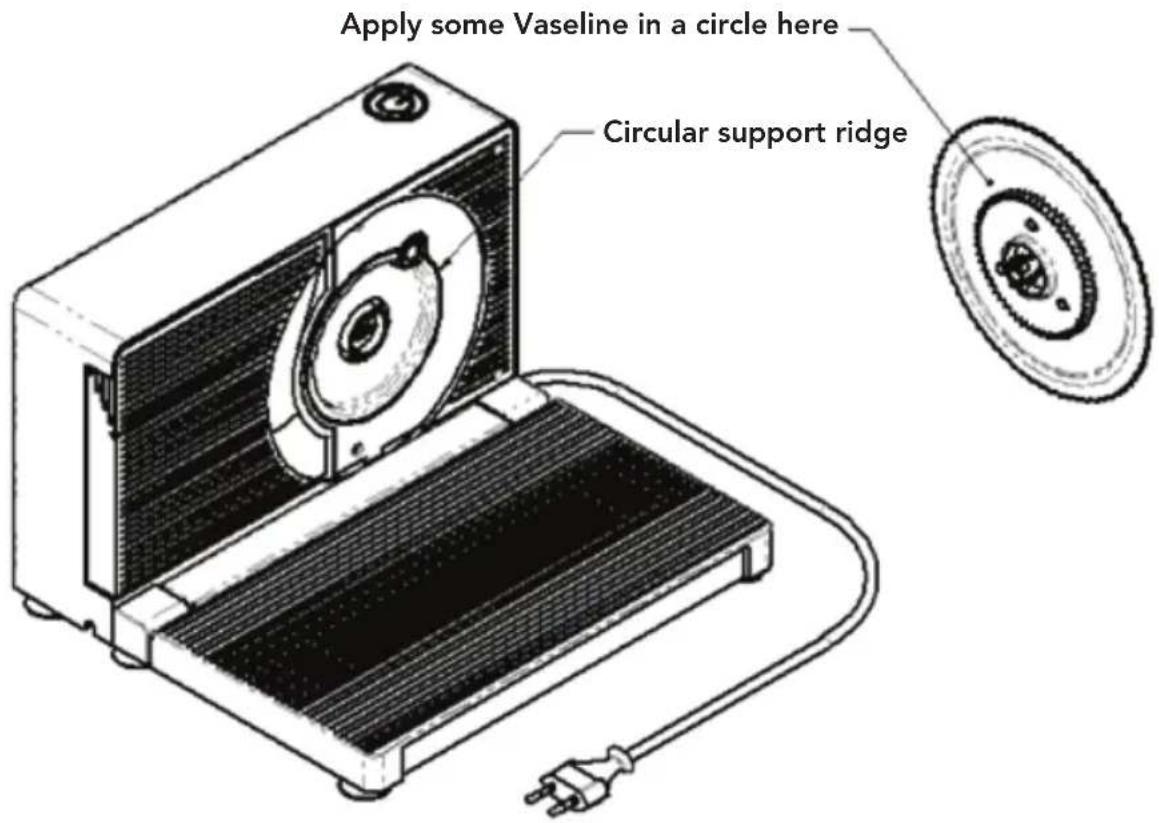

After cleaning, it is advised to apply some petroleum jelly (such as Vaseline) to the back of the blade, in a circle where it contacts the circular support ridge. See illustration on next page. For removing the blade, twist clockwise and carefully lift and remove blade.

TROUBLESHOOTING

Problem Possible reasons Solutions

Food slicer does not start	Power cord is not plugged in	Plug into power socket
	Both buttons are not pressed simultaneously	Press the button on the side with one finger, and the button on the top with your thumb
The blade does not rotate properly	The blade is loose	Tighten the blade properly
	The blade is in too much friction	Apply some petroleum jelly (such as Vaseline) to the back of the blade

EN

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down
- Parts you can expect being replaced regularly (e.g. filter, battery etc.)

Instructions manual is also available at our website wilfa.com

PRODUCT SPECIFICATIONS

230V～50Hz 120W

Rated working time: 5 min

EN

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.
