Curly SL-1S - Slicer WILFA - Free user manual and instructions

Product Type	Slicer
Brand	Wilfa
Model	Curly SL-1S
Dimensions (approx.)	36 x 23 x 28 cm
Weight	4 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	150 W
Blade Material	Stainless steel
Blade Diameter	170 mm
Maximum Slice Thickness	15 mm
Thickness Adjustment	Continuous, 0-15 mm
Carriage Travel	200 mm
Food Holder	Removable food pusher
Safety Features	Safety lock, non-slip feet, blade guard
Housing Material	Plastic (ABS)
Cleaning	Detachable blade for easy cleaning
Dishwasher Safe Parts	Food pusher and carriage
Included Accessories	Slicer, food pusher, instruction manual
Repairability	Spare parts available from Wilfa service
Warranty	2 years

Frequently Asked Questions - Curly SL-1S WILFA

How do I clean the Curly SL-1S slicer?

First unplug the device. Remove the blade by pressing the release button. Wash the blade, carriage, and food pusher in warm soapy water. Wipe the housing with a damp cloth. All removable parts are dishwasher safe.

What is the maximum slice thickness?

The maximum slice thickness is 15 mm, adjustable continuously via the knob on the side.

Is the blade sharp? Can I sharpen it?

The blade is pre-sharpened and durable. For sharpening, it is recommended to have it done by a professional or replace the blade with an original Wilfa part. Do not attempt to sharpen yourself.

The slicer does not start. What should I check?

Ensure the power cord is plugged in and the safety lock is engaged. Check that the food carriage is pushed all the way back. If problem persists, contact Wilfa customer service.

Can I slice frozen meat?

It is not recommended to slice frozen or bone-in meat. The slicer is designed for fresh or partially thawed meat, cheese, and vegetables.

How do I adjust the slice thickness?

Turn the thickness adjustment knob located on the left side of the machine. Turn clockwise to increase thickness, counterclockwise to decrease. The scale shows the current thickness.

Is the slicer safe to use?

Yes, the Curly SL-1S includes multiple safety features: a safety lock prevents accidental start, non-slip feet keep it stable, and the blade guard protects fingers.

What is the warranty period?

The Wilfa Curly SL-1S comes with a 2-year warranty covering manufacturing defects.

Can I replace the blade myself?

Yes, replacement blades are available. Press the blade release button, remove the old blade, and insert the new one ensuring it clicks into place. Always unplug the slicer first.

Where can I find spare parts?

Spare parts such as blades, food pushers, and carriages are available from authorized Wilfa dealers or the Wilfa website. Use part numbers from the manual.

USER MANUAL Curly SL-1S WILFA

Exterior view of a modern kitchen brush unit (no text or symbols visible)

Wilfa Curly

Spiralizer

Bruksanvisning

Bruksanvisning

Operating Instructions

SL-1W, SL-1S

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

VIKTIGE SIKKERHETSINSTRUKSJONER 5

SPESIELLE SIKKERHETSINSTRUKSER FOR DETTE APPARATET ..... 6

OVERSIKT OVER DELER....7

DRIFT 8

RENGJ∅RING OG VEDLIKEHOLD 9

Close-up of a sculpted object with a curved, textured surface and a small base (no visible text or symbols)

Close-up of a pipette dispensing liquid into a glass container (no visible text or symbols)

Close-up of a white plastic mechanical component with a tapered edge and grooved side (no text or symbols visible)

Close-up of a white plastic mechanical component with a stepped edge and triangular cutout (no text or symbols visible)

Close-up of a white plastic container with a side tab and internal slots (no text or symbols visible)

Close-up of a sculpted mechanical component with textured surface (no visible text or symbols)

Close-up of a pipette dispensing liquid into a glass beaker (no visible text or symbols)

Close-up of a hand holding a transparent cylindrical object with a small container, possibly a mechanical or laboratory device (no visible text or symbols)

Close-up of a white conical mechanical component with a serrated edge (no text or symbols visible)

Close-up of a white plastic mechanical component with a stepped edge (no text or symbols visible)

Close-up of a white plastic mechanical component with a textured edge and internal grooves (no text or symbols visible)

Close-up of a sculpted object with layered texture and a small protrusion, possibly a tool or component (no visible text or symbols)

Close-up of a pipette dispensing liquid into a glass container (no visible text or symbols)

1. Tilslut strøm til apparatet, og tryk på TÆND.

2. Tryk skubberen nedad med ensartet kraft.

Close-up of a hand holding a transparent cylindrical object over a glass base (no visible text or symbols)

Close-up of a white plastic funnel-shaped object with a serrated edge and pointed tip (no text or symbols visible)

Close-up of a white plastic component with a triangular cutout and stepped edge (no text or symbols visible)

Close-up of a white plastic mechanical component with a triangular base and internal grooves (no text or symbols visible)

PUHDISTUS JA HUOLTO....9

Close-up of a mechanical component with textured surface and metallic base (no visible text or symbols)

Close-up of a pipette dispensing liquid into a glass beaker (no visible text or symbols)

Close-up of a hand holding a transparent cylindrical object with a small container inside, no visible text or symbols.

Three identical white plastic funnel-shaped objects with internal grooves, shown from different angles (no text or symbols visible)

IMPORTANT SAFETY INSTRUCTIONS ....5

SPECIAL SAFETY INSTRUCTIONS FOR THIS DEVICE ......6

OVERVIEW OF PARTS 7

OPERATION....8

CLEANING AND MAINTENANCE....9

WARRANTY....9

ENVIRONMENT FRIENDLY DISPOSAL....9

Read this booklet thoroughly before using and save it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

The stated safety precautions mentioned below should be followed when using the electrical appliance:

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• Switch off the appliance and disconnect the power cord from the outlet before changing accessories or approaching parts that move during operation.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not place or use this product on a hot plate or near a flame (gas stove).
  • To prevent accidents and damage to the

equipment, always keep hands and cutlery away from the blades and moving cones.

• Do not unplug the unit by pulling the cord, use the connector/shaft.
• This appliance is designed for private use only, and for the intended application. It is may not be used commercial purposes.

SPECIAL SAFETY INSTRUCTIONS FOR THIS DEVICE

• Do not operate the unit continuously for more than one minute.
• Do not use this machine for any other types of food than fruits and vegetables.
• Do not use this machine for chopping meat.
• Do not insert food by hand, always use the pusher.
• Do not use other accessories than provided with the appliance.

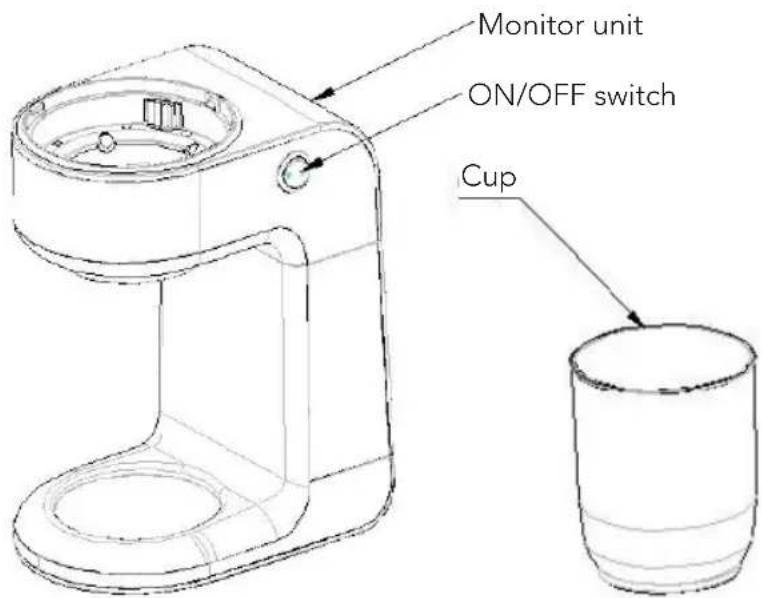

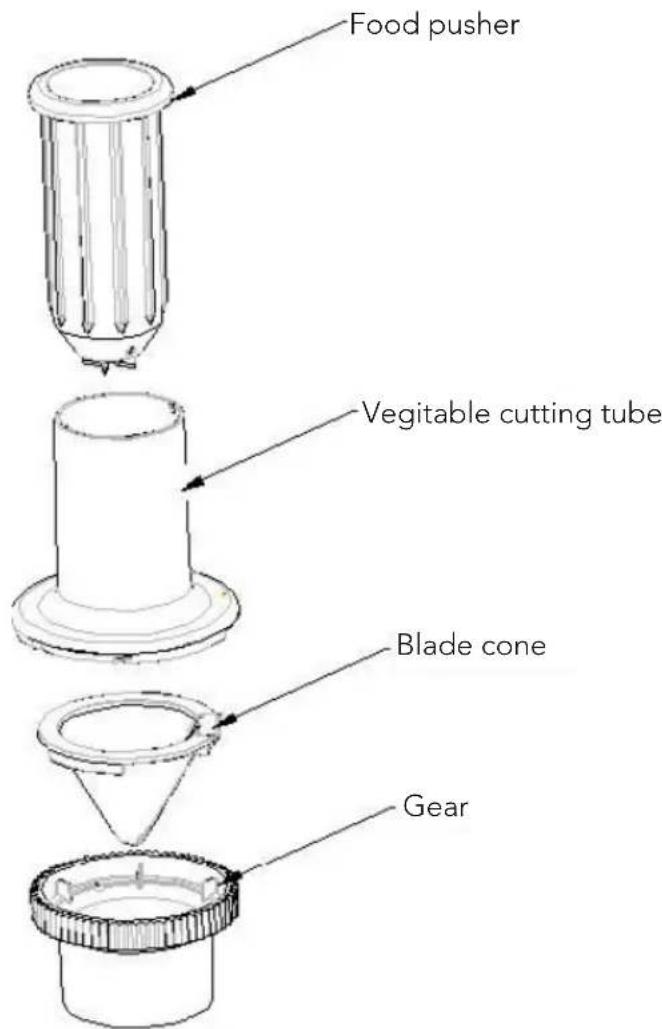

OVERVIEW OF PARTS

8

OPERATION

1. Cut the head of the food (e.g. Carrot, radish, cucumber, sweet potato, and squash);

NOTE: The food should be long-type and 30mm-60mm in diameter.

1. Attach the carrot on the tip of the food pusher and make sure it has a good grip;

Close-up of a sculpted stone or seal on a white base, no visible text or symbols

1. Place the food pusher into the cutting tube;

Close-up of a pipette dispensing liquid into a glass beaker (no visible text or symbols)

1. Connect the appliance to power and then press the switch to "ON" position;

2. Press down food pusher downwards with even force;

Close-up of a hand holding a transparent cylindrical object with a red liquid inside, mounted on a base (no visible text or symbols)

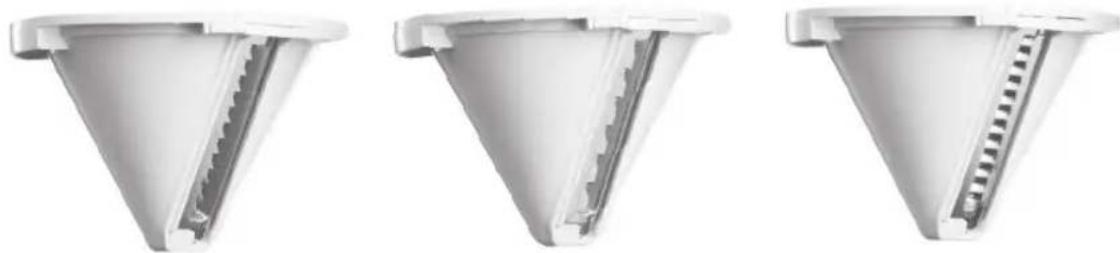

NOTE: The unit comes with a set of three different blades (chipping blade, stripping blade and circle blade). For various shapes and result.

Chipping blade Stripping blade Circle blade

Three identical white plastic funnel-shaped objects with internal grooves, shown from different angles (no text or symbols visible)

1. The processed carrot will fill up inside the container.

2. After finish operation, press the switch to "OFF" position, unplug the power cord.

CLEANING AND MAINTENANCE

1. Unplug the power cord before cleaning.

2. Disassemble all the accessories such as vegetable cutting tube, blade cone, food pusher and gear. Please clean all the accessories after each use.

Caution:

① Ensure that the motor unit is unplugged when disassembling.

② The blade is sharp, please handle carefully when cleaning.

③ To dismount the cutting tube please twist the tube in a clockwise direction.

1. Wipe the outside surface of the motor unit with a damp cloth, then drying thoroughly.

Note: Never immerse the motor unit in the water for cleaning.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
