USER MANUAL UHF200F Auna

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Technical Data 16

Intended Use 17

Device Overview and Function Keys 18

Commissioning and Operation 19

Troubleshooting 21

Disposal Considerations 23

Declaration of Conformity 23

TECHNICAL DATA

Item number 10034471, 10034472, 10034473
Receiver
Frequency range 823 - 832 MHz
Modulation model FM
SNR 90 dB
Sensitivity -90 dBm
Frequency response 40 Hz - 17 kHz
Channel interval 300 kHz
T.H.D. < 1%
Output impedance 600 Ohm
Power supply 5 V or 12 V (optional)
Power consumption < 300 mA
Microphone
Power output 10 dBm
Frequency response 40 Hz - 17 kHz
Power supply 3 V (battery)
Pocket radio transmitter
Power output 10 dBm
Frequency response 40 Hz - 16 kHz
Power supply 3 V

INTENDED USE

This device is for the transmission of speech and singing. It is solely designed and may only be used for this purpose. It may only be used in the manner described in this manual.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

The microphone system includes microphones with an integrated transmitter, which serve wireless transmission to the receiving unit. The systems operate within the UHF range (823 MHz - 832 MHz). The transmission range is 50m and depends on the local conditions. The appliance are designed for indoor use only.

DEVICE OVERVIEW AND FUNCTION KEYS

2-channel receiver

8 ⑧ ⑤ ⑦ ⑤ ⑥ ④ ③ ① ② ④
1 O n/Off 7 Display
2 VOL A 8 Antenna
3 VOL B 9 1/4" Audio connection
4 RF signal display 10 XLR output connector
5 AF signal display 11 Mains connection
6 Power indicator

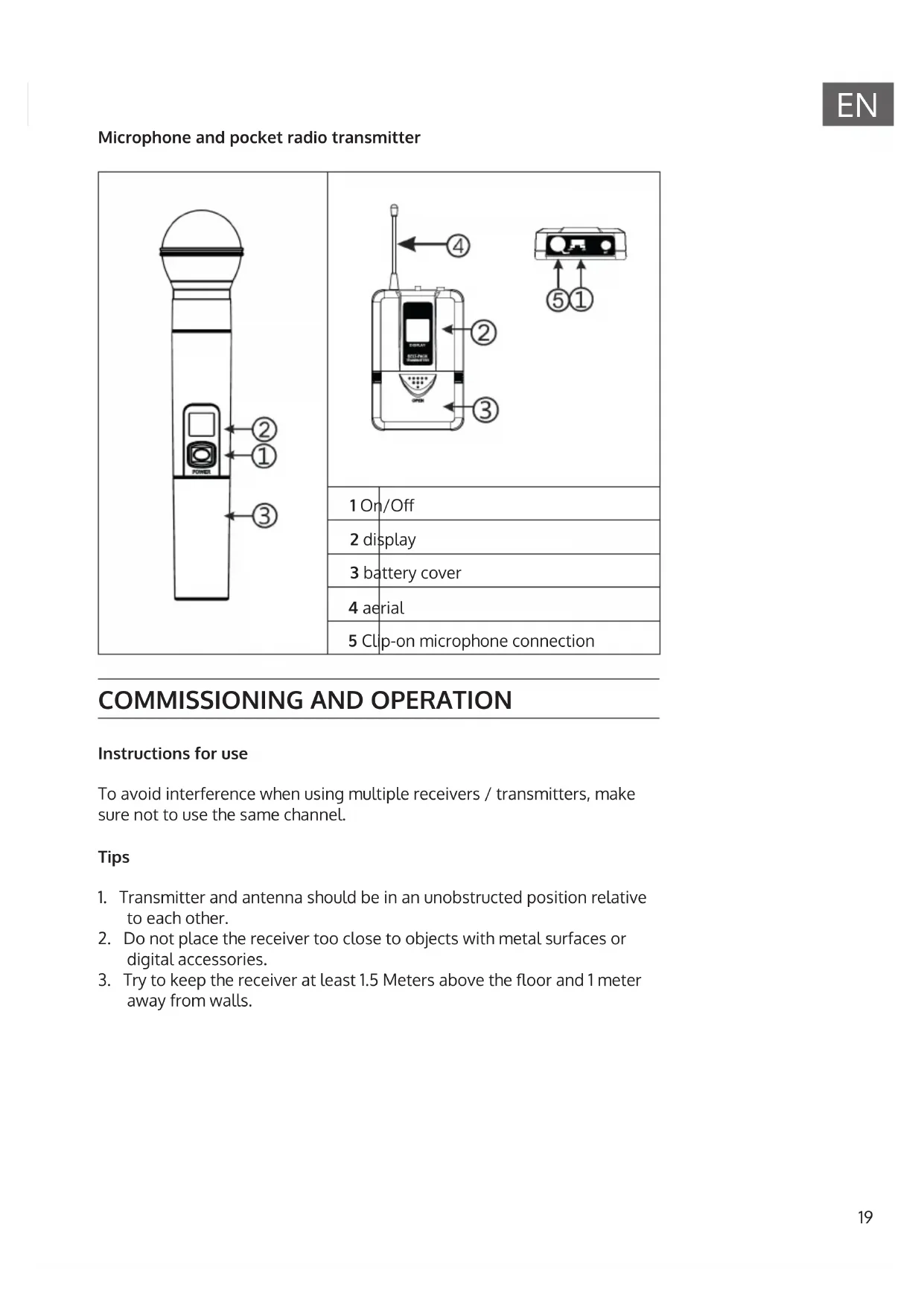

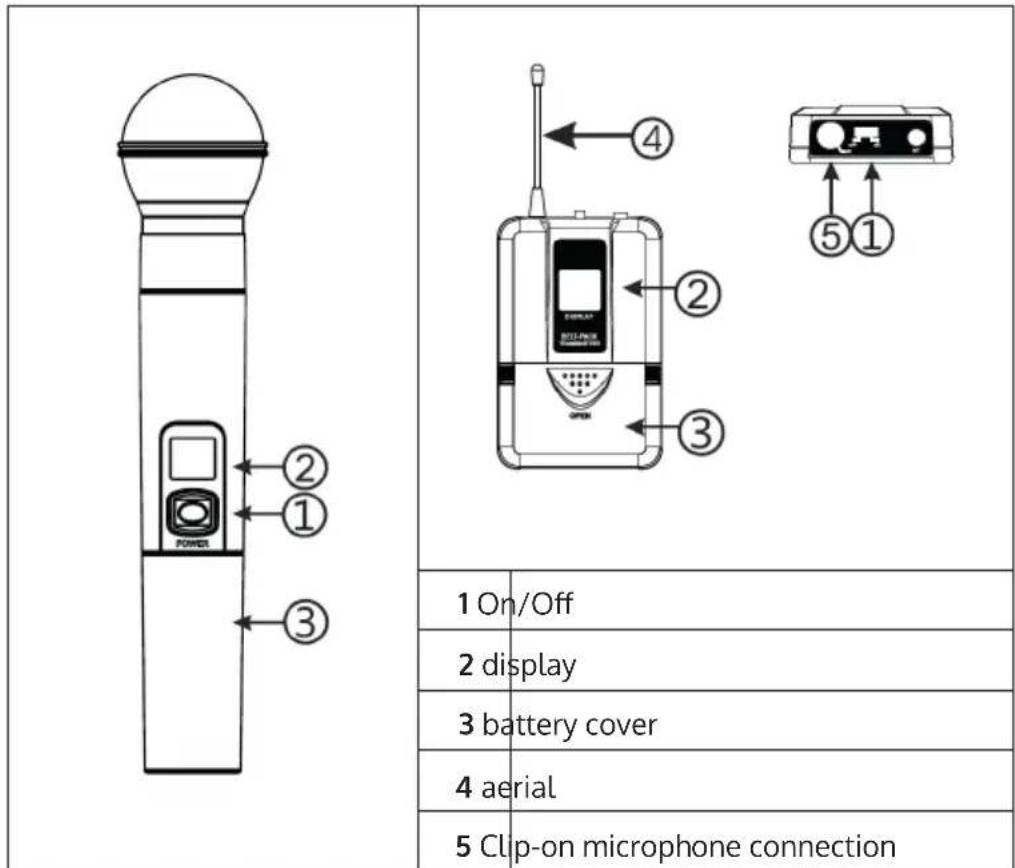

Microphone and pocket radio transmitter

COMMISSIONING AND OPERATION

Instructions for use

To avoid interference when using multiple receivers / transmitters, make sure not to use the same channel.

Tips

1. Transmitter and antenna should be in an unobstructed position relative to each other.
2. Do not place the receiver too close to objects with metal surfaces or digital accessories.
3. Try to keep the receiver at least 1.5 Meters above the floor and 1 meter away from walls.

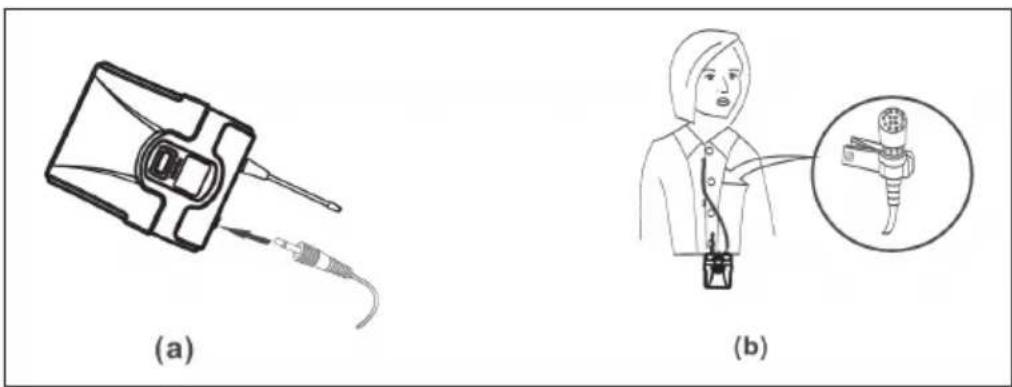

Connecting the lavalier microphone

Connect the connector of the supplied lavalier microphone to the connector of the transmitter (see illustration). Adjust the transmitter to the frequency of the corresponding microphone.

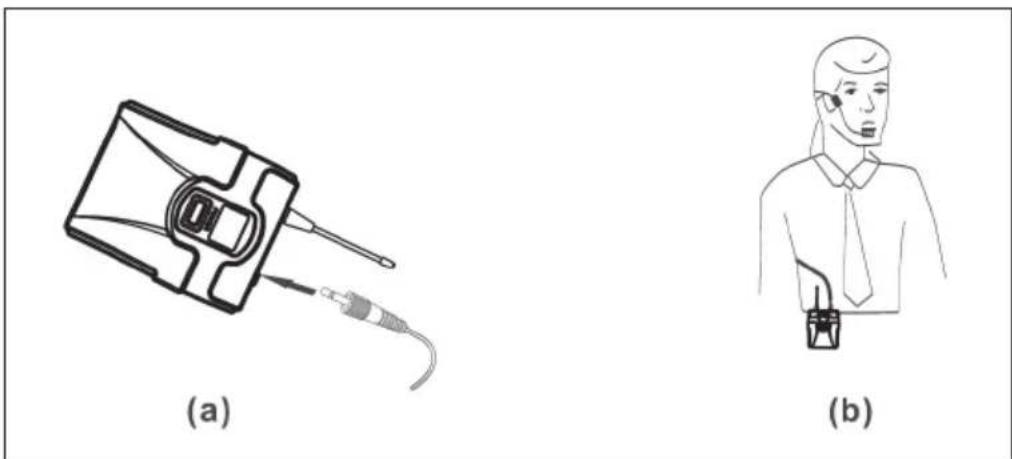

Connecting the headset

Connect the connector of the supplied headset to the connector of the transmitter (see figure). Set the transmitter to the frequency of the corresponding microphone.

TROUBLESHOOTING

Problem Possible cause	Suggested solution
No sound or weak sound.	The LC screen or LCD illumination is off.	Turn on the transmitter.
		Make sure the batteries are inserted correctly.
		Replace the batteries.
	The receiver screen or receiver light is off.	Make sure the AC adapter is plugged in and powered.
	The receiver is turned on and the RF signal indicator is lit.	Increase the volume of the receiver.
		Check the cable connections of the receiver.
	The receiver is on and no RF signal is displayed.	Place the receiver at a safe distance from metallic objects.
		Check whether there is an obstacle between the receiver and the transmitter.
Loud noises or noises can be heard.	The receiver screen or indicator light will indicate "RF Signal".	Remove nearby sources of interference.
		Replace the transmitter batteries.
		If you use many sets together, increase the working frequency interval of the system.
	The screen or power indicator blinks.	The batteries are empty, replace them.
The transmitter cannot be turned on.	Press the On/Off button and try to restart the unit.	Replace the batteries.
		After a few seconds, press the On/Off button again.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10034473
