Billy Bob - Turntable Auna - Free user manual and instructions

Brand	Auna
Model	Billy Bob
Product type	Record player (turntable)
Reference	10032836, 10032837
Power supply	220-240 V ~ 50/60 Hz
Playback speeds	33, 45, 78 rpm
Pitch control	Yes, continuous control
Auto stop	Yes, switchable (AUTO STOP)
Connectors	RCA L/R outputs, AUX 3.5mm input, Headphone jack
Bluetooth	Yes, for audio streaming from a smartphone/tablet
Built-in speakers	Yes, stereo speakers
Main functions	Vinyl playback, Bluetooth mode, AUX IN mode
Cleaning	Soft dry cloth; do not use solvents
Stylus maintenance	Soft brush; do not touch the tip
Safety	Do not open the casing; avoid moisture and heat sources
Compliance	2011/65/EU (RoHS), 2014/53/EU (RED)
Included accessories	45 RPM adapter

Frequently Asked Questions - Billy Bob Auna

How to connect my smartphone via Bluetooth?

Set the function knob to BT. The indicator flashes blue. Enable Bluetooth on your smartphone and search for "Billy Bob". Once connected, the indicator becomes solid blue. Adjust the volume on the turntable and on your smartphone.

How to play a 45 RPM record?

Place the record on the platter and use the included 45 RPM adapter. Select speed 45 with the speed selector. Gently lower the tonearm onto the record.

Why doesn't the platter spin when I move the tonearm?

Check that the AUTO STOP switch is activated. If it is OFF, the platter will only spin if manually pushed or if the tonearm is placed. Activate AUTO STOP for automatic start.

What to do if the auto stop does not work?

The auto stop works with most 33 RPM records. Some rare records may not trigger the stop. You can then deactivate the AUTO STOP switch to prevent stopping, or manually stop playback by lifting the tonearm.

How to clean the turntable stylus?

Use a soft brush to clean the stylus tip. Avoid touching the tip with your fingers. If using a cleaning fluid, apply sparingly.

Can I connect external speakers?

Yes, use the RCA L/R outputs on the back to connect an amplifier or active speakers. The turntable also has a headphone jack for private listening.

How to switch between PH, BT, and AUX modes?

Turn the function knob to the desired position: PH for vinyl playback, BT for Bluetooth, and plug an audio cable into the AUX input to automatically activate AUX IN mode. The indicator shows the active mode.

What to do if the turntable does not power on?

Check that the power cord is firmly connected to the turntable and a working wall outlet. Make sure the power switch (with volume control) is set to ON.

How to adjust the playback speed?

Use the pitch control knob to continuously adjust the speed. This allows fine-tuning the playback to your preference.

What safety precautions should be observed?

Do not open the casing to avoid electric shock. Place the turntable away from direct sunlight, moisture, and vibrations. For cleaning, use a soft dry cloth; never use chemical solvents. Do not touch the stylus with your fingers. At the end of its life, recycle the device according to local regulations.

USER MANUAL Billy Bob Auna

10032837

Hersteller:

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety Instructions 10

Product Overview 10

Start and Operation 12

Cleaning and Care 14

Hints on Disposal 14

TECHNICAL DATA

Item number 10032836, 10032837
Power supply 220-240 V ~ 50/60 Hz

DECLARATION OF CONFORMITY

10032836

10032837

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/53/EU (RED)

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10032836

SAFETY INSTRUCTIONS

1. Choose a safe location and avoid placing the unit in direct sunlight or near any heat source.

2. Avoid environments subject to vibration, excessive dust, cold or moisture

3. Due to the risk of electrical shock, do not open the cabinet. Should a foreign object accidentally find its way into the interior of the unit, contact your local dealer.

4. Do not attempt to clean the unit with chemical solvents as this might damage the finishing. A clean, dry cloth is recommended for cleaning.

5. Keep this manual for future reference.

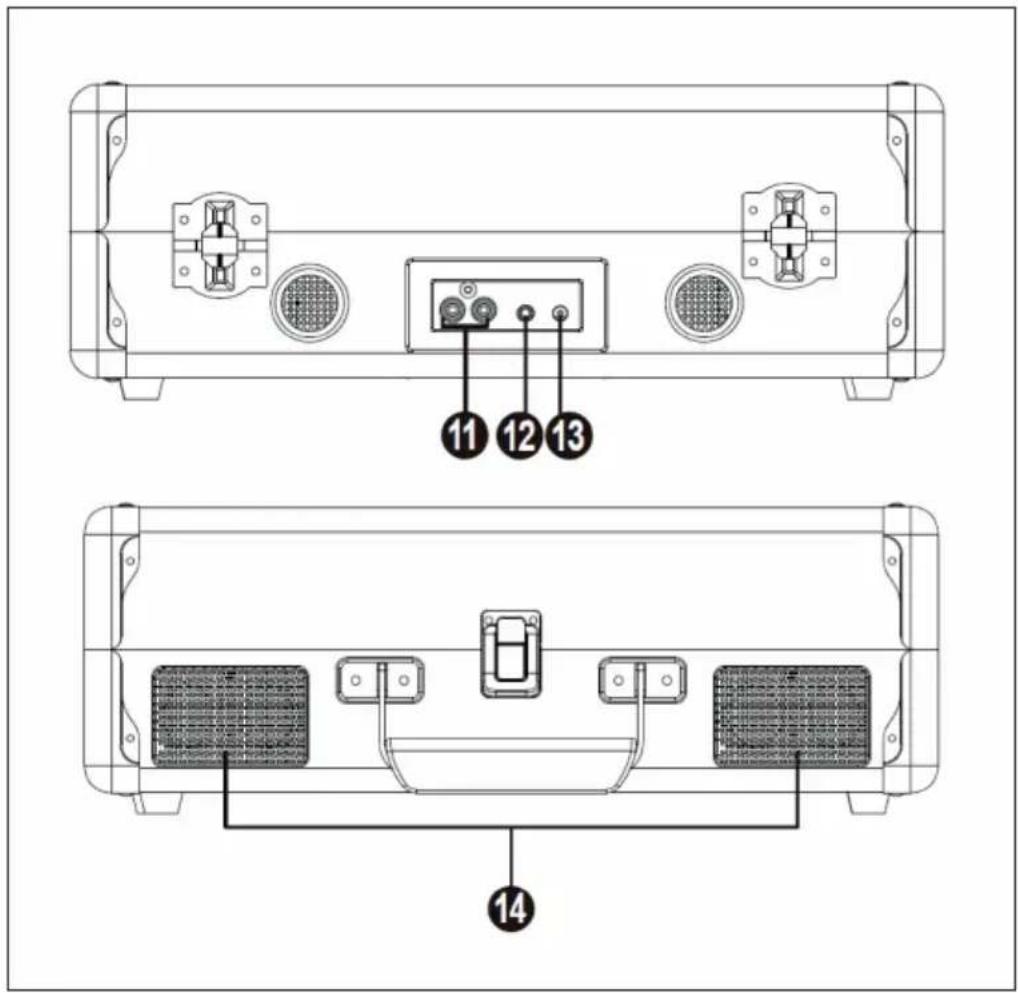

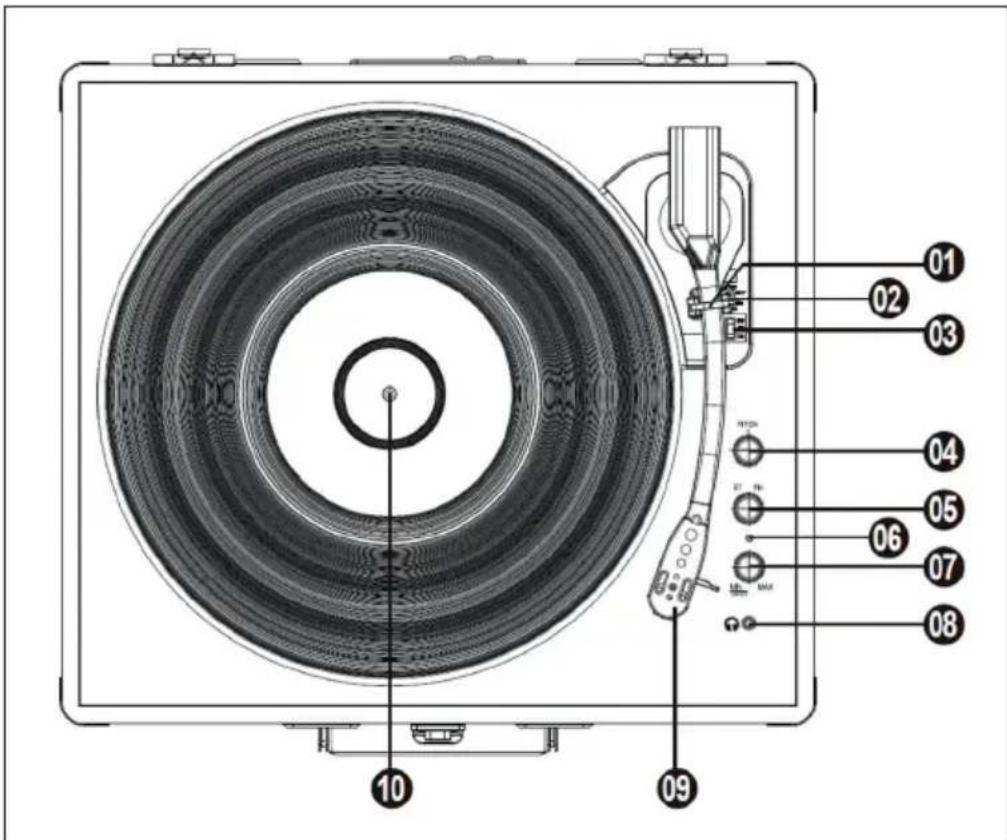

PRODUCT OVERVIEW

1	Tone-arm lock	8	Headphone jack
2	AUTO STOP on/off Switch	9	Stylus (Needle) Cartridge
3	Speed Control Selection Switch	10	Spindle
4	Pitch Control Knob	11	L/R RCA Output Jack
5	Function Knob	12	AUX IN Port
6	Indicator	13	DC IN Power Jack
7	Power Switch and Volume Control Knob	14	Speakers

START AND OPERATION

Firmly and securely insert the DC plug of the adaptor to the DC IN Jack on the back of the unit. Plug the adaptor's AC plugs into a power outlet.

Phono Mode

1. Switch the function knob to PH mode. Turn on the power switch. The indicator will become red color.

Note: During the phono mode, please make sure that the AUX IN jack was not plugged in with the audio cable. If there is an audio cable plugged in, the default mode is AUX IN.

1. Place a record on the turntable platter and select the desired speed (33/45/78) according to the record.

Note: when playing a 45RPM record, use the included 45RPM adaptor.

1. Remove the stylus protector. Open the tone-arm clip to release the tone-arm. Push the lift lever backward to raise the tone-arm and gently move the tone-arm to the desired position over the record. The turntable will begin to spin when the arm is moved toward the record. Push the lift lever forward to lower the tone-arm slowly onto the desired position on the record to begin playing the record.

Note: The record will begin to spin only when the tone-arm is moved toward the record if the Auto Stop is turned on.

1. If the Auto Stop Control Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control Switch is turned OFF, the record will NOT stop automatically when finished.

Note: AUTO STOP function applies to most 33RPM vinyl records. However, for very few vinyl records, it will stop when it does not come to the end, or it will not stop when it comes to the end when AUTO STOP is ON.

1. Turn the VOLUME CONTROL KNOB to adjust the volume.
2. Adjust the pitch control knob to adjust the speed gradually

BT Mode

1. Switch the function knob to BT. The indicator will become blue color with flashing.
2. Turn on your BT function on your mobile phone or tablet PC and then search the turntable player with its name „Billy Bob“. After pairing and connection, the indicator will become blue color without flashing, and you can play your music of your mobile phone or tablet PC on this turntable player.
3. Turn the VOLUME CONTROL KNOB to adjust the volume.
4. The mobile phone or tablet PC volume level also impact the overall volume, please adjust that as well.

Note: During the BT mode, please make sure that the AUX IN jack was not plugged in with the audio cable.

AUX IN Mode

1. At BT or PHONO mode, connect your iPod, MP3 player, mobile phones etc. to the AUX IN port with a 3.5mm audio cable (not included).
2. You can enjoy the music of iPod, MP3 player, mobile phones etc. at the turntable player.
3. Rotary the volume knob to adjust the volume.
4. The iPod, MP3 player, mobile phones volume level also impact the overall volume, please adjust that as well.

CLEANING AND CARE

1. When opening or closing the turntable cover, handle it gently.
2. Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.
3. Frequently clean the needle tip-use a soft brush in a "back-to-front" motion only.
4. If you must use a needle cleaning fluid, use very sparingly.
5. Gently wipe the turntable player housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable player.
6. Never apply harsh chemicals or solvents to any part of the turntable system.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
