USER MANUAL Peggy Sue BT Auna

INHALTSVERZEICHNIS

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 10

Product Overview 10

Buttons and Jacks 11

Start and Operation 11

Care and Maintenance 12

Disposal Considerations 14

Declaration of Conformity 14

TECHNICAL DATA

Item number 10035748, 10035749, 10	035750
Power supply 220-240 V ~ 50/60 Hz
Power adaptor	5 V DC
BT Class 2
BT frequency 2402-2480 MHz
BT radio-frequency power (max.) 2 dBm

SAFETY INSTRUCTIONS

1. Choose a safe location and avoid placing the unit in direct sunlight or near any heat source.

2. Avoid environments subject to vibration, excessive dust, cold or moisture.

3. Due to the risk of electrical shock, do not open the cabinet. Should a foreign object accidentally find its way into the interior of the unit, contact your local dealer.

4. Do not attempt to clean the unit with chemical solvents as this might damage the finishing. A clean, dry cloth is recommended for cleaning.

5. Keep this manual for future reference.

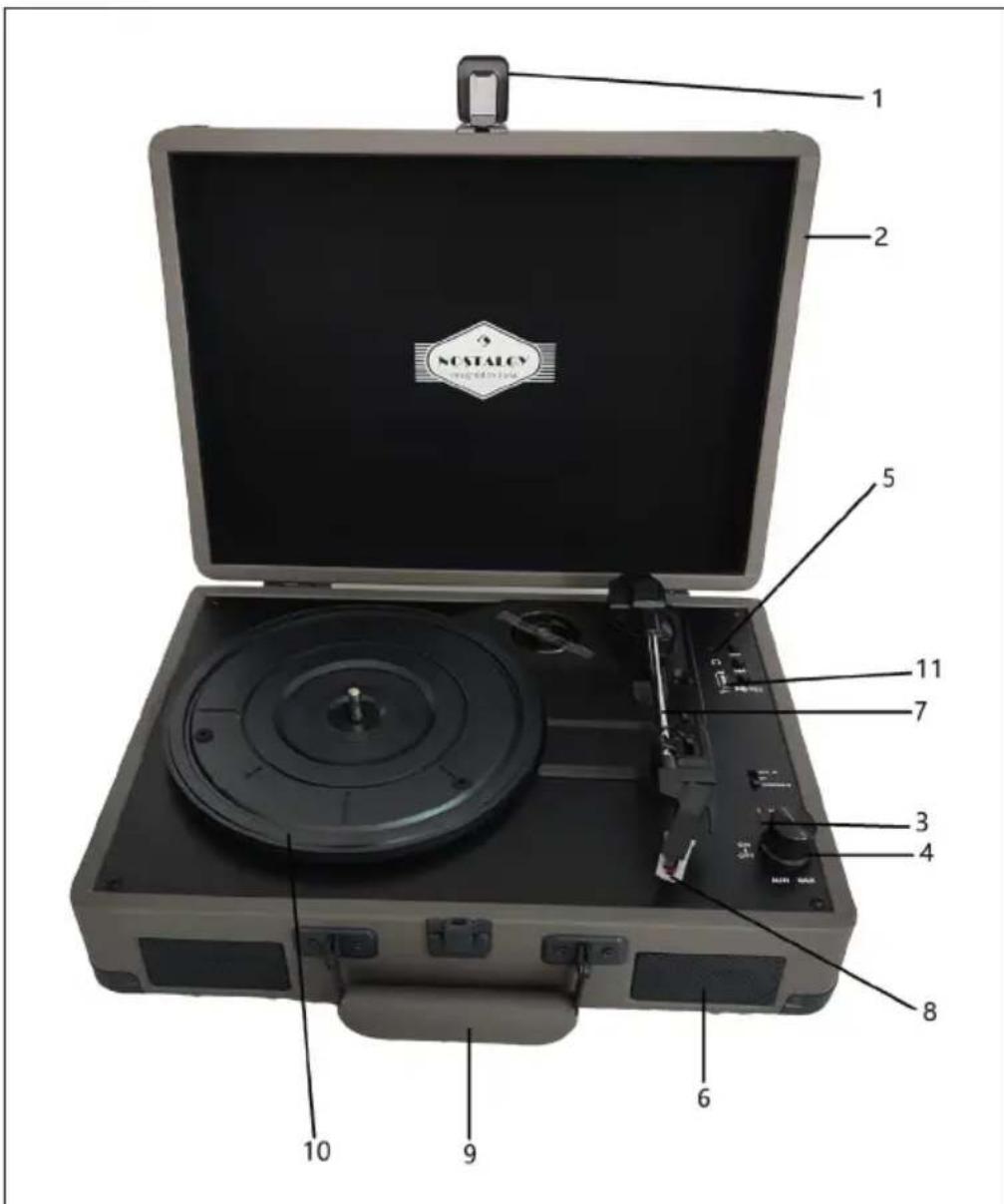

PRODUCT OVERVIEW

1 Lock catch
2 Dust cover
3 Power light
4 Volume control
5 Headphone jack
6 Speaker
7 Tone arm
8 Cartridge
9 Carrying
10 Turntable plate
11 USB connector

BUTTONS AND JACKS

12 Previous music13 Next music14 Pause / Play15 Mode / AUX IN / BT / Turntable16 AUX IN in jack17 R channel18 L channel19 DC power jack

START AND OPERATION

Mains Connection

Ensure that the mains voltage of your home corresponds to the operating voltage of the unit. Your unit is ready to be connected to a mains voltage of 9 V DC adaptor.

Amplifier Connection (optional)

Whilst you can listen to your new turntable using the built in speakers you may wish to connect it to your existing Hi Fi system. Connect the audio plugs to the Line input on your mixer or amplifier using an RCA cable (not supplied)

USB recording

1 Select the turntable mode.
2 Connect the USB memory and press the REC button twice. The BT light goes on and indicates that recording is being started.
3 To stop recording, press REC again or raise the tone arm.

USB player

Select USB mode. A beep will sound and the music will play automatically.

BT mode

Select the BT mode. A signal tone sounds and the BT lamp lights up. Open the BT device list on your smartphone and select „Jerry Lee“. As soon as the devices are successfully connected, an acoustic signal sounds.

CARE AND MAINTENANCE

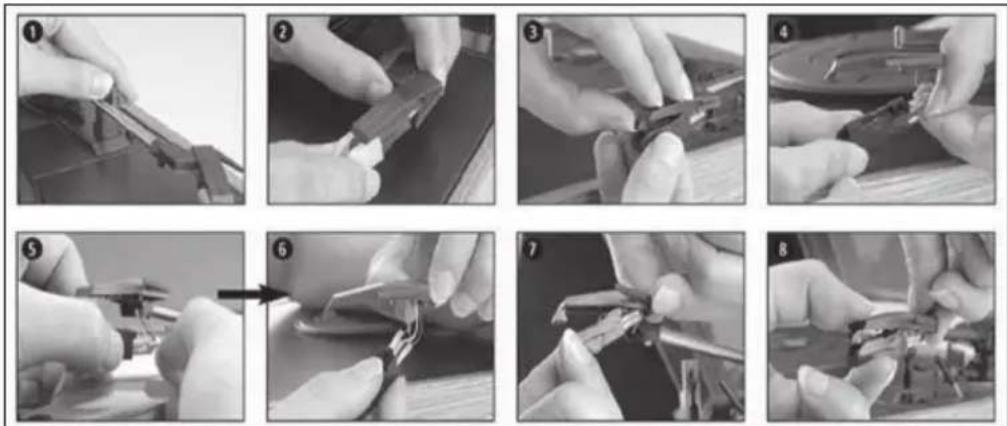

Installing a new stylus cartridge

Note: Before replacing the cartridge, turn off the unit and unplug it from the power outlet.

1 Release the tonearm lock.

2 Remove the cartridge.

3 Disconnect the cartridge from the base.

4 Remove all audio cables.

5 Now proceed in reverse order.

6 Attach the audio cables.

7 Place the new cartridge on the base.

8 Close the cartridge.

Note: Replace the cartridge with extreme care to avoid damaging the tonearm and audio cables.

Notes on cleaning and care

• When opening or closing the turntable cover, handle it gently.
• Do not touch the needle tip with your fingers; avoid bumping the needle against the turntable platter or record edge.
• Frequently clean the needle tip-use a soft brush in a "back-to-front" motion only.
• If you must use a needle cleaning fluid, use very sparingly.
• Gently wipe the turntable player housing with a soft cloth. Use only a small amount of mild detergent to clean the turntable player.
• Never apply harsh chemicals or solvents to any part of the turntable system.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: use.berlin/10035748
