USER MANUAL WK122248 Emerio

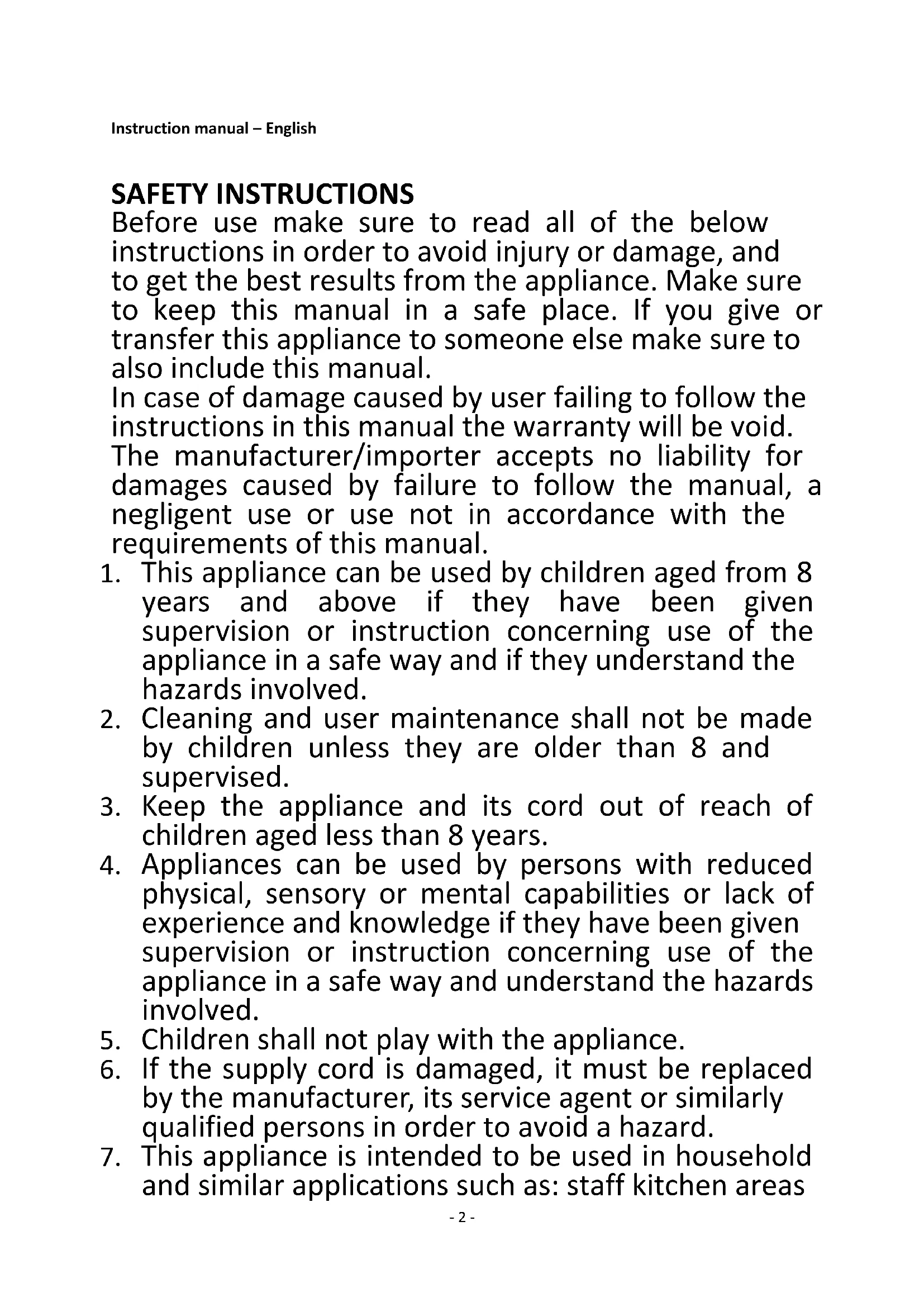

1. This appliance can be used by children aged from 8

years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

2. Cleaning and user maintenance shall not be made

by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of

children aged less than 8 years.

4. Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced

by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. This appliance is intended to be used in household

and similar applications such as: staff kitchen areas- 3 - in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

8. If the kettle is overfilled, boiling water may be

9. When cleaning, the appliance must not be

10. Regarding the instructions for cleaning the surfaces

which come in contact with food, please refer to the paragraph “CLEANING AND MAINTENANCE” of the manual.

11. Warning: Avoid spillage on the connector.

12. Warning: Potential risk of injuries from misuse.

13. The heating element surface is subject to residual

14. Before inserting the plug into the mains socket,

please check that the voltage and frequency comply with the specifications on the rating label.

15. Disconnect the mains plug from the socket when

the appliance is not in use and before cleaning.

16. Ensure that the mains cable is not hung over sharp

edges and keep it away from hot objects and open flames.

17. Do not immerse the appliance or the mains plug in

water or other liquids. There is danger to life due to electric shock!

18. To remove the plug from the plug socket, pull the

plug. Do not pull the power cord.

19. Do not touch the appliance if it falls into water.

Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

20. Do not plug or unplug the appliance from the

electrical outlet with a wet hand.

21. Never attempt to open the housing of the

appliance, or to repair the appliance yourself. This could cause electric shock.- 4 -

22. Do not use the appliance for other than intended

23. Do not operate the appliance without water to

avoid damaging the heating elements.

24. Should you accidentally allow the kettle to operate

without water; the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.

25. Always take care to pour boiling water slowly and

carefully without tipping the kettle too fast.

appliance containing hot water.

28. The kettle is for household use only, not for

29. Our warranty does not cover water kettles that

malfunction resulting from failure to descale.

30. If you wish to stop the kettle before the water has

boiled, you must switch off the appliance before removing the kettle from its base.

31. The kettle is only to be used with the base

32. Ensure that the appliance is used on a firm and flat

surface out of reach of children, this will prevent the kettle from overturning and prevent damage or injury.

33. While the water is boiling or just after the water

has been boiled, avoid contact with steam from the spout.

34. Be careful of refilling when the appliance is hot.

35. Do not detach filter during normal use to avoid

36. To disconnect, turn off the appliance and then

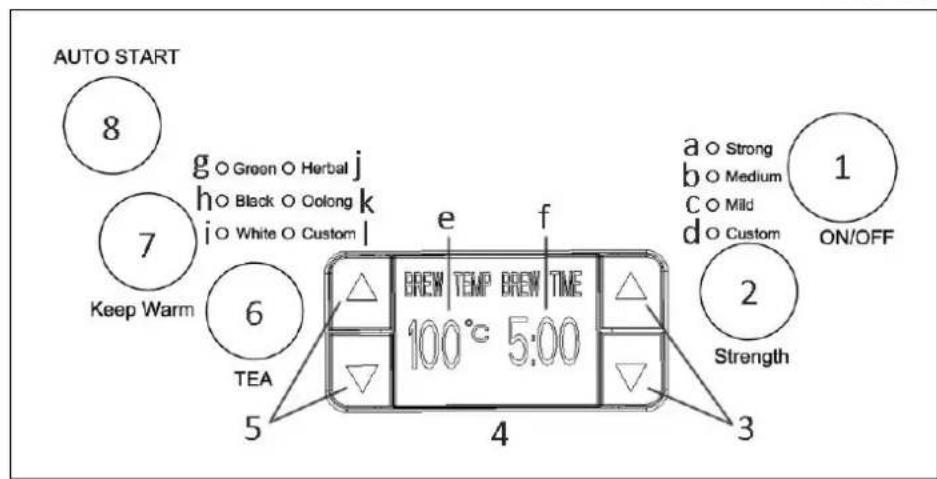

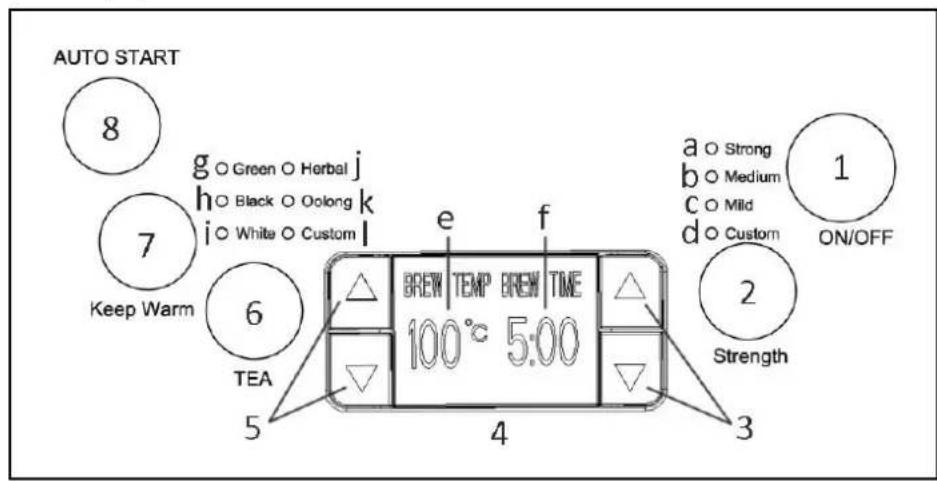

1. On/off button with indicator light

a. Indicator light of the strength of tea: Strong b. Indicator light of the strength of tea: Medium c. Indicator light of the strength of tea: Mild d. Indicator light of the strength of tea: Custom

i. Indicator light of the type of tea: White

j. Indicator light of the type of tea: Herbal k. Indicator light of the type of tea: Oolong l. Indicator light of the type of tea: Custom

7. Keep warm button with indicator light

8. Auto start button with indicator light

BEFORE USING YOUR APPLIANCE

If you are using the appliance for the first time, it is recommended that you clean your appliance before use by brewing a full kettle of water twice and then discarding the water. Note: The maximum capacity and minimum capacity for brewing water is 1.7L and 0.5L. The maximum capacity and minimum capacity for brewing tea is 1.0L and 0.5L.- 6 - OPERATION

1) Rotate the kettle lid anti-clockwise to turn the mark “OPEN” (on the rim of the lid) align with the mark

“▲”. Lift the lid; pour out left over water from the previous brewing cycle and fill with the desired amount of fresh water to the kettle. Rotate the kettle lid clockwise to turn the mark “CLOSE” (on the rim of the lid) align with the mark “▲” to lock the kettle lid in place.

2) Put the kettle body on the power base and plug the appliance into an appropriate electrical outlet. A

beep sound will be heard.

3) Press the temperature setting buttons to set your desired brewing temperature (70-100℃). Press the

time setting buttons to set the time to “0:00”.

4) Press the button “ON/OFF”, the digital display firstly shows “- -” and then shows the current water

temperature. The appliance starts to brew water.

5) When the temperature reaches the set temperature, 3 beep sounds will be heard. The appliance will

stop working and the digital display will extinguish after approx. 20 seconds. Note: for brewing water, it is recommended to take the tea-brewing basket out of the kettle by the ring-pull on the top of the basket.

1) Rotate the kettle lid anti-clockwise to turn the mark “OPEN” (on the rim of the lid) align with the mark

“▲”. Lift the lid; pour out left over water from the previous brewing cycle and fill with the desired amount of fresh water to the kettle. Add some tea leaves into the tea-brewing basket. Rotate the kettle lid clockwise to turn the mark “CLOSE” (on the rim of the lid) align with the mark “▲” to lock the kettle lid in place.

2) Put the kettle body on the power base and plug the appliance into an appropriate electrical outlet. A

beep sound will be heard.

3) Firstly, press the button “TEA” to select your desired type of tea: “Green”, “Black”, ”White”, “Herbal”

and “Oolong”. Its corresponding indicator light will illuminate and the digital display will show the corresponding brewing temperature. If you want other type of tea, press the button “TEA” to select “Custom” and then press the temperature setting buttons to set your desired brewing temperature (70-100℃).

4) Secondly, press the button “Strength” to select your desired tea strength: “Strong”, “Medium” and

“Mild”. Its corresponding indicator light will illuminate and the digital display will show the corresponding brewing time. If you want other strength of tea, press the button “Strength” to select “Custom” and then press the time setting buttons to set your desired brewing time (0-10minutes).

5) Finally, press the button “ON/OFF”, the digital display firstly shows “- -” and then shows the current

water temperature. The appliance starts to brew water.

6) When the temperature reaches the set temperature, the tea-brewing basket will go down into the

water and the brewing time will start to count down. When the brewing time is “0:00”, the tea-brewing basket will go up automatically and 3 beep sounds will be heard. The appliance will stop working and the digital display will extinguish after 20 seconds. Reference pre-set programmes for brewing temperature and brewing time

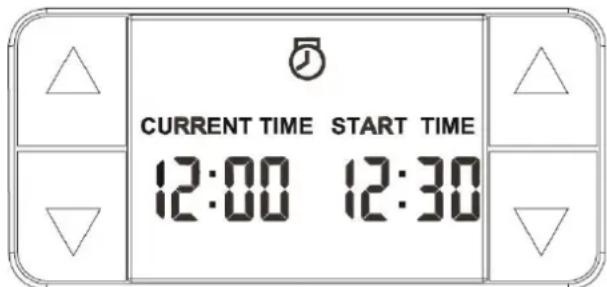

/2min Type of tea Tea strength Brewing temperature/time- 7 - Auto start function If you want to set the auto start time to brew water, firstly follow the steps “1) - 3)” in section “Brew water”. If you want to set the auto start time to brew tea, firstly follow the steps “1) - 4)” in section “Brew tea”. And then follow the below steps: - Press and hold the button “AUTO START” for approx. 2 seconds. The indicator light of the button “AUTO START” will illuminate in blue and the digital display will flash the “CURRENT TIME” and the “START TIME”. - Press the temperature setting buttons to set the current time, the digital display will show the value under “CURRENT TIME”. Press the time setting buttons to set the start time, the digital display will show the value under “START TIME”. (See below picture.) The time cycle is 24 hours. Long press for rapid adjustment. - Then press the button “ON/OFF” to enter into the auto-start working mode. The digital display will extinguish after 20 seconds. - When the current time counts to reach the start time, the appliance will start brewing. Keep warm function Press the keep warm button during brewing, its indicator light will illuminate in blue. After brewing is finished, 3 beep sounds will be heard and then the appliance will enter into keep-warm mode. The digital display will start to count the time and extinguish after approx. 20 seconds. You can press any button to turn on the digital display to check the current temperature and the keep warm time. The whole keep-warm process will last 30 minutes. The keep-warm temperature is ≥60℃. Press the button “ON/OFF” or “Keep warm” to exit the keep warm function. Under keep-warm mode the tea-brewing basket should not move. It should stay on top. Press the keep warm button after the brewing is finished, the digital display will show “- -” and then show the current water temperature. - If the current water temperature is ≥60℃, the appliance will enter into keep-warm mode. The digital display will start to count the time and extinguish after approx. 20 seconds. The keep warm function will operate as above. - If the current water temperature is ＜60℃, the appliance will not enter into keep-warm mode. The digital display will flash the temperature value 3 times and extinguish after approx. 20 seconds. Tips: The digital display will extinguish in approx. 20 seconds with no operations. If you want to do further operations, press any button first to turn on the digital display and then press the buttons to choose your desired functions. The appliance will not work if the set temperature is lower than the current water temperature. Boil-dry protection Should you accidentally let the kettle operate without water, the boil-dry protection will automatically switch off the power. If this occurs, allow the kettle to cool before filling with cold water and re-boiling.- 8 -

CLEANING AND MAINTENANCE

1. Always let the kettle cool down first and disconnect the appliance from the power outlet before

cleaning. Never immerse the kettle or base into the water or other liquid to avoid electric shock.

2. Never immerse the kettle, power cord or power base in water, or allow moisture to contact with these

3. Wipe the appearance of kettle and base with a mild and damp cloth or cleaner, never use a corrosive

cleaner. CAUTION: Do not use chemical, steel, wooden or abrasive cleaners to clean the outside of the kettle.

4. Do not immerse the kettle lid into the water and wipe it with a wet cloth.

5. The power cord can be stored under the power base when the kettle is not used.

Removal of mineral deposits Your kettle should be periodically descaled as the mineral deposits in tap water may form scale on the bottom of the kettle so as to cause the operation less efficiency. You can use the commercially available descaler and follow the instructions on the package of the descaler. Alternatively, you may follow below instructions using the white vinegar.

1. Fill the kettle with 3 cups of white vinegar, and then add water to the amount so as to cover the bottom

of the kettle completely. Leave the solution in the kettle overnight.

2. Discard the mixture in the kettle, fill the kettle with clean water, boil and then discard the water. Repeat

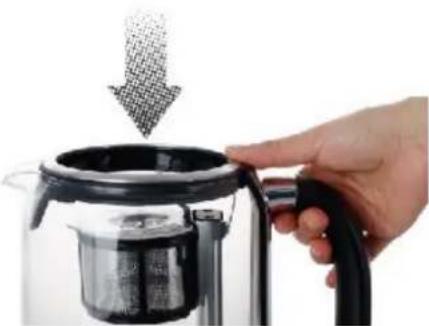

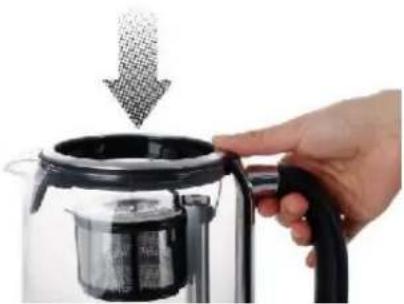

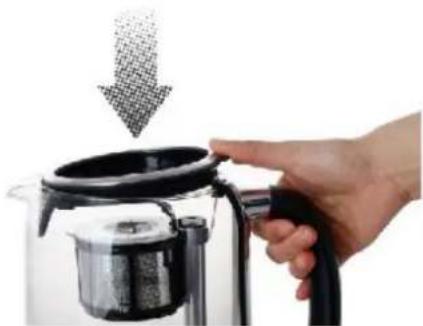

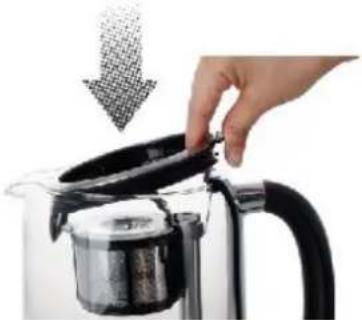

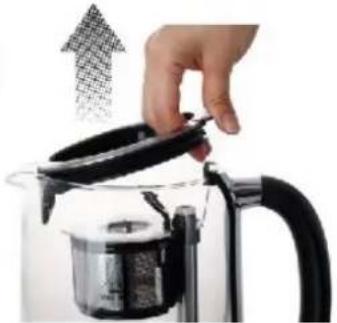

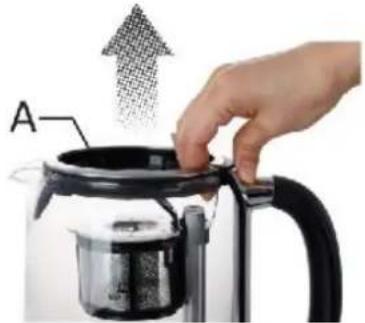

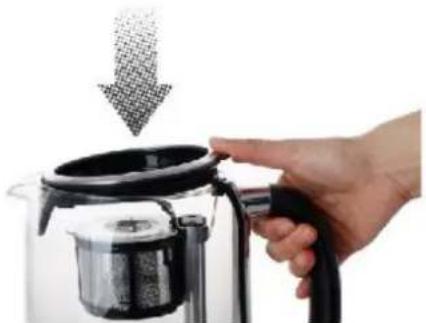

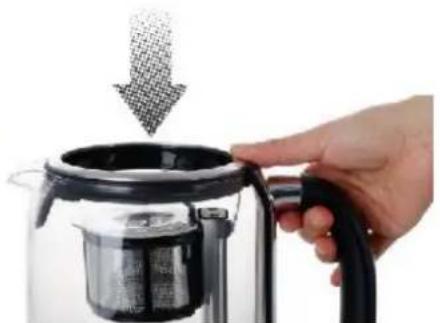

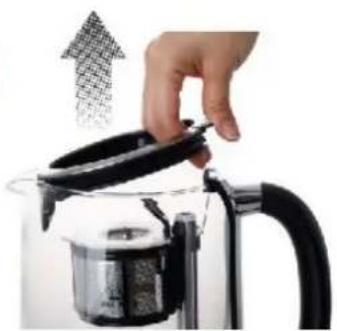

several times until the odor of vinegar has been flushed away. Any stains remaining inside the spout can be removed by rubbing with a damp cloth. To clean the filter Hold and pull the ring (A) out from the kettle body (fig.1&2). Rinse the filter under running water. Use a brush to clean it if needed. Push the ring back to the kettle body (fig.3-5). fig.1 fig.2 fig.3 fig.4 fig.5 TECHNICAL DATA Operating voltage: 220-240V ~ 50-60Hz Power: 1850-2200W- 9 -

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
