USER MANUAL Living LVSUB flat AUDIO PRO

© Audio Pro AB Sweden

Audio Pro®, the Audio Pro logotype, the 'a' symbol, and ace-bass® are all registered trademarks of Audio Pro AB, Sweden. All rights reserved. Audio Pro follows a policy of continuous advancement in development. Specifications may be changed without notice.

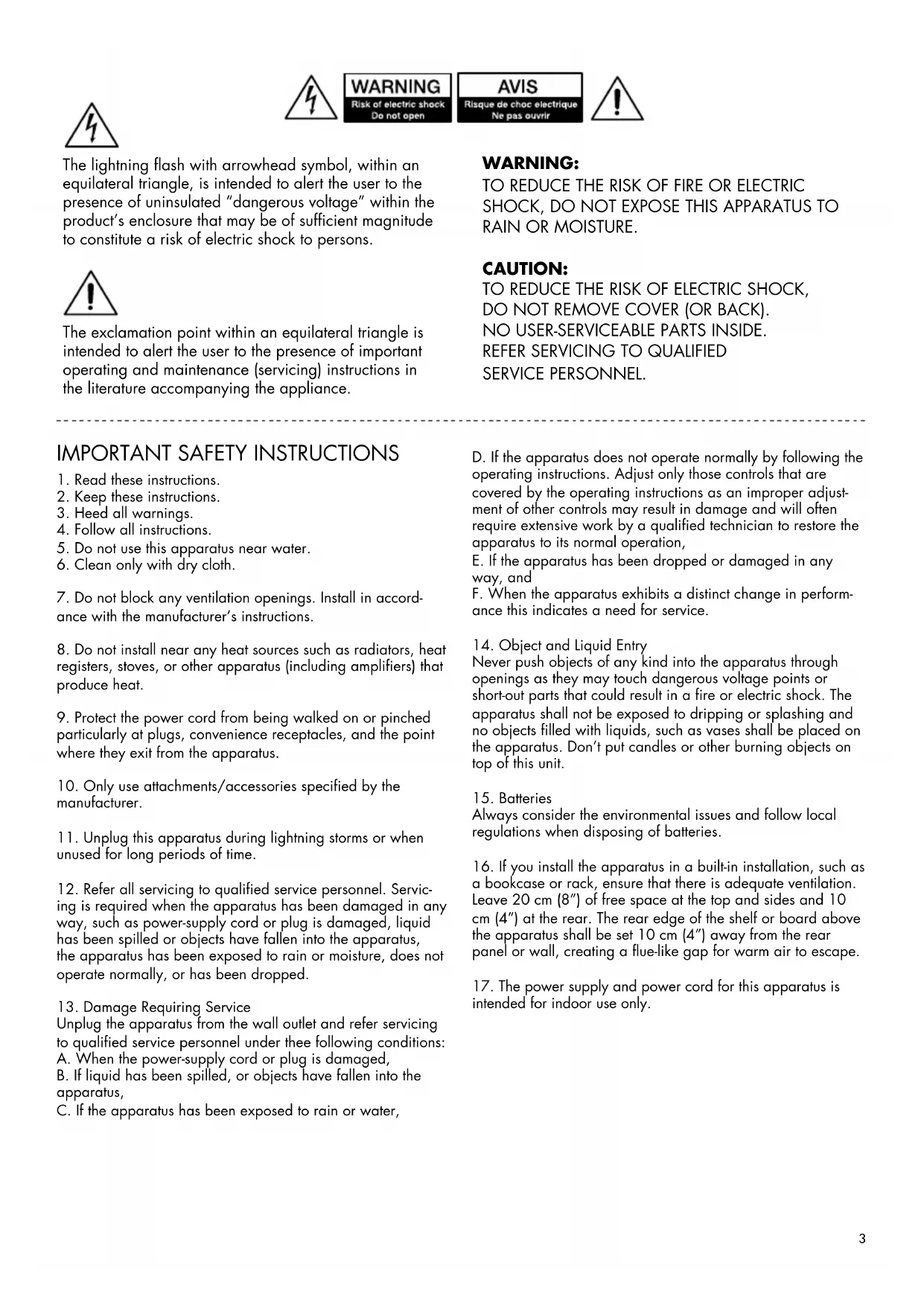

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
13. Damage Requiring Service
    Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the apparatus, C. If the apparatus has been exposed to rain or water,

D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in any way, and
F. When the apparatus exhibits a distinct change in performance this indicates a need for service.
14. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don't put candles or other burning objects on top of this unit.
15. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.
16. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20cm (8^ ) of free space at the top and sides and 10 cm (4^ ) at the rear. The rear edge of the shelf or board above the apparatus shall be set 10cm (4^ ) away from the rear panel or wall, creating a flue-like gap for warm air to escape.
17. The power supply and power cord for this apparatus is intended for indoor use only.

ENGLISH

FEATURES

• Built-in wireless receiver
• Automatically joins Audio Pro network
• Wireless full CD quality sound
• Wireless range room to room: Up to 20 meters
• Wireless range same room: Up to 50 meters
• Wireless range open field: Up to 100 meters
• No audible time delays
• RF band: 2.4GHz
• Sample rate: 48 KHz
• Dedicated proprietary protocol
• Pairing possibility
• Automatically joins Audio Pro network

SPECIFICATIONS

Type:
Powered subwoofer with DSP, built in wireless receiver

Amplifier: 200W digital Class D

Woofer: 8" longthrow

Frequency range: 35 - 100Hz

Variable crossover frequency: 50 - 90Hz

Dimension HxWxD: 152x500x360mm (feet 30mm)

OVERVIEW

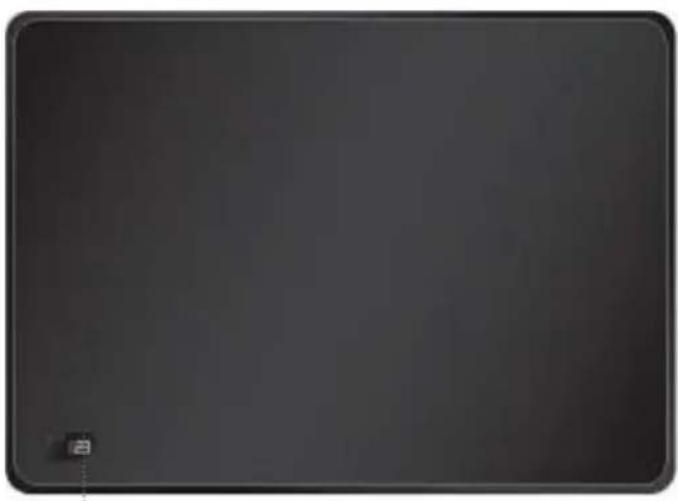

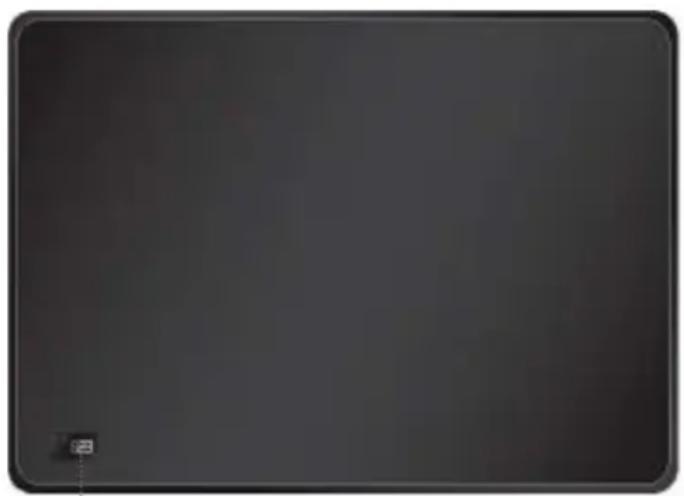

FRONT:
LED & DISPLAY
Display shows: Volume 0-31, Zone A-B-C, House Code 1-2-3.

Blue steady LED indicates wireless connection established.

Red indicates no wireless connection or no audio transmission (standby).

Green indicates paired wireless connection.

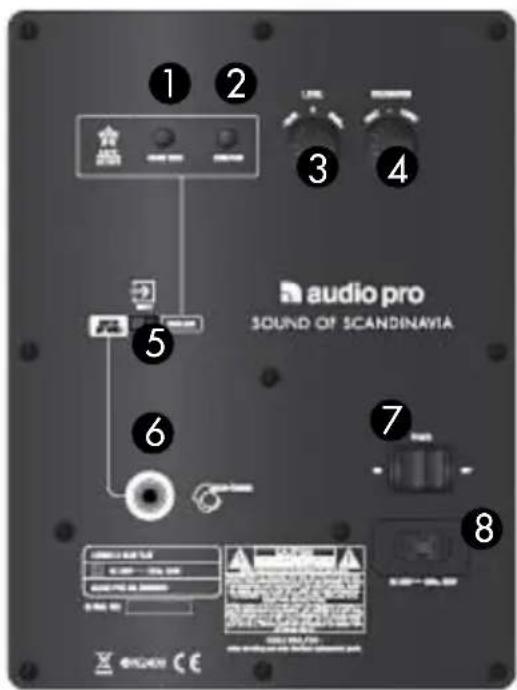

REAR PANEL

1. House Code (channel) button.
2. Zone/Pair button.
3. Level. Adjust volume.
4. Crossover. Adjust upper crossover frequency.
5. Input selector. Select Wired or Wireless.
6. Line in. Connect to sub output on stereo/receiver.
7. Power switch, ON/OFF.
8. To AC outlet, 230V.

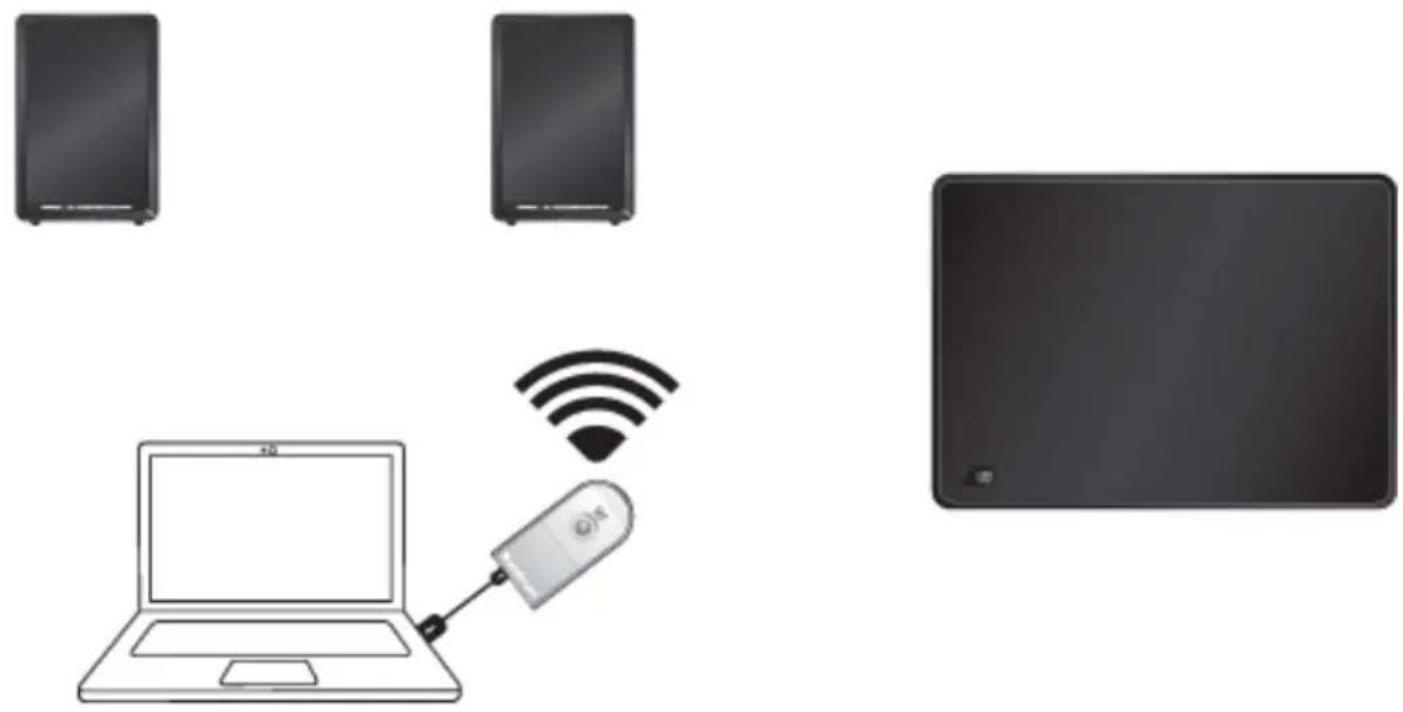

JOIN LV-SUB FLAT TO EXISTING AUDIO PRO NETWORK

To use the LV-SUB FLAT wirelessly, you must have an Audio Pro transmitter (TX100, TXD200 or LV-HUB). LV-SUB FLAT automatically connects to your existing network. Simply set the same House Code and Zone that your existing LV loudspeakers use and connect the LV-SUB FLAT to a power socket.

CONNECTING THE LV-SUB LAT TO AN EXISTING NETWORK FOR THE FIRST TIME:

To synchronise volume levels so the LV-SUB plays at the same level as other loudspeakers in the network:

1. Ensure that all the loudspeakers in the zone (A, B or C), including the LV-SUB FLAT, are switched on and set to the same Zone and House Code (all LV loudspeakers are set to zone A as default).
2. Set the Level on the rear of the LV-SUB to the middle position (0).
3. Raise or lower the volume using the remote control's Zone volume: A, B or C.

(Point the remote control at the receiving loudspeaker, e.g. LV-1, LV-2 or LV-3 loudspeaker)

1. The volume levels for all units in the zone should will now be synchronised.

If you do not synchronise the levels, the LV-SUB may emit too little or too much bass. (You can manually raise or lower the bass volume if you desire more or less bass. The controls for this can be found on the rear of the LV-SUB.)

Note:

• The LV-SUB FLAT volume is controlled in the network using the same remote control as for Audio Pro's wireless LV loudspeakers. Set to same House Code and Zone as the speakers you want LV-SUB FLAT to play with
• Manual default settings, such as subwoofer volume and crossover frequency, can be found on the rear of the LV-SUB FLAT.

PAIRING WITH TXD200/LV-HUB TRANSMITTERS

The feature to pair LV-SUB flat only works with the TXD200 and LV-HUB transmitter, and in combination with newer Living speakers with pairing functionality.

LV-SUB FLAT also works with standard TX100 transmitter.

By pairing, you lock your Audio Pro network from other peoples Audio Pro Wireless networks. In unpaired mode, the TXD200 and LV33 will work with all Audio Pro Wireless products.

PAIR YOUR LV-SUB FLAT WITH TXD200/LV-HUB TRANSMITTER

1. Press Pairing button on transmitter for 2 seconds. LED starts to flash Green.
2. Press and hold ZONE/PAIR button on LV-SUB FLAT for 3 seconds. (Button is located on rear amplifier panel). LED starts to flash Green, and display shows: Pr-
3. When LEDs on both transmitter and subwoofer goes to steady green, the subwoofer is paired to your system.

Note:

1. Pairing will not work with older Living speakers.
2. To unpair system (all speakers in same volume zone will be unpaired):
3. Disconnect TXD200/LV-HUB from power
4. While pressing the pairing button, reconnect TXD200 to power, and hold pairing button for 6 seconds. The units will now be unpaired.

WALLMOUNTING

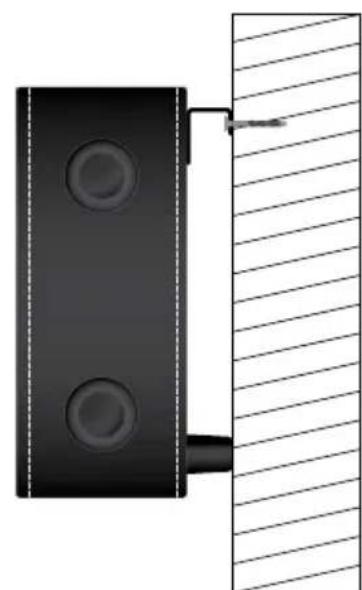

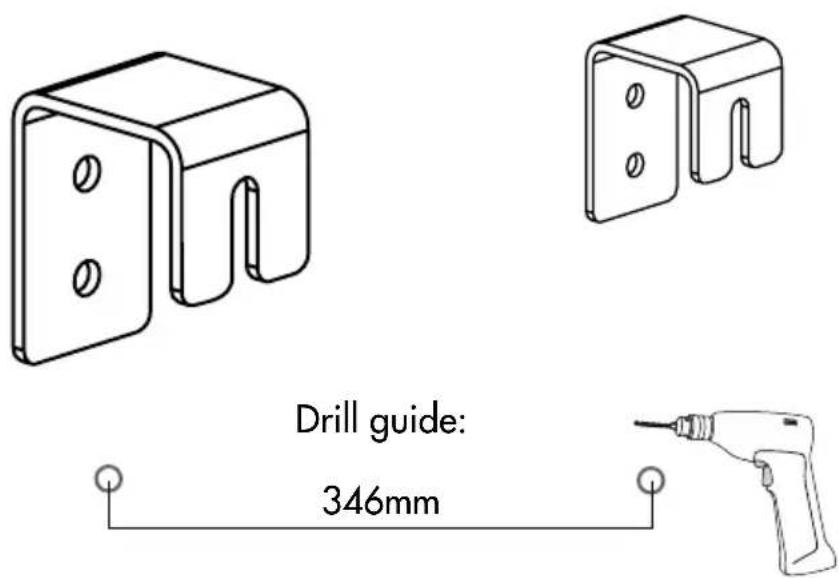

Prepare the included wallmounts first and attach to LV-SUB with enclosed screws suitable. Secure suitable screws in your wall according to drill guide. Use screw suitable for your wall material (screws not included) and the weight of LV-SUB FLAT. Hang the subwoofer on to the screws secured in the wall. Keep lower rubber feet on, as they are used as distances to your wall.

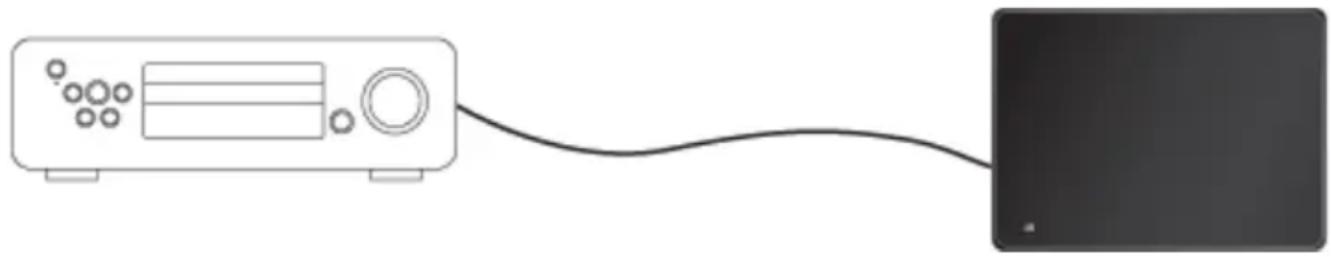

ANALOGUE CONNECTION TO STEREO/RECEIVER

You can make standard connection from the LV-SUB FLAT to any stereo/receiver equipped with a sub-output. Connect with a cable from the sub-output to the Line In on the rear of the LV-SUB.

MAKE SURE: that you have switched input selector to WIRED.

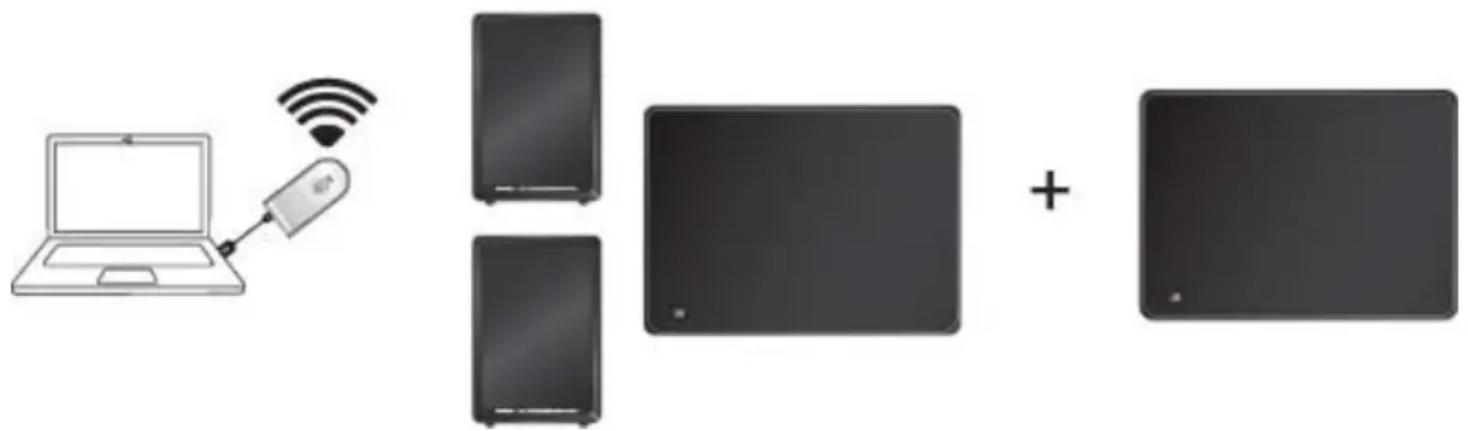

ADD MORE LV-SUBS FLAT TO YOUR WIRELESS NETWORK

You can add an unlimited number of LV-SUB FLAT subwoofer to the network, as long as they are positioned within the transmitter's range

All the LV-SUB FLAT will receive signal from transmitter using the same House Code.

You can have multiple subwoofoers in one room or individual subwoofoers in several rooms.

PLACEMENT OF THE SUBWOOFER

Since the LV-SUB FLAT functions wirelessly, its placement is simple. Just connect it to the power socket and place it within range of the transmitter.

For optimal bass reproduction, the subwoofer should be placed close to a wall or in a corner.

Corner placement can result in a powerful bass, so try different places until you are satisfied with the bass reproduction.

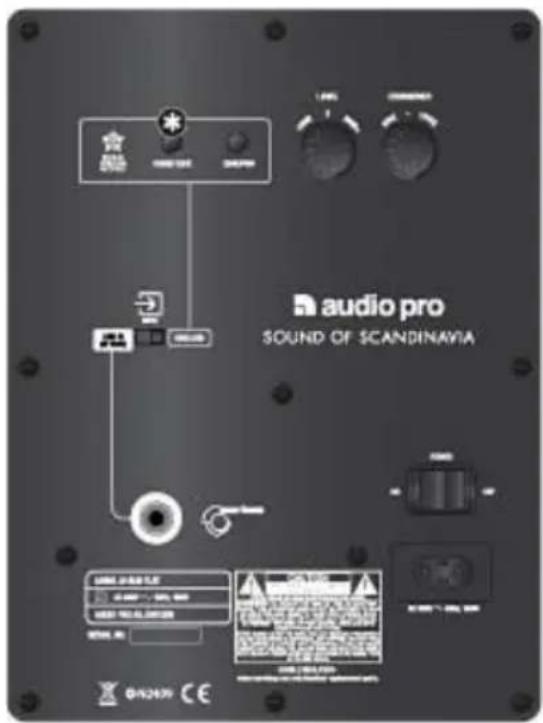

HOW TO CHANGE HOUSE CODE ON THE LV-SUB

PUSH SHORT TO TOGGLE BETWEEN HOUSE CODE 1, 2 OR 3 (ALSO SHOWN ON FRONT DISPLAY)

The House Code selector is located on the rear panel of the LV-SUB FLAT. Set the same number (1, 2 or 3) as on the TX100/TXD200 transmitter. The House Code can be likened to a channel via which wireless signals are transmitted.

Within the network, music can be sent simultaneously from 3 different audio sources.

The Zone selector is located on the rear panel of the LV-SUB FLAT. Set the same letter (A, B or C) as the other loudspeakers you wish to have in the same zone.

A House Code (channel) can be divided up into a total of 3 zones. You can control the volume level of these zones individually using the remote control. You can, for example, have one volume level in the kitchen, another in the living room, and a third in the bedroom.

USE MULTIPLE TRANSMITTERS AND SPEAKERS SIMULTANEOUSLY WITH THE HOUSE CODE 1, 2 OR 3

Transmitter: House Code 3 Speakers: House Code 3

Transmitter: House Code 3 Speakers: House Code 3

By using the House Codes (channels) you can share the wireless network for up to two separate networks. Then you can simultaneously play music from various audio sources (from two different transmitters) to different pairs of LIVING speakers.

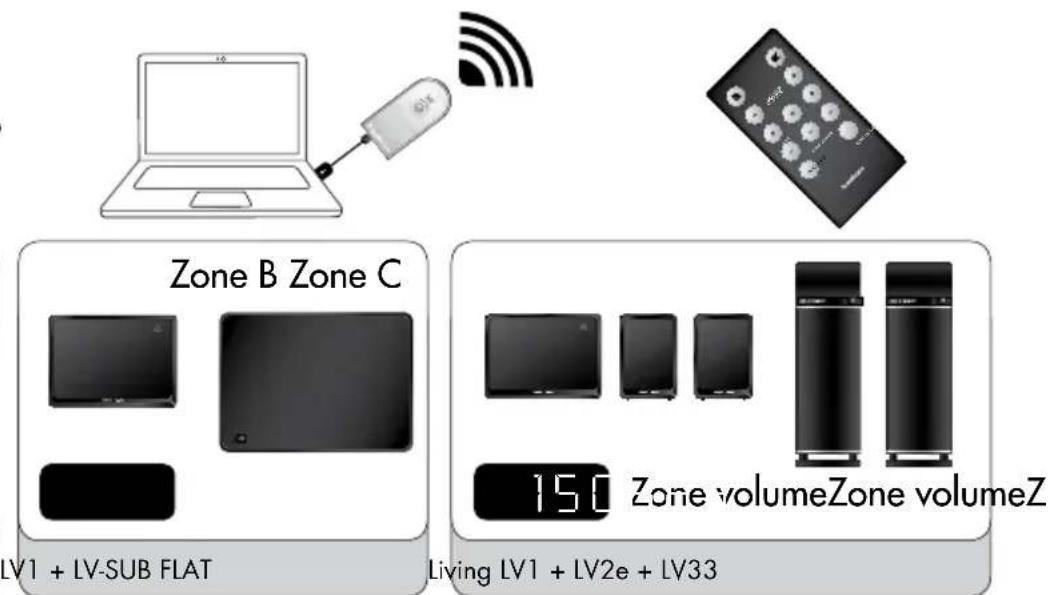

ADJUST VOLUME SEPARATELY IN THREE DIFFERENT ZONES

In order to be able to have the same music at different volumes in different rooms/areas, you can divide each House Code into 3 different volume zones. Each zone can have a different volume. This is very handy if, for example, you want to have one volume level in the living room and a lower volume in the kitchen. You can have as many LIVING speakers in each zone as you want, or just one pair. The zone volume is easily controlled with the remote unit.

HOUSE CODE 1 Speaker and transmitter set to same House Code (channel).

Living LV2e + LV-SUB FLAT Living

Note:

1. All LV speakers are default Zone A, and volume level 17.
2. Each House Code (1, 2 and 3) can be split into up to 3 zones (A, B and C).
3. You can have as many speakers you like on each House Code, and as many as you want in each zone. A zone does not have to be one room, can be whole floor in house.

tRoUBlesHooting

LV-SUB FLATplays on too high or too low volume

If speakers or subwoofer has been disconnected, volume levels can get changed. To synchronize volume levels for all speakers in one Zone, press Zone volume button on the remote up or down. Press for the Zone set on speakers and subwoofer (A, B or C).

Is the LED light on the LV-SUB FLAT blue?

If light is red, try moving the LV-SUB FLAT and receiving speakers closer together.

Does this turn the LED blue?

Are you using more than one Audio Pro transmitter (TX100, TXD200 or LV-HUB)?

Make sure that the transmitters aren't running on the same House Code. If more than one transmitter uses the same House Code, interference may occur. Disconnect one, or change House Code.

Are you using the same House Code on both transmitter and receiving speakers?

Make sure the same House Code is set on both the transmitter and the speakers.

How far apart are the transmitter and receiver?

If distance between the transmitter and receiver is too far, the, connection might be lost.

Try placing the transmitter and receiver in closer proximity, does this help?

Are there walls between the transmitter and receiver?

If your home has thick concrete walls, or walls of plaster with wire lath, the wireless range will decrease. Try placing transmitter and receiver in the same room, does this help?

Are there more wireless networks in the area?

If there are many wifi networks running in the area, wireless range can decrease. Try to change the channel on your wireless router to improve Audio Pro network range and your own home network wifi performance. (Audio Pro network transmits on channel 1, 6 or 11.)

Is your computer connected to the internet via cable or wifi?

The Audio Pro network can weaken a local wifi network (but not weaken itself). If possible, you should change channel on your wireless router, the Audio Pro network transmits on channel 1, 6, or 11.

Choose a new channel on your router, for example 3, 8 or 13. (in total there are 13 channels on the 2.4 GHz band.) If you cannot change the channel on your wireless router, try connecting computer via Ethernet cable instead. Does this help?

Are there Bluetooth units active in the area?

Shut down all active Bluetooth devices. Does this help?

Windows 7 and Mac OS, sound output

When connecting Audio Pro transmitter to a computer using Windows 7 or Mac OS, you need to select the sound output. Go to: System settings, find sound settings, and select USB HEADSET as your sound output. (In older Windows OS there is no need for this, transmitters will take over automatically as the sound output device.)

Dimensioner HxBxD: 152x500x360mm (fotter 30mm)

ÖVERSIKT

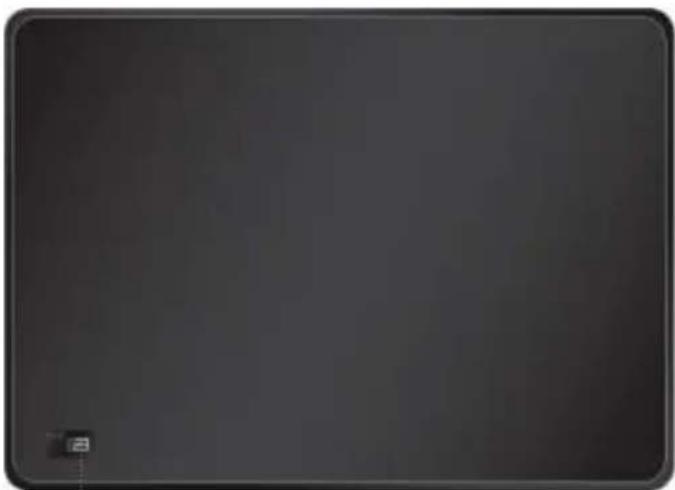

FRAMSIDA:
LED & DISPLAY
Display visar: Volym 0-31, Zone A-B-C, House Code 1-2-3.

• Built-in wireless receiver
• Automatically joins Audio Pro network
• Wireless full CD quality sound
• Wireless range room to room: Up to 20 meters
• Wireless range same room: Up to 50 meters
• Wireless range open field: Up to 100 meters
• No audible time delays
• RF band: 2.4GHz
• Sample rate: 48 KHz
• Dedicated proprietary protocol
• Pairing possibility
• Automatically joins Audio Pro network

SPECIFICATIONS

Type:
Powered subwoofer with DSP, built in wireless receiver

Amplifier: 200W digital Class D

Woofer: 8" longthrow

Frequency range: 35 - 100Hz

Variable crossover frequency: 50 - 90Hz

Dimension HxWxD: 152 × 500 × 360mm

PANORAMICA

LATO ANTERIORE:
LED ESCHERMO

Lo schermo在哪：Volume 0-31, Zona A-B-C, Codice locale 1-2-3.

WARNING Risk of electric shock Do not open
