USER MANUAL PH102624 Emerio

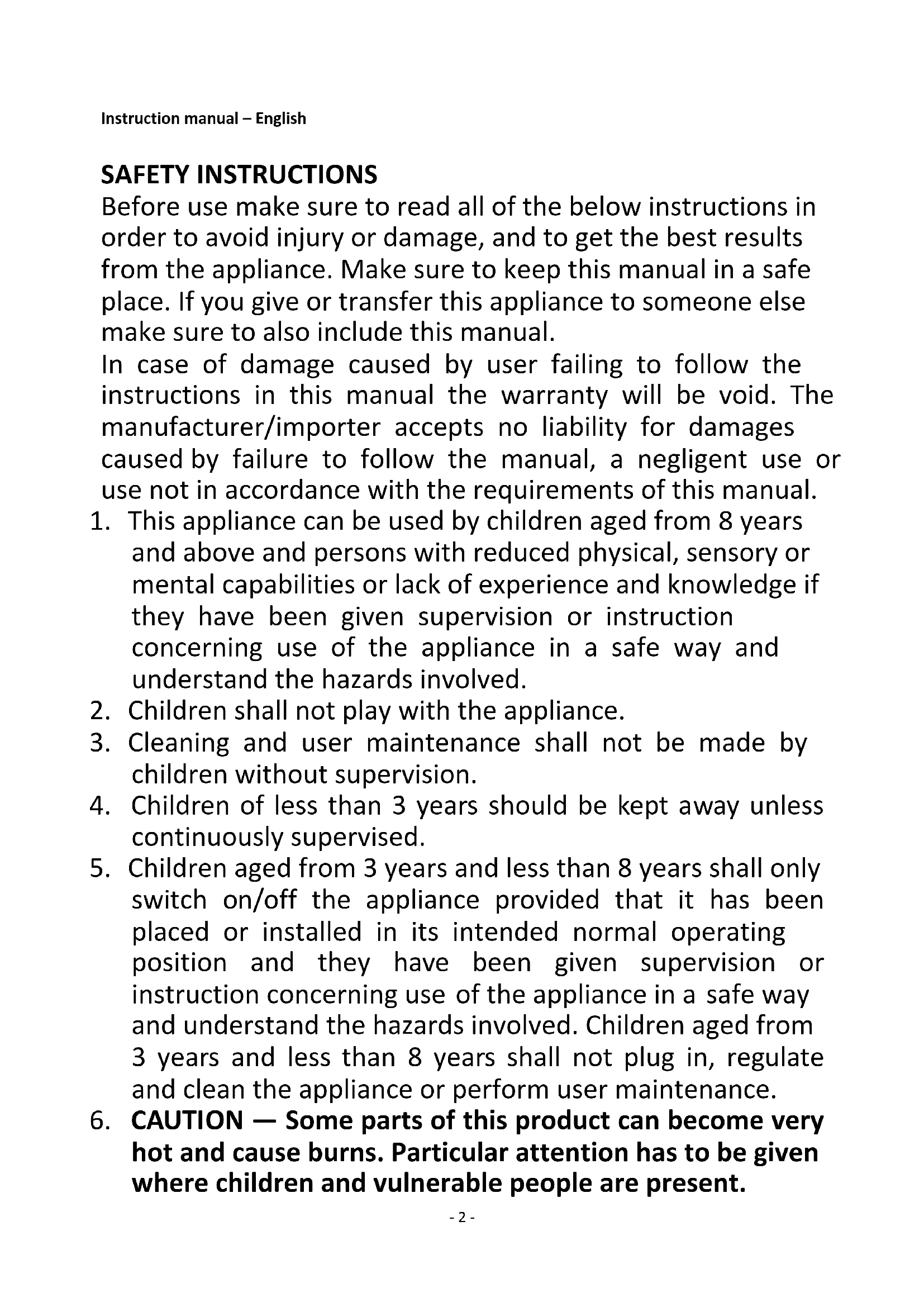

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. Children of less than 3 years should be kept away unless

continuously supervised.

5. Children aged from 3 years and less than 8 years shall only

switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION — Some parts of this product can become very

hot and cause burns. Particular attention has to be given where children and vulnerable people are present.- 3 -

7. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. Do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool.

9. The heater must not be located immediately below a

10. WARNING: In order to avoid overheating, do not cover

11. Do not use this heater with a programmer, timer,

separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

12. WARNING: This heater is not equipped with a device to

control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

13. Never rotate the heating part of the appliance during

operation. If you want to change the tilt angle of the heating part, switch off the appliance and wait for 15 minutes.

14. This heater is hot when in use. To avoid burns, do not let

bare skin touch hot surfaces.

15. Position the appliance at least 1m away from highly

combustible materials such as furniture, trees, leaves, dry grass and bushes.

16. Never leave the appliance unattended while in operation.

Always unplug the appliance when not in use.

18. This product is suitable for outdoor use only. Do not

operate the appliance in direct sunlight, near heat sources, humid environments or in places near water or other liquids such as bathrooms, shower or swimming pool.- 4 -

19. This product must not be left outdoors exposed to the sun,

wind or rain for long periods of time.

20. Do not operate with wet hands or spill water or other

liquids on to the appliance, the mains cable or plug. Never use the appliance if the appliance or the cord is damaged. Risk of injury!

21. Do not run the power cable under carpeting. Do not cover

the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.

22. Do not wind the power cable around the unit.

23. Do not insert or allow foreign objects to enter any

ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.

24. To prevent a possible fire, do not block the air vents.

25. Do not use the appliance in areas where petrol, paints or

other flammable substances are used or stored.

26. Where possible, avoid the use of an extension cable as

this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.

27. Always ensure the heater is plugged into an earthed plug

socket, one that is tested for outdoor use.

28. Always unplug the unit and ensure the unit is completely

cold before moving, cleaning or storing.

29. This appliance is not for drying clothes. Keep children and

pets at a safe distance from the appliance.

30. Do not attempt to repair or adjust any electrical or

mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs. Attempting to repair the unit yourself will void your warranty.

31. Keep unit away from heated surfaces and open flames.- 5 -

32. To disconnect the appliance, pull the switch to turn off

the appliance, and then remove the plug from the power socket. Do not unplug by pulling the power cable.

33. Always use on a dry, suitably strong, stable, flat and level

34. The height of this appliance is adjustable. The height

35. Regarding the information pertaining to the installation,

please refer to the below paragraph of the manual.- 6 - PH-102624 EN

PACKAGING ⚫ After unpacking the appliance, check for transport damage and completeness! ⚫ Do not discard the original box! It can be used for storage and dispatch in order to avoid transport damage. ⚫ Dispose of the packing material in a proper manner. Plastic bags should be kept away from children.

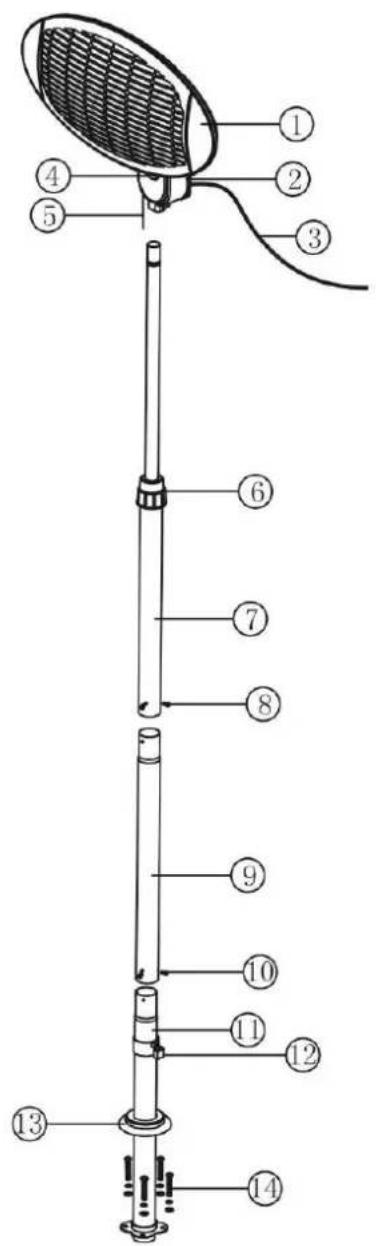

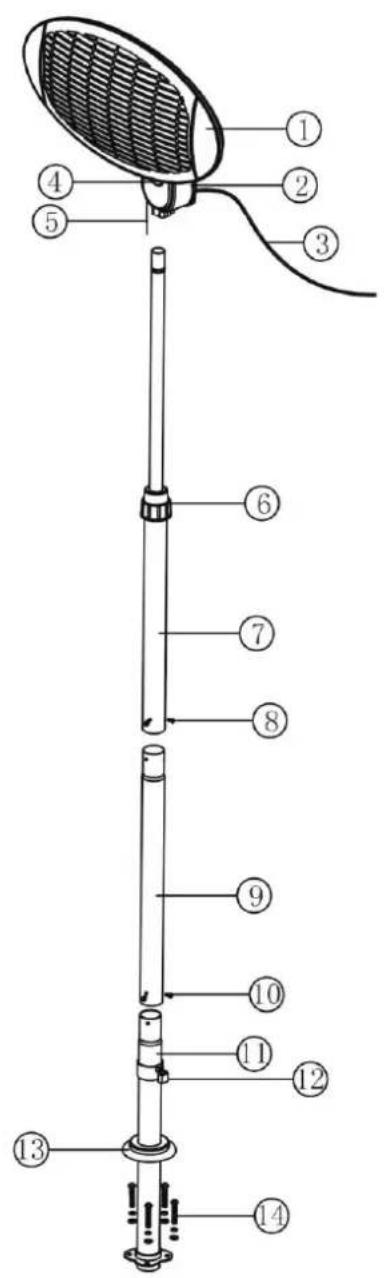

13) Decorative cover

TO ASSEMBLE, FOLLOW THESE INSTRUCTIONS

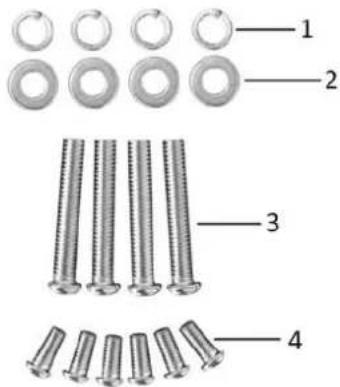

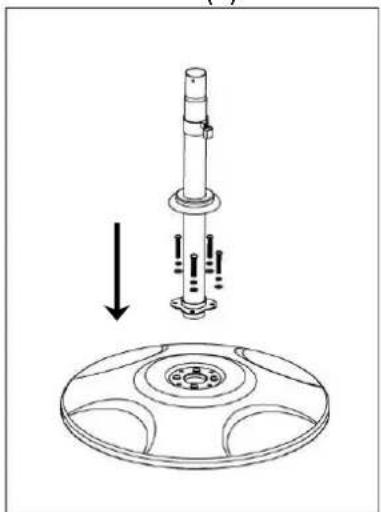

1. Insert the lower tube into the base. Secure it with the 4 pieces of M6 X 30 screws (A), spring washers (B)

and flat washers (C).

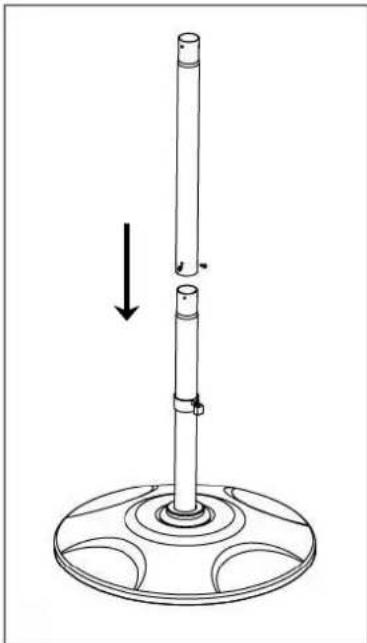

2. Fix the middle tube onto the lower tube using the 3 pieces of M5 X 10 screws.- 8 -

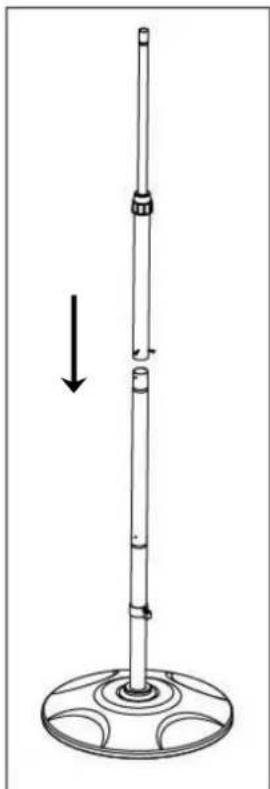

3. Lossen the tube locking ring on the upper telescoping tube. Adjust the lengeth by pulling out the tube

inside it. Fasten back the tube locking ring. Fix the upper telescoping tube onto the middle tube using the 3 pieces of M5 X 10 screws.

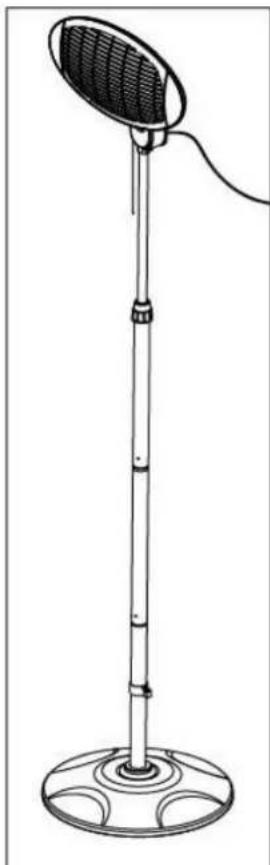

4. Attach the heating element onto the upper telescoping tube. Secure it by tightening the fixing knob. Adjust

the angle vertically from 0-40° (approximately) as you need.- 9 -

OPERATION OF THE HEATER

The appliance is switched on by means of a pull switch. After switching on, you may note a slight vibration. It will stop after a few seconds. You can set the power steps by pulling the pull switch: Position 0 Off Position 1 650W (low power) Position 2 1300W (intermediate power) Position 3 2000W (full power) This appliance is equipped with a safeguard device, which turns the heater off if it is knocked over.

CLEANING AND MAINTENANCE

⚫ Before cleaning the appliance, switch it off, remove the plug from the power outlet and let it cool down completely. ⚫ Protect the radiant part from dust to preserve its reflectivity. ⚫ To clean the base, use a slightly damp, soft cloth; do not use scouring pads or abrasive products. ⚫ To clean the radiant part, use a slightly damp, soft cloth; do not use metal scouring pads or abrasive products, water or other liquids; do not immerse in water or other liquids. ⚫ When not used, cover the appliance and put it in a dry place; you may also pack it into the original packaging to protect it from dust and humidity. TECHNICAL DATA: Operating voltage: 230V ~ 50Hz Power consumption: 2000W IPX4

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
