Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your heater in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the XVT fan!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize and technically adjust this manual at any time.

Technische daten

Model	XVT-16	XVT-16S
Connected power	220-240V~50Hz	220-240V~50Hz
Output capacity	60W	60W
∅ blades	16"	16"
Weight	2,9 kg	6,2 kg
Dimensions	33 x 45x 60 cm	43 x 45 x 149 cm

General safety guidelines

1. This device is only to be used indoors.
2. Before using the fan, assemble it completely. Always keep the plug out of the socket when assembling/dissembling.
3. This device should only be used for the purposes (ventilating a domestic space) and in the way as set out in the booklet. Any other usage may be dangerous (could cause fire, injury, damage, electric shock etc.), will invalidate the guarantee
4. Check fan, plug and cable for damage before use Do not turn on the appliance if you have discovered damage to the appliance, cord or plug, if the appliance is malfunctioning, if it has been dropped or if

there are signs of any other defect. Return the complete product to the vendor or to a certified electrician for inspection and/or repair. Always ask for original parts. The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorised and qualified persons.

1. If you hear strange noises, smell something or see smoke, switch off the fan immediately and remove the plug from the socket.

2. Before every use, check that the voltage on the socket to be used matches the voltage indicated on the device's specification plate: 220/240V\~50Hz.

3. Avoid the use of extension cables. If unavoidable, use an approved cable with sufficient power. Completely unroll the cable.

4. The electrical cable may never come into contact with sharp, hot or moving objects, must not be wound around the fan and must not be bent or rolled up too tightly.

5. If the electric cable of the plug is damaged, it needs to be replaced by a qualified person. Never repair it yourself.

6. Always ensure that the floor is sturdy, flat and horizontal.

7. Do not leave a fan operating unsupervised in a room.

8. This device in not suitable for use in wet or damp spaces such as bathrooms and laundry rooms. Do not place the device in the vicinity of taps, bathtub, shower, pool, fountains or other sources of moisture. Make sure it cannot fall into water and prevent water from getting into the device itself. If, at any time, the device does fall into water, unplug it immediately! Do not use a device that has a damp interior but have it repaired.

9. Never immerse the device, cord or plug in water and never touch it with wet hands or feet.

10. Do not place the appliance in an open window to avoid rain or on wet surfaces and avoid that no moisture spillage.

11. Never hang things over the device. Ensure that curtains, clothings and other materials do not come into the vicinity of the fan.

12. Watch out that long hair is not sucked into the fan.

13. Keep the suction and extraction grill clean and free from dust and make sure that a minimum of 30 cm of free space is left around the fan.

14. Make sure there are no objects in the vicinity of the fan that could hinder it from oscillating (swivelling).

15. Never insert a finger, pen or any other object through the protective grille when the fan is in use!

16. Never spray any products (anti-insect, cleaning agent etc) on or in the fan.

17. Do not store or use the fan:

18. in locations where it could become wet or fall into water;

19. near flammable, explosive or gaseous substances. A spark from the switch can start a fire;

20. near acids, alkalis, oil or other corrosive substances.

21. Never connect the fan to a timer or dimmer.

22. Do not use the fan at temperatures above 40^ C, not in the vicinity of heating apparatuses and not in dusty areas.
23. First turn off the fan and then remove the plug from the socket before moving, cleaning or carrying out maintenance. Do that when the fan is not in use as well. Pull on the plug to remove from the socket, never pull on the cord!
24. Make sure that the plug has been pulled out of the socket before you remove the protective grill for cleaning or any maintenance tasks.
25. Always remove the plug from the socket after use.
26. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
27. Children shall not play with the appliance.
28. Prevent the fan from blowing continuously on small children, patients or people that have difficulties in moving aside.
29. Cleaning and user maintenance shall not be made by children without supervision.

Drawing and assembling

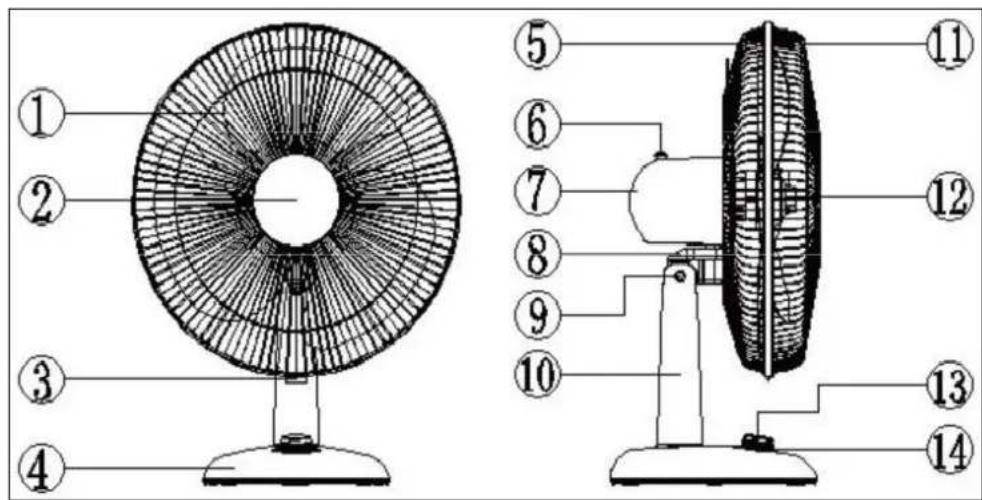

Drawing of the parts of XVT-16

Technical diagram of a front-end fan with numbered parts for identification

1. Fan blade
2. Motor axle
3. Lock for the protective grill
4. Plastic base
5. Rear protective grill
6. Oscillation (swivel) knob
7. Motor housing

8. Tilt support plate

9. Tilt axle

10. Stand
11. Front protective grill
12. Plastic screw cap for affixing the fan blade
13. Control button
14. LED lighting

Assembling the XVT-16

Step 1 Remove the packing material and keep it away from children.
Step 2 Before continuing, check that the plug is not plugged into the socket and the control button is on '0' (off).
Step 3 Mount the plastic base to the motor housing (including the stand). Pull the electric cable with the plug through the opening in the plastic base and affix to the base using the three screws included in the delivery.
Step 4 Pull the electric cable through the holder and the opening in the plastic base.
Step 5 Tighten the plastic screw cap (that affixes the fan blade) of the fan axle. Attention: you must turn it clockwise to dismount the screw cap (to loosen it).
Step 6 Tighten the threaded turnbuckle (that affixes the protective grill) of the motor housing; turn it counter-clockwise to dismount the guard nut (to loosen it).
Step 7 Place the rear protective grill against the front side of the motor housing with the carrier bracket on the protective grill facing upwards. Make sure that the positioning pins of the motor housing are placed correctly in the slots of the protective grill.
Step 8 Now tighten the guard nut (that affixes the protective grill) firmly clockwise onto the screw thread of the motor housing.

Step 9 Remove the PVC sleeve of the motor axle.

Step 10 Place the fan blade onto the motor axle. Important! Make sure that the pins of the motor align properly with the appropriate recesses in the fan blade.

Step 11 Tighten the plastic spinner (for affixing the fan blade) firmly counterclockwise onto the motor axle to secure the fan blade.

Step 12 Check to see that the fan blade rotates properly.

Step 13 Turn the screw of the locking ring almost entirely loose and loosely place the plastic locking ring with the rear groove around the rear protective grill.

Step 14 Now mount the rear protective grill in the front groove of the plastic locking ring and tighten the screw firmly. Both protective grills are now solidly connected to each other.

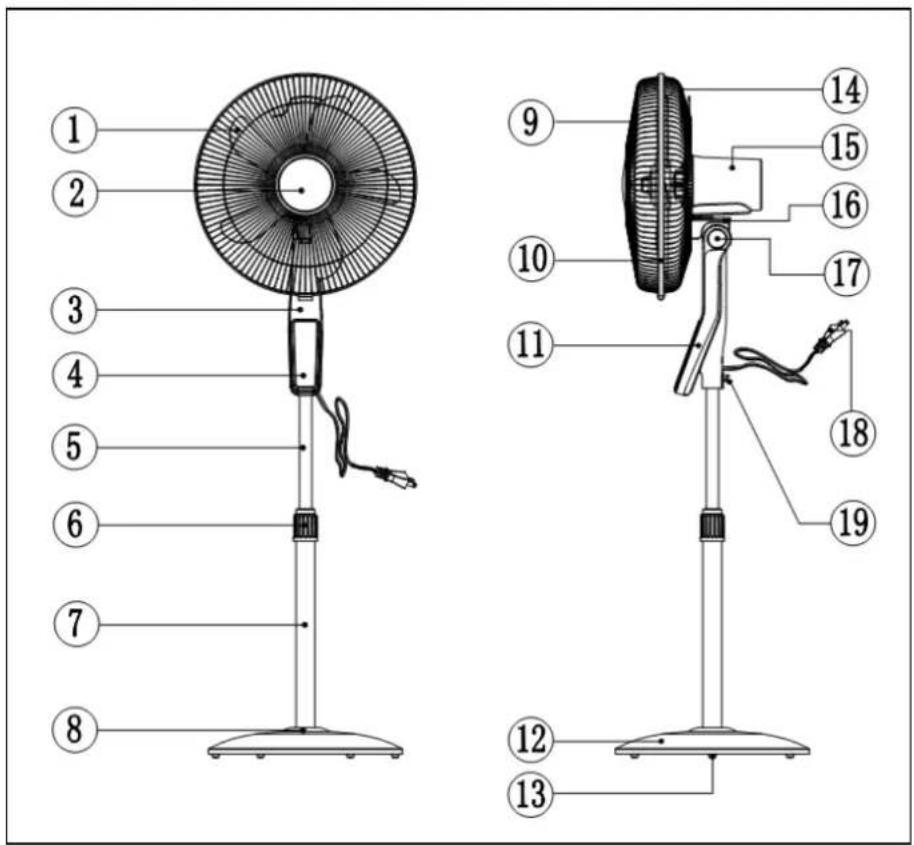

Drawing of the parts of XVT-16S

1. Fan blade
2. Motor axle
3. Display housing
4. Display
5. Upper support pipe
6. Nut for height adjustment
7. Lower support pipe
8. Plastic ornamental ring
9. Front protective grill
10. Locking system for the grill
11. Control panel
12. Base
13. Base weight
14. Rear protective grill
15. Motor housing
16. Tilt support plate
17. Side panel
18. Cable with coiled cord
19. Screw with plastic grip

Technical diagram of a desktop fan with numbered parts for identification and assembly reference.

Assembling XVT-16S

Step 1 Remove the packing material and keep it away from children.

Step 2 Before continuing, check that the plug is not plugged into the socket and the control button is on '0' (off).

Step 3 Remove the nut for height adjustment on the support pipe by turning it counter-clockwise.

Step 4 Place the plastic ornamental ring onto de support pipe and return the nut for height adjustment to its proper place.

Step 5 Mount the weighted foot with a round disc firmly to the support pipe using the 'L' screw

Step 6 Place the motor housing (including the display housing) onto the support pipe attached to the assembled base and secure it with the screw with the plastic handgrip.

For mounting the fan blade and the protective grill, see assembly XVT-16 from step 1.

Operating

Operating the XVT-16

• The fan is completed assembled;
• All the connections are tightened firmly;
• All the safety instructions have been observed;
• The fan is positioned on a stable and flat ground.

- Check whether the fan speed is set to .

- Set the fan in the correct position.

- Insert the plug into an appropriate socket.

- Use the control button to choose the desired speed ( ^① off, ^② low, ^③ medium, TUFOBO, SILNT)

- The fan will start operating and the LED lighting will turn on.

- If necessary, press the oscillation (swivel) knob (6): the fan will now swivel in an angle of 45^ . By pulling out this knob, you stop the oscillation (swivel) function.

- To switch off the fan, set the On/Off button to 0 Ⓞ (off). If you want to disrupt the operation for longer than a few minutes, then also remove the plug form the socket.

Operating the XVT-16S

• The fan is completed assembled;
• All the connections are tightened firmly;
• All the safety instructions have been observed;
• The fan is positioned on a stable and flat ground.

- Set the fan in the correct position.

- Plug the plug in the appropriate socket. The red lamp on the display will come on.

On the control panel or the remote control make the desired choice.

Attention: The corresponding lamps on the display will come on at all the functions.

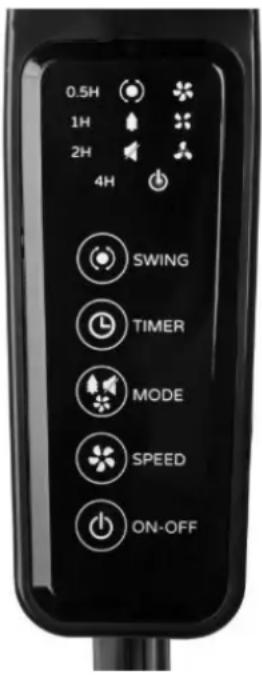

Controlpanel (choice options in the remote controle are identical)	Function	Description
	ON/OFF	On/Off switch:When pressing 'ON/OFF', the fan starts at the lowest speed.
	Speed	Setting the fan speed, low (L), medium (M) or high (H)
	Mode	Mode setting:Natural wind: by varying the fan speed, the fan imitates a natural wind. Speed button continues to work, natural wind low (L), medium (M) or high (H)Silent: silent ventilation position.
	Timer	Setting the number of hours that the fan must ventilate.Set-up from 0.5 to 7.5 hours.Pressing 1x: 0.5 hour, pressing 2x: 1 hour, pressing 3x 1.5 hour, etc.
	Osc/Swing	Pressing this knob the fan to have it oscillate (swivel). Pressing it once again stops the oscillation (swivelling).

Cleaning and maintenance

Switch the fan off and remove the plug from the socket if you wish to clean the device or perform maintenance.

The fan only needs general, exterior maintenance. Dust it regularly with a soft cloth or duster or use a vacuum cleaner with a soft brush to clean. If it is very dirty, open the grille and clean grilles and blades using a soft, damp cloth and a mild household cleaning agent. Dry everything thoroughly and allow the fan to dry properly before reassembling and using again. Ensure that water does not come into contact with anything other than the grille and blades. Never rinse or spray the fan!

In order to prevent material discolouration or deformities, never use aggressive or corrosive (cleaning) products.

If the fan is to be stored at the end of the season, repack in its original packaging: this offers the best protection. Store it in a safe and dry place that is not subject to extremes of heat or cold.

Problems and solutions

The fan blades do not rotate even though the device is switched on

• Is the plug in the socket?
• Is there power to the socket?
• Is the blade blocked, e.g. by damage, a deformity on the grille or a foreign object?

There is strange noise when starting

• Check to ensure the blades are placed as far over the motor axle as possible.
• Check if there are any burrs around the edges of the blades.
• Check whether the blades have become deformed and are touching the protective grille.

Warning: Repairs must be carried out by qualified engineers. This also applies to replacing or repairing the electrical cable and plug. Please request original parts if the device needs to be repaired.

If the device is subjected to modifications or repairs are carried out by unqualified persons, the guarantees from the supplier, importer and manufacturer will become null and void.

Removal

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.
