Product type	Pedestal fan
Brand	Eurom
Model	Vento 16SR
Supply voltage	220-240 V ~ 50 Hz
Power consumption	50 W
Fan diameter	40 cm (16")
Dimensions (L × W × H)	45 × 35 × 60 cm
Weight	3.18 kg
Number of speeds	3 (low, high, extra-high)
Oscillation function	Yes, 75° angle
Use	Indoor only
Main materials	Plastic and metal
Protective grille	Removable front and rear
Maintenance	Clean with a soft cloth or vacuum; grille and blades washable with soapy water
Safety	Do not use in a damp room; do not insert objects; unplug before maintenance
Assembly	Simple assembly: base, pole, grilles, blade, locking ring
Storage	Store in original packaging, in a dry and dust-free place
Precautions	Do not use with a dimmer or timer; do not expose to temperatures >40°C
Children instructions	Prohibited for children under 8 without supervision; do not let them play
Repairs	Entrust to a professional; use original parts
Warranty	Manufacturer's warranty (according to conditions)
Included accessories	User manual, storage packaging

Frequently Asked Questions - Vento 16SR Eurom

How to adjust the fan speed?

Use the control buttons on the fan: press 1 for low speed, 2 for high, and 3 for extra-high. To stop, press 0.

How to activate oscillation?

Press the oscillation button on top of the motor. The fan will oscillate at an angle of 75°. To stop, pull the button.

How to clean the fan?

First unplug the appliance. Dust with a soft cloth or vacuum. If dirty, open the front grille, clean the grilles and blades with a slightly damp cloth and mild soap. Dry well before reassembling. Never immerse the motor or cable in water.

The fan does not start, what to do?

Check that the plug is fully inserted into the outlet and that the outlet is powered. Make sure the blades are not blocked by an object or a deformed grille. If the problem persists, contact a professional.

Can I use this fan in a bathroom?

No, this fan is designed for indoor use in dry rooms. Do not use it near bathtubs, showers, sinks or other water sources.

How to assemble the fan?

Follow the steps in the manual: attach the rear grille to the motor shaft, push the rotor, screw the fixing knob, then attach the front grille with the locking ring. Then, pass the cable through the pole and assemble the base. Unplug before any handling.

The fan makes an abnormal noise, what to do?

Check that the rotor is fully pushed onto the motor shaft and that the grilles are not deformed. Make sure no foreign object is in contact with the blades. If the noise persists, have the appliance checked by a professional.

Can I use a timer or dimmer with this fan?

No, do not plug the fan into a timer or dimmer. This could damage the motor or create a fire risk.

How to store the fan off-season?

Clean it, dry it, then put it back in its original packaging. Store it in a dry, dust-free place at moderate temperature. Apply a little lubricant to the motor shaft to prevent corrosion.

What are the dimensions of the fan?

The fan measures 45 cm in width, 35 cm in depth and 60 cm in height. The fan diameter is 40 cm (16 inches).

USER MANUAL Vento 16SR Eurom

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Vento Fan!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Technical specifications

	Vento 9	Vento 12	Vento 16
Connected power	220-240V~50Hz
Output capacity	25 W	40 W	50 W
Ø blades	9" / 22 cm	12" / 30 cm	16" / 40 cm
Weight (kg)	1,48	2,2	3,18
Dimensions (cm)	27,5 x 22,5 x 39,5	36 x 28 x 51,5	45 x 35 x 60

General safety guidelines

1. Check (before use) that the socket you have chosen for the fan corresponds to the voltage indicated on the fan's specification plate: 220-240V~50Hz.
2. Check fan, plug and cable for damage before use. If you discover any damage, do not use and consult a qualified person for repairs. Never open up the device or carry out repairs yourself. Do not allow children to play with the packaging.

3. This device is only to be used indoors.

4. First, assemble the fan fully before use. Before you assemble or disassemble the fan first unplug it from the wall socket.

5. Ensure that the unit is always placed on a sturdy, flat and horizontal surface during use
6. Always turn the fan off and always remove the plug from the socket before moving the fan, cleaning it or carrying out maintenance.
7. Never pull on the cord or roll and/or wind it too tightly.
8. Never touch the device with wet hands!
9. If the electrical cable or plug is damaged then it must be replaced by a qualified person. To avoid accidents, never make repairs yourself.
10. Never hang anything over the fan and do not use near curtains or other materials that could jam the motor. This could lead to overheating.
11. Never insert a finger, pen, stick or any other object through the protective grille when the fan is in use! This could cause injury and damage!
12. Prevent the fan from blowing continuously on small children, patients or people that have difficulty moving.
13. Never spray products (anti-insect, cleaning spray etc) on or into the fan; this could lead to physical illnesses (particularly in children) or damage parts.
14. Never connect the fan to a timer or dimmer.
15. Do not use the fan in excessive temperatures (above 40^ ), in the vicinity of heating units, in areas with high air humidity (bathrooms etc) or in dusty rooms.
16. Do not use the device in the vicinity of baths, showers, basins or other receptacles that may contain water/liquids. Never immerse the device, cable or plug in liquid!
17. Do not use the fan in areas where acids, alkalis or oil are stored. These materials could cause the unit to deform or erode and lead to it functioning incorrectly.
18. Never use the fan in spaces where flammable, explosive or gaseous substances are stored. A single spark from the switch/engine could ignite the substances!

19. This device is not suitable to be used by persons (including children) with a physical, sensual or mental disability or those who lack experience and knowledge, irrespective of whether they are being supervised or there is a responsible person present. Keep these persons and household pets out of the vicinity of the fan.

20. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Diagram of components

1. foot
2. operating buttons
3. front grid
4. rear grid
5. handle
6. oscillating button
7. motor housing
8. electrical cable with plug

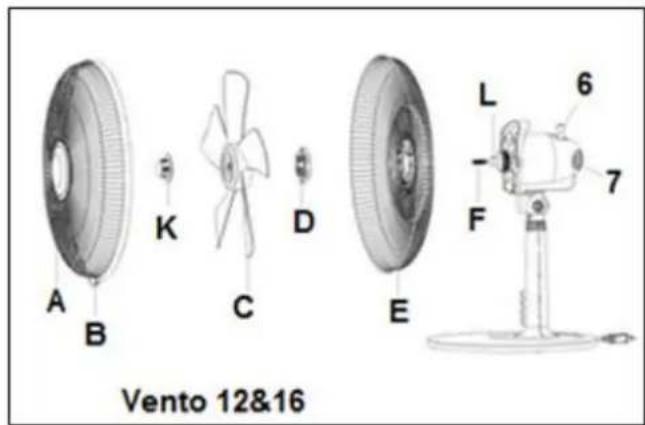

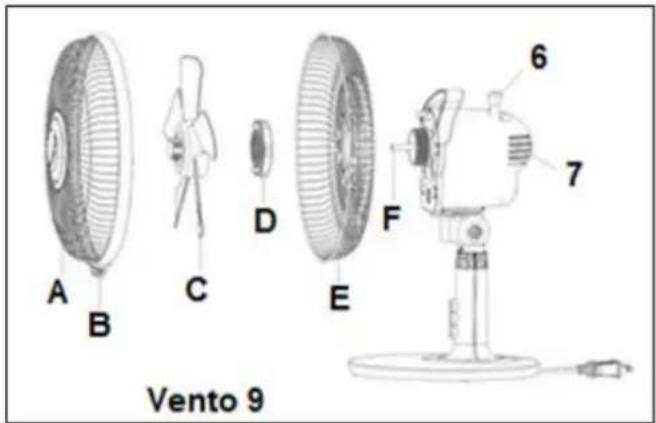

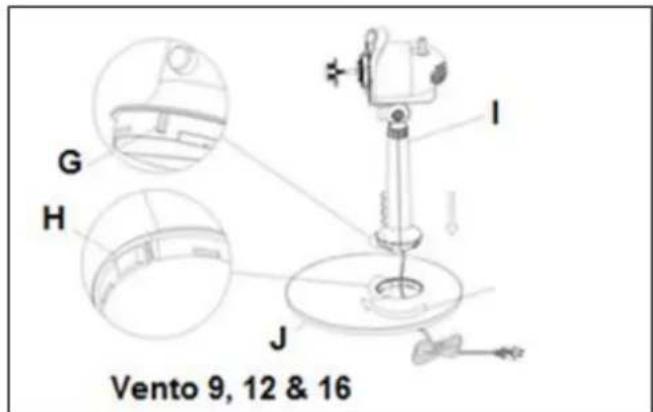

Assembly

A. front grid
B. grid locking ring
C. fan
D. grid mount
E. rear grid
F. motor shaft

G. stand protrusion
H. foot cutaway
I. pedestal
J. foot
K. fan mounting knob
L. shaft pin

Unplug from the wall socket!

• Remove the fan mounting knob (only Vento 12&16) and the grid mount from the motor shaft.
• Position the rear grid on the appropriate pins. Screw it tight with the grid mount.
• Push the fan as far as possible onto the motor shaft. Vento 12 and 16: ensure that the pins enter the grooves and tighten the fan with the fan mounting knob by tightening it anti-clockwise.
• Check that the fan rotates freely if you turn it by hand.

• Open the grid locking ring a little by loosening the screw a bit. Place the front grid on the rear grid so that the grid locking ring correctly encloses the edges of the grids; the grids firmly against each other! Then tighten the grid locking ring firmly with the screw. Check that everything is properly lined up.

• Run the electric cable through the hole in the foot. Mount the pedestal on the foot, so that the protrusions on the pedestal enter the cut always in the foot. Now screw the pedestal to the foot; the electrical cable will now run through its guides.

Important

Do not use the fan in a bathroom or wet area. Find a stable, horizontal place for the fan in the vicinity of a wall socket. Ensure that the fan is not within the reach of children. Never stick objects through the grid. Always unplug the fan from the wall socket before you move it or carry out maintenance on it!

Operation

The fans can be set to different speeds: The Vento 9 has two settings; the Vento 12 & Vento 16 have three settings. All types of fan are equipped with an oscillation function (75^) .

If you would like to angle the fan upwards or downwards, the motor block can be angled further up or down in relation to the foot. Before doing so, however, turn off the fan and remove the plug from the socket!

If - the fan has been fully assembled

• all connections have been properly secured
• all safety guidelines have been taken into account

you can use the fan.

I - Insert the plug into the socket.

II - Select setting: 0=off, 1=standard, 2=strong (Vento 12&16: 3=extra strong).

The output buttons on the (T) models are located on the base; they can be found on the button unit on the (S) models.

The fan will now begin to work.

III - If required, you may now depress the oscillation button on top of the motor: the fan will now begin to oscillate through an angle of 75^ . Depressing and releasing this button will turn the oscillation function off. Make sure that hair, clothes, curtains etc. cannot be sucked into the spinning fan!

Press the 0 button to switch the fan off. If you wish to turn the device off for longer than just a few minutes, you must also remove the plug from the socket.

Cleaning and maintenance

Switch the fan off and remove the plug from the socket if you wish to clean the device or perform maintenance. The fan only needs general, exterior maintenance. Dust it regularly with a soft cloth or duster or use a vacuum cleaner with a soft brush to clean. If it is very dirty, open the grille and clean grilles and blades using a soft, damp cloth and a mild household cleaning agent. Dry everything thoroughly and allow the fan to dry properly before reassembling and using again. Ensure that water does not come into contact with anything other than the grille and blades.

Never rinse or spray the fan! In order to prevent material discolouration or deformities, never use aggressive or corrosive (cleaning) products. Rub a little oil on the motor shaft at the end of the season to prevent rust. If the fan is to be stored at the end of the season, repack in its original packaging: this offers the best protection. Store it in a safe and dry place that is not subject to extremes of heat or cold.

Problems and solutions

The fan blades do not rotate even though the device is switched on

• Is the plug in the socket?
• Is there power to the socket?
• Is the blade blocked, e.g. by damage, a deformity on the grille or a foreign object?

There is strange noise when starting

• Check to ensure the blades are placed as far over the motor axle as possible.
• Check whether the blades have become deformed and are touching the protective grille.

Warning: Repairs must be carried out by qualified engineers. This also applies to replacing or repairing the electrical cable and plug. Please request original parts if the device needs to be repaired. If the device is subjected to modifications or repairs are carried out by unqualified persons, the guarantees from the supplier, importer and manufacturer will become null and void.

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-declaration

See page 34.

Dank

declares the following device in sole responsibility:

Product: Fan

Brand name: EUROM

Model: Vento 9 / Vento 12 / Vento 16

Item number: 384666 / 384680 / 384703

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive:2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 60335-2-80:2003;A1: 2004+A2:2009

EN 60335-1:2012:A11:2014+A14:2017+A1:2019+A14:2019

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Genemuiden, 09-11-2020

W.J. Bakker, alg. Dir.
