UVC122311 - Vacuum Cleaner Emerio - Free user manual and instructions

Product Type	Cordless Stick Vacuum Cleaner
Brand	Emerio
Model	UVC122311
Battery Voltage	22.2 V DC
Battery Type	Integrated Lithium-ion (non-replaceable)
Dustbin Capacity	Approx 0.5 L (estimation)
Filter	Washable HEPA Filter
Speed Levels	2 (low and high)
Included Accessories	Floor brush, long crevice tool, 2-in-1 crevice tool, wall charging dock, power adapter
Usage	Dry surfaces only
Weight (estimated)	Approx 2.5 kg
Power Supply	Provided power adapter
Warranty	3 years
Filter Maintenance	Every 2 weeks, rinse with water and air dry
Emptying the Bin	After each use, do not exceed the MAX level
Safety	Do not immerse, only use the provided charger
Spare Parts	Available at www.buyspareparts.eu

Frequently Asked Questions - UVC122311 Emerio

How do I empty the dustbin?

Press the unlock button to remove the extension tube, then press the dustbin locking clip to empty the dust. Make sure not to exceed the MAX level.

How do I clean the HEPA filter?

Press and hold the dustbin unlock button, turn the bin clockwise to remove it. Remove the HEPA compartment, then the filter. Rinse them with water and let them air dry completely before reassembling. Clean every two weeks.

How do I charge the vacuum?

Clip the appliance into the wall charging dock. Plug the charging adapter into a power outlet. During charging, the indicator flashes red; once fully charged, it turns green. Then disconnect the adapter.

What if suction decreases?

Check that the dustbin is not full and the HEPA filter is not clogged. If the filter cannot be cleaned properly, replace it. Also ensure that the floor brush or nozzles are not blocked.

Can I use the vacuum on carpets?

Yes, the vacuum is designed for hard floors and carpets. Use the included floor brush. For optimal suction, empty the bin regularly and clean the filter.

Can the vacuum pick up liquids?

No, this vacuum is designed only for dry pick-up. Never pick up combustible or flammable liquids. This could damage the appliance and cause electric shock.

How to mount the wall bracket?

Measure the distance between the holes on the back of the bracket, drill four holes in the wall, insert wall plugs, then fix the bracket with the provided screws. Ensure it is at the desired height.

Are the accessories interchangeable?

Yes, you can replace the floor brush with the long crevice tool or the 2-in-1 crevice tool directly on the suction opening or at the end of the extension tube. A click indicates proper locking.

What if the battery doesn't charge?

Check that the adapter is properly connected and the indicator is on. Make sure the vacuum is correctly clipped into the charging dock. If the problem persists, contact customer service.

How to turn off the vacuum?

Press the speed selection button twice to turn off the appliance. The battery indicator will turn off.

USER MANUAL UVC122311 Emerio

Handstofzuiger (NL) Handy vacuum cleaner (EN) Handstaubsauger (DE) Aspirateur a main (FR) Odkuracz ręczny (PL)

UVC-122311.3

Inhoud – Content – Inhalt – Teneur – Trešć

Instruction manual - English. 11

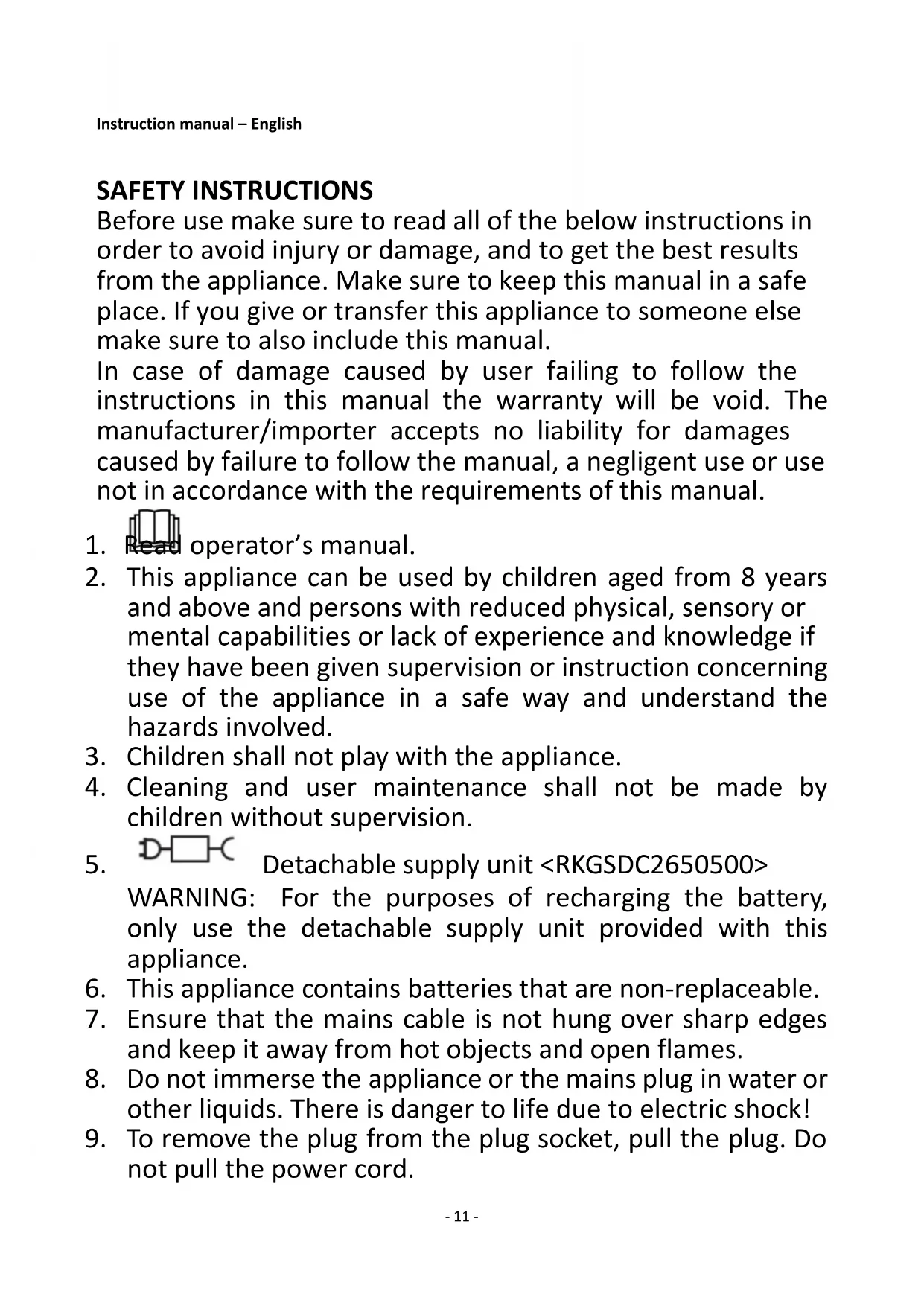

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

operator's manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. D□C

Detachable supply unit

WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

1. This appliance contains batteries that are non-replaceable.
2. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

4. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

5. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

6. Never leave the appliance unattended during use.
7. This appliance is not designed for commercial use. For household use only.
8. Do not use the appliance for other than intended use.
9. Do not wind the cord around the charger and do not bend it.
10. Close supervision is necessary for any appliance being used by or near children. Do not leave the system unattended while connected. Keep hair, loose clothing, fingers and all parts of body away from opening and moving parts.
11. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
12. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.
13. Use extra care when cleaning on stairs.
14. Do not use the appliance without the dust cup filter in place.
15. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
16. Do not put any objects into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything else that may reduce air flow.
17. Use only on dry surfaces.
18. Important: If the suction opening in the unit is blocked, switch off the appliance and remove the blocking substance before you start the unit again.
19. Do not operate the appliance too close to heaters, radiators or cigarette butts.
20. Before you start vacuuming, make sure to remove large or sharp objects that might damage the dust cup filter.
21. The appliance is only to be used with the power supply unit provided with the appliance.

22. The charger must be removed from the socket before removing the battery.

23. Use the included charger to charge the vacuum cleaner and do not use the charger for other purposes.

24. Do not open the charger.
25. Batteries:

Never attempt to open for any reason.

Do not expose the battery to water.

Do not expose the battery to heat.

Do not store in locations where the temperature may exceed 40^ .

1. In an emergency situation contact professional help immediately.
2. Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid that gets on skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
3. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another

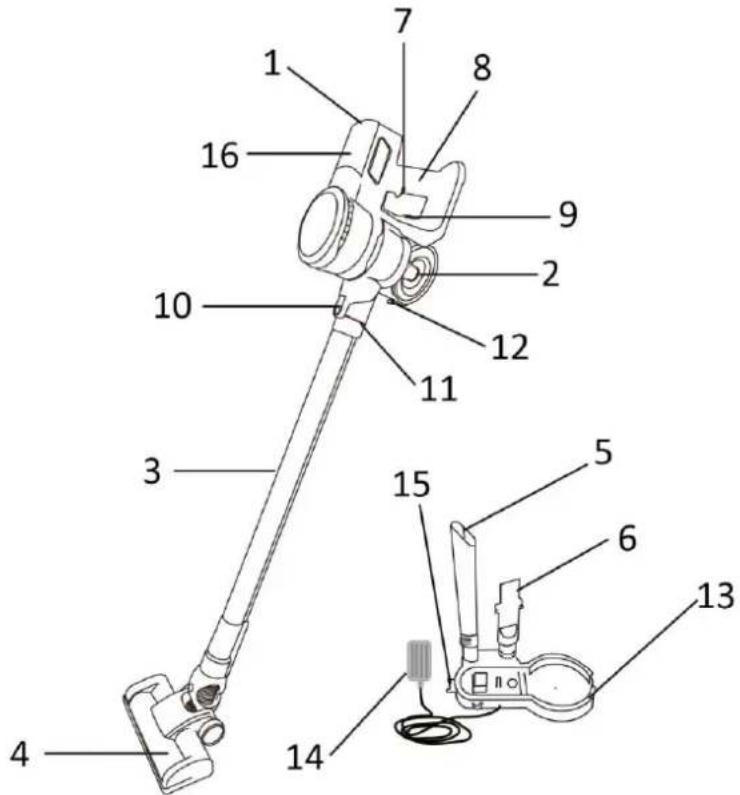

PARTS DESCRIPTION

1. Battery pack
2. Dust cup
3. Extension tube
4. Floor brush
5. Long crevice nozzle
6. 2 in 1 crevice nozzle
7. Speed button
8. Handle
9. Dust cup release button
10. Accessory release button
11. Suction hole opening
12. Dust cup locking clip
13. Charging seat/ wall-mounted bracket
14. Charging adapter
15. Charging seat release button
16. Battery pilot light

HOW TO WALL-MOUNT CHARGING SEAT:

1. Measure the distance between the holes situated at the back of the bracket and drill four holes in the wall with the same distance.
2. Put the expansion bolts into the holes and then use the screws to fix the bracket onto the wall.
3. Pay attention to the height of the bracket mounted.

BATTERY CHARGING:

1. Battery pilot light indicates the battery status. Red blinking indicates that battery is drained.

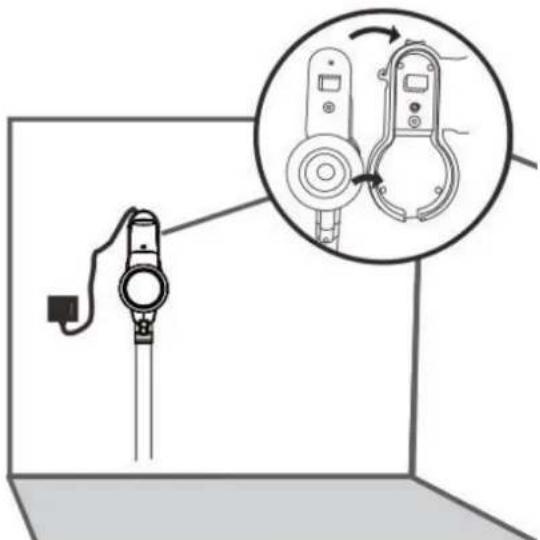

2. Simply dock the appliance into the charging seat for re-charging (Fig.1). Plug the charging adapter into the power socket.
3. While charging, the pilot light will be red and blinking; when the charging operation is finished, the pilot light will turn green.
4. After charging, unplug first, then press the charging seat release button to take out the appliance.

Note: Do not let the appliance uncharged for a long time, because the inner accumulators may be damaged.

Fig. 1

Fig.2

OPERATION

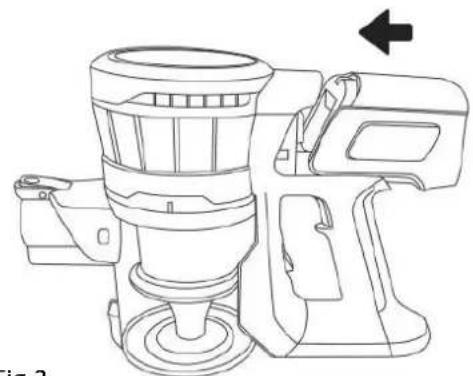

1. Assemble the battery pack into the main body. (Fig. 2)

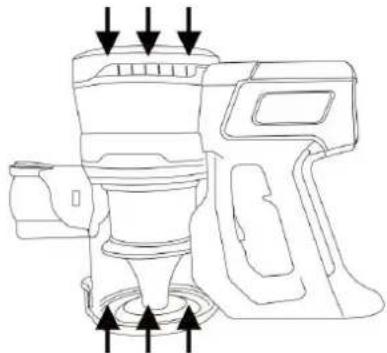

2. Assemble the dust cup. Observe the LOCK (A) and UNLOCK (B) icon on the dust cup, align the MARKER LINE (C) with the UNLOCK (B) icon.
3. After alignment, push the dust cup towards the vacuum body, ensure they are well engaged with each other.

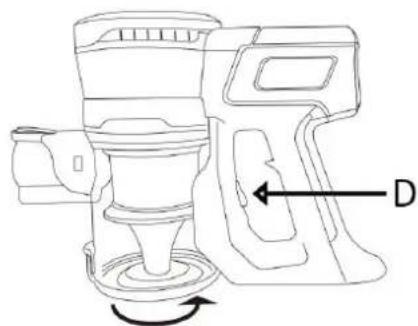

4. Keep dust cup release button (D) pressed, turn dust cup in anti-clock wise direction, once the click sound is heard, the dust cup is properly locked.

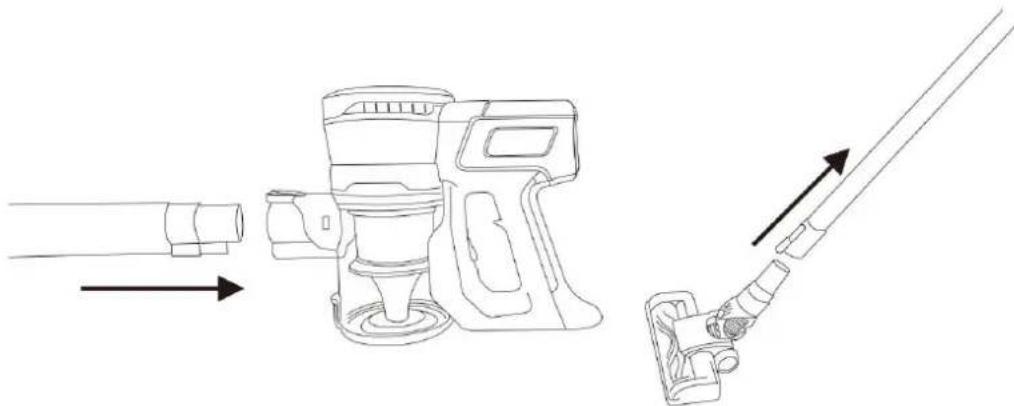

1. Insert the extension tube into the suction hole opening; make sure it fits firmly.
2. Attach the floor brush to the other side of the extension tube.

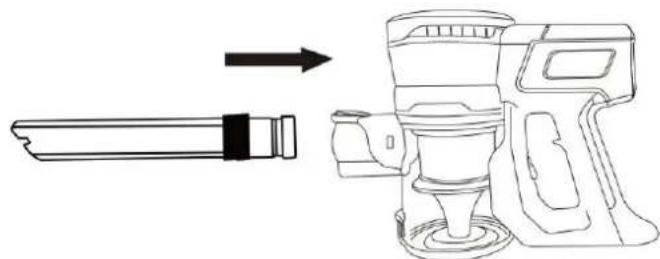

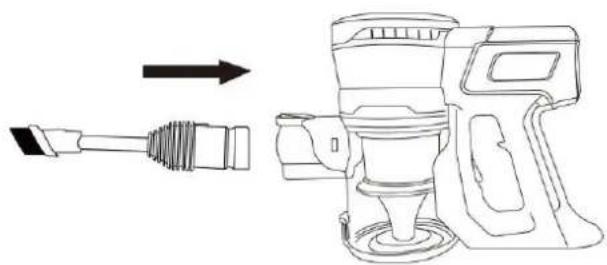

1. If you want to use the attachment long crevice nozzle or 2 in 1 crevice nozzle, attach it to the suction hole opening directly or to the other side of the extension tube instead of the floor brush according to your own desire. Once the click sound is heard, the nozzle is properly locked.

1. Press the speed button to turn on the appliance. The battery polit light will illuminate green.

Press the speed button once: low speed;

Press the speed button twice: high speed;

Press the speed button thrice: off.

NOTE: During use, please pay attention to the dust capacity and do not exceed the "MAX" level indicated on the dust cup. This appliance is for dry suction only.

Caution: The suction hole opening must be open and free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

CLEANING AND MAINTENANCE

1. Do not immerse the main unit, battery pack, recharge seat, and floor brush in water or any other liquids.
2. Use only a soft dry cloth to clean the appliance.
3. Do not use aggressive chemicals or abrasives.
4. Do not use the device if the filter is broken or worn out.
5. The unit does not contain parts serviceable by you, do not disassemble it and do not try to repair it yourself.

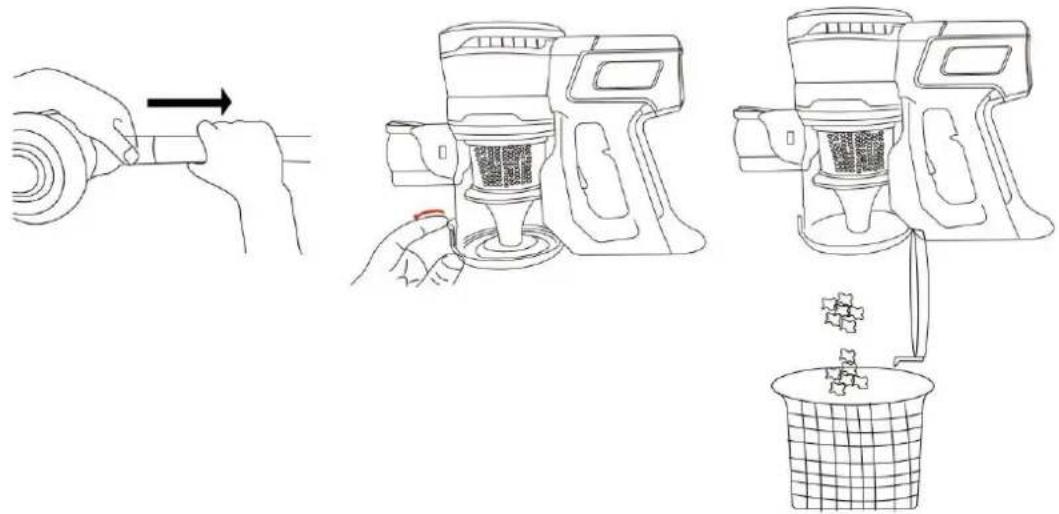

1. How to empty the dust cup:

1) Press the release button to take out the extension tube;
2) Press down the locking clip on the dust cup to empty dust from the container.

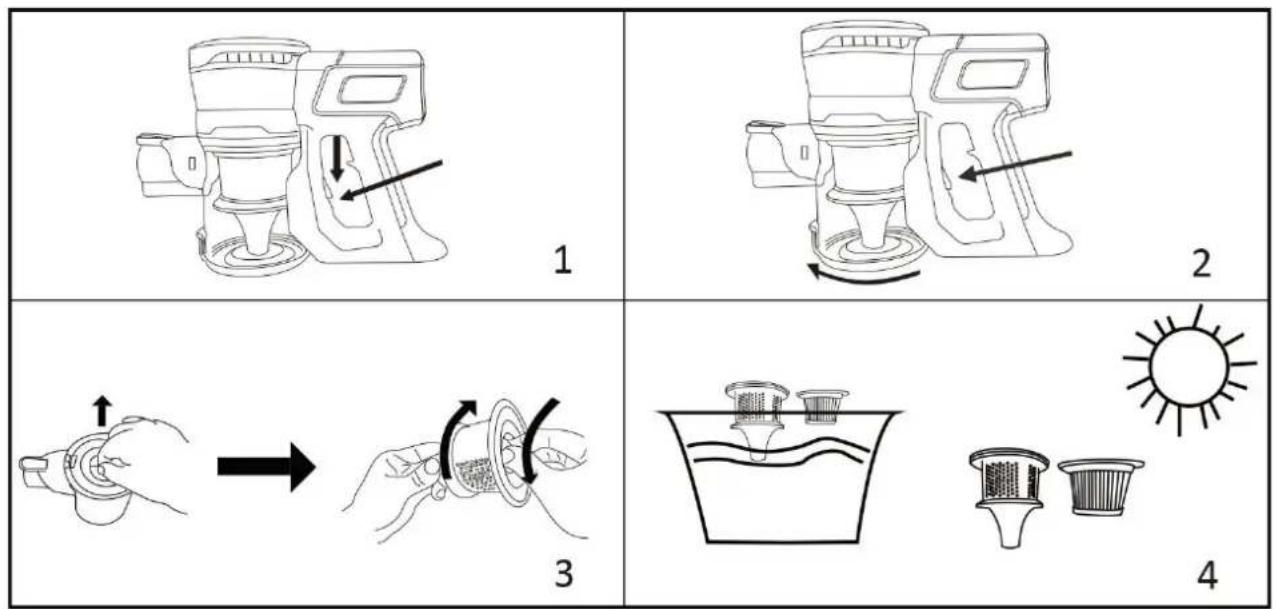

2. How to clean the dust cup filter:

1) Keep dust cup release button pressed, the dust cup will be unlocked.
2) Turn the dust cup in clockwise direction to detach from the main vacuum body.
3) Take out the HEPA case first, and then take out the HEPA filter.
4) Rinse them in water, and then air dry completely before placing them back in the dust cup. AIR DRY ONLY.

Note:

(1) Clean the dust cup filter every two weeks or so (depending on usage).
(2) To ensure peak performance of the appliance, if the HEPA filter cannot be well cleaned or the suction of the appliance is decreasing, it is the time to replace the HEPA filter.

(3) The HEPA filter protective net cover is used to protect the HEPA filter from blocking. Make sure it is in place when placing the HEPA filter back into the HEPA case.

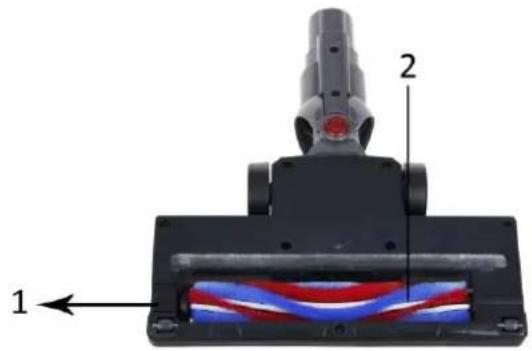

3. How to clean the brush bar

1) Push the lock (1) out to unlock the brush bar (2) from the floor brush. Take it out and remove any dirt (hair and other fibers) tangled around the roller.

2) Wash the brush under running water with mild detergent. Make sure that it is completely dry before replacing it.

TECHNICAL DATA: DC 22.2 V

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 3 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

www.saubereurope.com

Spare parts:

www.buyspareparts.eu
