Product type	Electric slicer
Brand	Emerio
Model	MS125001
Supply voltage	220-240 V ~ 50/60 Hz
Power	110 W
Cutting thickness adjustment	0 to 15 mm
Blade material	Stainless steel
Included accessories	Sliding carriage, sausage holder, cord storage
Safety device	Start lock button (two-hand safety)
Cleaning of removable parts	Carriage and sausage holder dishwasher safe
Body cleaning	Wipe with a damp cloth, do not immerse
Recommended use	Cutting bread, sausages, semi-hard cheese
Maximum continuous use time	10 minutes
Noise level	< 75 dB(A)
Warranty	2 years
After-sales service	Emerio Deutschland GmbH, email: [e-mail]

Frequently Asked Questions - MS125001 Emerio

How to start the Emerio MS125001 slicer?

Press and hold the start safety device (lock button), then simultaneously press the Start button until the appliance starts. Release the safety device. To stop, release the Start button.

How to adjust the cutting thickness?

Turn the rotary knob located on the side of the appliance to adjust the cutting thickness from 0 to 15 mm. After use, always set it back to 0.

Is the blade removable for cleaning?

Yes, the blade can be removed. To remove it, turn the blade holder fully clockwise, then carefully pull it off. To reattach, insert it vertically and turn counterclockwise until you hear a 'click'.

Can I wash the carriage and sausage holder in the dishwasher?

Yes, the carriage and sausage holder are dishwasher safe. The appliance body and blade must be cleaned by hand with a damp cloth.

What foods can I cut with this slicer?

The appliance is designed for cutting firm foods such as bread, sausages, and semi-hard cheese. Do not cut very hard foods (bones, hard cheese, frozen foods) or non-food items.

How long can I use the slicer continuously?

The motor can overheat. Do not use it for more than 10 minutes continuously. After 10 minutes, turn off the appliance and let it cool down.

How to store the slicer safely?

Set the cutting width to 0, slide the carriage against the blade to the end position and lock it with the slide in position 1. Unplug the cord and store it in the cord storage.

What to do if the power cord is damaged?

Do not use the appliance. The damaged cord must be replaced by the manufacturer, its after-sales service, or a qualified person to avoid any hazard.

Is the slicer suitable for children?

No, this appliance should not be used by children. Keep the appliance and its cord out of reach of children. Children should not play with the appliance.

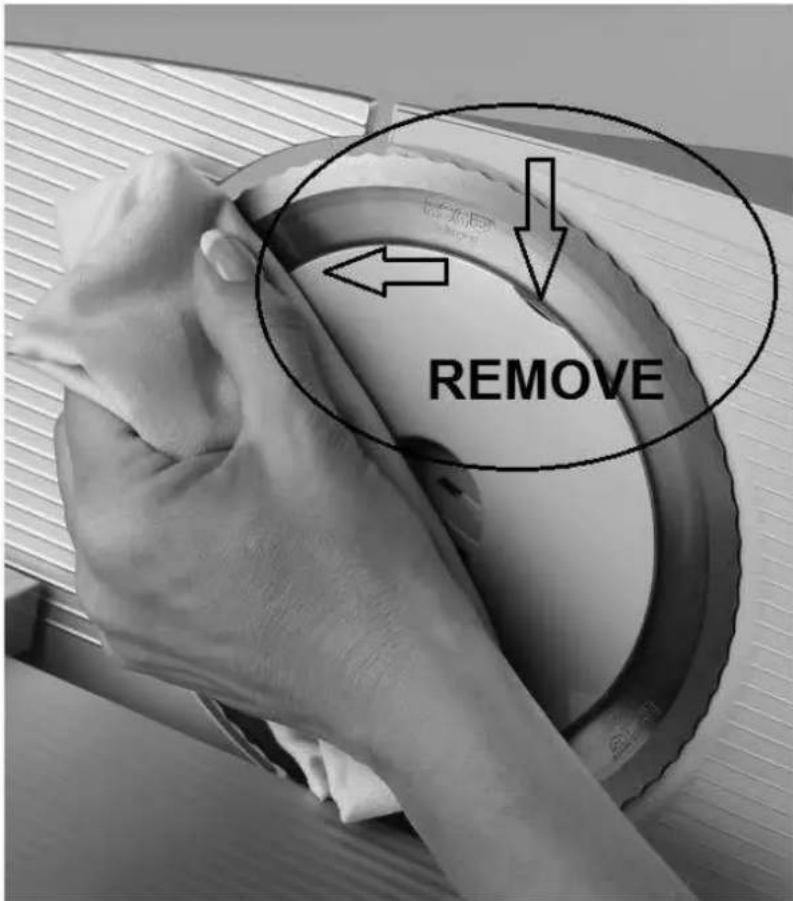

How to clean the blade without injury?

Before any cleaning, unplug the appliance. Remove the blade by holding it by the holder, never by the sharp edge. Clean it with a damp cloth and dry it thoroughly. Reassemble correctly by turning the holder until it clicks.

USER MANUAL MS125001 Emerio

All-purpose slicer (EN)

Allesschneider (DE)

This appliance is designed only for domestic use or similar non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing the usual household quantities of food. Please keep the instruction manual in a safe place and if the appliance changes hands, pass them on to a new owner.

SAFETY INSTRUCTIONS

1. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
2. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
3. Children shall not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Warning: Potential risk of injuries from misuse.
6. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
7. Risk of injury from sharp blade!
8. The blade is very sharp.
9. Keep hands clear of the blade.
10. After switching off, the drive continues for a short time. Wait for the blade to come to a standstill!

11. After work, set cutting width to 0.

12. This appliance must be used with the sliding feed table and the piece holder in position unless this is not possible due to the size or shape of the food.

13. The appliance may be connected and operated only in accordance with the specifications on the rating plate.
14. Do not use the damaged appliance or the damaged power lead.
15. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
16. Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
17. After using the appliance, if it is left unattended or if the appliance is faulty, always disconnect the power lead from the mains socket.
18. Never leave the appliance unattended while it is switched on!
19. Do not pull the power lead over sharp edges. To prevent injury, any repairs such as replacing a damaged power lead, should only be carried out by customer service.
20. Worn-out appliances must be made unsuitable for further use.
21. The wall socket must be accessible and must be earthed according to technical specification.
22. The appliance is only suitable for cutting firm foods, such as bread, sausage or semi-hard cheese. The cutting of other substances (e.g. wood) or very hard foods (bone, hard cheese, deep-frozen food) is not permitted.
23. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "CLEANING" of the manual.
24. Regarding the instructions for the use of accessories, operation times and speed settings, please refer to the below paragraphs.

Risk of electric shock!

Never immerse the appliance in water or place under running water and do not clean in the dishwasher.

Do not use the appliance near a sink filled with water!

Caution

Motor may overheat! After a maximum 10 minutes of continuous use, switch OFF the appliance and allow to cool down.

Noise level: Lc < 75 dB(A)

OVERVIEW

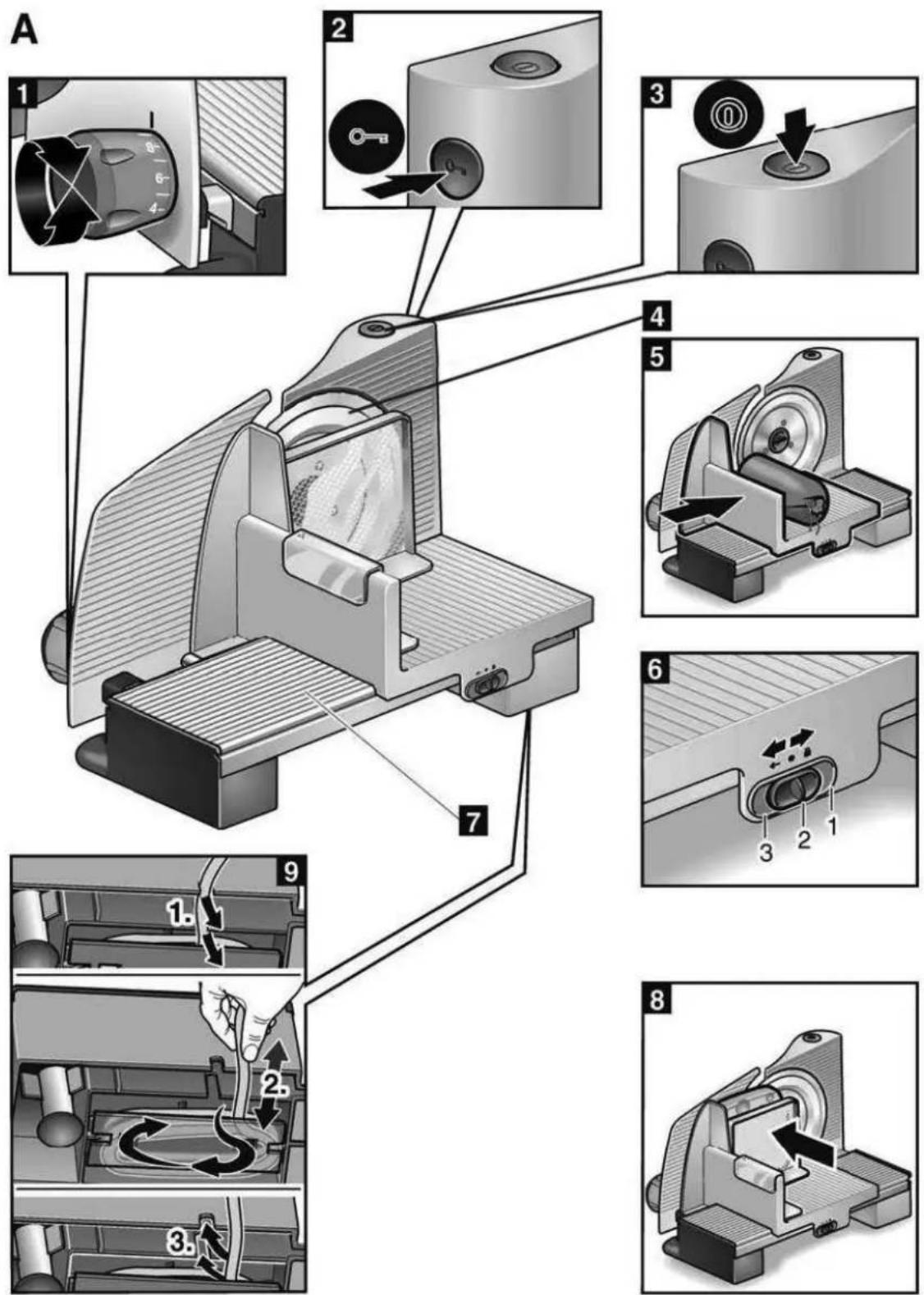

Fig. A

1. Rotary knob and stop plate

Set slicing width (0 to 15 mm).

2. Start lock-out

Press and hold to switch on. Prevents the appliance from being unintentionally switched on.

3. ON button

Instantaneous setting

4. Blade

5. Carriage

Guide the food which is to be sliced against the blade.

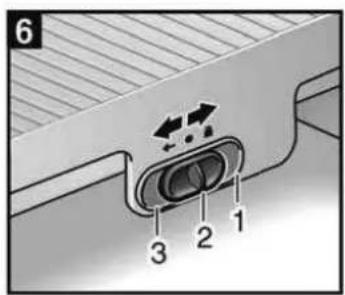

6. Slide

Pos. 1 (slide on right)
= Lock the carriage in the end position
Pos. 2 (slide in centre)
= Carriage movable
Pos. 3 (slide on left)
= Remove carriage

7. Base

Supports the carriage.

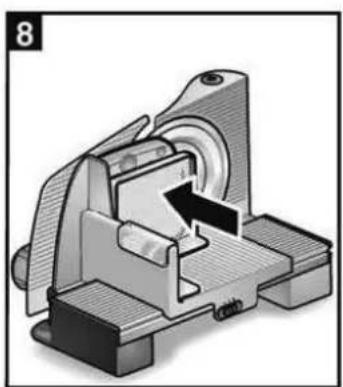

8. "Sausage end" holder

Cuts residual pieces safely.

9. Cord store

OPERATION

Before using the appliance for the first time, clean thoroughly.

Preparation:

Fig. A

• Place the appliance on a smooth, clean surface.

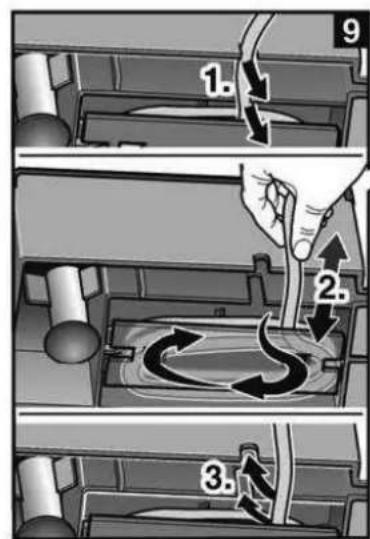

  Pull out cable from the cord store 9 to the required length:

• Remove cable from the two clamping slots.

• Pull out/push in cable past the cover to the required length.

• Re-attach cable end.

• Attach carriage 5 and "sausage end" holder 8.
  Use the rotary knob 1 to set the required cutting width.

• Insert the plug.

Switching the appliance ON/OFF:

Risk of injury from sharp blade!

Blade is very sharp. Keep hands clear of the blade. After switching off, the drive continues for a short time. After work, set cutting width to 0.

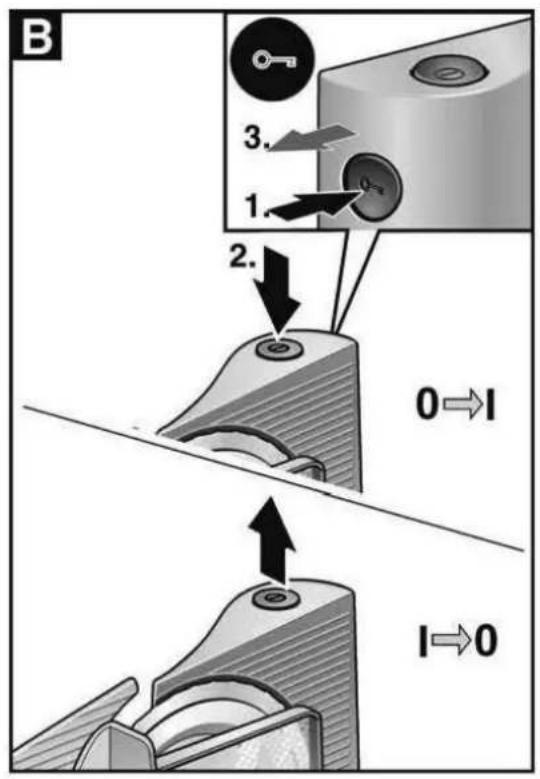

Fig.B

1. Press the switch-on safety device and hold down.
2. Simultaneously press ON button until the power tool starts running.
3. Release the switch-on safety device again.
4. To stop the appliance, release the ON button.

Slicing:

Fig. E

1. Slide the slide 6 to Pos. 2.
2. Pull carriage away from the blade to the end position.
3. Place the food which is to be sliced on the carriage and gently push against the stop plate.
4. Slowly slide the food which is to be sliced against the moving blade.

After using the appliance:

• Release the ON button.
• Set the slicing width to 0.
• Slide the carriage towards the blade into the end position and lock with the slide 6 in Pos. 1.

Notes:

Cut sausage and cheese first and bread last. The appliance is then easier to clean.
- For reasons of hygiene, the appliance and the blade should be cleaned immediately after slicing greasy food (e.g. meat, sausage, cheese).

CLEANING

The appliance requires no maintenance! Thorough cleaning guarantees a long service life.

Risk of electric shock!

Never immerse the appliance in water or place under running water and do not clean in the dishwasher.

Risk of injury from sharp blade!

Before cleaning the appliance, pull out the mains plug and remove the blade. Do not grip the blade by the cutting surface, but by the blade attachment.

Risk of injury from falling blade!

When re-attaching the blade, ensure that it is locked correctly in position = blade holder in horizontal position.

Caution!

Surfaces may be damaged. Do not use abrasive cleaning agents.

Cleaning the appliance:

• Wipe the appliance and blade with a damp cloth and then a dry cloth. If required, use a little detergent.

• Carriage and "Sausage end" holder are dishwasher-proof.

Removing/inserting the blade:

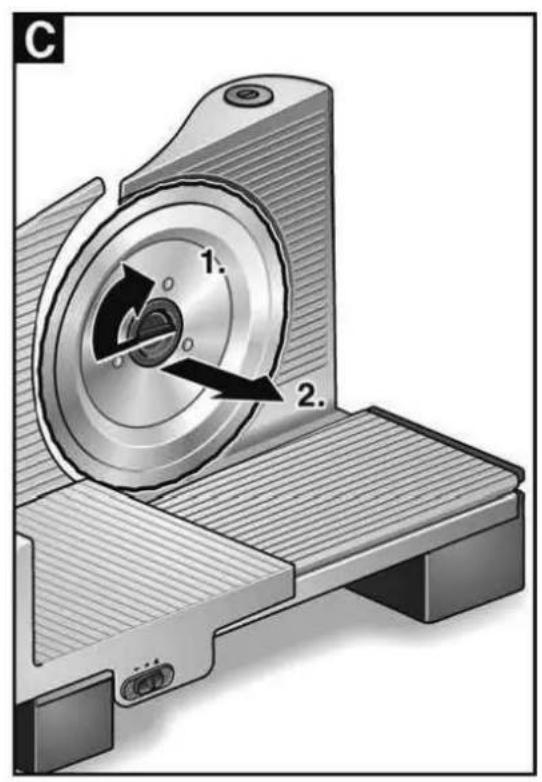

Fig. C

• Slide back the carriage until the blade is accessible.
• Rotate the blade attachment all the way in a clockwise direction.
• Carefully remove the blade.

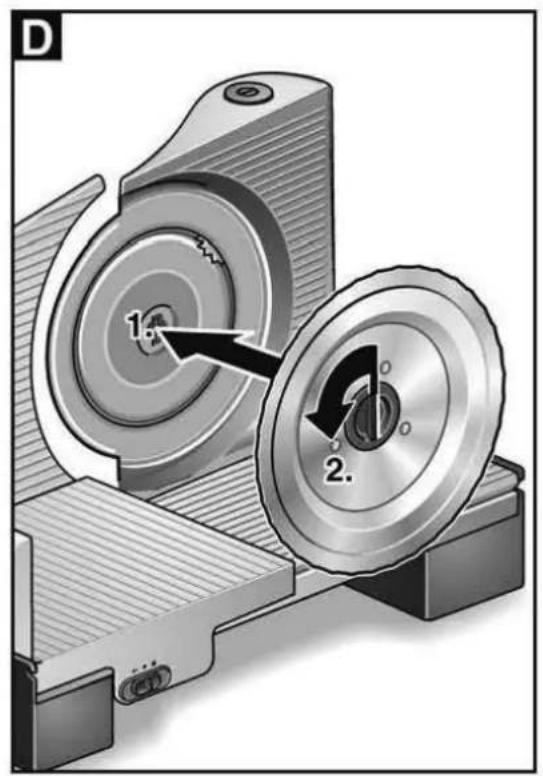

Fig. D

1. To insert the blade, hold the blade attachment vertically and insert.
2. Rotate blade attachment all the way in an anti-clockwise direction (must "click" into position).

Removing/inserting the carriage:

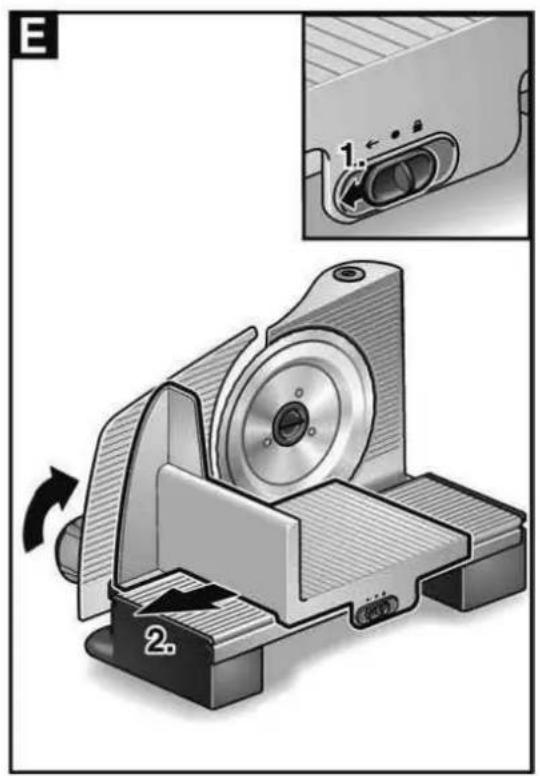

Fig. E

1. Move slide 6 to Pos. 3.
2. Pull carriage back as far as possible and remove from the base.
3. Insert by sliding the carriage along the guide in the base.

STORAGE

Risk of injury from sharp blade!

Keep the appliance out of the reach of children.

Fig. A

• Set the rotary knob 1 to 0.
• Slide the carriage towards the blade into the end position and lock with the slide 6 in Pos. 1.
• Unplug the cord and stow in the cord store 9.

TECHNICAL DATA

Supply voltage: 220 - 240V 50 / 60Hz

Power consumption: 110W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]
