AC123282 - Air Conditioning Emerio - Free user manual and instructions

Product Type	Air Cooler (air conditioning)
Brand	Emerio
Model	AC123282
Power supply	220-240 V ~ 50 Hz
Power consumption	80 W
Max airflow	5.3 m³/min
Max air speed	8 m/s
Sound power level	65 dB(A)
Service value	0.07 (m³/min)/W
Fan speeds	3 (Low, Medium, High)
Operating modes	Normal, Sleep, Natural
Timer	1 to 7 hours
Oscillation function	Yes (left-right)
Air conditioning function	Yes (with ice packs)
Water tank	With MIN and MAX marks
Ice packs included	2
Remote control	Yes (CR2025 battery included)
Wheels	4 (removable)
Air filter	Washable, regular cleaning recommended
Cooling pad	Washable, replace if worn
Spare parts available	Ice packs, cooling pad at buyspareparts.eu
Safety	Automatic shut-off in case of low water level (pump)
Warranty	2 years

Frequently Asked Questions - AC123282 Emerio

How to use the ice packs?

Fill the ice packs with water up to the MAX mark, tighten the cap firmly, then freeze them horizontally. Add one or two frozen packs to the water tank to refresh the air. Note: the total water level must not exceed the MAX mark after adding.

How to clean the air filter and cooling pad?

Unplug the appliance. Loosen the filter screws, remove the filter (B) and the pad (C) by pulling the tab (A). Clean them with a neutral detergent and a soft brush, rinse with clear water, then dry before reassembling.

Why is the remote control not working?

Check that the CR2025 battery is properly inserted and remove the plastic protection if still present. Point the remote towards the receiver on the control panel without obstacles. If the problem persists, replace the battery.

How to set the timer?

Press the timer button repeatedly to increase the operating duration from 1 to 7 hours. The corresponding indicator light shows the selected duration. The appliance will turn off automatically after the set time.

What to do if the appliance is not cooling enough?

Ensure the tank has enough water (above MIN mark) and that the cooling function is activated. Add frozen ice packs for better cooling. Clean the filter and cooling pad if dirty.

Can I use the appliance without water?

Yes, you can use it as a simple fan without water. However, the cooling function requires water and ice packs. Do not run the water pump if the level is below MIN mark.

How to empty and store the appliance?

Turn off and unplug the appliance. Remove the water tank, empty and clean it with a soft cloth. Dry all parts. Store the appliance in a dry place, frost-free.

Can the appliance be used in a bathroom?

No, the appliance should not be used near a bathtub, shower, or pool. It is intended for indoor use only and should be placed on a flat, stable surface.

What to do if the water in the tank does not cool?

Check that the ice packs are properly frozen and placed in the tank. If using only water without ice packs, the air temperature will only be slightly lower than ambient. Ensure the cooling function is activated.

Where to find spare parts?

Parts like ice packs and cooling pad are available at buyspareparts.eu. For any other questions, contact Emerio customer service at [e-mail].

USER MANUAL AC123282 Emerio

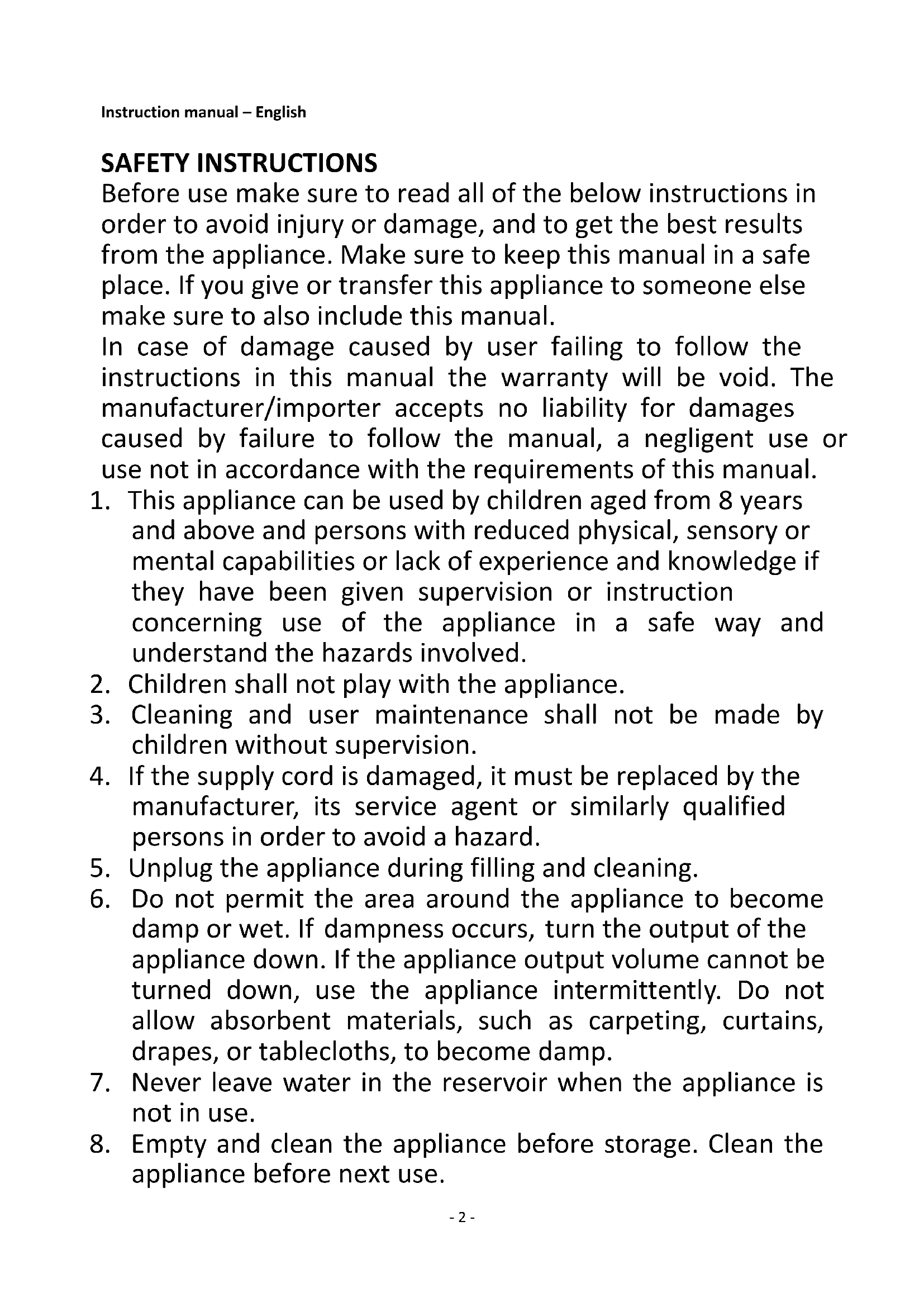

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Unplug the appliance during filling and cleaning.
6. Do not permit the area around the appliance to become damp or wet. If dampness occurs, turn the output of the appliance down. If the appliance output volume cannot be turned down, use the appliance intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.
7. Never leave water in the reservoir when the appliance is not in use.

8. Empty and clean the appliance before storage. Clean the appliance before next use.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
16. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
17. Never leave the appliance unattended during use.
18. This appliance is not designed for commercial use.
19. Do not use the appliance for other than intended use.
20. Do not wind the cord around the appliance and do not bend it.
21. Never insert fingers, pencils or any other object through the holes of the plastic shell.
22. The appliance should be placed on a flat and stable surface when operating to avoid overturning.
23. Do not let the air inlet be too close to the wall, curtain and other objects. Otherwise, it will block the air flow and affect the wind effect.

24. Choose the socket that is up to more than 10A current. Do not use the same socket with other machines.

25. Please turn off the power before pulling out the plug. Do not pull the plug directly in order to avoid a short-circuit, fire or electric shock.

26. Do not use the appliance outdoors or around the bath, shower or pool.
27. At anytime, the water level of the water tank must be less than "MAX". When the cooling function is used, the water level of the water tank must be more than "MIN".
28. After the water tank is filled with water, please do not tilt or bump the appliance while moving it.
29. Do not put anything on the appliance. Do not cover the air inlet and air outlet of the appliance.
30. Pour out the water when the appliance is not is use.

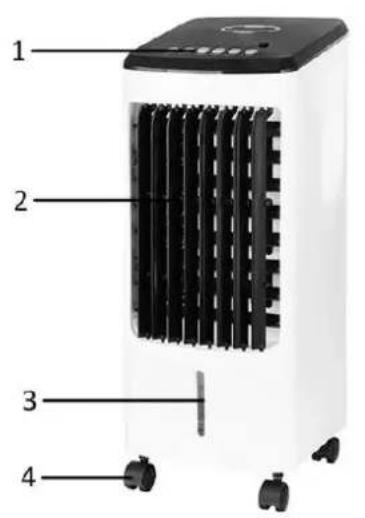

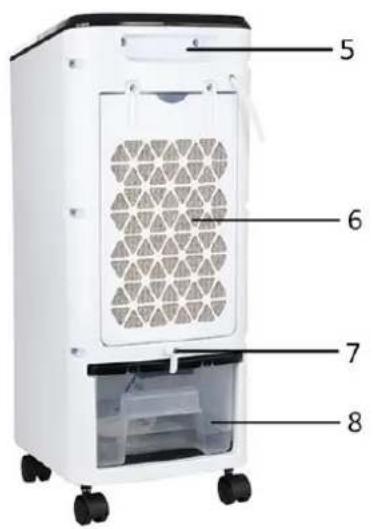

PARTS DESCRIPTION

1. Control panel
2. Air outlet
3. Water level window
4. Wheels
5. Handle
6. Air inlet
7. Water tank lock
8. Water tank
9. Ice boxes
10. Remote control

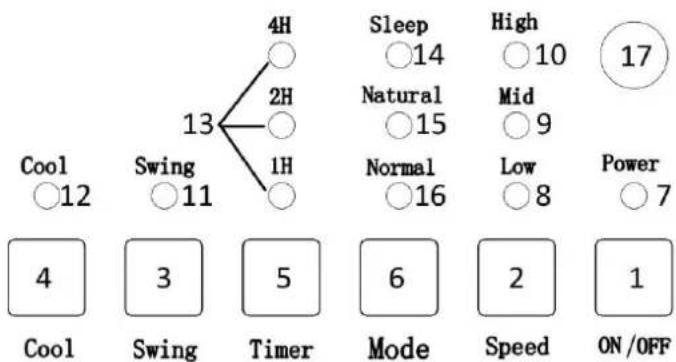

Control panel

1. On/off button
2. Wind speed button
3. Swing button
4. Cool button
5. Timer button
   6.Mode button
6. Indicator light of power
7. Indicator light of low wind speed

8. Indicator light of medium wind speed

9. Indicator light of high wind speed

10. Indicator light of swing function
11. Indicator light of cooling function
12. Indicator light of timer
13. Indicator light of sleep mode
14. Indicator light of natural mode
15. Indicator light of normal mode
16. Remote control receiver

Remote control

1. On/off button
2. Mode button
3. Wind speed button
4. Swing button
5. Cool button
6. Timer button

This unit has a remote control. One piece of CR2025 battery will be provided with the remote control. Before starting to use the remote control, remove the plastic protection from the battery. If you want to change the battery, please refer to the instruction behind the remote control. If it is not in use for a long time, please take the battery out of the remote control. Keep button cell batteries out of reach of small children. The functions of the remote control buttons are the same as the functions of the buttons on the control panel.

During use, align the remote control to the control panel (the remote control receiver is on the control panel); the remote control will not work if the control panel is blocked.

BEFORE USE

1. Pull the appliance out from the carton and place it on a solid heat-resistant horizontal surface.
2. Check if the accessories are complete including: two ice boxes, one remote control and four wheels.
3. Insert four wheels into the corner holes and ensure the wheels are assembled tightly.

HOW TO USE

1. Turn the water tank lock to the horizontal position. Pull out the water tank slowly to leave 1/3 of the water tank in the appliance body. Add water into the water tank. If you need the air sent out much cooler, put the ice boxes (add water and freeze first) into the water. Make sure the water level is between the MIN and MAX line. Check the water level from the water level window in the front side of the appliance.

Important! Use of the ice boxes:

Add water into the ice boxes; do not exceed the MAX line on the ice box when adding water into it. Screw the cap tightly to make sure there is no leakage of water droplet. Keep the ice boxes away from children to prevent ingestion. Freeze the ice boxes by placing them horizontally instead of standing vertically in the freezer to avoid deformation.

Warning: the water level of the water tank must be less than "MAX" after the ice boxes are put into the water tank.

1. Plug the appliance into the appropriate power outlet. A beep sound will be heard and the indicator light of power will be on. The appliance is in standby mode.
2. On/off button:

Press the on/off button to start the appliance. The appliance will work at low wind speed in normal mode and the corresponding indicator lights will be on.

Press the button again to turn off the appliance. The appliance will enter into standby mode.

1. Wind speed button:

Press the wind speed button to adjust the wind speed: "Low" = low wind speed; "Mid" = medium wind speed; "High" = high wind speed. The corresponding indicator light will be on.

1. Swing button:

Press the swing button to turn on the swing function. The corresponding indicator light will be on. The air flow will swing left and right. Press the swing button again to cancel the swing and fix the air flow at a specific direction horizontally. To adjust the air flow direction vertically, just lift up or press down the louver outside.

1. Cool button:

Press the cool button to turn on the cooling function. The corresponding indicator light will be on. This function is only effective when the water tank has ice box(es) inside. Do not activate this function when the water in the water tank is below the "MIN" level; add enough water into the water tank first.

1. Timer button:

Press the timer button to set the shutdown time from 1 to 7 hours. Each time you press this button the timer value will be added by one hour and the corresponding indicator light will be on.

8.Mode button:

Press the mode button to switch the working mode among normal, sleep and natural. The corresponding indicator light will be on.

• Normal mode: The appliance works with the same wind speed all the time.
• Sleep mode: The appliance changes wind generally from high to low with short time suspended.
  Natural mode: The appliance changes the wind randomly with short time suspended.

NOTES:

1. It is recommended to change water and clean water tank frequently.
2. Activating the cooling function with insufficient water may cause malfunction of the water pump inside the water tank.
3. Do not take out the water tank immediately after the appliance is just turned off. Wait several minutes to avoid the water dripping out from the cooling pad.

CLEANING AND MAINTENANCE

Unplug the appliance during filling and cleaning.

Make sure there is no water on the control panel.

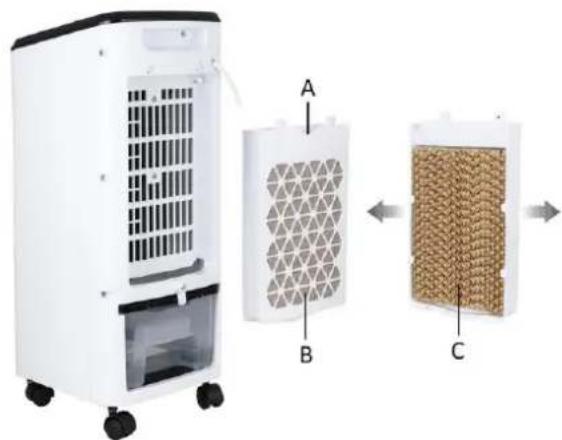

Clean the air filter and cooling pad

1. Loosen and take off the screws on the air filter.
2. Pull the tab (A) to take off the air filter (B) and the cooling pad (C). Pull the air filter outwards on both sides gently and then remove the cooling pad out.
3. Use a neutral cleaner and a soft brush to clean the air filter and the cooling pad. Rinse with clear water thoroughly.
4. Put back the cooling pad and air filter in place after cleaning. If you will not use the appliance immediately after cleaning, please dry them before putting back.

Important: in order to avoid leak, the cooling pad must be installed smoothly.

Note: After long time operation, the cooling pad becomes clogged with dust and dirt, which will greatly affect the performance of the appliance. It is recommended to clean the cooling pad frequently. If the cooling pad gets worn out, please replace it by a new one, available at www.buyspareparts.eu

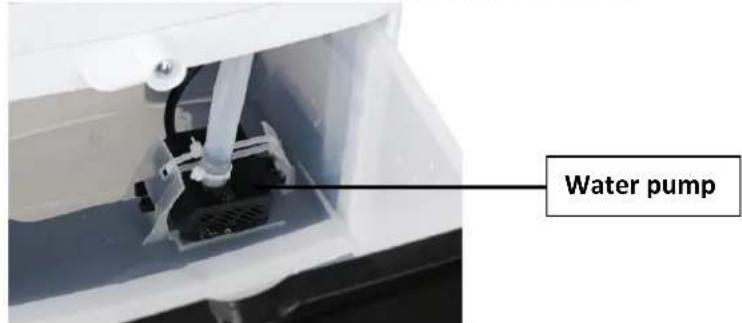

Clean the water tank (The water pump is fastened in the water tank. Under normal operation, there is no need to detach it from the water tank.)

1. Pull out the water tank.
2. Clean the water tank with a soft cloth and a little mild detergent, then clean it with clear water.
3. Put back the water tank in place after cleaning.

Note: After some time of operation, the water tank may have dust and dirt. It is recommended to change water and clean the water tank frequently.

Clean the main body

1. For slight dirt, wipe if off with a soft damp cloth. For greasy dirt, squeeze a little mild detergent on a soft damp cloth, then wipe the dirt off.
2. Let the main body dry completely before next use.

TECHNICAL DATA

Mains voltage: 220-240V\~50Hz

Power consumption: 80W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Declare that the product detailed below:

Information requirements

Information to identify the AC-123282 to which the information relates to [Air cooler]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	5,3	m³/min
Fan power input	P	80	W
Service value	SV	0,07	(m³/min)/W
Standby power consumption	PSB	/	W
Fan sound power level	LWA	65	dB(A)
Maximum air velocity	C	8	meters/sec
Measurement standard for service value	IEC 60879:1986 (corr. 1992) Performance and construction of electric circulating fans and regulators
Contact details for obtaining more information	Emerio Deutschland GmbH Lerchenweg 3 40789 Monheim am Rhein Deutschland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

SICHERHEITSHINWEISE

Puisance absorbee: 80W

GARANTIE ET SERVICE APRÉS-VENTE

1. Khonka Nobopot (Swing):

HaKmTe KhONky NOBOPOT (Swing) dIra TORO, yTO6bl aKTbNUPoBaTb fYHKcHIO NOBOPota. 3arOpNTca COOTBeTCTByUOuN CBeTOBO HdNKaTOp. IOTOK BO3dyxa 6yDet HnPaBtbcr HaJIeBO HAnpaBO. HaKmTe KhONky NOBOPOT (Swing) cHOBA dIra TORO, yTO6bl de3aKTbNUPoBaTb fYHKcHIO NOBOPota n 3aΦNKcNPOBaTb BO3dyuHbI NOTOK B rOpN3OHTaIbHom HnPaBLeHN. dIra nepeHnPaBLeHnRA BO3dyuHoro NOTOKA B VePTkAlbHoe noLOXeHne NoDnHMTe nn HnPaBbTe peWetKy BnI3.

1. Khonka OxlaKeHne (Cool):

HaKmTe Ha KhoNky OxJaXeHne (Cool) IJyAKTuIN FyHKUIN OXlaJxHeHn. 3aROpNTcCoOTBeTCTByUOuI CNBTOBO HNDNKATOp. DaHHaF yHKUIN pa6oTaET aΦfKeKTHBHO ToIbKO B TOM CNYae, ECNI KOHTeHepbl IJIbDA HaxODaTcBHyTpIpe3epByapa IJIb BObl. He aKTBNpyTe daHHyIO fYHKUIO, ECNI BOda B pe3epByape IJIb BObl HAXODITc HIXe MHNMaJIbHOI OTMeTKn (MIN). EcNI yPoBeHb BObl HaxODITc HIXe MHNMaJIbHOI OTMeTKn (MIN), nepeI aKTNAUeI daHHoI fYHKUIN Do6abBte BOdy B pe3epByap.

1. Khonka TaHmep (Timer):

HaxmTe Ha KhoNkY TaMep (Timer) Ira Toro, UTo6bI yCTaHOBnTb BpeMa BblIOueHn np6opa ot 1 do 7
yacob. KaKdoe Haxatne Ha KhoNkY Do6abIaRET K BpeMeHn 1 lac. 3arOpNTc COOTBeTCTByUoi n CBetOBOi
HHdkaTop.

1. KhoIIKa PeXIM (Mode):

HaxmTe Ha KhoNky PexnM (Mode) dIra toro, yTo6bl nepeKJIouHTb peXnM pa60tI np6opa MeJdy CTaHdapTHbIM peXnMOM (normal), pexnMOM cHa (sleep) n ecTeCTBeHHbIM pexnMOM (natural). 3arOpNTc4 COOTBeTCTByIOUssn CBeTOBOH INDInKaTOP.

• CtaHdapThbI pexm (normal): np6op pa6oTaET C BCE BpeMa OdnHaKOBo CKOpocTbIO.
• Pexim cHa (sleep): npnbop MeHreT ckOpocb Betpa C cnIbHo Ha cIa6yO c KpaTKOBpeMeHHoI npnoctaHOBkoI.
• EcteBENHbI pexm (natural): np6op MeHreT ckOpocb BeTp a CnyaHbIM 06pa3OM c KpaTKOBpeMeHHo npocTaHOBko.

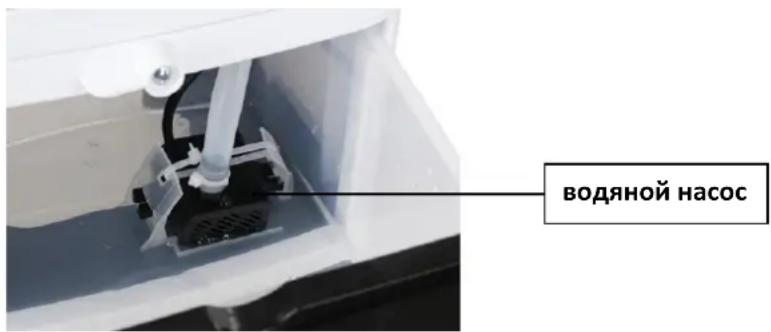

ПРИМЕЧАЙ:

1. PekomeHnyeTcpepyIaRHO MeHrB BODy B pe3epByape n OunuTaB erO.
2. AKNBaun OYHKUNOxJaKdEHHn npn HeIOCTaTOHOM KOJIueCTBe BOJbIMoKet Bbl3BaTb HeICnPabHOCTb BOJHOrO HAcOca BHyTp n pe3epByapa.
3. He BbHMaIte pe3epByap IJI BA BoIc pao y nocne BbIKIOueHn np6opa. NdoKdTe HecKOJIbKO MmHT, TTo6bl BOa He KanaIa C oxlaJdaOuEe noCTabKn.

YXOJ

OTKIIouaIte np6Op ot cTe npeHn HAnOIHeHem n uNCTko.

Y6eIntecb,HToHa naHelen ynpablenHe HET BOdbI.

OuHcTka BO3dyHoro fHnIbTpau OXnaKaDaIOse nOaCTabKn.

1. Pa3BnHTnte n CHNMTe BNHTbI Ha BO3dUwHOM fNtpe.
2. Дя ТО, УTO6ы ChЯТь BO3ДУшьи ΦИльТР (В) и OXлAJDAIOUу NOДCTaBky (С), NOTЯнITE 3aЯ3bIyOK (A). OctopOЖНо BыTЯнITE BO3ДУшьи ΦИльТр НApУkу c OБeNX CToPOH n 3aTeM CHIMITE OXлAJDAIOUу NOДCTaBky.

3.ДЯ OунCTKN BO3dUshHoro ΦньТРи OXлakJaIooSeI NOdCTaBKn NcNoJIb3yTe HeITpaIbHOe YnCTaIe cpeDCTBO mMgKyo uteKy.TuaTeJbHO IpomOte ΦNlbTp I NOdCTaBky YnCToI BdoI.

TEXHNUECKNEXAPAKTEPNCNIK

Pa6oyn dnaana3OH: 220-240V 50Hz

MoUHocTb: 80W

TAPAHTRIOBCLYKBAHNEKJINEHTOB

Ipepe noctabkohn npnbopb noDBepraOTcCTporomy KOHTPOIO KauecTba.Ecn, HecMOTpHa Bce Mepblnpoctopoxhoctn, BO BpeMa npOn3BOdCTBa IIN TpaHcnpTnpOBKn npOn3OuIo NOBpeKdHne, NOKaIyIcTa, BepHnte yCtpoiCTBO Baewemy dInlepy. B donolHeHne K npaBam, YcTAHOJIeHHbIM 3aKOHOdaTeJIbCTBOM, NOKyNaTeJIb IMeET Bo3MOXHOCTb Tpe6OBaTB cIeDyUoSe rapaHTNI:

Ha npno6peTeHHoe yctpoCTBO mblnpedocTabnaem rapaHTNO 2 roD, HauHnHa co dHa npOdaKn. Ecn y Bac ectb dekeTbI npOdyKT, Bbl MoKeTe cpa3y BepHyTB ero B nyHKT NOKyKN.

Deefkbl, Bo3HnkaUuue B pe3yIbTaTe HnpabunbHorO obpaueHHcYCTpoiCTBOM, a TaKHe HeucnPabHOCTN, Bbl3BaHHbIe BMeWateJIbCTBOM n peMOHTOM TpeTbxN nn yCTaHOBKO HeOpnHaJIbHbIX DeTaeN, He NOKpbIBaIOrC HactoIeJ rapaHTne. Bcerda xpaHnte KBtAHzIO, 6e3 KBtAHzNn Bbl He MoKeTe npTeHDoBaTb Ha Kakyo-lNoΦopMy rapaHTn. B clyuae uep6a, Bbl3BaHHoro HecobIoJeHNem IHCTpyKznn NO EKnclnyatauN - rapaHTn aHHyInpyeTc, ecnn 3TO npNBedT K KOCBeHHbIM NobpejdeHnM, B 3OM clyuae

Ipn3BODntb He HecET OTBeTCTBeHHocTb. Mbl TaKke He Hecem OTBeTCTBeHHocTn 3a MaTePnaIbHbIyUepe6 IIN TeLeChbIe NOBpeJdeHnA, Bbl3BaHHbIe HEnpaBnIbHbIM NcNoJIb3OBAHnEM NII HEnpaBnIbHbIM BblNOHeHnEM INCTpyKznn No 3KcNlyaTaCn. NOBpeJdeHne akceccyapOB He O3Naaet 6ecnlaTHyO 3AmEHy BCero npnbopa. B TAKOM cLyuae, NOkAlyncta, CBXHTecb C HaWM OTdELOM 06cLyKbAHn. Pa3bToe cTeKIO IIN PONOMKa PnactIKOBbIX DeTaleh Bcerda NpDLeXaT ONlATE. DeΦeKtby PAcxOaNbIX MaTePnaIbO NII DeTaleN, POnDbepKeHHbIX n3HOCy, a TAKKE YnCTKa, TexHnueckoe 06cLyKbAHn E NII 3aMeHa Yka3aHHbIX DeTaleN He NOKpbBaOTcraPaHTnei NpDLeXaT ONlATE.

BE3ONACTHAR YTNJIN3AUNB OKPYXAIOUEN CPEDE

Ipeperap60ka oTxoDob - eBponeiCKa dIpeKtNbA 2012/19/EU

3Ta MapknpoBkA yKa3bIbAeT Ha To, 4TO DaHHbI npOdyKT He CJeDyEYTynl3nPOBaT BMeCTe C dpyrnn6 bItOBbIMN OTXoJam. 4TO6bl npeDoTbpaTb BO3MOxHbI BpeD OkpyxIoUe CpeDe nn 3dopobbIO yeJIOBeKA OT HeKOHTrpOJIpyEmoTO YdaJIeHnO rTOxODOB, yTINl3NpyTe INOTBeTCTBeHHO, 4TO6bl cNoC06CTBOBaTb yCTOuHbOMy IOBtOPHOMy IcNOlb3OBAHIO MaTePnaIbHbIX pecypcoB.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Cnyk6a npdepKKN KIneHTOB:

Te.n.: [phone]

3n. nowa: [e-mail]
