Product type	Wine cooler
Brand	CASO
Model	Barbecue Cooler L (item number 683)
Door opening	Left
External dimensions (W × H × D)	430 × 690 × 540 mm
Capacity	63 L
Net weight	31.4 kg
Power supply	220-240 V ~ 50 Hz
Power	60 W
Average daily energy consumption	0.350 kWh/24h
Consumption at 16 °C ambient	0.150 kWh/24h
Consumption at 32 °C ambient	0.550 kWh/24h
Protection class	IPX4 (protected against splashes)
Number of metal racks	3
Interior lighting	LED with switch
Temperature setting	Rotary knob thermostat
Recommended ambient operating temperature	16 °C to 38 °C
Interior cleaning	Warm water and mild detergent; avoid abrasive cleaners
Defrosting	Manual, at least 2 times per year
Child safety	Use under supervision from age 8

Frequently Asked Questions - Barbecue Cooler L CASO

How to adjust the temperature of my Caso Barbecue Cooler L wine cooler?

Use the rotary knob thermostat located inside. Turn it clockwise to cool further, counterclockwise for a higher temperature. Let the appliance stabilize for 24 hours after plugging in.

Why is my appliance making noise?

Gurgling or compressor noises are normal. If vibrations are excessive, check that the appliance is level (adjust the front feet) and that it does not touch the wall. Ensure the racks are properly in place.

How to clean the interior of the wine cooler?

Unplug the appliance and remove bottles. Clean with a soft cloth soaked in warm water and mild detergent. To avoid odors, use a mixture of warm water and baking soda (2 teaspoons per 0.25 L of water). Wipe carefully.

What to do if condensation forms inside?

Condensation occurs if the door is open too long or frequently in a humid environment. Limit door openings and ensure it closes tightly. Wipe moisture with a dry cloth.

How to install the door handle?

Before first use, push the rubber door gasket aside to clear the pre-drilled holes. Screw the stainless steel handle using the provided screws. Then reposition the gasket correctly.

Why doesn't the LED light turn on?

Check that the LED light switch is in the on position. If it still does not light, contact customer service. Do not attempt to repair it yourself.

How to manually defrost the appliance?

Turn off and unplug the appliance. Leave the door open so the ice melts. Monitor the water collection tray at the back (bottom right) and empty it if necessary. Then wipe the interior.

What is the maximum bottle capacity?

The total capacity is 63 liters, which allows storing about 20 to 25 standard wine bottles depending on size. Use the three provided metal racks.

Can I use my wine cooler outdoors?

The appliance is designed for sheltered and dry outdoor use. It is protected against splashes (IPX4) but not against direct rain or frost. Install it in a place sheltered from the weather.

What to do if the door does not close properly?

Check that the feet are properly adjusted so the appliance is level. Inspect the door gasket: if damaged, contact customer service. Ensure nothing is obstructing closure (misplaced rack).

USER MANUAL Barbecue Cooler L CASO

11 Operating Manual 24
11.1 General 24
11.2 Information on this manual 24
11.3 Warning notices 24
11.4 Limitation of liability 25
11.5 Copyright protection 25
12 Safety 25
12.1 Intended use 25
12.2 General Safety information 26
12.3 Sources of danger 26
12.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion 27
12.3.2 Dangers due to electrical power 27
13 Commissioning 28
13.1 Safety information 28
13.2 Delivery scope and transport inspection 28
13.3 Unpacking 28
13.4 Disposal of the packaging 29
13.5 Setup 29
13.5.1 Setup location requirements: 29
13.5.2 Feet 30
13.5.1 The handle installing 30
13.5.2 To remove a shelf 30
13.6 Electrical connection 30
14 Design and Function 31
14.1 Complete overview 31
15 Operation and Handing 32
15.1 Rating plate 32
16 Cleaning and Maintenance 32
16.1 Safety information 32
16.2 Cleaning 32
16.3 Moving the appliance 33
17 Troubleshooting 33
17.1 Safety notices 33
17.2 Fault indications and rectification of faults 34
18 Disposal of the Old Device 34
19 Guarantee 35
20 Technical Data 36
21 Mode d'emploi 38

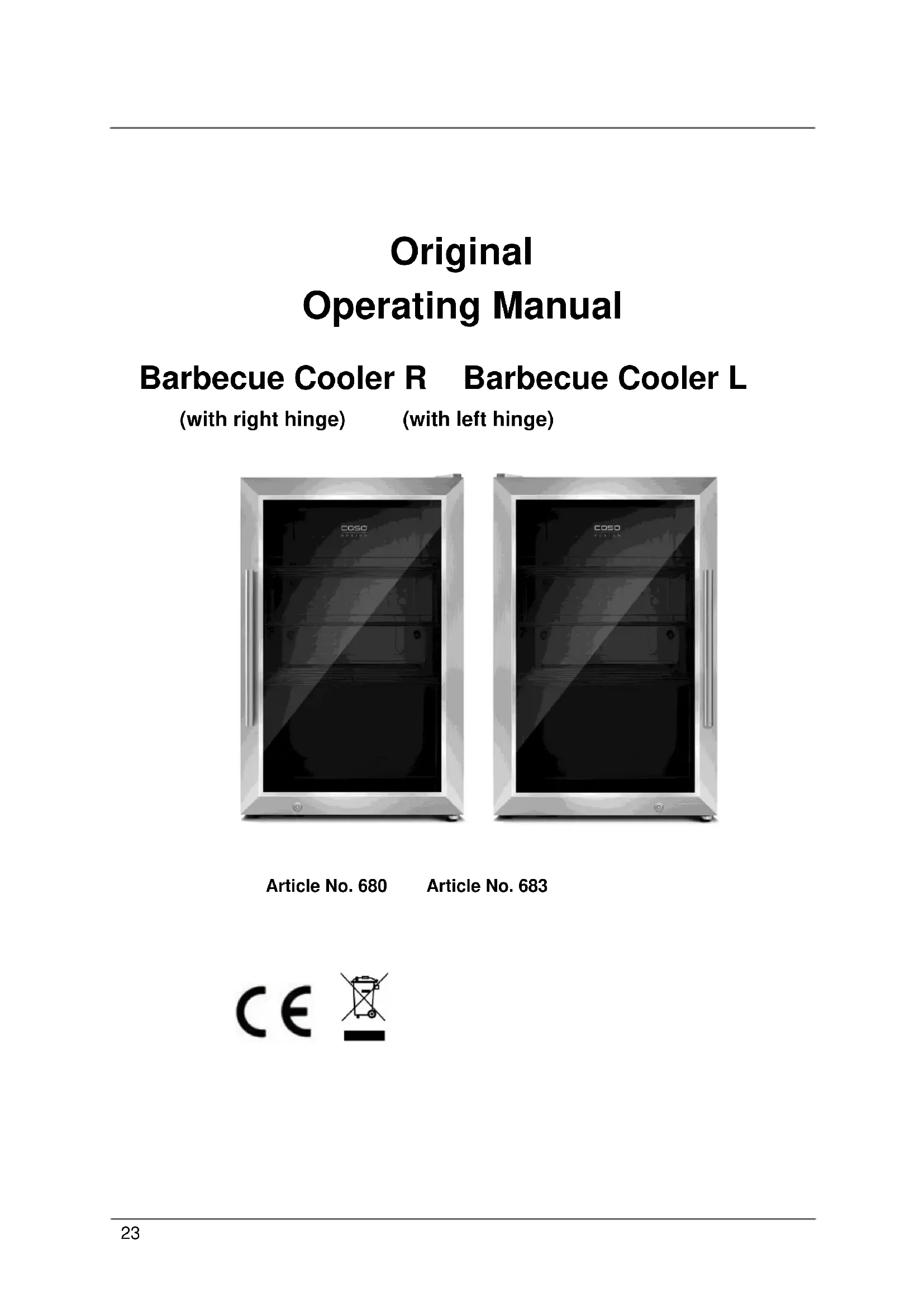

Original Operating Manual

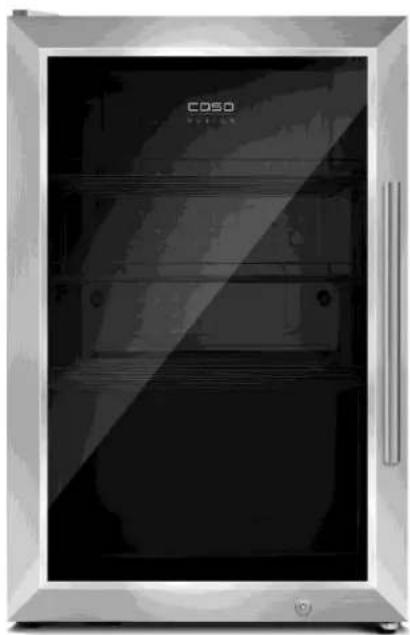

Barbecue Cooler R Barbecue Cooler L

(with right hinge)

(with left hinge)

Article No. 680

Article No. 683

11 Operating Manual

11.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your refrigerator will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the Barbecue cooler (referred to hereafter as the device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning

Operation

• Troubleshooting and/or

• Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

AGEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING

WARNING

A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

AVORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

Non-observance of the manual
- Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

This device is only intended for use in protected and dry outdoor area for cooling wine and other beverages. Food can be stored in the device for a short time in accordance with the instructions of the food manufacturer. Please note the influence of light / solar radiation on your stored food. The device complies with the International protection rating IPX4 (offers protection from a splash of water in any direction). Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNING WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

• Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
• If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
  This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
• Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
  Children are not allowed to play with the device.
  The device and its connecting cable must be kept away from children who are less than 8 years old.
  The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
• Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

12.3 Sources of danger

12.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion

GEFAHR

DANGER

There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of burns or an an explosion:

Warning: Risk of fire / flammable materials used.

• Do not store explosive substances such as aerosol with a flammable propellant in this device.

Blowing gas inside the unit is flammable.
Do not damage the cooling circuit of the device.
Do not use electrical devices inside the device.
- Do not use mechanical devices or other means to accelerate the defrosting process.
- Never use the device to store or dry flammable materials.
- Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
- Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

12.3.2 Dangers due to electrical power

GEFAHR

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

AGEFAHR

Danger

• Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING

WARNING

Packaging materials may not be used for playing. There is a danger of suffocation.
Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

13.2 Delivery scope and transport inspection

As a rule, the Barbecue cooler is delivered with the following components:

• Refrigerator Barbecue cooler
  3 metal shelves
• Operating Instructions with handle and screws

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Your refrigerator should only be moved in an upright position.

• Clean the interior surface with lukewarm water using a soft cloth.

• After at least 24 hours, plugging the appliance into the wall outlet, than place wine bottles or beverages in the appliance.

HINWEIS Please note

• Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup

13.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.
• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Ambient temperature below 16^ or above 38^ will hinder the performance of the appliance.
• This unit is designed only for the protected outdoor area. Do not place it in a wet or very moist environment. The device complies with the International protection rating IPX4 (offers protection from a splash of water in any direction). Protect the device from the weather conditions and frost.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 15cm around the appliance. This is not the case if you use the cabinet which is developed by CASO (681, 682).

• WARNING! Do not close the ventilation openings in the device housing.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
• For energy saving reasons please ensure that the door is closed when the appliance is turned on.

13.5.2 Feet

There are different feet (3 bigger feet and 1 small foot).

To level your appliance, adjust the small foot at the bottom of the appliance.

13.5.1 The handle installing

The wine cooler comes with one metal stainless steel handle. To install simply screw them to the door with the supplied screws.

To do this, slide the rubber seal on the back of the door to the side to lay open the predrilled holes. Use the included screws to install the handle on the door.

Then reinsert the rubber seal in the correct position.

13.5.2 To remove a shelf

Remove all bottles from the shelves. Lift the shelf upwards and the gently pull it out, (eventually untighten the screws).

HINWEIS Please note

Ensure that the shelves are firmly engaged in place before storing any bottles.
Pay attention for a uniform disposition of the bottles in the device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
• This unit is not designed to be installed in an RV or used with an inverter.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

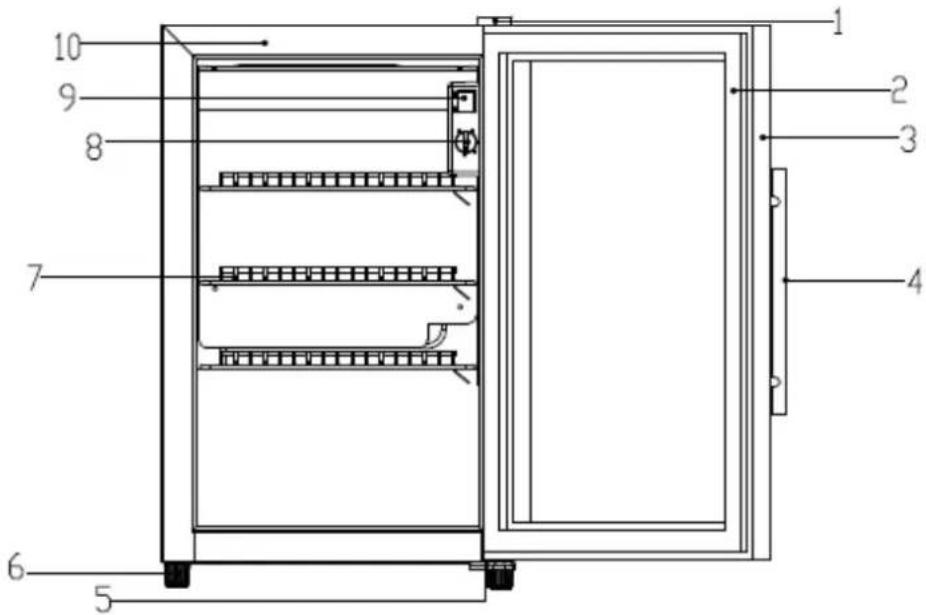

14.1 Complete overview

(1) upper hinge

(2) door sealing

(3) door frame (lockable)

(4) door handle

(5) down hinge

(6) foot

(7) metal shelves 3 pcs

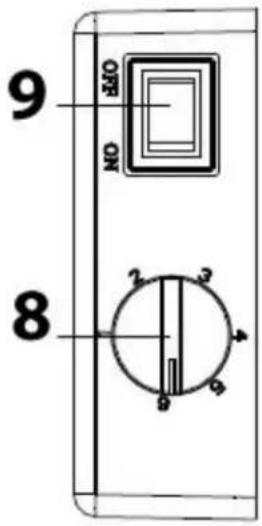

(8) thermostat with knob

(9) switch for LED light

(10) housing

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

With the switch for LED light you can turn on and off the light.

With the knob you can adjust the temperature according to your preferences.

15.1 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

Prior to commissioning, clean the appliance thoroughly.
Unplug the plug from the wall power outlet prior to cleaning it. Remove all content.
- Do not use any aggressive or abrasive cleaning agents or solvents. Do not scrape off stubborn dirt with hard items.

16.2 Cleaning

Interior space

Wash the inside with a damp cloth soaked in lukewarm water and a bit of mild detergent. Tip for neutralisation of odors: Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quarter of water. After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

Door gasket

Be sure to keep the door gasket clean to keep the unit running efficiently.

Cabinet

The cabinet should be cleaned with a mild detergent and warm water. Use a soft, damp cloth for drying.

Vent opening

Dust or anything else may block the vent and hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.

Container for condensed water (K)

Remove regularly the condensed water with a sponge from the container for condensed water. The container is located on the back side of the device at the right bottom.

Manual defrosting

Please defrost the device at least every 6 months. When you open the door of the device frequently, you need to perform the defrosting

more often. Turn off the power but do not unplug the power plug. Let the appliance then defrost manually. Pay attention to the container for condensed water(K) and remove the condensed water during the defrosting.

16.3 Moving the appliance

Unplug the unit from the wall outlet.

Remove all content. Shurely tape down all lose items inside your appliance.

Tape doors shut. Be sure the refrigerator stays in the upright position during transportation.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

AVORSICHT Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

17.2 Fault indications and rectification of faults

The following table assists in localizing and rectifying minor faults.

Fault	Possible Cause
Your device is not cold enough or it does not reach the adjusted temperature:	Check the temperature control setting. External environment may require a higher setting. The door is open too often. The door is not closed completely. The door seal does not seal properly. The refrigerator does not have the correct clearance. Defrost the device.
The light does not work.	Contact customer service.
Vibrations & too much noise & door does not close properly	Check to assure that the wine refrigerator is level. Check the fan. Components are loose. Device touches the wall. The door is reversed and not properly installed. The seal is weak. The shelves are out of position.
Compressor will not start	Room temperature is lower than desired temperature.
Dew on the surface of cabinet :	The surface of refrigerator especially the glass door appear some frost if item in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry cloth.
Liquid sound	1) The sound of compressor when starts or stops working 2) The flowing sound of refrigerant in the refrigeration system 3) The evaporating sound of refrigerant in the evaporator
Condensation formed inside the cabinet	Under the environment with high level of humidity or the door of wine cabinet has been left open for a long period or opened frequently, wipe off the door and walls. Open the door as rarely as possible.
Error code E2	Desired temperature is not reached. If necessary defrost the device (Please follow the hints for manual defrosting in chapter cleaning).

HINWEIS

Please note

If you are unable to solve the problem with the steps shown above, please contact Customer Service.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

• Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
• Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old refrigerator take off the doors and leave the shelves in place, so that children may not easily climb inside.
• Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

19 Guarantee

We provide a 12 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in commercial situations and has the appropriate performance levels. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery.

All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Name	Barbecue cooler R (with right hinge) Article No. 680 Barbecue Cooler L (with left hinge) Article No. 683
Power	60W
Average daily energy consumption	0.350kW.h/24h
Daily energy consumption at 16 °C ambient temperature	0.150kW.h/24h
Daily energy consumption at 32 °C ambient temperature	0.550kW.h/24h
Connection	220~240V/50Hz
Outside dimensions (W/H/D)	430 x 690 x 540 mm
Capacity	63 L
Weight	31, 4 kg
