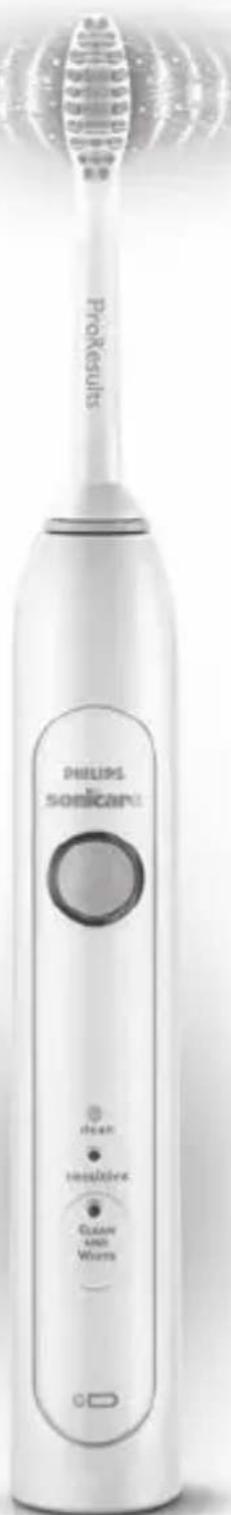

HealthyWhite Rechargeable Sonic Toothbrush

PHILIPS sonicare

ENGLISH 4

DEUTSCH 22

ESPANOL 43

FRANÇAIS 63

ITALIANO 83

NEDERLANDS 103

PORTUGUES 124

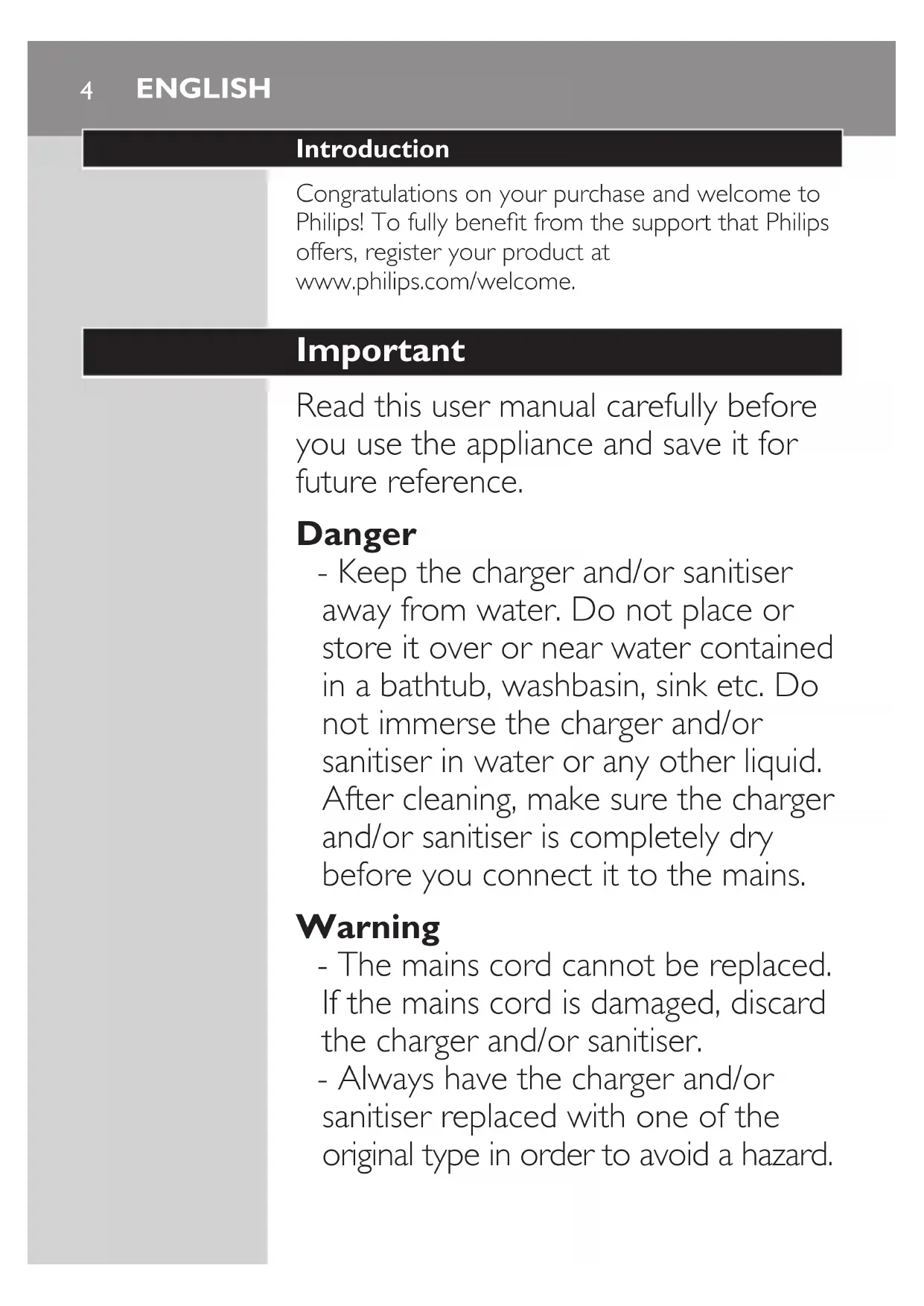

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Keep the charger and/or sanitiser away from water. Do not place or store it over or near water contained in a bathtub, washbasin, sink etc. Do not immerse the charger and/or sanitiser in water or any other liquid. After cleaning, make sure the charger and/or sanitiser is completely dry before you connect it to the mains.

Warning

• The mains cord cannot be replaced. If the mains cord is damaged, discard the charger and/or sanitiser.

• Always have the charger and/or sanitiser replaced with one of the original type in order to avoid a hazard.

• Do not use the charger and/or sanitiser outdoors or near heated surfaces. Do not operate the sanitiser where aerosol (spray) products are being used or where oxygen is being administered.

• If the appliance is damaged in any way (brush head, toothbrush handle, charger and/or sanitiser), stop using it. This appliance contains no serviceable parts. If the appliance is damaged, contact the Consumer Care Centre in your country (see chapter 'Guarantee and support').

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children shall not play with the appliance.
• Discontinue use of the sanitiser if the UV light bulb remains on when the door is open. UV light can be harmful to the human eye and skin. Keep the sanitiser out of the reach of children at all times.

Caution

• Do not clean the brush head, the handle, the charger, the charger cover and/or the sanitiser in the dishwasher.
• If you have had oral or gum surgery in the previous 2 months, consult your dentist before you use the toothbrush.
• Consult your dentist if excessive bleeding occurs after using this toothbrush or if bleeding continues to occur after 1 week of use. Also consult your dentist if you experience discomfort or pain when you use the Sonicare.

• The Sonicare toothbrush complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the device manufacturer of the implanted device prior to use.

• If you have medical concerns, consult your doctor before you use the Sonicare.

• This appliance has only been designed for cleaning teeth, gums and tongue. Do not use it for any other purpose. Stop using the appliance and contact your doctor if you experience any discomfort or pain.
• The Sonicare toothbrush is a personal care device and is not intended for use on multiple patients in a dental practice or institution.
• Stop using a brush head with crushed or bent bristles. Replace the brush head every 3 months or sooner if signs of wear appear.
• Do not use other brush heads than the ones recommended by the manufacturer.

• If your toothpaste contains peroxide, baking soda or bicarbonate (common in whitening toothpastes), thoroughly clean the brush head with soap and water after each use. This prevents possible cracking of the plastic.

• Do not insert objects into the air openings of the sanitiser or block these air openings by placing it on a soft surface or in a position or location where objects will block these openings (examples of objects: magazine, tissue paper and hair.

• The UV light bulb is hot during and immediately after the sanitising cycle. Do not touch the UV light bulb when it is hot.
• Do not operate the sanitiser without the protective screen in place to avoid contact with a hot bulb.
• If the sanitiser has been used for 3 consecutive UV clean cycles (i.e. 3 times in a row), switch it off for at least 30 minutes before ou start another UV clean cycle.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

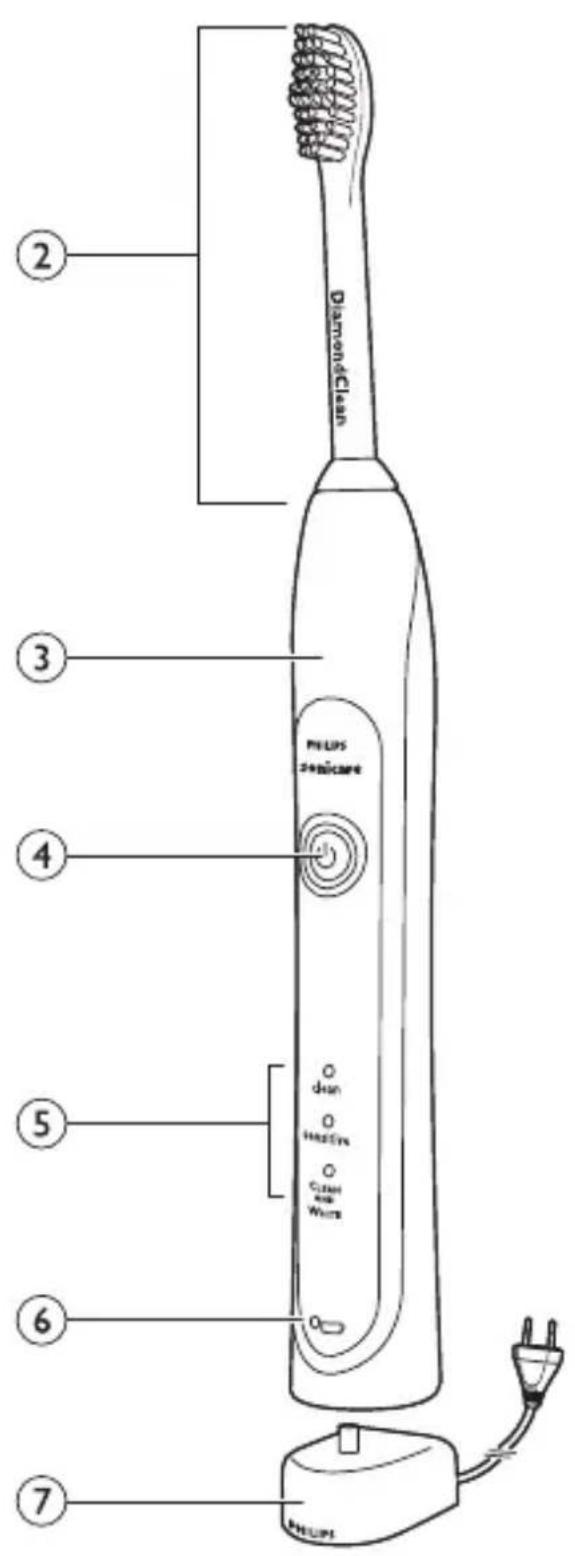

General description (Fig. 1)

1 Hygienic travel cap
2 Brush head
3 Handle with soft grip
4 Power on/off button
5 Brushing modes
6 Charge light indicator

• Deluxe charge indicator (specific types only)
• Standard charge indicator (specific types only)

7 Travel charger

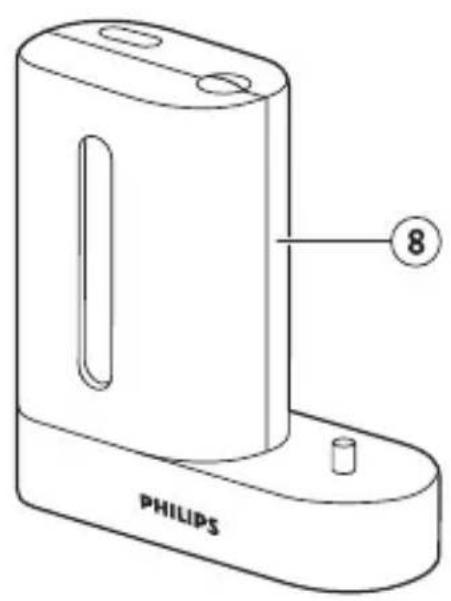

8 UV sanitiser with integrated charger and cord wrap

• Not shown: UV light bulb
• Not shown: Sanitiser drip tray
• Not shown: Protective screen for UV light bulb

Note: The contents of the box vary based on the type purchased

Preparing for use

Attaching the brush head

1 Align the front of the brush head with the front of the handle.
2 Firmly press the brush head down onto the metal shaft until it stops.

Charging the appliance

1 Put the plug of the charger in a wall socket.
2 Place the handle on the charger.

The battery charge indicator next to the battery symbol flashes to indicate that the toothbrush is charging.

Battery charge indicator

The battery charge indicator shows the approximate remaining battery charge.

Deluxe charge indicator (specific types only):

• Solid green: 50 - 100%
• Flashing green: 10 - 49%
• Flashing yellow: less than 10%

Standard charge indicator (specific types only):

• Solid green: 50 - 100%
• Flashing green: less than 50%

Note: When the battery of the Sonicare is low, you hear 3 beeps after the completion of the brushing cycle and the battery charge indicator flashes for 30 seconds.

Note: To keep the battery fully charged, you may keep the Sonicare on the charger when it is not in use. It takes 24 hours to fully charge the battery.

Using the appliance

Brushing instructions

1 Wet the bristles and apply a small amount of toothpaste.
2 Place the toothbrush bristles against the teeth at a slight angle towards the gumline.
3 Press the power on/off button to switch on the Sonicare.
Apply light pressure to maximise Sonicare's effectiveness and let the Sonicare toothbrush do the brushing for you. Do not scrub.
Gently move the brush head slowly across the teeth in a small back and forth motion so the longer bristles reach between your teeth. Continue this motion throughout your brushing cycle.

Note: To make sure you brush evenly throughout the mouth, divide your mouth into 4 sections using the Quadpacer feature (see chapter 'Features').

Brush each section for 30 seconds for a total brushing time of 2 minutes. Start with section 1 (outside top teeth) and then brush section 2 (inside top teeth). Continue with section 3 (outside bottom teeth) and finally brush section 4 (inside bottom teeth).
7 After you have completed the brushing cycle, you can spend additional time brushing the chewing surfaces of your teeth and areas where staining occurs. You may also brush your tongue, with the toothbrush switched on or off, as you prefer.

The Sonicare is safe to use on:

• Braces (brush heads wear out sooner when used on braces)
• Dental restorations (fillings, crowns, veneers)

Note: You can switch the toothbrush on or off at any time by pressing and holding the power on/off button for 2 seconds.

Clean and White mode brushing instructions

The Clean and White mode combines 2 minutes of Clean mode for a whole mouth clean, with an additional 30 seconds of White mode to focus on the visible front teeth.

1 Brush the first 2 minutes as instructed in steps 1-6 above.
2 After the 2 minutes of Clean mode, the White mode begins with a change in brushing sound and motion. This is your signal to start brushing the upper front teeth for 15 seconds.

3 At the next beep and pause, move to the bottom front teeth for the final 15 seconds of brushing.

Brushing modes

Sonicare automatically starts in the default Clean mode. To select a different brushing mode:

1 Press the on/off button to toggle between modes.
The green LED indicates the selected mode.

Note: You can only toggle between modes when the toothbrush is switched on.

Clean mode

Standard mode for superior teeth cleaning.

Sensitive mode (specific types only)

Gentle yet thorough cleaning for sensitive gums and teeth.

Clean and White mode

2 minutes of Clean mode, with an additional 30 seconds of White mode to focus on your visible front teeth.

Note: When Sonicare is used in clinical studies, the default 2-minute Clean mode must be selected. However, in whitening/stain reduction studies, the Clean and White mode must be selected. The handle must be fully charged and the Easy-start feature must be deactivated.

Features

Easy-start

• This Sonicare model comes with the Easy-start feature activated.
• The Easy-start feature gently increases power over the first 14 brushings to let you get used to brushing with the Sonicare.

Note: Each of the first 14 brushings must be at least 1 minute in length to move through the Easy-start ramp-up cycle properly.

Note: When the Clean and White mode is selected, the Easy-start feature is inactive.

Deactivating or activating the Easy-start feature

1 Attach your brush head to the handle.
2 Place the handle on the plugged-in charger.

• To deactivate Easy-start:

Press and hold the power on/off button for

2 seconds. You hear 1 beep to indicate that the

Easy-start feature has been deactivated.

• To activate Easy-start:

Press and hold the power on/off button for

2 seconds. You hear 2 beeps to indicate that the

Easy-start feature has been activated.

Note: Using the Easy-start feature beyond the initial ramp-up period is not recommended and reduces Sonicare's effectiveness in removing plaque.

Smartimer

The Smartimer indicates that your brushing cycle is complete by automatically switching off the toothbrush at the end of the brushing cycle.

Dentists recommend brushing at leas 2 minutes twice a day.

If you want to pause or stop brushing during your 2-minute cycle, press and hold the power on/off button for 2 seconds. Press the power on/off button again and the Smartimer picks up where you left off. The Smartimer automatically resets to the beginning of a 2-minute cycle if:

• brushing is paused for 30 seconds or longer.
• the handle is placed on the charger.

Quadpacer (specific types only)

• The Quadpacer is an interval timer that has a short beep and pause to remind you to brush the 4 sections of your mouth evenly and thoroughly.
• When you use the two-minute Clean or Sensitive mode, you hear a short beep and a pause in brushing action at 30, 60 and 90 second intervals.
• When you use the Clean and White mode, you hear and feel a change in the brush head sound and motion after 2 minutes of Clean mode. Then move the brush head to the visible top front teeth and brush them for 15 seconds. At the final beep and pause, move to the visible bottom teeth and brush them for 15 seconds.

Cord wrap on sanitiser with integrated charger

If your Sonicare type includes the sanitiser, you can use the cord wrap feature in the bottom of the sanitiser to store excess cord.

Sanitising (specific types only)

• With the UV sanitiser you can clean your brush head after every use.

Unplug the sanitiser, discontinue use and call Consumer Care if:

• The window is broken or missing from the sanitiser.
• The UV light bulb remains on when the door is open.
• The sanitiser gives off smoke or a burning smell while it is operating.

Note: UV light can be harmful to the human eye and skin. Keep the sanitiser out of reach of children at all times.

1 After brushing, rinse the brush head and shake off excess water.

Do not place the travel cap on the brush head during sanitisation.

2 Place your finger in the door recess on top of the sanitiser and pull open the door.

3 Place the brush head on one of the 2 pegs in the sanitiser with the bristles facing the light bulb.

Note: Only clean Sonicare snap-on brush heads in the sanitiser.

Note: Do not clean Sonicare for Kids brush heads in the sanitiser.

Put the plug in a wall socket.
5 Close the door and press the green power on/off button once to select the UV clean cycle.

Note: You can only switch on the sanitiser if the door is closed properly.

Note: The sanitiser stops if you open the door during the sanitising cycle.

Note: The sanitiser cycle runs for 10 minutes and then automatically switches off.

The sanitiser is in operation when the blue light glows through the window.
- When the sanitising cycle is complete, the sanitiser automatically shuts off.

Cleaning

Do not clean the brush head, handle, charger or UV sanitiser in the dishwasher.

Toothbrush handle

1 Remove the brush head and rinse the metal shaft area with warm water.

Do not push on the rubber seal on the metal shaft with sharp objects, as this may cause damage.

2 Use a damp cloth to wipe the entire surface of the handle.

Brush head

1 Rinse the brush head and bristles after each use.
2 Remove the brush head from the handle and rinse the brush head connection at least once a week with warm water.

Charger

1 Unplug the charger before cleaning.
2 Use a damp cloth to wipe the surface of the charger.

UV sanitiser (specific types only)

Do not immerse the sanitiser in water or rinse it under the tap.

Do not clean the sanitiser when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean the sanitiser every week.

1 Unplug the sanitiser.
2 Pull the drip tray straight out. Rinse the drip tray and wipe it clean with a damp cloth.
3 Clean all interior surfaces with a damp cloth.

4 Remove the protective screen in front of the UV light bulb.
To remove the screen, grasp the edges next to the snaps, gently squeeze and pull out the protective screen.
5 Remove the UV light bulb.
To remove the light bulb, grasp it and pull it out of the metal clasp.
6 Clean the protective screen and the UV light bulb with a damp cloth.
7 Reinsert the UV light bulb.

To reinsert the light bulb, align the bottom of the light bulb with the metal clasp and push the bulb into the clasp.

8 Reinsert the protective screen.

To reinsert the screen, align the pegs on the screen with the slots on the reflective surface near the UV light bulb. Push the screen straight into the slots on the sanitiser.

Storage

If you are not going to use the appliance for an extended period of time, remove the mains plug from the wall socket. Then clean the appliance and store it in a cool and dry place away from direct sunlight. You can use the cord wrap feature on the sanitiser (specific types only) to store the mains cord neatly. You can store brush heads on the pegs at the back of the charger.

Replacement

Brush head

Replace Sonicare brush heads every 3 months to achieve optimal results.

Only use genuine Philips Sonicare replacement brush heads that are suitable for this model.

UV light bulb

Replacement UV bulbs are available through the Philips Consumer Care Centre in your country.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Environment

• Do not throw away the appliance or the UV light bulb (bulb contains mercury) with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

• The built-in rechargeable battery of the Sonicare contains substances that may pollute the environment. Always remove the battery before you discard and hand in the appliance at an official collection point. Dispose of the battery at an official collection point for batteries. If you have trouble removing the battery, you can also take the appliance to a Philips service centre. The staff of this centre will remove the battery for you and will dispose of it in an environmentally safe way.

Removing the rechargeable battery

This process is not reversible.

To remove the rechargeable battery, you need a flat-head (standard) screwdriver. Observe basic safety precautions when you follow the procedure described below. Be sure to protect your eyes, hands, fingers, and the surface on which you work.

Remove the toothbrush from the charger, switch it on and let it operate until it stops. Continue to switch on the Sonicare until the battery is completely empty.

Insert a flathead (standard) screwdriver into the slot located at the bottom of the handle. Turn the screwdriver anticlockwise to release the bottom cap.

Place the handle on a solid surface with the buttons facing up and lightly tap the housing 2.5cm from the bottom edge with a hammer.

4 Hold the handle upside down and push down on the shaft to release the internal components of the handle.

5 Insert the screwdriver under the circuit board, next to the battery connections, and twist to break the connections. Remove the circuit board and pry the battery from the plastic carrier.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Guarantee restrictions

The terms of the international guarantee do not cover the following:

• Brush heads
• Damage caused by use of unauthorised replacement parts.
• Damage caused by misuse, abuse, neglect, alterations or unauthorised repair.
• Normal wear and tear, including chips, scratches, abrasions, discolouration or fading.
• UV light bulb

Einführung

Modo Clean and White

Encomendar acessórios

www.philips.com/Sonicare

All rights reserved. PHILIPS and Philips shield are registered trademarks of KPENV.

Sonicare and the Sonicare logo are trademarks of Philips Oral Healthcare, Inc. and KPENV.

Protected by U.S. and international patents.

Other patents pending. Reg. U.S. Pat. & Tm. Off.

100% recycled paper

100% papier recyclé

4235.020.7315.1
