USER MANUAL Prima Power Team Tandem R50TAP.2 Riccar

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. FOR HOUSEHOLD USE ONLY.

IMPORTANT:

IMPORTANT. The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended.

WARNING:

To reduce the risk of fire, electric shock, damage or injury:

• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with a damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to your Authorized Riccar Retailer for service.
• Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run appliance over the cord. Keep the cord away from heated surfaces.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not handle the plug or appliance with wet hands.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Do not use without a vacuum bag and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• Do not attempt to service the unit while appliance is plugged in.

2-WIRE POLARIZED POWER CORD

To reduce the risk of electric shock, the charger is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

03

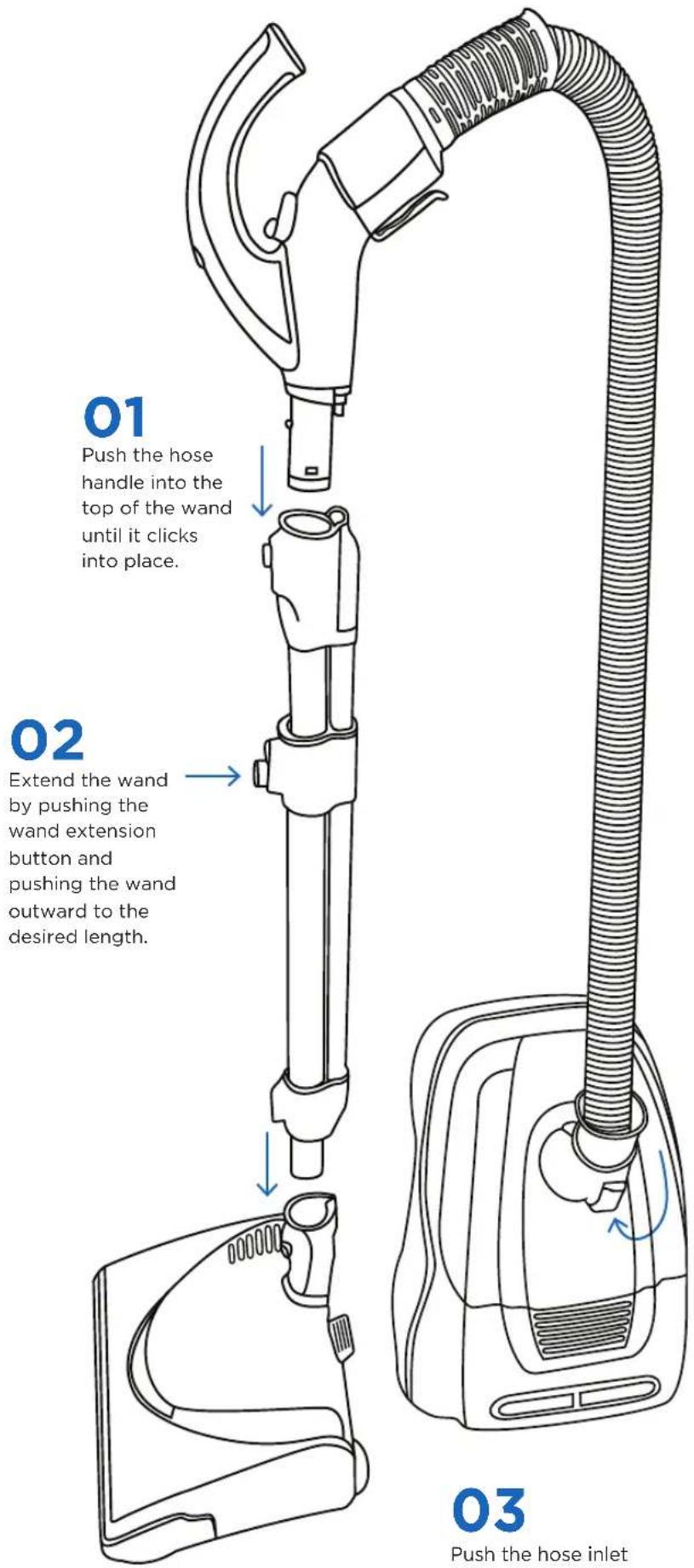

Push the hose inlet into the canister body until it clicks into place.

TIP

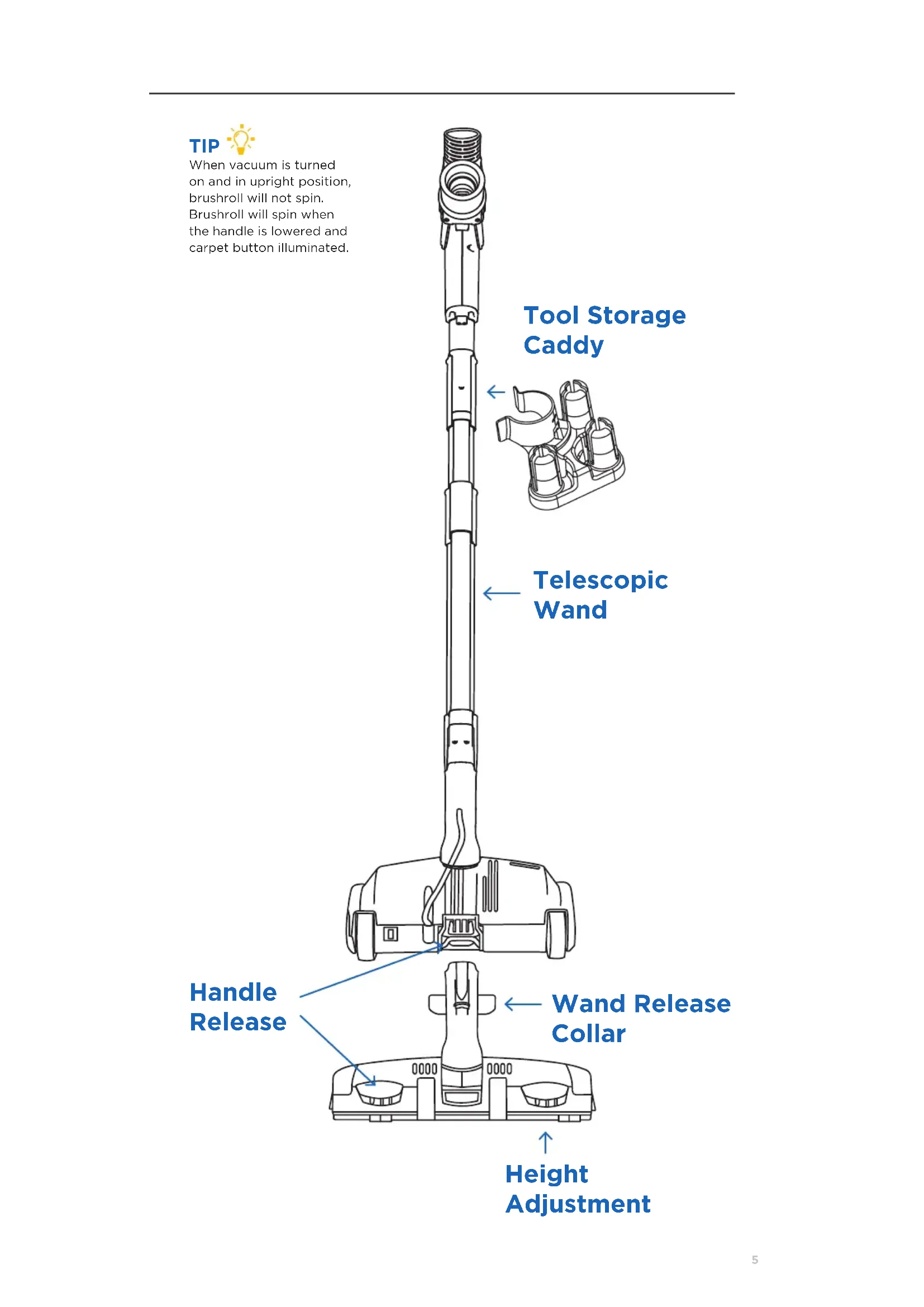

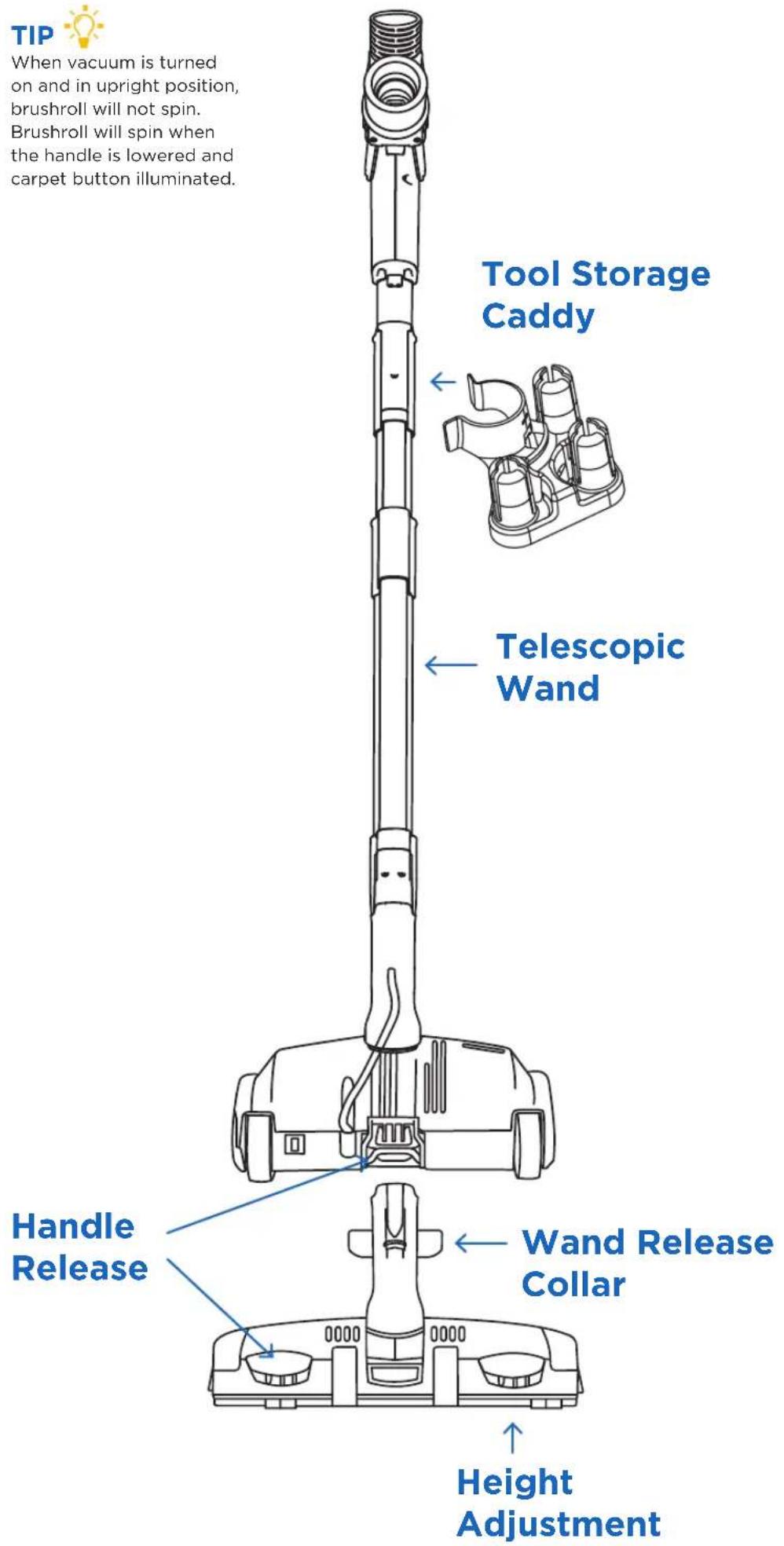

When vacuum is turned on and in upright position, brushroll will not spin. Brushroll will spin when the handle is lowered and carpet button illuminated.

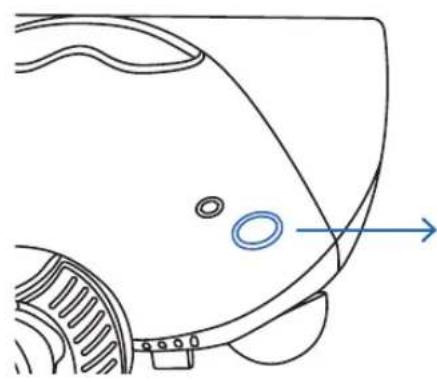

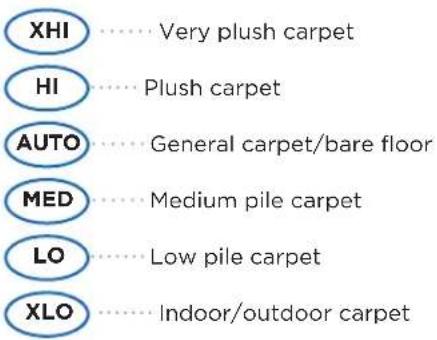

Carpet Height Adjustment *R50FSN only

To adjust the carpet height setting of the power nozzle, press the right pedal located on the back of the power nozzle. Each press of this pedal will adjust the height to the next carpet height position.

Carpet Height Adjustment

TIP

If it becomes difficult to push the vacuum across the carpet, adjust the dial to a higher carpet setting.

Attachment Cleaning

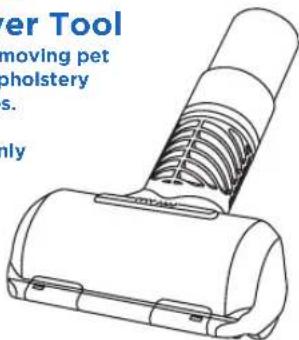

Pet Hair

Remover Tool

Ideal for removing pet hair from upholstery and vehicles.

^* R5OTAP only

Microfiber Bare Floor Tool

Floor Turbo

Nozzle

Ideal for area rugs and low pile carpet. Suction relief slider adjusts the suction level.

^* R50SS only

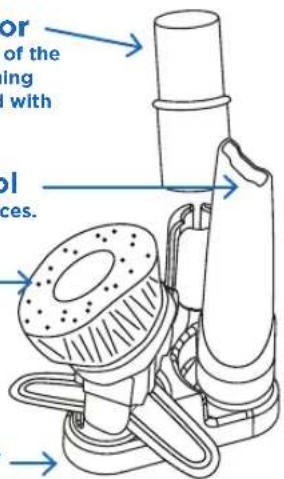

Tool Adaptor Attach to the end of the wand to use cleaning tools not included with this vacuum.

Crevice Tool Ideal for tight places.

2-n-1 Tool Insert wand end at top for the upholstery tool or bottom for dusting brush.

Tool Caddy

TIP

Attach any of the cleaning tools to the end of the telescopic wand or the hose handle.

SAFETY FIRST

Unplug Vacuum before performing any maintenance on your vacuum.

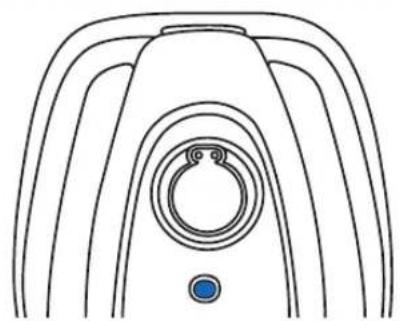

When to Change the Vacuum Bag

The Full Bag Indicator changes to red to show when the bag is full or when there is a clog in the vacuum. The indicator may also turn red during attachment cleaning. If the indicator changes to green when attachments are no longer in use, the vacuum bag does not need to be changed.

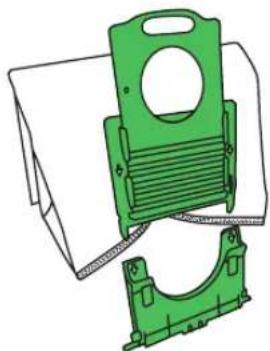

Changing Bags

01

Open Bag Compartment

02

Pull Tab Outward

03

Seal the bag and remove.

04

Insert new bag in grooves and snap into place

NOTE

The vacuum bags are disposable and intended to only be used once.

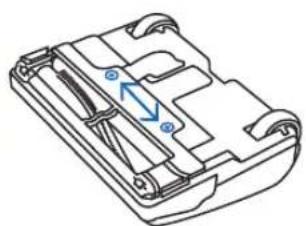

Jammed Brushroll ^50TAP only

01

1/4 turn

02

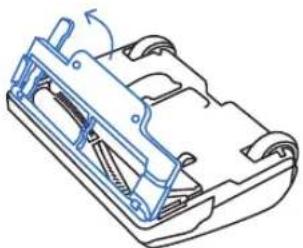

Remove plate

03

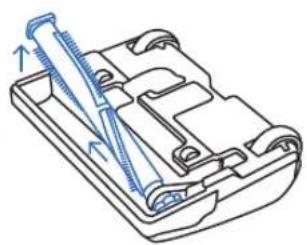

Lift

TIP

After freeing obstruction and red light is still on, it's likely the clog is located in the vacuum motor fan. If so, please take your vacuum to an Authorized Riccar Retailer for service.

Brushroll Warning Lights

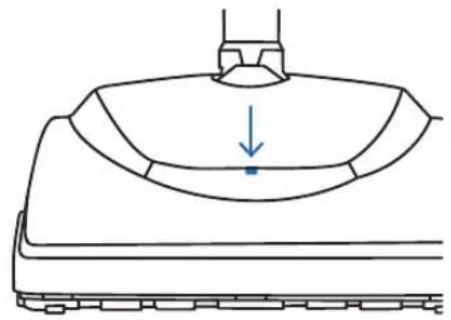

Tandem Air Power Nozzle *Model R5OTAP only

The warning indicator lights in the headlight lens will change to flashing red. Should this occur:

• Turn off vacuum and unplug cord.
• Remove object preventing brushroll from turning.

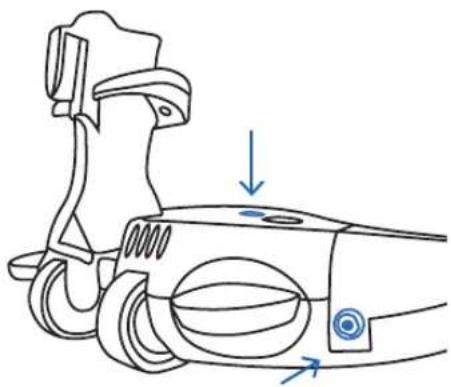

Full Size Power Nozzle *Model R50FSN only

The warning indicator lights on top of the unit will turn from green to red. Should this occur:

• Turn off vacuum and unplug cord.
• Remove object preventing brushroll from turning.
• Locate the circuit breaker switch on the back of the power nozzle and reset the breaker.

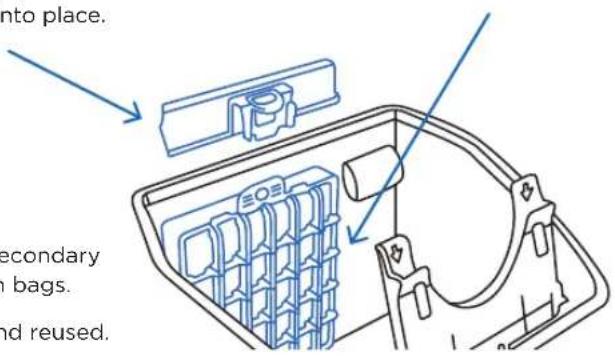

Replacing the Filters

HEPA Media Filter

01

Open the bag compartment lid and locate the filter behind the vacuum bag.

02

Grasp the tab with two fingers and pull the filter out toward you.

03

Replace with a new filter by sliding the filter in and pushing down on the top of the tab until it clicks into place.

Secondary Filter

01

Open the bag compartment lid and locate the filter behind the vacuum bag.

02

Pull the filter cartridge up and out of the vacuum and discard.

03

Slide a new filter cartridge back into place and replace the bag.

NOTE

Replace HEPA media and secondary filters after using 12 vacuum bags.

Filters cannot be washed and reused.

SAFETY FIRST

Unplug Vacuum before performing any maintenance on your vacuum.

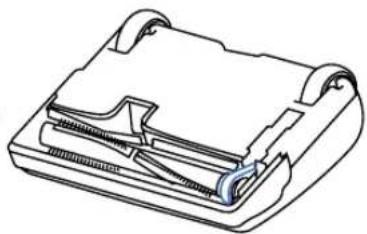

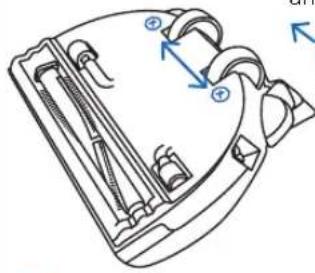

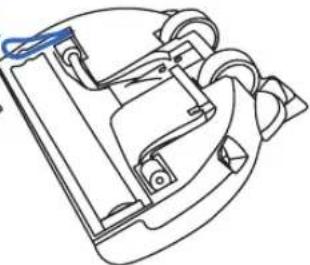

Replacing the Vacuum Belt *R50FSN and R50TAP

01

Remove plate

02

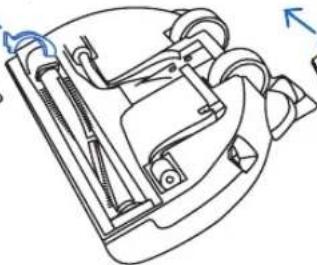

Remove belt cover guard and pull out brushroll

03

Locate and discard broken belt

04

Install new belt by placing the belt around the brushroll "belt groove"

NOTE

The belt on the Tandem Air Power Nozzle is located on the opposite side as demonstrated above.

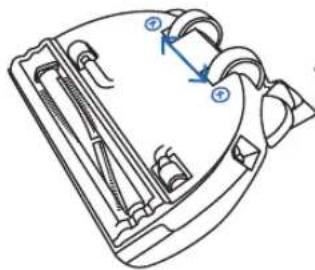

Replacing the Bulb *R50FSN only

01

Remove plate

02

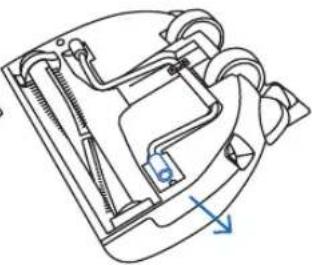

Pull out bulb (no twisting)

03

Reinsert new bulb and place top cover back on

TIP

To reduce the risk of electrical shock or injury from moving parts, turn the vacuum off and unplug it.

Power Cord Care

• When the vacuum is in use, hold the cord to keep from running over it.
• Avoid obstructions and do not pull the cord around sharp edges or corners.
• Always keep the cord away from heated surfaces and never close doors on it as this may cause damage to the wiring.
• To unplug, always grasp the plug, not the cord.

PROBLEM CHECK	POINT POSSIBLE SOLUTION
Suction power is weak.	Vacuum Bag	If vacuum bag is full, replace it.
The vacuum does not work.	Wand, Tools or Hose	If clogged or blocked, remove the object.
	Hose Inlet	Insert it completely into canister body.
	Vacuum Bag	Turn off and unplug the vacuum. Check the vacuum bag and accessories and remove any blockages.
Power cord doesn't retract.	PowerCord	Tug the power cord a little until it starts to retract.
Power cord won't pull out of the vacuum.	Power Cord	Do not pull it out by force. Contact an Authorized Riccar Retailer for further assistance.

Any other service should be performed by an Authorized Riccar Vacuum Retailer. To locate your nearest Authorized Retailer, visit our website at Riccar.com or call 888-674-2227.

Key Replacement Parts (R50SS, R50FSN, R5OTAP):

Genuine HEPA Media Vacuum Bags: RCH-6
Charcoal-Infused Odor-Fighting HEPA Media Vacuum Bags: RCHC-6
Genuine Filter Set: RF19G (HEPA media and granulated charcoal)
Genuine Belt: B350-2514 (Full Size Power Nozzle)
Microfiber Bare Floor Tool Microfiber Pad 3 Pack: MFP-3

For Best Performance

• Keep your vacuum clean and in good operating condition.
• If the cord or plug has any apparent damage, refrain from using the vacuum. Please visit an Authorized Riccar Retailer for a new cord or plug.
• Change the vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance.
• Always use genuine Riccar vacuum bags and replacement parts for maximum cleaning performance.
• Have your vacuum checked annually by your Authorized Riccar Retailer.
• Store your vacuum carefully in a dry area.

LEAVE A REVIEW

We want to hear from you!

Please let us know what you think of your new vacuum by leaving a product review on Riccar.com.

WARRANTY

Thank You for your purchase! Register Online Today.

Riccar.com/register-warranty

For Warranty Information visit

Riccar.com/warranty-information
