IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS UNIT

Read and understand this owner's manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert, and knowing how your unit works. Use this unit only as described in this manual. Use only manufacturer's recommended attachments. To reduce the risk of personal injury or damage to your unit use only recommended accessories.

IMPORTANT:

The manufacturer cannot accept responsibility for damage caused when the appliance is not used according to the instructions, or for uses other than those for which it was intended

WARNING

To avoid fire, DO NOT use with a flammable or combustible liquid or floor cleaner.

WARNING

To avoid electric shock, DO NOT expose to rain. Store Indoors.

When using this unit, basic precautions should always be followed, including the following:

• DO NOT leave unit when plugged in. Unplug from outlet when not in use and before servicing.
• DO NOT allow unit to be used as a toy. Close attention is necessary when used around or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• DO NOT use with damaged cord or plug. If unit is not working properly because it has been dropped, dropped into water, left outdoors, or damaged in any way, contact a service center
• DO NOT handle plug or appliance with wet hands.
  • DO NOT put any objects into openings.
• DO NOT use with any opening blocked: keep free of dust, lint, hair, or anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• DO NOT pick up anything that is smoking or burning such as cigarettes, matches, or hot ashes.
  • DO NOT use to pick up hazardous chemicals.
• Turn off all controls before unplugging.
• Turn unit off immediately if foam or liquid comes from machine exhaust.
• DO NOT use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
• DO NOT use where oxygen or anesthetics are used.
• Replace damaged or worn parts immediately with genuine original equipment parts to maintain safety.
• Use only with a properly grounded outlet. See grounding instructions.
• DO NOT use equipment out doors or in the rain.
• DO NOT use equipment near or around flammable or explosive materials, fuels, or solvents.
  • DO NOT allow the unit to freeze.
• Anyone designated to operate this equipment must, without fail, read and thoroughly understand all instructions and precautions prior to use.
  • DO NOT operate in standing water.
  • DO NOT use on liquids.
• DO NOT operate equipment under any unsafe condition.

SAVE THESE INSTRUCTIONS

2-WIRE POLARIZED POWER CORD

To reduce the risk of electric shock, the charger is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Simple line drawing of two electrical socket plugs with a bulb (no text or symbols)

WARNING!

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. DO NOT modify the plug provided with the vacuum. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This vacuum cleaner must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk electric shock. This vacuum cleaner is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

This vacuum cleaner is for use on a nominal 115-volt circuit and has a ground plug (see illustration). Make sure that the vacuum is connected to an outlet having the same configuration as the plug. No adapter should be used with this vacuum.

ASSEMBLY

01

Before using the vacuum cleaner attach the handle. The vacuum cleaner and handle are packed separately. Remove the handle screws.

02

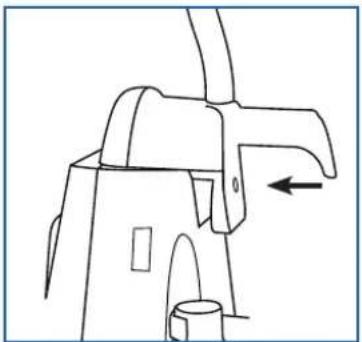

Position the handle behind the vacuum cleaner and align handle with the guides on machine. Hold the power cord down and away from the vacuum while the handle is being attached. Make sure that the switch on the handle is positioned toward the front of the vacuum cleaner.

03

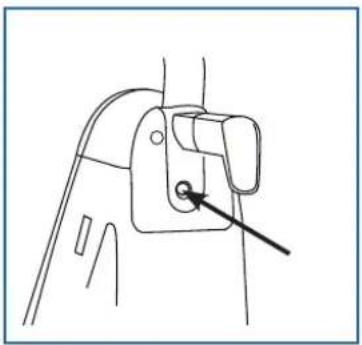

Insert the handle screw and tighten securely into place.

04

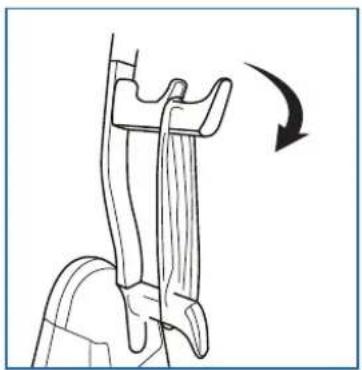

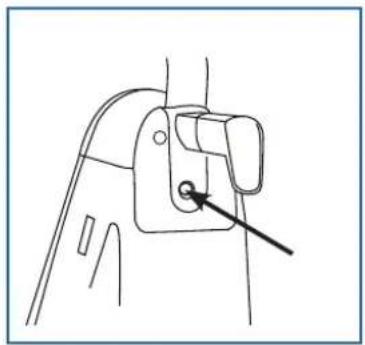

The upper cord hook rotates to allow for quick access to the power cord. Rotate upper cord storage hook and wind power cord around the hooks.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with a knob and arrow indicator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

PARTS IDENTIFICATION

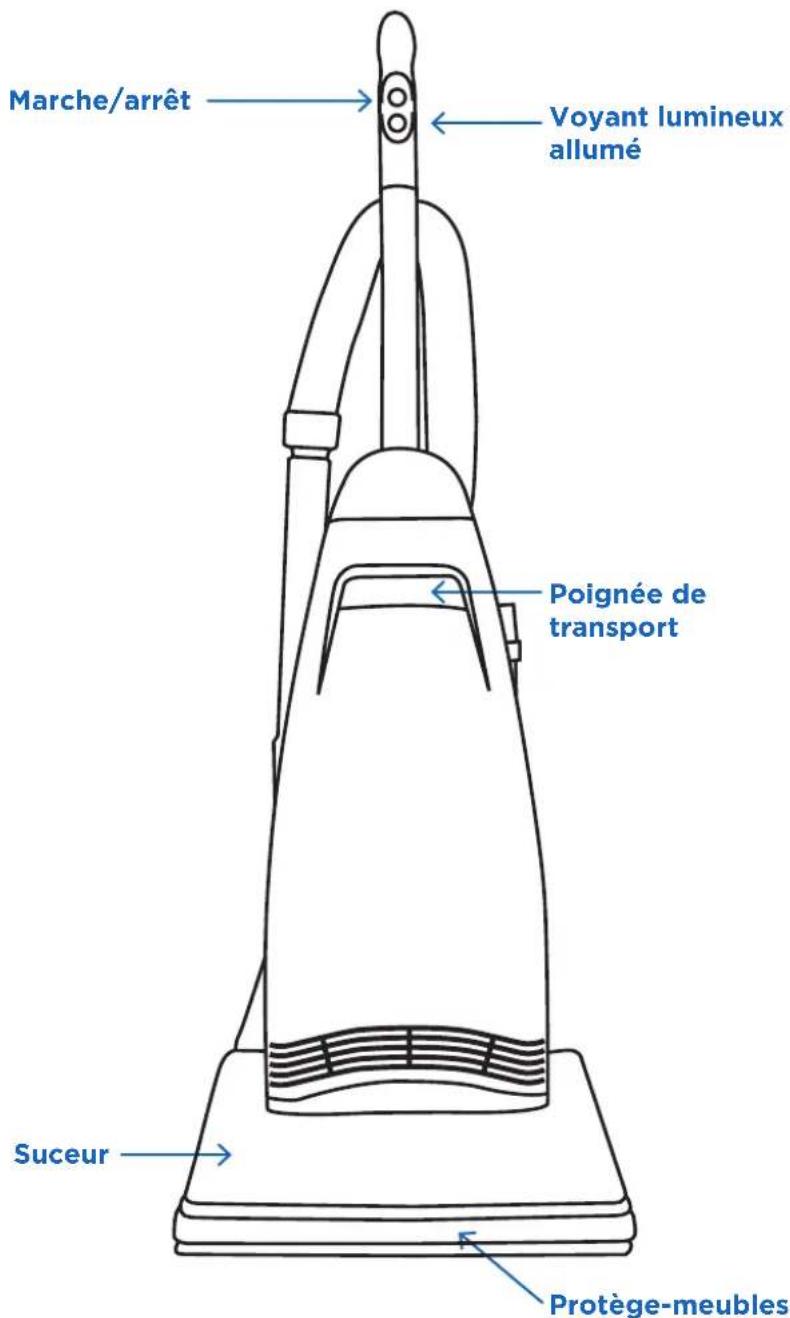

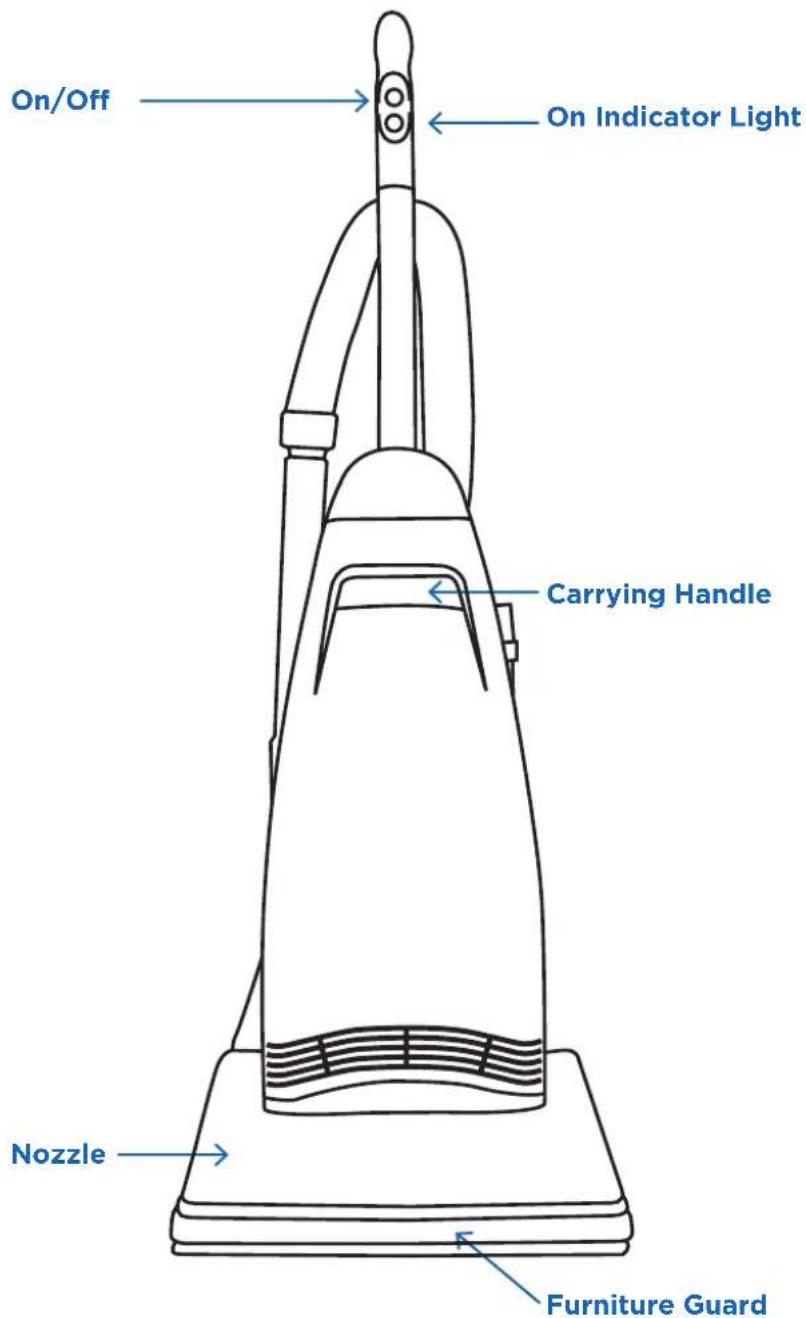

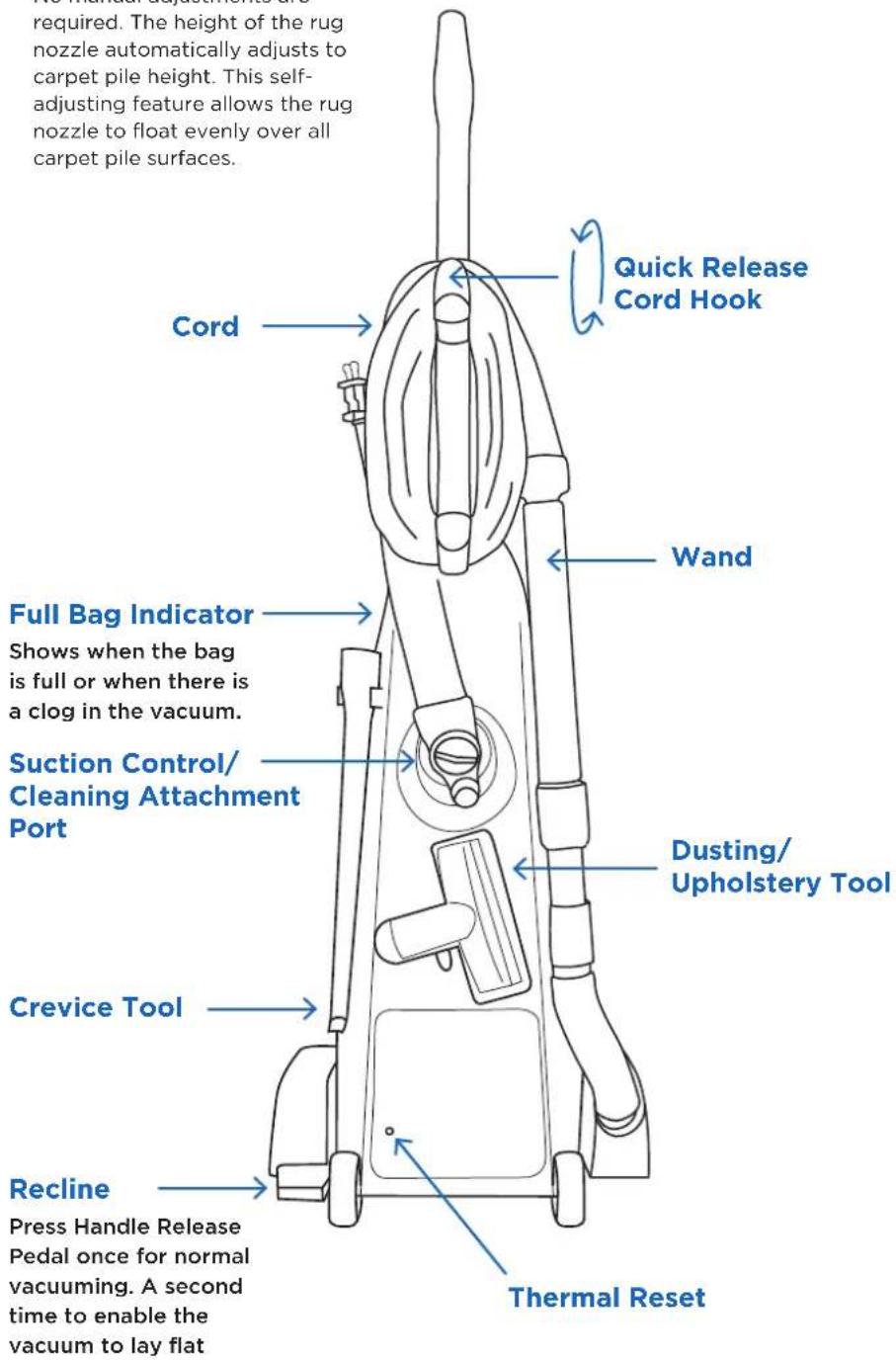

On/Off On Indicator Light Carrying Handle Nozzle Furniture Guard

TIP

The edge cleaning feature provides for improved cleaning of carpets near walls and stationary furniture. For maximum edge cleaning, place the right side of the nozzle against the wall or furniture.

PARTS IDENTIFICATION

TIP

Your vacuum cleaner is designed with an automatic carpet height adjustment. No manual adjustments are required. The height of the rug nozzle automatically adjusts to carpet pile height. This self-adjusting feature allows the rug nozzle to float evenly over all carpet pile surfaces.

required. The height of the rug nozzle automatically adjusts to carpet pile height. This self- adjusting feature allows the rug nozzle to float evenly over all carpet pile surfaces. Cord Quick Release Cord Hook Wand Full Bag Indicator Shows when the bag is full or when there is a clog in the vacuum. Suction Control/ Cleaning Attachment Port Dusting/ Upholstery Tool Crevice Tool Recline Press Handle Release Pedal once for normal vacuuming. A second time to enable the vacuum to lay flat Thermal Reset

CAUTION

The brush roll does not turn off. When using tools, running the vacuum in the same spot for a period of time could damage flooring. To protect the floor, place a piece of cardboard under the vacuum.

OPERATION

On / Off

01

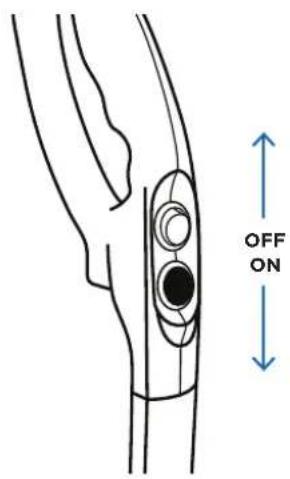

To start the vacuum cleaner, flip the "on / off" switch located on the handle to the "on" position.

02

To stop the vacuum cleaner, flip the "on / off" switch to the "off" position

03

Turn the vacuum cleaner off before unplugging from the electrical outlet.

OFF ON

Vacuuming Under Furniture

Your unit will lay flat on the floor for effective cleaning under beds and tables.

01

Press the foot pedal release once for normal vacuum cleaning.

02

Press the foot pedal release a second time to enable the vacuum to lay flat on the floor.

Line drawing of a mechanical component or tool (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device (no text or symbols present)

Simple line drawing of a mechanical component or tool (no text or symbols)

Carrying The Vacuum

To safely transport your vacuum, especially when carrying the vacuum up and down stairs, use the carry handle.

Simple line drawing of a curved structure with an upward arrow, no text or symbols present

ATTACHMENT CLEANING

Adjusting The Suction Power For Tool Cleaning

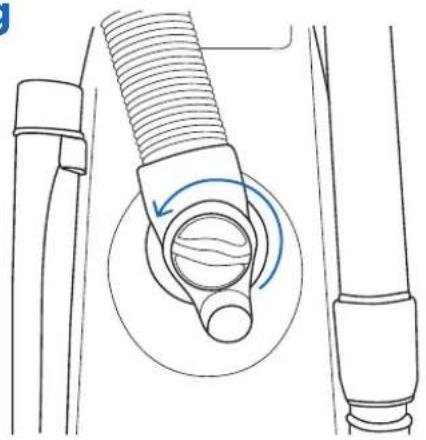

On the back of the vacuum, locate the suction control dial and turn it to the desired position. This reduces the suction power coming through the hose. Close the suction control dial when finished to restore full suction power.

Technical line drawing of a mechanical assembly with no visible text or symbols

Wand Cleaning

With the on-board cleaning tools and vacuum wand, your unit becomes a comprehensive cleaning system.

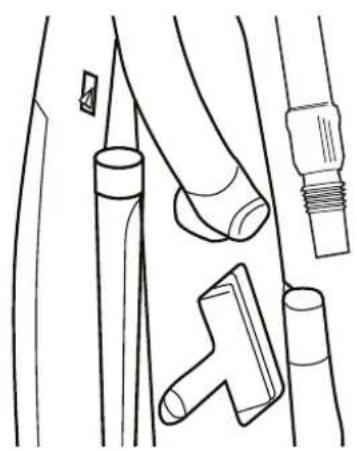

On-board tools include an upholstery tool, dusting brush, crevice tool, extension wand and stretch hose.

01

Remove the telescopic wand from the body of the vacuum.

02

Extend the wand by pushing the button forward and pulling the smaller wand out of the larger wand.

03

Attach any of the on-board tools to the end of the wand or if you do not need the wand, any tool can be connected directly onto the hose.

Technical line drawing of mechanical components including rods, bolts, and a threaded component (no text or symbols)

Line drawing of a hand holding a coiled spring or cable (no text or symbols)

ATTACHMENT CLEANING

Tool Cleaning

Your vacuum is equipped with a dusting brush, upholstery brush and crevice tool. Other tools are available at your authorized retailer.

Remove the cleaning wand from the vacuum Insert any of the tools onto the end of the wand.

Wand with Dusting Brush

Dusting Brush

Ideal for baseboards, shelves and blinds.

Upholstery Tool

Slide off the dusting brush to clean soft surfaces like upholstery.

Dusting/Upholstery Tool

Crevice Tool

Ideal for tight places like between seat cushions or corners.

Crevice Tool

MAINTENANCE AND CARE

SAFETY FIRST

UNPLUG VACUUM BEFORE PERFORMING ANY MAINTENANCE ON YOUR VACUUM.

Watch videos on basic maintenance

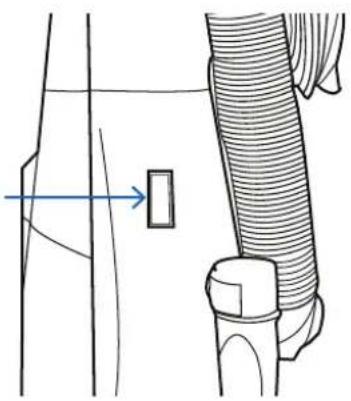

When to Change the Vacuum Bag/Full Bag Indicator Light

The full bag indicator light is designed to show when the bag is full or when there is a clog in the vacuum.

The system measures airflow and alerts the user when airflow is significantly reduced - most commonly from full bags and clogs.

Fine powders such as flour, drywall dust and ashes, can block bag pores, causing the light to illuminate. The vacuum bag should be changed.

The light could also come on during attachment cleaning.

Diagram showing a mechanical component with a rectangular element and directional arrow, no text or symbols present

NOTE: The vacuum bags are disposable and intended to only be used once.

Replacing The Vacuum Bag

01

Open the bag compartment lid.

02

Grasp bag holder and pull the used bag off the bag holder. Attach the new bag onto the bag holder.

03

Tuck the bag corners into the vacuum before replacing the bag compartment lid.

Illustration of a hand holding a tool near a mechanical component, with no visible text or symbols

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with a threaded rod and arrow indicating direction (no text or symbols)

MAINTENANCE AND CARE

When To Change The Filters

Replace the filters once a year or after using 12 vacuum bags, whichever comes first. If someone in your household is highly sensitive to airborne allergens, change the filters after every six vacuum bags.

Replacing The HEPA Post Filter

01

Open the bag compartment lid.

02

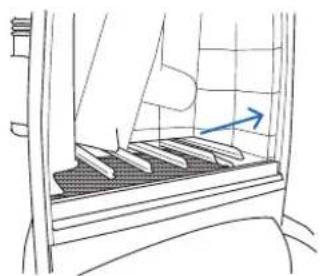

Locate the post filter on the inside base of the cover. Remove the used filter and discard. Press the new post filter into place.

03

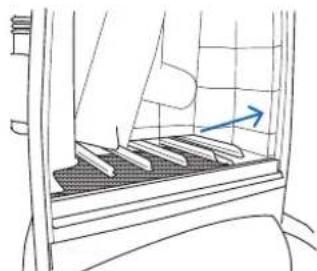

Locate the secondary filter on the bottom of the bag compartment. Remove the foam filter and discard. Slide the new filter under the bag support

04

Close the bag compartment lid.

NOTE: Post filters cannot be washed.

Technical line drawing of a mechanical component with threaded end and directional arrow (no text or symbols)

Line drawing of a hand holding a small object with a blue arrow pointing to it, next to a stack of papers or documents (no text or symbols visible)

Line drawing of a staircase with a blue arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

MAINTENANCE AND CARE

Removing And Reinstalling Bottom Plate

CAUTION: Disconnect the vacuum cleaner from the electrical outlet before removing the bottom plate.

01

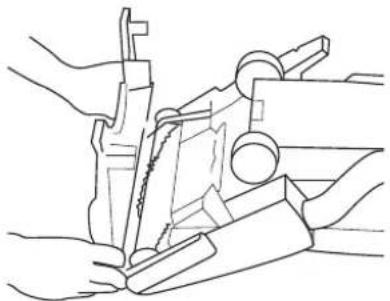

Depress handle release pedal twice and place the vacuum cleaner in the low position.

02

Turn vacuum cleaner over, exposing the underside.

03

Remove the screw at the bottom of the baseplate.

04

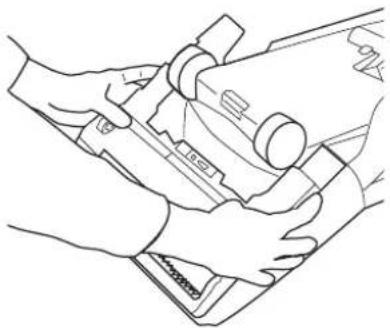

Press tabs inward on each side and pull bottom plate off.

05

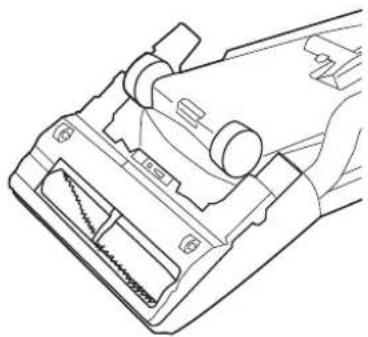

Reinstall by placing lower edge of bottom plate along lower edge of nozzle. Snap plate into place. Place screw back into the baseplate and secure

Line drawing of a mechanical device with handle and lever mechanism (no text or symbols)

Line drawing of hands operating a mechanical device (no text or symbols visible)

Line drawing of hands operating a mechanical device with no visible text or symbols

MAINTENANCE AND CARE

Replacing The Agitator Belt

NOTE: To ensure maximum cleaning efficiency, the condition of the belt should be checked regularly. If belt is stretched, cracked or if excessive slipping is occurring, replace the belt.

01

Remove the bottom plate (see instructions).

02

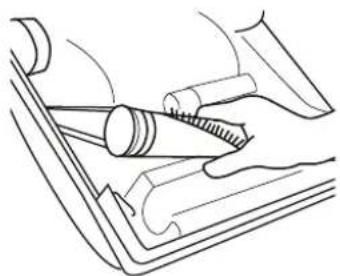

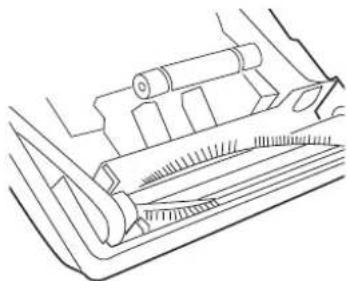

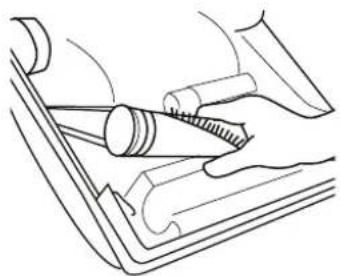

Remove brushroll and belt.

03

Loop the new belt around the motor drive shaft and brushroll pulley.

04

Reinstall the brushroll with fork facing down. The agitator should rotate freely.

05

Reinstall the bottom plate (see instructions).

Technical line drawing of a mechanical assembly with rollers and a ruler (no text or symbols)

Line drawing of a mechanical assembly with gears and shafts (no text or symbols)

PROBLEM SOLVING GUIDE

Removing Clogs

CAUTION: Disconnect the vacuum cleaner from the electrical outlet before cleaning nozzle housing.

The nozzle hose, located on the back of the vacuum, carries the dirt from the nozzle to the vacuum bag. The hose also functions as the attachment cleaning hose. First check to see that a bag is installed or that the bag has not broken open.

01

Suction Control Dial - pull out and rotate open.

02

Hose cuff - at the nozzle inlet.

03

Nozzle inlet tube - remove the bottom plate to check for a clog.

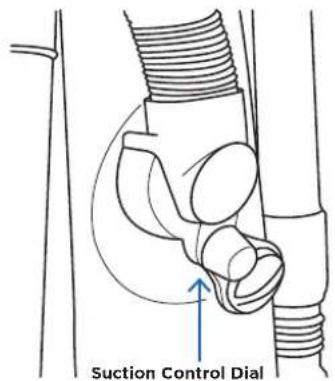

Suction Control Dial

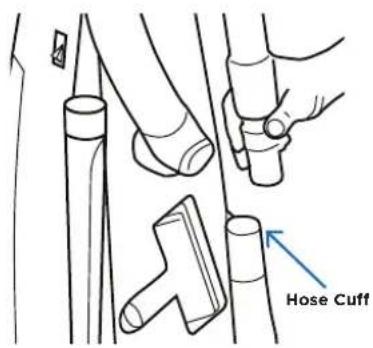

Hose Cuff

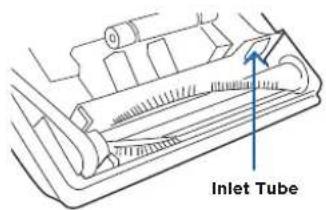

Inlet Tube

Thermal

Reset

If the Thermal Motor Protection System shuts off your vacuum, follow these steps.

01

Unplug the vacuum.

02

Inspect the vacuum for a full bag condition or a hose clog and correct the problem.

03

Locate the Thermal Motor Protection Reset Button on the back of the vacuum. Press the button and resume vacuuming.

TROUBLESHOOTING

PROBLEM CHECK	POINT POSSIBLE SOLUTION
Vacuum won't turn on	Power cord not plugged in	Plug unit in firmly.
	Blown fuse or tripped breaker	Check house fuse or breaker. Replace fuse/reset breaker.
	Needs Service Take to	an Authorized Retailer.
Vacuum won't pick up or low suction	Vacuum bag full Instal	new bag.
	Clogged filter Install new filter.
	Hose clogged Remove	obstacle.
	Worn brushroll Replace brush strips.
	Broken belt Replace belt.
Dust escaping from vacuum	Dust cover not installed correctly	Reinsert the dust cover and secure latch.
	Filter not installed correctly	Review filter installation.
	Vacuum bag not installed correctly	Review bag installation.

Any other service should be performed by an Authorized Riccar Vacuum Retailer. To locate your nearest Authorized Retailer, visit our website at Riccar.com or call 888-674-2227.

Key Replacement Parts

• Genuine HEPA Media Vacuum Bags: RAH-6
• Genuine Filter Set: RVPF
• Vacuum Belt: B014-0714

For Best Performance

• Keep your vacuum and accessories clean and in good operating condition.
• Change the vacuum bag once a month or when the bag is 2/3 full. Change filters as recommended or at least annually to maximize cleaning performance.
• Always use Genuine Riccar bags, filters and parts, as other products may result in poor cleaning or filtration performance.
• Have your vacuum checked periodically by an Authorized Riccar Retailer.
• Store your vacuum carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner's manual.

LEAVE A REVIEW

We want to hear from you!

Please let us know what you think of your new vacuum by leaving a product review on Riccar.com.

WARRANTY

Thank You for your purchase! Register Online Today.

Riccar.com/register-warranty

For Warranty Information visit

Riccar.com/warranty-information

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

LISEZ ET COMPRENEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER CET

Simple line drawing of two electrical socket plugs with a bulb (no text or symbols)

AVERTISSEMENT!

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with a knob and arrow indicator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

IDENTIFICATION DES PIÈCES

Line drawing of a mechanical component or tool (no text or symbols)

de se me

Simple line drawing of a mechanical component or tool (no text or symbols)

Simple line drawing of a curved structure with an upward arrow, no text or symbols present

Technical line drawing of a mechanical component with threaded shaft and circular base (no text or symbols)

Technical line drawing of mechanical components including rods, bolts, and a T-shaped tool (no text or symbols)

Line drawing of a hand holding a cylindrical tool with a spring-like handle (no text or symbols)

NETTOYAGE DES ACCESSOIRES

Line drawing of a hand holding a tool, no text or symbols present

Simple line drawing of a Suceur plat with a cylindrical body and a small circular hole, labeled 'Suceur plat' below (no other text or symbols)

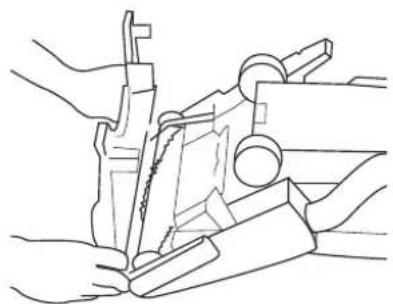

ENTRETIEN ET MAINTENANCE

SÉCURITÉ D'ABORD

DÉBRANCHEZ L'ASPIRATEUR AVANT D'EFFECTUER TOUT ENTRETIEN SUR VOTRE ASPIRATEUR.

Diagram showing a person's seatbelt with a rectangular object and a blue arrow pointing to it (no text or symbols present)

Illustration of a hand holding a tool next to a mechanical component, with no visible text or symbols.

Line drawing of a hand operating a mechanical device with a tool (no text or symbols)

Technical line drawing of a mechanical component with a threaded rod and arrow indicating direction (no text or symbols)

ENTRETIEN ET MAINTENANCE

Technical line drawing of a mechanical component with threaded end and directional arrow (no text or symbols)

Line drawing of a hand holding a small object with a blue arrow pointing to it, next to a stack of cylindrical objects (no text or symbols)

Line drawing of a staircase with a blue arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a threaded rod and angled edge (no text or symbols)

ENTRETIEN ET MAINTENANCE

Line drawing of a mechanical device with handle and lever mechanism (no text or symbols)

Line drawing of hands operating a mechanical device (no text or symbols visible)

Line drawing of hands operating a mechanical device with no visible text or symbols

ENTRETIEN ET MAINTENANCE

Technical line drawing of a mechanical assembly with rollers and a ruler (no text or symbols)

Line drawing of a mechanical device with a cylindrical component inserted into a housing (no text or symbols)

GUIDE DE RÉSOLUTION DE PROBLÈMES

Enlever les sabots

Technical line drawing of a mechanical component with no visible text or symbols

Tube d'entrée

Riccar.com/register-warranty

Riccar.com/warranty-information

Simple line drawing of two electrical socket plugs with a bulb (no text or symbols)

¡ADVERTENCIA!

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with a knob and arrow indicator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

Line drawings of three different mechanical or electrical component configurations (no text or symbols)

Simple line drawing of a curved structure with an upward arrow, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Limpieza de varilla

Technical line drawing of mechanical components and parts (no text or symbols)

Line drawing of a hand holding a cylindrical tool with a spring, no text or symbols present

Line drawing of a hand holding a tool, no text or symbols present

Diagram showing a vertical line with an arrow pointing to a rectangular object and a curved line, next to a textured cylindrical object (no text or symbols)

Technical line drawing showing a tool interacting with a mechanical component (no text or symbols)

Line drawing of a hand holding a tool near a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with a tool and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with a threaded rod and angled edge (no text or symbols)

Line drawing of a hand holding a device with a blue arrow pointing to a component (no text or symbols)

Line drawing of a staircase with stairs and a flag, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with handle and lever mechanism (no text or symbols)

Line drawing of hands operating a mechanical device (no text or symbols visible)

Line drawing of hands operating a mechanical device with gears and a handle (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and a cutting tool (no text or symbols)

Line drawing of a hand holding a tool with a pen, no text or symbols present

Riccar.com/register-warranty

Riccar.com/warranty-information

RICCAR® RICCAR.COM 888-674-2227 1760 GILSINN LANE FENTON, MO 63026 B503-21OM
