USER MANUAL BB80 H.KOENIG

Introducing solids into a baby’s diet is an important part of their growth and development. However finding the time to prepare and cook nutritious food during the daily routine can be diffcult. The Baby Food Maker is here to help - it steams and purees ingredients in the one jug to create fresh and healthy baby food in minutes. When first introducing your baby to solid foods it is important that the food is easy to digest and unlikely to cause an allergic reaction. It is also important to always follow your doctor’s guidelines on when and how to introduce your baby to new foods. To start, ingredients should be steamed to very soft and pureed until they are quite runny, and a smooth velvety consistency. Then over time coarser textures can be introduced as your baby’s motor skills develop and they can begin to chew. It is also important to remember when feeding your baby that the temperature of the food should always be served lukewarm or at room temperature. Please remember to always test the temperature of the food before serving it to your baby.

CAUTION: Handle the blade carefully.

• Carefully remove all contents from the box.

• Take extreme care when unpacking and handling the sharp blades.

• As some parts may be packed separately, check to ensure all items have been unpacked before disposing of the packaging.

• Dismantle and clean all parts as instructed in the "CARE AND CLEANING" section of this manual.• There is a clear protective film on the control panel which can be removed if desired.

• Select a level, dry countertop where the appliance is to be used, allowing air space on all sides to provide proper ventilation and a safe distance from hot surfaces of the appliance.

• To prevent damage from steam and heat, ensure the appliance is not placed directly under cupboards when in use.

• Ensure the appliance is always disconnected from the wall power outlet when not in use.

2. Ensure the drive shaft gasket is in place over the drive shaft and is

securely sitting at the base of the drive shaft. This will prevent leaking.

3. Insert the drive shaft into the base of the jug and rotate counter-

clockwise while pushing down to lock into place. IMPORTANT: Always make sure the drive shaft and drive shaft gasket are properly inserted and locked into the jug before steaming or blending. Use of the appliance without the drive shaft and gasket will result in leaking and cause damage to the jug and motor unit.

4. Turn the jug the right way up and place it onto the motor unit with the

handle directly facing the front over the STOP button. Once seated securely on the motor unit, rotate counterclockwise until you hear it lock fully into place. CAUTION: DO NOT handle by the blade. The blade attachment is very sharp. Use caution when handling and storing.

5. Holding the plastic centre of the blade carefully place the blade into the

centre of the jug over the drive shaft and push it to the bottom of the jug.

6. Add desired ingredients to the jug. Refer to the Quantity and Ingredient

Measurement Recommendations table on page 11.

7. Place the jug lid onto the jug with the spout cover of the lid at the back

of the jug.8. Close the jug lid by turning it counter-clockwise (follow the directional arrow towards the to lock the lid), ensuring the safety interlock on the jug lid is fully inserted into the motor unit and the tab on the lid is locked into the handle of the jug. IMPORTANT: The appliance will not operate unless the safety interlock on the lid is activated and the jug is correctly locked into place.

SAFETY SWITCH FUNCTION

The Baby Food Express has a safety switch function. If the jug lid is opened or the jug is removed from the motor unit during operation, the appliance will automatically shut off.

1. Remove the water tank by lifting it straight up off the motor unit.

2. Turn it upside down, unscrew the water tank cap clockwise and pull up

3. Fill the water tank with water and replace the cap by aligning the

notches on the cap with the gaps in the tank opening. Rotate it in a clockwise direction to lock it in place.

4. Ensure the steam tank lid on the motor unit is locked in place and then

return the water tank onto the motor unit and firmly push down in place. NOTE: If there is not enough water in the water tank during operation the appliance will beep repeatedly. OVERHEATING PROTECTION The Baby Food Express has overheating protection. If the steam chamber/water tank runs dry during operation, the heating power will shut off and the appliance will beep repeatedly. Add water to the water tank to resume operation. IMPORTANT:

• It is recommended that the water tank is filled when the appliance is cold.• After use, allow the appliance time to cool before removing the water tank as there will still be steam and heat within the water tank and steam tank. HOW TO OPERATE THE BABY FOOD EXPRESS

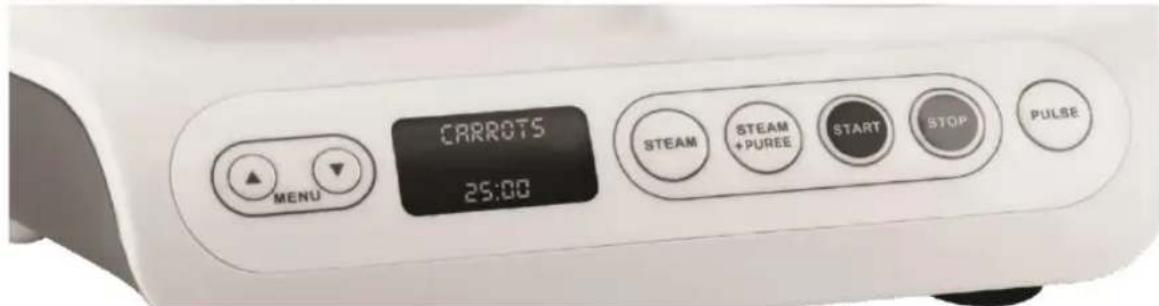

USING MANUAL CONTROLS

The manual functions can be used if the pre-programmed menu functions and timings do not suit your required cooking preferences or ingredients.

MANUAL STEAM + PUREE

Using this function will steam ingredients for the selected time, then automatically blend for 30 seconds after steaming.

1. Connect the plug to the wall power outlet and switch the power on.

2. Press “STEAM+PUREE” repeatedly until the desired steaming time is

selected and displayed on the display screen. With each press of the button the time will increase in 5 minute increments up to a maximum of 30 minutes. Alternatively, use the “▲▼” buttons to adjust the time in 1 minute increments.

3. Press the “START” button to begin the steam cycle.

IMPORTANT: Be sure to keep clear of the steam outlet on top of the jug lid at all times as the escaping steam will be extremely hot and can scald. NOTE: Press the STOP button at any time to stop the current function.

4. Once the steam cycle is complete, the puree cycle will automatically

run for 30 seconds and then the appliance will shut off. CAUTION: Excess water may build up in the jug during cooking, empty excess water from jug before blending foods by pressing the “STOP” button before the steaming time gets to “0:00”. Excess water may be ejected from the lid during blending.

5. If a smoother consistency is required, press and hold the “PULSE”

button to blend until the ingredients are the desired consistency. You will need to press a function to re-commence blending.CAUTION: Do not run the puree function for longer than 1 minute. After 1 minute, rest the motor for at least 2 minutes to allow the motor to cool down. NOTE: A menu must be displayed on the display screen for pulse to activate. Press any function button (STEAM, STEAM+PUREE or ▲▼ ) and then press PULSE. NOTE: When holding down the “PULSE” button the time on the display screen will count down for 30 seconds, and then the appliance will then return to standby mode.

6. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to

unlock. Lift and tilt it so it opens away from you, to avoid steam coming towards you. CAUTION: Be careful when opening the lid as there may still be steam built up in the jug. CAUTION: Be sure the blade has completely stopped spinning before removing jug lid.

7. To remove the jug from the motor unit, holding the handle rotate it

clockwise and lift up. CAUTION: Do not touch the glass jug as it will be hot after steaming, only hold the jug by the handle. MANUAL STEAM Use this function to steam only, without the automatic puree cycle.

1. Connect the plug to the wall power outlet and switch the power on.

2. Press “STEAM” repeatedly until the desired steaming time is selected

and displayed on the display screen. With each press of the button the time will increase in 5 minute increments up to a maximum of 30 minutes. Alternatively, use the ▲▼ buttons to adjust the time in 1 minute increments.

3. Press “START” button to begin the steam cycle. Once the steam cycle

is complete, the appliance will beep then shut off.

4. If required you can now blend ingredients, press and hold the “PULSE”

button until the ingredients are the desired consistency. You will need to press a function to re-commence blending. CAUTION: Excess water may build up in the jug during cooking, empty excess water from jug before blending foods. Excess water may be ejected from the lid during blending.CAUTION: Do not run the motor for longer than 1 minute. After 1 minute, rest the motor for at least 2 minutes to allow the motor to cool down. NOTE: A menu must be displayed on the display screen for pulse to activate. Press any function button (STEAM, STEAM+PUREE or ▲▼ ) and then press PULSE. NOTE: When holding down the “PULSE” button the time on the display screen will count down for 30 seconds, and then the appliance will then return to standby mode.

8. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to

unlock. Lift and tilt it so it opens away from you, to avoid steam coming towards you. CAUTION: Be careful when opening the lid as there may still be steam built up in the jug. CAUTION: Be sure the blade has completely stopped spinning before removing jug lid.

9. To remove the jug from the motor unit, holding the handle rotate it

clockwise and lift up. CAUTION: Do not touch the glass jug as it will be hot after steaming, only hold the jug by the handle. MANUAL PULSE (BLEND) Use this function to blend ingredients to a preferred consistency.

1. Connect the plug to the wall power outlet and switch the power on.

2. Make sure jug lid is locked onto the jug. Press any function button

(STEAM, STEAM+PUREE or ▲▼ ) to take the appliance out of standby mode, then press “PULSE” button until desired consistency is achieved. CAUTION: Excess water may build up in the jug during cooking, empty excess water from jug before blending foods. Excess water may be ejected from the lid during blending. CAUTION: Do not run the puree function for longer than 1 minute. After 1 minute, rest the motor for at least 2 minutes to allow the motor to cool down.NOTE: When holding down the “PULSE” button the time on the screen will count down for 30 seconds, and then the appliance will return to standby mode.

3. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to

unlock. Lift and tilt it so it opens away from you, to avoid steam coming towards you. CAUTION: Be careful when opening the lid as there may still be steam built up in the jug. CAUTION: Be sure the blade has completely stopped spinning before removing jug lid.

4. To remove the jug from the motor unit, holding the handle rotate it

clockwise and lift up. CAUTION: Do not touch the glass for the jug as it will be hot after steaming, only hold the jug by the handle.

USING THE PRE-PROGRAMMED SETTINGS

Pre-programmed Baby Foods Settings: The Baby Food Express is pre-programmed with specific settings to get the best cooking result for different foods. The pre-programmed settings and times are as follows; INGREDIENT SET TIME (minutes) Apples 20:00 Broccoli 20:00 Carrots 25:00 Chicken 25:00 Potato 20:00 Pumpkin 20:00 String Beans 20:00 Peas 15:00 Sweet Potato 20:00 Zucchini 15:00 1. Connect the plug to the wall power outlet and switch the power on.2. Press the “MENU ▲▼”buttons to scroll through ten different ingredients with preprogrammed times (see table above).

4. Press “START” and the steam cycle will commence.

IMPORTANT: Be sure to keep clear of the steam outlet on top of the jug lid at all times as the escaping steam will be extremely hot and can scald.

5. If “STEAM+PUREE” was selected, once the steam cycle is complete

the puree cycle will automatically run for 30 seconds and then the appliance will shut off. If using the “STEAM” function only, once the steam cycle is complete, the appliance will beep then shut off. CAUTION: Excess water may build up in the jug during cooking, empty excess water from jug before blending foods by pressing the “STOP” button before the steaming time gets to “0:00”. Excess water may be ejected from the lid during blending.

6. If a smoother consistency is required, press and hold the “PULSE”

button to blend until the ingredients are the desired consistency. You will need to press a function to re-commence blending. CAUTION: Do not PULSE for longer than 1 minute. After 1 minute, rest the motor for at least 2 minutes to allow the motor to cool down. NOTE: A menu must be displayed on the display screen for pulse to activate. Press any function button (STEAM, STEAM+PUREE or ▲▼ ) and then press PULSE. NOTE: When holding down the “PULSE” button the time on the display screen will count down for 30 seconds, and then the appliance will then return to standby mode.

7. Wearing an oven mitt, hold the lid handle and turn the lid clockwise to

unlock. Lift and tilt it so it opens away from you, to avoid steam coming towards you. CAUTION: Be careful when opening the lid as there may still be steam built up in the jug. CAUTION: Be sure the blade has completely stopped spinning before removing jug lid.8. To remove the jug from the motor unit, holding the handle rotate it clockwise and lift up. CAUTION: Do not touch the glass for the jug as it will be hot after steaming, only hold the jug by the handle.

IMPORTANT TIPS FOR USE

• Wash fruits and vegetables thoroughly before cooking. Choose ripe fruit and remove peel, pits, seeds and cores.

• Cut ingredients to approximately 1-2cm pieces before placing in the jug. Smaller pieces of food steam more evenly and blend more consistently, ensuring a smooth texture.

• Potato will become gluey if blended for too long so it is best to pulse blend after the steam and blend cycle. This will allow you to monitor the consistency.

• You can blend banana or avocado or other mashable fruit in the Baby Food Express. You will need to press a function button, then just pulse to mash to the desired consistency.

• Root vegetables are great to steam and blend together. Ensure you cut them up to the same size to ensure they steam consistently and to avoid lumps.

• Pour off excess liquid after steaming if you want a thicker consistency before blending.

• Always check that meat is thoroughly cooked to a safe internal temperature. Chicken should be cooked to an internal temperature of 75°C, beef to 77°C and fish to 65°C. It is recommended that you test cooked meat with a reliable meat thermometer to be sure when foods are safely cooked.

QUANTITY AND INGREDIENT MEASUREMENT RECOMMENDATIONS

Refer to the following chart for recommended quantity and ingredient measurements when using the Baby Food Maker. FOOD TYPE RECOMMENDED QUANTITY BEST PREPARATION APPLE 300g or 2 small apples peel, core and dice into 2cm pieces BROCCOLI 200g wash & slice into 2cm pieces CARROT 300g or 2 medium peel & dice into 2cm piecescarrots CAULIFLOWER 200g wash & slice into 2cm pieces CHICKEN 300g or 2 small fillets boneless breast fillets, cut into 1cm pieces CORN KERNELS 150g must be ripe or use canned

250g or 2 small corn cobs cut into thirds and steam only FISH 300g fillet must be boneless, cut into 1cm slices. NECTARINE 250g or 2 small nectarines must be ripe, peel, pit and dice into 2cm pieces PEACH 250g or 1 large peach must be ripe, peel, pit and dice into 2cm pieces PEAR 300g or 2 small pears must be ripe, peel, core and dice into 2cm pieces PEAS (PODDED) 150g (fresh or frozen) rinse first PEAS (SNOWPEAS WHOLE) 150g top and tail before steaming POTATO 200-300g peel & dice into 2cm pieces PUMPKIN 200g peeled & diced to 2cm pieces STRING BEANS 150g top and tail before steaming SWEET POTATO 200-300g peel & dice into 2cm pieces ZUCCHINI 300g or 2 large zucchini slice into 1cm rings IMPORTANT: It is not recommended to fill the jug more than half way with raw ingredients. CAUTION: Always monitor cooking liquid levels prior to blending - excess cooking liquid could be ejected from the lid when blending.SUGGESTED FLAVOUR COMBINATIONS FOR THE BABY FOOD EXPRESS Broccoli & Cauliflower puree Wash broccoli and cauliflower florets well. Slice into 2cm pieces and press the BROCCOLI setting, STEAM & PUREE. If you want a thicker puree, pour off some of the cooking liquid before it reaches the PUREE cycle. Carrot Apple Puree Wash, peel and dice 2 medium carrots into 1cm pieces. STEAM for 10 minutes. Wash, peel and core 1 apple and dice into 2 cm pieces. Add the apple to the carrots and steam for a further 8 minutes. Pour off some of the cooking liquid if you want a thicker puree. Blend using PULSE for 30 seconds, check the consistency and blend again if required. Triple the Veg Wash, peel and dice 1 potato and 2 carrots and steam for 12 minutes. Pour off the cooking liquid and add 1 cup of washed and diced broccoli. STEAM for a further 8 minutes and blend using PULSE for 30 seconds, check the consistency and blend again if required. Chicken* & Pumpkin Rinse 1 single boneless chicken breast and dice into 2cm pieces. Wash, peel and dice the pumpkin into 2cm pieces. Select the CHICKEN setting, STEAM+PUREE. If you want a thicker puree, pour off some of the cooking liquid before it reaches the PUREE cycle.

• Always check that meat is thoroughly cooked to a safe internal temperature. Chicken should be cooked to an internal temperature of 75°C, beef to 77°C and fish to 65°C. It is recommended that you test cooked meat with a reliable meat thermometer to be sure when foods are safely cooked.CARE AND CLEANING QUICK CLEAN:

1. After each use, simply half fill the jug with warm water and add a drop

or two of dishwashing liquid, fit the lid onto the jug and run the motor using the “PULSE” button for 30 seconds. The blender uses its own power to clean both the jug and the blade system.

2. Rinse and allow to thoroughly dry.

FOR MORE THOROUGH CLEANING:

1. Before cleaning, switch off and disconnect from the wall power outlet.

2. Remove the jug from the motor unit.

3. Carefully lift the blade out of the jug by the plastic centre.

CAUTION: Blades are sharp, handle carefully.

4. Rinse the jug with water.

5. With the lid removed, sit the jug upside down on a flat bench or table.

6. If the jug is assembled, disassemble it using the following instructions.

7. Remove the drive shaft from the base of the jug by turning the drive

shaft clockwise and lifting it out.

8. Rinse the drive shaft with warm water and wipe clean. Be sure not to

misplace the driveshaft gasket while cleaning. Rinse and air dry. IMPORTANT: Do not place the drive shaft or drive shaft gasket in the dishwasher.

9. Wash the jug in warm soapy water.

IMPORTANT: Do not place the jug in the dishwasher.

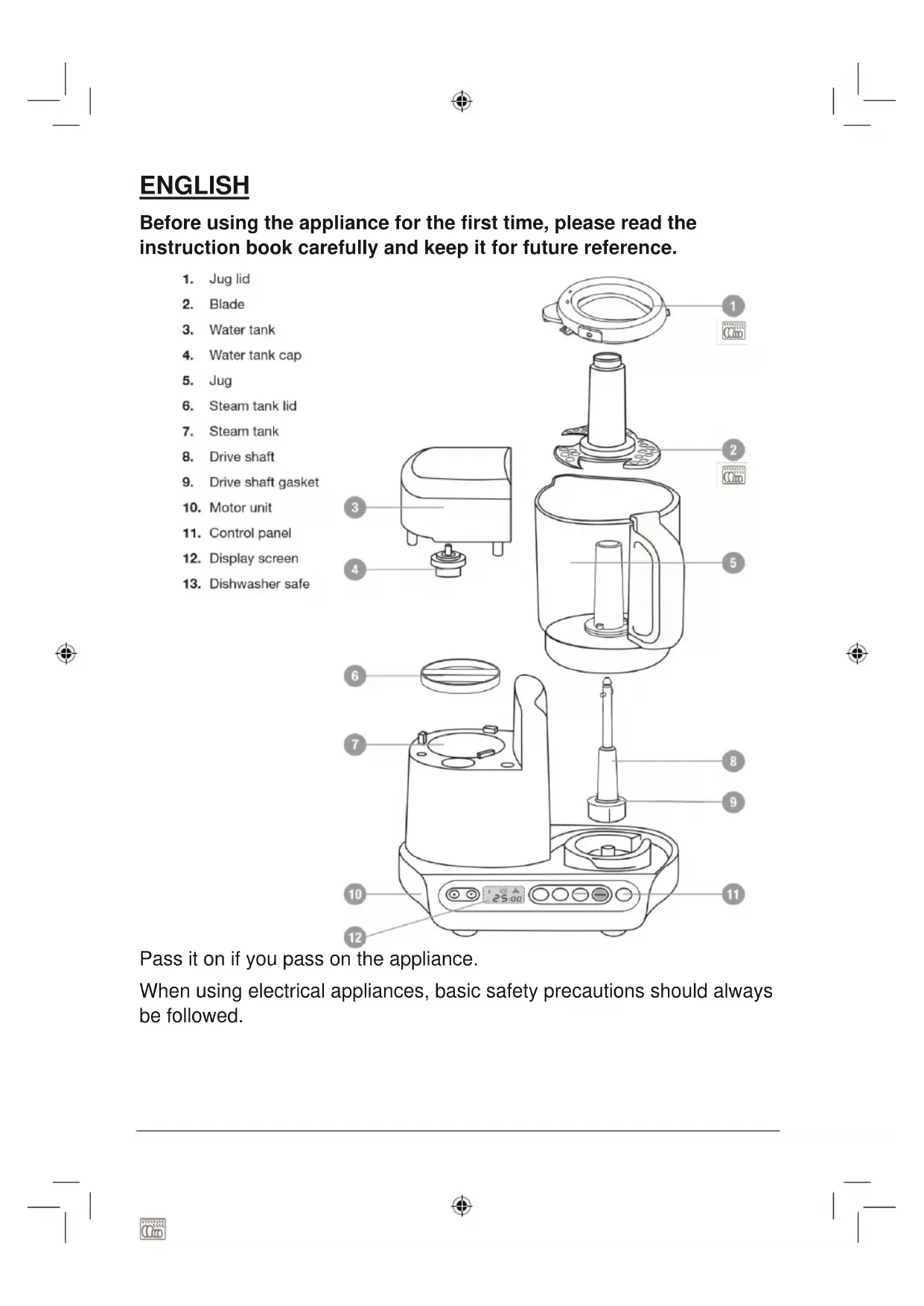

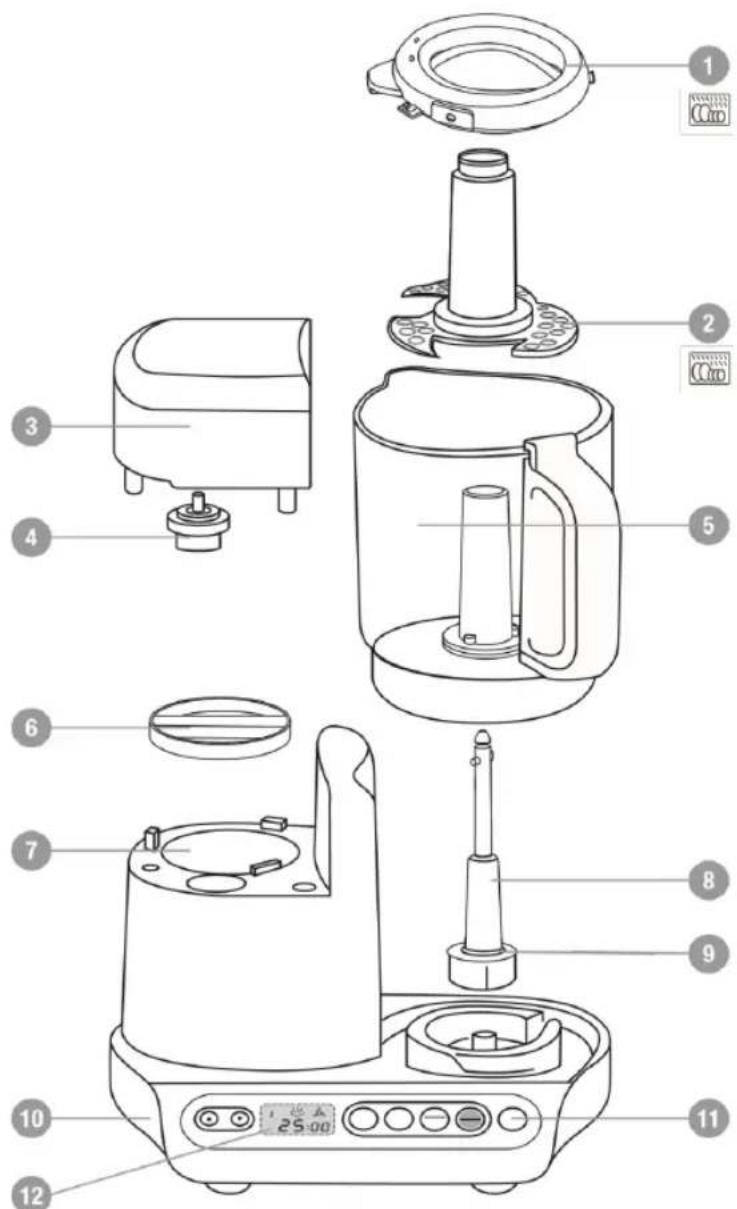

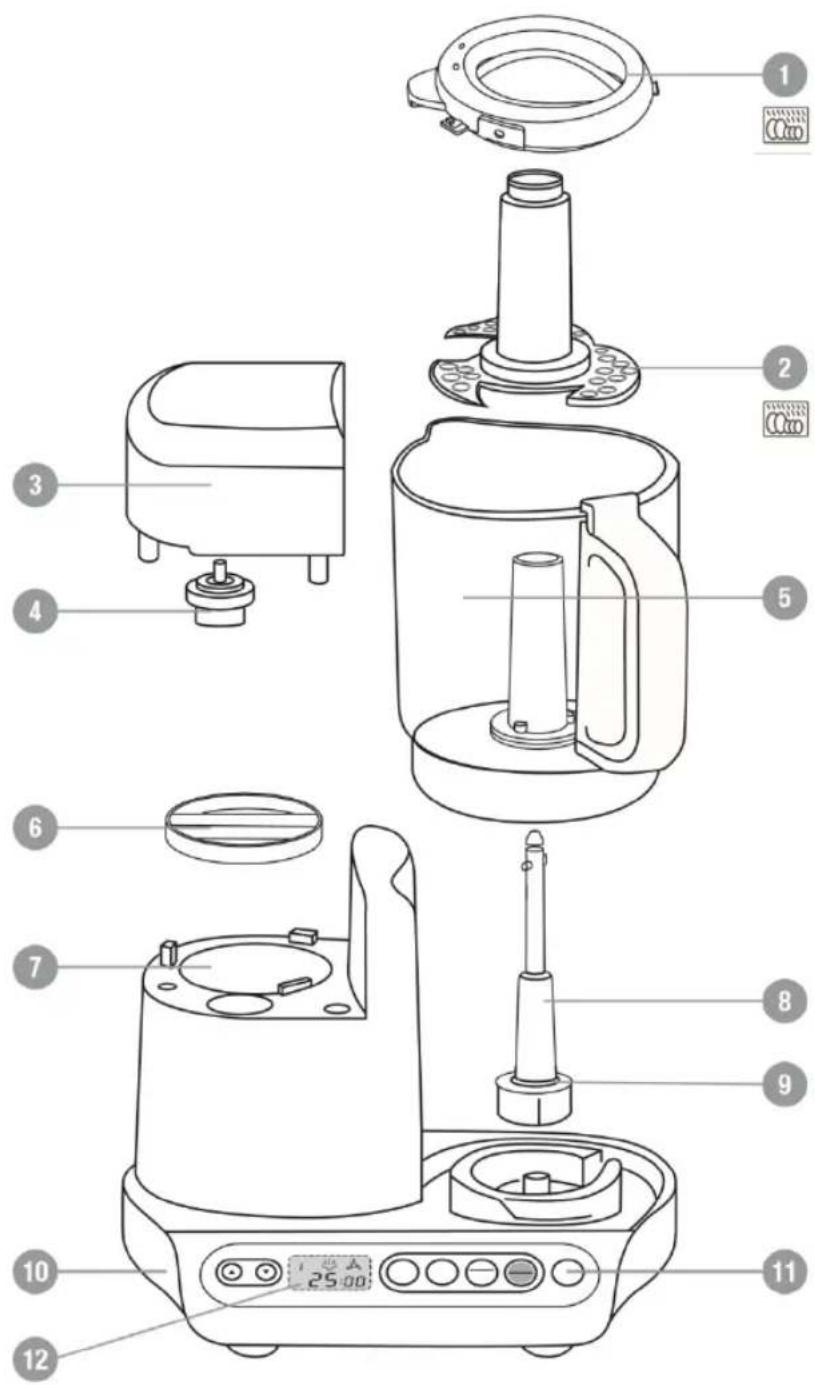

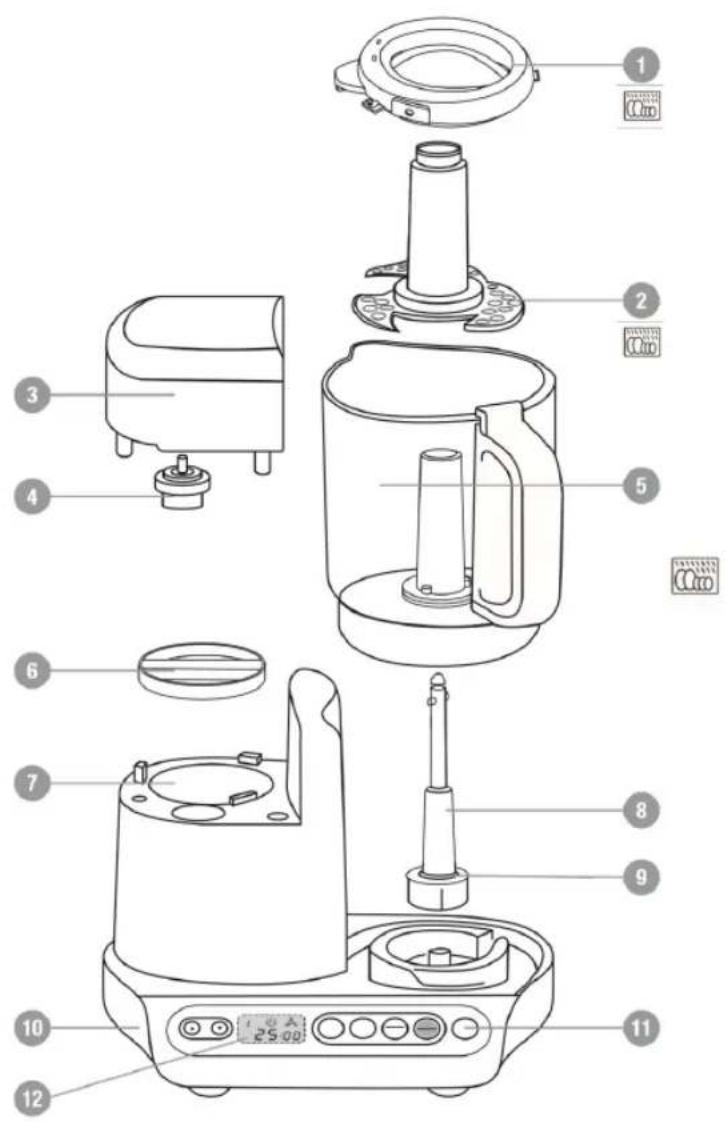

10. Dishwasher safe parts are labelled on page 4 with a symbol.

11. Wash the lid and blade in warm soapy water. Alternatively, these parts

can be washed in the dishwasher. Place on the top rack only. CAUTION: Be sure the drive shaft is removed from the jug when washing.

12. The water tank will be hot immediately after use. Allow it to cool before

lifting it off the motor unit. Empty the water tank after each use and allow it to dry before storing it back on the motor unit.13. To clean the water tank, fill it with warm soapy water, replace the cap and shake vigorously. Empty soapy water and rinse thoroughly before next use.

14. To clean the steam tank, remove steam tank lid by rotating it counter-

clockwise and lift it up. Wipe the steam tank with a damp cloth after each use. Replace the steam tank lid by aligning the notches on the steam tank lid to the left of the tab openings and rotate clockwise to close.

15. Rinse all parts well and allow them to dry before storing.

• Do not immerse the motor unit in liquid. Wipe with damp cloth and dry thoroughly.

• Remove stubborn spots by rubbing with a damp cloth and non- abrasive cleaner. NOTE: If liquids spill onto the motor unit, immediately switch off and disconnect from the wall power outlet, wipe with a damp cloth and dry thoroughly. • Do not use rough scouring pads or cleansers on parts or finish. TROUBLESHOOTING Condition Possible Cause Possible Remedy Machine will not start. Safety interlock on jug lid is not fully inserted into base. Make sure Jug Lid is turned counter- clockwise as far as possible and safety interlock on jug lid is fully inserted into base. Water/Steam Tank is dry. (Appliance will beep repeatedly to indicate that the Steam Tank is Dry) Add water to Water Tank.Machine stops during operation Steam Tank is dry. (Machine will beep repeatedly to indicate that the Steam Tank is Dry) Add water to Water Tank. Safety interlock on jug lid has been disengaged from base. Make sure the Jug Lid is turned counter- clockwise as far as possible and safety interlock on jug lid is fully inserted into base. Final puree consistency isn’t smooth to my preference Raw food isn’t diced finely enough before placing into the jug. Dice food into smaller pieces, approximately 1-2cm, before placing into the jug. Low water content of raw food. Add additional water, formula, breast milk or other liquid after steaming and blend for longer. Food not blended for long enough Use the PULSE button to blend food for longer. More steaming may be required Use the manual Steam function to cook for longer. Food is too watery after it is blended Water from steam as well as water content in food is excessive. Before blending, stop the steaming process and remove excess water. Leaking under unit Drive shaft gasket may not be in place. Check the drive shaft gasket is correctly in place over the drive shaft in the jug. Leaking near water tank Steam tank lid and water tank cap may not be in place. Check the steam tank lid and water tank cap are correctly in place.IMPORTANT SAFEGUARDS When using this appliance, basic safety precautions should always be followed, including the following: Read all instructions before, and follow whilst using this appliance.

1. To protect against electric shock DO NOT immerse the cord, plug or

motor unit in water or any other liquid.

2. Do not use in the bathroom or near any source of water.

3. Do not use outdoors.

4. This product is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.

5. Take care to avoid personal injury when handling the sharp blade

assembly. Install and remove by handling the top of the plastic column.

6. Leave a clear space of a least 75mm (3 inches) around the appliance

7. To prevent damage from steam and heat, ensure the appliance is not

placed directly under cupboards when in use.

8. The appliance emits steam during operation and external accessible

surfaces become very hot. Do not touch hot surfaces. We recommend the use of an oven mitt or tea-towel when using this appliance.

10. Always switch off and disconnect the appliance from the wall power

outlet before assembling, disassembling or cleaning.

11. Always switch off and disconnect the appliance from the wall power

outlet when not in use.

12. To disconnect, stop all operations by pressing the ‘STOP’ button.

Switch off the wall power outlet, then grasp the plug and pull the plug from the wall outlet. Never pull by the cord.

13. Do not operate any appliance with a damaged cord or plug or after the

appliance has malfunctioned, or has been dropped or damaged in anymanner. Contact customer service for replacement, examination, repair or adjustment.

14. There are no user serviceable parts. If the power cord is damaged, it

must be replaced by the manufacturer or similarly qualified person in order to avoid a hazard.

15. Cutting blades are very sharp. Handle the blade assembly with

extreme care and caution when emptying the jug and during cleaning.

16. Before switching on, ensure the glass jug has been assembled

correctly and has been seated onto the motor unit with the jug lid attached. The motor will only operate if the jug and jug lid have been properly installed onto the motor unit.

17. The appliance is not to be operated with an empty jug.

18. Allow boiling liquids to cool before you pour them into a cold glass jug.

Pouring boiling liquids into a cold glass jug could cause the jug to crack.

19. Wait until the blades come to a complete stop before removing the jug

lid from the jug, and before removing the jug from the motor unit.

20. Switch off and unplug the appliance before changing accessories or

touching parts that move whilst in use.

21. Do not use on an inclined plane or unstable surface.

22. Do not run the motor for longer than 1 minute. After 1 minute, rest the

motor for at least 2 minutes to allow the motor to cool down.

23. Keep the appliance and the power cord away from the edges of

benches and countertops.

24. Do not place the appliance on or near any heat sources.

25. Do not use appliance for other than intended purpose. Misuse of the

appliance may cause injury.

26. This appliance is not a toy. Children should be supervised to ensure

they do not play with this appliance.

27. This appliance is not intended to be operated by means of an external

timer or separate remote control system.

28. For added safety, electrical appliances should be connected to a

power outlet that is protected by a residual current device (RCD), also often referred to as a ‘Safety Switch’. Your switchboard may alreadyincorporate an RCD. If unsure, call an electrician for verification and fitting if necessary.

SAVE THESE INSTRUCTIONS
