GALS48M4JG - Wardrobe Gladiator - Free user manual and instructions

Product Type	Overhead Garage Storage Shelf
Brand	Gladiator
Model	GALS48M4JG (Hammered Granite)
Dimensions	1.22 m x 2.44 m (4 ft x 8 ft)
Recommended Height	2.03 m (6 ft 8 in) above floor
Maximum Load Capacity	340 kg (750 lb) evenly distributed
Material	Hammered Coated Steel
Power Supply	None (manual installation)
Main Functions	Overhead storage to free up floor space
Installation	Ceiling mount on wood joists, max spacing 61 cm (24 in)
Required Tools	Power drill, 1/2 in socket wrench, 6 mm hex key, stud finder, tape measure
Supplied Parts	Shelf sections, ceiling brackets, vertical supports, EZ Connect rods, hardware
Care and Cleaning	Clean with mild detergent and warm water, soft cloth
Annual Check	Check tightness of all screws and nuts
Safety	Do not exceed 340 kg; requires two people for installation
Warranty	Visit Gladiator website or call 1-866-342-4089 (U.S.) / 1-800-807-6777 (Canada)
Recommended Use	Garage, light items

Frequently Asked Questions - GALS48M4JG Gladiator

What is the maximum load capacity of the shelf?

The maximum load capacity is 340 kg (750 lb), evenly distributed over the entire shelf surface.

Do I need to drill into the ceiling to install the shelf?

Yes, the shelf attaches directly to ceiling joists using lag screws. You need to pre-drill holes with the included 3/16 in drill bit.

What tools are needed for assembly?

You will need a power drill, a 1/2 in socket or wrench, a 6 mm hex key (included), a stud finder, a tape measure, and a stepladder.

Can I install the shelf alone?

No, installation requires at least two people to lift and position the shelf safely to avoid injury.

Can the shelf be moved after installation?

Yes, thanks to the EZ Connect system, the shelf can be repositioned up or down by removing and replacing the positioning rods. Two people are required for this operation.

What are the dimensions of the shelf?

The shelf measures 1.22 m x 2.44 m (4 ft x 8 ft). The recommended mounting height is 2.03 m (6 ft 8 in) above the floor.

How do I maintain the shelf?

Clean it with a mild detergent and warm water using a soft cloth. Annually check the tightness of all screws.

What types of items can I store on the shelf?

This shelf is designed for light items (boxes, sports equipment, etc.). Do not exceed the maximum load of 340 kg.

Is the shelf warranted?

Yes, a warranty is offered. For more information, contact Gladiator at 1-866-342-4089 (U.S.) or 1-800-807-6777 (Canada).

What if I lose a part?

Contact Gladiator customer service at the numbers above. Keep the manual and model number (GALS48M4JG) for easier request.

USER MANUAL GALS48M4JG Gladiator

Assembly Instructions

ÉTAGÈRE DE RANGEMENT SURELEVÈE DE 1,22 M X 2,44 M GEARLOFT™

ASSEMBLY INSTRUCTIONS.5

Unpack the Overhead GearloftTM

Storage Rack. 5

Tools and Parts. 5

Overhead Gearloft™ Storage Rack

Use Requirements 5

Assembling the Rack. 6

Installing Overhead GearloftTM

Storage Rack 9

Optional Configuration. 10

Storage Rack Care. 10

Registering Your Product............10

WARRANTY 11

SECURITE DE L'ETAGERE DE RANGEMENT SURELEVEE

GEARLOFTTM 12

DIMENSIONS (INSTALLATION

NORMALE) 13

PIECES 14

INSTRUCTIONS D'ASSEMBLAGE...15

www.gladiatorgarageworks.com

www.gladiatorgarageworks.ca

OVERHEAD GEARLOFT™ STORAGE RACK SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

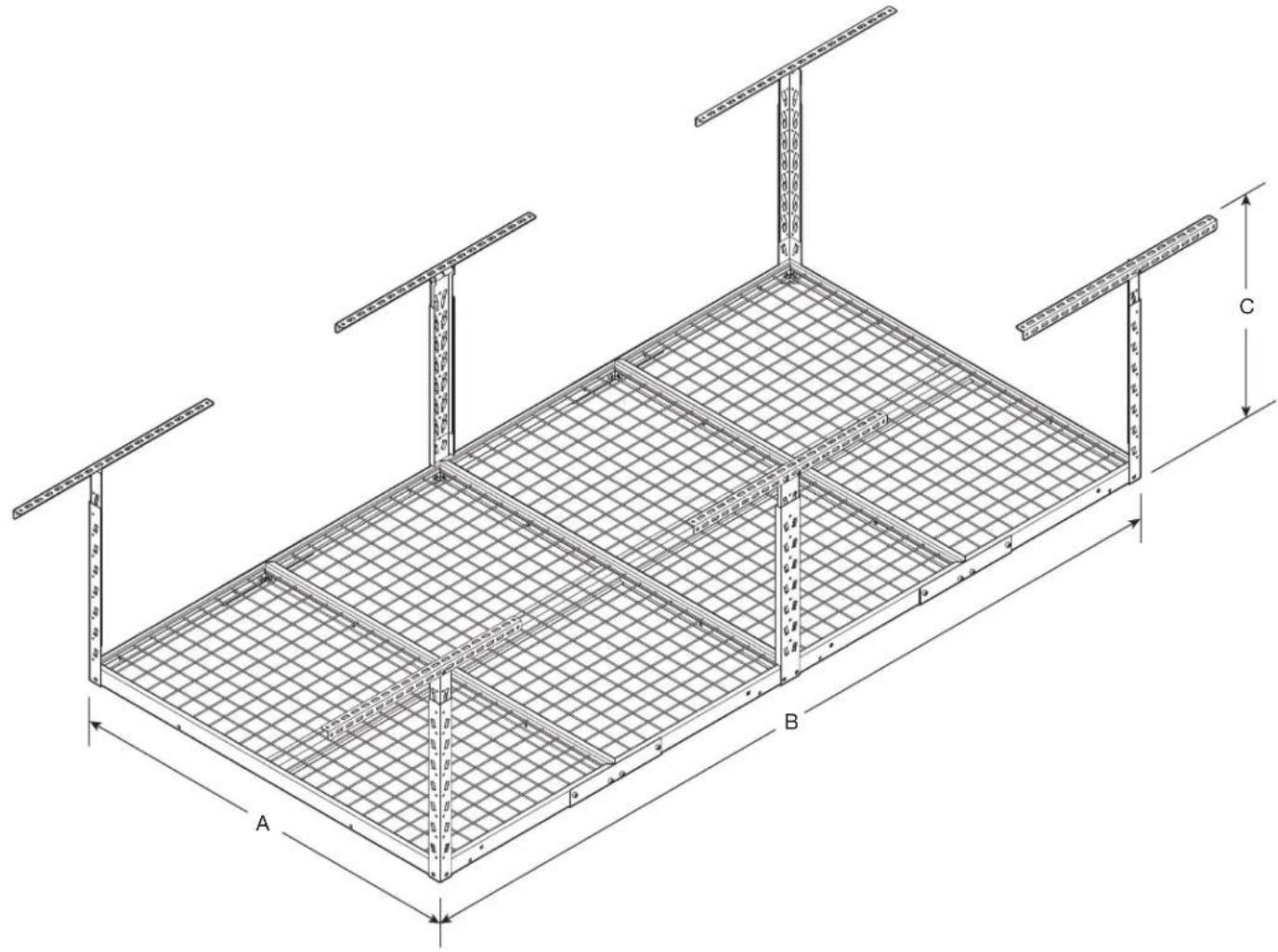

DIMENSIONS (TYPICAL INSTALL)

MODEL	GALS48M4JG - Hammered Granite GALS48M4JW - Hammered White
A 48" (122 cm)
B 96" (244 cm)
C 23" (58.4 cm) min. and 37.8" (96 cm) max.

PARTS

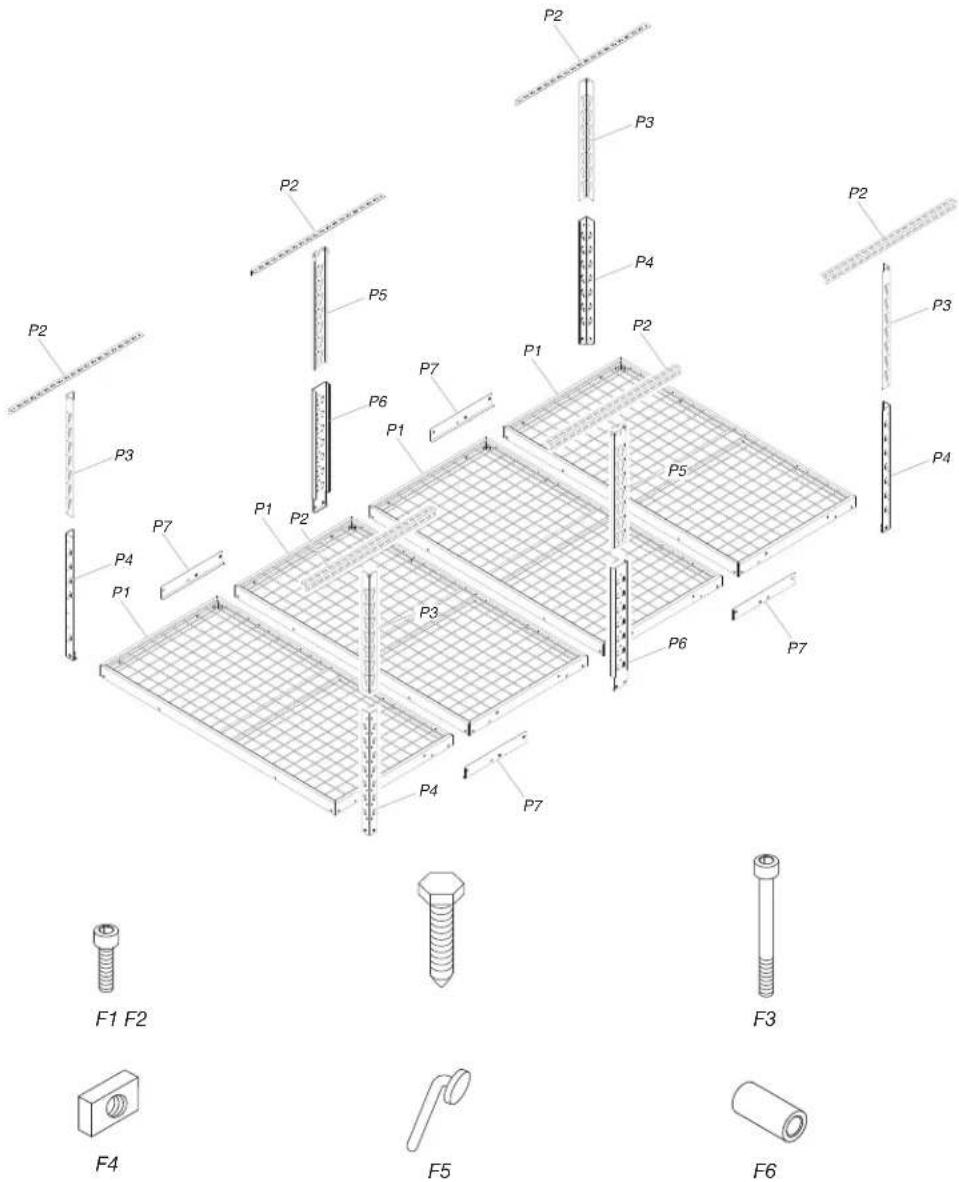

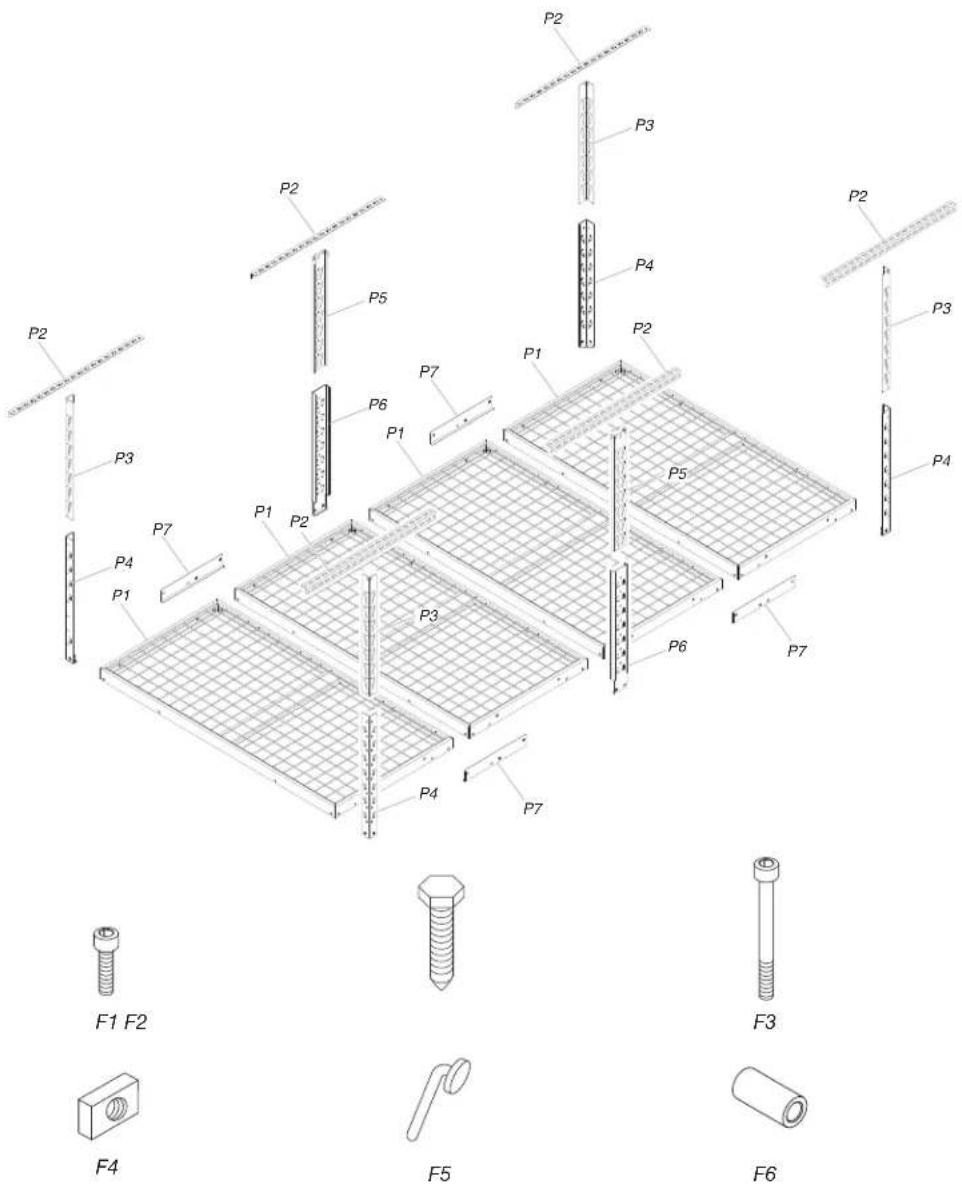

Label Description Quantity
P1 2' x 4' Rack section 4
P2 Ceiling bracket 6
P3 Vertical corner support - upper 4
P4 Vertical corner support - lower 4
P5 Vertical center support - upper 2
P6 Vertical center support - lower 2
P7 Rack connection bracket 4
F1 M8 - 1.25 x 15 Socket-head cap screw 42
F2 5/16" x 3" Lag bolt 12
F3 M8 - 1.25 x 75 Socket-head cap screw	2
F4 M8 - 1.25 Rectangular nut	14
F5 EZ Connect lock pin	6
F6 Spacer	4

ASSEMBLY INSTRUCTIONS

Unpack the Overhead Gearloft™ Storage Rack

1. Unpack the rack sections, support sections, ceiling brackets and all hardware. Verify contents. See "Parts".
2. Dispose of all packaging materials properly.

Tools and Parts

Install overhead Gear loft storage rack according to manufacturer's instructions and any local codes.
Only use provided fasteners. Do not use an alternate form of mounting. Do not alter or modify any components included with this product.
Gather the required tools and parts before starting assembly.
Read entire manual before starting assembly.

WARNING

Excessive Weight Hazard

Use two or more people to move storage rack.

Failure to do so can result in back or other injury.

Tools Needed

Electric drill
Drill bit (3/16") - Included
1/2" Socket wrench and/or 1/2" open end wrench
6 mm Allen wrench - Included
Stud Finder (If ceiling has drywall covering joists/rafters)
Tape measure
Step stool or step ladder
■Pencil / Marker
■Masking Tape

Overhead Gearloft™ Storage Rack Use Requirements

1. Intended for garage use, installed into a wood framed/ traditional wood structure type dwelling.
2. To be used for storing light-weight items overhead and out of the way.
3. Recommended to be positioned 6^ - 8^ minimum above floor (standard door opening height)
4. Check for clearance of all doors, vehicles, or any items to be positioned under the storage rack.
5. The maximum weight of all items combined on the rack not to exceed 750 lbs.

Assembling the Rack

1. Determine the ceiling locations

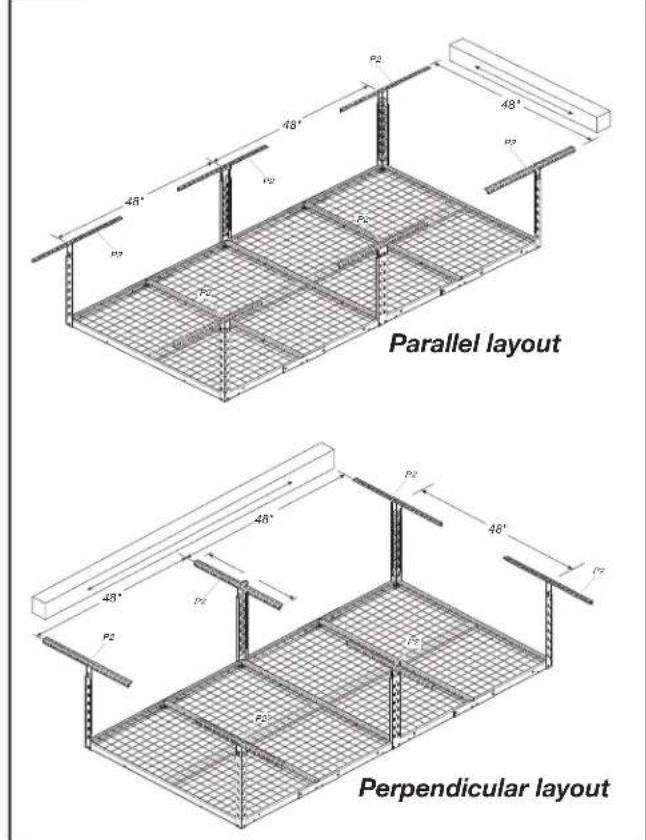

The garage overhead storage rack can be positioned parallel or perpendicular to the wood ceiling joists/rafters. Determine the application required for your desired installation. If drywall is on the ceiling, use a stud finder to determine the joist/rafter locations and mark with masking tape. For application requiring installation of the brackets perpendicular to the joists/rafters, the maximum distance between them is 24^ . The brackets included allow for a 24^ maximum span. See figure for typical ceiling layouts. Mark the location of the ceiling brackets on the joists/rafters or drywall, making sure the vertical supports can be positioned between the lag bolts used to attach the brackets. Position the center of the brackets on a 48^ grid as shown in figure.

2. Attach the ceiling brackets

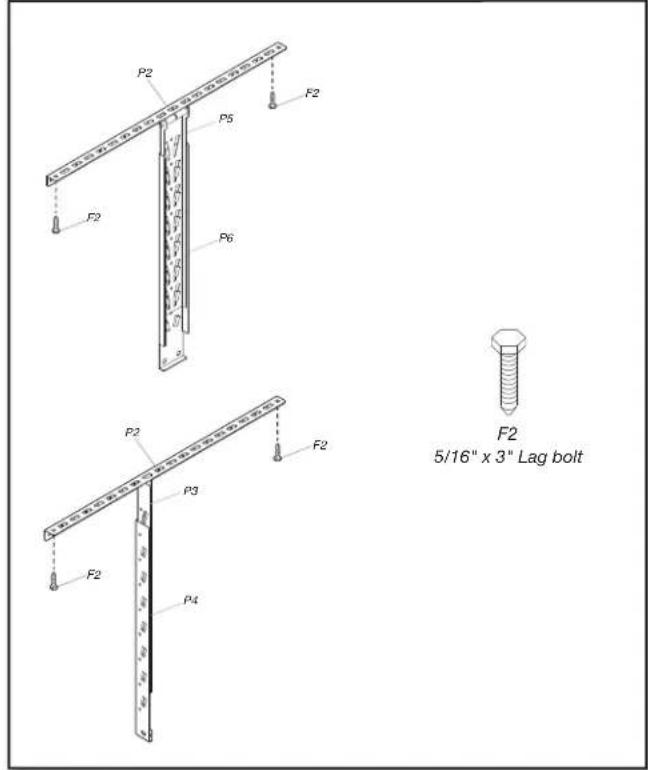

Using the provided drill bit (3/16"), drill all pilot holes in the center of the joists/rafter. Two lag bolts must be used on each bracket - one on each side of the vertical support. Mount the 6 ceiling brackets (P2) using 5 / 16^ × 3^ Lag bolts (F2) (12).

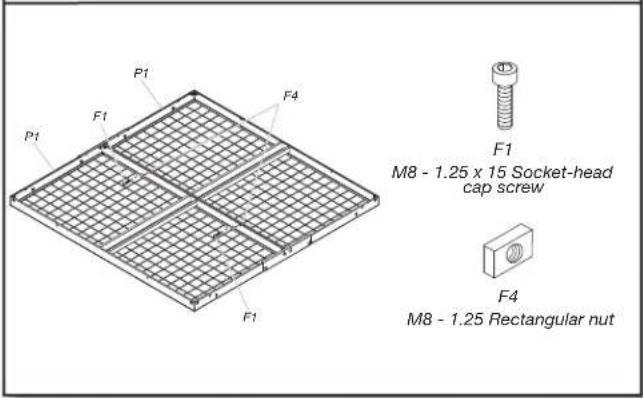

3. Connect the racks

Lay two rack sections upside down on the floor. Assemble the rack sections (P1) together using M8 - 1.25 x 15 Socket-head cap screws (F1) (2) and M8 - 1.25 Rectangular nuts (F4) (2). Repeat this with the other remaining two rack sections.

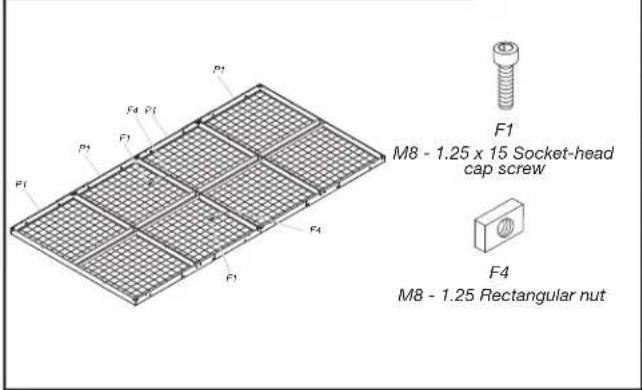

5. Attach double rack sections

Attach the two double rack sections together using M8 - 1.25 x 15 Socket-head cap screws (F1) (2) and M8 - 1.25 Rectangular nuts (F4) (2).

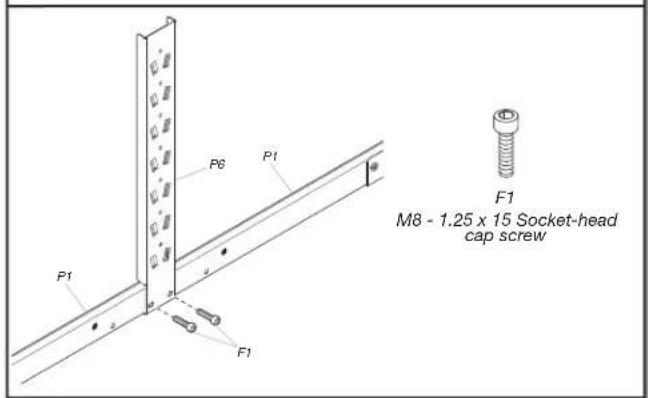

7. Attach lower center supports

Attach the two lower center supports (P6) to the rack assembly using M8 - 1.25 x 15 Socket-head cap screws (F1) (4).

4. Attach the racks brackets

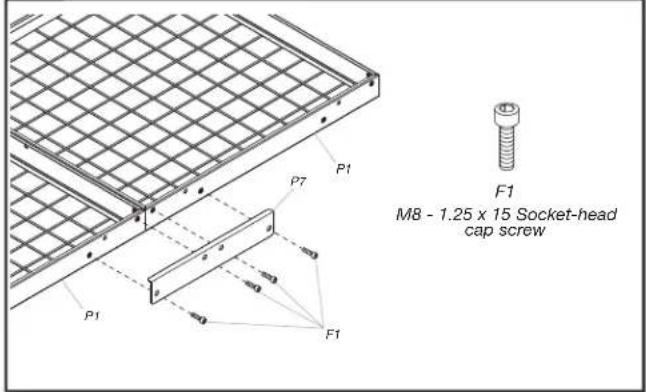

Attach the rack connection brackets (P7) to both sides of the two bolted together rack sections using M8 - 1.25 x 15 Socket-head cap screws (F1) (8). Repeat this on the other two bolted together rack sections.

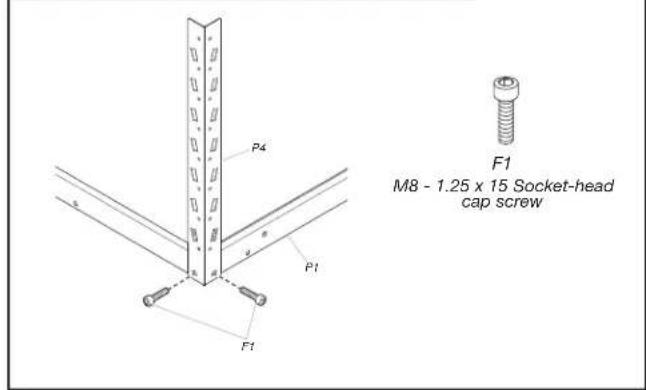

6. Attach lower corner supports

Attach the four lower corner supports (P4) to the rack corners using M8 - 1.25 x 15 Socket-head cap screws (F1) (8).

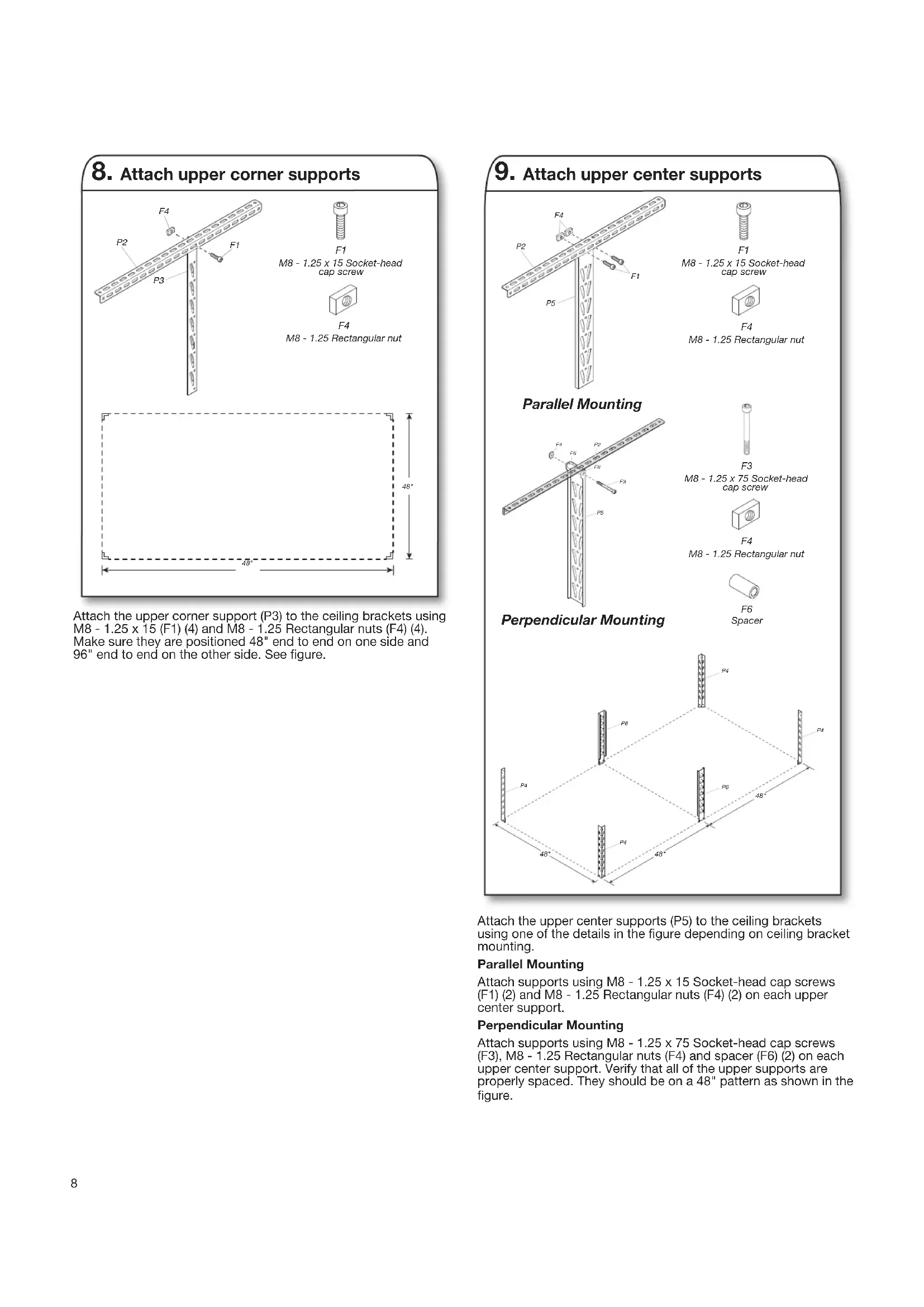

8. Attach upper corner supports

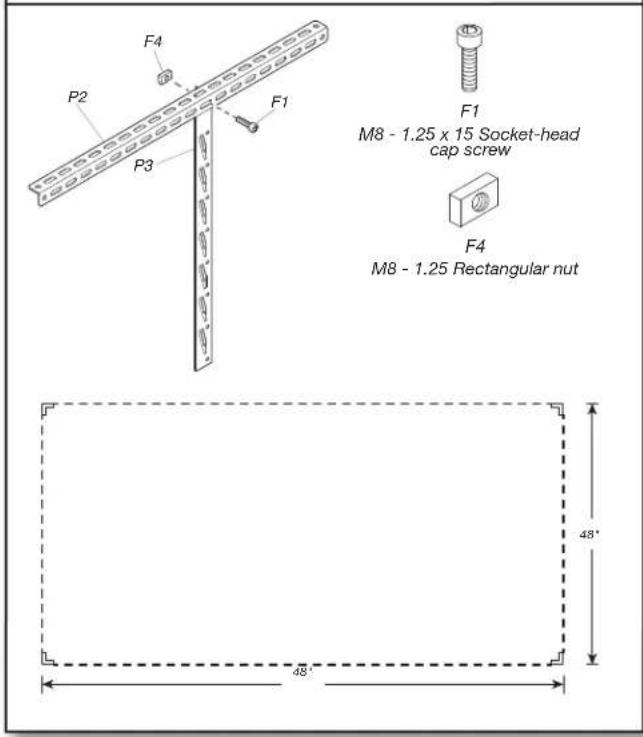

Attach the upper corner support (P3) to the ceiling brackets using M8 - 1.25 x 15 (F1) (4) and M8 - 1.25 Rectangular nuts (F4) (4). Make sure they are positioned 48" end to end on one side and 96" end to end on the other side. See figure.

9. Attach upper center supports

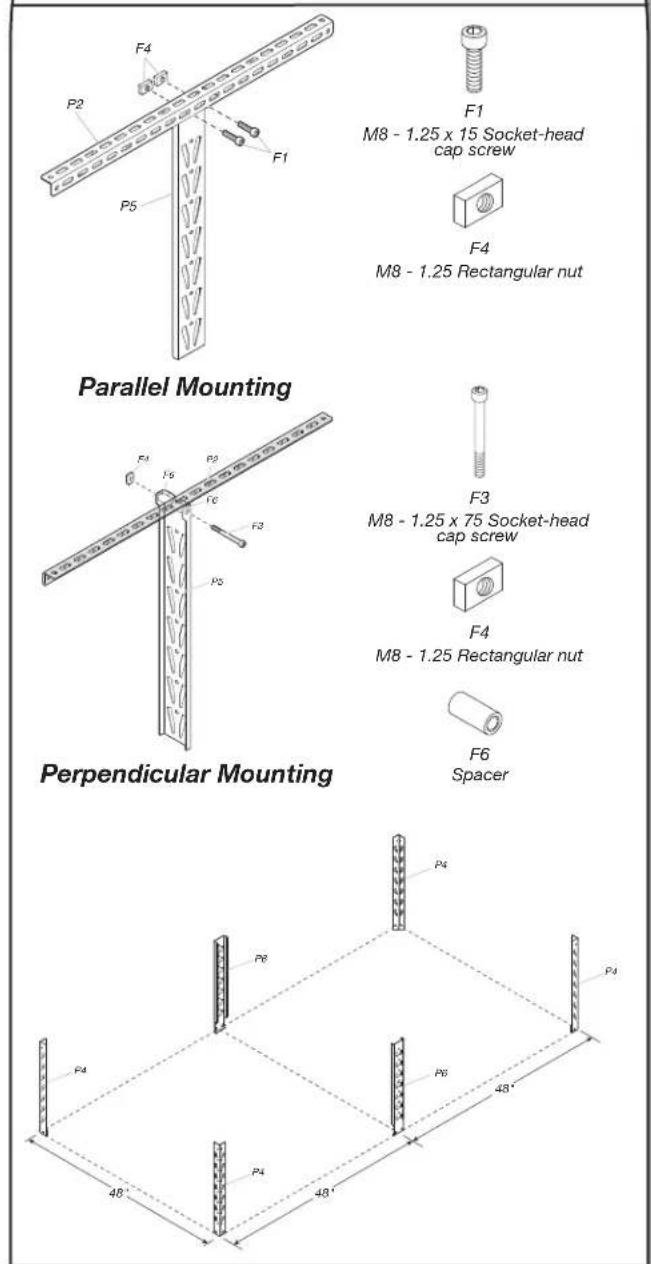

Attach the upper center supports (P5) to the ceiling brackets using one of the details in the figure depending on ceiling bracket mounting.

Parallel Mounting

Attach supports using M8 - 1.25 x 15 Socket-head cap screws (F1) (2) and M8 - 1.25 Rectangular nuts (F4) (2) on each upper center support.

Perpendicular Mounting

Attach supports using M8 - 1.25 x 75 Socket-head cap screws (F3), M8 - 1.25 Rectangular nuts (F4) and spacer (F6) (2) on each upper center support. Verify that all of the upper supports are properly spaced. They should be on a 48^ pattern as shown in the figure.

Installing Overhead Gearloft™ Storage Rack

WARNING

Excessive Weight Hazard

Use two or more people to move storage rack.

Failure to do so can result in back or other injury.

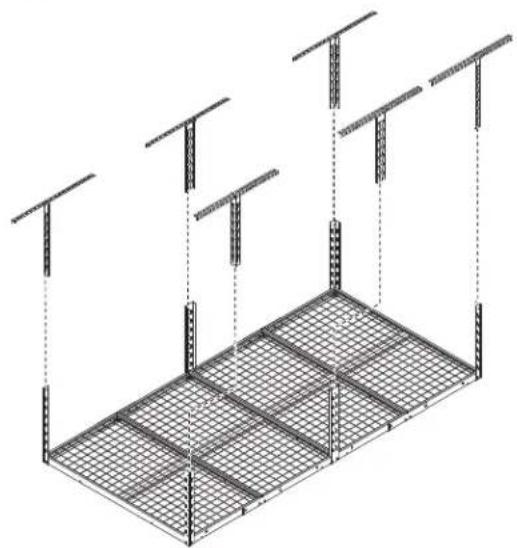

1. Attach the EZ connect supports

Using two or more people, the rack system can be easily lifted and positioned overhead. The EZ connect feature allows for positioning 23^ to 37^ from the ceiling. Lift the rack into place and connect all 6 lower supports to the upper supports. Make sure the rack supports are all in the same position and the rack is level.

2. Complete the assembly

F5
EZ Connect lock pin

Make sure all bolts and screws are tight. Once the rack is in the desired location below the ceiling, place an EZ connect lock pin (F5) (6) in a hole on each of the corner and center supports to lock/retain them together. The pins go through both upper and lower supports.
NOTE : The rack system can be repositioned up or down by removing all lock pins and relocating the EZ connect position on the supports. Use two or more people to relocate the rack and replace the EZ connect lock pins (F5) (6).

Optional Configuration

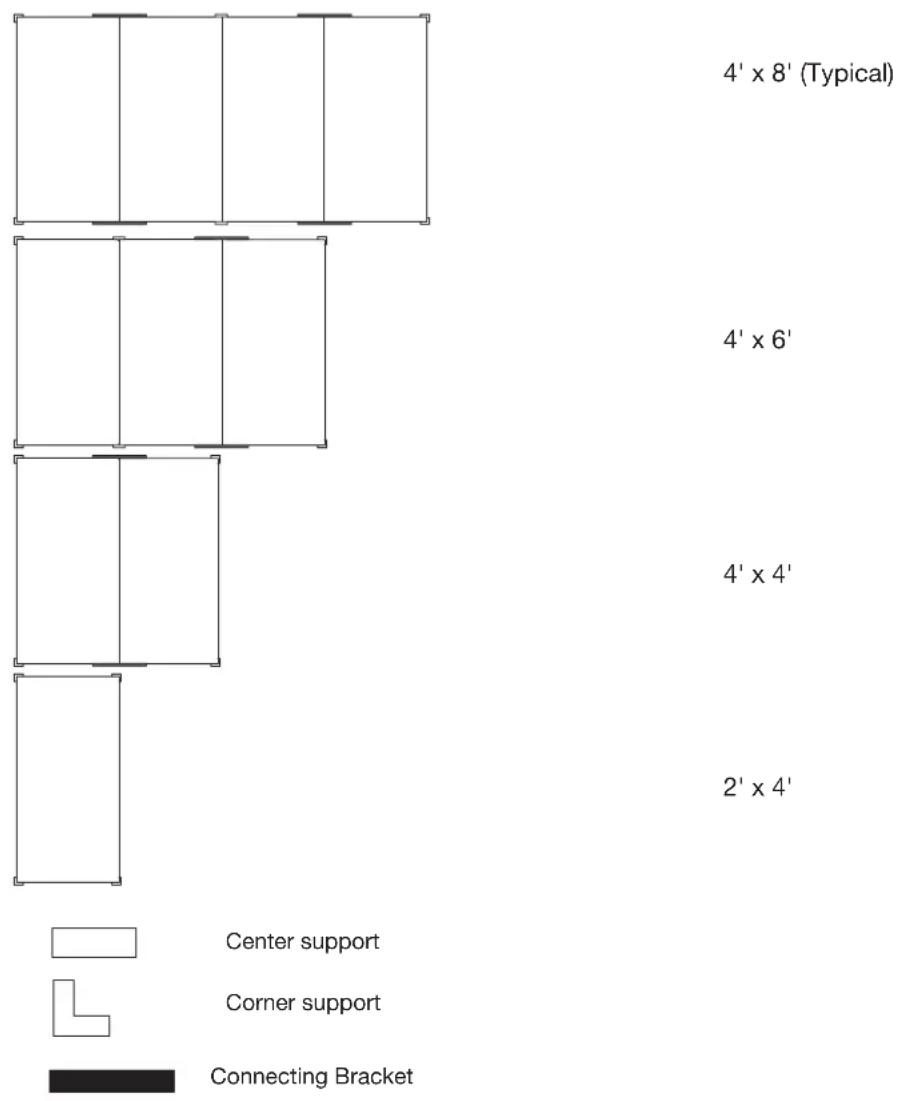

1. The Gladiator Overhead Gearloft™ Storage Rack can be installed in one of several configurations.
2. When using an optional configuration, never span the vertical supports more than 48^ (two rack section widths).

Possible configuration with this kit :

Storage Rack Care

• Wash storage rack with a mild liquid detergent and warm water using a soft, clean cloth.
  Check fastener tightness annually.

Registering Your Product

There are many benefits of registering your product. Find out more and register your product online at www.gladiatorgarageworks.com. In the USA, call 1-866-342-4089. Consumers in Canada can call 1-800-807-6777.

WARRANTY

For warranty information:

In U.S.A. call 1-866-342-4089 or visit our website at

www.GliadiatorGW.com

In Canada call 1-800-807-6777 or visit our website at

www.gladiatorgarageworks.ca

There are many benefits for registering the product. Find out more and register the product online at www.gladiatorgarageworks.com.

SECURITE DE L'ETAGERE DE RANGEMENT SURELEVEE GEARLOFTTM

DIMENSIONS (INSTALLATION NORMALE)

MODELE	GALS48M4JG - Ardoise martelée GALS48M4JW - Blanc martelé
A 48 po (122 cm)
B 96 po (244 cm)
C 23 po (58 4 cm) min. et 37,8 po (96 cm) max.

PIÉCES

www.GliadiatorGW.com

www.gladiatorgarageworks.ca

www.GliadiatorGW.com

www.gladiatorgarageworks.ca

www.gladiatorgarageworks.com.
