USER MANUAL GALG36KDYG Gladiator

Model GALG36KDYG - Hammered Granite/Silver Tread GALG36KDZW - Hammered White/Gray Slate GALG36KDESG - Hammered Granite Modèle GALG36KDYG - Ardoise Martelée/Texturé Argenté GALG36KDZW - Blanc Martelé/Ardoise Grise GALG36KDESG - Ardoise Martelée Modelo GALG36KDYG - Granito Martillado/Plateado Huella GALG36KDZW - Blanco Martillado/Pizarra Gris GALG36KDESG - Granito Martillado2 You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING CABINET SAFETY3

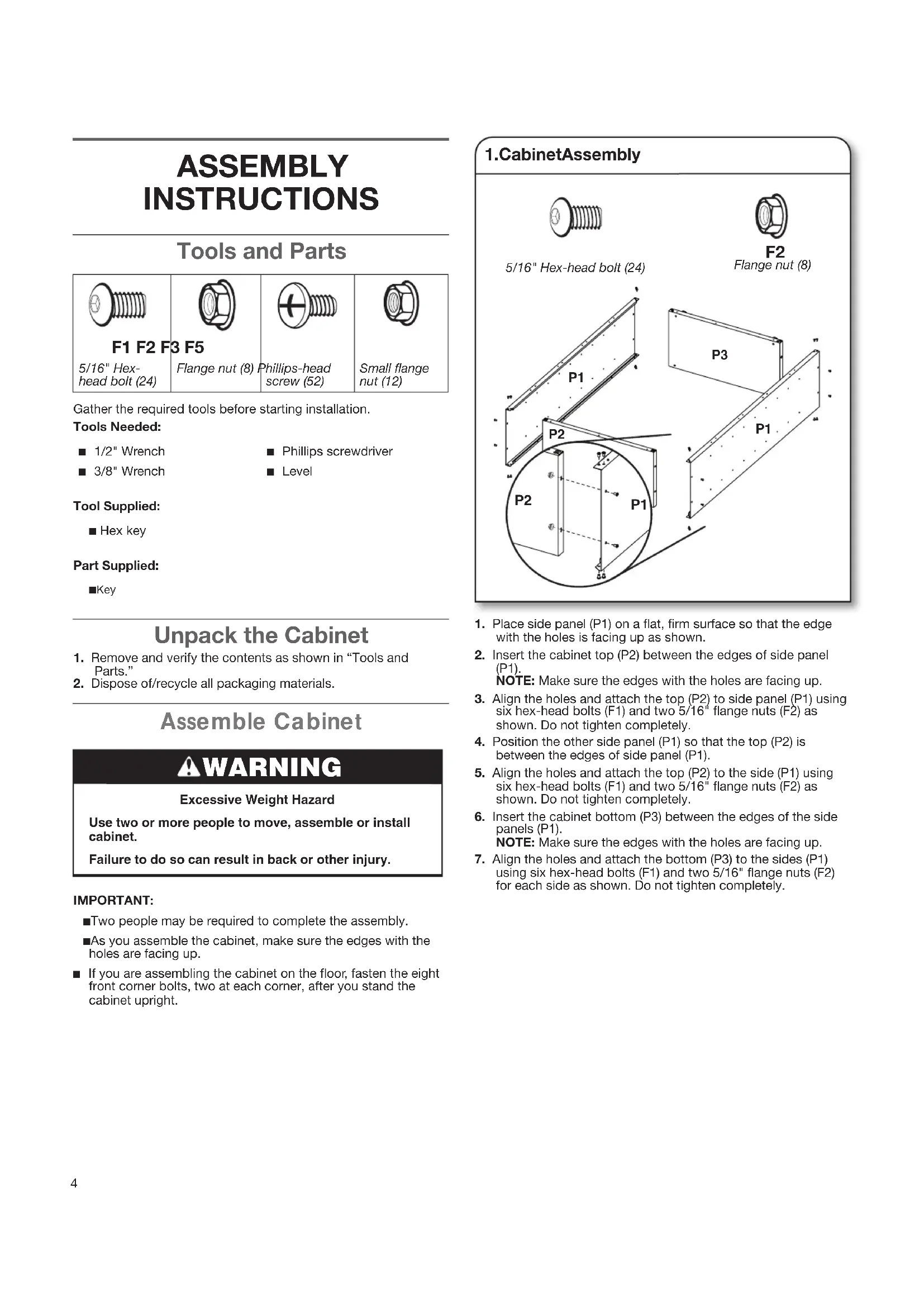

PARTS4 ASSEMBLY INSTRUCTIONS Tools and Parts F1 F2 F3 F5 5/16" Hex-head bolt (24)Flange nut (8) Phillips-head screw (52)Small flange nut (12)Gather the required tools before starting installation.Tools Needed: ■ 1/2" Wrench ■ Phillips screwdriver ■ 3/8" Wrench ■ Level Tool Supplied: ■ Hex keyPart Supplied: ■ Key Unpack the Cabinet 1. Remove and verify the contents as shown in “Tools and Parts.”1. Place side panel (P1) on a at, rm surface so that the edge with the holes is facing up as shown.2. Insert the cabinet top (P2) between the edges of side panel (P1). NOTE: Make sure the edges with the holes are facing up.3. Align the holes and attach the top (P2) to side panel (P1) using six hex-head bolts (F1) and two 5/16" ange nuts (F2) as shown. Do not tighten completely.4. Position the other side panel (P1) so that the top (P2) is between the edges of side panel (P1).5. Align the holes and attach the top (P2) to the side (P1) using six hex-head bolts (F1) and two 5/16" ange nuts (F2) as shown. Do not tighten completely.6. Insert the cabinet bottom (P3) between the edges of the side panels (P1). NOTE: Make sure the edges with the holes are facing up.7. Align the holes and attach the bottom (P3) to the sides (P1) using six hex-head bolts (F1) and two 5/16" ange nuts (F2) for each side as shown. Do not tighten completely.

2. Dispose of/recycle all packaging materials.5/16" Hex-head bolt (24)

Flange nut (8) Assemble Cabinet IMPORTANT: ■ Two people may be required to complete the assembly. ■ As you assemble the cabinet, make sure the edges with the holes are facing up. ■ If you are assembling the cabinet on the oor, fasten the eight front corner bolts, two at each corner, after you stand the cabinet upright. WARNING Excessive Weight HazardUse two or more people to move, assemble or install cabinet.Failure to do so can result in back or other injury.5

IMPORTANT: ■ Attach the back panels starting at the top of the cabinet with back panel (AAA) and working down to the cabinet bottom. Each back panel will overlap the panel below. ■ Do not completely tighten the screws until all back panels are in place.1. Align back panel (AAA) with the holes in the cabinet top. Using seven phillips-head screws (F3), attach back panel (AAA) to the cabinet top and sides.2. Slide the top of back panel (BBB) under the bottom of back panel (AAA). Using four phillips-head screws, fasten back panel (BBB) to the cabinet sides.3. Repeat Step 2 for the remaining back panels ending with back panel (EEE).4. Using two phillips-head screws, attach each back panel to the panel below. NOTE: Using three phillips-head screws, attach panel (EEE) to the cabinet bottom (P3).5. Completely tighten all back panel screws starting with the sides and continuing with the top, middle and bottom.6. Using the hex key (provided), completely tighten all 24 cabinet bolts and nuts.To install leveling feet:1. Place the cabinet on its side.2. Screw a leveling foot (P4) into each of the four rivet nuts located at the corners of the cabinet as shown.3. Stand the cabinet upright.4. If you have not already, fasten the two bolts at each front corner, of the cabinet frame. Completely tighten all the cabinet bolts and nuts. Phillips-head screw (34)

EEE A. Leveling feet6 IMPORTANT: ■ The door with the lock assembly (P7) should be installed on the right-hand side of the cabinet. ■ The door hinges are designed with keyhole slots at the top and bottom so the door will hang on the cabinet while you are fastening the screws.1. Start phillips-head screws (F3) in both the top and bottom holes on each side of the cabinet.2. Hang the right-hand side door (P7) from the top and bottom screws, and hand tighten.3. Insert the middle four phillips-head screws (F3) through the door hinge into the cabinet and hand tighten.4. Repeat steps 2 and 3 to attach the left-hand door (P6).5. Align the doors and completely tighten the screws. Complete the Assembly 1. Make sure there is a bolt or screw in each hole of the cabinet frame.2. Move the cabinet to its nal location.3. Place a level on an inside shelf, and if necessary, level the cabinet by adjusting the height of the leveling feet. Turn to the left to raise or to the right to lower the leveling foot.4. If the doors are not aligned, loosen all the screws attaching the door hinge to the cabinet. Adjust door to the desired height, and fully tighten the screws.

Phillips-head screw (6)

A. Phillips-head screws (F3)1. Place the shelf (P5) without the magnet in the cabinet so that the long edge with the two holes is facing out.2. Align the holes in the shelf ends with the pair of holes in the middle of the cabinet sides (P1).3. Using two phillips head screws (F3) and ange nuts (F5) per side, fasten the shelf (P5) to the sides (P1).4. Determine where you want to place the other two shelves with magnet (P5m). Align the holes in the shelf ends with the holes in the cabinet side. NOTE: Make sure the magnets in the long edges of the shelves are facing the cabinet front.5. Using two phillips head screws (F3) and ange nuts (F5) per side, fasten the shelves with magnet (P5m) to the cabinet sides (P1). Completely tighten the nuts.

IMPORTANT: Use the pair of holes located in the middle of the cabinet sides to install a center shelf without the magnet (P5), so the doors will lock. The other two shelves with magnet (P5m) may be installed where desired. F3 F5 Phillips-head screw (12)Small flange nut (12)

P5m P5m A. Middle pair of holes in cabinet side7 ACCESSORIES To order accessories, call 1-866-342-4089 and ask for the accessory part number listed below or contact your authorized Gladiator

GarageWorks dealer. In Canada, call 1-800-807-6777. Mounting Bracket Kit - Allows the cabinet to be mounted on Gladiator
