USER MANUAL GARK485TGG Gladiator

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING3 DIMENSIONS GARK485X* YGRK485X* GARK485T* YGRK485T* GARK365T* YGRK365T*

24" (61.0 cm) 18" (45.7 cm) 18" (45.7 cm)

23" (59.0 cm) 17" (43.7 cm) 17" (43.7 cm)

PARTS RACK P1 - Bottom Posts (4) P2 - Top Posts (4) P3 - Horizontal Support Beams (10) P4 - Side Support Beams (10) P5 - Tie Channel Support (5) P6 - Laminate Shelves (5) NOTE: No tools or hardware needed for assembly

P55 Shelving Use Requirements ■ Maximum weight limit is 1,000 lbs (454 kg) for each shelf, not to exceed 5,000 lbs (2,268 kg) for the entire shelving unit. WARNING Excessive Weight Hazard Use two or more people to move shelving. Failure to do so can result in back or other injury. Unpack NOTE: Use one person to assemble shelving and two people to move it.

1. Remove and verify the contents. See the “Parts” section

so you can sort out all of the parts.

2. Dispose of/recycle all packaging materials.

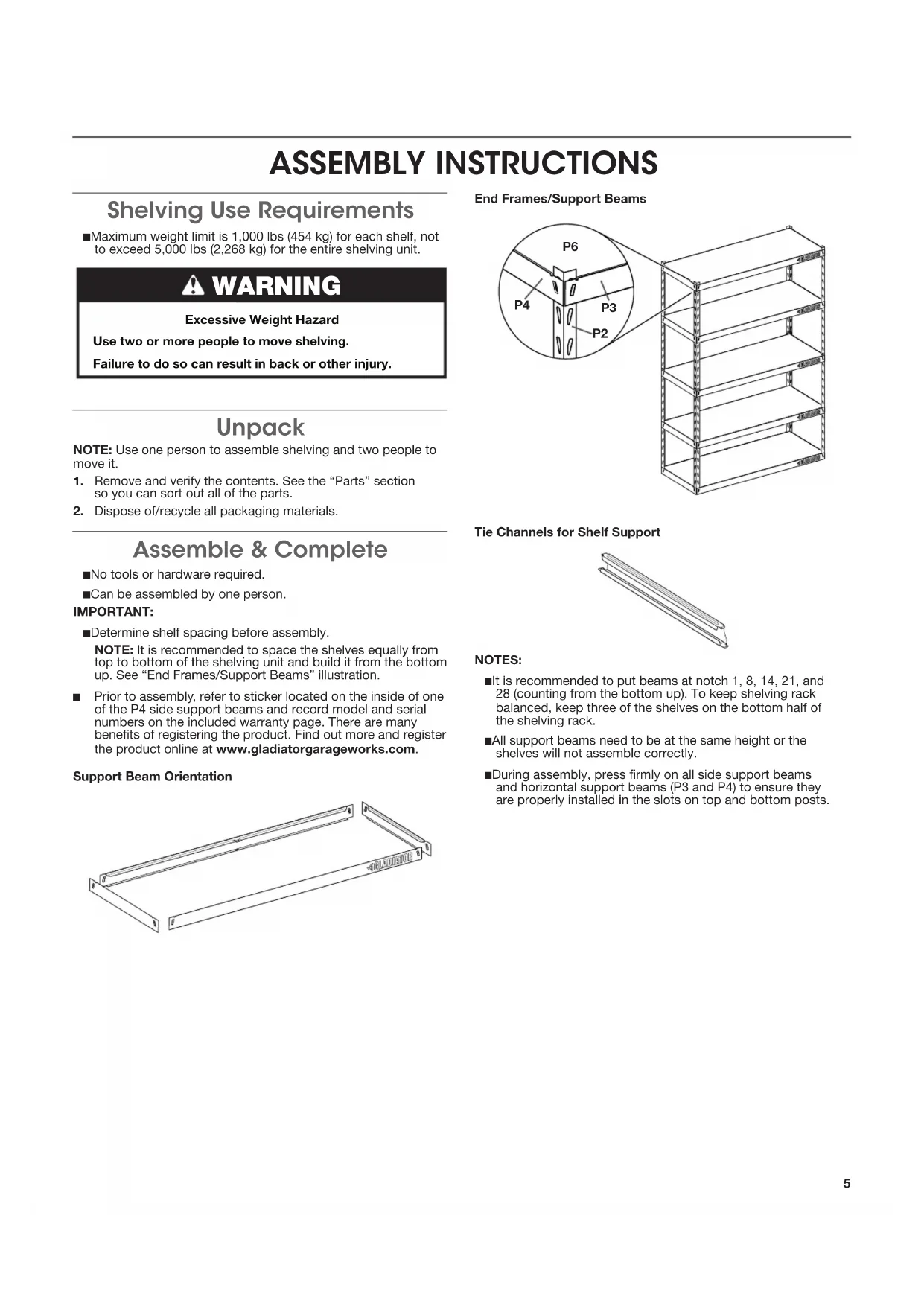

Assemble & Complete ■ No tools or hardware required. ■ Can be assembled by one person. IMPORTANT: ■ Determine shelf spacing before assembly. NOTE: It is recommended to space the shelves equally from top to bottom of the shelving unit and build it from the bottom up. See “End Frames/Support Beams” illustration. ■ Prior to assembly, refer to sticker located on the inside of one of the P4 side support beams and record model and serial numbers on the included warranty page. There are many benets of registering the product. Find out more and register the product online at www.gladiatorgarageworks.com. ASSEMBLY INSTRUCTIONS Support Beam Orientation NOTES: ■ It is recommended to put beams at notch 1, 8, 14, 21, and 28 (counting from the bottom up). To keep shelving rack balanced, keep three of the shelves on the bottom half of the shelving rack. ■ All support beams need to be at the same height or the shelves will not assemble correctly. ■ During assembly, press rmly on all side support beams and horizontal support beams (P3 and P4) to ensure they are properly installed in the slots on top and bottom posts. End Frames/Support Beams Tie Channels for Shelf Support

P66 Use the bottom post (P1) and attach a horizontal support beam (P3) across front, and attach a side support beam (P4) to the other side. Insert horizontal and side beams starting at the top of the slots on the upright posts and pushing down after engagement. This will give you support while building your shelves up. You have now assembled one corner.

1. Attach support beams to bottom

post Repeat step 1 to assemble the other three corners, completing the bottom shelf. Make sure to press rmly on all side and horizontal support beams (P3 and P4) to ensure they are properly installed in the top and bottom posts.

Add tie channel support (P5) to the bottom of the frame. Rotate into place BEFORE dropping tabs in slot.

3. Add tie channel support

Repeat steps 1 and 2. We recommend adding a section at notch 8 from the bottom of the post. Add the horizontal and side support beams. Add tie channel support and shelf.

5. Assemble 2nd shelf

Repeat steps 1 and 2. We recommend adding a section at notch 14 from the bottom of the post. Add the horizontal and side support beams. Add tie channel support and shelf. NOTE: We recommend adding 3 shelves to the bottom half of the shelving rack for better support. Make sure to install shelves before beginning next step.

6. Assemble 3rd shelf

Add laminate shelf to the bottom of the frame. Gently place laminate shelf on beams and tie channel support.

P37 Verify that all beams and tie channel supports are properly assembled and rmly seated into the top and bottom post slots.

10. Check all beams and tie channels

Using two people, move the rack shelving to its nal location.

Insert top post (P2) into bottom post (P1) until you hear a click. NOTE: Posts may appear loose until completion of step 8.

Repeat steps 1 and 2. We recommend adding a section at notch 8 from the top of the post. Add the horizontal and side support beams. Add tie channel support and shelf.

8. Assemble 4th shelf

Repeat steps 1 and 2. We recommend adding section at the top of the post. Add the horizontal and side support beams. Add tie channel support and shelf.

9. Assemble 5th shelf

P18 12/16 IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the instructions or visit www.gladiatorgarageworks.com.

2. All warranty service is provided exclusively by our authorized Gladiator

GarageWorks Service Providers. IntheU.S.and Canada, direct all requests for warranty service to: Gladiator GarageWorks Customer eXperience CenterIn the U.S.A., call 1-866-342-4089. In Canada, call 1-800-807-6777.If outside the 50 United States or Canada, contact your authorized Gladiator GarageWorks dealer to determine whether another warranty applies. GLADIATOR

GARAGEWORKS EZ CONNECT RACK SHELVING LIMITEDWARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.Please have the following information available when you call the Customer eXperience Center: ■ Name, address, and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase, including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY For one year from the date of purchase, when this product is installed, operated and maintained according to instructions attached to or furnished with the product, Gladiator

GarageWorks brand of Whirlpool Corporation or Whirlpool Canada, LP (hereafter “Gladiator”) will pay for factory specied replacement parts and repair labor to correct defects in materials or workmanship that existed when this product was purchased, or at its sole discretion replace the product. In the event of product replacement, your product will be warranted for the remaining term of the original unit’s warranty period.SECOND THROUGH TENTH YEAR LIMITED WARRANTY (METAL RACK PARTS ONLY - LABOR NOT INCLUDED)In the second through tenth years from the date of original purchase, when this product is installed, operated, and maintained according to instructions attached to or furnished with the product, Gladiator GarageWorks will pay for a factory specied replacement metal rack sections to correct non-cosmetic defects in materials or workmanship in this part that prevent function of the EZ Connect Rack and that existed when this product was purchased. This limited ten year warranty is for the metal rack only and does not include other parts or labor.YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT OR PART REPLACEMENT AT OUR DISCRETION AS PROVIDED HEREIN. Service must be provided by a Gladiator authorized service provider. This limited warranty is valid only in the United States or Canada and applies only when the product is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.1. Service calls to correct the installation of any Gladiator products or to instruct you on how to use or install them.

2. Damage resulting from improper handling or shipping of products, or

products damaged by accident, misuse, abuse, re, ood, improper installation, acts of God, neglect, corrosion, modication, or mishandling.

3. Shipping or freight fees to deliver replacement products or to return defective

4. Factory specied replacement parts or product when your product is used

in other than normal, single-family household use, such as a commercial environment or handled in any way inconsistent with the installation instructions included with the product.

5. Cosmetic damage, including scratches, dings, dents, or cracks that do not

affect the structural or functional capability of the product.6. Replacement parts or product for Gladiator products used or installed outside the United States or Canada.

7. Travel or transportation expenses for customers who reside in remote areas.

8. Any labor costs during the rst year limited warranty period.

9. Damage resulting from improper loading beyond the specied maximum

weight capacity outlined in the assembly instructions provided with the product, including overloading of hooks, baskets, shelves, cabinets, and other Gladiator accessories used with the product.

10. Product damage due to prolonged exposure to sunlight resulting in warping,

fading, discoloration, cracking or peeling, or product damage due to chemical interaction resulting in corrosion of paint or metal.

11. Any damage, splitting, checking, cracking, or warping of the laminate

shelves past the rst year.

12. Loss of product contents due to theft, re, ood, accident, or acts of God.

The cost of repair or replacement under these excluded circumstances shall be borne by thecustomer. DISCLAIMER OF IMPLIED WARRANTIESIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO TEN YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY Gladiator makes no representations about the quality, durability, or need for service or repair of this product other than the representations contained in this warranty.LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGESYOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. GLADIATOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province.Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.Write down the following information about your Gladiator product to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can nd this information on the model and serial label located on the back of the product.Dealer name ________________________________________________Address _____________________________________________________Phone number _______________________________________________Model number _______________________________________________Serial number _______________________________________________Purchase date _______________________________________________9

47" (120 cm) 47" (120 cm) 35" (89,0 cm)

47" (120 cm) 47" (120 cm) 35" (89,0 cm)
