USER MANUAL CG10M TEAC

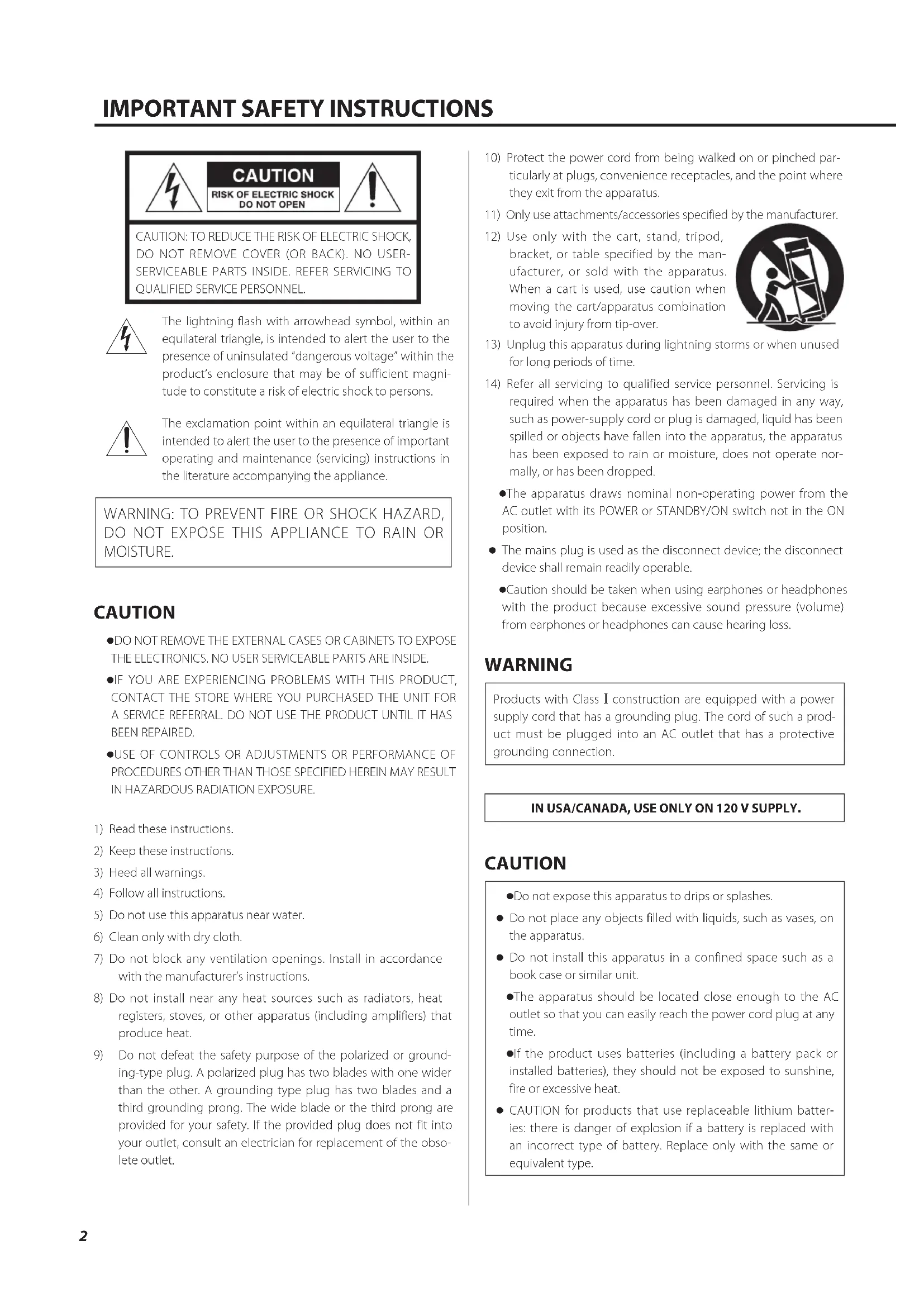

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

WARNING

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

CAUTION

Do not expose this apparatus to drips or splashes.
- Do not place any objects filled with liquids, such as vases, on the apparatus.
- Do not install this apparatus in a confined space such as a book case or similar unit.
The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
- CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Model for USA

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the equipment and/or the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Model for Canada

Industry Canada's Compliance Statement: This Class B digital apparatus complies with Canadian ICES-003.

Model for Europe

This product complies with the European Directives request, and the other Commission Regulations.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/ accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Contents

Thank you for choosing TEAC.

Read this manual carefully to get the best performance from this unit.

After reading it, keep it in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS 2
Included items 4
Using the TEAC Global Site. 4
Product registration 4
Before use. 5
Maintenance. 5
Connecting equipment.. 6
Names and functions of parts. 7
Basic operation 8
Troubleshooting 8
Specifications. 9

Included items

Check to be sure the box contains all the included items shown below.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Power cord × 1

Owner's manual (this document, including warranty) × 1

• For information about the warranty, users living in the USA and Canada should see pages 58-59 and the back cover (warranty document). Users living in Europe and other regions should see page 59 for warranty information.

Pads × 3

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:

http://teac-global.com/

1) Open the TEAC Global Site.
2) In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

3) Click the "Search by Model Name" section to open the Downloads page for that product. (Users in Europe should click the product name in the "Products" section instead.)
4) Select and download the updates that are needed.

Product registration

Customers in the USA, please visit the following TEAC website to register your TEAC product online.

http://audio.teac.com/support/registration/

Plaement precautions

• When installing this unit, leave a little space (at least 3cm or 1^# ) between it and walls and other devices in order to allow good heat dissipation.
  If you put it in a rack, take precautions to prevent overheating by leaving at least 5cm (2^ ) open above the top of the unit and at least 10cm (4^ ) open behind the unit.
  Failure to provide these gaps could cause heat to build up inside and result in fire.
• Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction.
• Place the unit in a stable location near the audio system that you will use with it.
• Do not move the unit during use.
  The voltage supplied to the unit should match the voltage printed on the rear panel. If you are in any doubt regarding this matter, consult an electrician.
• Do not open the body of the unit as this might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
• Do not place anything, not even CDs, CD-Rs, LP records or cassette tapes, on top of the unit. Doing so could cause damage.
• When removing the power plug from an outlet, always pull directly on the plug; never yank on the cord itself.

Note about pinpoint feet

High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.

The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

• Apply the included pads to the bottoms of the foot-stands to avoid scratching the surface where the unit is placed.

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser. Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.

For your safety, disconnect the power cord from the outlet before cleaning.

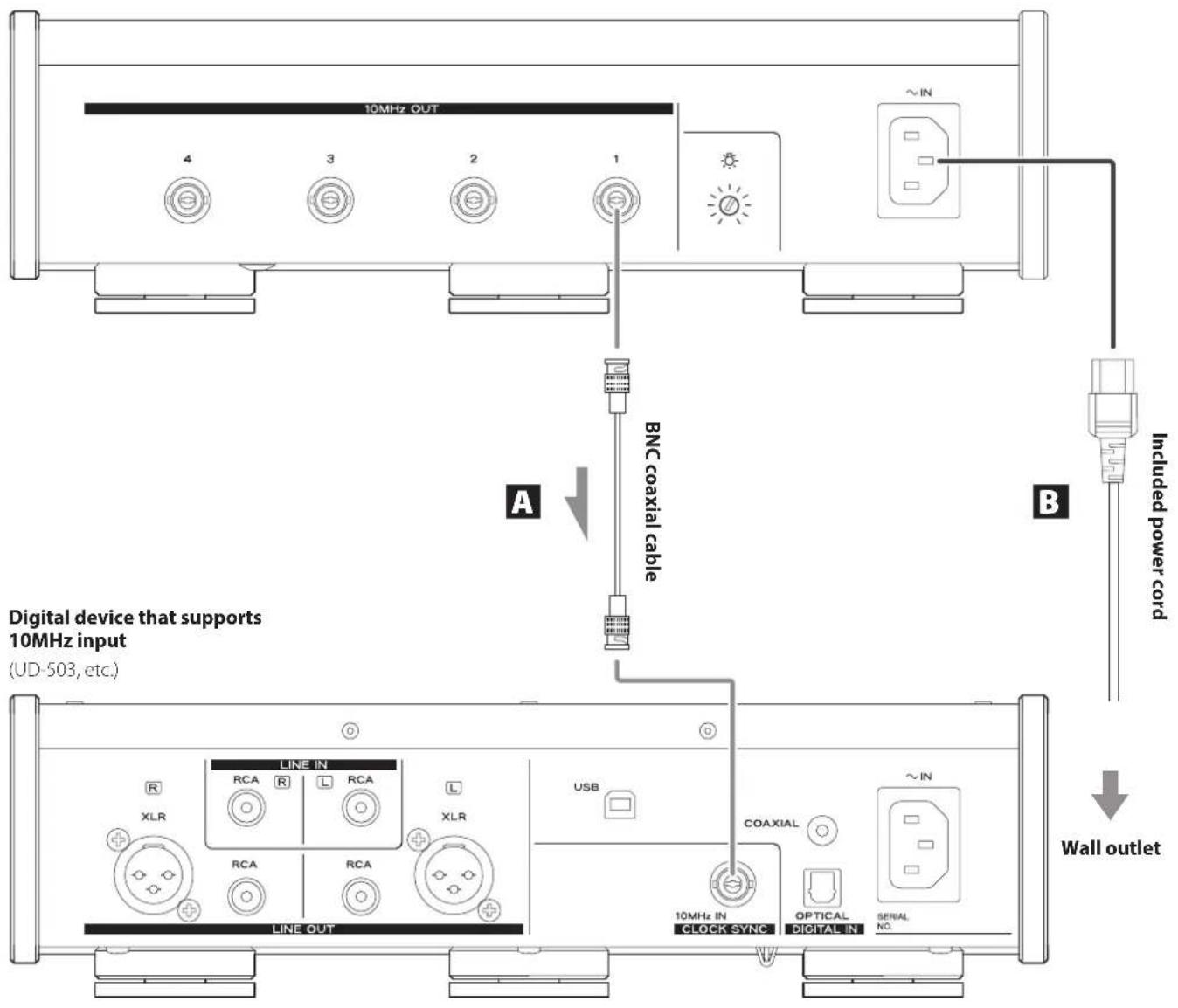

A Clock output (10MHz OUT) connectors

These output 10MHz clock signals.

Connect these clock output connectors to the clock input connectors of CD players, D/A converters and other digital devices that support 10MHz input.

Use a commercially-available BNC coaxial cable for connection.

B Power inlet (~IN)

Connect the supplied power cord here.

After all other connections are complete, connect the power cord's plug to a wall outlet.

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock.

Disconnect the power plug from the outlet if you will not use the unit for a long time.

Complete all other connections before turning the unit on.

Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
Do not bundle connecting cables with power cords. Doing so could cause noise.
Connect all plugs completely.

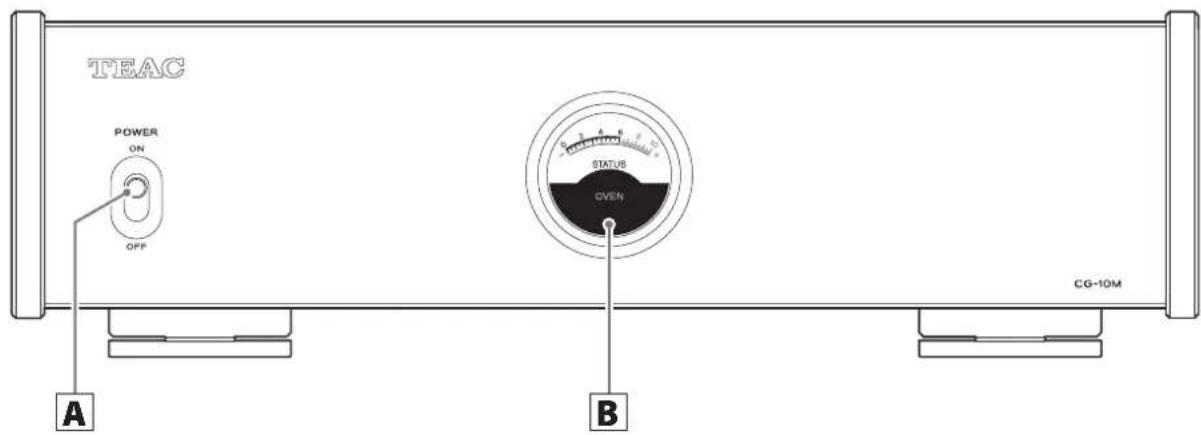

Front

EN

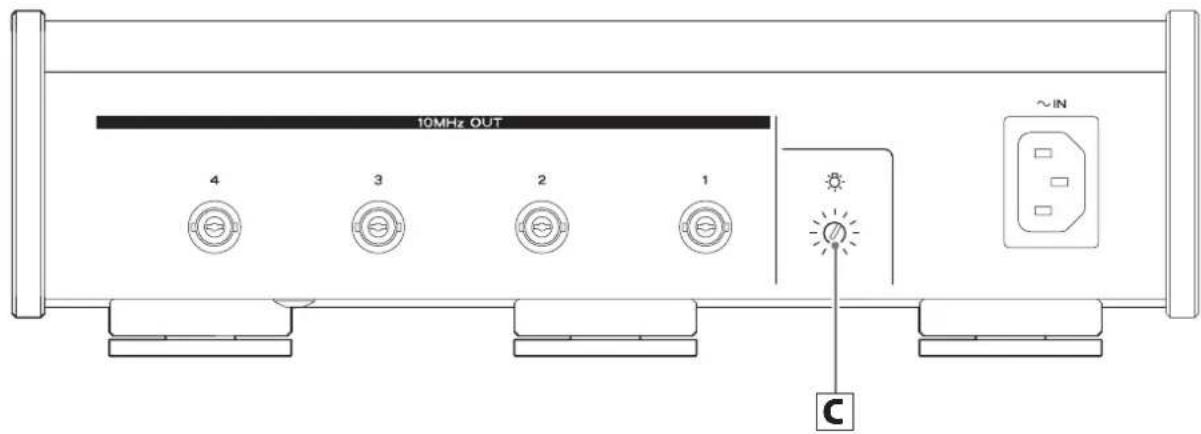

Rear

POWER switch

Use to turn the unit on and off.

Meter (OVEN)

This shows the operation status (heater output) of the oven in the OCXO. When the power is turned on, movement of the meter needle will be unstable. After about two minutes, however, it will stop between 0 and 6, allowing you to confirm that the temperature has become stable. (The position at which the needle stops will vary according to the ambient temperature where the unit is located.)

Even after two minutes have passed, operation to further increase stability will occur following temperature changes inside the oven. For this reason, we recommend allowing it to warm up for about 10 minutes before actually using it.

Use this to adjust the brightness of the meter.

Meter indicator example

Elapsed time

OCXO

The master clock that provides the reference for this unit contains an oven-controlled crystal oscillator (OCXO). This OCXO, which actually has both a crystal oscillator and an electronic oscillator inside a compact oven, achieves extremely high frequency stability.

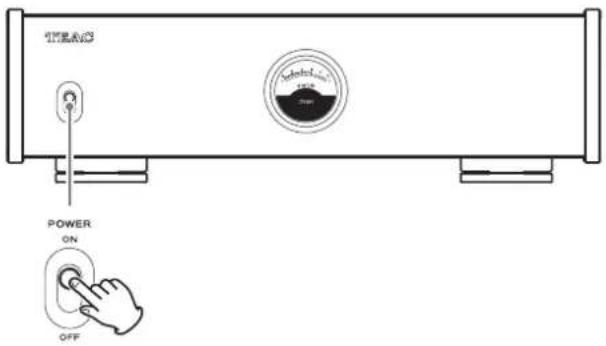

Shift the POWER switch to its ON position to turn the unit on.

It takes two minutes for the oscillation frequency of the crystal oscillator (OCXO) to stabilize.

When not using the unit for a long time, set its POWER switch to OFF.

2 Start playback on a connected device.

Confirm that clock input has been locked on the receiving device. For details about how to do this, see the operation manual for the device receiving clock input.

Troubleshooting

If you experience a problem with this unit, please take a moment to review the following information before requesting service. If it still does not operate correctly, contact the retailer where you purchased the unit.

General

The unit does not turn on.

Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
Connect a different electrical device to the outlet to confirm that it is supplying power.

No sound is output.

Reconfirm the connections with other equipment.

There is a humming noise.

If a connecting cable is near a power cord, fluorescent light or similar cause of interference, increase the distance between them as much as possible.

The clock output is not synchronizing another device.

Confirm that the connected device supports 0.5Vrms 10MHz clock.

Clock signals that can be input and synchronized might vary according to how each device is connected and set. Refer to the operation manuals of the connected devices.

Clock outputs

BNC connectors 4

Output sampling frequency 10 MHz

Output impedance 50

Input level. 0.5 Vrms

(sine wave)

OCXO (crystal oscillator)

Clock stabilization time.....about 2 minutes (time until oscillator stabilizes after unit turned on)

Even after two minutes have passed, operation to further increase stability will occur following temperature changes inside the oven. For this reason, we recommend allowing it to warm up for about 10 minutes before actually using it.

Frequency temperature characteristic.. within ± 3 ppb

Frequency precision.......within ± 0.1 ppm (when shipped new)

（ppm=10，ppb=10）

General

Power supply

Model for Europe.. AC 220-240 V, 50/60 Hz

Model for U.S.A./Canada. AC 120 V, 60 Hz

Power consumption

Model for Europe. 15.8 W (while warming up)

10.8 W (when stable)

Model for U.S.A/Canada 15.4 W (while warming up)

10 W (when stable)

External dimensions (W× H× D, including protrusions)

290mm× 84.5mm× 248.7mm(111 / 2^ × 33 / 8^ × 97 / 8^ )

Weight 3.6 kg (8 lb)

Operating temperature. +5^ to +35^

Operating humidity range. 5% to 85% (no condensation)

Storage temperature range. -20^ to +55^

Included items

Power cord × 1

Owner's manual (this document, including warranty) × 1

• For information about the warranty, users living in the USA and Canada should see pages 58-59 and the back cover (warranty document). Users living in Europe and other regions should see page 59 for warranty information.

Pads × 3

Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
- Illustrations in this manual might differ slightly from production models.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION : POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRÊRE). AUCUNE PIECE INTERNE N'EST REPARABLE PAR L'UTILISATEUR. CONFIEZ TOUTE RÉPARATION À UN SERVICE APRES-VENTE QUALIFIÉ.

http://audio.teac.com/support/registration/

Warranty provisions (United States and Canada only)

Length of Warranty

The parts and labor warranty will be effective for one (1) year from the date of the original purchase for products not used for commercial purposes. For products used commercially, the warranty is ninety (90) days for magnetic heads and optical pickups, one (1) year for all other parts and ninety (90) days for labor.

Who Is Covered Under This Warranty

This warranty is valid only in the United States or Canada, dependent upon the country in which original purchase was made, and enforceable only by the original purchaser within the country in which the purchase was made.

This warranty is not valid if the product was purchased through an unauthorized dealer.

What Is Not Covered Under This Warranty

• Damage to or deterioration of the external cabinet.

• Damage resulting from accident, misuse, abuse, or neglect.

• Damage resulting from failure to follow instructions contained in the products owners' manual or otherwise provided with the product.

• Damage occurring during shipment of the product (Claims must be presented to the carrier).
• Damage resulting from the repair or attempted repair by anyone other than TEAC or an authorized TEAC service station.
• Damage resulting from modification or attempted modification of product not authorized by TEAC.
• Damage resulting from causes other than product defects, including lack of technical skills, competence, or experience of the user.
• Damage to any unit that has been altered or which the serial number has been defaced, modified or removed.

What TEAC Will Pay For

TEAC will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is covered in the next section.

How To Obtain Warranty Service

Your unit must be serviced by an authorized TEAC service station within the country in which the product was purchased. If you are unable to locate an authorized service station in your area, please contact TEAC at the applicable address shown at the end of this warranty statement. PLEASE DO NOT RETURN YOUR UNIT TO TEAC WITHOUT OUR PRIOR AUTHORIZATION. You must pay shipping charges if it is necessary to ship the product for service. However, if the necessary repairs are covered by warranty, we will pay the return shipping charges to any destination within the country in which the product was purchased. Whenever warranty service is required, you must present the original dated sales receipt, or other proof indicating the purchase place and date, as proof of warranty coverage.

LIMITATION OF IMPLIED WARRANTYES

ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

EXCLUSION OF DAMAGES

TEAC'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT TEAC'S OPTION. TEAC SHALL NOT BE LIABLE FOR DAMAGE BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, INTERRUPTED OPERATION, COMMERCIAL LOSS OR LOST PROFITS, OR ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHERWISE.

SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND MAY VARY FROM SOME OF THE RIGHTS PROVIDED BY LAW. THESE RIGHTS MAY VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

In countries/regions other than the USA, Canada and Europe

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.

If you have a warranty claim or request, please contact the dealer where you bought the product.
