USER MANUAL Power Fuel XL PB1SP2000 WILFA

IPEEDNcNoJIb3OBAHnEM IPOQTNTE BCE INHCTPyKlUN

EN

NO

SE

DK

FI

DE

NL

PL

FR

IT

ES

RU

EN

INSTRUCTION MANUAL·POWER BLENDER

CONTENTS

4 IMPORTANT SAFETY INSTRUCTIONS
8 PRODUCT OVERVIEW
10 OPERATION
11 CLEANING
11 TROUBLESHOOTING
12 TIPS AND TRICKS
12 OPERATING NOTES
14 GUARANTEE
15 PRODUCT SPECIFICATIONS
15 SUPPORT AND SPARE PARTS
15 RECYCLABILITY

EN

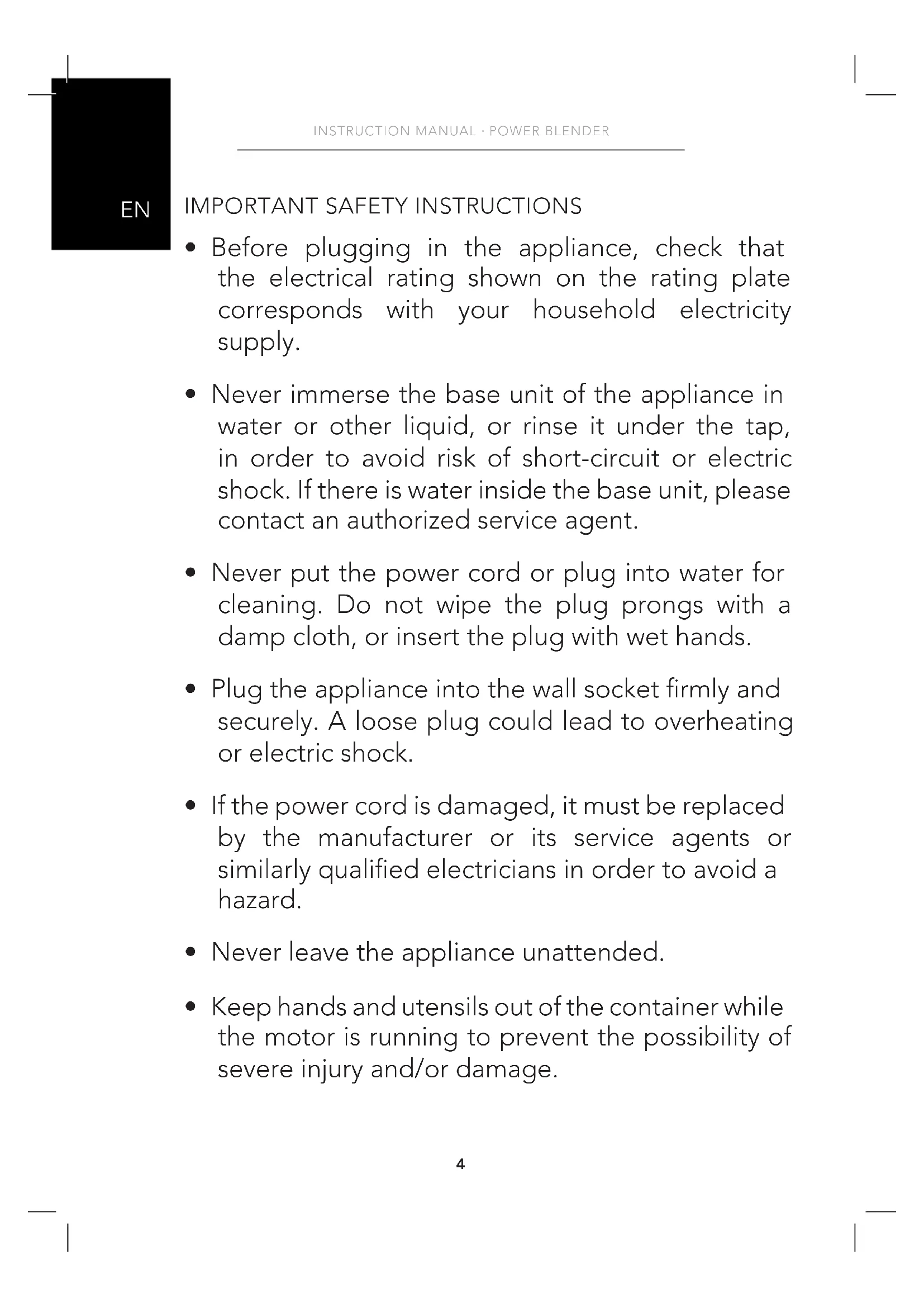

IMPORTANT SAFETY INSTRUCTIONS

• Before plugging in the appliance, check that the electrical rating shown on the rating plate corresponds with your household electricity supply.
• Never immerse the base unit of the appliance in water or other liquid, or rinse it under the tap, in order to avoid risk of short-circuit or electric shock. If there is water inside the base unit, please contact an authorized service agent.
• Never put the power cord or plug into water for cleaning. Do not wipe the plug prongs with a damp cloth, or insert the plug with wet hands.
• Plug the appliance into the wall socket firmly and securely. A loose plug could lead to overheating or electric shock.
• If the power cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified electricians in order to avoid a hazard.
• Never leave the appliance unattended.

• Keep hands and utensils out of the container while the motor is running to prevent the possibility of severe injury and/or damage.

• Do not run the appliance without loading the blender jug.

• To prevent spillage, do not fill liquid in the blender jug above the MAX line.
• Do not expose the appliance to heat sources such as a radiator or sun shining through a window.
• To ensure good ventilation, do not place a cloth underneath the appliance.
• This product is intended for indoor, non-industrial, non-commercial; household use only.
• Always operate with the lid in place. When processing hot beverages, properly secure the lid and measuring cup to avoid scalding due to spraying of hot liquids.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• This appliance must not be used by children. Keep the appliance and its cord out of reach of children.

EN

• Switch off the appliance and disconnect from the power supply before changing accessories or working near parts that move in use.
• If the motor has overheated, the temperature monitoring system will trigger and the motor will stop. Switch off and unplug the appliance and let the motor cool down. The motor temperature monitoring system will reset after the blender has been unplugged from the wall socket for 45 minutes. After this time, the blender can be used again.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Do not attempt to disassemble the blade assembly or touch any rotating parts.
• Any servicing should be performed by an authorized service representative. Do not attempt to disassemble, repair, or modify the appliance.
• Always disconnect the appliance from the power supply if it is to be left unattended and before assembling, disassembling or cleaning.
• Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

EN

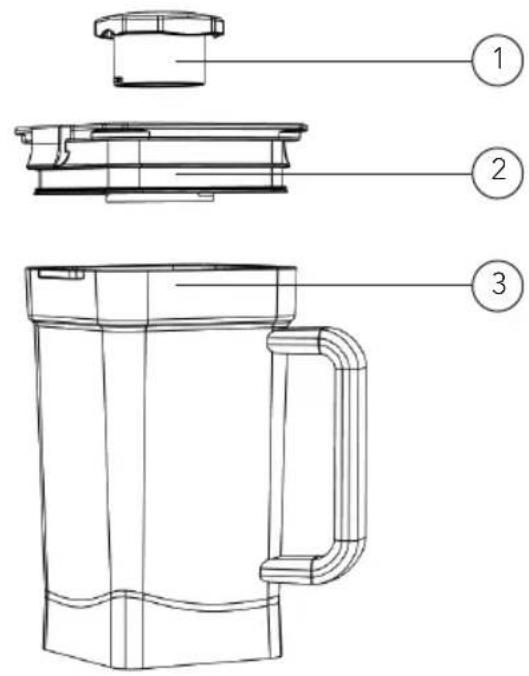

PRODUCT OVERVIEW

1. Measuring cup
2. Lid
3. Jug

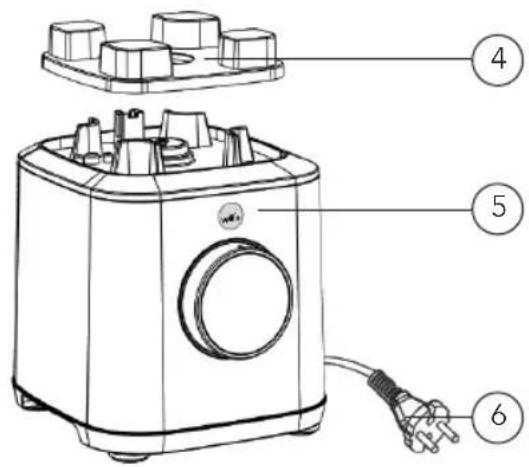

4. Blender jug seat
5. Motor unit

6. Power cord

7. Tamper

OVERVIEW - CONTROL PANEL

EN

1. Speed control (Min->max)
2. Pause
3. Smoothie program
4. Pulse button
5. Ice crush program
6. Hot soup program
7. Time counter
8. Start

EN

OPERATION

BEFORE FIRST TIME USE

Clean the unit and parts thoroughly before you use the unit for the first time (See cleaning instructions)

USING THE APPLIANCE

• There is a jar sensor on the blender base. When blender jar is placed on the unit, all the functions and time controls can be selected.
• Make sure the indicator is set to 0 when you start the blender.
• Put the desired ingredients into the jug.
• Mount the lid onto the jug and insert the lid cap or tamper.
• Select the desired pre-set by turning the wheel anti-clockwise and press the start button in the middle of the display. The product will run the selected program automatically, after program is completed, the blender will enter standby mode.
• Select speed manually by turning the wheel clockwise.
• If you want to pause the blender during the run, press pause in the middle of the display.
  The time counter is shown on the display.
• Start / Pause button: Press the start / pause button to start the selected preset, or to pause the operation while the motor is running.
• Manual Pulse: Press and hold pulse on the display if you want to use the pulse function. The motor will increase to full speed in pulse mode. Motor will stop when user release the finger. After releasing, the product will return to stand-by mode.

The 3 preset programs:

Function Operation Cycle
Hot soup	8:00 minutes
Ice crush	24 seconds
Smoothie	1:56 minutes

USING THE TAMPER

The tamper is to be used for stirring food. Never use the tamper without the lid in place. Remove the filler cap from the lid and slide tamper into the Blender Jar. The tamper has a splash guard located near the top that prevents the tamper from coming in contact with the blade assembly.

CLEANING

Always clean the removable parts immediately after use.

• Disconnect the power from main supply.
• Disassemble all removable parts before cleaning.
• Clean all removable parts in lukewarm water with dishwashing liquid.
• The blender jug can be rinsed with water. It can also be cleaned by pouring 2 cups of water into the blender jug, closing the lid and then operating the blender in Pulse Mode. Then pour out the water, rinse with water, and dry with a soft cloth.
• Use dry cloth to clean the main body.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

TROUBLESHOOTING

If the blender is not working properly, please check the following:

Problem Possible reasons Solutions
Blender does not start	Check the power plug	Plug into power socket
	Check if the jug is properly placed	Place the jug correctly on the motor unit
Blender stops The blender has run more than 10 minutes	Motor is overheated: The motor has stopped temporarily due to overload	Let the motor cool down
		Reduce the amount of ingredients and wait for the unit to cool down
Content does not blend properly	Not enough fluid Use the tamper, or consider adding more fluid in the jar to help circulation

EN

The blender will not start, and the display is blinking

The indicator is not set to 0

Turn the wheel so the indicator is set to 0

TIPS AND TRICKS

• When crushing ice, add some water to get a better crushing performance.
• If the ingredients are too dry, the ingredients might not get in good contact with the knives, so the knives don't get a hold of all the ingredients. Add some fluid and reduce the speed to a minimum and give the jug a gentle knock to help the ingredients to get in good contact with the knives.
• Put liquid and soft food before putting in hard food or ice cubes.
• If you like to use hard seeds or other food which is difficult to blend, you should try to blend these ingredients as they are, without fluid. If the blending does not work, add fluid in small portions until it blends well.
• For more tips, tricks and recipes go to wilfa.com or our local website.

OPERATING NOTES

• The blender cannot be operated if:

• The jug is not firmly positioned on the base.

• The wheel is turned to speed or preset before the jug is positioned firmly on the base.

• The jug is removed during operation and put back again.

• You need to turn the wheel back to 0 position and make sure the jug is positioned firmly on the base. This will reset the blender.

• If the motor is forced to slow down because of food that is too big in size or if there is not enough liquid in the jug, and if it operates for a long period, the temperature monitoring system will trigger and stop the operation of the motor. The red LED will blink at a rate of 2Hz . In this case, unplug the blender and leave it in a place with good ventilation to cool down the motor temperature for 45 minutes. The system will reset and the blender can be used again.
• During operation, close the lid tightly to avoid scalding due to spraying of hot liquids.

• Keep hands and utensils out of the container while the motor is running to prevent the possibility of severe injury and/or damage. The tamper can be used while the motor is running.

• When making hot beverages such as soup, please check that the lid is secured tightly to the jug to prevent it from falling off. It is advisable to start operation at a low speed setting and then increase the speed gradually, or use the PULSE mode.

• When making sauces (e.g. almond sauce, jam and peanut sauce), stuffing or processing nuts, put in between 2 and 3 cups of ingredients. The amount should neither be too large or too small. Keep the blending time below 2 minutes to prevent any burnt smell due to overheating. Too large a quantity of ingredients may lead to overloading and overheating of the motor. In this case, wait until the motor temperature falls before operating again.
• Add liquids and soft foods before putting in hard food or ice cubes.
• When the operation finishes, wait until the blade assembly comes to a complete stop before removing the blender jug. Otherwise, the drive gear may be damaged.
• If you notice a scorched smell from the blender, stop the operation immediately. It may be caused by abrasion of the rubber cushion base if this is not properly assembled.
• When blending thick and sticky food at high speed, please start the operation at low speed. If there is still no rotation, disconnect the power and stir the contents of the blender jug using a rubber stirrer to drive out air trapped in the food. Then close the lid and switch on to resume operation.
• Do not operate for more than 10 minutes at a time.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Damage on jug
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

220-240V 50/60Hz 2000W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and on systems or contact the retailer where the product was purchased.

They can take this product for environmentally safe recycling free of charge.
