USER MANUAL Nature HU400WW WILFA

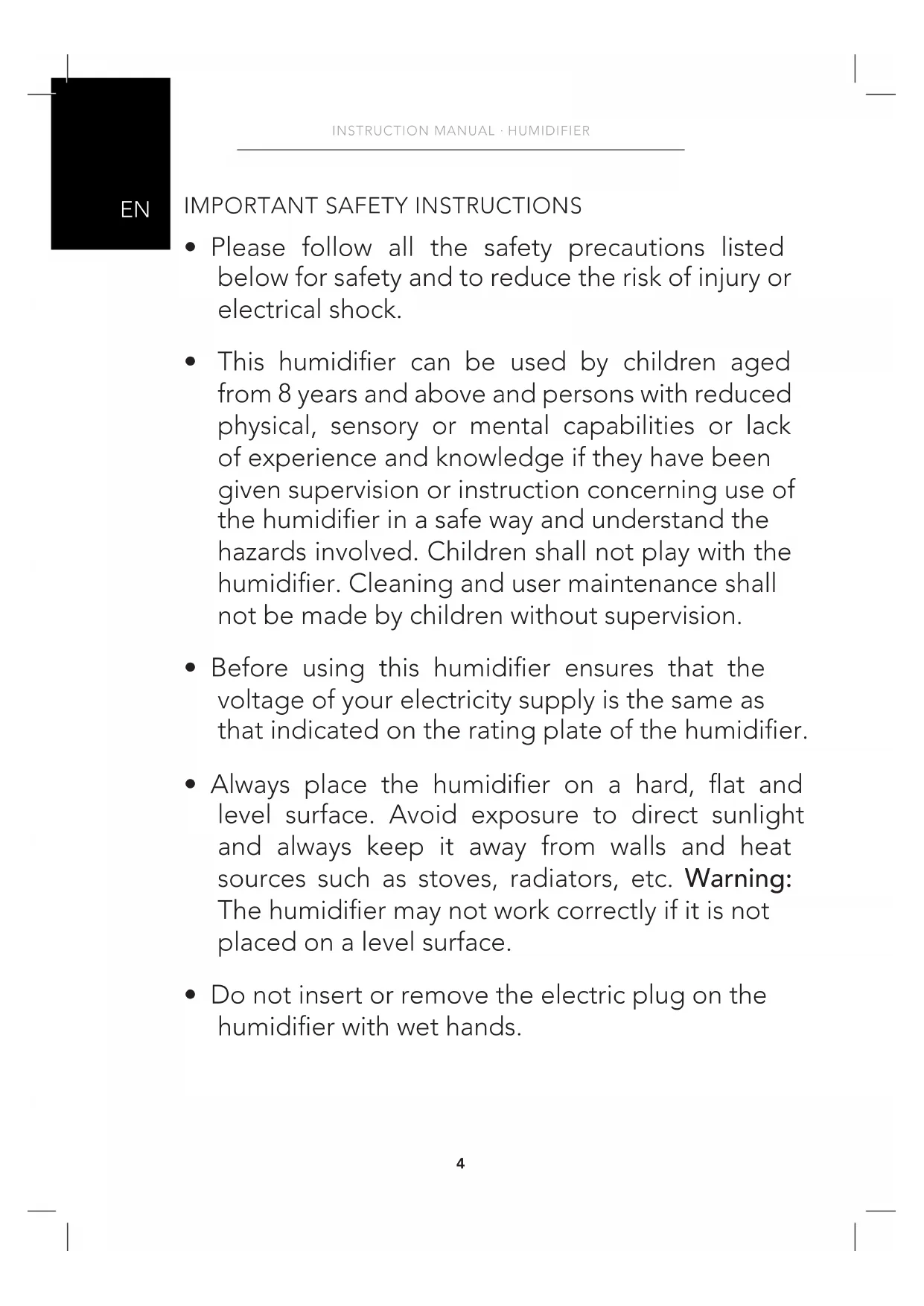

• Please follow all the safety precautions listed below for safety and to reduce the risk of injury or electrical shock.

• This humidier can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the humidier in a safe way and understand the hazards involved. Children shall not play with the humidier. Cleaning and user maintenance shall not be made by children without supervision.

• Before using this humidier ensures that the voltage of your electricity supply is the same as that indicated on the rating plate of the humidier.

• Always place the humidier on a hard, at and level surface. Avoid exposure to direct sunlight and always keep it away from walls and heat sources such as stoves, radiators, etc. Warning: The humidier may not work correctly if it is not placed on a level surface.

• Do not insert or remove the electric plug on the humidier with wet hands.5

• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualied person in order to avoid a hazard.

• To reduce the risk of electric shock, do not remove screws. The humidier does not contain any user- serviceable parts. Please leave all maintenance work to qualied personnel.

• Fill the water tank with fresh, distilled or demineralized water. Do not drop any other liquid into water tank or main base. Do not run the humidier when there is no water in the water tank.

• Do not shake the humidier as this might cause the water spill over into the base of humidier.

• Never touch the water or components while the humidier is in operation.

• If there is an unusual smell when it is being used as described in this manual, switch the humidier off, unplug it and have it examined by your dealer.

• Do not pour hot water into the water tank, i.e. at a temperature in excess of 40°C.

• Do not immerse the humidier or the mains cable or plug in water or other liquids.6

• Never scrape the transducer with a hard tool. The humidier must be cleaned regularly. To do this, refer to the cleaning instructions in this manual.

• If you spill any liquid into the humidier, it can cause serious damage. Switch it off at the mains immediately. Withdraw the mains plug and consult your dealer.

• Disconnect the humidier from the power supply when not in use and before cleaning.

• Ensure that the mains cable does not touch any hot surface and that it does not overhang a table edge.

• Never use this humidier in a room where aerosol products (sprays) are used or in a room or where oxygen is being administered.

• Do not put items of clothing or towels on top of the humidier. If the nozzle is obstructed, this may cause the humidier to malfunction.

• When moving the humidier, lift it by the base and not by the water tank.

• Do not use the humidier if the air in the room is already sufciently humid.7

• The ideal relative humidity level for human comfort is in fact between 45% and 65%. Excess humidity shows up in the form of condensation on cold surfaces or cold walls in the room. To measure the room’s humidity correctly, use a hygrometer available in most specialist shops and hypermarkets.

• This product is intended for indoor, non-industrial, non-commercial, household use only.

• Unplug the appliance during lling and cleaning.

• Do not permit the area around the humidier to become damp or wet. If dampness occurs, turn the output of the humidier down. If the humidier output volume cannot be turned down, use the humidier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

• Never leave water in the reservoir when the appliance is not in use.

• Empty and clean the humidier before storage. Clean the humidier before next use.8

• Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed, and the tank is not cleaned properly every 3 days.

• Never leave water in the reservoir when the appliance is not in use.

• Clean the water every three days.

• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

• Do not permit the area around the humidier to become damp or wet. If dampness occurs, turn the output of the humidier down. If the humidier output volume cannot be turned down, use the humidier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp.

• Unplug the appliance during lling and cleaning.

• Empty and clean the humidier before storage. Clean the humidier before next use.9

• Put the humidier in the room 30 minutes before starting it.

• It is recommended to use the humidier when the temperature is under 20°C, and the relative humidity is less than 80%RH.

• Use clear water not over 40°C.

• Check the water tank, make sure it is clear.

• Place the humidier on a at surface. WATER FILTER

• Ceramic balls can soften the hard water.

• Ceramic lter can eliminate the strange smell in the water. AROMA BOX

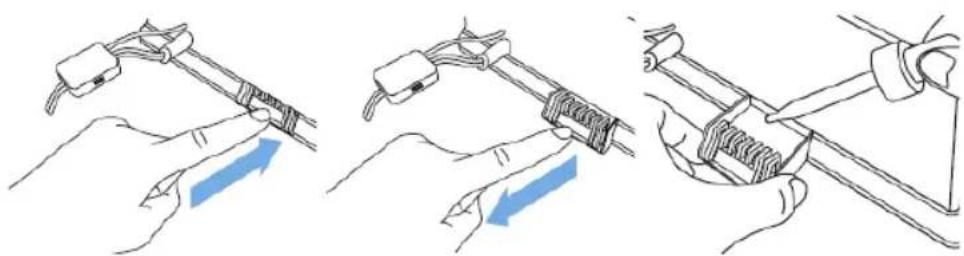

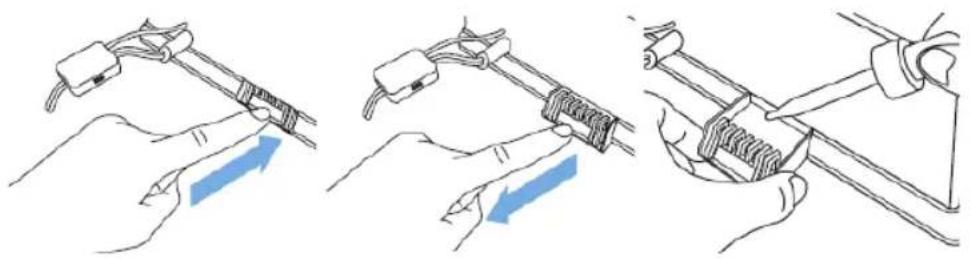

1. Press out aroma box from the base.

2. Use water-soluble aroma oil and drop on to the sponge.

3. Put the aroma box back into the humidier, the aroma function will remain on

when the humidier is running.

5. Only drop aroma oil into aroma cotton. Do not drop any liquid except clean

water into water tank or basin.11

• Fill the water into the water tank from the top cover. Or take out the water tank and ll water directly into the water tank. Afterwards put the water tank back on the main base.

• Check if the rated voltage meets the input voltage and plug into the socket. Humidier will go into standby mode.

• Touch the ON/OFF button, if the water tank is empty, the button will be red. Touch the button again and the humidier will turn off.

• If there is enough water in the water tank, and you press the button, the humidier works in the lowest speed with button showing purple. If you touch the button again the humidier will increase the speed, and the button turns green. At the third touch the humidier starts in the highest speed, and the button turns blue. Press one more time to turn the humidier off. There is a total of 3 speeds.

• Each time you touch the button it will beep. When the water tank is empty, the humidier will make 3 beeps as a warning, the button will turn red, and the humidier will stop working. Rell the water tank, touch the button, and it will restart.

• When the humidier is on, do not lift the water tank up from the main base, this will turn the humidier off. Put the water tank back, and the humidier will work in previous mode. PLACEMENT

• Place the product on rm, at surface.

• The humidier should be placed on at horizontal surface and keep it steady.

• Do not place the product near or close to any heat sources.

• The humidier should be far away from any heat sources, such as stoves or re places. Do not expose the product to direct sunlight.

• Do not place the product near or close to furniture or electric appliances.

• The mist outlet from the humidier should not be directed towards furniture and the electronic appliances, to avoid damage.

• Particles in water, such as calcium, can be part of the vapour and be deposit- ed on objects in the vicinity.

• It is recommended that the unit be placed on a table or other surface at least 70 cm above the oor level, to ensure that the vapour will be optimally distributed throughout the room.

• Air draft and temperature changes can impact the distribution of the vapor. To avoid water damage it’s recommended to always check for moist accu- mulations on the oor or other nearby surfaces.12

TROUBLESHOOTING Problem Possible reasons Solutions Power lamp is off when switched on. Humidier is not plugged in. Plug the humidier into a powered electrical socket. Power cord is damaged. Immediately stop using it and contact Customer Support. Humidier is defective or malfunctioning. Press the power button to turn it on. Power lamp is on when switched on, but no mist comes out. Humidier is not turned on. Press the power button to turn it on. The target humidity is reached. Increase the target humidity or change mode. Water shortage indicator is on. No water in the tank. Rell the water tank wait at least 1 minute. Water level is low. The water level required has not yet reached the vaporization compartment. Wait at least 1 minute. The water tank isn’t well positioned. Check the positioning of tank on the base. The humidier isn’t on a at surface Check the positioning of the humidier. Humidier produces an unusual smell Humidier is new. Take out water tank, open cover, let it stay 12 hours in cool position. Dirty water or water sitting too long. Clean water tank, ll with clear water. Residual smell from diffusing aroma oil on the aroma cotton. Remove the aroma cotton, rinse it under clean water and allow it to dry.13

Humidier makes a loud or unusual sound. Resonant in water tank when water is too low. Fill water into water tank. Humidier is on an unstable surface. Move the humidier to a stable at surface. Water tank is positioned incorrectly. Turn off and unplug the humidier, then align the water tank cover with its respective opening in the inner chamber. Humidier is malfunctioning. Immediately discontinue use and contact Customer Support. The humidication capacity is too low. There is natural or articial air replacement in the room which interfere the increase of %RH. Check if doors and windows are closed. Check if there is no air conditioning working in the room. The air inlet grids, and nozzle could be blocked. Remove any blocking items from the grids and the nozzle. Too much scale in the main base or water tank. Clean transducer. The humidity selected rate is too low. Increase mist output speed. Increase humidity setting rate. Water is too dirty, or water is kept too long in the tank. Clean water tank, change to fresh clear water. There is condensation in the room. The room temperature is too low. Heat the room up. The mist suddenly stops coming out. The water shortage indicator is on. Rell water tank. Control button does not work Hands are too wet when operating control panel. Keep hands dry while operating the control panel. Humidier has malfunctioned. Contact Customer Support.14

White dust appears around the humidier. Water being used has a high mineral content. Use distilled water with the humidier. If distilled water is not available, use puried or ltered water. Humidier was not properly cleaned after last use. Clean humidier. Mist is coming out from the base. Water tank is not positioned correctly. Turn off and unplug the humidier, then align the water tank cover with its respective opening in the inner chamber. Mist fog coming out from around nozzle. There are apertures between the nozzle and water tank. Reposition the cover and check if the nozzle is well plugged in the cover. The following is not considered faulty operation:

• If your water is very hard (containing abnormally high levels of minerals) the humidier may produce white dust. This is not a malfunction. The solution would be to clean the lter more often or use softer water.

• If you stand very close to the humidier, you will hear the gurgling sound of water. This is normal.

• The humidier operates very quietly but it is not completely silent. Noise levels less than 35dB(A) is considered normal. MAINTENANCE If the water is hard, meaning that the water contains too much calcium and magnesium, it can cause a “white powder” problem and leave heavy scales on the inner surface of the main base, transducer and inner surface of the water tank. Scales on the surface of transducer will let the humidier work improperly. Use cold boiled water or distilled water. Empty the tank and rell every third day. Before relling, clean it with fresh tap water or cleaning agents if required by the manufacture. Remove any scale, deposits, or lm that has formed on the sides of the tank or on interior surfaces and wipe all surfaces dry. Empty and clean the humidier before storage. Clean the humidier before next use.15

HOW TO CLEAN THE TRANSDUCER

• Clean with clean water of citric acid if there is scale in it.

• Brush off the scale from the surface.

• Rinse the transducer with clean water.

HOW TO CLEAN THE BASE

• Clean the inner surface of the main base with a soft cloth or use citric acid if there is scale in it.

• If the scale covers the security switch, drop some citric acid on it and let it sit for 2-5 minutes on the scale and clean it with a brush.

• Rinse the water tank with clean water.

HOW TO CLEAN THE CERAMIC FILTER

• Clean and activate the ceramic ball after using 1000L water. Depending on the water quality. If the ceramic ball is dirty it needs to be cleaned more frequently.

• It can be dipped into vinegar for 5 minutes, then rinse it with water.

• Put the lter under the sun for 4-6 hours to dry, over over night.16

GUARANTEE Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee. The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modied or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Not descaled according to instruction manual

• Overloading of product

• Parts which are normally worn down

• Parts you can expect being replaced regularly (e.g. lter, battery etc.)17 AS Wilfa Nydalsveien 24, 0484 Oslo, Norway

For support please visit us at wilfa.com, and see our customer service/support page. Here you will nd frequently asked questions, spare parts, tips and tricks and all our contact information. RECYCLABILITY This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.18
