a Four+ - Earplug JAYS - Free user manual and instructions
Find the device manual for free a Four+ JAYS in PDF.
| Product type | In-ear headphone (earplug) |
| Brand | JAYS |
| Model | a-JAYS Four+ |
| Weight | 17 grams |
| Cable length | 115 cm |
| Connector type | 3.5 mm stereo plug, silver |
| Driver | 8.6 mm dynamic speaker |
| Sensitivity | 96 dB SPL at 1 kHz |
| Impedance | 16 ohms |
| Frequency response | 20 – 21,000 Hz |
| Sound isolation | Integrated sound isolation system |
| Microphone | 360° MEMS microphone with echo cancellation |
| Remote control | Three buttons (volume, play/pause, call) |
| Cable | Flat, tangle-free |
| Box contents | Earphones, remote control, extension cable, silicone ear tips (multiple sizes) |
| Care and cleaning | Clean with antiseptic wipe; replace ear tips; clean mesh filter with a needle |
| Usage precautions | Avoid prolonged high volumes; do not use in traffic; keep out of reach of children |
| Warranty | 24 months (housing and internal components), 12 months (cables and connectors), 6 months (accessories) |
| Compatibility | iOS, Android, Windows (via remote) |
| Recycling | Compliant with WEEE and RoHS directives |
Frequently Asked Questions - a Four+ JAYS
User questions about a Four+ JAYS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Earplug in PDF format for free! Find your manual a Four+ - JAYS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. a Four+ by JAYS.
USER MANUAL a Four+ JAYS

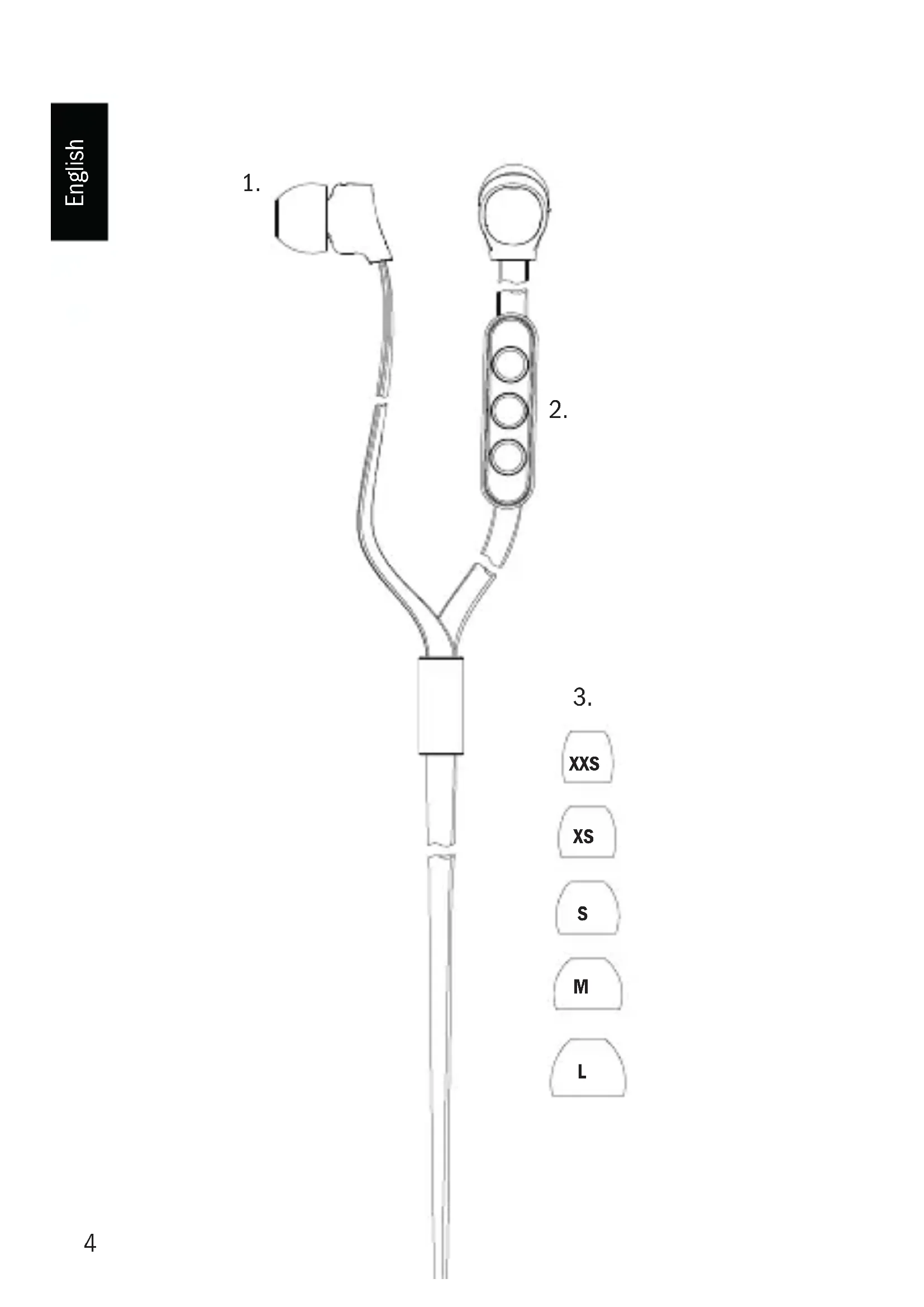

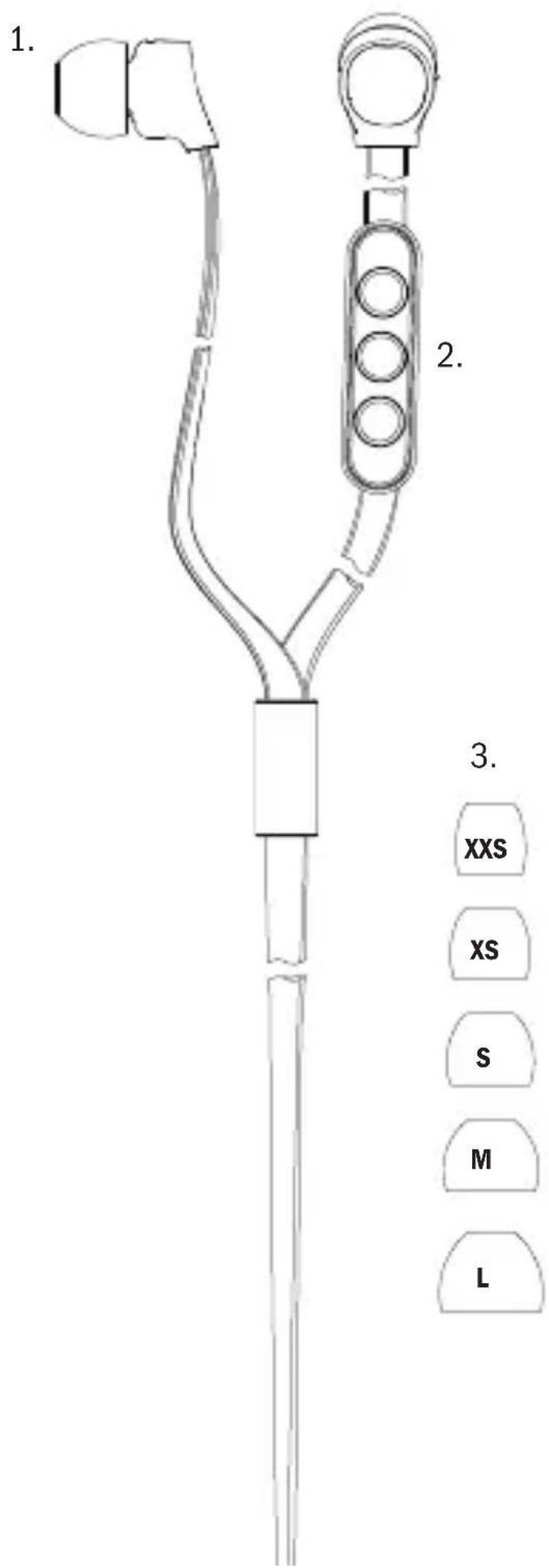

- a-JAYS Four+ Earphones
- Three-button remote
- Silicone ear tips
About a-JAYS Four+
Thank you for choosing a JAYS product. JAYS represents high quality and a true sound reproduction. The a-JAYS Four+ earphones feature a 8.6 mm driver designed to enhance your music's rhythmic section without compromising any of the detail in other frequencies. Furthermore the a-JAYS Four+ feature a flat, tangle-free cable to make the listening experience even easier.
We strongly recommend you read this manual carefully before use. Further information about service and support can be found at: www.jays.se.
Specifications
Driver: 8.6 mm Dynamic Speakers
Isolation: JAYS Sound Isolating System
Sensitivity: 96dB SPL @ 1kHz
Impedance: 16 Ohm
Frequency response: 20 - 21 000 Hz
Cord length: 115 cm (45 in)
Weight: 17 grams (0.49 oz)
Plug: Silver-Plated 3.5 mm Stereo Plug
Microphone: MEMS Technology
Understanding the product specification
Sound pressure, Decibel and Hz
Sound is an invisible vibration composed of frequencies which travel in undulations known as sound waves. The amplitude of vibration produced by an object such as a speaker driver is proportional to the change of pressure generated as the wave moves through the medium which surrounds it (such as air). Therefore, the amplitude of a sound wave is commonly measured by its pressure level.
The decibel is a non-dimensional, logarithmic scale to denote a relative change in the strength of a signal or wave. When placed in the context of sound pressure level; it measures the nominal threshold of human hearing, relative to the quietest sound audible to the human ear.
The frequency of instances where a sound wave reaches it peak during a period of time is measured in Hz (hertz). This is the number of complete cycles per second. Human hearing is limited to frequencies between about 20 Hz and 20.000 Hz.
Sensitivity and impedance
Earphone sensitivity is measured in Sound Pressure Level (SPL). This is essentially a measurement of how loud or easily-driven a pair of earphones is.
The sensitivity is also influenced by the drivers' coil impedance which varies over the frequency range. The higher the SPL and the lower the impedance the more easily driven your earphones will be.
Precautions
- Do not use the product in other ways than are described in this manual.
- Handle with care at all times and protect from external damage.
- Do not expose to heat, magnetism or cold, damp environments.
To clean: use a mild, antiseptic detergent. - Do not expose the cables and plugs to abnormal wear and tear, e.g. by bending or pulling them.
- Avoid winding the cable too tightly.
- Avoid dropping or strong impact. Always leave the sleeve on for shock protection.
Proper use
The a-JAYS Four+earphone model is suitable for many different areas of use. It is particularly suited to environments where you are likely to be disturbed by ambient noise, e.g. at airplanes, on trains, on the subway, at the gym or when you are studying. In short, whenever you want. Let nothing come between you and the full enjoyment of your music.
Inserting and removing the earphones
- Turn the volume to minimum before insertion.
- For best results, moisten the ear tips before insertion.
- Holding the earphone at the rear, carefully insert the sleeve while pulling up and out on the back of the ear.
-
The microphone should seal deeply and comfortably in the ear canal.
-
If the bass frequency response seems too feeble or if external noise has not been eliminated, try inserting the earphone deeper into the ear canal to obtain a better seal or try a different sleeve size.
After use, remove carefully - avoid pulling the cable.

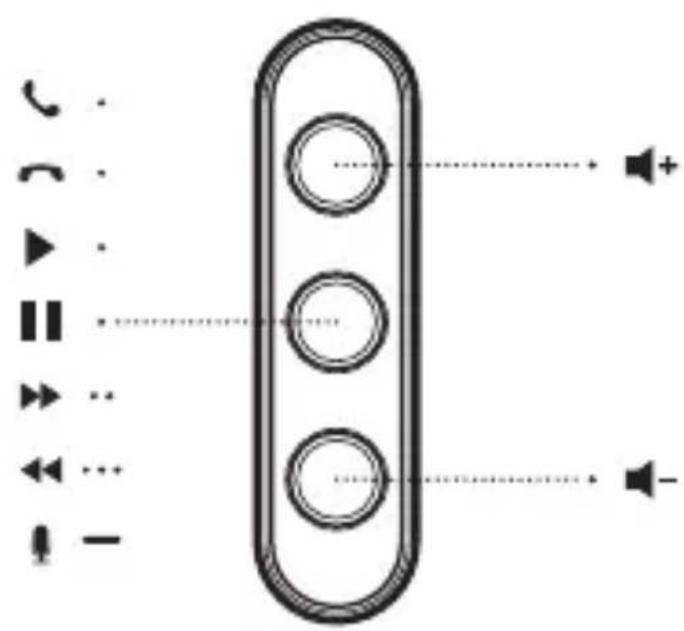

Three button remote
a-JAYS Four+ for iOS, Windows or Android houses a high-quality, 360-degree MEMS microphone for optimized speech quality. Built-in echo cancellation improves communication in nearly all situations and the remote housing is rubberized for better grip and ergonomics, making a-JAYS Four+ the perfect everyday partner for your smartphone.
Cleaning
Clean your earphones regularly using an antiseptic cloth or wipe. Keep ear tips free of wax and other build-up. Wax and dirt can adversely affect sound quality and can damage your earphones. Furthermore, ensure that no moisture penetrates the nozzle when cleaning as this may damage the delicate dynamic speakers inside the earphones.

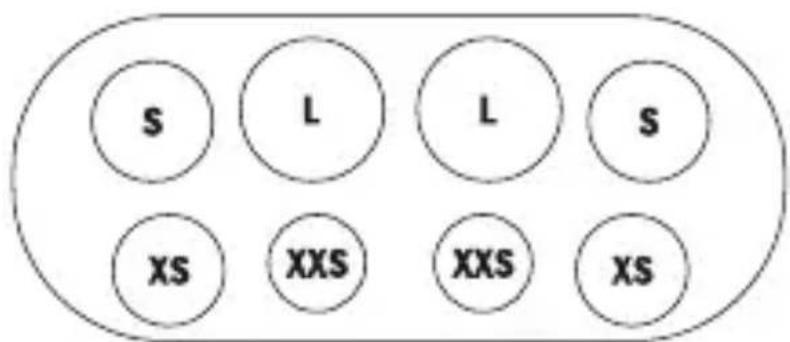

Changing the ear tips
The ear tips can be removed by carefully sliding them off the earphones. When replacing, check that the ear tips rubber notches are securely fastened in the locking groove.
Cleaning the mesh filter of the sound tube
If the mesh filter on the front of the sound tube shows signs of clogging, carefully use a brush to clean it.
For your safety
Hearing

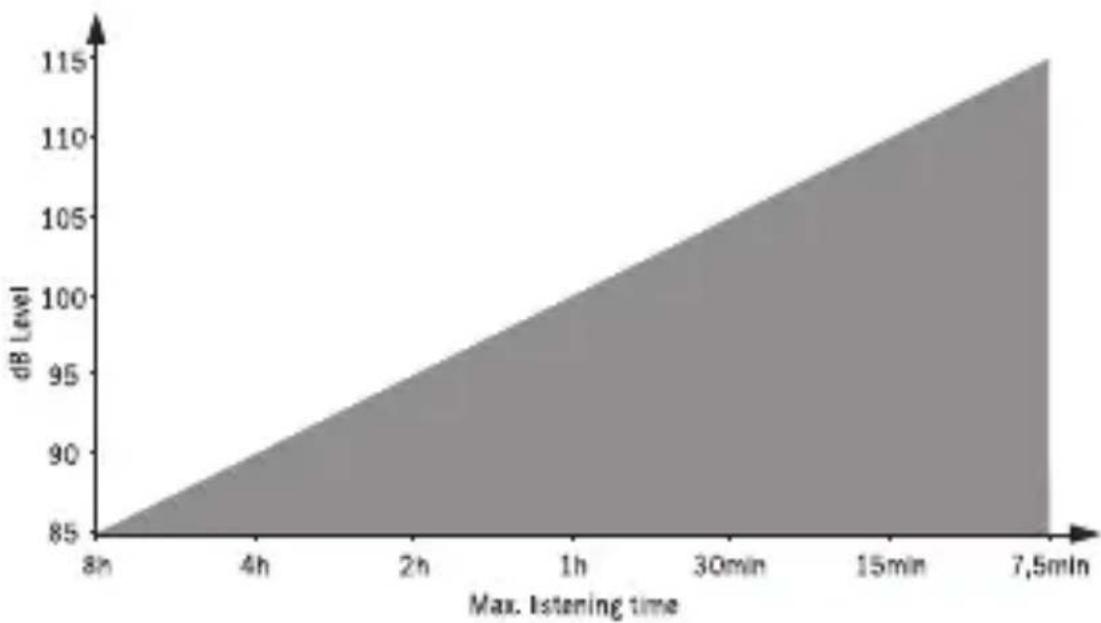

These earphones are very powerful. Listening at high volumes for prolonged periods can cause permanent hearing damage. Always listen at a low to moderate volume and remember to rest your ears once in a while. If your ears start ringing or aching, remove the earphones immediately in order to rest your ears. Occupational Safety Health Administration (OSHA) has developed below noise exposure graph.
Traffic
Your a-JAYS Four+ effectively isolate external noise. This means you won't hear what's going on around you, which can be very hazardous in traffic. Never use your a-JAYS Four+ while driving a car, moped, bicycle or similar, or while jogging or walking through trafficked areas. We would like to remind you that listening to music in trafficked environments can lead to accidents.
Other
Please note that the product and accompanying parts are very small. You should therefore store them safely out of children's reach.
Certifications
The aim of EU's Waste Electrical and Electronic Equipment (WEEE) directives 2002/96/EC and the RoHS directive is to reduce waste from electric and electronic products and to recycle as much of the materials as possible. Any remaining waste should be virtually risk free to handle and the risk of hazardous emissions should be minimal.
Recycling
For detailed information about how to recycle this product, please contact your local recycling centre or store where you purchased the product.
Contact
At www.jays.se you will find information and a contact form where you can ask questions about JAYS products. You can also reach us directly. Our contact details are printed on the back of this manual.
Manufacturer's Limited Warranty
Your original JAYS AB product is covered by a warranty of twenty-four (24) months from the date of purchase of a brand new, unused JAYS AB product by the original purchaser. JAYS AB guarantees that the product is free from faults in the materials, design and workmanship when it was sold to the purchaser. If you are not able to submit the receipt when making a warranty claim you may be obliged to pay for any repairs carried out. Proof of purchase must clearly state the date of, name of the product and authorised re-sellers details.
Limited Warranty Period
The product may include different parts and they may have different Warranty Periods. The different Warranty Periods for this product are:
- Twenty-four (24) months on the earphone external shell, remote external shell and internal components
Twelve (12) months on the cables and connectors
Six (6) months on accessories
The Warranty Period cannot be extended or renewed due to subsequent resale or replacement of the product. This Limited Warranty does not affect your legal rights under your applicable national laws relating to the sale of consumer electronic products. Defective parts replaced within the Limited Warranty Claim shall become the property of JAYS AB.
What is not covered by the Limited Warranty?
- Faults caused by wear and tear, accident, dropping, mechanical damage, damp, moisture, chemical products, abnormal impact damage or force majeure.
- Modification or repair by you or third party without JAYS AB approval.
How to get Warranty Service
If you wish to make a Warranty Claim within the Limited Warranty Period, please contact the reseller of your product for further help. (For products sold in the USA and Australia please see the distributor details at www.jays.se). You will need to provide bring the proof of purchase and the affected part. Any defective parts covered by the Limited Warranty will be repaired or replaced free of charge.
Replaced or repaired parts provided during the Warranty Period will be warranted for the remainder of the original Warranty Period or for sixty (60) days from the date of repair or replacement, whichever is longer. For FAQ please visit www.jays.se.
Legal notice
JAYS, JAYS of Sweden, by JAYS, a-JAYS and JAYS Headset Control are either registered trademarks or trademarks of JAYS AB (Publ) in the EU and/or other countries.
Android is a trademark of Google Inc.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
