Mixy! - Blender Mellerware - Free user manual and instructions

USER MANUAL Mixy! Mellerware

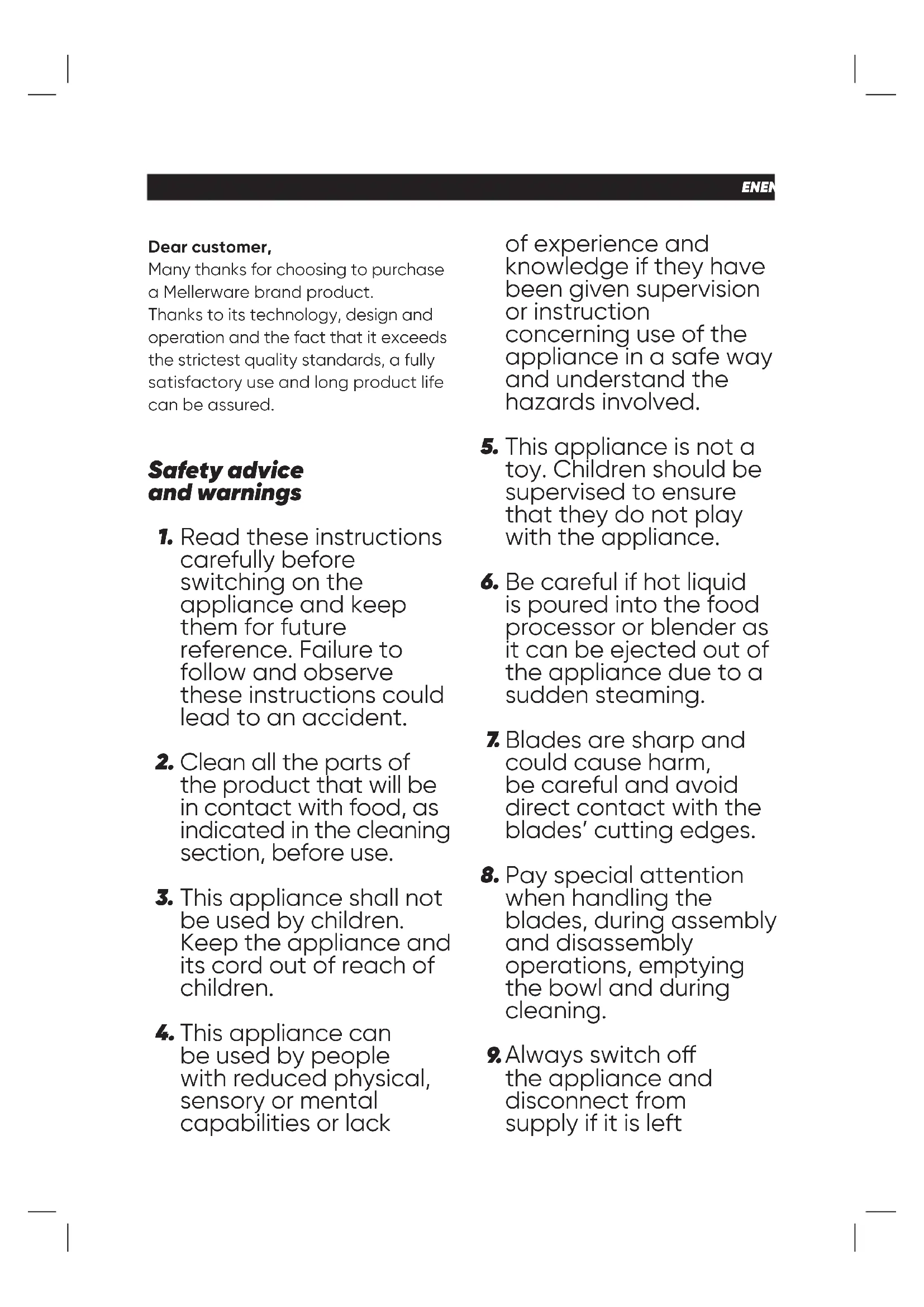

Many thanks for choosing to purchase a Mellerware brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Safety advice and warnings

1. Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
2. Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack

of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

1. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
2. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
   7 Blades are sharp and could cause harm, be careful and avoid direct contact with the blades' cutting edges.
3. Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.
4. Always switch off the appliance and disconnect from supply if it is left

unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.

1. If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

2. This appliance is for household use only, not professional, industrial use.

3. Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

4. Connect the appliance to a socket that can supply a minimum of 10 amperes.
5. The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
6. The appliance must be used and placed on a flat, stable surface.

7. Do not use the appliance if the cable or plug is damaged.

8. If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

9. Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
10. Do not wrap the power cord around the appliance.
11. Do not clip or crease the power cord.
12. Do not use or store the appliance outdoors.
13. Do not touch the plug with wet hands.
    Before using the appliance ensure that the blade is properly fixed in place.
14. Do not touch any of the appliance's moving parts while it is operating.
    Exercise precaution after employing the stop operation on the appliance as the blade/s will continue moving from the effect of its own mechanical inertia.

USE AND CARE

• Fully extend the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance while the jug is empty.

• Do not use the appliance if the on/off switch does not work.

• Do not move the appliance while in use.

• Do not use the appliance if it is tipped up and do not turn it over.
• Respect the MAX level indicator (1500ml).
• When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Never use liquids that are boiling or ingredients whose temperature exceeds 80^ .
• Do not use the jar immediately after taking it out of the dishwasher or the refrigerator, ensure that the jar is at room temperature.
• Check that the lid is closed properly before starting the appliance.
• Do not use the appliance for more than 2 minutes at a time. In case of operate in cycles; allow the appliance a resting period of at least 2 minutes between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
• Do not use the appliance with frozen goods or those containing bones.
• CAUTION: Do not use the appliance if the glass is cracked or broken.

Service

Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Description

A-Cup
B-Lid
C - Sealing lid ring
D-Jar
E-Blade set
F - Sealing Blade ring
G-Jar base
H - Motor body
I - Speed selector knob
J-Pulse function

Instructions for use

BEFOREUSE

• Make sure that all products' packaging has been removed.
  Before using the product for the first time, we recommend running it just with water.
  Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

USE

• Extend the cable completely before plugging it in.

• Ensure the blade fixing ring is fixed properly to the jar (by turning counter clockwise) before putting on the motor body. (Fig.1).

• Place the jar onto to the motor unit until it fits properly into place (Fig.2).
  Put the ingredients, after having first chopped them into small piece, into the jar with liquid (do not exceed the maximum marker).
  Put the lid on the jar; make sure it is properly fixed in place.
  Put the cup in the lid.
• Connect the appliance to the mains.
• The pilot light (I) comes on.
• Turn the appliance on, by using the selection knob.
• If you wish to add more ingredients pull out the cup.
• Add the ingredients and replace the cup.
• To stop the appliance set the speed back to "0".
• To avoid a fierce, start up of the fan, it is advisable to start off from the lowest speed position and, once the fan has been switched on, progressively increase the speed to the desired position.

ELECTRONIC SPEED CONTROL

• The speed of the appliance can be regulated by using the speed regulator control (I). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

• Stop the appliance, selecting position 0 on the selector control.
• Unplug the appliance from the mains.
• Lift the jar from the motor body.
  Clean the appliance.

"PULSE/ICE CRUSH" FUNCTION

• The appliance works in highest speed to achieve optimal performance.
• This function gives optimal result for ice-crushing, up to desired snowy level.
• Turn the speed selector knob to the left to operate the Pulse function (J).
• We recommend working by turning the knob in cycles of 3 seconds and repeating the operation until you obtain the desired result.

SAFETY THERMAL PROTECTOR

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting.
• If the machine does not start again, seek authorised technical assistance.

Cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
- Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
- Never submerge the appliance in water or any other liquid or place it under running water.
During the cleaning process, take special care with the blades, as they are very sharp.
If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
- The following pieces may be washed in a dishwasher (using a soft cleaning program):

• Jug.

• Cup.
  -Lid.

• Then dry all parts before its assembly and storage.

SELF-CLEANING FUNCTION

Put water and a small amount of washing up liquid in the jar.
- Select the function "turbo".

REMOVABLE BLADES FOR EFFECTIVE CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Loosen the jar base by turning it in counterclockwise direction. (Fig.3).
• Remove the blade set, sealing blade ring and jar base and clean them. (Fig.4).
  After cleaning, replace the blade set and turn blade fixing ring in opposite direction (Fig.5).

Anomalies and repair

Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

For EU product versions and/or in case that it is requested in your country:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

• The product does not contain concentrations of substances that could be considered harmful to the environment.

• This symbol means that in the case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the effective collection of Waste from Electric and Electronic Equipment (EEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Warranty and technical assistance

This product enjoys the recognition and protection bof the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services. You can find the closest one by accessing the following web link: www.mellerware.com. You can also request related information by contacting us.

You can download this instruction manual and its updates at www.mellerware.com
