USER MANUAL GAM61PS3 GIGABYTE

© 2006 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.

Integrated Peripherals (整合週邊設定

Exit Without Saving (結束 SETUP 程式)

CMOS Setup Utility-Copyright (C) 1984-2006 Award Software Standard CMOS Features
Date (mm:dd:yy) Time (hh:mm:ss)	Mon, Oct 2 2006 22:31:24	Item Help Menu Level
IDE Channel 0 Master	[None]
IDE Channel 0 Slave	[None]
IDE Channel 2 Master	[None]
IDE Channel 3 Master	[None]
IDE Channel 4 Master	[None]
IDE Channel 5 Master	[None]
Drive A [1.44M, 3.5"] Floppy 3 Mode Support	[Disabled]
Halt On	[All, But Keyboard]
Base Memory	640K
Extended Memory	447M
↑↓→←: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Date (mm:dd:yy) (日/期hh:mm:ss) ()

時間設定

CMOS Setup Utility-Copyright (C) 1984-2006 Award Software Integrated Peripherals
◆ Serial-ATA RAID Config	[Press Enter]		Item Help
On-Chip IDE Channel0	[Enabled]		Menu Level
On-Chip MAC Lan	[Auto]
NV Serial-ATA Controller	[All Enabled]
IDE Prefetch Mode	[Enabled]
USB Memory Type	[SHADOW]
Onboard Audio Function	[Auto]
Onboard 1394	[Enabled]
◆ SMART LAN	[Press Enter]
OnBoard LAN Boot ROM	[Disabled]
Onboard Serial Port 1 [3F8/IRQ4]
Onboard Serial Port 2 [2F8/IRQ3]
Onboard Parallel Port	[378/IRQ7]
Parallel Port Mode	[SPP]
x ECP Mode Use DMA 3
On-Chip USB	[V1.1+V2.0]
USB Keyboard Support	[Disabled]
USB Mouse Support	[Disabled]
Legacy USB storage detect	[Enabled]
↑↓→←: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Serial-ATA RAID Config

CMOS Setup Utility-Copyright (C) 1984-2006 Award Software Serial-ATA RAID Config
NV SATA RAID function	[Disabled]			Item Help
x NV SATA 1 Primary RAID	Enabled			Menu Level
x NV SATA 1 Secondary RAID	Enabled
x NV SATA 2 Primary RAID	Enabled
x NV SATA 2 Secondary RAID	Enabled
↑↓→←: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

NV SATA RAID function (RAID) 功能

NV SATA 1 Primary RAID

NV SATA 1 Secondary RAID

NV SATA 2 Primary RAID

NV SATA 2 Secondary RAID

NV Serial-ATA Controller (内建 SATA)

例："Pair1-2 Status = Short / Length = 1.6m"

Legacy USB storage detect

ACPI Suspend Type	[S1(POS)]
Soft-Off by Power button	[Instant-Off]
PME Event Wake Up	[Enabled]
Modem Ring On	[Enabled]
USB Resume from Suspend	[Enabled]
Power-On by Alarm	[Disabled]
x Day of Month Alarm	Everyday
x Time (hh:mm:ss) Alarm	0:0:0
Power On By Mouse	[Disabled]
Power On By Keyboard	[Disabled]
x KB Power ON Password	Enter
AC Back Function	[Soft-Off]
↑↓→←: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Power On By Keyboard (鍵盤開機功能

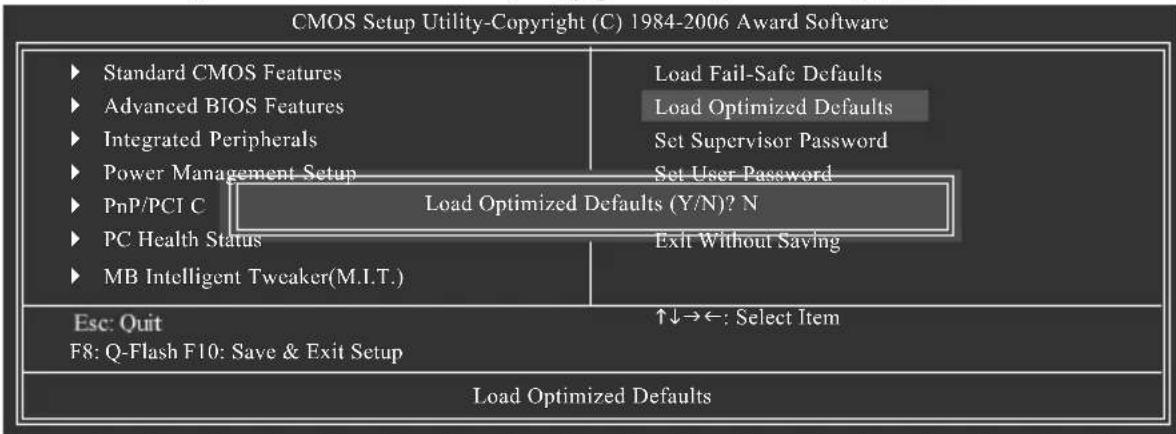

2-9 Load Optimized Defaults (Optimized)

預設值

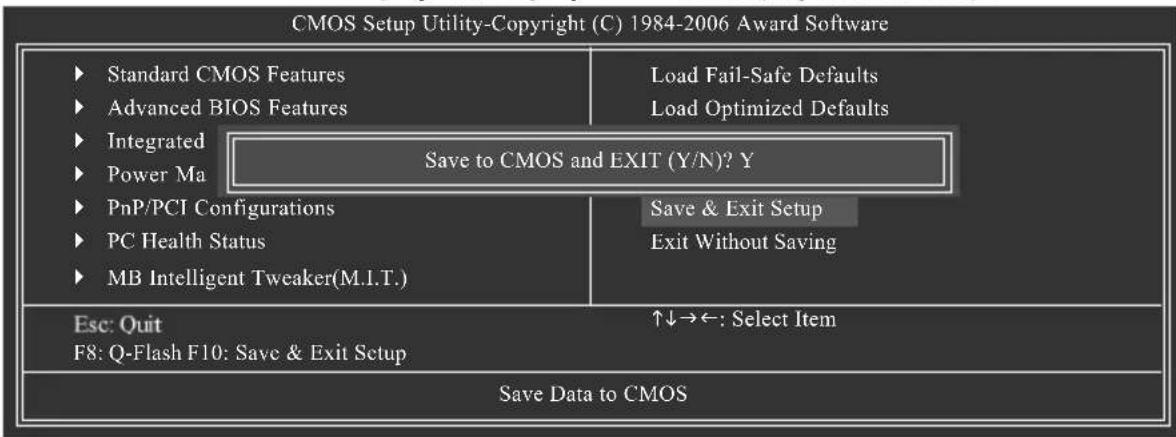

2-11 Save & Exit Setup (SHP)

並儲存設定結果

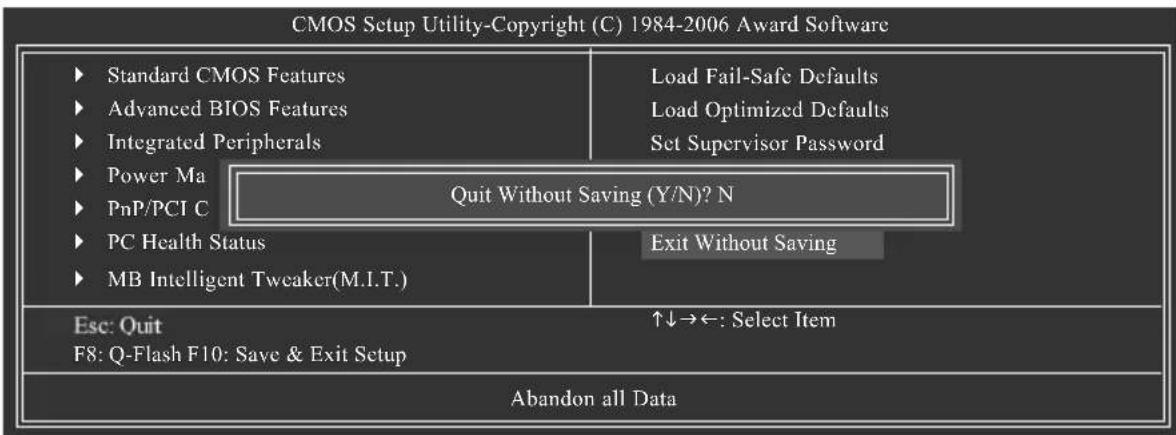

2-12 Exit Without Saving (SMP)

但不儲存設定結果

1. Intel x86 platform
2. 64M bytes memory
3. VESA supported VGA cards

使用方法：

利用CD-ROM执行及開機畫面 功能

Press F10 to enter RAID setup utility ...

圖4

步骤2：

按鍵進入NVIDIA RAID設定程式-會出現Define a New Array的視窗。(如圖5)

您可以按键移動至您所需要設定的項目。

選擇RAID模式

Setup could not determine the type of one or more mass storage devices installed in your system, or you have chosen to manually specify an adapter. Currently, Setup will load support for the following mass storage devices(s)

• To specify additional SCSI adapters, CD-ROM drives, or special disk controllers for use with Windows, including those for which you have a device support disk from a mass storage device manufacturer, press S.
• If you do not have any device support disks from a mass storage device manufacturer, or do not want to specify additional mass storage devices for use with Windows, press ENTER.

S=Specify Additional Device ENTER=Continue F3=Exit

步骤3：

若您欲製作RAID15NLDAI RAIDCLASSDRIVER择

You have chosen to configure a SCSI Adapter for use with Windows, using a device support disk provided by an adapter manufacturer.

Select the SCSI Adapter you want from the following list, or press ESC to return to the previous screen.

NVIDIA RAID CLASS DRIVER (required)

NVIDIA nForce Storage Controller (required)

ENTER=Select F3=Exit

图15

Windows Setup

Setup will load support for the following mass storage device(s):

NVIDIA RAID CLASS DRIVER (required)

• To specify additional SCSI adapters, CD-ROM drives, or special disk controllers for use with Windows, including those for which you have a device support disk from a mass storage device manufacturer, press S.
• If you do not have any device support disks from a mass storage device manufacturer, or do not want to specify additional mass storage devices for use with Windows, press ENTER.

S=Specify Additional Device Enter=Continue F3=Exit

圖16

G.B.T. TECHNOLOGY TRADING GMBH

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

CZECH REPUBLICO

網址：http://www.gigabyte.cz

土耳其

Representative Office Of GIGA-BYTE Technology Co., Ltd. in TURKEY

Moscow Representative Office Of GIGA-BYTE Technology Co., Ltd.

Office of GIGA-BYTE TECHNOLOGY Co., Ltd. in POLAND

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

Romania

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

SERBIA & MONTENEGRO

Management Methods on Control of Pollution from Electronic Information Products

(China RoHS Declaration)
