USER MANUAL IAN 352927 Livarno Lux

Operation and safety notes

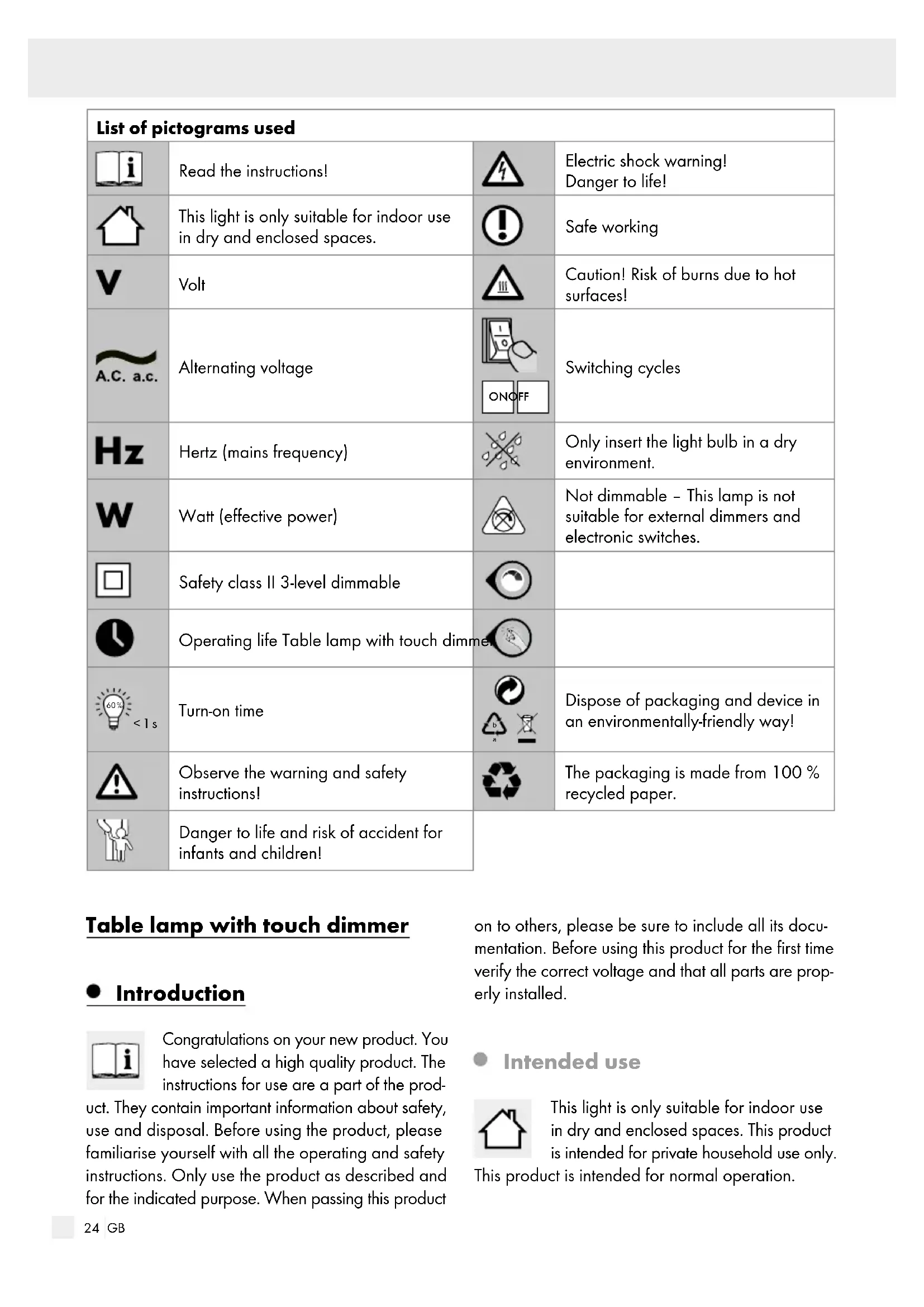

Dispose of packaging and device in an environmentally-friendly way! Observe the warning and safety instructions! The packaging is made from 100 % recycled paper. Danger to life and risk of accident for infants and children! Table lamp with touch dimmer Introduction Congratulations on your new product. You have selected a high quality product. The instructions for use are a part of the prod- uct. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this product on to others, please be sure to include all its docu- mentation. Before using this product for the first time verify the correct voltage and that all parts are prop- erly installed.

Intended use This light is only suitable for indoor use in dry and enclosed spaces. This product is intended for private household use only. This product is intended for normal operation.25 GB Introduction / SafetyIntroduction Scope of delivery Check immediately after unpacking that the parts are complete and that the product is in proper condition. 1 Table lamp with touch dimmer 14135306L / 14135402L 1 Glass shade 1 LED light bulb 1 Instructions for use Parts description

Lamp base Technical data Model No.: 14135306L / 14135402L Operating voltage: 230–240 V∼, 50 Hz Lamp socket: E27 Protection class: II / Bulb: LED E27, max. 6 W, 3-level dimmable Safety Safety notices Damage due to failure to comply with these operat- ing instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

CHILDREN! Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. This device may be used by children aged 8 years and up, as well as by persons with re- duced physical, sensory or mental capacities, or lacking experience and/or knowledge, when supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision. RISK OF INJURY! Do not leave the lamp or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children. Avoid the risk of fatal injury from electric shock Luminaire with strong conducted disturbances c

cause nuisance triggering, it can be self-recovered. Always check the mains plug for damage before connecting the light to the mains. Never use the light if it shows any signs of damage. In the event of damage, repairs or other prob- lems with the light, please contact the service centre or an electrician. Ensure that the light does not come into contact with water or other liquids under any circum- stances. Never open or insert anything into electrical fittings or equipment (e.g. switches, fitting socket). This will pose a risk of fatal injury from electric shock. Only touch the insulated area of the mains plug when connecting to or disconnecting from the mains! To prevent hazards, a damaged flexible outer lead of this light may only be exchanged by the manufacturer, his service representative or by an equally qualified specialist. Before every use, verify the available mains voltage matches the required operating voltage of the light (see “Technical data“). Always unplug the mains plug, respectively, from the mains prior to assembly, disassembly,26 GB Changing ... / Maintenance and cleaning / Disposal / Warranty and service cleaning, or when the light will not be used for extended periods. Do not install the lamp on a wet or conductive surface. Only insert the light bulb in a dry environment. This lamp is not suitable for external dimmers and electronic switches. Safe working Position the lamp so it is protected from moisture and dirt. Always be attentive! Always pay attention to what you are doing and use common sense. Do not cover the lamp with objects. Excessive heat can result in fire. Do not look into the illuminant from a close distance during operation. Do not use optical instruments to look at the illuminant. In order to disconnect the light completely from the power supply, the mains plug must be removed from the socket. Only use the light bulbs specified in the chapter “Technical data“. Initial use Mounting the lamp Note: Remove all packaging materials from the product. Only 14135306L: Caution: The lamp glass

are pre-assembled, but are not screwed tight. Bring the lamp glass

into the correct position. Only 14135402L: Loosen the ring nut

from the lamp socket

Bring the lamp glass

into the correct position. All models: Screw the lamp glass

Be sure they are positioned correctly. Use a clean, lint-free, dry cloth to insert the bulb

Screw the light bulb

clockwise into the lamp socket

into a properly installed socket. Your light is now ready to use. Switching the light on / off Touch the lamp base

to switch the lamp on or off. Dimming the lamp Note: The lamp is only dimmable using the light bulb

supplied. To dim the light bulb

multiple times in short succession. Each time the lamp base (touch dimmer) is tou- ched, the lamp is then briefly switched off. The next dimming level then follows. If the dimmer function was interrupted for a while (approx. 10 seconds) between the sepa- rate levels, the brightest light level will always be switched on. Changing the light bulb Switch the lamp off. RISK OF ELECTRIC SHOCK! First unplug the mains plug

HOT SURFACES! Allow the lamp to cool down completely. Use a clean, lint-free, dry cloth when replacing the illuminant

Unscrew the defective illuminant

from the lamp socket

, turning counter-clockwise. Safety / Initial use / Changing the light bulb27 GB Changing ... / Maintenance and cleaning / Disposal / Warranty and service Screw a new illuminant, clockwise into the lamp socket

into a properly installed socket. Your light is now ready to use. Maintenance and cleaning Switch the lamp off. RISK OF ELECTRIC SHOCK! First remove the mains plug

HOT SURFACES! Allow the lamp to cool down completely. RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water. Do not use solvents, benzene or similar sub- stances. They could damage the light. Only use a dry, lint-free cloth for cleaning. Plug the mains plug

into a properly in- stalled socket. Disposal The packaging is made entirely of recy- clable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibre- board / 80–98: composite materials. To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority. Warranty and service Warranty You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14135306L / 14135402L. Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the oper- ating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period. Service address Briloner Leuchten GmbH & Co. KG Im Kissen 2 59929 Brilon GERMANY Tel.: +49 29 61 / 97 12–800 Fax: +49 29 61 / 97 12–199 E-Mail: kundenservice@briloner.com www.briloner.com IAN 352927_2004 Please have your receipt and the item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about your product. Declaration of conformity This product fulfils the requirements of the applica- ble European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer. Safety / Initial use / Changing the light bulb28 GB Warranty and service Manufacturer Briloner Leuchten GmbH & Co. KG Im Kissen 2 59929 Brilon
