Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Safety Instructions22 Product Data Sheet23 Dimensions24 Control panel and remote control25 Functions and settings26 Operating modes29 Program weekly timer31 Restore device to factory default settings34 Cleaning and care34 Disposal Considerations35 Manufacturer & Importer (UK)35 TECHNICAL DATA Item number 10032595, 10032596, 10034122, 10034123, 10034124, 10035041, 10035042, 10035043, 10035316, 10035317 Power supply 220-240 V ~ 50 Hz Power 1800 W22

• Do not use the appliance until it is securely xed as described in this manual.

• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

• If the supply cord is damaged, it must be replaced by a quali ed engineer in order to avoid a hazard.

• The replace heater must not be positioned directly under the power socket.

• Keep furniture, curtains and other ammable material at least 1 meter away from the appliance.

• Do not leave the appliance unattended during use.

• Do not leave the appliance unattended whilst connected to the mains supply.

• Keep out of reach of children and do not allow them to operate this appliance.

• This appliance is intended for household use only and should not be used for industrial purposes.

• Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a quali ed electrician.

• Improper repairs may place user at serious risk.

• Do not run the mains cable under carpets, rugs, etc.

• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a re risk exists if the heater is covered or positioned incorrectly.

• Never immerse the product in water or any other liquid for any reasons.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use the appliance outdoors.

• Do not use if you have wet hands.

• Never use the appliance on or near hot surfaces.

• Do not operate with a damaged cord.

• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

• Do not clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance. CAUTION Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.23

1.8 kW manual heat charge control, with integrated

thermostat N/A Minimum heat output (indicative)

min 0 kW manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output

1.8 kW electronic heat charge control with room and/or

outdoor temperature feedback N/A Auxiliary electricity consumption fan assisted heat output N/A At nominal heat output (fan motor)

max 0 kW Type of heat output/room temperature control At minimum heat output (fan motor)

min 0 kW single stage heat output and no room temperature control

0 W Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control no electronic room temperature control plus day timer

electronic room temperature control plus week timer yes Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection yes with distance control option no with adaptive start control no with working time limitation yes with black bulb sensor no Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany24

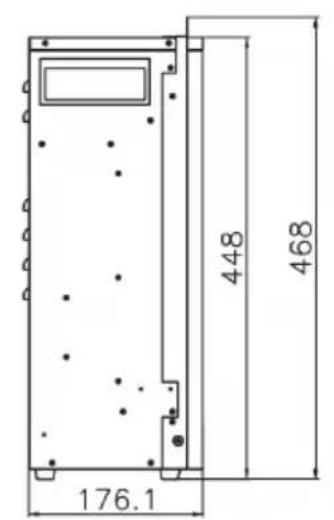

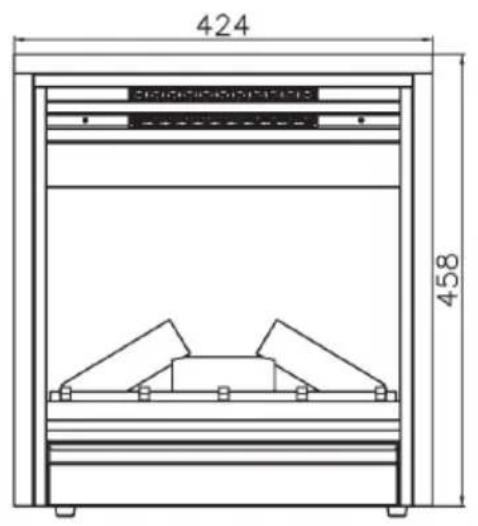

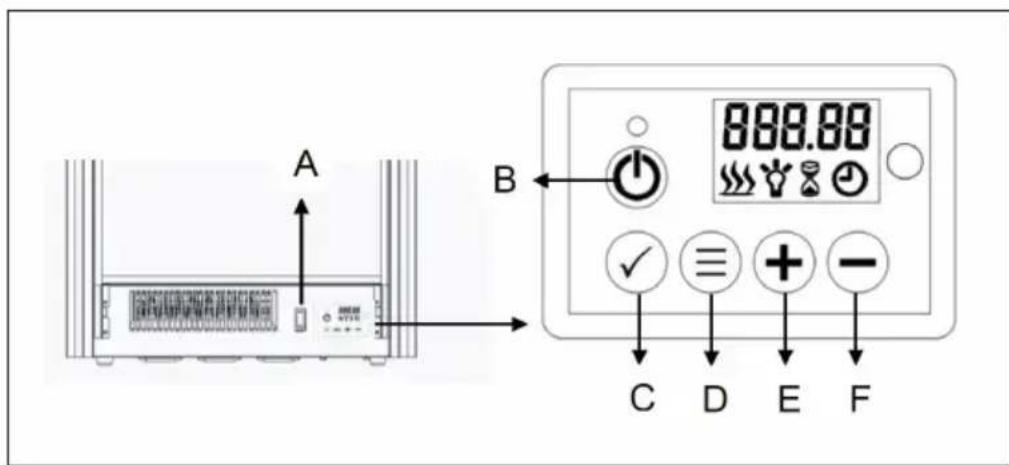

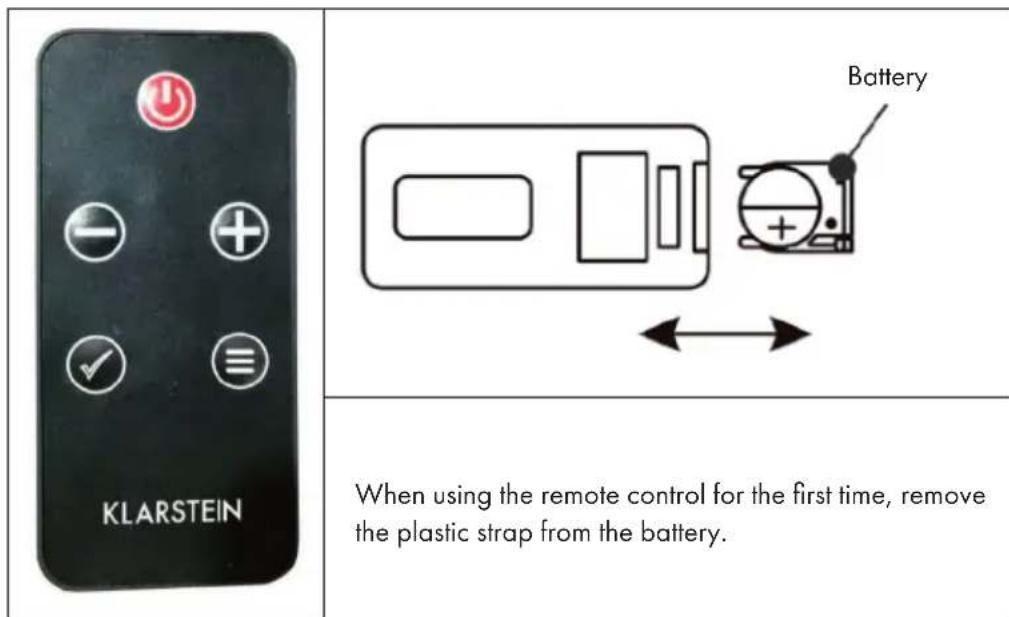

Control panel Remote control When using the remote control for the rst time, remove the plastic strap from the battery. Note: This heater comes with a remote control. To operate the device with the remote control, the main switch (A) must be in the ON position. All buttons on the remote control have the same functions as the buttons on the control panel. Battery (A) Main switch (B) On / Off button (C) Key lock / conrm entry (D) MENU (E) Increase value (F) Decrease value26

FUNCTIONS AND SETTINGS

Main switch (A) Open the cover on the bottom of the unit and press button A down to the ON position. On / Off button (B) Press the on / off button to start the ame effect. The following will appear on the display:

• The heating symbol will be displayed and the appliance will start to heat if the room temperature is below the standard setting (10 ° C). If the temperature is higher than 10 ° C, the icon will not be displayed and the unit will not heat up.

• The clock symbol will ash to indicate that no timer has yet been set. Follow the steps described in the „Operating Modes“ section under „Timer Mode“ to set the timer. When the unit is switched on, two short beeps will sound, increasing in tone. When it is switched off, three beeps will sound, which will decrease in tone. When switching on, the heating level, the setpoint temperature and the clock symbol will be displayed. The display disappears after 60 seconds unless you press a key. Press any key to return to the display. Key lock (C) Press and hold the OK button for more than 6 seconds to lock or unlock the keys. As soon as the keys are locked, [LOC] ashes on the display for 6 seconds and then disappears. Press any key and [LOC] will ash again. Press the OK button for 6 seconds to unlock the keys. Note: The On / Off button (B) is never locked.27

Switch heating on / off / quick start Press the (+) or (-) button to start the heat setting directly (even if a weekly program is set).

• Press either the (+) or (-) button to see the current temperature on the screen.

• Press the (+) or (-) button to set the desired temperature. Press the OK button to conrm the setting. If the set temperature is higher than the room temperature detected by the device, the heating will start. The heater will not start if the set temperature is lower than the room temperature. Note: The temperature can be set between 10 °C and 30 °C. Select OFF to turn the heater off. Set high heat output Press the D (MENU) button on the control panel, the display will show H and the ashing heating symbol. Press the OK button to set the temperature. The default temperature is 10 ° C (50 ° F). The image at left will appear on the display. Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start.28

Set low heat output Press the MENU button twice, the display will show L and the ashing heating symbol. Press the OK button to set the temperature. The default temperature is 10 ° C (50 ° F). The image at left will appear on the display. Press the (+) or (-) button to set the temperature. If the set temperature is higher than the room temperature detected by the device, the heating will start. If the set temperature is lower than the room temperature, the heating will not start. Switch between Celsius and Fahrenheit The default temperature display is Celsius. Press the D (MENU) button for 3 seconds, then press the (+) or (-) button to change the temperature display from Celsius to Fahrenheit. Adjust brightness The brightness control is used to select the desired ame brightness. Press the MENU button repeatedly to enter the brightness setting. The display will show [bri] and the ashing light bulb icon. Press the OK button to start the brightness adjustment. Press the (+) or (-) button to select the desired brightness level. Set runtime Press the MENU button repeatedly to enter the timer setting. The display will show [Hour] and the ashing timer icon. Press the OK button to start the timer setting. Press the (+) or (-) button to set the desired time between 0-9 hours. The display will show the set time.29

Adjust dimmer (specic models only) Press the MENU button repeatedly to enter the dimmer setting. The display will show [doLi]. Press the OK button to start the dimmer adjustment. Press the (+) or (-) button to select the desired dimming levels (D1 / D2 / D3 / D4 / OFF). Level D1 is the brightest setting, with OFF the dimmer is off. Note: This unit does NOT have a dimmer function even though it can be selected on the display. If you do not adjust for more than 15 seconds, the display will return to the standard view. OPERATING MODES Select mode Press the MENU button repeatedly to enter the operating modes. The display will show [ModE]. Press OK to enter the mode setting and use the (+) or (-) button to select the desired mode.30

Open window mode Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the open window mode. The display will show [OPEN]. Press OK to conrm and use the (+) or (-) button to select ON or OFF: After activating the open window detection, the unit automatically turns off the heater when it detects that the room temperature has dropped more than 4 ° C within 10 minutes. The heater will turn off for 20 minutes. To restart the heater, reset the desired temperature and press the OK button to conrm the setting. After resetting the temperature, open window detection is set to OFF. Setting the Current Weekday and Time Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the timer setting and use the (+) or (-) button to select the timer mode. The display will show [TIME]. Press OK to enter the timer setting and use the (+) or (-) button to select the desired day for which you want to set a timer. D1 = Monday, D2 = Tuesday, D3 = Wednesday, D4 = Thursday, D5 = Friday, D6 = Saturday, D7 = Sunday. Press OK and use the (+) or (-) button to set the hour. Press OK and use the (+) or (-) button to set the minute. Then press OK again to save the setting.31

Note: You can exit the timer setting at any time by pressing MENU. In the event of a power failure, the timer icon (clock) will blink continuously, signaling that no timer has been set. In this case, you must reprogram the timer.

PROGRAM WEEKLY TIMER

Note: Before you can program the week timer, you must rst set the current weekday and time (see Setting the Current Weekday and Time). There are 3 pre-set programs available. Each program includes one period or several periods of time in which the replace will heat. Outside of these periods of time, the replace will not heat. The period of one program may overlap with the period of another program. Preset programs P1 (program 1) Monday to Friday from 05:15 for 4 hours high heating. P2 (program 2) Saturday to Sunday from 06:20 for 4 hours low heating. P3 (program 3) Monday to Friday from 17:45 for 4 hours high heating. P4 (Programm 4) Saturday to Sunday from 16:30 for 4 hours low heating.32

Select preset program Press the MENU button several times to enter the [ModE] operating modes. Press OK to enter the mode setting and use the (+) or (-) button to select the program mode. The display will show [ProG]. Press button + or - to select “ON” or “OFF” to turn on or turn off the weekly program. Press OK to validate. To exit the setting during operation, press button MENU. Manual Setting for Weekly Programming Press button MENU to select “ModE“ menu. Press OK to validate, then button + or - to access Manual Setting MANU. Press OK to validate.

• Press button [+] or [-] to select the rst activation day. Press OK to validate.

• Press [+] or [–] to select the last activation day. Press OK to validate.33

Note: Several programmed heating periods can be used for one day. A programmed heating period can also be used for several days. Example of a manually set weekly timer For selecting “d1” (Monday) as rst activation day, and “d7” (Sunday) as last activation day. Press the (+) or (-) button to select the heating level: H = high heat output, L = low heat output. Press OK to conrm the selection Press the (+) or (-) button to set the desired temperature. Press OK to conrm the selection. Press the (+) or (-) button to select the hour at which to start the heating. Press OK to conrm the selection. Press the (+) or (-) button to select the minute at which to start the heating. Each press of the button increases the minute display by 5 minutes. Press OK to conrm the selection. Press the (+) or (-) button to set how long the heater will run. Each press of the button increases the display by 30 minutes. Press OK to conrm the selection. Now the setting of the rst heating period of the program is completed. The display will show [CON] (conrmed). Note: The program cannot run until the next day. The maximum duration may not exceed midnight. That is, if the start time is 20:30 and you set 4 hours for the duration, the program ends after 3:30 because that is when midnight is. To set a second heating period, press OK. If you have set the second heating period, press OK again and the display will return to the day selection for the second heating period. To complete the setting, press the (+) or (-) button until [FINSH] appears in the display. Then press OK to complete the programming.34

Note: To save the settings made, always press the OK button. A maximum of 8 heating periods can be programmed for one program. After the manual setting for the weekly timer is completed, the selected program will overwrite the default preset values.

RESTORE DEVICE TO FACTORY DEFAULT

SETTINGS Disconnect the device for at least 5 seconds, and then reconnect it to restore factory defaults.

Note: Do not open the device. Repairs may only be carried out by qualied personnel. Always switch off the appliance before cleaning and caring for the device. Glass cleaning Over time, the glass pane can become dirty or dusty. Dust can be removed by gently rubbing the glass surface with a clean, lint-free cloth or paper towel. To remove ngerprints or other marks, use a soft, damp, lint-free cloth with a high-quality household glass cleaner. The glass should always be completely dried after cleaning with a lint-free cloth or paper towel. Note: Do not use abrasives on the glass. Do not spray liquids directly on the surface of the appliance! Storage Disconnect the device from the power socket when not in use and store it in a dry, dust- free location.35

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom37
