Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

These Tabelle gilt fur den Markt China.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

These Tabelle gilt fur den Markt China.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
• products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
• The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product's page on Hilti's website. To do this, follow the link or scan the QR code in this documentation, marked with the symbol
• Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER !

Draws attention to imminent danger that will lead to serious personal injury or fatality.

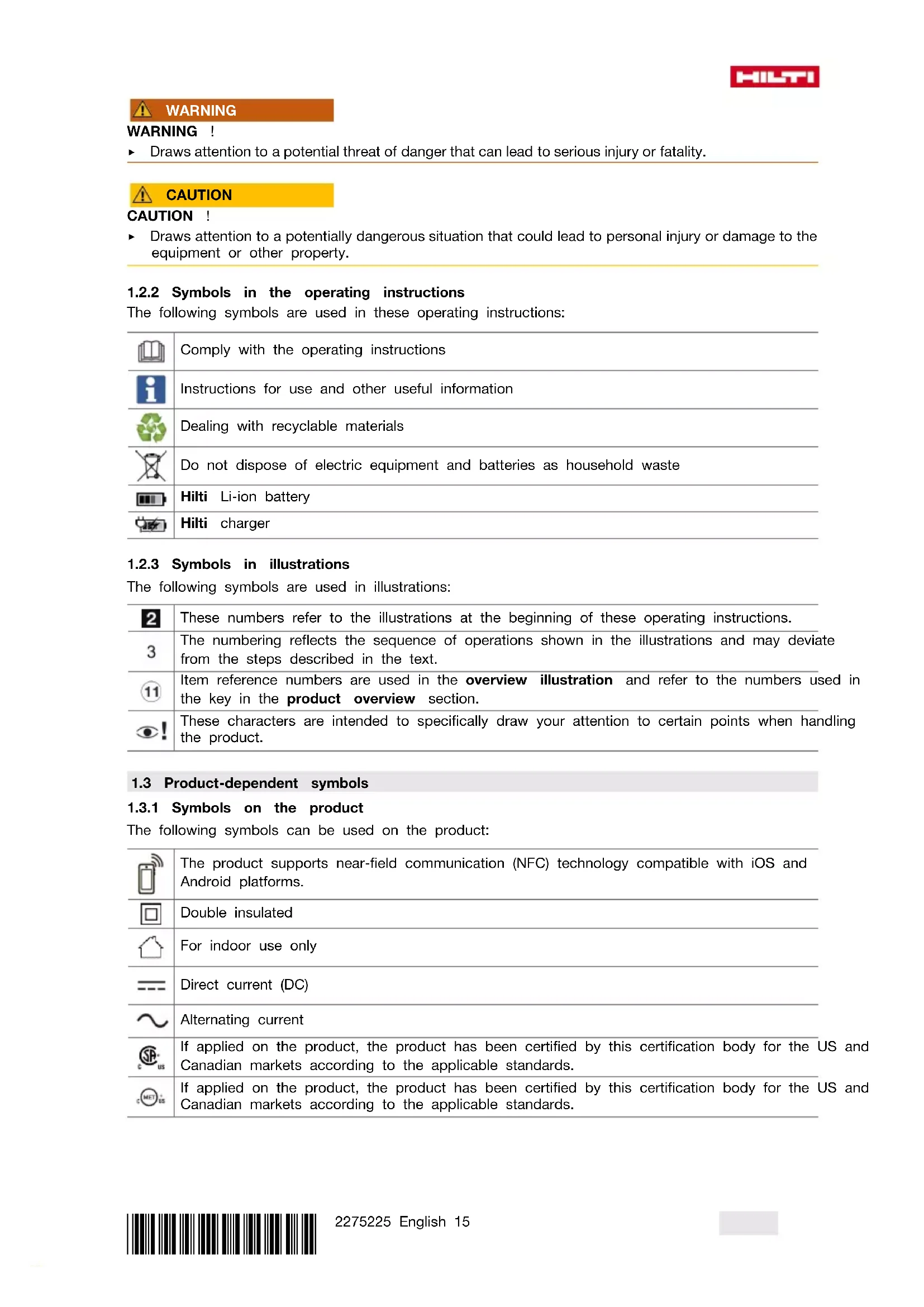

WARNING

WARNING

Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION！

Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

These numbers refer to the illustrations at the beginning of these operating instructions.

The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text.

Item reference numbers are used in the overview illustration and refer to the numbers used in the key in the product overview section.

These characters are intended to specifically draw your attention to certain points when handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.

Double insulated

For indoor use only

Direct current (DC)

Alternating current

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

2.1 General safety instructions

WARNING Study all safety instructions and other instructions, images and technical data with which this power tool is provided. Failure to observe the instructions below can result in electric shock, fire and/or serious injury.

Keep all safety instructions and instructions for future reference.

• Persons (including children) with reduced physical, sensory or mental abilities or lack of experience and knowledge are not permitted to use this product.
  Do not allow children to play with the product.
  Install the charger in such a way that a battery inserted into it cannot fall out.

2.2 Battery charger use and care

To avoid injury, use the charger only to charge Hilti Li-ion batteries approved for use with this charger.
The location at which the charger is used should be clean, cool, dry and protected from frost.
- The charger must be able to emit heat while in operation. The air vents must therefore remain unobstructed. Do not operate the charger inside a closed container.
- Maintain the product carefully. Make sure that no parts are broken or damaged in such a way that the product no longer functions correctly. If parts are damaged or broken, have the product repaired prior to further use.
- Use chargers and the corresponding batteries in accordance with these instructions and as is specified for this particular model. Use of chargers for applications different from those intended could result in hazardous situations.
- Recharge the batteries only with the chargers specified by the manufacturer. A charger that is suitable for a certain type of battery may present a risk of fire when used with other types of battery.
- When not in use, keep the battery and the charger away from paper clips, coins, keys, nails, screws or other small metal objects that could cause a short circuit at the battery terminals or the charging contacts. A short circuit between the battery terminals or charging contacts may cause injuries (burns) and result in fire.
- Do not store the battery on the charger. Always remove the battery from the charger when the charging operation has completed.

2.3 Careful handling and use of batteries

Comply with the following safety instructions for the safe handling and use of Li-ion batteries.
Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
Use only batteries that are in perfect working order.
- Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
Do not under any circumstances modify or tamper with batteries!
Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^ (176 F).
- Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
- Never use recycled or repaired batteries.
- Never use the battery or a battery-operated power tool as a striking tool.
- Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
- Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
- Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
- Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
Do not use or store the battery in explosive environments.

If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries. Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

3 Description

3.1 Product overview

① Battery
② Battery status indicator
③ Battery release button
④ Charger operating status indicator
⑤ Holes for wall-mounting
6 Air exit
⑦ Air intake
⑧ Battery interface

3.2 Intended use

The product described is a portable battery charger for Hilti Li-ion batteries with a rated voltage of 21.6 volts. It is designed to be connected to power outlets providing an AC (alternating current) voltage of 100 to 127 volts or 220 to 240 volts (depending on country-specific version).

The charger can be set on a flat surface or mounted on the wall.

• The Hilti Li-ion batteries approved for use with this product can be found in this list.
• Not all batteries are available in all markets.

Product information

Charger C 6-22 | C 8-22
Generation 01
Serial no. 1 - 9999999999999

3.3 Operating status indicator of the charger

Status Meaning
LED shows green. Charger is ready for use.
LED doesn’t light.	Charger is not ready for use.

3.4 Status indicators of the Li-ion battery during charging

When a Hilti Nuron Li-ion battery is connected to a Hilti charger, the status indicator of the battery shows the state of charge and also fault messages, if applicable.

Status Meaning
One (1) LED slow-flashes green	The battery is being charged, state of charge: ≤ 20 %
One (1) LED shows green, one (1) LED slow-flas green	The battery is being charged, state of charge: 21 % to 40 %
Two (2) LEDs show green, one (1) LED slow-flas green	The battery is being charged, state of charge: 41 % to 60 %
Three (3) LEDs show green, one (1) LED slow-flashes green	The battery is being charged, state of charge: 61 % to 80 %
Four (4) LEDs show green The battery is being charged, state of charge: ≥ 80 %
No LED showing The battery is fully charged, charging has ended.
One (1) LED quick-flashes yellow, then one or more LEDs show green	Charging interrupted. The battery might be outside the permissible temperature range. Charging resumes automatically as soon as the applicable parameters return to specification. If necessary, bring the battery to the recommended charging temperature.
One (1) LED quick-flashes red The Li-ion battery	is locked and cannot be used. Consult Hilti Service.

3.5 Indicators showing the state of health of the Li-ion battery

Hilti recommends checking the state of health of the Li-ion battery every time before charging.

To check the battery's state of health, press the release button of the battery and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one (1) LED showing constantly green.	The battery can remain in use.
All LEDs show in sequence, followed by one (1) LED quick-flashing yellow.	The check to ascertain the battery's state of head did not complete. Repeat the procedure, or consult Hilti Service.
All LEDs show in sequence, followed by one (1) LED showing constantly red.	If a connected product can still be used, the remaining battery capacity is below 50%. If a connected product can no longer be used, the battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

3.6 Items supplied

Charger, operating instructions.

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

4 Technical data

	C 6-22 C 8-22
Weight in accordance with EPTA Pro dure 01	Pro84 kg(1.852 lb)	1.45 kg(3.197 lb)
Rated output voltage	10.8 V ... 21.6 V 10.8 V ...	21.6 V
Maximum output power	240 W 450 W
Storage temperature	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)
Ambient temperature for operation	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)

WARNING

A damaged supply cord presents a hazard! If the supply cord or extension cord is damaged while work is in progress, immediately disconnect the product and the cord from the electricity supply. Do not touch the damaged part of the cord!

Regularly check all supply cords.
Replace defective extension cords.
- Otherwise, contact Hilti Service.

Use of a ground fault circuit interrupter (residual current device, RCD) with a maximum tripping current of 30mA is recommended.

5.1 Switching on charger and charging battery

WARNING

Explosion hazard if any attempt is made to charge unapproved batteries. Injuries and damage to the charger can result.

• Do not attempt to charge non-rechargeable batteries.
  Use only Hilti-approved batteries with this charger.

CAUTION

Short-circuit due to moisture or dampness Damage to the product is the result.

Use the product only indoors.
- Keep the product away from moisture and dampness.

1. Plug the supply cord into the power outlet.
   The LED shows green.

2. Engage the battery on the battery interface.
   The battery is charging.

3. When the battery is fully charged, remove it from the charger.

6 Care and maintenance

WARNING

Electric shock hazard! Attempting care and maintenance with the supply cord connected to a power outlet can lead to severe injury and burns.

Always unplug the supply cord before carrying out care and maintenance tasks.

Care

• Carefully remove stubborn dirt from the tool.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as they can attack the plastic parts.

Maintenance

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service.
  After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.

To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

DANGER

Risk of injury! Risk of electric shock.

The product may be serviced and repaired only by authorized, trained personnel! This personnel must be specially informed of any possible hazards.

If it is damaged, the supply cord has to be replaced.

Comply with the country-specific regulations for electrical safety.

1. Unplug the charger's supply cord from the power outlet.
2. Pull the rubberized foot out of the cover and remove the securing screw exposed by removal of the rubberized foot.

Materials

Torx screwdriver T10

1. Flip the cover open.
2. Take a photo or draw a sketch so that you will be able to recall the routing and conductor-to-terminal assignment of the supply cord.
3. Carefully depress one of the terminal clips with a flat screwdriver to release the conductor. Disengage the conductor from the terminal clip. Repeat this step for the second conductor and then remove the faulty power cord.
4. Install the new supply cord. Depress one terminal clip with a flat screwdriver and insert the end of the conductor into the terminal clip. Release the terminal clip and check that the conductor is secure in the terminal clip. Repeat this step for the second conductor.

Materials

Supply cord C 6-22

2289588 (EU, 220-240V)
2289589 (US, 110-120V)
2289910 (GB, 220-240V)
2300624 (GB, 100-120V)
2289911 (KR, 220-240V)
2289912 (RU, 220-240V)
2289914 (JP, 100-120V)
2289915 (AUS 220-240V)
2289916 (TW, 100-120V)
2300625 (CH, 220-240V)

Supply cord C 8-22
2289589 (US, 110-120V)
2289910 (GB, 220-240V)
2300624 (GB, 100-120V)
2289912 (EU, KR, RU, 220-240V)
2289913 (BR, 220-240V)
2289914 (JP, 100-120V)
2289915 (AUS 220-240V)
2289916 (TW, 100-120V)
2289917 (ARG, 220-240V)
2300625 (CH, 220-240V)

Select the supply cord of a type suitable for use with this charger from this table or contact Hilti Service.

1. Seat the supply cord in the cable guide exactly as the original cable was routed prior to replacement. Use the photo taken beforehand or the sketch you drew as reference.

2. Flip the cover closed and re-install the securing screw.

3. Push the rubberized foot back into the cover.
4. Plug the supply cord into a power outlet and check that the charger is in full working order.

LED shows: Charger is in full working order.
LED does not light up: Charger is not in full working order.

Contact Hilti Service.

7 Transport and storage

Transport

Make sure that the equipment is held securely throughout all transport operations.
After transporting, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

Storage

Always store this product with the electric supply cable unplugged from the electricity supply.
- Store this product in a dry place, where it cannot be accessed by children or unauthorized persons.
After a long period of storage, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

8 Troubleshooting

If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, contact Hilti Service.

Malfunction Possible cause	Action to be taken
LED doesn't light. Supply cord	rd not connected to elec-tricity supply.	Plug the supply cord into the power outlet.
	Product malfunction. Unplug the product and then plug it back in. If the LED remains off, consult Hilti Service.
	Supply cord faulty.	Replace the supply cord.→page 20
	The charger is defective.	Have the product repaired by Hilti Service.

9 Disposal

Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.

• Do not dispose of power tools, electronic equipment or batteries as household waste!

10 FCC statement (applicable in US) / IC statement (applicable in Canada)

This device complies with Part 15 of the FCC Rules and RSS-210 of IC. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

11 Manufacturer's warranty

Please contact your local Hilti representative if you have questions about the warranty conditions.

C 6-22 (01)

RoHS (Restriction of Hazardous Substances)

根据 SJ/T 11364-2014 的有害物质材料披露
Hazardous substances material disclosure according to SJ/T 11364-2014
Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

This table is valid for the China market.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

C 8-22 (01)

RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

This table is valid for the China market.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition。備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence。備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

13 Hilti Li-ion batteries

Instructions for safety and use

This documentation uses the term battery to describe rechargeable Hilti Li-ion battery packs containing several Li-ion cells joined together. These batteries are to be used in Hilti power tools exclusively. Use only genuine Hilti batteries!

Description

Hilti batteries have cell-management and cell-protection systems.

The batteries are composed of cells that contain lithium-ion storage materials capable of providing high specific energy density. Li-ion cells have a minimal memory effect, but they are very susceptible to external impact, deep discharge, and high temperatures.

The products approved for use with Hilti batteries can be found in your Hilti Store or at: www.hilti.group

Safety

Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
- Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
Do not under any circumstances modify or tamper with batteries!
Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^
- Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
- Never use recycled or repaired batteries.

HILTI

• Never use the battery or a battery-operated power tool as a striking tool.
• Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
• Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
• Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.
  If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Follow the instructions in the section headed What to do in case of a battery fire.

What to do in case of damaged batteries

Always contact Hilti when a battery is damaged.
- Never use a battery that is leaking fluid.
- Avoid direct eye and/or skin contact with fluid leaking from a battery. Always wear protective gloves and eye protection when undertaking tasks involving battery fluid.
- Use a chemical spill cleanup kit to remove leaked battery fluid. Comply with the locally applicable cleanup regulations for battery fluid.
To store a damaged battery, place the battery in a non-flammable container and cover the battery with dry sand, chalk powder (CaCO3) or silicate (Vermiculite). Then seal the lid air-tight and store the container away from flammable gases, liquids or objects.
- Dispos of the container at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

What to do in case of dysfunctional batteries

• Watch for abnormal battery behavior, such as faulty charging, unusually long charging times, noticeable power loss, unusual LED activity, or leaking fluids. These are signs of an internal problem.
  If you suspect an internal battery problem, contact Hilti Service.
  A battery that no longer works, cannot be recharged or leaks fluid has to be disposed of correctly. See the section headed Maintenance and disposal.

What to do in case of a battery fire

WARNING

Battery fire hazard! A burning battery releases hazardous and potentially explosive liquids and fumes that can lead to corrosion injuries, burns or explosions.

Wear your personal protective equipment when you tackle a battery fire.

• Provide sufficient venting to permit hazardous and potentially explosive fumes to escape.
• Leave the room immediately in case of intense smoke emission.
• Consult a doctor in case of any skin or respiratory irritation.
• Alert the fire service before you start tackling the fire.
• Use only water to tackle a battery fire and keep as far from the fire as effective extinguishing permits. Powder fire extinguishers and fire blankets are ineffective with Li-ion batteries. Fire in nearby materials can be extinguished with appropriate extinguishing agents.
• Do not try to move large quantities of burning batteries. Instead, isolate the batteries by removing unaffected materials from the immediate vicinity.

In the case of a battery that does not cool down, or a smoking or burning battery:

• Scoop the battery up with a shovel and drop it into a bucket of water, which will reduce the risk of igniting adjacent cells that have not yet reached run-away temperature.
  Leave the battery in the bucket for at least 24 hours until it has cooled down completely.
  See the section headed What to do in case of damaged batteries.

Shipping and storage

• Ambient operating temperature to be kept between -17^ and +60^ / 1^ and 140^ .
  Storage temperature to be kept between -20^ and +40^ / - 4^ and 104^ .

• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.

• Store batteries in a cool and dry place. Cool storage will increase battery life. Never store batteries where they are exposed to direct sunlight, on sources of heat or behind glass.

• Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.
• Never transport batteries in bulk form (loose, unprotected). During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.

Maintenance and disposal

• Keep the battery free of oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry rag.
• Never use a battery with clogged ventilation slots. Clean the ventilation slots carefully using a dry, soft brush.
  Prevent unnecessary exposure of the battery to dust or debris and never subject the battery to soaking moisture (e.g., submerged in water or left out in the rain).
  If a battery is exposed to soaking moisture, treat it as a damaged battery and isolate it in a non-flammable container.

See the section headed What to do in case of damaged batteries.

• Improper disposal may cause health hazards from leaking gases or fluids. Dispos of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!
• Do not dispose of batteries as household waste.
• Dispose of your battery out of the reach of children. Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

4 Characteristicas techniques

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%" 及 "超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products:C6-2201

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Lader, brugsanvising.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Denne tabel gelder kun for markedet Taiwan.

13 Hilti Li-lon-batterier

Kontakta Hilti-service.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Denna tabell gäller für den taiwanesiska marknaden.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Denna tabell gäller für den taiwanesiska marknaden.

13 Hilti-litiumjonbatterier

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

13 Hilti Li-lon-batterier

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Šī tabula attiecas uz Kinas tirgu.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

Sī tabula attiecas uz Taivānas tirgu.

C 8-22 (01)

RoHS (direktiva par bistamo vielu izmantošanas ierobežošanu)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Šī tabula attiecas uz Kinas tirgu.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Ši tabula attiecas uz Taivanas tirgu.

13 Hilti litija jonu akumulatori

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

Si lentele galoja Taivano rinkai.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Si lentele galoja Taivano rinkai.

13 Hilti ličio jonu akumuliatoriali

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury(Hg)	镉Cadmium(Cd)	六价铬HexavalentChromium(Cr (VI))	多溴联苯Polybrominatedbiphenyls (PBB)	多溴二苯醚Polybrominatedbiphenyletherts(PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號（型式）： Type designation:	C 6-22 01
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品 (PCB) Electronics (PCBs)	-	0	0	0	0	0
螺紋 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. “超出0.1wt%”及“超出0.01wt%”像指限用物質之百分比含量超出百分比含量基準值。 Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: “○” indicates that the percentage contain of the restricted substance does not exceed the percentage of reference value of presence. 備考3. “-”係指該項限用物質為排除項目。 Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pro trh na Tchaj-wanu.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%" 及"超出0.01wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pro trh na Tchaj-wanu.

13 Lithium-iontoy akumulator Hilti

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Tato tabulka plati pre trh Ciny.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Tato tabul'ka plati pre trh Taiwanu.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Products: C8-22 01

Product type: Battery Charger

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Tato tabulka plati pre trh Ciny.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pre trh Taiwanu.

Hilti litium-ion akku

Hilti toltokszulek

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. “超出0.1wt %”及“超出0.01wt %”像指限用物質之百分比含量超出百分比含量基準值。Note 1: “Exceeding 0.1wt.%and exceeding 0.01wt %” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “o” - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. “-”係指該項限用物質為排除項目。Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號（型式）： Type designation:	C 6-22 01
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品 (PCB) Electronics (PCBs)	-	0	0	0	0	0
螺鈕 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. “超出0.1wt%”及“超出0.01wt%”像指限用物質之百分比含量超出百分比含量基準值。 Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: “○” indicates that the percentage contain of the restricted substance does not exceed the percentage of reference value of presence. 備考3. “-”係指該項限用物質為排除項目。 Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko trziste.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko trziste.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tabelu vazi za trziste Kine.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition。備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence。備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

1.1 K HactoIeMy pyKOBoIDCTBy no 3KcnIyatauH

EAC

HmnpTeP n ynoJHMOeHHa H3rOToBHTeJIem OprAHn3aun

(RU) Pocsncka Phedepaun AO "XnITI DnCTpn6bHn JTT", 141402, MockOBcka oBnaCTb, r. XmKn, yI. JeHHrpaDcKa, cTp. 25, KOMhata 15.26
(BY) Pecny6nka Benapycb HOOO "XuTTi BuYa", 222750, MnHcKa o6laCTb,ДзeprKHHcKm paOH, P-1, 18-н KM, 2 (okoLo d. Cno6oJa), nomeueHne 1-34
(KZ) Pecny6nka Ka3axctan
TOO "XInn Ka3axCTaH", 050057, r. AnMaTbI, BoCTaHDbIKcKn paOH, yI. TmNp3eBa, dom 42/15, nItep
012 (kopnyc15)
- (AM) Pecny6nka Apmehn OOO "3H4-KOH", 0070, r. EpeBaH, yI. EpBaHaJa Koyapa 19/28

CtpaHa npOn3BOcTBA: CM. MapKnpoBOOHyTO Ta6JNUKy Ha o6OpdyoBaHm.

Iata npo3BOcTBa: CM. MapKnpoBocHyu Ta6nHy Ha obOpdyBaHIn.

COOTBeTCTByIOUcHn cepTHNkAaMOnKHO HaHTn no aDpecy: www.hilti.ru

CneunalbHbIX Tpe6oBaHn K yCIOBnM XpaHeHH, TpaHCnOpTnpOBKn HcNoJIb3OBAHH, KpOME yKa3aHHbIX B pykoBOdCTBe NO 3KcPnyaTaUN, HeT.

Cpok cnjx6bI n3dennn COCTaBnHET 5 net.

HILTI

• IpeynpeKdHne! Npeid nCnoB3ObaHnem n3denny y6eHntecb B TOM, qTO Bbl noNHOCTbIO h3ynnn npnaeraMOE K HeMy pyKOBOcTBO NO 3KcNpyaTuIN, BKIOUaR npNBOHMble TaM INHCTpyKcN, yKa3aHHn NO texHnke 6e3oNaCHOCTHn INpeynpeXdHn, INIIOCTpaunn INTexHnueckn XapaKtepnCTn. B qactHOCTn, O3HaKOMbTEcB CO BCEMN INHCTpyKcNAM, yKa3AHmN NO texHnke 6e3oNaCHOCTHn INpeynpeKdEHnMn INIIOCTpaunm, TexHnueckmXapaKtepnCTkAmn, a TAKKe KOMNoHEHTamn INyHKuYMaH. HecobJIODeHne 3TNX TpeBOaHm MoKeT pNBeCTn K nopAKeHHIO 3JeKTPnuEckm TOKOM, BO3rOpAHNO n/Inn Cepbe3hIM TpaBMam. XpaHnTe pyKOBOcTBO NO 3KcNpyaTuIN, BKIOUaR BCE INHCTpyKcN, yKa3AHn NO texHnke 6e3oNaCHOCTHn INpeynpeXdHn, DJI INocLeDyUoCEr IO cNoJIb3OBAHn.
• 13dennn npedhaeHb I nI npoceccnoHaBHO r cnoB3OBaHna, POToM y OH DoJHHb 06cnykBaTbca n peMOHTnpoBaTbCra TOnbKO yNoHOMOeHHbIM u OByeHHbIM nepcoHAnOM. 3TO T nepcoHaJDoJIKeHNpOHTncneuaHBHyHnCTpyKtaXnke 6e3oNacHocTH. HcNoB3OBaHne n3deHn H erO oChactKn He no Ha3NaueHIO nH erO 3KcPiyaTaunr HeoBuYeHHbIM nepcoHAnOM MOryt npedctabTb OnaCHOCTb.
• Пилагаиме руковдъго по окплугатуци COOTBECTByeТ урOBHIO TeXHHueCKOrO nporpecca Ha MOMENT cdaчи B neaTb. Aktyальня Версь BA CERda DOCTynHа ржIMe OHLaHn HA Be6-caTe Hlti C onHcAHem n3dJIЯ. Дяг STORO pepeYIte no CcbJIke nIN QR-KOy, пивODIMbIM B HactoIeM rykuBoDCTBe NO OKcPnyatauC o6O3HaueHEm CMMBOLOM
• Ppi CmeHe Bnaedbua 6ra3aTeIbHo npepaBaiTe HactoIuee pyKOBOdCTBO NO 3KcPiyaTauN INMeCTe Cn3deHnEM.

1.2 IORcHHeNk 3HaKaM

1.2.1 Ppeynpejkaoune yka3aHn

PpeynpeKdaOuIe yka3AHn Cnykat nI npEynpeKdHn O6 onachoctx npn o6paueHH c H3dennm. IcnoJIb3yOTc cIeMyoUne cnHaJIbHbIe cNoBa:

ONACHO

ONACHO！

O6uee 063haeHHe HnocpeCTBeHHo ONaCHO CHTyaun, KOtopa BneyET 3a co6oTae TpaBmblnn Cmeptelhny nCXoJ.

PENyPExDHeH

PNEyIPEKDEHNE！

Ooue o03aHene noTeuaHbNo onaHcHn cTuauH, KOtOpA MoKet NOBneu 3a cooTae TpaBMblnn CMepeIbHbIn HCxOd.

OCTOPOXHO

OCTOPOXHO！

Obuee 063Haene noteHuaJIbHO OaCHO CnTuayuIN, KOtOpAR MoKet NOBHe 3a Co6oTpaBMblnn NobpeKeHne 6OpyDoBaHN (MATEpHaJIbHbI yUep6).

1.2.2 CnMBOJbl, HcNoJIb3yeMbIe B pyKOBODCTBE

B 3TOM pyKOBODCTBe HcNoJIb3yIOTc CNeIyIOUHe CNMBOJIb:

Co6nOaTb pyKoBOcTBo nO 3Kcnnyatau

Yka3aHnno 3Kcnnyatauun n pyraonone3na HOpMaun

O6paueHHe c MaTePnAnaMn, npiroDhbIM nIa BToPnHOn nepepa60TK

He BbI6paBbAaTe 3JIeKtpOnHcTpymEnTbI n aKKyMylrTopbI BmEcTe C o6bIHybIM MycopOM!

Hilti NHTN-NOHHbAaKcMyIaTOp (Li-Ion)

3apraHoe ycTpoCtBO Hilti

1.2.3 CnMBoJIbI Ha H3o6paJxHnIX

Ha n3o6paXeHHAX HcNoJIb3yIOTc CJeIyUOJIne cHMBOJIbI:

3.3 HndnkaTop pa6oery coctoHHa 3apHOrO yctpoCTBa

Соctаянке 3начениe
Сbvетонд горот зеленьм. 3арандhoe устристvo	roTOBO K pa6OTE.
Сbvетонд не ророт. 3арандhoe устристvo He	roTOBO K pa6OTE.

3.4 INHnKaun COCToHHN JNTn-HOHHO AKKymJrTopa BO BpeM 3apAkn

Pn noKluHnn HnH-nHOHorO aKKymyIaTopa Hlti Nuron K 3apdHomy ycTpoCTBy Hilti nHdkatop COCTOHHN aKKymyIaTopa NOKa3bIbae typoBeHb 3apda n BO3MOKhbie CnHaJIb OUn6Kn.

3.5 INHnKauncoCToHHN JHTn-HOHHOaKKymyIaTOPa

Hilti peKOMeHdyET npOBeprTb ypoBeHb 3apraJa IHTn-NOHOro aKKyMyIaTopa nepei KaJdbIM npOceCCOM 3apAdkn.

I3a 3anpoca coctoHHn aKymyIaTopa ydePKBaTe KONky de6nokpOBKn HaKaToi 6Oone 3 c. CnCTema He paCno3Haet noteHuaNBHOe HApUWeHne pa60tby aKKymyIaTOpHoi 6aTapen BCJeDCTBne HnPaBnBHoro 6bpaueHn, HApPIMep, NaDeHn, npOKoNob, BHeuHero TepMnueckoro Bo3dEChTBn I T. d.

CBeToOnIOrROPIT:3apArdHoe yCTpoiCTBO pa60taET nCnpaBHO.
CBeToaNoHe rOpnt: 3apAnHoe yctpoiCTBO pa6oTaet co c6oRMn.

CBAKHTecb c cepBnCHo Cnyk60H Hilti.

7 TpaHcnpTnpoBka n xpaHeHne

TpaHcnoptnpOBka

Y6eHNTecb B HAdEeKHOI KCaUNn npTpaHCnOpTnPoBKe.
Pocne KaKdoTpaHcnpOpBn npOBepaTe BCE BnIMbIe qactN 3JeKtpOnHCTpyMeHTa Ha OTCyTCTBNE NOBpeKeHn, a 3JeMeNTbI ynpabHeHn — Ha NcnpaBHOe FyHKUHOHPOBaHne.

XpaHeHne

XpaHnTe 3OT 3JIeKTPoHHCTpymENT BcERda C BBHyToB BnIKo Ka6eJra 3JIeKTPoHHaHa.
XpaHnTe 3OT 3JIeKTPoIHCTpyMeHT B cyxOM H HeOCTyINHom IJIa DeTei N dpYnx Niu, He DOnyUeHHbIX K pa6oTe, MeCte.
-ПослдпinteHOrO xpaHeHnI npOBepHte Bce BnIMbIe YactN 3JIeKTPoIHCTpyMeHTa Ha OTCyTCTBne NOBpeKdEHH, a 3JIeMeHtbl ynpaBHeHH — Ha NCpPaBHoe FyHKUHOHPOBaHne.

8 POMOUIB npH HeHCnpaBHOCTAX

B cnyuae HenncnpabHocte, KOtOpbIe He yka3aHb I B 3ToI Ta6nue nN KOTOpbIe Bbl He MoKTe yCTpaHITb camOCToTEnbHO, O6paauaTeCb B 6nKaun CepBnchbl ceHTp Hilti.

HéncnPabHocTb Bo3mOJHnA	πρηνηNa PešeHnE
СbvToIod He ropit. Bvlnka	КабелЯ эл ektrponItaHnA He ПоdklIouHeA.	Вставы Тьлку Кабеля эл ek- trponItaHnB розету эл ektrpo- cetn.
	HéncPabHocTb yctroiCtBa.	ОчединTe yctroiCtBO n сюва посоединTe erO. Если посе отого с被告пд нe загорITс, образитсь в серВись的一个НТр Hilti.
	Кабеля эл ektrponItaHnA Heicnpa- ВeH.	ЗаменITE Кабеля эл ektrponIta- нЯ. → оравица 286
	Зарадhoe yctroiCtBO Heicnpa- Но.	Сдаite yctroiCtBO дlya pe- moNTa в серВись的一个НТр Hilti.

9 YTHNJH3aquH

BolbHnHCTBO MaTePnaIOB, n3 KOTOpbIX n3ROTOBHeHbI eNeKTPoHNCTpyMeHTbl Hilti, NOJIeJHIT BTOpHOn nepepa60Ke. PepeyTnIn3auney CneDyET TuaTeNbHO paccOpTHPOBaTb MaTePnaJIb (dIy yO6CTBa Ix nocJeYIOUe nepepa60TK). Bo MHorNt cTpaHax fnpMa Hilti yKe opraH3OBaI npHem CTapbIX (3JeKtpo) INCHTpymEHTOB (n3deIIN) dIy Tynn3aun. DOnONHtEnbHyIO NHΦOPMaUnIO no 3TOMy BONPOCy MOJHO nOlyuHTB B OTDeIe No O6CnUyKNaBHnO KIneHTOB mIy y KOHCyIbTaHTOB no npOdaJAm fIpMbI Hilti.

He BbIbpaCbBaIte 3JIeKTpHueCKne INHCTpyMeHTbl, 3JIeKTpOHHbIe yCTpOINCTBa/InpH6Opbl n AKKMyIITOPbBMEcTe C O6bUHbIM Mycopom!

10 DieklapauncooTBeTCTBnFCC/IC

3Ta MaunHa n3roTOBHeA B COOTBeCTBn C naparpaΦom 15 cTaNapTa FCC n RSS-210 IC. Pn 3KcnnyatauH Heo6xOAnMo Co6NIOaTb Dba ycNoBn:

1. Pa60Ta 3ToI MaunHbI He DoJIKHa Bbl3bBaTb HnKaKnx (napa3nTHbIX) NOMEX.
2. 3a MaunHa DoJHKHa nOrloaTb npHmMaembIe Nomexn, BKnIOyAra Te, KOToPbIe MOrYr npNBecTH K HapyuHeHHM B pa6Ote.

11 FapaHTnI npOn3BOJNTeJIa

C Bonpocamn no noBODy rapaHTnHbIX ycNoBn o6paaTeCB B 6nKaJee npedCTaBtEnbCTBO Hlti.

12 DOnonHHTeBHaN HhOpMaun

C 6-22 (01)

RoHS (DnpekTbBa 06 orpaHneHH npHMeHn onachbix BeuecTB)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

3Ta TaBnua DeIcTBNTeBHa nna pbHka Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Ta Ta6nua DeiCTBnTeNbHa nPaBHka TaBaHra.

C 8-22 (01)

RoHS (DnpekTbBa 06 orpaHneHH npHMeHn onachbix BeuecTB)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

3Ta TaBnua DeIcTBNTeBHa nna pbHka Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta Ta6nua DeiCTBnTeBHa dIpaHka TaBaHa.

13 NHTH-NOHHbIe aKKyMyJrTOpbI Hilti

Yka3aHHn no TexHnke 6e30nachOCTn n HcNoJb3OBaHHIO

B 3OM DoKymHe TepMHN «aKKMyJnTOp» IcNoIb3yETcI dIe NOD3apAkaEMbIX IITNI-NOHbIX aKKMyJnTOpob HIti, coCToHux n3 MHOxEcTBa IITNI-NOHHbIX 3IeMeHTOB (ryeek). OHI npEJa3HaueHbI dIe 3NeKTPOHNCTpyMeHTOB HIti n DOJIxHbI IcNoIb3ObaTbcra ToIbKO c HIMN. IcNoIb3yTe ToIbKO opINHahNbHbIe aKKMyJnTOpbl HIti!

OncanHe

AkkymyIaTOpbHilt OchaueHcNCTeMaMn ynpaBHeHH N 3aunTu aKKMyIaTOphbx 3JeMeHTOB.

AkkymyantopbI COCToT I3 NITN-NOHHbIX aKKMyaTOpHbIX (HaKONNTeJIbHbIX) 3JeMeHTOB, KOTOpBie o6ecneYnBaOT BbICOKyO ydeJIbHyO IIIOTHOCtB 3HeprH. NITN-NOHHbIE 3JeMeHTbl IpaKTNUeCKn He IMeOT «3ΦΦeKTA NaMAtn', HO OHN OUYBcTBNTeJIbHbIK CINIOBBIM BO3DeJCTBnAM, rIy6OKOMy pa3pRy HIN BO3DeJCTBnBO BbICOKNX TEMNEpaTyp.

H3eHHa, donyueHHie K nCnOJIb3OBAHHc aKKymJrTOpamH Hilti cM. B Hilti Store nn Ha www.hilti.group

Be30nachoctb

Co6nIaTe cneDyUoHne yka3AHn no TexHHke 6e3OnacHO n4 6e3OnachOro o6paueHn HcNoJIb3OBaHnAHTN-HOHbIXaKKMyJATOpOB. XhEco6nIOJeHne MOKeTnpBecTH Kpa3dpaxKeHNrM KOHN, cepBe3HbIM TpaBMam, XMmUeCKm OKOrAM, BO3ropaHIO N/IN B3pbIBAm.
O6paaHTecb c aKKyMnyTOpAMN OCTOPOKHO, YTO6b He dOnyCTnB NOBpeKHeH N ppeDTBpaTnTB BixoJ XIKOCTei, npeCTaBnHOx Cepbe3HyOnaCHOCTb DnA 3DopOBBa!
Kateropueckn 3anpeuaeTcB HOCNTb N3MeHeHnB KOHCTpyKUHO aKKyMyrTOPOB NIN BbINOJIHTb HeDOnyCTMble MaHInyIaCn C HmN!

3aIpeaaetcpa36npaTb, cdaBnBaTb, HarpeBaTb do TemnepaTypb CBblwe 80 ^ C nnn CxNraTb aKKMy- JIATOpbl.
He nCnoJIb3yIte Hn He 3apJkaTe aKkyMylrTopbl, KOtOpble noDBepralncb MexaHueckm (ydapHbIM) Harpy3kAM Hn NOlyuHnIOBpeKdEHe KaKM-Im6o INbIM o6pa3OM. PeryIrpHO npOBepRte HcNoIb3yeMbIe BamN aKKMyIATOpbl Ha npn3HaKn NOBpeKdEHN.
Kateropnueckn 3anpeuaetc nCnoB30BaTb BOCCTaHOBJIeHHbIe aKKyMyJrTOpbl NIN aKKyMyJrTOpbl NOcne BTOPNH nepepa6oTK.
Kateropnueckn 3anpeaetcnaCNoIb3OBaTb aKKyMylrTop nIpaOtaUcne ot aKKyMylrTopa 3JeKTpoHHCTpyMeHTb B KaueCTBe ydapHOrn HCHTpymeHa.
▶ Kateropnueckn 3anpeaetcnoDBepraTb aKKyMnyTopb Bo3deNCTBIO npAMoro cOnHeHoro n3nyehn, BbICOKo TeMnepaTybl, NCKp HIN OTKpbITOrO pnaMeHN. 3TO MOKeT pNBecrN K B3pbIBaM.
He kacaTecb akKymIaTOpHbIX KJIeMM (nonIOcOB) naIbIaMn, pa6OuHM INHCTpyMeHTaMn, yKpaIeHNrMaMn IIN HbIMN TOKOpnoBOJauMn npEIMTaMn. 3To MOxH0 NOBpeHb aKKyMyIaTOp, a TaKKe pInBeCTN K MaTePnaIbHomy yUep6y n TpaBMam.
PpeOxApaHnTe aKcMylAToPbI OTdoXdI, NOBbIeHHo BnaKHOCTn JxNIOcTe.IpoHnKwA Bnara MoKeT npNBecTN K KOpOTKnM 3aMbikAHm, yDapam 3JIeKTpueeCKm TOKOM, OxKOrAm, BO3rOpAHIO nIN B3pblBaM.
HcnoIb3yIe TOnbKO dOnyueHHie Ia DaHHoro Tnna aKKymyIaTOPOB 3apAHyIbe yCTPOINCTpyMeHTb. Co6IIOdaTe yka3aHH, npHBODMbIE B COOTBEcTByOuIX pyKOBoDCTBax no 3Kcnnyataun.
He nCnoB3yIte HnH He xpaHnte aKKymyIaTOp BO B3pbIBOOnaChbIX 3oHaX.
CnIrkOM CnIbHb HArpeB aKKymJrTopa (TaKo, YTo Do Hero HeBO3MOxHO DToPOHyTcRy) yKa3bBaET Ha erO BO3MOxHyo HeNCpabNocTb. Pa3MeCTte aKKymJrTop Ha 6e3OnaChOM pacCTOHHN OT BOCnla-MeHHOzxCr MaTePnaIOB B XopoIo InpCMATpNAeMOM N NOkaOp6e3OnaChOM MeCTe. DaIte OCTbITb aKKymJrTopy. EcnI no nCTeHeHm OndHO rOu caca aKKymJrTop BCE eUe OCTaETcRA TAKIM TROPHM, YTO erO HeJIb3R B3rTB B pyKN, 3To O3Hauaet, YTo OH HeNCpABeH. CneDyIte yKa3aHHM B rJaBe Mepbl npn BO3ropaHH aKKymJrTopa.

Popraok DeHCTBn B cnyae NOBpeKdeHna aKKymyIATopoB

Bcerda obaaatae b CepBnchb yentp Hilti, ecn aKymyIaTOp noBpeKeH.
He nCnoB3yIte aKkymyIATOp, n3 KOTopO RO BbITEKaET 3neKTPOJNT.
H36eraTe nonadaHn BbTEkaHoIero 3neKtpoNtA B rna3a N/nn Ha Koxy. Ppr o6paueHN c 3neKtpoNtOM Bcerda HadeBaIte 3aunTHbIe nepuATKn 3aunTHbIe OUYKn.
-Дя удалень ВITEKшero 3neKtpoHNTa HcnoIb3yHTe pa3peWSeHHoe XIMNueCKOE YnCTraUee CpeDCTBO. Co6IIOdaIte MeCTHbe npednncAHn no ydaleHIO BITeKshero 3neKtpoHNTa.
-ПометиTe NOBpeKdEHHbI aKKyMylrTOp B NOxkapocToHKn KOHTeHep n 3acBInbTe aKKyMylrTOp cyXIM neckOM, MeIOBbIM NopoWkOM (CaCO3) nII IN CNIKKaTOM (BepMNkylntOM). 3aTeM nIOTHo 3akpoIte KpbIshKy I depKHTe KOHTeHep Ha 6e3Oanachom pacCToRHHn OT BOCnIaMeHraUHXc rA3OB, JHKoCTe nII IN PpeDMrTOB.
YtHn3npyTe KOHTeHepYepe3 Hilti Store nIbO6paTntecB CneuaJI3n3pOBaHHyIO KOMNaHIO NO yTHn3aun OTXoIDOB. Co6NJaTe MeCTHbIe npednncaHn no TpaHCnOpTnpoBke nobpeKJdeHHbIX aKKymyIATopoB!

Iopraok DeiCTBn npn Hepa6oTaIOxNx AKKymyIaTOpax

Obpaaatae BnMaHne Ha HeCTaHapTHoe NOBeHeHne aKcMyJrTopo, HApNMeP Oun6Kn np3apAKe, HepnBbUHO DoJIrOe Bpem 3apHKn, 3aMeTHOE CHNeHne MOuHocTn, HeSTaTHbIe Cpa6aTbIBaHHcBToIOHOH INDkaCmH Nn BbTEKaHne 3JeKTpoJnta. Bce 3TO yKa3bBaet Ha HAnuHne HncnPaBHOctTe BHyTpni AkKyMylrTopa.
EcnBb npednojaraete, yTo npo6nema CB3aHa C BHyTpHHei 6aTapee, o6paNTecb B cepBncbI ueHtp Hilti.
- EcInn aKKymyIaTOp 6oJIbWe He paOtaeT, 6oJIbWe He 3apJkaET cNn N3 Hero BblTeKaet 3JeKtpoIIT, yTHIN3npyIte TaKoi aKKymyIaTOp. Cm. rnaBy TexHnueckoe 06cnyKnbAHne n yTHIN3aQH.

MepbI B clyuae BO3ropaHn aKKymyTota

PNEyPENKDEHNE

OnachocTB BCJIeCTBHe BO3ropaHnA aKKymyIaTopa! N3 ropae aKKymyIaTOpHO 6aTapen BbIXoJr (B3pbIBO)ONACHbIE JNkIOCTn I napbl, KOtOpblc MOrY T pINBeCTN K NOBJIeHIO Kopp03nn, BO3ropaHnAM NII B3pblAm.

• Ppi TyuheHH aKKyMyIaTopa B clyuae ero BO3ropaHH noJIb3yIteCb cpeIcTBamn HINBnDyaIbHOH 3aunbl.
  OepeTe DoCTaTOHyIO BEHTINRAUIO IIN BO3MOKHOCTN yIeTyuBaHnB (B3pblBO)OnaChbIX napOB.
  Pn HHTeHCBHOM DbIMoO6pa3OBaHN HeMeIeHNO NOKINbTe NOMUeHHe.

HILTI

Bcnyae pa3paKeHHaBxATEbHbIX nyTe npOKHCyblnpyteCb C BpaOM.
BbI3OBHTe NOKapHyIO KOMaHdy, npEKeJe Yem Haayt b TyueHne NoXapa.
TyuTe 3aRopeBwHeeac aKkMyIITOpbToIbKO BoOo, HaxOJaCb OT Hx KaK MoXHo DaJIbWe. NcNoIb3OBAHne NopoWKOBbIX OrHeTuWInTeJe I npOTnIOBoxApHbIX NpONTeHN TUYeHHN JNTNI-HOHbIX aKKyMylrTOPOB B Cnyae IH X BO3ROPaHnHE RaJIeTcR 3ΦΦeKTINHBHIM. OuaRN BO3ROPaHn BOKpyr aKKyMyIATOPa MOKHO TyuHTb ObUHbIMn CpeCTBaMn.
He cIeNyET nbIaTbCn nepMeuataB 6oJIbWne KOJInueCTBa rOpAunx aKKyMylrTOPOB. YdaJIte HeNoBpeKJDeHHbIe MaTePnaJIbI, HaxOJaUncEeB HEnOcpeDCTBeHHoN 6JIN3OCTN OT BO3rOpAHN, YTObI TeM CaMbIMH3OJInpOBaTb 3aRopeBUnneCn aKKyMylrTOpbl.

Ecnn aKkymyIaTOp He octbIbaeT, DbIMHTcHn ropnt:

• POnHnMHTe aKkyMnyIaTOp c nOMoUbIIOJNaTbI n6pocBe erO B BeIpo C BoDoI. BnaIogapr OxlaKaIaKdAIOuEMy DeIcTBIO BObl npeIoTbPaauaTe rnepeKnDbBaHHe noXkapa Ha aKKyMnyIaTOpHbIe 3JeMeHTbl, KOTOpBle eue He DoCTnTIN KpnTHnueckO TEmnpaTybl, pni KOTOpONCxoDnT IN XBO3ropaHne.
  OCTaBbTe aKKMyJrTOp B KOHTeHHepe No MeHSeMepHa 24 u, noka OH nIOJIHOCTbU He OCTbIeH.
  CM. Nopraok DeiCTBn B Cnyae nobpeKdeHna aKKymyIaTOPOB.

Yka3aHH no TpaHCnOpTHpOBKe H XpaHeHHIO

Pa6ooya tempepatya BHeHne cpebl: ot-17 ^ C do +60^ /ot 1F do 140^
TeMnepaIpa xpaHEnHa: oT -20 ^ C do +40 ^ C / oT -4 F do 104 F.
He xpaHnte aKKyMnyIaTOPbHa 3apAaHOM yCTpoNCTBe. Iocne 3apAaBcERda H3BleKaTe aKKyMnyIaTOp n3 3apAaHoro yCTpoNCTBa.
IIO BO3MOXHOCTn XpaHnte aKKymyIaTOPbI B cyXOM n IpoxnaIahom MeCTe. XpaHeHne B npoxnaIahom NOMeueHHN yBeHnUHbaet cPOK cnJxK6bl aKKymyIaTOPa. HIKoRa He octabJIaTe aKKymyIaTOPbHa coHNc, Ha HarpeBaTeJIbHbIX/OTOnNIteJIbHbIX 3JeMeHTax INN 3a CTEKlOM.
3anpeaetcna nepecbIaNb aKymyIATOpbl no noTte. O6paTnTeCb B TpaHCnOpTHO-3KcnEduHNOHYo KOMNaHHO, ecN Bbl XOTnTE nepecbIb NOBpeKdEHHbe aKKymyIATOpbl.
Kateropnueckn 3anpeaetcra TpaHcnoptnpoBaTb aKKymyIATOpb63 ynaKOBKn (6ecTapHBIM cnocobom). Bo Bpemr TpaHcnoptnpoBKN HeoBXODIMO npHHaTb Mepbl NO 3aunte aKKymyIATOPOB OT CnIbHbIX yIapOB n Bn6paun H3OJIHPoBAbHX OT IIObIX TOKONPOBOAUX MaTePnaJIOB INN Dpynx aKKymyIATOPOB, YTObI He dOnyCTNTb IX KOHTAKTa C KJIeMMamn Dpynx aKKymyIATOPOB IN, KaK cNeIDCTBne 3TORO, KOPOTKO 3aMbKaHnRA. Co6nDaIte DeIcTBYUoune npedncaHnno TpaHcnoptnpoBKe aKKymyIATOPOB.

TexHnueckoe 06cIyKHBaHne n yTHIN3aun

AkkymyIaTOp DOJKeH 6bITb UcTbIM, 6e3 CneIOB MaCna HnN Jkpa. He dOnyckaTe NOBHeHn HEnyKHOI nblnn HnI rpa3n Ha aKKymyIaTope. OChCTnTe aKKymyIaTOp cyXoM MrgKoN KcTbIO nn ChCTOIN cyXO IN TKAHbIO.
3KcNpyataaayakkymyIaTopa c 3acopeHHbIMn BEHTNIAUHOHbIMn npope3mKaTeOpHueckn 3anpeHa!OctopoxKHO ouHCTne BeHTNIAUHOHbIe npope3n cyxO MrgkO uTeKoN.
3aunuate akkymyntop ot nonadahn BHytpb noctopoHHx qactn.
He donyckaIte nonadaHn BnaHn BHTpb aKymyIaTOPa. B npotNBHom cnyae o6paauTeCb C Hm KaK c NOBpeKdEHHbIM aKKMyIaTOpOM n H3OJIpyIe TaKoAkkymyIaTOp IyTeM erO pa3MeUeHn B noXkapocToiKOM KOHTHepe.

CM. NopAOK DeIcTBn B Cnyae NOBpeKDeHnA aKKMyJrTOPOB.

BcneDCTBnE BbIXoHa ra3OB Hnn KngKocTe npn HnnpaBnIbHO yTINH3aunn BO3MOxHa yrpo3a nla 3doPoBb. YtINH3npyu Te aKKyMynlTop uepe3 6nKaunn Hilti Store nn O6paTnTeCb B cneuaHn3npoBaHHyo FHPMy no yTINH3aunn. Co6NIOaJte MeCThble npeDncaHn no TpaHCnOpTnPoBke nobpeKdeHHbx aKKymyIaTOPOB!
He BbIbpaBbAaTe aKKyMnTOpbl BmecTe c ObuiHbIM MycopOM!
YtHn3pyte aKkymyIaTopbTaK, Tc06bI NCKIHOHTb INx NOnaHaHne B pyKn DeTei. 3aKpbBaTe aKkymyIaTOpHbIE KOHTaKTbI He IpOBOaIcM TOK MaTePnaIOM, Tc06bI N36eKaTb KOpOTKINx 3aMbkaHIn.

3.3 INdkaTop po6oOro cTany 3apHOrO npHcTpoH

Ka6eB JnBHeHn NOkOKeHn, NOro He0xIDHO 3AmHHTN.

Dotpmytec yHHnx y Baui KpaHi Bka3iBok 3 eJeKtpnuho6eNeKn.

1. BnMItb 3 po3eTkn 5tenceJIbHy BnIky 3apAHorO npHcTpoH.
   2.ДicTaHbTe rMoBaHy HIXKky 3 KpIuKn Ta BnKpyTITb KpiINbHN rBHT, RKn 3HaXoDntbcr NiD HeO.

Matepian

Bukpytka Tny TorxT10

1. BiikpnTe KpnuKy.
2. Cφotorpaφynte a6o HamaHouTe, ἀκ προκλaDeHην Ka6ebb KxNBJeHHa.

3. OepeKHO HATNCHTb Ha oINH i3 3aTnCKaivB 3a DOnOMoRO BnKpyTKN 3 PNOCKHM uLIcOM, uO6 BnBilbHNuDpiT. DiCTaHbTe dpit i3 3aTnCKaay. NOBtOpItb cIO onepaIIO dnn dpyrORo dpOTy, nicna Yoro Bi'edHaHte NoWkoJKeHm Kaebb BiD IHCTpymEHTa.

4. Ппсднайт Новий Кабел Киньгеля. 3a ДОПOMою ВИКуТи 3 ПLOСКИМ WЛICOM HaTCHITb Ha OДИH i3 3aTNCKaivib i BCTaBte B HbOro DpI. BiDnyCtIb 3aTNCKaiv i NepeKoHaNTEcR, lo DpI 3aKpinHeHn HaLEXKNHM YHOM. ПOBtopiT zu ONEpaIio DnA DpyrOTo DpoTy.

Materiel

Кабел Кинова С 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289911 (KR, 220-240V)

2289912 (RU, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2300625 (CH, 220-240V)

Кабел Кинова С 8-22

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289912 (EU, KR, RU, 220-240V)

2289913 (BR, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2289917 (ARG, 220-240V)

2300625 (CH, 220-240V)

Bn6epitb i3 uei Ta6nui Ka6enb XnBHeHHa, AKn NiIxDOnTb Do IHCTpyMeHTa, a6o 3BepHITbcra do cepbicHO CIyK6n KOMnai Hitti.

1. Ppoknaidtb Kaebj HnBneHHy Ka6epe npoBoDi TaKHM YHOM, Rk Bih 6yB npoknaedHn Do 3amHn. Y Kocti npNKnady ckopncTaTeC3po6leHm paHiue foto a6o pncyhkom.
2. 3akpnnte Kpnuky Ta 3akpyitb Kpinnbln rBHT Ha Miche.

3. 3HOBy BCTaBTe rMoBaHy HiKky y KpnIshKy.

4. YcTaBTe UTeNceIbHy BnKy B po3eTky Ta nepeBipTe, YI npaHoe 3apAHH npncTpH HaneJHHM YIHOM.

CbitnoioIopntb:3apHn npncptpi npaep HaneKHM YHOM.
CbitnoioiD He roputb: 3apHn npucpi npaue HehaeHHM YHOM.

3BepHItbcn do cepBicHo cnyx6n kOmnaHii Hilti.

7 TpaHcnpTyBaHH Ta 36epiraHH

TpaHcnoptyBaHH

HaHIO 3akPINHOte IHCTpyMeHT nID yac TpaHCnOpTyBaHHa.
- Picnra TpaHcnopTyBaHHI HCTpyMeHTa 3abKdn nepeBipRte yci Noro 3OBHIHi YactuHn Ha HaraBHicTb noWKoJKeHb, a opraHn KepyBaHH - Ha npedmet cnpaBHOi po6OtN.

36epiraHH

Ha yac 36epirahnIHcTpymeHTa3abKIN BnMaIte Ioro ITeNCEbHy BnIKy 3 po3etKn.
36epiraite hctpymEny cyxomy micu, HeoocTyHOMy dna Ite Ta cToPOHHix oci6.
Kuio hctpymert 3haxoDBcH a 36epiraHH npotraom TpBaIoro yacy, 3aBKnnepeBipnTe yci Ioro 30bHIiHi YactHH Ha HABHicTb NookoJKeHb, a OpraHH KepyBaHH - Ha npedmet cnpabHOi po6OTn.

8 Donomora y pa3i BHHKHeHH HecnpaBHOte

Y pa3i BnHnKHeHH HeCnpaBHOte, Aki He 3a3NaYeHi y ciI Ta6Nci a6o Aki Bn He MoKeTe nOlaRoHTn camocTiHo, 3BepHITbCdo cepBicHO CIyK6n KOMnAHII Hitti.

Hecnpabhnicb Moxlnba npnunna Piushnna
Світлodiod He ropntb. KaçььЖиВленнЯ He prinédнану винкуdo MepeşkiЖиВлення.	«Уставоштencьну винку KaçььMuЖиВленняВ розтук.
Hecnpabhnicb IncstpymeNTa. « BiD	«Едайе IncstpymeNT bIDMepeşkiЖиВлення, a notimprinédнaite яloro 3noby.Яksopoicnay zufoRcBtloiodNe3aogreTbcR, 3bernhitbcrdocepBicHOi clyjkbomkompanhiiHilti.
KaçььЖиВлення пошkondжeнni.	«Замініть KaçььЖиВлення.→ stcp. 301
Зap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3ap** 3AP

9 Ytunlaiai

BinbwcIb MaTepiab, 3 kKx BnroTOBHeIO IHCTpyMeHTN KOMNaHII Hlti, npdaTHI dR BTOpHHoI nepepo6Kn. NpeyMoBOIO dR IXhOoi BTOpHHOI nepepo6Kn E HaJeKHe copTyBaHnB iDxOJD 3a TINOM MaTepiay. Y 6aratbox KpaIHax CBity KOMNaHIR Hlti npHMaE CTapi IHCTpyMeHTN dR IXhOoi yTHJIzauii. Lio6 OTPMATN DoaTKOBY IHOpMaUIO 3 cBOrO nHTAHn, 3BeptaTecra do cepBicHOI cnyX6N KOMNaHII Hlti a6o do CBOROToproBOro KOHCyNbTaHTa.

He BnKndaTe eNeKTpoHcTpMeHTn, eNeKTPOHHi npHcTpoI ta akymyJIaTOPHi 6aTaapei y 6akn dna no6yToBOrO cMITT!

10 Dieknapaia BiiNobiHocTi npabnam FedepaIbHOI Komicii 3 paio3B'3ky (FCC) Dieknapaia BiiNobiHocTi npabnam MinictepctBa npomncIOBOcTi KaHaHN (IC)

Ley npictpi Bnpo6lenH 3riDHO 3 aactno 15 DeKnapaui npo BiNobidHicb BmOram FCC ta RSS-210 DeKnapaui npo BiNobidHicb BmOram IC. Eknnyataia yboro npictpoMoKe BiDyBaTHcra 3a TaKnx DBOX yMOB:

1. Pnictpii He e dzpejom HeraTbHnx eJeKtpomarHITHX nepeuKOa.
2. Pnnctpi noBHeH npOoBxByaTH npauOBaTH HabiTb 3a HaBBOCTe eNeKTPoMaHrHINx nepeuKO, y Tomy Yncni Taknx nepeuKO, kI MoKyTB cnpunHHIn HeHaJeXHy po60Ty npncTpOIO.

11 TapaHTiHi 306OB'3aHHBnpo6HnKa

3 nntaHb rapaHTi, 6yNb Iacka, 3BeptaTeCg Do hai6JIHXQOro napTHepa KOMnHaH Hilti.

12 DoataKoBa iHphiMaui

C 6-22 (01)

RoHS (HpeKTHBa KHP npo 06MeXeHHBnKOpHCTaHH He6e3neuHNx peOBOH)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Lta6bnue eHHHOIO dna pHky Kntaio.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Lra TaBnua e YHHIO dIa PnHKy TaBaHIO.

C 8-22 (01)

RoHS (HpeKTHBa KHP npo 06MeXeHHBnKOpHCTaHH He6e3neuHNx peOBOH)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Lta6bnae eHHHOIO dna pHky Kntaio.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Lra TaBnua e YHHIO dIa PnHKy TaBaHIO.

13 Jiriñ-iohHi akymyIaTOpHi 6aTapei Hilti

Yka3iBKn 0oO texhikn 6e3nekn Ta HanexHoE kcnnyatauji

Y cIbOMy dOKymEnTI TepMIn *akymnTOpHa 6aTapee* BHKOpNCTOByeTbcra IINo3HaeHHN IITi-iOHHX akymnTOpHnx 6bapee Hilti, kki e npndTHmN do NOBTOPHO 3apRJaHHaTA cKlaadotbc3 deKilbKOx IITi-IOhHnx enEmeHtIB. Li akymnTOpHi 6bapei np3HaueHdi EneKTPOHcTPyMeHtIB Hilti ta MoKyTB BHKOpNCTOByBaTnC4 tInbKn 3 HmN. 3AcToCOByTe nIwe opurihalhi akymnTOpHi 6bapei Hilti!

Onnc

AkymyaTophi 6atapei Hilti OchauyoTbcnCTeMaMn KOHTPOH, KepyBaHH Ta 3axNcty enemntiB.

AkymyIaTOPHi 6atapei cKaIadaIObTa 3 eIeMeHITb, aKi MiCTaTb NiiI-IOHHi MaTePiAnu, 1o HaKOnuHyOTb EneKtpnHn 3apRd, 3a6e3neUyOuN BnCOKy rCyTHNy eHeprII. NiiI-IOHm AkyMyIaTOpHm 6aTapeRM npHTaMaHHn IInHe He3HaChn eFKeT NaM'Ati, npote BOHn E dyXe yTJIbUMn Do 3OBHIuHix HabaHTaXeHb, Tn6OKoro po3prJxAHn a60 BnCOKnx Tempepatyp.

I3 nepeiikom IHctpymeHTIB, npn3haueHIN dJI BnKOpNCtAHH 3 aKyMylTopHm6aTapeHMI Hilti, Bu MoKeTe O3HaOMITnCRA y HaB6nKChOmy Mara3HHi Hilti Store a6o HA Be6-caTI www.hilti.group.

Be3neka

IOTpHMyTEcH HabeDeHHx HnKHe Bka3iBOK 3 Texhki 6e3neKn, 0o6 rapaHTyBaTH 6e3neNeH TpaHC-nOpTyBaHH Ta BHKOpNCtAHN IITi-IOHHHX akymyTAOPHN 6aTapeH. HeBHKoHaHH cHX Bka3iBOK MOKe npns3BeCTn Do noDpa3HeHHn Wkipn, cepNo3Hx TpaBM BHaCNIoK KOtAKTy 3 Kopo3iHmpeO-BHAmn, a TAKoK Do XIMiHnx OnikB, NoKekTi Ta/a6o Bb6yxy.
ObepexHNOBODBTEc3 aKymyIaTOpHMn 6aTapeMn, uOb yHKHytn ixHbOro NOUKoJKeHHa 60 BHTOKy pIDINH, kI e Dyke He6e3neuHmN dIra 3doPob'!
3a60pOHaETbCnBHOCTpyKciiakymyIaTOPHnx6aTapea6oMoNΦiKyBaTHix!

HILTI

Akymyntophi 6atapei 3a6oohctbca po3bnpaTH, po3daBIOBaTH, HarpibATn Do TemnepaTyPi noHa80 ^ C a6o cnaIOBaTH.
He BnKOpNCTOByIte Ta He 3apJdxJaTe aKymJITopHi 6aTapei, kI 3a3HaJIb BnJIbBy ydApHOro HabaHTa-KeHHa6 6yIn NoWKoJKeHi iHsIM qHOM. PeryIrpHO nepeBipRNe aKymJITopHi 6aTapei Ha HABHicThb NoWKoJKeHb.
Hikon He BnKOpNCTOByIe aKymJrTOpHi 6aTapei i3 BToHHnx MATEpiaIIB a6o BiDpeMOHToBaHi aKymJrTOpHi 6aTapei.
He 3actocobyte akymyIaTOpy 6atapeo afo akymyIaTOpHn eJeKtpoiHCTpyMeHT y kOcti yapHOrIOHCTpyMeHTa.
Hikon He niDaaBte akymyTOpHi 6aTapei BnNBy npMnx COHnHx npOMEHB, BUCOKHX TemnepaTp, ickop a6o BiKpntoro BorHIO. HeBnKoHaHH zuie BmOrn MoKe np3BecTu Do Bb6yxy.
He TopkaTeCn nonHocB enemeTIB XINBLeHH naIbIaMn,po6OuHMn IHCTpyMeHTaMn,pNHKpacAMn,a TAKoX iHsIMn npEdMetAm 3i cTpymonpoBiDHNx MaTePiaJIb. HeBnKOHaHH ciEi BmOrn MoKe npNBecTN Do noShKoDKeHH aKymyIaTOPHOI 6atapei, MaTePiaJIbHx 36ntkIB i TpaBM.
3axuane akymynTophi 6atapei BiD BnNBy douy, BOJOrn Ta piin. RaIoo BCEpeHny akymynTopHOI 6atapei notpanntb Bonora, ue MoKe CnpuHHIn KOpOTke 3aMnKaHH, ypaKeHHeJeKTPnuHm CTpyMOM, onIKn, noKexy abo Bn6yx.
BnKOpHCTOByIte akyMylAToHy 6aTaapeIO tINbKn 3 TMM eJeKtPoIHCTpyMeHTaM Ta 3apAHHMn npcTpoAMN,ДЯ RAkX BOHa Pn3HaueHa. Пр nbOMy TaKoK dOtpmMyTEcB Bka3IBOK, HabeDeHNx B IHCTpyKciAx 3 ekCnlyatauii BiNoBiDnHex BnPo6iB.
He BnKOpncToBnyTe Ta He 36epiraTe akymyIaTOpHi 6aTapei y Bn6yXoHc6e3neuHOMy cepedOBnui.
RaKuo aKyMnyrTopHa 6atapeH rapya Ha doTN, BOHa MoKe 6yTH noWkoJKeHa. 3aNtTe aKyMnyrTopHy 6atapeO y 3axuheHomy BiD BOrHIO Micci Ha DoCTaTHI BiDCTaHI BiD rOpoux MATEpianIB, De 3a Heo MOxHa cNoctepiratn. 3aueKaIte, DOKN aKyMnyrTopHa 6atape H oe OxoloHe. RaKuo cheE rOOnHy aKyMnyrTopHa 6atapeBce Ie 3aJIHsaTbcra rapyoo Ho DaTnK, ce CBiDHTb npo II HecnPabHicht. DotpmyTeCn Bka3IBok, HabeDeHNx y po3dini «3axOn 6e3neKn y pao3aImaHHa aKyMnyrTopHOi 6atapei|.

Dii y paizi nouKoJKeHHaKymyIaTOpHoI 6aTapei

Y pa3i noWKoJKeHHaKMyJIaTOpHO batapei 3BepHITbCn do cepBicHO cnyK6n KOMNaHII Hlti.
He BnKOpNCToBvIe akymyIaTOpHy 6aTapeIO, kAIO 3 He I BnCTynaC piDHa.
- RaKuo 3 akymyIaTOPHOI 6aTapei BnCTynae piHa, He donyckaIte II 6e3nocepeHbOro KOHTaKy 3 ouHMa Ta/a6o shkpio. PiJ uac BnDaJIeHH pIINH, Rka BnTeKJa 3 akymyIaTOPHOI 6aTapei, 3aBKnBn BHKOpNCTOByTE 3axNCHI OKyIaRpn Ta 3axNCHI pyKaBnCi.
Lio6 BuaaHn piHny, kA BnteKla 3 akyMylrTopHOi 6atapei, ckOpNCTaTEcH cneiaIbHM 3acobom Ira npuBpaHH xIMiHNx peOBHH. DToPmYteC HmicEbx npabH, 1o perIamEnyOTb nopAdoK npuBpaHH pINHH, kA BnteKla 3 akyMylrTopHOi 6atapei.
- POKlaIb noWKoJKeHy aKMyJrTOpy 6aTaapeIO y KOHTeHep 3 He3aMHcTOrO MaTepiAly Ta 3acnIte II cyxHM nickOM, KpeiHaHm npopoWkOM (CaCO3) a6o cnlkaTOM (BepMKNyITOM). Nicna Iboro rePMeTHUHO 3aKpNHe KOHTeHep KpNIkoIO Ta TpMaIte NoIaI BiD 3aMHcTnx Ra3IB, pIDNH Ta npEmdTeIB.
LIO6 yTHNI3yBaTH KOHTeHep, nepeaIte Horo Do NaHbNkQHO Ma3nHy Hilti Store a6o 3BepHITbcndo npedCTaBHnka BiIDNoBIDHOI KOMNaHI 3 yTHni3aui BIXOJD. DToPMyTeCmucEBHX npabHn, nki perlameHTyOTb nopAOK nepeBe3eHH NoWKoDKeHNx akymyTAOPHNX 6aTape!

Ii y paizi BHXOdy akymyIaTOpHoi 6aTaapei 3 naNy

3BepTaIte yBary Ha HeHOpMaIbHy po60Ty akymyIaTOpHOi 6aTapei, HapnKnaI Ha BnIaKn HenOBHOro 3apJxHaHH a6o 3aHaITo DOBnY qac 3apJxHaHH, 3HaUHe 3HIXKeHH NOTyXHocTi, He3BnauHy po60Ty cBtIOIOHNHX IHINKaTOpIB a6o pIDHy, 1O BNXOHTb 3 akymyIaTOpHOi 6aTapei. Lc e O3HaKn BHyTpIihBoi HeCnpabHOcti.
Ku Bo nio3pOe TBHyTpHIO HecnpaBHCb akymyAToPHO6aTapei, 3BepHiTbcn do cepBicHo cnyK6n KOMNaH Hilti.
AkyuynrTopHa 6atapEn He yHKioHyE, He 3apRJaEcTbCra a0e 3 He Bnctynae piHna, II Heo6xioHO ytniisyBAtN. IodatKOBa IHopMaui HaBeedeHa y pozini «Texhiue OcbnyroBaHHa Ta ytniisaiaJr.

3axoyn 6e3nekn y pa3i 3aImaHHa kymyIaTropHoI 6aTapei

PONEPEKXEHNA

He6e3neka 3aImaHnAkyMnyIaTOPHOI 6atapei! Ako aKymyIaTOPHa 6atapea 3aropinac, 3 Hei do HABKOJIuHbOre cepedOBuHa nOTpanJIaHT bKiIDJIbI Ta BNoxyoHe63neHi pIDHn Ta Bnnap. Ce MoKe npIN3BeCTn Do cepio3Hnx onIKIB i TpaBM, o6yMOBHeHX KOHTAKTOM i3 Kopo3iHMM peOBOHAMn, a6o Do BNoxy.

Pi d cac racinHn akymyIaTOPHnx 6aTapeB BIKOpncTOByte 3acOb n HndBiyaIbHoro 3axNCTy.
3a6e3neue HaneKHy BeHTnlaIIO npMiuEHH, 0o6 BuaNTn 3 HbOTo WkIdNBI Ta Bn6yXHe63neuHi Bnnapn.

Y pa3i iHTeHCBHORO yTBOpEHnA dMy HeaHo 3aIuTe npMiuEHH.
Ypa3i noDpa3HeHHaXaJIbHIX XJIaIXIB 3BepHiTbcra Do Iikapra.
3BepHItbcdo noKexKhoI cnyK6n, nepu Hix HaMaratnc 3aracntn noKexy.
Длг racinну akymуларони 6aatae вькориctobуte tinbky BODy Ta 3haxodbteca npu cby My Ha kOMor a 6iIbii BiDCTahi BiD BORHIO. 3actocvbaHHЯ Дя zuoro npoowkoBx BorHeracnKIB Ta npOTINOJKeHHnx nOKpnbal e HeepeKTHBHM. BorOH, lo pO3noBcOINBCra Ha iHwi npedmetn Ta mATEpiAIn, MOxHa rACHTN 3a DOnomorHO 3BnuayHnx 3ac06iB.
He hamaraTeCn nepecyBaTH BEnky KInbKicTb akymyIaTOPHx 6batae, 10 roptb. PnpBeiB noaJI BiD dKepeHa 3aMaHH He nouKOJKeHi BorHem npedMeTu MaTePiAn, 10o b izonIOBaTH nouKOJKeHi akymyIaTOpHi 6bataeI.

Kkto TemnepaTypa akymyIaTOPHO 6aTapei He naaε, Kkto 3 akymyIaTOPHO 6aTapei BHXoNtB a6o KaKIO akymyIaTOPHa 6aTaper 3aropinac:

3a donomoroio nonatn nomictb akymyIATOPHy 6atapeo y BiDpo 3 BDOIO. OxonoJkyOuH BnINB BOIN DOnOMOKe CNOBIbHNr PO3NOBcIOJKeHHB BORHO Ha akymyIATOPHi elemEHn, kI ue He Harpinncd oKpHTNUHOI Temnepatypn 3aIMAHHn.
3aIHTe akymyntopHy 6aTapeu y Biipi npHaumHi Ha 24 roDHH, DOKn BOHa He oxOIOHe NOBHCIO.
- OdaTkoBa iHopMaizHaBeHeHa y po3ini «Dii y pa3i nowkOxehnAkyMnyTopho6aTaapei

Yka3iBkn 1oDo TpaHcnOpTyBaHHa Ta 36epiraHHa

-17 ^ C do +60^ / BiD 1 ^ do 140^
-Пд ус 3берiraнг Temпаура Habkoиньо сеpeobuц na nobHHa 3haxoHTnc y diana30Hi BiD -20°Cdo +40°C / BiD -4°F do 104°F.
He 36epiraIte akymyIaTOpHi 6batapei Ha 3apHdHomy npunctpoI. Picnla 3akHcHHeNHa pOuecy 3apJxHaHH 3abKdn BiD'EDHyTe akymyIaTOpHy 6batapeIO BID 3apHdHOro npunctpoIO.
36epiraTe akymyIaTOPHi 6aTapei y kOMora 6bH npoxoIOHMy Ta cyxomy Micui. 36epiraHHy y npoxoIOHOMy Micui noobKye cTPOK cnK6n akymyIaTOPHO 6aTapei. 3abOpOHcTBcra 36epirAtn akymyIaTOPHi 6aTapei Ha coHci, Ha onaIOBaJIbHnx npuaJax a6o Ha niDbikoHHi.
3a6opohaebcnpeecnnaakymyantophi 6atapei noToIO. nnepecnnaHHHeNooKoKeHX akymyIaTOpHnx 6atapee 3BepHItbcn do Kyp'epcbko Cnyx6n.
3a6opohetbcnnepeBOHTNakmyIATOPHIbatapei y He3anaKOBAHOMyBnHdi.Iid qac nepeBe3eHHa kymyIATOPHI batapei nobHHi 3axuichi BID cnblnx NowTOBXIB Ta Biopaui, a TAKOX iOJbOBAHi Bid 6yd-b-AXX CTpyMONpOBIHNx MaTePianIB Ta BID IHUNX akMyIATOPHXbatapei. Lc Do3BOITb yHKnHyTN KOpOTKOro 3AMKaHHA, AKe MoKe CTaTNCaYepe3 KOHTAKT NIOUCiPiHx akMyIATOPHXbatapei.

IotpHmYtecMicueBx npabn, kiperrnaMeHTyOTb nopAOK nepeBe3eHHa akymyIATOPHX 6atapei.

Texhiue 06cnyroBybaHH Ta ytni3aui

CniikkyIte 3a Tm, uo6 akymyIaTOPHa 6bapee 6yna uHCTOIO, Ta He donyckaiTe II 3abpydHeHHa MactINOM. Ynkaite KOHTAKTy aKymyIaTOPHOi 6bapei 3 NInom a60 bpydom. BndanrTe 3abpydHeHHa 3 aKymyIaTOPHOi 6bapei cyxOIO M'AKOIO UITKOIO a60 uHCTOIO cyxOIO TkAHHOIO.
He npaioIte 3 BiDnOBiHm akymyTOpHm iHCTpyMeHTOM, kUIO Ioro BeHTnuaHni npopis3 3a6noKoBahi. ObepeKHO npouuauTe BEHTnuaHni npopisiM'RAKO cyxO uitko.
Cniikkyte 3a Tm, uo6 ycepeiny He notpannnc tOPOHHi npedMeTH.
He donyckaite notpanlaHHB BONrBcepeHny akymnTOpHO batae.i RaIO BOIora notpanna BCEpeHNy akymnTOpHO batae.i, 3 HeIO cII NOBOHTNcRA i3 N0WKoJKeHO aKymnTOpHO 6bataeio Ta izoiOBaTH y KOHTeHepi 3 HeaMnCTORO MaTePiaNy.

IodatkoBaHOpMauiHaBeHea y po3ini «iyy pazi nowKOxehnAkyMnyTopho6atapei|.

Y pa3i HeHaJIeXHoi yTnI3aui akMynIaTOPO Hi aTaPei 3 He MoKytB BNXODHTN He63neuHi dIra3IOH ra3n a6o pIDHH. Lio6 yTnI3yBaTHn akMynIaTOPO bTaPeIO, nepeaIte II do Hau6NIkQO rMaRa3HNy Hilti Store a60 3BepHITbCRdo npedCTaBNka BiIDNOBIDHOI KOMNaHI 3 yTnI3aui BIXOXIB. DToPmMy- Tecra MicueBHX npabH, Aki pernaMeHTyOTb nopAOK nepeBe3EHn NOxKOJKeHnx akMynIaTOPHNX 6aTapei!
He KndaTe aKymnTOpHi 6atapei y 6aKn IIN NObyTOBOro CMITTR.
Ytni3yIte akymnyTOpH6batapei TaKIM YINHOM, 06 BOHN He NotpaNNIO DO pyk dITEe. 3aKpNIte KOHTAKTN aKymyTOpHIX 6batapei eJekTPOHeNPOBIDHM MaTePiaJOM, 06 3ano6iITN KOPOTKOMy 3AMKaHHIO.

TynHycKa naIdaIaHy 6OHybIHwa HycKayIbIK

1 PnIdaIaHy 6oIbIHwa HycKayIbIK TypaIbI mAniMeTTep

1.1 Ocbi naIdaIaHy 6oIbIHwa HyckayIbIK TypaIbI

EAC

HmnpTaybiXaHe eHdipywiH eKineTT yibmbi

(RU) Pecen Φeepaunycbl

"XInTNIINCTpN6bIOuH JTT"AK,141402,Mckey o6JIbcbl,XmKn K.,JeHHrpaIckaK-ci,25-6et, 15.26-KypblbMbI

(BY) Bénapycb PecnybniKacbi

"XInnBnYa"KlC,222750,MnHCK 6nbcbI,3epKnH aydaHbI,P-1,18KM,2(Cno6oKa ayblbHbH KaHbHa),1-34 KypblmbI

(KZ) Ka3aKcTah Pecny6nKacbl

"XnTn Ka3aKCTah" KLIc, 050057, AImatb K., BoCTaHdbk aydaHbI, TmHrp3eB K-ci, 42/15 yin, nTeP 012 (15 Kopnyc)

(KG) Kbipfb3 Pecny6nkacbi

T AND T' XLIK, 720021, Kbipfb3ctah, Biiueke K., N6paHMOB Keu., 29 A yni

• (AM) Apmehra Pecnybukacbi

"3H- KOH" KLIJK, 0070, EpeBaH K., EpMaHaJa Koayap K-ci, 19/28

Hdpinre H eni: Ka6bikTaBf benriney TaKaTahacbIH KapaHbI3.

THdpinre H KyHi: Ka6bIKTaBb 6enriney TaKaTawacbH KapaHb3.

Tnicti ceptnФнкattbMbHa MekeHka 6oBbIHwa Ta6yfa 6oJa: www.hilti.ru

CaTay, TacbMaJday JHe naJaIaIHy 7apTTapbHa naJaIaIHy 6oBbHsa HcKaybIkTa 6eRrInEHHeh 6aca apHaBt TaanTap KoBbIMmaDbI.

ΘhimHKnB3MeT ety Mep3imi 5 Kbln.

Eckepty! Ohimdi naIdaIaNb6ac 6pybH eHIMMe6ipre 6epiIReH naIdaIaNy 6oIbHua HcKayIbIKbl, coBbH iIiHe HcKaynap, Kayinci3ik JxHe eckepTy HcKaynapbl, cpeTtep MeH CneuФkaIaIapbl MinDeTTI tyPeOkbn IbIbHb3 JxHe TyciHIn AblbHb3. BapbIK HcKaynap, Kayinci3ik JxHe eckepTy HcKaynapbl, CpeTtep, CneuФkaIaIap, CoDan-AK KypamDaC 6eJIeKtep JxHe FyhKcIIaIapMeH TaHbICbINbIFbIH3. ByHcKayopbIHdAnMaHaKaFdaNda,TOK COfy, ept JxHe/Hemeceaybp JapaKaT aNy KayPi TybIHdaIbI. NaIdaIaNy 6oBbIHwa HcKayIbIKbl, CoBbH iIiHe 6apblk HcKaynapbl, Kayinci3ik JxHe eckepTy HcKaynapbl KeiH naIdaIaNy yuiN caKtan KoBbIH3.
HILI eHIMdepi Kcicn naDanaHybIapFa apHaHanf HHe onapDbI TEK KaHa eKinieti, 6JIikTI Kbl3MeTKePlep naiDanaHybI, KyTIm XHe TexNkAlbIK KbI3Met KepeTy i Tnic. Kbl3MeTKePlep Kayinci3dk TexNkAcbl 6oBbIHwa apNaBly Hcyckay aNyBiKepeK. EHiM MeH OHbH KocaNbl KypaIdApBbH backa MaKaTa KaJdaHy HeMece OlanDbH OKblIMaFAn KbI3MeTKePlepH TaapanbHaH naDanaHbIyKayinti.
Bepinre naiandaany boHHa Hcykaybik bacbin llifapbnfah Me3eTTe texHKaHbIH aFBIMdaFbl Kaadaihna cainkec keledi. Afbimdaftby Hcyka epdaibm Hilti eHimdepiHH Be6-caTbHda KOJKeTImdi. On yuiin ocbi naiandaany boHHa HcykaybIKtaFbl den benrinehreh ciTtemere etiH3 hemece QR kOdbHcKahepIehiz.
- ΘHIMDi 6aKa TyfAnapFa TEK OcbI naDanaHy BoBbHwa HyckaynbKnhen BiPree 6epiH3.

1.2 WapTTb6enrinepein aHbikTaMaCbi

1.2.1 Eckepty

EckepTyneHmki KOndaHy 6apbcbHdaFbKayintep TpyaIb eckepTei. TeMeHderi CnHaNdbK c3depe naDanaHbIaNbI:

KAYINTI

KAYINTI！

Aybp KapakapTAPFA eKeJIeIH Hemece empre Kayin TeHdpetIH TikeNei Kayinti KaFdaNdbH Kaanblb 6enrineHyi.

ECKEPTY

ECKEPTY！

Ayib Kapakapapfa ekenyi Hemece empre Kayin TeHdpy i Mymkih bIKTmam Kayinti KaFdaIbH kannbl 6enrilehyi.

ABAHJIAHbI3

ABAJIAHbI3！

KapaKaT anyFa Hemece MyiKiTH 3aKbIMdaIybiHa eKeNyi MymKiH bIKTImaJI KayintI XaFdaIbIH XaJIbI6enrIneHy.i

1.2.2 NaiDanaHy 6oBbHwa HcKaynbKaTafbl 6enrinep

By naaanahy 6oBbHua HcaybIkTa TEmeHeri bEnrine pnaDanaHbnaIb:

PaiDanaHy BoBihwa HyckayblkTbI yCTaHy

AcnantbI naDanaHy 6oBihua Hcykaynap KHe 6acka naDabl aKnapat

KaTn aananaHyfa 60NaTBIn MaTePhanapMeH Kymbic iCTey

3neKtp acnanTapbl JHe aKKyMnyTopnapbl TyPbICTbIK KOKbicka TaCtAmHbI3

Hilti Li-Ion akKymyIaTOpbl

Hilti 3apraTafblu KpybInFbIcbl

1.2.3 Cypertepderi 6enrinep

CypeTepTe TEmHeeri 6enrinep KonDaHbnaIaIbI:

Byn caHap ocbi naIandaIahy 6oBbIHwa HcyckaybIKtbH 6acbIHdaFbl TnicTi cpeTke caiKec keJIeI.

3

Hemipney cypeTeri Kymbic KaamdapbHbH pettinirih 6inipeidi XeHe mtiHeri Kymbc KaamdapbHaH e3reWeneHy MyMKIn.

11

IOnuHemipnepi LOny cypTeIHne KOndaHbIaIbI XeHe Θhimre LOny MaKaIaNHaFbI apTbI 6enrinepH Hemipnephe cinTeiDi.

AaIbIe6enrinepeHmkiKoIaHa 6apbcihda aPbIKha Ha3apbIbI3bl aydpTaIbl.

1.3 Θhimre KaTbictb6enrinep

1.3.1 ΘHmDi eri 6enrinep

ThimTeMeHderiBenrinep naDanaHbiny MyMkiH:

ΘHim iOS XəHe Android nlaTφopMaIapbIMeŋ yIneCiMdi NFC texHONrncbH Kɔndaɪdɪbɪ.

Koc okwayny

Tek 6emeneepin iwiHne kondaHyfa apHaHanfah

TypaKtbi TOK

AinbImaJIb TOK

EHIM 6ap 6oJFaH JkaFdaIa, eHIM AKUIN nen KaHaIaNbIK HApblKTap yuiH OcbI cePTnΦNkATay opraHdApbIHDA KOnDaHbICTaftcTaHdpTAPFa CeykeC cepTnΦNkATanAdbI.

EHIM 6ap 6oIFaH JkaFdaJa, eHIM AKUJ neH KaHaDaIbIK HApblKTap yuiH ocbl cepTnΦnKaTTay opraHdApbIHDA KOnDaHbICTaftcTaHdAPTTapFa caikec cepTnΦnKaTTanaDb.

2.1 Kayinci3ik 6oBihwa Jannb HycKaynap

ECKEPTY Byn 3neKtp KypanbHa apHAnrH 6apnbK Kayinci3ik HcckaynapBn, HcckaynapDbI, CpeTTePdiXhe TexHNKaNbKdpeKTePdioKbIN WbIfbHb3. TEmeHde6epinReHHyckaynapDbIOpblMaMay 3neKtp TorbIHn COfByHa, optke eKeJyIMyMKIn JxHe/Hemece aybp JkapaKaTTapDbI TydbIpby MymkiH. Kayinci3ik 6oBihwa 6apnbK HcckaynapDbI XHe Jannbl HcckaynapDbI Keneci naDanaHybI ywiH caKaTaHbI3.

AtaImbiEhimDi DeHe, cesIM HeMece akbl-oi Ka6JIeTepi WeKTeyIi Hemece ToxKipn6eci MeH 6inimi KETKIikci3 aamdapfa (cohhi ihiDe 6ananaPra) naDaHaYf Taibim caBHa.
- Eanapra eHimMeH O'HayFa pyKcat 6epMeH3.
3apraTafbiu KpybIIFbHb OHbIH iWHe caIbIHFaAkkymyIaTOP Jepre TycneTIHdee tIN MOHTaKaDaHbI.

2.2 3apraTafbiu Kypbilfnbnapfa KytimmeH Kapay He npdbI npba

Kapakattapdbn andbn any ywiH 3apraTaBliu KypblfBIme Hek pykcat etiren Hilti Li-lon aKKymyIITopnapbH 3apraTahbi3.
3apraTafbi KypbIbfy yuih Ta3a, cankih, Kypfak epi Kbpaycb3 opbHbTaHaHaBb3.
Akkymytnopdb3apdty KeiHne 3apntaftbI KpybIbIaH JbIyIbKeTipy yHIn JeNdeTy caHbIaynap6oc 60nybKepeK. Ta3a aya afbHbIKOK Kepe 3apTaMaHbI3.
- ΘHIMRE MyKnHT Kytim KepcetiH3. BaniKTepeH, eHIM apbl kapa JxMbic icTeMeiTHee etin cbHbHa Hemece 3aKbIMdaMaHaHa Ke3 KeTki3iH3. BaniKTep 3aKbIMdaHaH HeMece cbHFaH KaFdaHa, eHIMApbl kapa NaDanaH6ac 6ypbH KeHDetiH3.
- Acnantb Jxhe cKeKc aKKyMyIaTOpnapbOcb HcCKaynapFa ca KHe Ocb apHaBb acnan Typi yuH Ka3bIinaHda KOnlaHbHb3. 3apraTaFbiW KypblInpapdb6acka MaKaTTapMeH KOnlaHy Kayinti Ka4dainapFa eKenyi MyMKIH.
AkkymyntopdbI Tek eHdipywi YcbIHFaH 3apraTaBli KypblfbnapbH Kemerimeh 3apraTahb3. 3apraTaBli KypblfBiHb Tnicti EMEc aKKymyntop Tpynepi H 3apraTay yuH KondaHFaHaOp TbyHdaybI MymkH.
PaindaHbImMaTbH aKKMyIaTOPnapdb KoHTaKTiJeepIH TybIKTaIyBHBnCe6e6i 60ny MyMKiH cKpenkaiapdah, TbIHapdah, KiTTepDeH, HHepeH, 6paHaIaIapdH xeHe 6aca MeTaN 3aTTapdApbl YCTaHbI3. AKKMyIaTOp MeH 3apraTaftbI W KOHTaKTiJeep I apacbHaFb KbcKa TybIKaTany KyikTepre Hemece TyTaHyFa eKenyi MyMKiH.
- AkMyIaTOpBb 3aprTaftbIi KypblfHbH iwiHde caKaTaMaHbI3. AkMyIaTOpBb 3apraTafHaHH KeiH epaBIM 3aprTaftbIi KypblfDaH WbIFapbHbI3.

2.3 AkymyTopMeH ypbic Kymbic icTey XaHe OHbl dypbc naDanaHy

• IHTH-NHOHBK, aKKyMylrTOPnapDbI naDanaHy KHe KyTy 6oBbHwa TEmeHderi Kayinc3ik WapapanpHOpbHdaHbI3. HyckaynapdbI opbHdAmay Tepi TitipKeHyIe, aybpTOT 6aCKbIu KaapaKaTtApFa, XmNIAblk KyIKTepe, ePeHyre KHe/Hemece KaapbIbicka anapbn COFybl MyMKIH.
  AkkymyIaTOpnapbI TeK TexHkaIbIK MInci3 KyiHde KOndaHbIbI3.
  3aKbIMdanydb6oNdbipMay XeHe DeHcaybIKKa KaTbI 3nH KeITipe aIaTbIH CybIKtbIKTapDbIH bIyBaHa K0J 6epMey yuH akKymyIaTOPnapdbI a6aIIan KOndaHbHbI3!
  AkkymyIopJIapIeI6bipKaIaJaMoNnKauJlayFa HEmece KypblmbHa e3repic eHri3yRe 6oImai!
  Akkymytnopnapb6nneKteyre, KbcIcyfa, 80^ (176F) 7aMaCbIHAn Jxofapbl TemnpaTypara deHH Kbl3dbpyFa XHe XAFyTa TbiBIM caBHaDbI.
  Cokkbl Tureh Hemece 6acka7a 3akbIMdaIFaH aKKyMnTOpnapbI naJaIah6aHbI3 Hemece 3apraTamaHbI3. AkKymyIaTOpIaPda 3akbIMdany 6enrinepiH 6ap-koFbH Jynei Typde Tekcepin TypbHbI3.
  EwKaFaDaKaTaNHeHdIeHHeMeceKHeJeIeHakKMyIaTopJaPi naDalaHa6aHb3.
  Eukaan aKKymyTopbHemece aKKymyTopbIK 3neKtp KypaBnCOKna Kypan petiHne naJaHaH6aHbI3.
  Akkymytnopnapa eukkaan Tikene Kyn cayneci, Kofapb TemnepaTypa, ykBH HeMece aubk kanaBH acepin Tnir36eH3. BykapbNbCKa anapbn corby MymkiH.
  Batape nolioce h caycaKeH, KpaanapMeH, ewekeMeH HeMece 6aCa Ka da 3neKtp TOrbH eTKi3eIH 6eIe 3aTAPMeH TMHeH3. Byn aKKyMyJrTOpFa 3aKbIM KeNTipyI, coHaai-ak MyNIkke 3aAn KeNTipy JxHe JkapaKat anyra eKeeny MyMKIn.

AkkymyIaTOpIaBbJKaHa6bIp, bInFaI MeH cyNbIKTbIKTapda aIwaK YCTaHbI3. Ehin KeTKeH bINFaI KbICKa TybIKTany, TOK cOry, Kynin KaNy, ePteHy XaHe JApblbc KayiH TydbpyMiYMkIH.
TeK ocb aKKymnTOp tyi yuih Ke3dienre 3apraTfblu KypbIbInap MeH 3neKtp KpaIaPbH naHaanbHbI3. Byn pette Tnicti naDanaHy 6oBihwa HcKaynbTapdaFbMImimetpe Re Ha3ap aydpbHbI3.
AkkymyIaTOpdbI JapbIbIuopTaIaPda naIdaIaNbHbI3 Hemece caKtAmHaB13.
Erep Turen Ke3e aKkymyIaTOp TBIM BCTbIK 60nc, on akaybl 60nybl MyMKIN. AkkymyIaTOpdb tyTaHbI MaTePnaIapdAn JeTKJIiKTI KaBbIKTBtKa opHaIackaH, KAKcbl KePiHrH TyTaHbAITbH JKepe KoBbIb3. AkkymyIaTOp dy cybIbH3. AkkymyIaTOp bip cafTah KeIH eNI de KOJFa bCTbIK 60bIn Typca, 6yI OHbH akaybl eKeHdirH 6inipei. Hilti Kb3MeT KepeCy opTaBIFbHa KOnbIFbHb3 HeMece «Kayinci3ik KHe Hilti Li-Ion aKKymyIaTOpbH naDanaHy 6oBbIHwa Hyckaynap» aTbI KyKaTTb OkBIn 8bIFbHb3.

IHTH-NHOHBK,AKKMyNtOpnapbTaTacMbAnay，CaKtayKHe naDanaHy yuH KOnDaHbInaTBn apHaBblnpeKTINBaIapDbI eckepiHi3.

AtanmbiH naDanaHy 6oBihua HcyKaynbkTBH CObHdaFBI QR KoDbH cKahepney apKbIbI TaByFa 6oNaBH Hilti Li-lon akkyMnyTopnapbHa apHaIrah Kayincisik XeHe naDanaHy 6oBihua Hyc- KaynapdbIOkbln WbIfbHbI3.

3 Chnattama

3.1 Θhimre wony

① AkkymyIaTOp
② AKKMyJrTopdbH Ky INHnKaTOpbl
③ AkkymyIaTOpdb6ocaty Tymecci
3apraTafbiW KypbIJIbI XyMbIC KyiHINHNKATOpbl
⑤ Ka6bipFaFMOHTaXday caHbInaynapbl
⑥ Aya wblapy caHbInaybl
⑦ Aya Kipici
⑧ AKKMyIaTOPFa apHaIFaH yIbIK

3.2 MaKcatbHa caN KOJdaHy

Cnatafah 21,6 B wamacbHdaftb HOMHaIbI kepHeyre He Hilti Li-Ion aKKymyIaTnpabHa apHaIFaH nopTaHTBti 3apraTafbiu KpybInfb60bn Ta6bIaNbI. OJ YTTbK, WbIFapblbIM HcckacbHa KaPai 100 - 127 B Hemece 220 - 240 B aHaImaIbI kepHeymeh po3eKaIapFa KaNfayFa apHaIFaH.

3apraTbHkypblfHbJkannak6eTepre KOHa HEmece Ka6bipFa MoHTaXdayFa 6oJaBl.

• AtaImbIw eHIM yuiH pyKcat etinreH Hilti Li-Ion aKKyMnyTOpnapbH 6epinre TizimHeN KapaHbI3.
• Benrini 6ip hapbikrapda Ke6ip akkymyntopnap KonKeTimdi emec.

RoHS (3nHb3aTKeTpIn naDanaHbinybH WeKTey HpeKTHBaCbI)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

By Kecte KbTaHapbIfbHa KonDaHbinaDbI.

用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Eyn Kecte TaBaaHb HapbIfbHa KondaHbnaaBl.

C 8-22 (01)

RoHS (3nHb3aTKeTpdi naiDanaHbinybH WeKTey DnpEeKTHBaCbI)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

By Kecte KbTaHapbIfbHa KonDaHbinaDbI.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Eyn Kece TaBaaHb HapbIbHa KOndaHbIaIbI.

13 Hitti JNTH-NOHdbIK aKKymyJrTOPnapbl

Kayinci3ik KHe KonlaHy 60bHwa Hyckaynap

Ocb KyKaTtAmada «akKMyIaTOp» TepMHi 6ipHeWe Li-Ion 3neMeHTepiH 6aNaHaCTbIaH KaTa 3aprTayfa 6oNAtbH Hilti Li-Ion akKMyIaTOpnapbHa KOnDaHbnaAd. Onap Hilti 3neKtp KypandapbHa apHaJraH XeHe TK Ocb KypaIaPmeH 6ipre naDanaHbIybl Tnic. TeK TynHycKa Hilti aKkyMylaTOpnapbH KOndaHbHbI3!

Chnattama

Hilti aKkymyIaTOpJapbI 3JeMeHTePdi bAcKapy KHe 3JeMeHTePdi KopFay KHyIepeIme Ka6DbIKTanFaH.

Akkymyntopnap apHaBb KOFapb3Hepn TaFb3dbfBH MymKIN eTeIH NtN-NOHBK JxHayuB MaTePnAndapDb KaMTNbH 3JemeHTTepDeH TpaDb. NtN-NOHBK 3JemeHTTep eTe TEme HKaI ecepHe ne, anaJa Kyu acepiHe, KaTb3apad TaycbNyBaHa HeMece XOFapb TemnepaTpanapFa eTe cesImaI 60bn Ta6bnaDbI.

Hilti akyymnyatopnapby ywiH pyKcat etinreH eHIMepdi Hilti Store dyKeHHde Hemece MbHa caHTa Ta6yfa 6oIaIb: www.hilti.group

Kayinci3ik

JHTH-NHOHBK,AKKMyIaTOpIaPbI naIaIaHy KHe KYTy 6OyBHaTaTeMeHderi Kayinc3ik
IapanapbIH opbIHdaHbI. HyckaynapdbI opbIHdAmay Tepi TitipKeHyIe, aybp TOT 6ackbIu
KapaKaTTapFa, XMMJIbIK KyIKTepe, eptHyTe KHe/Hemce JApblbicka anapbn COFybl MyMKIIH.
3aKbIMdanydb6onDbipMay xHe DeHcaybIKKa KaTb 3nH KeItpe aNaTbIH CyblkTBkTapDbIH bHybHa Kon 6epmey ywiH akKymyHTopnapdbi abaian KOndaHbHb3!
AkkymyTopnapdbie6ip kafdaa MoNfKaunayFa Hemece KypbIbIMbHa e3repic enri3yre 60nmaDb!

AkkymyIaTOpIaPbI 6eIeKTeYre, KbcIcyra, 80^ -TaH KOfApbl TeMnepaTypa DeiH KbI3dbpyFa JHe KaIyFa TbIbIM CaIbHaBbI.
Cokkbl Tureh Hemece 6ackaasa 3akbIMdaIFaH akMyIaTOpIapdbI naIdaIaH6aHbI3 Hemece 3apraTamaHbI3. AkymyIaTOpIaPda 3akbIMdany 6eIriepiH 6ap-koBIn JxyeJI Typde Tekcepin TypbHbI3.
EwKaFaDnA KaTaNHeIeRHeHemeceKHeIeRHeaKKyMylrTopnapbI naDaIaN6aHb3.
Ewkaan aKKymyIaTOPbI Hemece aKKymyIaTOPbIK 3neKtp KypalbH cokna Kypan petiHne naDanaHaB13.
AkkymyIaTOpnapFa eKkaWah TiKeNe Kyn Ceyneci, Kofapb TeMnepaTypa, YsKbH HeMece aWbIK KaJIbH ecepIn Turi36eHi3. Eyn KapblBcKa anapbn corybl MyMKiH.
Batape nnoniohe caycaKeH, KypaandapMeH, ewekeMeH HeMece backa da 3neKtp TorbH etKi3iH 6eIe 3aTAPMeH TImeHiz. Byn aKKymyIaTOpFa 3akbIM KeNTipy, coHaa-ak MyNIkke 3anaan KeNTipy JHe Jkapakat anyra eKenyi MymkiH.
AkkymyIaTOpIaBbJ KaHbIp, BinFaI MeH cyuBkTbIKTapda aIIwak YCTaHbI. Ehin KeTKeH bINFaI KblcKa TynbIKTany, TOK COFy, Kyin KaNy, ePteHy XHe Jkapblbc KayiH TydbpyMiYMkiH.
TeK ocb aKKymnTOp tyi yuiH Ke3dIreH 3apraTbIu Kypblfbnap MeH 3neKtp KpaanapbH naaHaHbIbI3. By peTte Tnicti naDanaHy 6oBihua HcckaybIKTapdaFbMImimetepre Ha3ap aydpbHbI3.
AkkymyIaTopbI JkapBnFbIOpTanapda naIdaIah6aHbI Hemece caKaTaMaHbI.
Erep TReH Ke3e aKKymJrTOP TBIM bCTbIK 6oNca, OI aKayIbI bOlyb MyMKIH. AKKymJrTOPbI TyTaHbI MaTePnAaRapDaH JeTkiNtI KaBbIKTBkTA opHaIaCKaH, KAcCbI KePiHeiH, TyTaHbAaTbIH Jepre KoBbH3. AKKymJrTOPdb cyItbH3. AKKymJrTOP bip caFaTTah KeiH eJI de KOJIFa bCTbIK 6oNbI tyPcA, 6yI OHbH aKayIbI eKeHdiH 6iDipei. AKKymJrTOP eptehren XaFdaaFbI wapanap 6enimHderi HycKaynapra caikec opeket etiH3.

AkkymyIaTOpIap 3akbIMdaIaHaJ KaFdaIaIaFlb epeKeTTep

AkkymyIaTOp 3aKbIMdaFaH XaFdaIa, ePdaiBIM Hilti Kbl3MeT KepeCyTo opTaIbIFbHa xa6apIacblbI3.
CytbIKTBik, LbIfaTbIH aKKMyIANTOpdbi naDanaH6aHbI3.
CytbIKtik, uBkKan JkaFdaJa, Ke3re XHe/Hemec TepiR tiKeen TIOH 60JbIpMaH3. Batape CytbIKtIbIMe H KMBic icTeReH Ke3de epaBIM Kopfaybiu KOJFaNTbl KeHe Ke3 KopfaHbcih KNIN KypiH3.
Lbfbn ktaKan 6aTaper cybIKbH Ketipy yuih apHaBly pyKcT etinreH xMmNbIK Ta3anaFbIi KypanDbI naDanaHbIb3. Bataper cybIKbHbHa apHaFaH kepriniKi T a3anay epexenepi H caKaTaHbI3.
AkaIbI aKKMyIaTOpIbI XaHfblIeMec KOHTeHepre caIbHb3 XaHe KypFaK KymMeH,6OpNbYHTaKneH (CaCO3) Hemece cIIINKaTneH (BepMNkyIIT) XayBn KOBbHb3. CoaH KeiH KaKnafBt TbFb3 XayBn, KOHTeHepdI XaHfblI ra3dap, cyblkTbIKTap Hemece 6erde 3aTTapDaH anJwaK CaKTaHb3.
KoHTeHepDi Hilti Store dyKeHHde KeDeere JkapaTbHb3 HeMece JeepriNkTI KeDeere JkapaTy KcCinOpHbHa xa6apnacBbI3. 3aKbIMdAnFaH aKKyMyJrTopnapfa apHaNfA H JeepriNkTI TacbImday epeXeNepiH caKaTaHbI3!

AkkymyIaTOp 6yaH 6bIaI Kymblc icTeMeReH KaFdaIaFbl epeKeTTep

3apTany, Wamadah aptbk 3apTay yaKbITbI, Ke3re aHbIK Kyat TeMeHneyi, KApblk HIOBbHbH eTteriHe TBIC epeket etyi HeMece bIFbIN KeTKeH cybIKTBIK CNAKKTbI aKKMyrTopDbH KaaycbIs epeketepine Ha3ap aydapbHbI3. Bynap iWki akaynbIKbI 6inipeidi.
AkkymyIopda iwi KaaybikTap aHbIKtaIHa HkaFdaJa, Hilti Kbl3MeT KepeCy opTaIbIFbHa xa6apnacblHbI3.
AkkymyIaTOP 6yDah 6bIaN Kbl3MeT eTnerEh, AKKMyIaTOp 3apHdTaIIma KaIFaH HeMeCe cyBikTBiK aKkaH JkaFdaJa, OHbl KeDeRe JkapaTybIbI3 KepeK. TexHnKaIbIK KbI3MeT Kepcety HHe KeDeRe JkapaTy 6eimH KapaHbI3.

AkkymyIaTOp eptHeR H KafdaIaFbI Waapanap

ECKEPTY

AkkymyIaTOpdbH eptHyiHeh Kayin 6ap! KaHbIa AKKMyIaTOp TOT bacbIa JkapaKaTTap, KyIKTepe Hemece KApblbICTapDbI TydbIpybl MyMKIn Kayinti XeHe Jkapblfbi CybIKbIKTap MeH 6ydbI bIfapaDbI.

AkkymyIaTOp epteHyIH cHdipreH Ke3de JKeke KOpFaHbI Wka6dbIKtB Taftbn KypiH3.

Kayinti KHe KapbInfbl 6bnapdbu bIfapy yuih KeTkiikTi KeNdeTydi KaMTaMaCbI3 etH3.
Tytihhi nainda 6onybkapkbiHdb60fahdapepey6mdehen WbIfh3.
TbHbc KOndapbl titipkeHren KaFdaaDa depirepMeH KeheciH3.
- Ept cHdpy apeketih 6actamac 6ypbH ept cHdpy Kbl3MeTih WakbpbHbI3.
AkkymyIaTOp eptehin 6apbIHwa yNkeh apakaBkTBkTaH cyMeH faHa cHdiPiH3. YHTaKtbl ept ceHdipriuTep MeH ept cHdiPriiX kAnkbIuTap Li-lon aKKymyIaTOpnapbi yuiH naIaNbIeMec. KopuaFaH optadaFbI ePTTI dctypni CHeDipriu KypanlapMeH cHdipyre 6oanaBl.

• EptHeR aKyuMylrTopnapbH yKeH MeIeepH KblkBlyfA apKeTHeH6eH3. 0cep TnreH aKKyMylrTopnapbIOkUaynay yuiH aHaIaDaFbOpTaan ecep TmReH Ke3 KeIreH MaTePnIapDbI 1bIFapbn aJIbHbI3.

CybimaraH, TyTih WbIFaTBH Hemece XaHbIN TypfAn aKKMyNArTOpnap XaFdaBbIHDa:

• OHby Kypekeh anbIn, cyfa ToIbOxayFa IaKtbIbHb3. CydbH caKbIHDaTy ocepineH xahydbH weKTik TemnepatypacbHa eJI jKeTneren akKymyIaTOP 3JeMeHTepeihe ePTIH tapaNybl a3aIbI.
  AkkymyIaTOpbl, on ToIbIKTaI cyIbHaHwa, KEM dereHde 24 caraTka weneK iwiHne KaIdbipblHb3.
  AkkymyTopnap 3aKbIMdaIFaH KaFdaIaIaFbI epeKeTTeP 6eImiH KapaHbI3.

TacbImanay He caTay 6oBbHwa Hycaynap

Kopuafah opTa TemnepaTypaCbI -17°C JHe +60°C / 1°F JHe 140°F apaJIbIFbIHJa.
CaKay TemnepaTypaBc -20°C KHe +40°C / -4°F KHe 104°F apaBbFbHda.
- AkKymyIaTOPnapbI 3apraTafbiI W KypblfBiH iuiHne caKaTaMaHbI3. AkKymyIaTOPpbI 3apraTafHaH KeiH ePdaiBIM 3apraTafbiI W KypblfBIdaH wBIfapbHbI3.
- AkkyMnyrTopnapbI MymKHHirHwe caKbIH KHe KpyFaK Jepde caKaTbH3. CaKbIH Jepde caKTay aKKyMnyrTopdbH Kb3MeT ety MeP3imH apTTbipaDbI. AKKyMnyrTopnapdbI eH JaFdaJa KaH, Kblny Ke3depHIn actbHda Hemece bHbH eHHeK apTbHda caKaTaMaHbI3.
AkkymyIaTOPnapbI NOHTaMeH KI6epyre 6oMaIbI.3aKbIMdaIImaFaH AKKymyIaTOPnapbI JI6epy KaKeT 6oIHaJa, JeTeKi3yUi KeCinOpbIHapPa Xa6apNaCbHbI3.
AkkymyIaTOpJapBleWkaaHwIMeDeTaCbIMaIaMaHb3. TaCbIMaIay bapbcIHdaakKMyIaTOpnapDbI 1aMaIah apTbIK COKkBi MeH dipinDen Kopray JxHe OlanDbH backa baTaper noIOCTepimEn XaHacByHa HxHe KblCKa TbyblKTaNbH TybHdAybHa JxO BePmey yuH Ke3 KeIreH ToK eTKi3rIW MaTepHaIaPaHn HeMece baca aKKymyIaTOpJapDaH Okwaaylay KepeK. AkkymyIaTOpJapFa apHaIraH JeepriikTi TaCbIMaIay epKeJIepiH caKaTaHbI3.

TexHkAnbIK Kbi3MeT KepeTy XeHe KeDere XkapaTy

AkkymyIaTOpbTa3a Kynde JHe MaM MeH JHaFapMaJaH 6oc YCTaHbI3. AkkymyIaTOpda KaKetci3 WaH He KipdiH JnHaJIbHa J kon 6epMeHi3. AkkymyIaTOpDbI Kypfak, KymCaK KbIkaJAMMeH Hemece Ta3a, Kypfak, WSyBepeKeNeH Ta3aHaHbI3.
XeNdety caHbInaynapb6iteTReH aKKymyIaTOpDbl KOnlaHyFa 6oMaIbI. XeNdeTy caHbInaynapbH Kypfak, Kymcak, KbluakneH KaKcbIan Ta3anaHbI3.
Iwki 6eirine 6ege 3aattapdbn Kipyih 6oJnbipMaHb3.
AkkymyIaTOpFa eUkaHdai cybIKtbKTapdbIH KipyHe Jxon 6epMeH3. AkkymyIaTOpFa bIFan Tureh KaJaHa, OAFaH 3akBIMdaJFaH aKKymyIaTOpFa ceiDi Iwa pa KonDaHbIn, OHbI epTeH6eTIN KOHTeHepre caJIbN OKwaylaHaI3.

AkkymyIaTOpnap 3aKbIMdaFaH XaFdaIaFbI epeKeTTep 6eimH KapaHbI3.

Hyckaynapan TBIC Keere Jkapaty HETNHexeHr de3 He cybIKTBtBn 6ocaTbIybl DeHCaybIKKa Kayin THeDipy MyMKIn. AkymyIaTOPbHlti Hilti Store dyKeHHde Keere JkapatbHb3 Hemece JeeprinikTi Keere Jkapaty KecinopHbHa xaapnacbHb3. 3akbIMdAnFaH akymyIaTOPnapra aphanfah JeeprinikTi tacbImanday epexenepih caKtaHb3!
AkkymyIaTOpIaPdbTyPmbICTbIK KOKbICKa naKtbpMaHbI3.
AkkymyIaTOpIaIb6aIaIapdbH KOJIbHa KcTeNtIHDeeEtIN KdEre JapaTbHb3. KbICKa TynbIKaIyFa Kon 6epMey ywiH, KocblnIMapdbTOK eTKi36eHTIn MATEpHaJMeH KaybI KOJIbHb3.

OpHnHaJIHo PbKOBOIDCTBO 3a ekCnIooatauia

1 DaHHn 3a PbKOBOIDCTBOTO 3a ekCnIIOaTauH

1.1 3a pkoBODCTBOTO 3a eknnoatauHa

• Ppdeynpejckdne! Ppein da BkIIOHTe npOdyKTA, ce yBepete, ye npInIOKeHOTo KbM npOdyKta pBkoBOdCTBO 3a ekCnloatauH, BkIIOHTeJIHO IHCTpyKcNITE, yka3aHnraT a 3a 6e3oNaCHOCT n PpeDynpedTeHNTE yka3aHH, fHyprn HcEeHfKaun, ca npOteHn H pa36paHn. 3aOn3HaIe Ce C BCNUKN HCTpyKcUN, yka3aHH 3a 6e3oNaCHOCT n PpeDynpedTeJIH N yka3aHH, fHyprn, cNeUfKaun, KaKTO n CbCTABHn qactn n FyHKUn. Ppr HeCna3BaHe HMa onAChOCT OT eJeKtpnueCKn Udap, NoXkap N/INn TeKKn HapaHBAHn. CbXpaHnBaIte pBkoBOdCTBOTO 3a ekCnloatauH, BkIIOHTeJIHO BCNUKn IHCTpyKcUN, yka3aHH 3a 6e3oNaCHOCT n PpeDynpedTeJIH N yka3aHH 3a NocLeDBAU O NsON3BaHe.
  HILPnOpyKTHe ca npEHa3NaueHn 3a npofoecnoHaHn nOtpe6nteHn mOrat da 6bDaT o6cnyBaHH, NODbpKahn B n3npaBHOCT n peMOHTnpaHn cAmO OTOpHnpaH kOMnTeHTeH nepcoHaN. To3n nepcoHaN Tp8Ba Da 6bDe CneuHaHn HNCTpyKTupan 3a Bb3MOxHNte OAnCHOCTn. PpOyKTbT n HerOBtE

npncno6neneH MOraT da 6bDat onaChn, ako 6bDat eKcnIooaTnpaHn HEnpaBOMepHO OT HeKBaHnpuHn nepcoHaJI nAko 6bDat n3NoJ3BaHn He no npedHa3NaueHne.

• PpHIOXeHTo pBkoBOdCTBO 3a eKcnIHOatauHa OTRObAp Ha aKtyaIHTO cBcTOrHHe Ha TexHkata MoMeHTa Ha OTNeUaTBAHe. BnHaN ige HamePte aKtyaIHATA BepCnHaONlaH Ha npOdyKTOBaTa CtpaHua Ha Hlti. NocneDbaiTe 3a Ta3n ceN Bp3kata nIN QR KOna B HactoHIoTO pBkoBOdCTBO 3a ekCnIOaTaun, O603HaueH Cbc CmBBoJa
• PnpdaBaIte npodykTa Ha npyHa cmo 3aEDHO C HAcToHcTOpBkoBOCTBO 3a EKcnloatauHa.

1.2 ycnoBn 06o3HaueHn

1.2.1 PpeynpeinteHH yka3aHn

IpeynpeintenHnte yka3aHH npeynpexkdaBt 3a onachoc T B 3oHaT oKOIO npOyKTA. H3noJ3Bat ce CneHNTE cnHaJIHn dymn:

ONACHOCT

ONACHOCT！

Othacr ce 3a HnocpeCTBeHa OnaCHOCT O T3anlaXa, KOrTO BOIN DO TeKKn TeJeCHn HapAHBaHn IIM CMbpt.

IPDEyIPEXJEHNE

PNEyPEXKDEHNE！

OthacCe 3a Bb3MOxHa onaCHOCT OT 3aIIaxa, KOHTO MOKe Da IOBeE Do TEKKN TeneCHn HapaHBAHn ININ CMBPT.

PNEIa3NHBOCT

BHIMAHNE！

Othacr ce 3a Bb3MOxHa onacha cnTyauH, KOTo MoKe da Iobede Do TeleChn HapaHBAHn nn MaTePnaHn NtH.

1.2.2 Chmboln B PkoBoCTBTO 3a ekCnNoatauHa

B HactoIooTO PbkoBOcTBo 3a ekCnIOaTaunCe n3NOJ3BaT CneHInTe CmBOJI:

Ia ce c6bHIOdaBa PkoBOdCTBOTO 3a EKcIIoatau

Ipenopbkn npn ynoptpe6a n dpyra noJe3Ha HhOpMaun

BopabHe c peuknpyemMaTepaHn

He n3xBbPnIte eneKtpoypedn akyMylaTopn B 6ntOBtE OTnaDbu

Hilti JntneBO-IOHOEN aKymyIaTOP

Hilti 3apAnHO yctpoIcTBO

1.2.3 ChmboH BbB hpypnte

BbBnHypnte ce n3noN3BaT cneHnTe CmBOJN:

2.3 BHHMaTeJIHo 6opabeHe n H3non3BaHe Ha akymyNaTOPn

Cb6IIOaBaTe CLEHHTe yka3aHHa 3a 6e3oNaCHO 3a HadeJHO 6OpabeHe n H3NoJI3BaHe Ha IHTHeBO-IOHHn akymlyaTopn. Hecna3BaHTo mM MoKe da npedN3BnKa dpa3HeHe Ha KOxKaTa, TeKKn KOP03NBn yBpeKdAHH, XmMnHn n3rapHn, NOkap n/nnn ekCnlo3nn.
- ⅢnON3BaIte akyMylaTopHTE cMo B TEXHnueckn H3npaBHO cbCTOHRHe.
Pa6oTe BnMaTeHc AkyMynatOpHTe, 3a Da n36erHeTe NOBpeHn I da npedOTbpaTne H3n3aHTo Ha TeuHOCTN, KOHTO ca MHoro BpeHN 3a 3dpaBeTo!
Akymyataopnte He Tp6Ba No HKKbB HaunHa 6bDaT npomeHn nn MaHnynpaH!
AkymnyatopnHe Tp6Ba Da ce pa3rno6BaT, CmaKBaT, da ce HarpBaT Ha8 80^ (176 F) nn da ce n3rapT.
He n3non3BaIte nH He 3apeKdaIte akymylatopn, KOHTO ca 6nn yIapEn nn ca NOBpeDeHn no npyr NaHH. PpOBepraIte peIOBHO BaIIne akymylatopn 3a npn3Haun Ha nobpeDa.
Hnkora He n3no3BaIte peuKlnpaHn nn peMOHTnpaHn aKyMynaTOpH.
Hikora He n3no3BaTe akymylaTopa nIaakymylaTope H eJeKtpOnHCTpyMeHT KaTo ydapeH MexaHaN3bM.
Hnkora He n3naraite akymyataopnte Ha npka CnblHyeBa CBETnHa, NOBnueHa TemnepaTpa, 6pa3yBaHe Ha nCKpn nn OTkptn nAambK. ToBa MoKe da DoBeDe do EKCnIO3nn.
He donnpaTe nIoocTe Ha 6atePnnte C npbCTn, INCHtpMeHTN, yKpaSeHn IIN dpyrn eEnkTpOPOBOMn npedMeTn. Toba MoKe Da NOBpeDn akyMylaTopa, KaKTo I da npuHN MaTepHaJIHn UeTn HapaHBAHn.
-Дрьжтakymу latopnte daneue OT dbxk, Bnara n Teuhoctn. Проннхалata Bnara moKe da npunnn Kbcn CbeDInHeHn, eNeKtpnueeckn ydapn, n3rapaHn, noXkap n EKCnIO3nn.
H3noJIbAaTe cAmO 3apRdHn yCTpoNCTBa H eNEKTPoHNCTpyMeHTn, npEJa3HaYeHn 3a To3n Tn aKyMaTOpn. 3a Ta3n ceI cb6JIOdaBaIte daHHTE B cbOTBeTHITE PbKOBOcTBA 3a EKCnloaTaun.
He n3non3BaIte Hn He cBxpaHbAite aKymyIaTopa BbB B3pNBOONacHa cpeJa.
Ako akymylatopbTe mHoro ropeu Ha donnp, ToM MoKe Da HMa DeFeKT. NocTaBete akymylatopa Ha BnIMo, He3anlmo MRCTO C DoCTaTbUHO pa3cToHHe Do 3anaHm MaTePnAn. OctaBeTe akymylatopa da Ce oxlan. Ako cneE dInH yac akymylatopbTe e BCE Oue TBbPde ropeu Ha donnp, ToI e Hen3npaBeH. O6bpHeTe ce KbM cepBn3 Ha Hilti nnn npOyTeTe DOkUMeHTa "Yka3aHn 3a 6e3onachoct n npinarahe Ha Hilti nITneBO-IOHH aKymylatopn".

Cna3BaIte cneuHaHnHe TnpeKTHBn, npInoXmM 3a TpaHCnOpTnpaHETo, cbxpaHeHHeTo n H3noJ3- BaHETo Ha IHTHeBO-IOHH aKyMyNaTOPn.

Ipooyete yka3aHnra 3a 6e3oNaCHOCT n npJlaRaHe Ha Hilti JNTHeBO-IOHH aKymyIaTOPn, KOHTO MoKeTe da HamePte, KaTo cKaHnpate QR KoDa B KpaHa HAcToaTO PbKOBoDcTBo 3a ekCnloatau.

3 OnncanHe

3.1 PperneHa npodykTa

① AkymytaTop
② HndkaTop 3a cTaTyc Ha aKymylaTopa
③ ByToH 3a De6IoknpaHe Ha aKymyNaTopa
④ HnIkaTOp 3a pa60THOTo CbCTOHNHe Ha 3a-pHHTO YcTPOICTBO
⑤ OTBOPN 3a CTeHEH MOHTaX
6 H3xOДВb3dnyx
⑦ BxoBb3dyx
8 INTepeic3aakymyIaTOp

3.2 Ynotpe6a no npedHa3HaueHHe

OnncanHnT npOyKT e npEHO 3apRdno yCTpoiCTBO 3a Hilti NHTneBO-IOHH aKymnaTOpN C HOMHaHnHO HanpeKeHne 21,6 BONTa. To e npEHa3NaHeo 3a CBbP3BaHe KbM KOHTaKTn C IpOMeHnBO HanpeKeHne OT 100 do 127 BONTa nn ot 220 do 240 BONTa, cNopeD MoJena B CbOTBeTHata CTpHa.

3apHnHOy yCtpoIcTBO MoKe da ce noCTaBn Ha paBHa NOBbpxHOCT nn da ce MOHTnpa Ha cTeHa.

B HactoIaIcNcIbK 1e HaMepeHHe 3a To3n npOdyKT Hilti NTHeBO-IOHH aKyMynaTopn.
- He BCnukn akymypatopn ca HaNuHn Ha BCnKn na3apn.

JaHHn 3a npoDyKta

Зарадно устrodu С 6-22 | C 8-22
Поколени 01
Сер就近 № 1 - 999999999999

3.3 HndkaTop 3a peKHM Ha pa6ota Ha 3apHNOTO yCTPOICTBO

3.5 INHnKaTOp 3a CbCToHHHeTo Ha NHTHeBO-NOHHN aKymyNaTOp

Hilti npenopbya da npoBepte cctoHHeTo Ha IHTneBO-IOHHn aKymyIaTOp npedn BceKn npouec Ha 3apeKdahe.

3a da npOBepnte CbCToHHeTo Ha akymyIaTopa, 3aDpBkTe HaTnCHa Tbe6NOKpaun 6yToH 3a NOBEe OT Tpu cekyn. CnCTemata He pa3no3HaBa NotehuJHa Hne3npABHOCT Ha 6aTepeHra Nopadn 3NoynOTpe6a, KaTO HAp. n3nyckaHe, npO6NaBe, BbHnH ToNNHH NoBpeNi dp.

CBeToIIOIbT CBeTI:3apIHOTo yCTpoIcTBO fYHKUHOHpa npaBnHO.
CBeToOnIObT He CBETn: 3apAnHOTo yCTpoCTBO He fynKcNoHpa npaBnHO.

CbpxKeTe ce cbc cepBn3 Ha Hilti.

7 TpaHcnpT n cBxpaHeHne

TpaHcnopt

Pn TpaHcnpOpTupaHe BHMMaBaIte 3a HaJeKdHOTo 3aKpeiBaHe.
CneBcKo TpaHcnpTnpaHe npOBepBaIte BcNcKN BuIM qactn 3a noBpeNi Ce yBepTe BN3npabHOTo fHKIOHpaHe Ha enemEnITE 3a ynpaBHeHne.

CbXpaHHe

CbxpaHbAte To3n npOdyKT BHaHc c 3BaJeH MpeKOB uenceJ.
CbXpaHbAaTe To3n IpOdyKT Ha cyxo MxCTO, daJeU OT DoCTbNa Ha Deca H HeOTOpn3npaH Nua.
Cne npoIbIKNTeHNO cbxpaHHe NpoBepraBe BCnKu BnIM qactN 3a NOBpeN n 3a H3npaHO yHKUOHpAHe Ha enemeHTe 3a ynpabHeHne.

8 Tomoц npn Hauuue Ha cmyeHHA

Pn HnHnue Ha CmUeHn, KOnto He ca nocOeHN B Ta6JIucaTa nn KOnTO Bne camn He MoKeTe da OTCTpaHnte, Mon, Obphete Ce KbM Haun cepBn3 Ha Hilti.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ta3n Ta6nua ce npunara 3a na3apa B Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Ta3n Ta6nca ce npnilara 3a na3apa B TaBaN.

C 8-22 (01)

RoHS (DnpeKTHBa 3a orpaHnUbaHe Ha ynotpe6ata Ha onachn BeuecTba)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ta3n Ta6nua ce npunara 3a na3apa B Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Ta3n Ta6nca ce npnilara 3a na3apa B TaBaN.

13 Hilti NHTHeBO-NoHHn akymyNatOpH

Yka3aHn 3a 6e3onacHOCT npnlaraHe

B Hactoata DOKyMeHTaun TepMnHbT akymnatop ce n3noJ3Ba 3a npesapeKdauchce nHTneBO-ohen akymnatop Ha Hilti, B KOITcCa CbP3AHN HKOJIKO NHTeBO-nOHNN KNETKN. Te ca npedHa3NaueHN 3a eNEKtpOnHCTpymEnHa Hilti nMorat da 6bDet n3noJ3BaHn cAmO CTAX. N3noJ3BaIte cAmO opRnHaHn Hilti akymnatopn!

OncanHe

Hilti akymynaTopnTE ca obopydbaHH cbc cnCTeMH 3a ynpaBHeHne n 3auNTa Ha KNeTKnTe.

Akymnyatopnte ce cctoT OT KnetK, cBbPkaun nHTneBO-NOHN MaTepnaH 3a cbxpaHeHne, KOHTO NO3BOJRAAT rONMA CNEUΦNHa eHepnHa NtBTHOCT. IITneBO-NOHnTE KNETK Ca NOJNOKeHn Ha MHOrO HnCbk eFekt Ha naMeTTa, Ho ca MHORO yBCTBnTEJIHN KbM Bb3DeIcTBnETo Ha cnla, Dbl60KO pa3peKdaHe HIN BnCOKn TemnepaTypn.

Pazpeшени подукту за Hilti akymларони лимерп вв Ваши Hilti Store на http://www.hilti.group

Be3onachoc

Cb6IIOaBaTe cneHnTE yka3aHHa 6e3oNaChOCT 3a HadeKdHO 6OpabeHe n 3No3BaHe Ha IHTHeBO-IOHH akyMylatopn. Hecna3BaHTo m MoKe Da npedN3BkA dpa3HeHe Ha KOxKaTa, TeKKn KOP03NBH yBpeKDaHH, XmMnHH n3rapHn, noKap n/nnn ekCnNo3n.
Pa6oTe BnMaTeHcAkymaTOpHTe,3a Da n36erHeTe NOBpeHN da IpeDToBpaTHe N3n3aHTo Ha TeuHOCTN, KOINTO Ca MHOrO BpeHN 3a 3dpaBeto!
Akymynatopnte He Tp6Ba no HNKbKbB HaunHa 6bDaT npomehn nn MaHnynpaH!
- AkymyataopHTe He Tp6Ba Da ce pa3rno6RaB, CmaKBA, da ce HarpBaH a80°C nnn da ce n3rapT.

He n3no3BaIte Hn He 3apeKdaTe akyMylatOpH, KOHTo Ca 6nH yIapeHN nn ca NOBpeDeHn no npyr NaHH. PpOBepaBaiTe peIOBHO BaIIne akyMylatOpH 3a npn3Haun Ha nobpeDa.
Hikora He n3non3BaIte peuzkInpaHn nn peMOHTnpaHn akymyIaTOPn.
Hikora He n3no3BaTe akyMylatopa nn eneKtpOnHCTpyMeHT, 3axpaHbaH OT akyMylatop, KaTO ydapeH MEXAH3bM.
Hnkora He n3naraite akymyataopnte Ha npka CbHyeBa CBETnHa, NOBnueHa TemnepaTpa, 6pa3yBaHe Ha nckpn nn OTkpt n lambK. Toba MoKe da DoBeDe do EKCnIO3nn.
He donnpaTe noIOcTe Ha 6atePHTe C npCTn, INCTpyMeHTn, yKpaSeHn IIN dpyr enEeKtpoBODIMn npEdMeTn. Toba MoKe Da NOBpeDn AkyMylaTopa, KaKTo N da npuHN MaTepHaJIHn UeTn HapaHBAHn.
-Дрьжт ekумларotite Далаче OT ДьЖД, Bнаги TeчhoeTN. Проннкhalata Bnara MoKe Да пнчнн Ксн CbeDINHeHЯ, eNeKtpnueckn ydapn, n3rapaHn, noxkap n EKCnNo3nN.
H3noJ3BaIe cmo 3apAHN yCTpoNCTBa n eEKeTPOHnCTpyMeHTn, npEJaHa3NaHeH 3a To3n Tn aKymnaTOpn. 3a Ta3n ue Cb6KnOdaBaIte daHHTE B cbOTBeTHNE PbkOBoDCTBa 3a ekCnNoataun.
He n3non3BaIte Hn He cXpaHbAaTe aKymyNaTopa BbB B3pNBOOnaCha Cpea.
Ako akymylatopbTe mHoro ropeu Ha nnaHe, ToJ MOKe da e Hn3npaBeH. NocTaBeTe akyMylatopa Ha BnIMo, He3aNAJIIMO MRCTO C DOCTaTBUHO pa3CTOHHe Do 3aNAIMM MaTePnaIIN. OCTaBeTe akyMylatopa Da ce OxnaDN. Ako cneEeHN yac akyMylatopbTe e BCE OSe TBbPeD ropeu Ha doNp, ToI e Hn3npaBeH. NocTbNaBte CbrJaCHO yka3aHaHTa B Pa3DeI MepKn npn ropau akymylatop.

IobedeHne npn nobpeHn akymyataOpH

BnHaHc Ce CbP3BaIe CbC cepBn3 Ha Hilti, aKo HMa NOBpeH aKymnatop.
He n3non3BaIte akyMylaTOP,OT KOITo n3n3a TeHOCT.
- 1368BaIe dIpeKTeH KOHTaC KOKaTa H/INn OUnTe, aKO TeUHOCTT aN3TuHa. BnHaHn HocTe 3aunTHn pbKaBnIu N 3auNTa 3aOUnTe npu pa6oTa c 6atepHa TeUHOCT.
3a ceIHa 3nON3BaIte ODo6peH XmMueeCKn NouchBaU npenapA, 3a Da OTcPaHHe 3nN3aUata BatepHa TeuHOCT. Cna3BaIte MeCTHnte pa3nope6n 3a NouchBaHe Ha 6atepHa TeuHOCT.
IocabeTe He3npaBnna akymlaTOp B He3anaJIM KOHeHep n ro NOKpHne CbC cyx nCbK, c KpeJa Ha npax (CaCO3) nnn cnHKaT (BepMnkynt). CneT TOBa 3aTBopeTe Kanaka xepMeTuYeCKn n CbXpaHaBaTe KOHeHepa daJeue ot 3anJIMn ra3OBe, TeuHOCTn nn PpeMeTn.
H3XbBpIeTe KOHTeHepa BbBaIIra Hilti Store nIc cBbpxTe C MeCTHaTAKOMnHn 3a ynpabHeHn Ha OTnAdbu. Cna3BaIte MeCTHITPe pa3npoe6n 3a nobpeHn akymyIaTOPn!

IobedeHne npn Beue hepaboTeu n akymyNatOpn

BHMaBaTe 3a Heo6uayHNo NOBeHe H aKymNaTopa KaTo He npabNHO 3apeXdaHe, Heo6uayHo bIbn BpeMeHa Ha 3apeXdaHe, 3abeEeHm Cnad B MOUHocTt, Heo6uayHa AKTNBOcT Ha CBETOnOda nn H3TuHa Be TeuHocTn. ToBa ca Hndkaun 3a Hauyne Ha BbTpewen npo6Jem.
Ako npednonarate,ye HMa npo6nem C BbTpewHnAkyMylaTOp,CbByKeTe ce cbc cepBn3 Ha Hilti.
Ako akyMynatopbT cnpe da pa60TH, Beue He MoKe da ce 3apeKda HnH aKO n3TuHa TeuHOCT, Tp8Ba da ro n3xBbpHte. Bxk Pa3den IOndPbKka N TpeHpane Ha OTnaBtu.

Mepkn npn ropaakymynatop

PNEyPEXDEHNE

Onachoct ot noxap Ha akymnatopa! Pn noxkap B akymnatopa ce OTdJIaT OaCHN EKCPIIO3BHN TeuHOCTN n napn, KOeTO MOKe Da DOBeJe Do Kopo3IOHn YbpeJDaHn, I3rApRn Hn EKCPIIO3Hn.

Hocete cpeCTBaTa cn 3a nepcoHaHa 3auHtA, KOrato racnte ropua akyMynaTOp.

OcnrypeTe noDxOJaBa BeHTnlaa, KOrTO n03BOJBa Da ce n36eHrTa ONaCHN I NOTeHuaHNO ekCnIO- 3NBn rA3OBe.
- Pn HHTeH3NBO pa3npocTpaHeHne Ha dIM HanycheTe He3a6aBHO NOMeJeHHeTO.
Pn nppa3HeHa dNxATEHHTe TbTnca ce KOHCyTNpauTe c Jekap.
- IOBnKaIte Ha nOMOu NOKaHata KOMHa IpeN da 3anoHHe OINr 3a raceHe.
Facete ropaunny akymynatop cmo c B0da ot b3MOxHO ha-roJMo pa3cTOnHne. IpaxOBnte noXapo- racnten n npotNBONOKapHnTe OeRna ca HeeFekTNBHN 3a JInTHeBO-nOHn AkymyIATOpn. Ha OKoHNte noXapn MoKe da ce npOTNBOeIcTBa C KOHeBnOHaJIHn CpEcdTb 3a raceHe.
He ce onntbaite da npemectbate rolemn kolnuectba ropau n akymynatopn. Octpahe Te BCuKHe3acerHaTn MaTePnAnN OT Hau-6nn3kata OKonHa cpeDa, 3a Da H3OnnpaTe 3acerHaTne akymynatopn.

B cnyuai, korato akymylaTopnte He ce oxlaKdaT, nyuat Hnn ropr:

B3eMeTe akymyIaTopa c nonata n ro xbbpneTe B kOpa c BOda. OxnaJdaUTo Bb3JeCTBHe orpaHnuaBa pa3npocTpahEnHeTo Ha noKapa Bbpxy akymyIaTopH N KNeTKn, KOnto BCE Oue He ca DoctnHaNk PHTuHaTa Tempepatya Ha 3anaIbaHe.

HILTI

OCTaBeTe akymyIaTopa B Kofo 3a Hau-MaIko 24 Yaca,doKaTo ce OxnaIHaHbJIHO.
BnK Pa3dien NobeHne npn nobpeHn akymyataOpn.

ДаHHn 3a TpaHcNopt n CbXpaHeHne

EkncnloaatauOnHa temnepaTpa Ha OKoJHaTa cpea MeKdy -17°C n +60°C / 1°F n 140°F.
TeMnepaIpyaHa cxbxpaHeHne MeKdy-20°C n +40°C / -4°F n 104°F.
He cbxpaHbAite akymylatopite B 3apHdHOTO yctpoiCTBO. CneI 3apeKdahe BnHaRn n3BaJdaTe akyMylatopa ot 3apHdHOTO yctpoiCTBO.
IIO Bb3MOKHOCT CbXpaHbAaTe akymyIaTOPte Ha XnaHIO n cyxo MAcTO. CbXpaHeHneTo Ha XnaHOMACTO yDblNkaba KHBota Ha akymyIaTOPa. HNKora Ha ocTaBnTe akymyIaTOPpe Ha cTbHcE, BbpxOToPJIteHNu Ypei nn 3aD CTbKla Ha npo3Opu.
- Akymyatape He Tp6Ba Da ce n3npaat no noata. CbpxKeTe ce cbc cnepntopka hnpma, aoknckate da n3npaate nobpeHn akymyataopn.
Hnkora He tpaHcnopTnpaTe akymyNaTopnTe B HacnHb CbctOAHne. Pn TpaHcnopTnpaHe akymyNaTopnTe Tp6Ba Da 6bDaT 3aunTeHN OT ppeKomepn Yuapn N Bn6paunn N 3oJnPaHn OT BCraKaBn npoBoJauMATEpHaJIu HIN dpYn AkymyNaTopn, 3a Da He ce OcbIeCTBN KOHTc C dpyrN nonIOCh Ha 6aTePNn I da Ce H36BerHe KbCo CbeDInHeHne. Cna3BaIte MeCTHnE pa3npoe6n 3a TpaHcnopTnpaHe Ha akymyNaTopn.

Iopdpbcka H TpeTnpaHe Ha otnaDbu

IopdtpkaTe akyMylatopa uHCTn He3aMbpcen OH Macna n Cma3Kn. H36rBaTe HeHyxeh npax nn 3ambpcBaHH Bbpxy akyMylatopa. IOnuHCTBaTe akyMylatopa cbc cyxa, MeKa Yetka C BlaacnKn nn C qHCTa, cyxa Kbpna 3a NouchTbaHe.
He pa6oTe c akymyntopap npn 3anyuene HBeHTnlaucnoHHN OTbOpn. NocCTBaIe BeHTnlaucnoHHnTe OTbOpn BHNMaTeJIHO Cbc Cyxa, MEka YETka.
He donyckaite nonadaHTo Ha yKdTea BbB BbTpueHocTta.
He donyckaTe npoHnKBaHeTo Ha BlaRa B aKymaIaTopa AkoB aKymaIaTopa e npoHnKHana Blaara, TpeTnpaIte CbUra KaTO NOBpeDeH aKymaIaTop I rO n3OlnpaIe B He3anAIm KOHTeHep.

BnK Pa3eI NobeHne npn nobpeHn akymlaTopn.

Iopadn HnpabnHNO 3xBpJHe MoKe Da Bb3HKnE onaCHOCT 3a 3paBeTo npn H3nn3aHe Ha ra3OBe nn TeuHocTn. N3xBpNe akymnatopa BB Baun Hilti Store nn ce CBpKTe C MeCTHaT a KomnaHn 3a ynpablenHe Ha OTNaDbUte. CnaBaTe MeCTHne pa3nope6n 3a nobpeHn akymnatOpn!
He n3xBbplnTe akymylatopn 3aedno c 6ntobn otnaDbu.
H3xBbPnIte akyMylatopnTe No TaKbB NaHH, Ye da He Morat da nonaHaT B pbcTe Ha deua. POKPBaiTe Bp3knte C HnpoBOIM MaTeHnA, 3a Da n36erHete Kbcn CbeDInHeHH.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%" 僅指限用物質之百分比含量超出百分比含量基準值。Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○" 僅指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一" 僅指該項限用物質為排除項目。Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Inpwrotouεs oynieεxρηo

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Autoc o nivakac ixue yia tyn ayopac KivaC.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Autoc o nivakac ixue yixn oxyopax Tc Taibv.

C 8-22 (01)

RoHS (oynia yia tov nepiopioo Tc xphoc enikivuvw ouiwv)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Autoc o nivakac ixue yia tyn ayopac KivaC.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Autoc o nivaKac 1oxue yix axopaxo Tc Taibv.

13 EAnovaoopntzouevc matapiec Li-Ion Hilti

Ynoeic yia thv oopaleix kai tn xpon

TnV TApouoA TeKunpiwn, XpnoiOnoiEitai o opoc Etnavaoopntioevn mataipia yia eonvaoopntioevec mataapiec Li-Ion TnC Hilti, otic onoiec ivai auovoboevec nepiaotepc kupeae Li-Ion. PooopiOvrai yia nEktpiké npaaelia Hilti kai emipteetai va xnpaipoioiouvtai movo ue auta. XpnoiOnoiite movo yvnaies c npavaopntioevec mataapiec Hilti!

Nepiypao

OeTavopTcpevesmuatepie Hilti elvai Egonlaueves eountmaa dxxepionc kai npootaoia KUeaw.

OeTavaoptioevecmuatapieacnteauovtaoKupeae, nou Tepexouv uikoxuuaawpuon 10vtow Ailou, ta onoi aenipentouv ia uynn Ebiiknv evpyiaekn mukvotna. Oi kupeae Li-on unokivtai e Evaa nou kippo qainovoe uvnnc, avtibpouv oucm e nou ueyan euaotheoi a e nippaan biac, baoia ekpoption n uynlcs eepokpaoic.

Ta npoiovr taou evai ekyekpiieva yia eTnavopotizoevec mntaepiec Hilti Ta Bpeite oTo Hilti Store n otn diuuvon: www.hilti.group

AoopaAeia

PooEET Tc akoloue c unoBleic aopaaieac yia ToV aoopaan Xepiio Kai Tn xpon enava- oapticoeuv matapiov Li-Ion. Ano TuXov npapbaevn mOpel va POKAnBoov depaTikoi epeiogoi, 0oBapoi biapwIKoi TpaUauatiauoi, xniukx EYkaumata, n/Kai EKpNExic.
Xeipicote oxoaootik taT enavapopntzoevec matapecs, ia vao aonopuyte znuiies kai nvy Edo uypov nou embaow yia tny uyia oac!
επιρεπειασκαία περπτωη μεταροπή ἡπαραοιησι των επαναφορτόμενων μιαταριών!

ev EITIeTAtv aTOoUAPoAOyEITE, vO uumieTe, vO ePuaiveTe naww anTo Touc 80^ n va Kaite TIC eTavoxopotIOeveEc mATopiEc.
MnV xnoiopoioite n ophiTeE eTavaooppticouvec uatapiec, o onoie cexouv dextei xTuTnua ixouv unoatei zmuiae biapotikto pOIO. EeyxTe TAKTKa TIC eTavaooppticouvec matapiec yia anuadix zmuiaes.
Mynxnpoipoiote note avakukwuevesc n EIOKEuaauevee eTAAVAPOpTizouevcmuatapiies.
Mnv xnpoiouoiei Tnv eTavoxoaptioevn mataipia n eva eTavoxoptioevo nektpiko epaaio notc Kpouatik oepyaaio.
Mnv EKHTETNE TIC ENAOXOPOTICOVECmuTAPIECS OE aEONnAIAKn AKTIVoBOLa,auENeVn 3epoKpaia, OIVHpeC n yuuec PfoE. MnpEi va npokAnBov ekpEic.
MnV aountte Tou nolouc tnc mntatpiac me ta dxtua, epeyaaia, kogunmuataa aaaa anektpiak axwyimauvtikelueva. Etai mtopei va npokanthei nui aonv enavapoptioevn mntatapia, kaohc kai ulikec nuiie c kai trpuuataoai.
Kpatae Tc eTAAovapoptoEvEc mTAtopie cakpi aTo Bpoxn, uypaaia Kai uypaH Eiaxwpnan uypaaic mTopei va npokaaeaBpaxukukawatα, nEktponlNia, ykauata, qwi taeknEiC.
XpnaioioieTe mOvo Touc oopTtEc kai ta nAekptikα epyaiai Tou npoBaaovTa iia autov tov tUIOIATApiaC. PooEgTe oxetikα ta oToixeia otic avtoioxc odnyie xphnnc.
MynxpooiouoieTe n aoTneKeueTe TIV eTavaoopTcOevn mTApia oekpEua pepiAovTa.
Eav n mntapia kaii utepoikot av tykouptate, evexetai vexu untoei zmu.Toontheta tny uataipia oe eva onueio oto onolo exete opatotnta, m euokto kai e npakn aootaan aTo eukkta uik. Ane Tnv enavaopotizoevnn uataipia va kpuwoei. Eav n mntapia eakolouesi va kaii utepoikot eta ano miawpao otav ny akoupiata, toe exei untoote zmu.Akoauohote tic odnyies cto kepaalao Metrae ne pintwn qwioc envaopotizoevnc mntatipiac.

Ueepipopoeepintwn enavaoaptioevwuvnataiov nou exouv unootei nia

Anuovte Tavtoeepic nHilti,otuvunoei nuaeovapoptoevn npatpia.
MnV npoiouoeite iia eTavoxoepntzoeyn mTalpha, anTo nvo onoia eEepexetau ypo.
AnopuyETnV aueon eTaoTou eEepxoevou uypou m ta tia n/kaio To depua. OpatTe npovtpooataeutikaxavTIA kai yuaia kato Tnv epyoxia uypa mntatpiow.
Xpnaioioiote evxnnikok kaoipoiévo yiautov tov oKo, ia vaoaoukpuve Ta Eepoxeva uypa unatapiwv. Aβete unoyn Tc tonike diataeic kaopiaou yia uypa natapiow.
ToTOnoTeHnTe TIV EAtTWMaTIKn EAnavopptIQeVn mTATApia eEv a n EupkTo DoxEio Kai KaAuyTe TIV ME OTeYvN amuo, KIMwla (CaCO3) n npitiko aac (Vermiculit). KLeiote otn ouvExia epuntikto KaTAKI KAI quaTe To DoxEio paKpiα ano EupkTa aepia, uypn avtikleva.
Anoppiye To doxio oTo Hilti Store n aneunovthe tny apodia enixepion dio theon cntoppmuaw. Aae TIOUyn Tc tonikec npodiaypaopec metapopac yia enavalphaoptizoeves matapioc nou exouv unooTei znui:

Sigmaepiopaxnovaoopptioevec natapieoc nou dev aeitoupyouv naev

PooEe Eav unapxie aphiakn ouinepipopax nC eanovopntioevnc matapiaoc, oWc λavthetaevn foption n aouvnIoiTa eyaioXpoVoi foptianc, aiOthn meiwn Tns andoans, aouvnHiotec evdeIeic LED n Eeepxóvea uyα. Autα elvai evdeIeic yia eowtepiKIO npβλμα.
Eav unoiocote otunapxei eowtepiok npoBnau stnv enovxopotcoueyn nataipia, aenuuvtheit oTo aepis tH Hilti.
Eav dev aeitoupyei n eov n eivavopoticiouevn mataipia, ev popti neeov n enavapoptiouevn mataipia n eepxetai uypo, npentie v a tnv tetae. BAEIE KEPAAIO SuVTIPNON KAI δiαθεσ Σα αnpipmuα.

Ariza Olasi sebepler Çozüm
LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fiçi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke fisi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,©. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke fiçi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fişili®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,⁄. LED yanım;yor. Şebeke fişili®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fişimi,®. LED yanım;yor. Şebeke fişimi,®. LED yanım;yor. Şebeke fişimi,®. LED yanım;yor. Şebeke fişimi,®. LED yanım;yor. Şebeke fişimi,®. LED yanım;yor. Şebeke fişimi,®. LED yanım;yor. Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke FIşimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,®. LEDyanım;yor.Şebeke fişimi,©. LEDyanım;yor.Şebeke fişimi,©. LEDyanım;yor.Şebeke fişimi,©. LEDyanım;yor.Şebeke fişimi,©. LEDyanım;yor.Şebeke fişimi,©. LEDyanım;yor.Şebeke fişimi,©. LEDyanım;yor.Şebeke fişimi,©. LEDyanllum;yor.Şebeke fişimi,©. LEDyanllum;yor.Şebeke fişimi,©. LEDyanllum;yor.Şebeke fişimi,©. LEDyanllum;yor.Şebeke fişimi,©. LEDyanllum;yor.Şebeke fişimi,©. LEDyanllum;yor.Şebeke fişimi,©. LEDyanllum;yor.şebeke fişimi,©. LEDyanllum;yor.şebeke fişimi,©. LEDyanllum;yor.şebeke fişimi,©. LEDyanllum;yor.şebeke fişimi,©. LEDyanllum;yor.şebeke fişimi,©. LEDyanllum;yor.şebeke fişimi,©. LEDyanllum;yor.şebeke FIşimi,©. LEDyanllum;yor.şebeke FIşimi,©. LEDyanllum;yor.şebeke FIşimi,©. LEDyanllum;yor.şebeke FIşimi,©. LEDyanllum;yor.şebeke FIşimi,©. LEDyanllum;yor.şebeke FIşimi,©. LEDyanllum;yor.şebeke FIşimi,®. LEDyanllum;yor.şebeke FIşimi,®. LEDyanllum;yor.şebeke FIşimi,®. LEDyanllum;yor.şebeke FIşimi,®. LEDyanllum;yor.şebeke FIşimi,®. LEDyanllum;yor.şebeke FIşimi,®. LEDyanllum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.Şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebeke FIşimi,®. LEDyanillum;yor.şebekeFIşimi,®. LEDyanillum;yor.şebekeFIşimi,®. LEDyanillum;yor.şebekeFIşimi,®. LEDyanillum;yor.şebekeFIşimi,®. LEDyanillum;yor.şebekeFIşimi,®. LEDyanillum;yor.şebekeFIşimi,®. LEDyanillum;yor.şebekeFIşimi,©. LEDyanillum;yor.şebekeFIşimi,©. LEDyanillum;yor.şebekeFIşimi,©. LEDyanillum;yor.şebekeFIşimi,©. LEDyanillum;yor.şebekeFIşimi,©. LEDyanillum;yor.şebekeFIşimi,©. LEDyanillum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.ŞebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFIşimi,©. LEDyanllum;yor.şebekeFISimi,©. LEDyanllum;yor.şebekeFISimi,©. LEDyanllum;yor.şebekeFISimi,©. LEDyanllum;yor.şebekeFISimi,©. LEDyanllum;yor.şebekeFISimi,©. LEDyanllum;yor.şebekeFISimi,©. LEDyanllum;yor.şebekeFISimi,© LEDyanllum;yor.şebekeFISimi,© LEDyanllum;yor.şebekeFISimi,© LEDyanllum;yor.şebekeFISimi,© LEDyanllum;yor.şebekeFISimi,© LEDyanllum;yor.şebekeFISimi,© LEDyanllum;yor.şebekeFISimi,© LEDyanllum.yor.şebekeFISimi,© LEDyanllum.yor.şebekeFISimi,© LEDyanllum.yor.şebekeFISimi,© LEDyanllum.yor.şebekeFISimi,© LEDyanllum.yor.şebekeFISimi,© LEDyanllum.yor.şebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeF ISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,© LEDyanllum.yor.ş ebekeFISimi,©
Arıza Olası sebepler Çozüm
LED yanımyor. Ürunde anıza.	Ürünün fişini çekiniz ve tekrar	takinuz. Bu,islemin onrasinda LED hala kapalıya, Hilti servisine bestehturunuz.
	Şebeke kablosu anzali. Ü Sebeke	kablosunu/DDişiriniz. → Sayfa 372
	Şarcihazı anzalDIR.	Ürün Hilti servisi tarafindan onanımlalDIR.

9 imha

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

它的表は中国市场に適用さるuveです。

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger			型號（型式）： Type designation:	C 6-22 01
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品 (PCB) Electronics (PCBs)	-	0	0	0	0	0
螺紋 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "一"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

这表是台湾市場適用之的。

C 8-22 (01)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

它的表は台湾市場に適用さるuveです。

13 Hilti Li-Ion 豹T一

安全与用途の注意事項

今日臻同国关安去，从阿，子，子，子，子，子，子，子，子，子
合哉如山，日贝如是，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有贝，贝有

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

本国日本是中

用物質含有情況標示聲明書
Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

本国日本是中

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

本王王是大明

13 Hilti 韓建忠是

在前吴

本的用，

賊吾 製詠

Hilti ト連リには、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の、判の

本部T1是电贝日，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自，电自

Hilti BateRriEe HHTIStore Eww.hlti.groupsehchilshw.

24F., No. 16, Xinzhan Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C.)

Tel. [phone]

12 其他資訊

C 6-22 (01)

RoHS (有害物质限制指令)

根据 SJ/T 11364-2014 的有害物质材料披露
Hazardous substances material disclosure according to SJ/T 11364-2014
Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

此表適用於中國市場。

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

此表適用於臺灣市場。

C 8-22 (01)

RoHS (有害物质限制指令)

根据 SJ/T 11364-2014 的有害物质材料披露
Hazardous substances material disclosure according to SJ/T 11364-2014
Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

此表適用於中國市場。

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

此表適用於臺灣市場。

13 Hilti鈉電池

使用與操作說明

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

该表适用于中国大陆市场。

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

该表适用于中国台湾市场。

C 8-22 (01)

RoHS (有害物质禁用指令)

根据 SJ/T 11364-2014 的有害物质材料披露
Hazardous substances material disclosure according to SJ/T 11364-2014
Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

该表适用于中国大陆市场。

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-" indicates that the restricted substance corresponds to the exemption.

该表适用于中国台湾市场。

13 Hilti 锂离子电池

使用和操作说明

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g 1 g

aiJIglcdoLcjbi

1.3

山 ①

a|b|u|u

aJbJI J

JUJI JUJU

SjJJJg

1g11 2

1gJU 20

duIbJI Uogj gog

UaIuI IuIuI Ouuu

2.3

21.6 1111111111 Hilti no guggull Uuggulnnsnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnssnnnss

240 11 b1 220 1g b1

IJI Ic uSgi gwaabw icuWgns

Hilti gii Hilti b

gWgJgUjUJgU

jUJU

C 6-22 | C 8-22	الله IMMاني
01	الله
99999999999 - 1	الله IMMاني

JUJU 3.3

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

Jgill JwI gao 1e paaui Jsu w jol

.11111111111111111

Hilti aod jul g

30 1 (RCD) 1111 1111 1111 1111 1111

aJbUJI JnJnJUJI JsW 1.5

JAA

J1

. 1 .

#

JyI JgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

aalssuSloIo bao aaiI paaW

.1Jg a gbl jc 1y jau bai

.1

.

.2

.aaJbJI JawJL

Iolalg jlll gdo .Jswll lolag aulaljllg poaiai Ic paoi nn Jsswll :WjHglgoIg Hilti Store jn ouauauauauauauauauauauauauauauauauauauauauauauauauauauau

i

. www.hilti.group

1

！

aJusooogjbs!uolxjbs

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

UJUsuUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUeUe

auiuui aaiuui uui uui uui uui uui uui uui

.1

Ablu

T10

.3

.4

e 5

.111111111111111111111

gelll jdsig gaoa oao paaow yllwll aalbdoi .yldy lks 6

JUJI JILSSOgbsI UJJ S. pKsBtJbSJI 1nJnJg gssal

山

C6-22UJSSU

(EU, 220-240V) 2289588

(US, 110-120V) 2289589

GB,220-240V) 2289910

(GB, 100-120V) 2300624

(KR, 220-240V) 2289911

(RU, 220-240V) 2289912

(JP, 100-120V) 2289914

(AUS 220-240V) 2289915

(TW, 100-120V) 2289916

(CH, 220-240V) 2300625

C8-22 ULSU

(US, 110-120V) 2289589

GB,220-240V) 2289910

(GB, 100-120V) 2300624

(EU, KR, RU, 220-240V) 2289912

(BR, 220-240V) 2289913

(JP, 100-120V) 2289914

(AUS 220-240V) 2289915

(TW, 100-120V) 2289916

(ARG, 220-240V) 2289917

(CH, 220-240V) 2300625

Hitti aas jgs gglgglgllnnaaalwlll k

p 7

JLJI LgS dJdI gI 4blll

.

.9

J 10

JUJUJUJUJUJLED

JUSSW JAS 2 JALLLED a

Hilti doy JwJ

jIg JJI

7

.1aiI 10

Juswicg jai aucac uS s Jgag uo n auiu Ij

aagbgl 4islos

Jia

1

JILHJUuIJIUwUc gaiJn jzJ sic laI sJ

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

JJIgWJILcUgJJlI 5mu

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "一"係指該項限用物質為排除項目。Note 3:The "--"indicates that the restricted substance corresponds to the exemption.

μμj∑m|Jg

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

JgWJUc UgJU|

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

μμμg

Hitti 1000000000000000000000000000000000000000000

13

1sXgJU

Hilti no nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

山

Hilti Hilti:

g/9 g 1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

14g080n00j 420ggl4aawglkaj j

HILTI

J 1

.

4dol p j g l o yg s dlo ujubpdoaowl lalba poj

aJbS aJbUaJus aJusS oJg JbUf

g jjll Jg g aaijall ojjll cajg ojwll wll lll

.

1 1

Lg aJg gag aJbU J

aagaa aagaaagabla .gglgglg jaoj

.1Jlaolg 1aLHs Loo aLHs

oJgUuloglaaloljpojIyauJIuIaIyauJIuIgJagWlIe

ijij W iw ia s U

aJbglal aolkayelaoa aal alaaaai jajl

Jia jai jbi a jzjai g jbi jai jui w iui y jai g jgi lc jai

jgal lccuall jle, uus uus uus a

uuii Ujua aiaa uaiu ouiu wu

.1abz alglas 11 11 11 11

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

.1olai jj j 24 oJg Jd aJbJI

caluuljubull josic jaiil jaiil

jauIg JauI Uga Iogla

.6°140g6°1/p60+g6°17- 1y g|jw|w|aJw|Jw|Jw|

.104g°4-/p°40+g p°20- jagljjjj

. 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Jb

uSllg aJUJI

Lg 14 2 8 2 1 g jg g jn .a aag cjjn no aag aabig aalblll l bol . aafg aabj n aag g aag acl o wp paaaswby aalblll f t . aaiy blll psswbl y gill t aatg . .0g s w ggl l aiy aalrlll

auiuuljals auee plusg jgs gio jsc

Jalil jn 1a, aJbI Jg bJ gJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ

.

gI jlll jn nn n g aall lgc fbaaalaaabpa aag aaaanbnn klll 1

IaJIJI UJUJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

aaiiaolaoi joojllg

aIogo g c 10 pI aaiu y Iyogill aIbssy .JIabI Uglio JI Jau JI bll jaln

yynnnnny 1

17x nyon nixn 7y

1.1

ninn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nnn nenn nann nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

70 70

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

1.2

XTT.2.1

n nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

D

aa!

n 1117 n 1117 n 1117 n 1117 n 1117 n

XTT

xnnn!

n 1

T

n

y

1.2.2

nynnnnnaaon

y17/1n77,nnn nnnn nn nnnn nn nnnn

0701 0000000000000000000000000000000000000

y1n7n,nnn nn nnnn nn nnnn nn nnnn nn

nniin ninn niin nnn nnn nnn nnn nnn nnn nnn nnn

nnnnn.

n 1000000000000000000000000000000000000000

900 117,77,77 177 177 177 177 177 177 177 177 177 177

n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7 n7

Hlti Hii

.1-0n7 n7n 11n x, n7n by n7nn nnnn nn7 7

QR-n n nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

N

XIN

3

07mm 3:1

7 ①

2

n7

3

ywn yniynnn

(4)

77n by nnnn 0in

5

门

⑦

nnn

y

3.2

n 17n,ynxn.07n21.67y a nny by Hilti y-nnn ny nnyn

n 240 y 220 ix 127 ty 100 nnnn nn

yixn7x niuyyyn

Hlti Hn

C 6-22 | C 8-22	yon
01
99999999999 -

yponnynnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

3.3

.7nn nn nnnn nn nnnn nn 8.

.0007 mnnn nn nyn 9.

.ynnnn nn yynnn n nn nn nn nn nn nn 10.

.

nynnnnnnnnnnnnnnnnnnnnnnnn

Hilti nn nn nn

n

.

ynnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

7a

n7nn

Hilti 7n7 n7,77777777777777777777777777

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

000000000000

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger 型號（型式）： Type designation: C 6-22 01
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺鈕 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"像指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "一" 僅指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

07nnn77777

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

000000000000

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Equipment name:	Battery Charger 型號（型式）： Type designation: C 8-22 01
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品 (PCB) Electronics (PCBs)	-	0	0	0	0	0
螺鈕 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. “超出0.1wt%”及“超出0.01wt%”像指限用物質之百分比含量超出百分比含量基準值。 Note 1: “Exceeding 0.1wt.% and exceeding 0.01wt%” indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. “○”像指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: “○” indicates that the percentage contain of the restricted substance does not exceed the percentage of reference value of presence. 備考3. “-”像指該項限用物質為排除項目。 Note 3: The “-” indicates that the restricted substance corresponds to the exemption.

07nnn77777

Hilti 7n-ornn7 n7n

13

ninnnnnnnnnn

.1y7 1/1n77,nnn nnnn nn nnnn nn nnnn

n 790

1

n7n 80oC-nnnn nnnn nn nnnn nnnn

.770 nnty 191x 77n yion nx nnx ny 1x non ny 7y yon 1x uyn 7x

.1n7n 1x nnnn nn7nne

y 1

y7777777777777777777777777777777777

yntn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

y 170

yipn nnnnnnnnnnnnnnnnnnnnnnnnnnnnn

nniin nnnn nn nnnn nnnn nnnn nnnn nnnn

nnynx

nno nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn

amn!

y npnnpnnpnnpnnp

.177nX TnTnY, nTny nnNnDx

X917 99, nwn nn nn

.7yuxnnoa nnnn 197xnxn7nn

n nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n 107 n 107 n 107 n 107 n

n nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

n7nn n7nn 7n nn nnnn nnnn nnnn

n nnnn nn nyn 24 nnnn nnnn

.

1000

140°F 71°F/+60°C -17°C

104°F -4°F / +40°C -20°C #nnon

yon 7nnn npnn n nn 797 yon nnnn nn nn

nno nnx nx no nnnn nn nnnn nn nnnn nn nnnn

nynxipin nny,

n nnnn nn nnnn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

n nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn
