USER MANUAL Bella Mini Klarstein

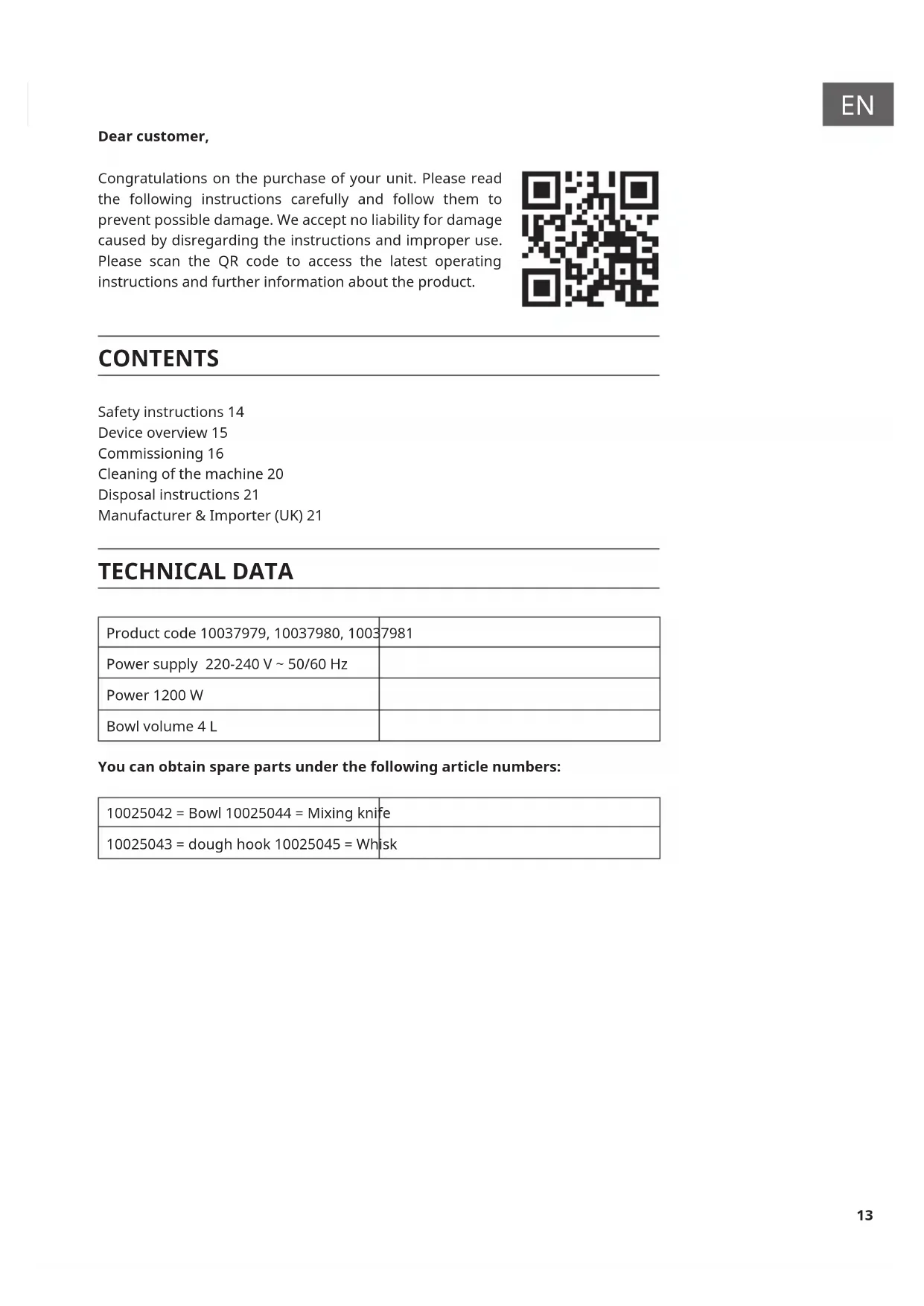

Dear customer, Congratulations on the purchase of your unit. Please read the following instructions carefully and follow them to prevent possible damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product. CONTENTS Safety instructions 14 Device overview 15 Commissioning 16 Cleaning of the machine 20 Disposal instructions 21 Manufacturer & Importer (UK) 21 TECHNICAL DATA Product code 10037979, 10037980, 10037981 Power supply 220-240 V ~ 50/60 Hz Power 1200 W Bowl volume 4 L You can obtain spare parts under the following article numbers: 10025042 = Bowl 10025044 = Mixing knife 10025043 = dough hook 10025045 = Whisk English Spanish French Italian14

• Before use, check the voltage on the appliance label and only connect the appliance to sockets that match the voltage of the appliance. If you are not sure whether your connections meet the requirements, consult an electrician or your electricity provider.

• Always switch o the motor before inserting the plug into the socket.

• To prevent electric shock, never completely immerse the base of the unit in water or other liquids.

• If the power cord is damaged, it must be replaced by the manufacturer, an authorised specialist company or a similarly qualied person.

• Do not bend the mains cable or let it hang over the work surface so that no one can get caught on it.

• Do not place the appliance near open stoves, hot ovens or easily inammable materials such as curtains or textiles.

• Place the unit on a stable, level surface before use.

• Children from the age of 8 years and mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.

• Make sure that children do not play with the appliance.

• Place the unit as close as possible to the power source so that you can unplug it quickly and easily when needed.

• Check the power cord regularly for damage. Do not use the device with a damaged power cord.

• Use the device only indoors and only for the specied purpose.

• Keep children away from the appliance and store it out of the reach of children.

• Do not use the device without contents and only under supervision.

• Do not touch moving parts with your hands during use.

• Keep the operating instructions and only pass on the device with the operating instructions.

• Use only original accessories.

• Unplug the machine before cleaning or when no longer in use.

• Switch o and unplug the machine before changing or removing moving parts.

• The device contains parts that are not accessible to the user. Do not remove any covers or attempt to repair the unit yourself. Repairs may only be carried out by qualied specialists.

• Do not connect the appliance to multiple sockets, external timers or remote- controlled sockets. Note: The device is designed for short-time operation only, i.e. it should not be operated continuously for more than 4 minutes. Afterwards, switch o the appliance and let the motor cool down before switching it on again.15

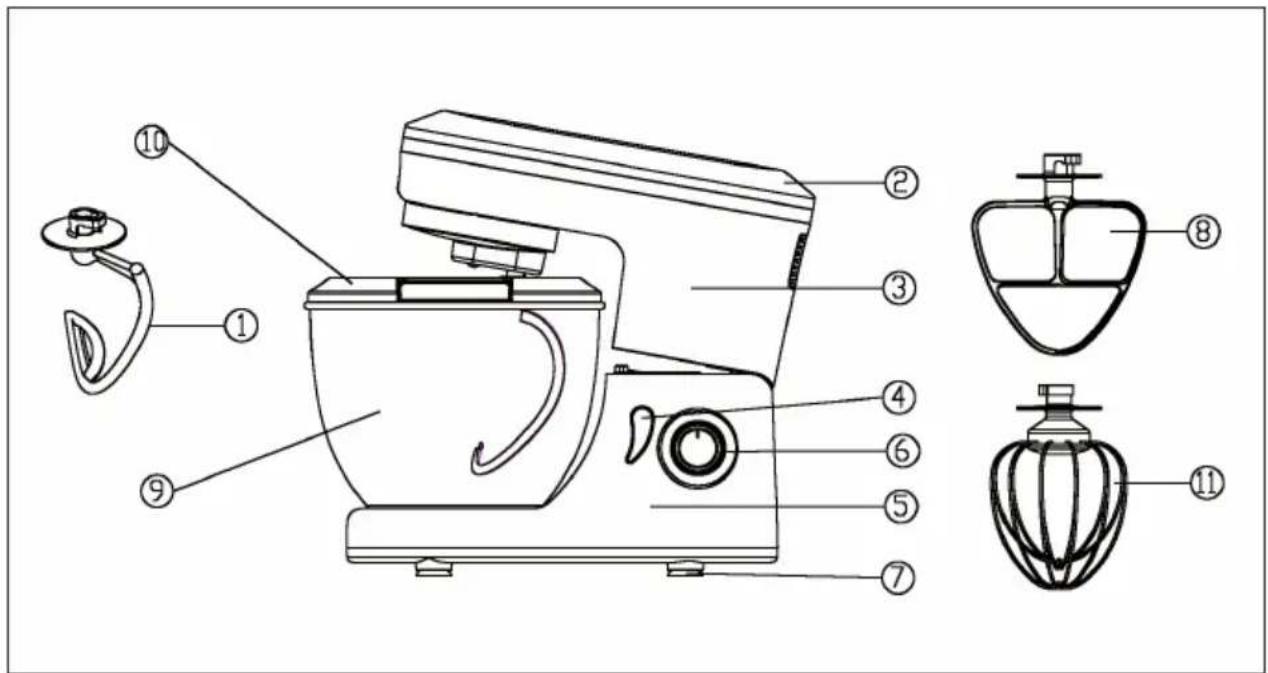

DEVICE OVERVIEW 1 Dough hook 7 Suction cups 2 Top cover 8 Beater 3 Upper housing 9 Mixing bowl 4 Safety release button 10 Splash guard 5 Device base 11 Whisk 6 Controller16

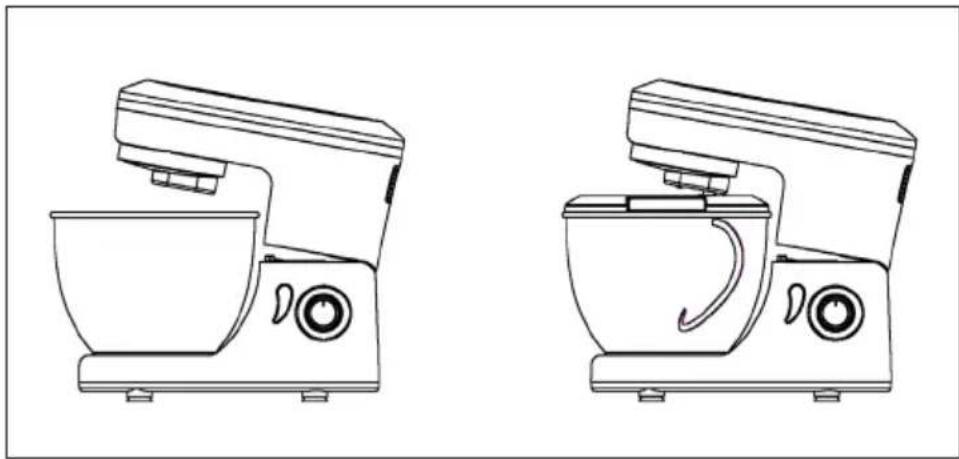

1. Press the release button and move the drive arm upwards.

2. Place the mixing bowl in the appliance base.

3. Fix the mixing bowl by turning it slightly counterclockwise until it is xed.

Note: Never use the mixing bowl without the splash guard on. Otherwise, food could splash out.

4. Place the splash guard on the drive arm from below. The ller opening with

ap should point in the direction of the speed regulator.

5. Carefully press the splash guard until it clicks into place.17

6. Select the appropriate attachment:

Dough hook: For heavy dough, e.g. bread dough Whisk: For whipping cream, beaten egg whites, etc. Whisk: For medium to light doughs/butter, e.g. batter for (pan) cakes.

7. Insert the attachment from below into the corresponding opening in the

drive arm. Make sure that the small prongs on the shaft of the attachment are inserted into the cross slot of the opening.

8. Carefully push in the selected attachment and turn it clockwise until it clicks

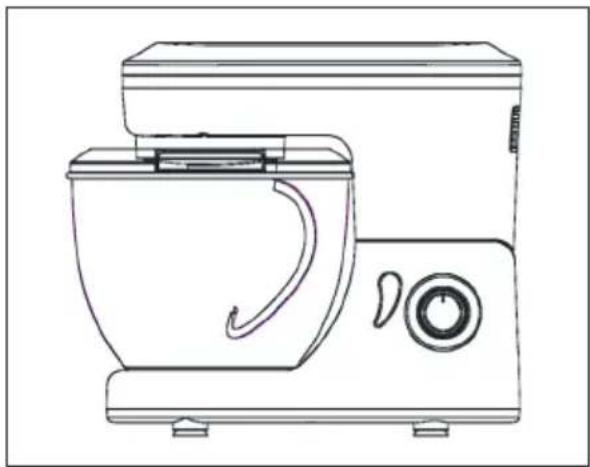

9. Press the release button and swing the drive arm into the operating position.

The device is now ready for operation.18

Disassemble the device

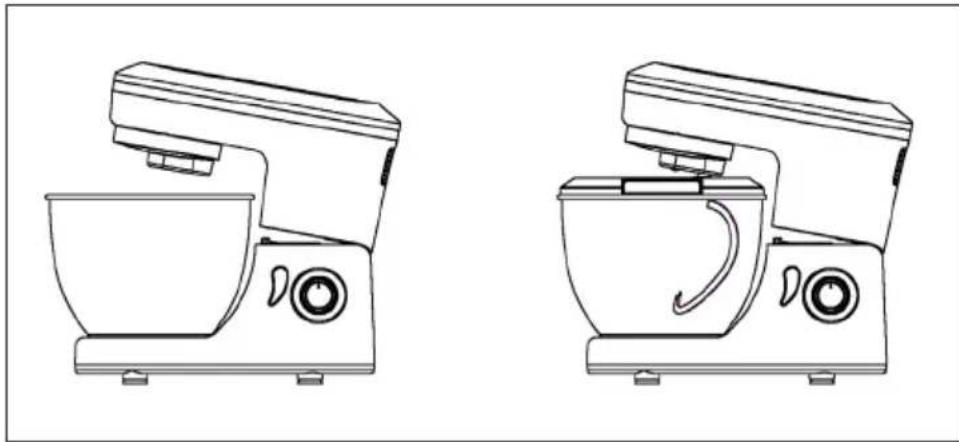

1. Press the release button and swing the drive arm up.

2. To remove an attachment, press it in gently and unlock it by carefully turning it

3. Remove the attachment.

4. To remove the splash guard, pull it down. First pull the splash guard slightly

downwards at the rear.

5. Unlock the mixing bowl by turning it slightly clockwise.

6. Remove the mixing bowl.

7. Press the release button and swing the drive arm down to the operating

position. Speed adjustment, switching on and o

1. Turn on the device by turning the speed control knob on the right side.

2. When stirring, start with a lower speed and increase it slowly.

Recommendations for speed levels Stage Accessories Description 1 – 3 All • Start position for stirring

• When adding ingredients Dough hook • Kneading and mixing solid dough or other ingredients Ingredients:

1. Put all the ingredients in the mixing bowl.

2. Attach the splash guard and the dough

3. Speed: Let the dough knead for 30 seconds

on speed 1. Then leave the dough to knead for 30 seconds on speed 2. Then leave the dough to knead for 3 minutes on speed 3.19

• beat the butter until it is uy Ingredients: 13 egg white Preparation:

1. Put the egg whites into the mixing bowl.

2. Attach the splash guard and the dough

3. Beat the egg whites on speed 6 for 4

minutes until sti.20

CLEANING OF THE MACHINE

To avoid the risk of electric shock, injury or damage:

• Disconnect the power plug from the socket before cleaning.

• Never immerse the base of the unit in water.

• Never use abrasive, corrosive or scouring cleaners as they may damage the machine. Cleaning the base of the machine

1. Clean the base of the machine with a damp cloth. You can also use a little

2. Wipe o with a clean cloth.

3. Do not use the device base again until it is completely dry

Cleaning of splash guard, dough hook, whisk and beater Note: The dough hook and beater are not dishwasher safe. The mixing bowl and whisk can be cleaned in the dishwasher.

1. Place the pieces in cold or lukewarm water to soften any dough residue. You

can also add a little washing detergent to the water.

2. Remove the softened dough residues with a cleaning brush.

3. Rinse the parts with clean water.

4. Allow the parts to dry completely before using them again.

Cleaning the mixing bowl The mixing bowl is made of stainless steel and can be cleaned in the sink or in the dishwasher.21

DISPOSAL INSTRUCTIONS If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom23
