Dear Customer,,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 19

Product Description 21

Before First Use 23

Operation 24

Cleaning and Care 27

Disposal Considerations 28

Manufacturer & Importer (UK) 28

TECHNICAL DATA

Item number 10040499, 10040500
Power supply 220-240 V ~ 50	-60 Hz
Bowl capacity 10 L
Short-term operation 5 minutes

SAFETY INSTRUCTIONS

• Before use, check the voltage on the device badge and connect the device only to sockets which correspond to the voltage of the device. If you are not sure whether your connections meet the requirements, consult an electrician or your power supplier.
  • Always turn the motor off before plugging the motor into an electrical outlet.
• To prevent electric shock, never completely immerse the base in water or other liquids.
• If the power cord is damaged, it must be replaced by the manufacturer, an authorized service center, or a similarly qualified person.
• Do not bend the power cord or allow it to hang over the work surface to prevent it from getting caught.
• Do not place the appliance near open stoves, hot ovens, or easily flammable materials such as curtains or textiles.
• Before use, place the appliance on a stable, level surface.
• Ensure that children do not play with the device.
• Place the device as close as possible to the power source so that you can pull the plug quickly and easily if necessary.
• Check the power cord regularly for damage. Do not use the unit with the power cord damaged.
• Only use the unit indoors and for the specified purpose.
• Keep children away from the unit and stow it out of the reach of children.
• Do not use the device without contents and only under supervision.
• Do not touch any moving parts with your hands during use.
• Keep the operating instructions and pass on the device only with the operating instructions.
• Only use original accessories.
• Unplug the appliance from the wall outlet before cleaning or discontinuing use.
• Switch off the appliance and disconnect the plug before changing or removing any moving parts.
• The unit contains parts that are not accessible to the user. Do not remove any covers and do not attempt to repair the unit yourself. Repairs may only be carried out by qualified specialists.
• Do not connect the unit to multiple sockets, external timers or remotely controlled sockets.

Note: The device is only designed for short-term operation, i.e. it should not be operated continuously for more than 4 minutes. Then switch off the unit and let the motor cool down before switching it on again.

Special Notes

• Do not scrape the bowl while the stand mixer is operating.
• The bowl and beater are designed to provide thorough mixing without frequent scraping. Scraping the bowl once or twice during mixing is usually sufficient.
• Turn the stand mixer off before scraping.
• The stand mixer may warm up during use. Under heavy load with extended mixing time, you may not be able to comfortably touch the top of the stand mixer. This is normal.
• Never use this appliance constantly more than 15 minutes!)
• Never use mixer, blender, meat grinder function with food at the same time(only use one by one to protect the machine).

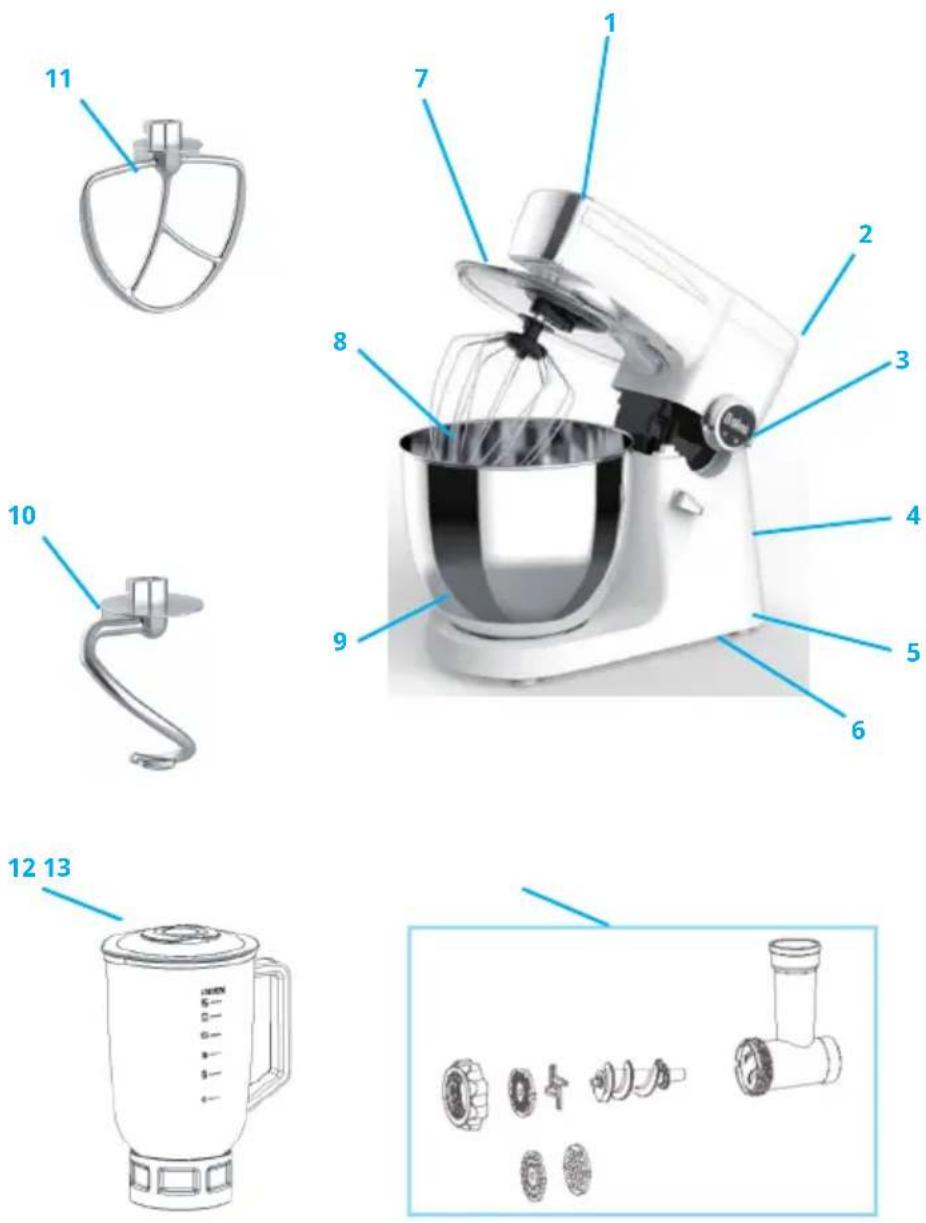

PRODUCT DESCRIPTION

1 Front attachment cover
2 Back attachment cover
3 Main body
4 Control panel
5 Knob
6 Lock switch
7 Bowl lid

8 Egg whisk
9 Stainless steel mixing bowl
10 Dough hook
11 Beater
12 Glass blender cup
13 Meat grinder

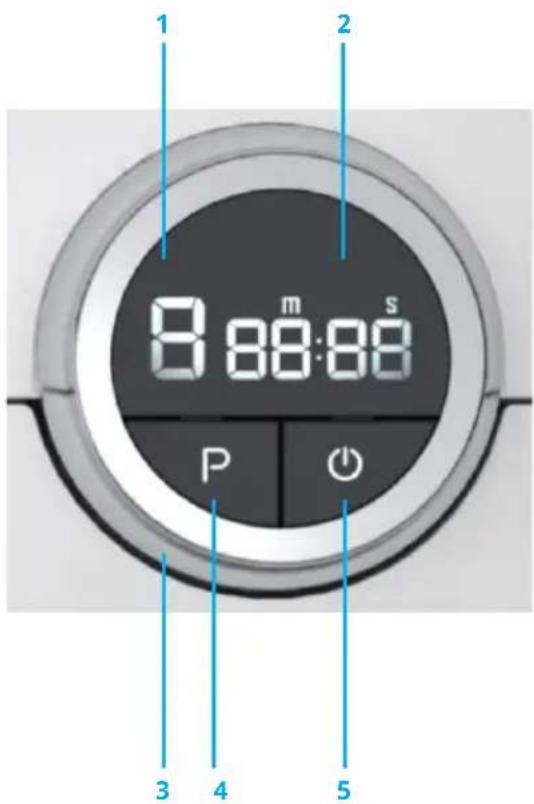

Operation panel

1 2 8:00:00 P OK 3 4 5

No.	Definition Functional description
1 speed display Displays the working speed of the current machine.
2 time display Displays the current machine working hours or remaining working hours.
3 Knob Adjust the time and speed.
4 P Press the button to start working, release the button to stop working.
5 Start / End Short press to start, short press end.

BEFORE FIRST USE

All parts of the stand mixer are to be thoroughly cleaned before being used for the first time. (see section: Cleaning).

Take out the required length of cable from the cable tidy on the base of the blender and connect the device to the mains supply.

Trial use

1. Revolve the locking switch, then lift the machine arm.
2. Put the mixing bowl onto the base, and lock it as the arrowhead denotes.
3. Fix the dusty cover onto the mixing blade, then lock the blade into the machine.
4. Revolve the locking switch, then push the upper cover down and make the arm down. Make sure the arm is fixed together the base, then Revolve the locking switch up to lock the arm solidly.
5. Plug-in the cord, and turn the switch slowly from speed "1" to speed "8" (every speed try for a few seconds).
6. After the trial, turn the switch to speed "OFF".
7. Turn the locking switch and lift the arm, then take apart the mixing blade from the blade connector try again.

OPERATION

Mixing or kneading dough

• Suggestion flour and water at a ratio of 5:3.
  • Dry fl our max: 1500g
• Dough max: 2.4KG
• Use speed 1 mix for 5 minutes for making dough.
• When fi lling the food in mixing bowl, please ensure that the maximum quality is not exceeded.
  • The dough hook should be used.

Metallic curved mechanical component with a circular top and central hub (no text or symbols visible)

Whisking egg whites or cream

• Switch on speed 6 to speed 8, whisk the egg whites without stopping for about 5 minutes, according to the size of the eggs until stiff.
  • Maximum quantity 25 eggs.
• For whipped cream, whip 500ml fresh cream at speed 6 to 8 for about 5 minutes.
• When filling the agitator kettle with fresh milk, cream or other ingredients, please ensure that the maximum quality is not exceeded.
  • The egg whisking should be used.

Close-up of a black kitchen mixer with white mesh structure (no text or symbols visible)

Mixing shakes, cocktails or other liquids

• Mix the ingredients according to the available recipe, from speed 1 to 8 for about 5 minutes.
• Do not exceed the maximum quantity for the mixing bowl.
  • The mixer beater should be used.

Metallic kitchen mixer with a handle and central knob (no text or symbols visible)

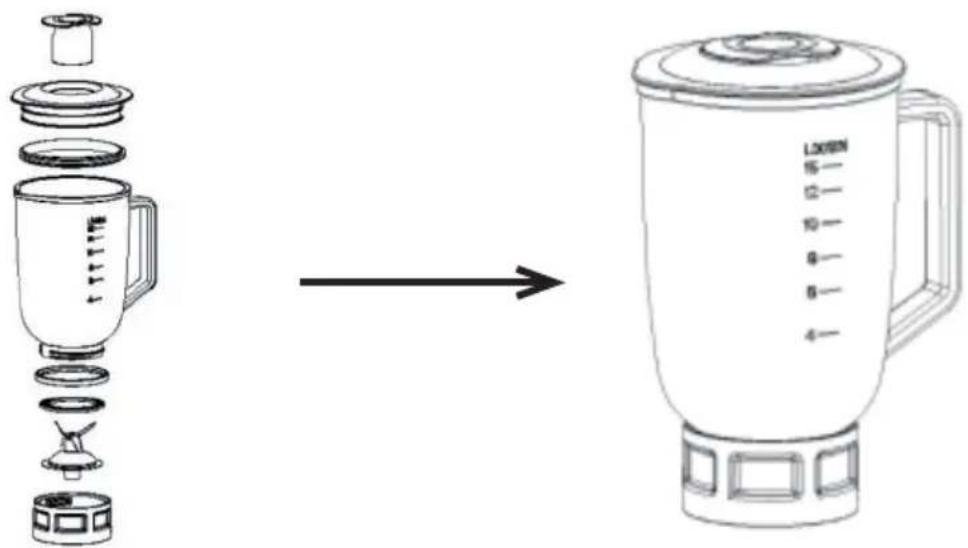

Usage of glass blender cup

Diagram showing the assembly of a blender with labeled parts and a side view of its cooking process.

Glass blender cup (1.5 l)

1. Put vegetables, fruits and water or ice into the glass cup, cover it and fix the cup on the machine to the right position according to lock on-off positions.
2. The transparent measuring cup on the top of the cup lid can be used to add materials inside the glass cup when the machine is working.
3. The machine won't be able to work when the cup is not fixed in the right position.
4. Use 8th speed to blend
5. When ice inside the glass cup, use pulse to crush the ice and use 8th speed to blend.
6. The continuous blending time should be less than 2 minutes.

Caution :

• The biggest blending capacity should be less than 1.5L.
- Do not running the empty blender more then 20 seconds.
- Using a mixing cup to mix food requires adding water to run, for example: fruits: water = 2:3.

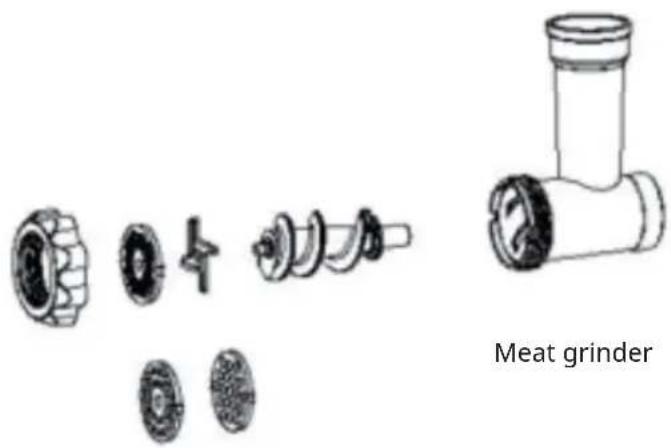

The usage of Meat grinder

Meat grinder

Meat grinder accessories (Full set) Usage

• Meat grinder accessories have three round discs. You can choose different disc according to the different requirements of meat pasta size.
• Use 6th speed
• Continuous working time: no more than 15 minutes.

CLEANING AND CARE

• Before cleaning, please ensure that the Switch knob is at the "OFF" position and that the plug has been disconnected from the socket.
  • After use, allow the device to cool down before you start to clean it.
• To clean the exterior of the device, use a moist cloth and a mild detergent.
• When cleaning the interior and exterior and protective dust cover do not use any abrasive detergents or alcohol.
  • To clean the device, never submerge it in water.
• The dough hook, beater are not dishwasher.
• The accessories must be cleaned only in warm water and washing-up liquid.
• The plastic accessories, Mixing bowl lid, egg beater can be cleaned with warm water.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

1 2 8:00:00 P OK 3 4 5

Metallic curved mechanical component with a circular top and central hub (no text or symbols visible)

Close-up of a wire mesh kitchen mixer head with a black top and black center (no text or symbols visible)

Metal kitchen mixer with a handle and control knob (no text or symbols visible)

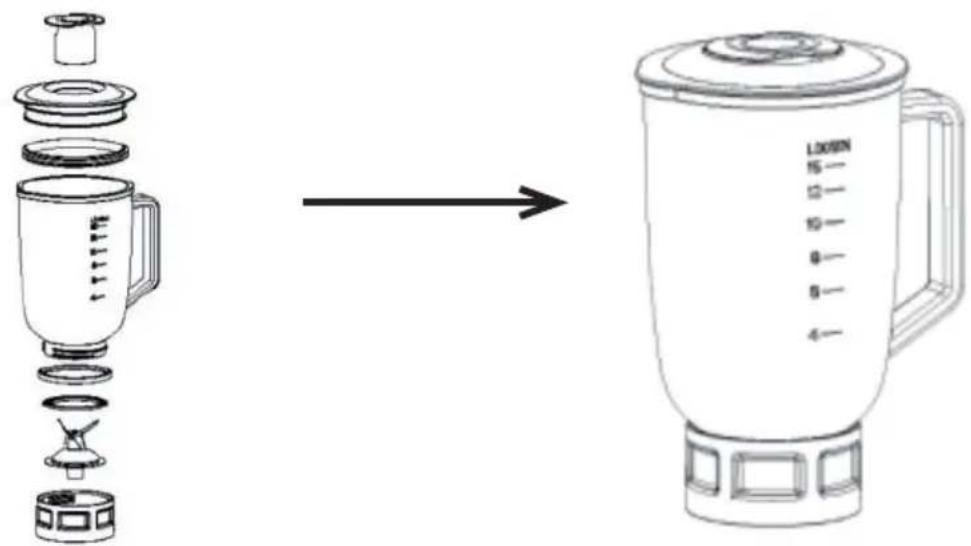

Diagram showing the assembly of a blender with labeled parts and a 3D view before and after transformation.
