Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Product Data Sheet 20

Safety Instructions 22

Installation 23

Display and Key Functions 27

Commissioning and Operation 28

Device Control by Smartphone 30

Cleaning and Care 31

Disposal Considerations 32

Declaration of Conformity 32

TECHNICAL DATA

Item number 10035400, 1	0035401 10035402, 1003	5403
Power supply 230 V ~ 50/60 Hz
Power 1500 W 2500 W
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	20 dBm

PRODUCT DATA SHEET

Model identifier(s):	10035400, 10035401
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	1.5 kW	manual heat	heat	charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin	0.75 kW	manual heat	heat	charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	Pmax,c	1.5 kW	electronic heat	heat	charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output el	max	k.A. kW			Type of heat output/room temperature control
At minimum heat output el	min	k.A. kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0.00089	W Two or more manual stages, no room temperature control			no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	yes
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany
Model identifier(s):	10035402, 10035403
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	2.5 kW	manual heat	heat	charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	Pmin	1.25 kW	manual heat	heat	charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	Pmax,c	2.5 kW	electronic heat	heat	charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output el	max	k.A. kW			Type of heat output/room temperature control
At minimum heat output el	min	k.A. kW	single stage	heat output and no room temperature control		no
In standby mode el	SB	0.00089 W		Two or more manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	yes
					with adaptive start control no
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

SAFETYINSTRUCTIONS

- Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.

- If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.

- The heater must not be positioned directly under the power socket.

- Keep furniture, curtains and other fl ammable material at least 1 meter away from the appliance.

- Keep out of reach of children and do not allow them to operate this appliance.

- This appliance is intended for household use only and should not be used for industrial purposes.

- Do not operate this appliance after a malfunction or after being damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician.

- Improper repairs may place user at serious risk.

- Do not run the mains cable under carpets, rugs, etc.

- Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.

• In order to avoid overheating, do not cover the heater.

- Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Never immerse the product in water or any other liquid for any reasons.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

- Do not use the appliance outdoors.

- Do not use if you have wet hands.

- Never use the appliance on or near hot surfaces.

- Do not operate with a damaged cord.

- Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.

- Do not clean the appliance with abrasive chemicals.

- Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

INSTALLATION

• Before installation, check that all components included in the scope of delivery are complete and undamaged.
• If you want to use the unit in a free-standing position, attach the supplied feet to it (follow the installation instructions below). Make sure that the unit is placed on a flat, stable and clean surface.

Freestanding Installation

Place the unit upside down on a cloth or carpet.

Secure the feet to the bottom of the unit with the supplied screws. To do this, align the feet with the holes on the underside, insert the screws and tighten them with a screwdriver.

Wall installation

(1) Remove the wall bracket

Place the heater face down. Open the top latch with a screwdriver and move the wall bracket down to remove it.

1	2
Pry open the latch on the wall bracket. Slide the wall bracket in the direction of the arrow.
3	4
Lift the wall bracket. Pull out and remove the wall bracket.

(2) Attach the wall bracket.

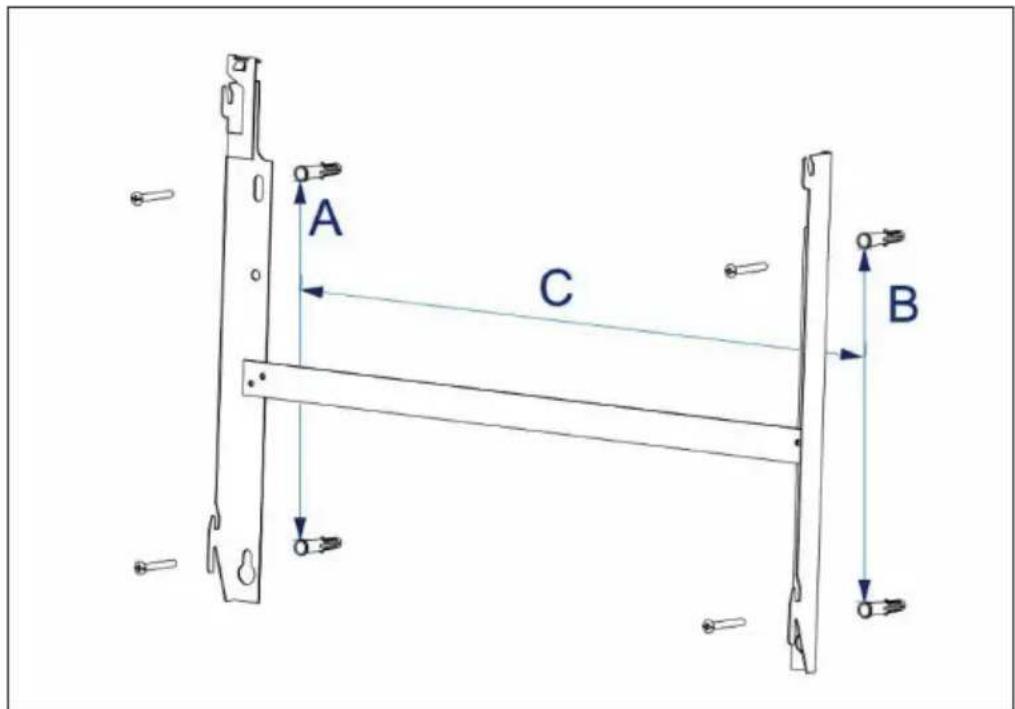

Depending on the dimensions of your model, mark the places on the wall where holes are to be drilled. Drill the holes and insert the dowels included in the scope of delivery into the holes. Fasten the wall bracket with the screws included in the delivery.

A C B

Distance	10035400, 10035401	10035402, 10035403
A 218 mm 218	mm
B 218 mm 218	mm
C 291.5 mm 56	62.5 mm

(3) Attach the heater

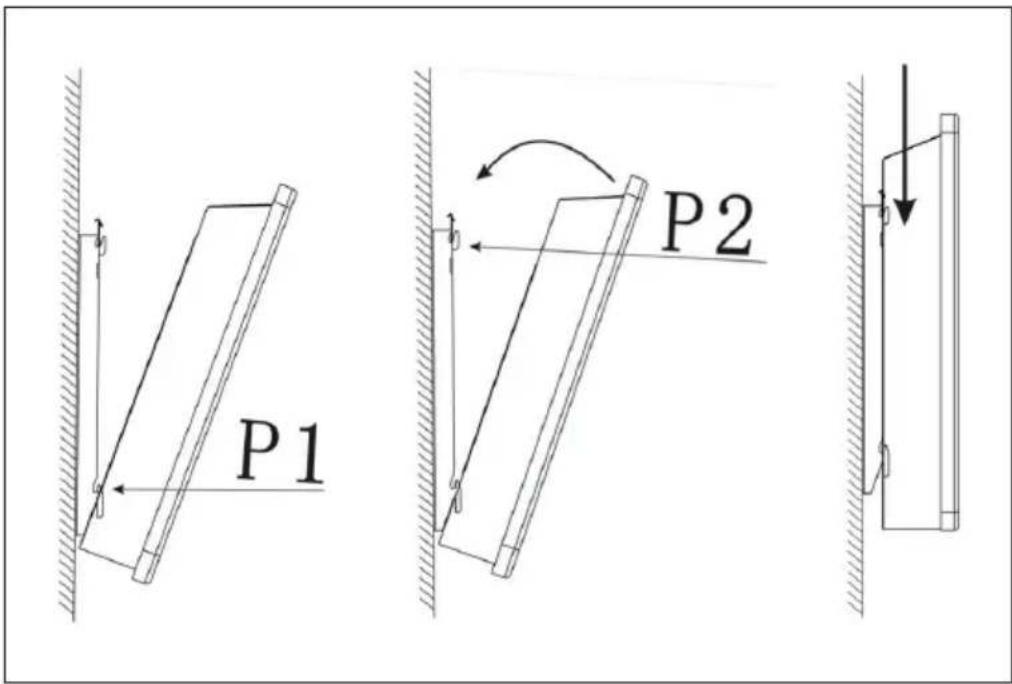

Tilt the heater so that you can hook the bottom two holes on the heater to the wall bracket (P1). After hooking, turn the heater until it is above the wall bracket (P2). Lower the heater and attach the locking latch to the heater.

P1 P2

DISPLAY AND KEY FUNCTIONS

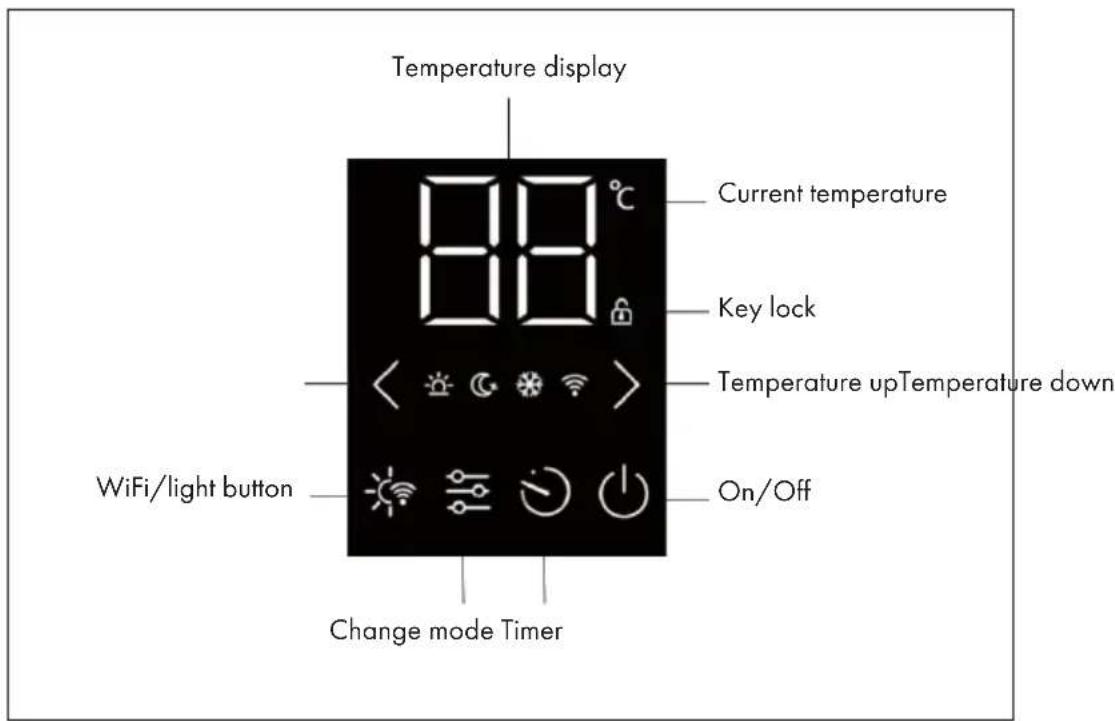

Control panel

Temperature display 88°C Current temperature Key lock Temperature upTemperature down WiFi/light button On/Off Change mode Timer

COMMISSIONING AND OPERATION

The device beeps as soon as the power plug is plugged into the socket. The device is now in standby mode and displays the on/off button and the WLAN symbol.

Starting the heating process

To start the heating process, press the key ⚪ Now the ECO mode symbol is Ⓗ displayed. This indicates that the unit is currently in ECO mode. In ECO mode, the unit runs at half power, in Comfort mode, the unit runs at full power.

Mode setting

Press the mode button to display the different modes:

ECO Mode

The device is in the corresponding mode after selection.

Temperature adjustment

To adjust the temperature in any mode, press the buttons ◀ ▶ he adjustable temperature range is between 5 °C and 50 °C.

Timer setting

• To set the timer, press the timer button
• The timer can be set for a period of 1-24 hours.
- After you have completed the timer setting, the digits will flash and the screen will return to the heating mode.
- The timer icon is displayed on the screen when you have set a timer.
- Once the time you set has elapsed, the unit will automatically turn off.

Key lock

• To activate the key lock, press and hold the key until the lock symbol appears on the screen. The control panel is now locked.
• To deactivate the key lock, hold down the key lock symbol is now no longer displayed on the screen and all keys on the control panel can be used again.

Backlight

Press the button once to activate the backlight. The backlight is now half the brightness. If you press the key again, the backlight goes out. If you press the key a third time, the screen lights up with full brightness.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

• Is the device plugged in?
• Is the WiFi feature of my phone enabled?
- Is the WiFi function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WLAN password been entered correctly?
- Are the router, Klarstein device and smartphone in the immediate vicinity during the connection attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings.

Note: For further help, follow the instructions in the app when setting up the connection.

CLEANING AND CARE

Note: Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
  • Never open the heater housing.

Storage

Keep the unit in a dust-free place during the low season. Pack it in the original carton. Wind the heater cable cleanly to avoid damaging the cable.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Bansin Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035400

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Bansin Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035400
