Ostfriese - Kettle Klarstein - Free user manual and instructions

Product type	Electric kettle
Brand	Klarstein
Model	Ostfriese
Power supply	220-240 V ~ 50-60 Hz
Power	1850-2200 W
Capacity	1.7 L (estimated)
Main material	Stainless steel and plastic
Temperature setting	Yes, 50°C, 70°C, 80°C, 90°C
Keep warm function	Yes, up to 30 minutes
Auto shut-off	Yes, at boiling or if empty
Dry boil protection	Yes
Removable filter	Yes, for infusions
Swivel base	Yes
LED display	Yes, colors according to temperature
Weight	Approx. 1.2 kg (estimated)
Dimensions (W x D x H)	Approx. 22 x 22 x 26 cm (estimated)
Cleaning and maintenance	Descaling with vinegar or lemon, do not immerse
Safety	Auto shut-off, overheat protection, hot surface indicator

Frequently Asked Questions - Ostfriese Klarstein

How to set the water temperature?

Press the temperature setting button (B) to select 50°C, 70°C, 80°C or 90°C. The corresponding LED light turns on. Then press the on/off button (A) to heat. A beep sounds when the temperature is reached.

How to use the keep warm function?

Select the desired temperature (50°C, 70°C, 80°C, 90°C) using the [+/-] buttons, then press and hold the on/off button for 3 seconds. The lights flash and the kettle keeps the water hot for 30 minutes before automatically turning off.

Can I boil other liquids besides water?

No, the kettle is designed only for boiling water. Other liquids may damage the appliance or cause burns.

How to descale the kettle?

Method 1: Fill halfway with water and add the juice of one lemon, boil and let sit for 15 minutes. Method 2: Use a mixture of water and vinegar (or descaling agent), let sit for 1 hour, then boil. Rinse thoroughly. Repeat if necessary.

What to do if the kettle does not turn on?

Check that the base is properly connected and the outlet works. Make sure the lid is closed. If the kettle has been heated empty, the dry boil protection has activated: let it cool down before refilling.

Can I open the lid during boiling?

No, do not lift the lid when water is boiling, as hot steam may escape and cause burns. Wait for the appliance to turn off and cool down.

How to clean the outside of the kettle?

Unplug the appliance and wipe the outside with a damp cloth, then dry with a dry cloth. Do not use abrasive or harsh chemical products. Never immerse the kettle or base in water.

What is the filter in the kettle for?

The filter allows infusing tea or fruits directly in the kettle. Place the ingredients in the filter before heating. Do not exceed the maximum water level.

Why is the water not boiling or the appliance stopping too early?

This may be due to insufficient water (below the minimum level) or excessive limescale buildup. Ensure the water level is correct and descale regularly.

What are the important safety precautions?

Do not immerse the appliance in water, do not touch hot surfaces, use the handle. Do not let the cord hang. Unplug after use. Keep out of reach of children under 8 years.

USER MANUAL Ostfriese Klarstein

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 14

Product Description 16

Use and Operation 16

Care and Cleaning 19

Disposal Considerations 20

Manufacturer & Importer (UK) 20

TECHNICAL DATA

Item number 10031479
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1850-2200 W

SAFETY INSTRUCTIONS

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children aged less than 8 years.
  Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
• Before connecting the kettle to the power supply, check that the voltage indicated on the appliance corresponds with the voltage in your home. If this is not the same, contact your dealer and do not use the kettle.
• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• Do not operate the appliance without load to avoid damaging the heat elements.
• Unplug from the outlet when not in use.
• Do not let the cord hang over edge of table counter or touch hot surface.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• Should you accidentally allow the kettle to operate without water; the boil-dry protection will automatically switch it off. If this should occur, allow the kettle to cool before filling with cold water and re-boiling.
• Ensure that kettle is used on a firm and flat surface where the children can't touch, this can prevent from overturning the kettle to damage the person or kettle.
• To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs or kettle in water or other liquids.
• Always take care to pour boiling water slowly and carefully without tipping the kettle too fast.
• Be careful when opening the lid for refilling when the kettle is hot.

• Close supervision is necessary when any appliance is used by or near children.

• Do not touch the hot surface. Use the handle or the button.

• Extreme caution must be used when moving an appliance containing hot water.
• The appliance is not a toy. Do not let the children play it.
• The use of accessory attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.
• While water boiling, avoid contacting with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.
• Unplug from outlet when not in use and before cleaning; allow it to cool before putting on or taking off parts and before cleaning the appliance.

CAUTION

Risk of injury! Always ensure the lid is closed and do not lift it while the water is boiling. Scalding may occur if the lid is removed during the brewing cycles.

• Do not use the appliance for other than intended use.
• If the kettle is overfilled, boiling water may be ejected.
• The kettle is for household use only, not for outdoors.
• The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
• Do not remove the lid while the water is boiling.
• If you wish to stop the kettle before the water has boiled, you must switch off the appliance before removing the kettle from its base.
• This appliance is not designed for commercial use.
• Our warranty does not cover water kettles that malfunction resulting from failure to descale.
• The kettle is only to be used with the stand provided.

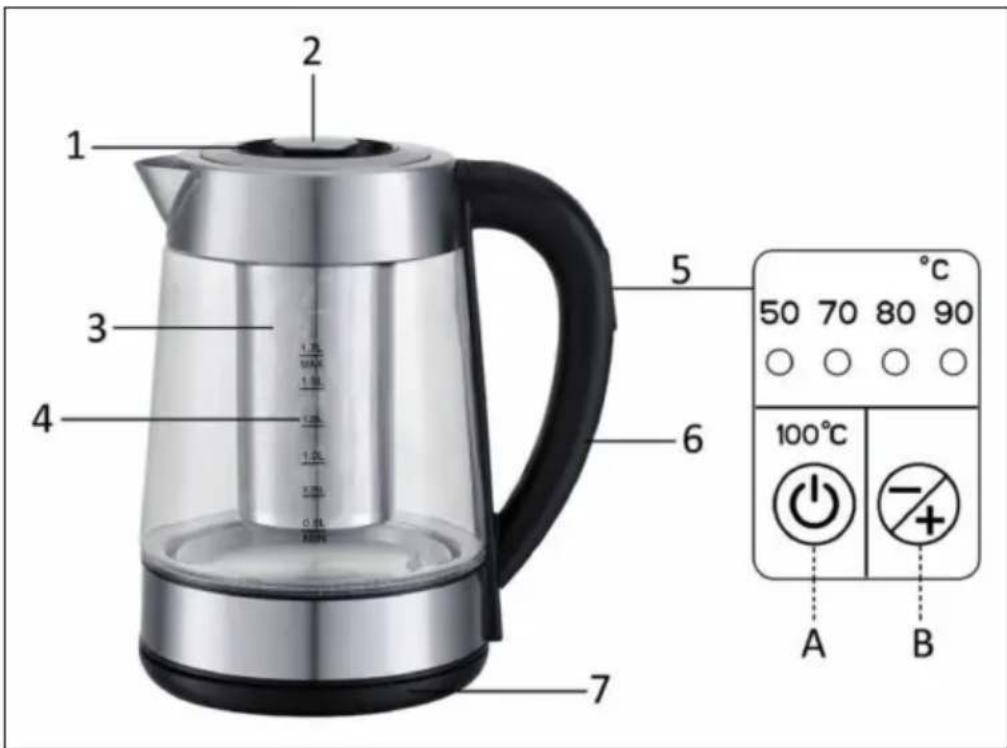

PRODUCT DESCRIPTION

1 Lid
2 Lid knob
3 Filter
4 Water gauge
5 On/off switch button (A) and temperature control button (B)
6 Handle
7 Power base

USE AND OPERATION

Before using your Kettle

If you are using the kettle for the first time, it is recommended that you clean your kettle before use by boiling a full kettle of water twice and then discarding the water.

Operation of your Kettle

1. Open the lid by pulling up the lid knob; fill with the desired amount of water to the water kettle. Always fill the kettle between the minimum and maximum marks. Too little water will result in the kettle switching off before the water has boiled. NOTE: Do not fill the water over the maximum level, as water may spill out of the spout when boiling. Ensure that the lid is firmly in place before connecting the power cord to the outlet.
2. Connect the plug into a power outlet. Press the on/off switch button " on the handle and the kettle starts to boil the water. The LED lights inside the kettle will illuminate red. The kettle will switch off automatically once the water has boiled. You can shut off the power by pressing the switch button again at any moment during boiling water. NOTE: Ensure that the lid is firmly closed.
3. Take the plug out of the outlet. Lift the kettle then pour the water. NOTE: operate carefully when pouring the water from your kettle as boiling water will scald.
4. The kettle will not re-boil until the switch is pressed again. Allow to cool for 30~40 seconds before reope- ning to boil water. NOTE: Ensure power supply is turned off when kettle is not in use.
5. Should you accidentally allow the kettle to operate without water; the boil-dry protection will automatically switch it off. If this occurs, allow the kettle to cool before filling with cold water and re-boiling.

Temperature showing by LED display

Press the temperature control button to choose your desired water temperature 50^ , 70^ , 80^ or 90^ , the corresponding indicator light on handle will be on. Then press the on/off switch button", the kettle will start heating with different colour LED lights inside. When the desired temperature reaches, the kettle will stop heating and send out beep sounds.

50^ :Greenlight.

70^ : Blue light.

80^ : Purple light.

90^ : Yellow-green light.

Keep warm function

Press button "to choose your desired water temperature 50^ , 70^ , 80^ or 90^ , the corresponding indicator light on handle will be on. Press and hold the on/off switch button "for approx. 3 seconds, the corresponding indicator light on handle begins to flash and the kettle starts heating with LED lights illuminating inside. When the set temperature is reached, beep sounds will be heard. The kettle will keep the water warm for 30 minutes and then shut off automatically.

Note: Press and hold the on/off switch button " for approx. 3 seconds without choosing the temperature, by default the kettle will heat to 50^ for keeping warm.

Filter

This water kettle is equipped with a filter. You can add tea or fruit in to the filter before heating to brew together with the water.

CARE AND CLEANING

Note: Before your cleaning, please unplug the electrical kettle and make sure it has been cooled down. Never immerse any part of the cable, plug, power cord base or kettle in water or any other liquid.

Exterior of the Kettle

• Wipe the exterior of the kettle with a piece of damp cloth and then dry it with a piece of dry cloth.
• Never use harsh chemicals or abrasive cleaning agents as these may damage the finish of your kettle.

Dscaling the Kettle

Over using a period of time, lime scale would be built up inside of your kettle. To remove lime scale:

Method 1

1 Half fill the kettle with water and add the juice of a lemon.

2 Boil up the water and allow it to stand for 15 minutes before discarding.

3 Repeat steps 1 and 2 several time, please using cold water only.

Method 2 (for stubborn deposits)

1 Fill the kettle with water and vinegar or juice (citric acid) or use a special descaling agent available in household stores.

2 Leave the kettle for 1 hour, then boil the water.

3 Empty the kettle and rinse it thoroughly with cold water.

4 If necessary repeat the procedure 1-3 times.

5 To eliminate the smell of vinegar, boil fresh water several times and pour it out.

6 Wipe the interior and exterior surfaces of the kettle with a cloth.

Note: Do not use wire brush or any other abrasive objects. Do not clean the kettle with strong detergents.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
