USER MANUAL Monaco Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Data 19

Safety Instructions 20

Product Description 22

Remote Control 23

LED Display 24

Operating Instructions 25

Cleaning and Storage 28

Troubleshooting 30

Disposal Considerations 32

Manufacturer & Importer (UK) 32

TECHNICAL DATA

Item number 10021651, 10021652
Power supply 220-240 V~ 50-60 Hz

SAFETY INSTRUCTIONS

General Instructions

• This device is intended for domestic use only and must not be used for any other purpose or in any other environment, such as non-domestic use or in a commercial environment.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid a hazard.
• This device can be used by children from the age of 8 and by persons with restricted physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the device and understand the dangers involved.
  Children must not play with the device.
• Cleaning and maintenance work must not be carried out by children without supervision.
• Clean the water tank every three days.
• Clean and change the filter regularly.
• Note that high humidity can encourage the growth of biological organisms in the environment.
• Make sure that the area around the humidifier does not get damp or wet. If humidity occurs, turn down the power of the humidifier. If the humidifier output cannot be reduced, use the humidifier intermittently. Make sure that no absorbent materials such as carpets, curtains, drapes or tablecloths get wet.
• Disconnect the device from the power supply while filling and cleaning.
• Never leave water in the holder when the appliance is not in use.
• Empty and clean the humidifier before storage. Clean the humidifier before the next use.
• Drain the tank and refill every third day. Before refilling, clean it with fresh tap water or with detergents if prescribed by the manufacturer.
• Remove any limescale, deposits or films that have formed on the sides of the tank or on the interior surfaces and wipe dry all surfaces.

Note: Microorganisms present in the water or in the environment in which the device is used or stored can multiply in the water tank and be released into the air, which can lead to serious health risks. Therefore, change the water every three days and clean the container properly.

Notes on handling batteries

• The battery must be removed from the remote control before it is disposed of.
• Only use batteries of the same type.
• The batteries must be inserted correctly.
• Remove dead batteries from the device / remote control.
• The supply terminals in the battery compartment must not be short-circuited.
• Environmental aspects must be taken into account when disposing of a battery. Used batteries must not be thrown in the trash. To protect the environment, contact your dealer or an appropriate collection point for disposal.
• Batteries must not be exposed to excessive heat such as sunshine, fire or the like.
• Replacing a battery with an incorrect type can override the protections (e.g. with some lithium battery types).
• Disposing of a battery in a fire or in a hot oven, mechanically crushing or cutting a battery, or exposing a battery to excessive heat such as sunshine, fire or the like can result in an explosion.
• Leaving a battery in an extremely high temperature environment may result in an explosion or the leakage of flammable liquid or gas.
• If the battery compartment does not close securely, stop using the product and keep it away from children.
• Non-rechargeable batteries must not be recharged.
• Rechargeable batteries must be removed from the device/remote control before charging.
• If the device / remote control is stored and will be out of use for a longer period of time, the batteries must be removed.

WARNING

Danger of injury! Make sure that children do not swallow the battery. If the button cell battery is swallowed, it can cause severe internal burns and death in as little as 2 hours. Keep new and used batteries away from children. If you think batteries may have been swallowed, seek medical attention immediately.

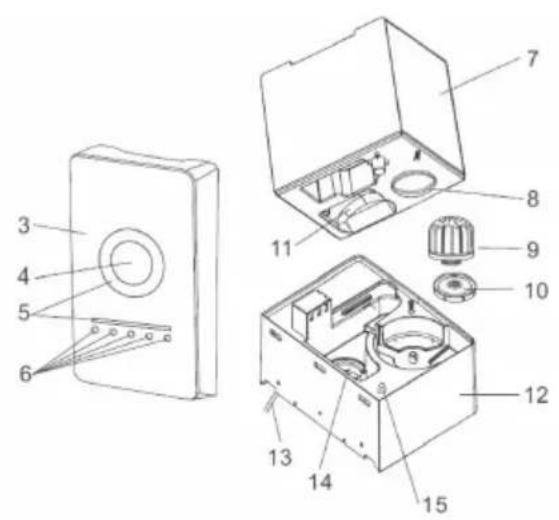

1 Output jets
2 Top water tank handle
3 Front Panel
4 Digital display
5 Night-light
6 Control buttons
7 BL (1.6 gal) water tank
8 Water tank opening for filling
9 Permanent reusable while dust & anti-microbial filter
10 Water tank lid and seal
11 Handle for convenience when refilling /caring water tank
12 Lower body and basin
13 Power cord
14 Transducer
15 Power light

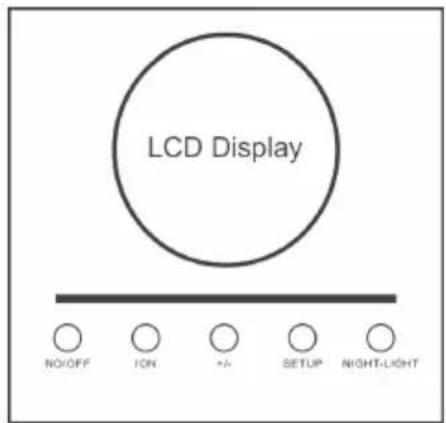

Control panel

The device can be controlled by five Buttons located on the front of the control panel under the display.

LED-Display buttons

ON/OFF Switches the humidifier on/off

ION Switches ions on/off +/- Sets mist volume, humidity or timer to different levels
SETUP Choose to setup mist volume, humidity or timer
NIGHT-LIGHT Switches the night-light on/off

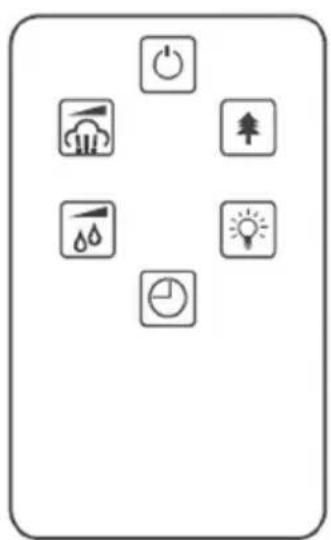

REMOTE CONTROL

The unit is equipped with a very useful remote control.

How to insert the remote control batteries (The batteries are not included in the scope of delivery.)

1. Flip the remote on its side.
2. Press the battery release on the bottom edge of the remote.
3. Grasp the battery socket and pull the battery out.
4. Insert a lithium battery type CR2025.

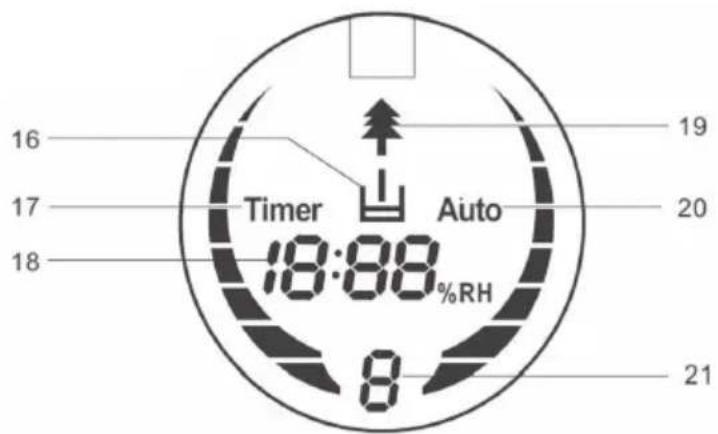

LED DISPLAY

LED Display Icons and Values

16 Empty water tank indicator icon
17 Timer setting on/off indicator icon
18 Value of time remaining in timer, Shows values for both the desired relative humidity and the actual relative humidity
19 Ions on/off! Indicator icon
20 Humidity setting on/off indicator Icon
21 Mist volume indicator (low, medium and high)

OPERATING INSTRUCTIONS

Before getting started, please remove the SPS-807 from its box and allow it to become accustomed to the room temperature for at least 30 minutes especially if the machine is cold from the outside air. The SPS-807 is designed to operate at temperatures between 5-40 and relative humidity of less than 80% .

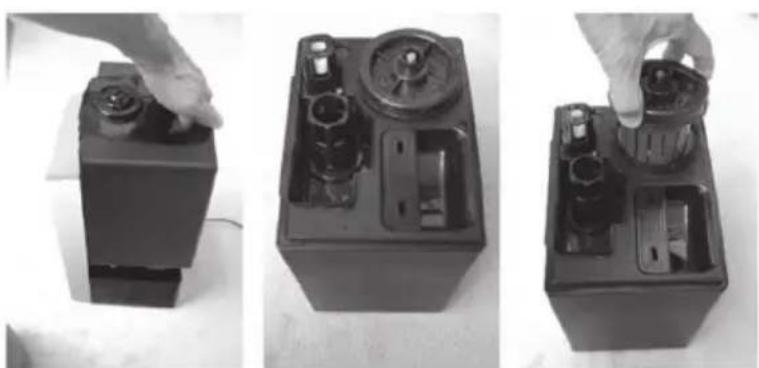

To get started, grasp the water tank by the handle at the top and lift from the base. Next flip the tank over and unscrew and remove the water tank lid and filter.

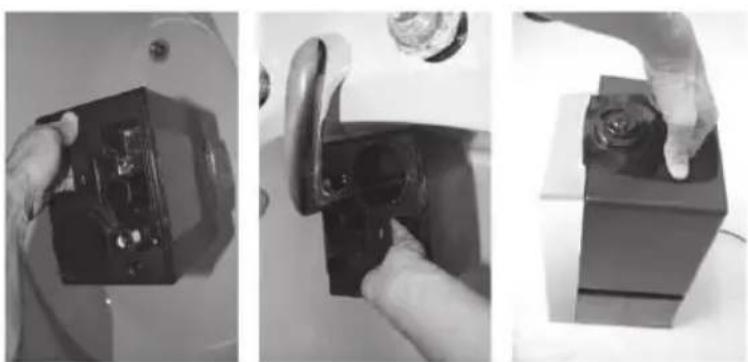

Then place the water tank under the faucet for filling' grasping it from the handle under the water tank. Fill the tank with tap water (or other clean water source with water temperature under 40~口 ), re-insert the lid and filter Flip the water tank once again until it is right side up. Ensure that the basin is clean and then carefully place the water tank back on the lower body.

Wait a few seconds until the water tank lid starts to release water into the basin. You will hear a bubbling sound as the air enters the water tank. Plug the power cord into the electrical outlet (NEVER SWITCH ON THE HUMIDIFIER WITHOUT WATER IN THE BASIN). If the humidifier is switched off, the values for humidity will now be displayed.

Press the ON/OFF Button to activate the humidifier. The machine is now operating in manual mode. It will release cool mist on a constant basis with the mist intensity level automatically set to medium. The two jets at the top of the machine can be rotated to blow mist in two directions. You may also lift the jets from the water tank, adjust the positions and reinsert them back into the top of the water tank. The output jets should not be set to spray directly onto people, electrical devices or any obstructions. It is best to direct the jets into the open air.

The + / - Button changes the mist level (low, medium, high). This change is displayed on the LED screen by the mist volume indicator (#21). If the machine is in the automatic mode, it will automatically adjust the mist intensity.

Pressing the SETUP Button activates automatic mode (when the LED display starts to blink the word,Auto'). You can select the desired humidity level by pressing + / - Button repeatedly until the required humidity level is displayed (from 45% to 90% in increments of 5 % ). Once you select your desired humidity

level, simply stop pressing the button and you humidity level will be set. Wait another 5 seconds and the numeric value on the LED display will switch to the current humidity level as measured by the built-in Hygrostat. When the humidity level in the room reaches the set humidity level, the machine will go into automatic sleep state and stop producing mist. When the rooms actual humidity level drops below your set humidity level, then the machine will start producing mist again.

You can deactivate automatic mode very easily by pressing the setup button until you reach 90% RH. Press the button one more time and you will now be in the manual mode. You will know that you are in the manual mode because the blinking 'Auto' Icon disappears.

Pressing the Ion Button will activate the ion generator and start sending healthy ions into the air. it will be represented by the tree icon (#19) displayed on the LED

screen.

Pressing the NIGHT-LIGHT Button will switch off the night-light. Press again to switch on.

Pressing the SETUP Button twice to set the timer (when the LED display starts to blink the word

"Timer")The timer function determines how many hours the humidifier will operate. You can set the

timer simply by pressing +I- once for each hour that you would like to run the unit. Many people set the timer for 8-9 hows (during their sleep) but it can be set from 1 hour to 12 hours. When the timer is set, the length of time is displayed in the middle of the LED display (#17). As time passes, the time value decreases until it goes to 00:00 and the machine shuts off.

Once you have set the automatic humidity and the timer, the value of time remaining in timer. the desired relative humidity and the actual relative humidity will displayed 40 seconds alternating in the middle of LED display(#18)

If the humidifier should run out of water, you will hear a beeping sound before the machine will automatically shut off. The LED screen will display the Empty Water Tank icon (#16).

The bright LED display is designed to automatically dim alter 30 seconds of pressing any of the LED panel buttons. The power light is also dimmed because the water tank is tinted. The result is a soft blue glow. The light levels are bright enough to indicate that the machine is operating, yet low enough to ensure a restful sleep in near darkness.

The SP8-807 is equipped with a Permanent Reusable White Dust & Anti-Microbial Filter. It consists of an inner cylinder, an outer cover and a number of small plastic and ceramic balls. The plastic balls are embedded with nano-silver, an anti-microbial agent designed to purify the water and destroy microbes such as bacteria and mould. The ceramic balls function to soften the water by adhering to minerals that cause white dust. They also serve to remove any unpleasant odour from the water. The filter requires cleaning about once a month or 1.000 hours of use. See the maintenance section of more information.

CLEANING AND STORAGE

You can ensure many years of trouble free operation of your SPS—807 humidifier by following a few simple maintenance procedures. If your water is hard, containing high concentrations of calcium and other minerals, then over a period of time white dust will start to deposit on the various surfaces in the room. A white, film-like substance will also start to develop in the water basin, on the transducer and on the inner surface of the water tank. This white film will impede the proper function of the transducer and the operation of the machine.

We recommend the following:

• If your water is very hard, we recommend that you boil it first allow it to cool completely before use in the humidifier. The boiling will reduce the mineral concentration in the water. The other option is to use distilled water if your mineral level is still too high.
• If you are using the machine on a daily basis, clean the transducer, water tank and basin once a week.
• When the water tank needs a refill, empty the remaining water from the tank and fill it with fresh water.
• Clean the whole machine and make sure to keep all the parts completely dry when the machine is not in use.

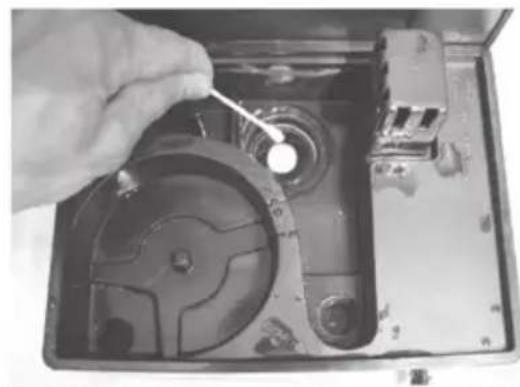

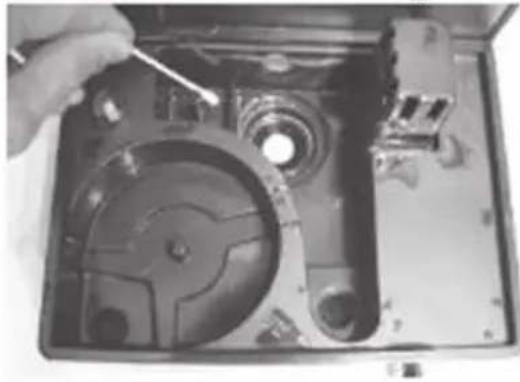

How to clean the transducer

1 Place 510 drops of vinegar on the surface of the transducer and wait for 2-5 minutes.
2 Using a small brush, cotton swab or tooth brush. gently clean the mineral film from the surface of the transducer.
3. Rinse the transducer with clean water.
4 Never use sharp or solid objects for cleaning the transducer.

How to clean the water basin

1 Clean the water basin with a soft damp cloth. if there is excess film on the surfaces. then soak the cloth with vinegar and repeat the process.
2 If there is a film in any of the depressions along the basin, drop a bit of vinegar into depression and clean it outwith a brush.
3. Rinse the basin with clean water.

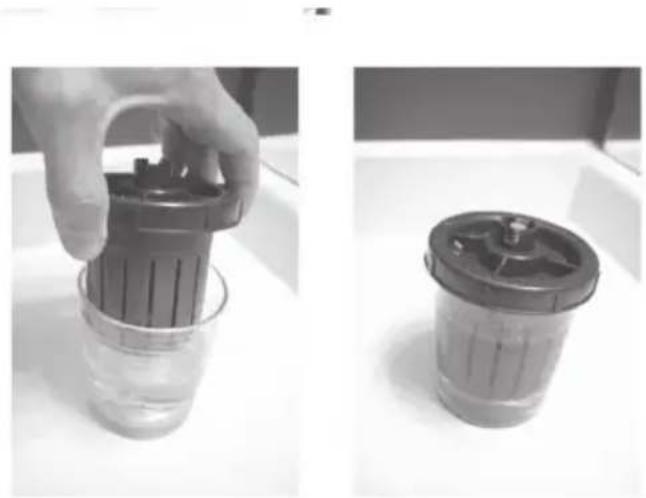

How to clean the white dust & anti-microbial filter

• Remove the filter from the water lank.
• Put some white vinegar into a glass. Soak the filter in the vinegar for about 10 minutes
• Remove the filter from the glass and shake it several times.
• Clean and rinse the filter once again with fresh water

If you don't plan to use the humidifier for a long time, remove the filter from the water tank and let it dry thoroughly. Then wrap it in protective packaging and keep it next to the humidifier in a cool, dry and dark storage space.

TROUBLESHOOTING

Problem Possible cause	Solution
The operation light is off or does not work.	Air humidifier is not plugged into the electrical socket.	Connect the power cord to an electrical socket and press the power button.
Operation LED is lit, but no mist is emitted.	No water in water tank.	Fill the water tank with water.
The mist has a strange odor.	It is a new device. Remove the water tank, unscrew the lid and let it air out in a room for 12 hours.
	There is dirty water in the tank, or the water has been at the same fill level for too long.	Clean the water tank and fill it with clean water.
Operation light is lit, but the device is not working.	There is too much water in the basin.	Remove the water tank. Take a small cup and remove a portion of the water from the water basin. Reinsert the water tank and make sure it is properly seated.
The intensity of the mist is too low.	Mineral concentration in the basin is too high.	Clean the converter.
	Water in the tank is dirty because the water has been in the tank too long.	Clean the water tank and fill it with clean water.
Strange noises during operation	Vibrations in water tank because the water level it too low.	Fill the water tank.
	The machine is on an unstable surface.	Set the device on a stable, level surface.
Mist is spraying out of the area around the nozzles	There are gaps between the housing around the nozzles and the top of the water tank.	Remove the nozzles and clean them with a damp cloth. Then reattach again.
Air purifier is not working.	The device is not connected to the electrical socket.	Check the power supply of the socket and whether the plug is correctly plugged into the socket.
	The manual control has a malfunction.	Contact a technician to have the device repaired.
Loud operating noise. High	degree of humidity in the room.	Dehumidify the air using an air dehumidifier.
	The filter is dirty. Repace the filter with a new one.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
