USER MANUAL UMAP 12000 B2 ULTIMATE SPEED

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

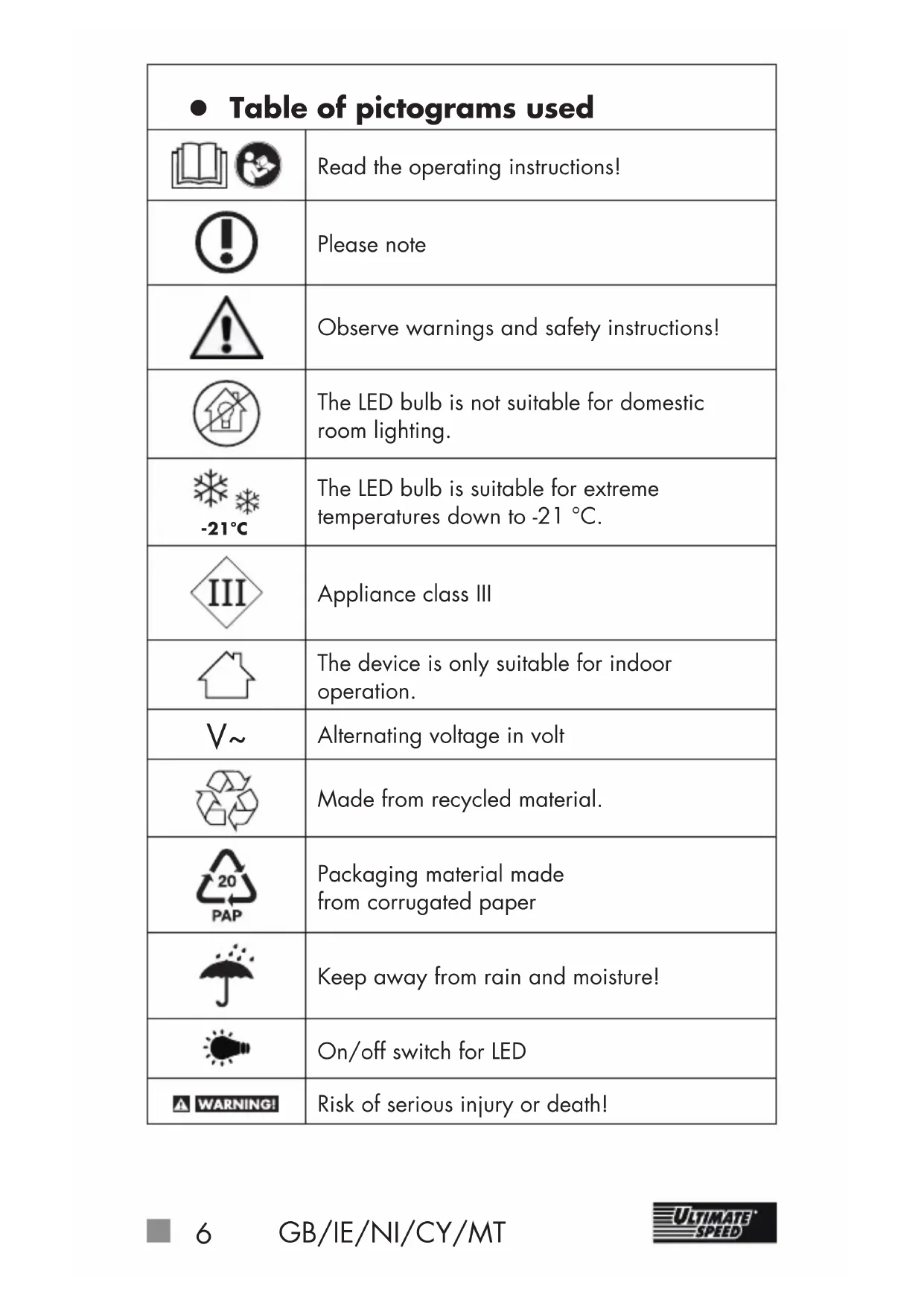

Alternating voltage in volt Made from recycled material. Packaging material made from corrugated paper Keep away from rain and moisture! On/off switch for LED Risk of serious injury or death!GB/IE/NI/CY/MT

Warning: Risk of electric shock!

Danger to life! Caution! Explosion hazard! Don’t throw away – recycle! Dispose of the device and packaging in an environmentally friendly manner! You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited. Direct current Portable jump starter with power bank UMAP 12000 B2 z Introduction Congratulations! You have purchased one of our high-quality products. Please familiarise yourself with the product before using it for the first time. To do this, please read through the following operating and safety instructions carefully. This product must be set up or used only by people who have been trained to do so. KEEP OUT OF THE REACH OF CHILDREN! PLEASE NOTE: Only for petrol motors with a max. 3 litre engine and for diesel motors with a max. 2 litre engine.8 GB/IE/NI/CY/MT z Intended use This portable jump starter with power bank serves as additional support for 12 V vehicle battery systems during starting problems in diesel and petrol vehicles, which is caused by weak, empty or faulty starter batteries. However, the portable jump starter with power bank cannot replace the vehicle battery. If no more than 500A are needed for starting (max. peak current), the power bank lets the user single-handedly start the vehicle when necessary, without additional help from a third party. This portable jump starter with power bank does not serve as additional support for 6 V batteries. The portable jump starter with power bank also has 2 USB outputs. This means that mobile phones, satnavs or other USB-enabled devices can also be charged if needed. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse and disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the guarantee. The LED bulb is not suitable for domestic room lighting. -21°C The LED bulb is suitable for extreme temperatures down to -21 °C. z Scope of delivery 1 portable jump starter with power bank 1 3-way USB cable 1 jump lead 1 12 V cigarette lighter adapter 1 set of operating instructions 1 storage bagGB/IE/NI/CY/MT

z Parts description PLEASE NOTE: After unpacking the product, please check that all of the package contents are present and that the device is in perfect condition. Do not use the device if it is defective. For this see Fig. A to F:

Portable jump starter with power bank

Power button (power bank and light)

Vehicle jumpstart outlet

Storage bag PLEASE NOTE: The use of the terms “product” or “device” in the following text refers to the portable jump starter with power bank named in these operating instructions. z Technical Specifications The four individual cells used to construct the rechargeable battery pack are connected in series to produce a total voltage of 4 × 3.2V ≈ 12V and a capacity of 3000 mAh. The battery output produced in this way is the same as the output from a rechargeable battery pack with a total capacity of 12000 mAh at 3.2 V. Model: UMAP 12000 B2 Battery, type: Lithium polymer rechargeable battery pack (F8054106) Battery, chemical system: Lithium Iron Phosphate (LiFePO4) Battery, capacity: 12000 mAh/ 3.2 V /38.4 Wh Charge cycles: 1500 Charging time: max. 13.5 hours at 1 A charge current Peak current: 500 A Starting current: 300 A Operating temperature for power bank: 0–60 °C Operating temperature for LED: -21 °C – 60 °C Voltage: 12 VGB/IE/NI/CY/MT

Input voltage (charging port): 5 V /1A (USB-C) Capacity: 7000 mAh/5 V Output voltage (USB port): 5 V /1 A/2 A Please note: Only for petrol motors with a max. 3litre engine and for diesel motors with a max. 2litre engine. Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim. z General safety instructions This section covers the basic safety regu- lations applicable when working with the device. Personal safety: This device may be used by children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.12 GB/IE/NI/CY/MT Children must be supervised to ensure that they do not play with the device. Keep the device away from people – especially children – and household pets. Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device. Keep the device in a dry location and out of the reach of children. CAUTION! How to avoid dam- age to the device and any harm to persons that may result from such damage: Working with the device: Do not use the device while driving the vehicle. In hot weather, do not leave the device in a car. This could permanently damage the device. Before setup or first use, check the device for any damage and do not use unless in perfect working order. Do not expose the device to rain or wet weather and do not allow it to come into contact with water or to be submerged in water. There is a risk of electric shock! Keep all openings of the device free during operation. Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!GB/IE/NI/CY/MT

Switch the device off and remove the plug from the socket in the following cases: – when you are not using the device; – if you are leaving the device unsupervised; – when you are carrying out cleaning or maintenance work – if the connection cable is damaged – if foreign objects have got into the device or you notice unusual noises Only use the accessories supplied and recommended by the manufacturer. Do not dismantle or modify the portable jump starter with power bank. This device must only be repaired by a maintenance technician. Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders. Do not expose the device to any source of heat. Do not store in places where the temperature can exceed 70 °C. Only charge in an ambient temperature between 0 °C – 40 °C. Only use the 3-way USB cable

supplied with the device. CAUTION! How to avoid accidents and injuries resulting from electric shock:14 GB/IE/NI/CY/MT Electrical safety: Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges. Do not short-circuit the two crocodile clips. This can lead to a hazardous situation! Do not use the device if the switch cannot be switched on and off. Arrange for damaged switches to be replaced. If the cable is damaged, unplug the plug immediately from the socket. Rechargeable battery packs: CAUTION! EXPLOSION HAZARD! Do not short-circuit the rechargeable bat- tery pack and/or open it. This could cause the device to overheat, ignite or explode. Do not expose the rechargeable battery pack to high temperatures. It could explode. Regularly check the rechargeable battery pack for leakage. Leaking or damaged rechargeable battery packs may cause burns to the skin if touched; therefore, always wear suitable safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. In the event of contact with skin or eyes, rinse immediately with clean water and seek medical attention.GB/IE/NI/CY/MT

z Specific safety instructions We recommend charging the portable jump starter with power bank

once a month. A slightly higher temperature during charging is absolutely normal and not a malfunction. However, we do recommend leaving the portable jump starter with power bank

to rest for 15 minutes before using. Protect the portable jump starter with power bank

from moisture and high temperatures, including fires. Store the portable jump starter with power bank

in a dry place and protect the device from moisture and corrosion. If you notice the portable jump starter with power bank

is leaking, producing an unusual odour or looking deformed in any way, stop using the device imme- diately and contact the manufacturer. Do not drop the portable jump starter with power bank

while it is being used. When using the jump lead

, ensure that the blue plug is securely plugged into the vehicle jumpstart outlet

When using the jumpstart, make sure that at least 3 indicator lights

are illuminated. If the indicator lights for charging status

go out during the start attempt, charge16 GB/IE/NI/CY/MT the portable jump starter with power bank

If the vehicle does not start after the 3rd to 5th start attempt, stop the start process and check the other causes that may be preventing the vehicle from starting. z Using the device z Check the capacity of the portable jump starter with power bank PLEASE NOTE: After switching on the portable jump starter with power bank

the device will switch off automatically after approx. 20 seconds, if a consumer unit is not connected. To check the capacity of the portable jump starter with power bank

During charging, the indicator lights will flash

The number of permanently lit indicator lights

shows the charge level of the portable jump starter with power bank

If the portable jump starter with power bank

is completely charged, all indicator lights

will light up permanently. Indicator lights Charge level not permanent 0% 1 permanently lit 25% 2 permanently lit 50% 3 permanently lit 75% 4 permanently lit 100%GB/IE/NI/CY/MT

z Charge portable jump starter with power bank Connect the 3-way USB cable

with the charging port (USB-C)

and an appropriate USB-A socket or an appropriate USB network adapter (working output voltage

out,max 5 V ). PLEASE NOTE: USB network adapter not included in the scope of delivery. PLEASE NOTE: An undervoltage protection circuit is installed in the portable jump starter with power bank

protect the device from damage. This prevents a deep discharge of the portable jump starter with power bank

and automati- cally switches the device off once the rechargeable battery pack is fully discharged. Shortly before the undervoltage protection circuit is activated, the last blue indicator light

will start to flash. As soon as the undervoltage protection circuit is activated, the last blue indicator light

flashes and power will no longer be delivered. Please charge the portable jump starter with power bank

again. z Using the jumpstart feature Step LEDs Meaning / Error Solution

the portable jump starter with power bank... Red Error LED

is continuously lit on the jump lead

The voltage determined in the portable jump starter with power bank

is not enough to start the car. Charge the portable jump starter with power bank

... to the jumpstart outlet

of the mobile jump starter with power bank

and the red Error LED

flash alternately. The portable jump starter with power bank

is ready. Carry on with step 2.18 GB/IE/NI/CY/MT

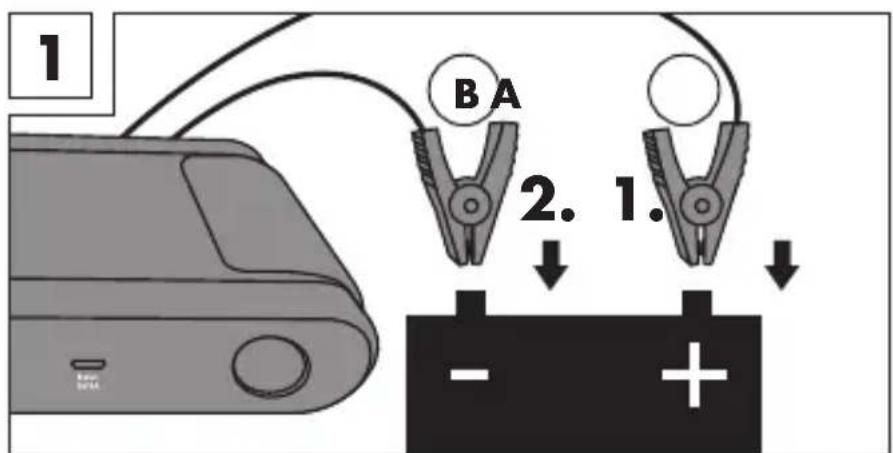

the red clamp (A) to the positive pole of the vehicle battery and then connect the black battery clamp (B) to the negative pole (see Fig. 1). The red Error LED

flashes, a short alarm signal sounds. The temperature is too high, possibly due to several jump start attempts. Disconnect the black (B) battery clamp first and then the red clamp (A) from the battery poles. Start again from step 1. The red Error LED

flashes, a continuous alarm signal sounds. Battery clamps (A) and (B) are the wrong way round. It is caused by a short circuit or the battery is leaking. The red Error LED

flashes once, a continuous alarm is sounded and then followed by two short alarm sounds. Green Start LED

and the red Error LED

flash alternately. The connection is correct After 1–2 seconds only the green LED

glows. Carry on with step 3.

As soon as the vehicle starts, remove the jump lead

from the portable jump starter with power bank

within 30 seconds and disconnect firstly the black battery clamp and then the red clamp from the battery poles. Otherwise, it could result in dangerous situations! Leave the vehicle engine running. PLEASE NOTE: The button on the LED box

of the jump lead has no effect and must not be used. It is only used for troubleshooting purposes during the manufacture of the device. z Charging mobile phones and tablets Press the power switch

Connect your mobile phone or tablet’s USB power cable to the USB output (5 V /1 A

) and then to your mobile phone or tablet. PLEASE NOTE: Charging is not possible if the portable jump starter

with power bank is being charged itself. z Using the 12 V DC output 8 A with cigarette lighter adapter Press the power switch

Connect the 12 V/8 A cigarette lighter adapter

on the 12V DC output 8 A

to your portable jump starter with power bank

und then connect it to your terminal device. PLEASE NOTE: You will not be able to use the portable jump starter with power bank

if it is being charged. ATTENTION: Only use the 12 V/8 A cigarette lighter adapter delivered with your product

. There is a risk of a short circuit if you use third-party adapters. z Switch on lighting Light mode When switching on the LED lights

for 3 seconds.20 GB/IE/NI/CY/MT Press and hold the power button

again for 3 seconds to turn the LED lights

off again. Flash mode To switch on the LED light

in flashing or SOS mode, first press and hold the power switch

for 3 seconds. Then the LED light

once again and the LED light will switch to flashing mode. Briefly press the power switch

once again and the LED light

will switch to SOS mode. There will be 3 short flashes, 3 long flashes and another 3 short flashes. Briefly press the power switch

once again to switch off the LED light

ATTENTION: Do not look directly at the LED lights

this can damage your eyes. PLEASE NOTE: It is not possible to turn on the light while the portable jump starter with power bank

is being charged. z FAQs Q: How can I switch the device off? A: The device automatically switches off after 20 seconds of non use. There is no provision for switching it off manually. Q: How long does it take to fully charge a mobile phone with the device? A: With a charge level of 2500 mAh: Approx. 2–3 hours if connected to the USB output 5V /1A

. Please note that if the device is switched on, it will continually use battery power while actually charging and this can extend the charging time. Q: How long does the device’s rechargeable battery pack last? A: 3–6 months. However, we recommend charging the recharge- able battery pack every 1–2 months.GB/IE/NI/CY/MT

z Troubleshooting = problem = cause = remedy The portable jump starter with power bank

not fully charged, even though all 4 indicator lights

are permanently lit. It is 60% charged after a long period out of use or in storage. Charge the portable jump starter with power bank

again as described in the section: “Charge portable jump starter with power bank”. There is no response to pressing the power button

The undervoltage protection circuit for the portable jump starter with power bank

is activated. Charge the portable jump starter with power bank

again as described in the section: “Charge portable jump starter with power bank”. One indicator light

flashes, however the portable jump starter with power bank

cannot be used. The undervoltage protection circuit for the portable jump starter with power bank

is activated. Charge the portable jump starter with power bank

again as described in the section: “Charge portable jump starter with power bank”. z Cleaning The device must not come into contact with water or be placed in water. There is a risk of injury due to electric shock if moisture enters the device. Do not use cleaners or solvents. These could damage the device beyond repair. Keep the housing and device accessories clean. Use a damp cloth or a soft brush to clean the device and the accessories.22 GB/IE/NI/CY/MT z Storage Keep the device in a dry location and out of the reach of children. Store the device, including accessories, in the storage bag

provided. z Information about recycling and disposal DO NOT DISPOSE OF ELECTRICAL TOOLS IN

HOUSEHOLD WASTE! DON’T THROW AWAY –

RECYCLE! According to European Directive 2012/19/EU, used electrical devices must be collected separately for environmentally com- patible recycling or recovery. Electrical and electronic devices which have become waste are called old devices. Owners of old devices are obliged to place them in a collection which is separate from unsorted municipal waste. Owners of old devices have old batteries and old rechargeable battery packs, which are not enclosed by the old device, as well as bulbs which must be separated from the device before it is handed in at a collection point. This does not apply if the old devices are handed in to public waste disposal authorities and they are separated from other old devices there for the purposes of preparation for recycling. If you are unsure, please contact an independent specialist. Owners of old devices from private households can hand these in to collection points for public waste disposal authorities or collection points which have been set up by manufacturers or distributors in line with the ElektroG (German disposal of electrical equipment act). The disposal of defective devices which you have sent in will be carried out free of charge. You can also return the old device to your Lidl branch, free of charge. As the end user, it is your responsibility to delete any personal information on the old devices to be disposed of. Please return this device, accessories and packaging to your local recycling depot.GB/IE/NI/CY/MT

This device is marked in accordance with the 2012/19/EU directive on old electronic and electrical devices (WEEE). The symbol of the “crossed out dustbin” means that you are legally obliged to place these devices in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited. Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the relevant heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making an important contribution to protecting the environment. Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials. Notices on secure removal of the batteries or re- chargeable batteries: The rechargeable bat- tery must only be removed by specialists!

FROM ELECTRIC SHOCK! Ensure that the battery has been fully emptied. The battery can be removed by disconnecting the two hous- ing halves from each other. They are held together by com- mercial Phillips screws. Carefully remove the battery or rechargeable battery. The battery or rechargeable battery and the device can now be disposed of separately from each other.24 GB/IE/NI/CY/MT z Original EC Declaration of Conformity We, C. M. C. GmbH Responsible for documentation: Dr. Christian Weyler Katharina-Loth-Str. 15 66386 St. Ingbert Germany hereby take sole responsibility for declaring that the product Portable jump starter with power bank IAN: 392494_2201 Art. no.: 2504 Year of manufacture: 2022/41 Model: UMAP 12000 B2 meets the basic safety requirements as specified in the European Directives Electromagnetic Compatibility: (2014/30/EU) Low Voltage Directive: (2014/35/EU) RoHS Directive: (2011/65/EU), (2015/863/EU) and the amendments to these Directives. The object of the declaration described above meets the require- ments of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment. This conformity assessment is based on the following harmonised standards: EN 55035:2017 EN 55032:2015 EN 61000-3-2:2019GB/IE/NI/CY/MT

EN 61000-3-3:2013/A1:2019 EN 50498:2010 EN 60335-1:2012+A11:2014+A13:2017 EN 62233:2008 EN 62471:2008 St. Ingbert, 01 February 2022 Dr. Christian Weyler - Quality Assurance - z Warranty and service information Warranty from Creative Marketing & Consulting GmbH Dear Customer, The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below. z Warranty conditions The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase. Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or re- place it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase (sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred. If the defect is covered by our warranty, we will repair and return26 GB/IE/NI/CY/MT your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced. z Warranty period and statutory claims for defects The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee. z Extent of warranty This device has been manufactured according to strict quality guidelines and carefully inspected before delivery. The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches, rechargeable batteries or parts made from glass. This warranty is voided if the product becomes damaged or is im- properly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed pre- cisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances. The product is for consumer use only and is not intended for com- mercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch. z Processing of warranty claims To ensure prompt processing of your claim, please follow the instructions given below. Please retain proof of purchase and the article number (e.g. IAN)GB/IE/NI/CY/MT

for all inquiries. The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device. In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given. PLEASE NOTE: You can download this handbook and many more, as well as product videos and software at www.lidl-service.com. With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 392494. z Service How to contact us: GB, IE, NI, CY, MT Name: C. M. C. GmbH Website: www.cmc-creative.de E-mail: service.gb@cmc-creative.de Phone: 0-808-189-0652 Registered office: Germany28 GB/IE/NI/CY/MT IAN 392494_2201 Please note that the following address is not a service address. Please first contact the service point given above. Address: C. M. C. GmbH Katharina-Loth-Str. 15 66386 St. Ingbert Germany Ordering spare parts: www.ersatzteile.cmc-creative.deDE/AT/CH
