USER MANUAL SB 8312 TV Trevi

MINI SOUNDBAR STEREO 2.0 CON BLUETOOTH

Manuale d'uso e collegamento

MINI STEREO SOUNDBAR 2.0 WITH BLUETOOTH

Connection and Operation Manual

MINI SOUNDBAR STÉRÉO 2.0 AVEC BLUETOOTH

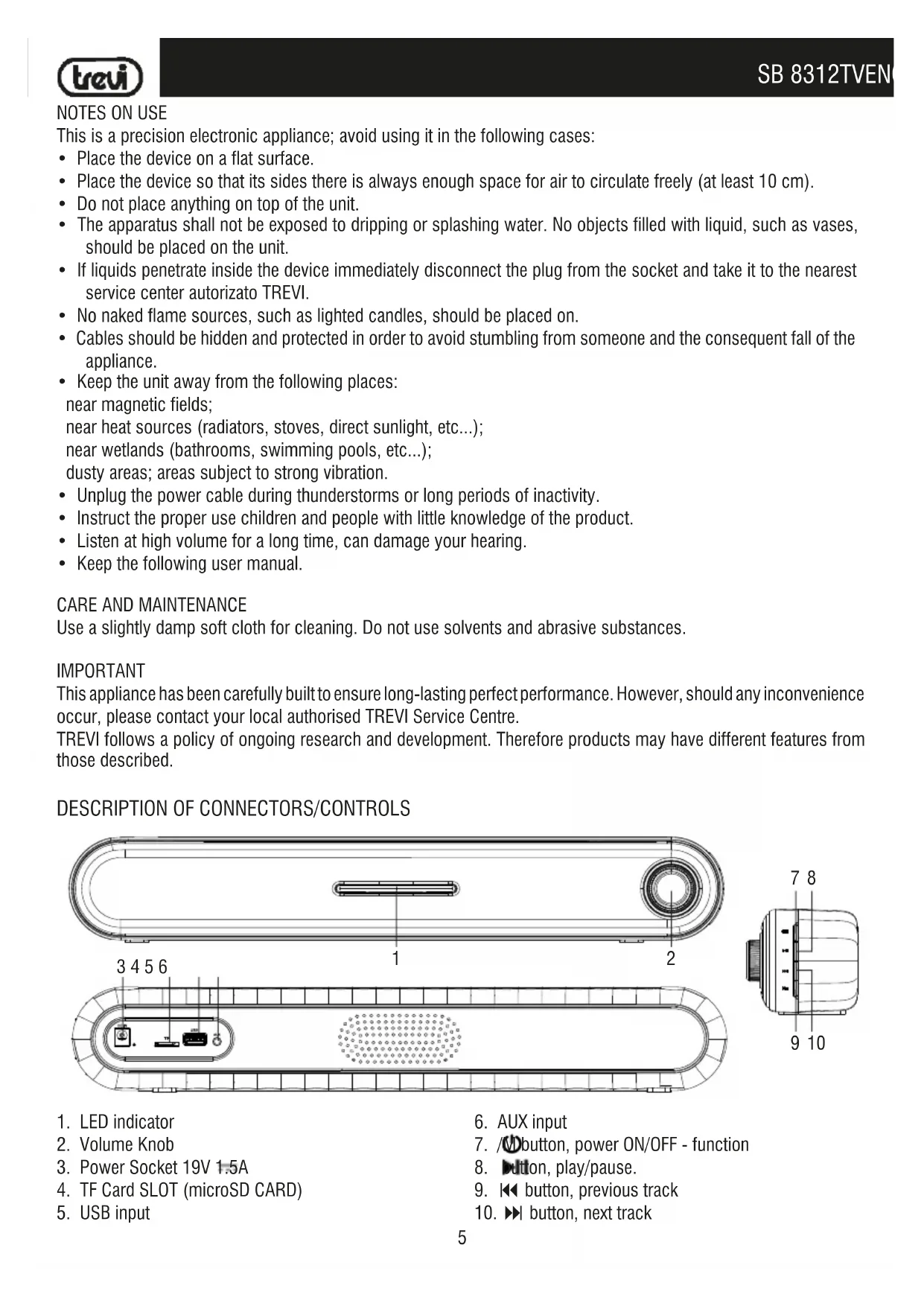

This is a precision electronic appliance; avoid using it in the following cases:

• Place the device on a flat surface.
• Place the device so that its sides there is always enough space for air to circulate freely (at least 10cm ).
• Do not place anything on top of the unit.
• The apparatus shall not be exposed to dripping or splashing water. No objects filled with liquid, such as vases, should be placed on the unit.
• If liquids penetrate inside the device immediately disconnect the plug from the socket and take it to the nearest service center autorizzato TREVI.
• No naked flame sources, such as lighted candles, should be placed on.
• Cables should be hidden and protected in order to avoid stumbling from someone and the consequent fall of the appliance.
• Keep the unit away from the following places:

near magnetic fields;

near heat sources (radiators, stoves, direct sunlight, etc...);

near wetlands (bathrooms, swimming pools, etc...);

dusty areas; areas subject to strong vibration.

• Unplug the power cable during thunderstorms or long periods of inactivity.
• Instruct the proper use children and people with little knowledge of the product.
• Listen at high volume for a long time, can damage your hearing.
• Keep the following user manual.

CARE AND MAINTENANCE

Use a slightly damp soft cloth for cleaning. Do not use solvents and abrasive substances.

IMPORTANT

This appliance has been carefully built to ensure long-lasting perfect performance. However, should any inconvenience occur, please contact your local authorised TREVI Service Centre.

TREVI follows a policy of ongoing research and development. Therefore products may have different features from those described.

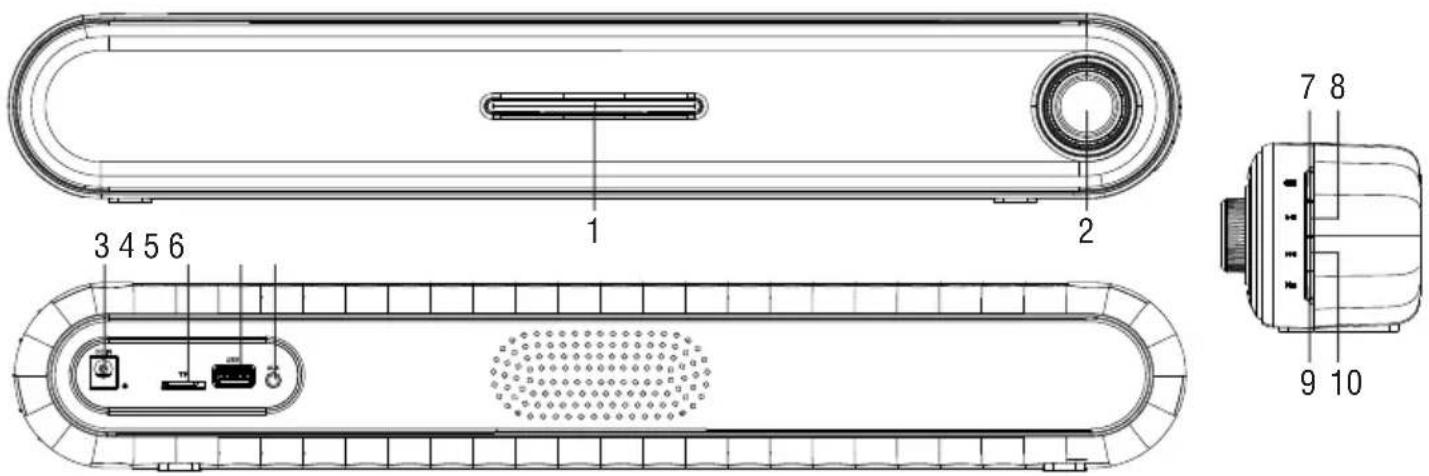

DESCRIPTION OF CONNECTORS/CONTROLS

1. LED indicator
2. Volume Knob
3. Power Socket 19V 1.5A
4. TF Card SLOT (microSD CARD)

5. USB input

6. AUX input

7. button, power ON/OFF - function
8. Button, play/pause.
9. 卡 button, previous track
10. button, next track

INSTALLATION NOTE

When installing the SB 8312TV with TV under 24" in size, you may need to lift up the TV so that the sound bar doesn't stand between the TV infrared receiver and the remote control signal.

POWER SUPPLY

Connect the DC plug of the supplied adapter to the 19V-socket (3) located at the back of the appliance. Connect the supplied power adapter to an electrical outlet.

POWER ON/OFF AND VOLUME ADJUSTMENT

• Press and hold the / button (7) for 3 seconds to switch ON the unit.
• Press and hold the / button (7) for 2 seconds to switch OFF the unit.
• Rotate the volume knob (2) to increase/decrease the volume.

Note: This device has an AutoPower Off function; this function allows automatic shutdown after 15 minutes in the absence of an audio signal on the inputs.

AUX INPUT

1. To use a jack cable 3.5mm stereo to connect the AUX input (6) of unit to the headphones/ audio output of the TV or other device;
2. Switch On the unit and press the / (7) key several times until the voice guide signals "AUX mode"; the signal on the AUX input (6) will be automatically reproduced.

Warning:

• Some audio outputs which you connect the Soundbar (like headphone output) can have its own volume control: make sure you have set on the source device an adequate level audio output otherwise the Soundbar will sound even at maximum volume.
• If the sound played by the Soundbar be distorted means that the input signal is too strong: lower the volume of the Soundbar or paid on a level audio source device output more low.
• When connecting to a TV via headphone out, sometimes the sound reproduced from the Soundbar is low even at maximum volume; in this case connect the Soundbar to the audio output of the TV-scart adapter (not supplied).

USB INPUT

1. Insert a micro-SD Card into the micro-SD input (5).
2. Switch On the unit and press the / (7) key several times until the voice guide signals "Play by USB drive";
3. Press (8) button to stop playback temporarily. Press again to resume.
4. Press (9) or (10) button to go to the previous or next track.

TF CARD INPUT (Micro SD CARD)

1. Insert a micro-SD Card into the micro-SD input (5).
2. Switch On the unit and press the / (7) key several times until the voice guide signals "Play by TF card";
3. Press (8) button to stop playback temporarily. Press again to resume.
4. Press (9) or (10) button to go to the previous or next track.

BLUETOOTH OPERATION

1. Switch On the unit and press the O/M (7) key several times until the voice guide signals "Bluetooth mode";
2. Switch On the Bluetooth on the external device and start a search for devices. After select the "SB 8312TV";
3. Enter the password "0000" if required;
4. When the external device is paired you will hear a confirmation sound;
5. Press (8) button to start playback;
6. Press (8) button to stop playback temporarily. Press again to resume;
7. Press (9) or (10) button to go to the previous or next track.

TROUBLESHOOTING

If the Soundbar does not work properly, check this short list before taking it to a TREVI authorised service centre. In any case, do not try to repair the device, this will void the warranty. Only TREVI authorised service centres are authorised to perform operations on this product.

No Sound

• Check if PAUSE function on USB, microSD Card or Bluetooth mode, are enabled.
• Check that the correct input has been selected.
• Check and adjust the volume of the Soundbar and the TV (or the device connected).

The Soundbar does not turn on

• Check that you have properly connected the adapter jack.

The device does not react to any operation

• Disconnect the power cable from the device for 30 seconds to reset it.

TECHNICAL FEATURES

Power supply: 19V 1.5A

Consumption: 29W

Maximum output power: 30W

Bluetooth transmission power: 2.5mW

Bluetooth transmission: 2,4GHz

Soundbar size: 411x71x65mm

Weight: 726g

NOTES D'EMPLOI

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.

The user must take the product to special "separate waste collection centres" provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.

EN If you will not find your language on the instruction manual, please go on our website www.trevi.it to find it

SIMPLIFIED EU DECLARATION OF CONFORMITY

Hereby TREVI Spa declares that the radio equipment type SB 8312 TV is in compliance with directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://www.trevi.it/dms/zidi/TREVI/DOCSB8312TV.pdf
