USER MANUAL GPSE 40 A.3 Güde

Translation of the original instructions Plasma cutter

Translation of the original instructions

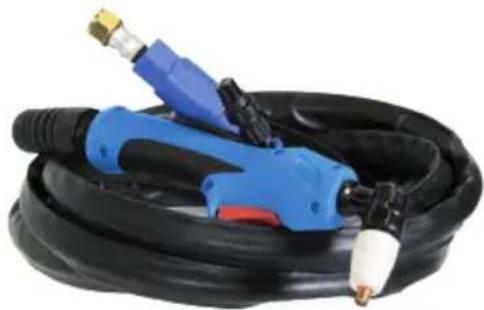

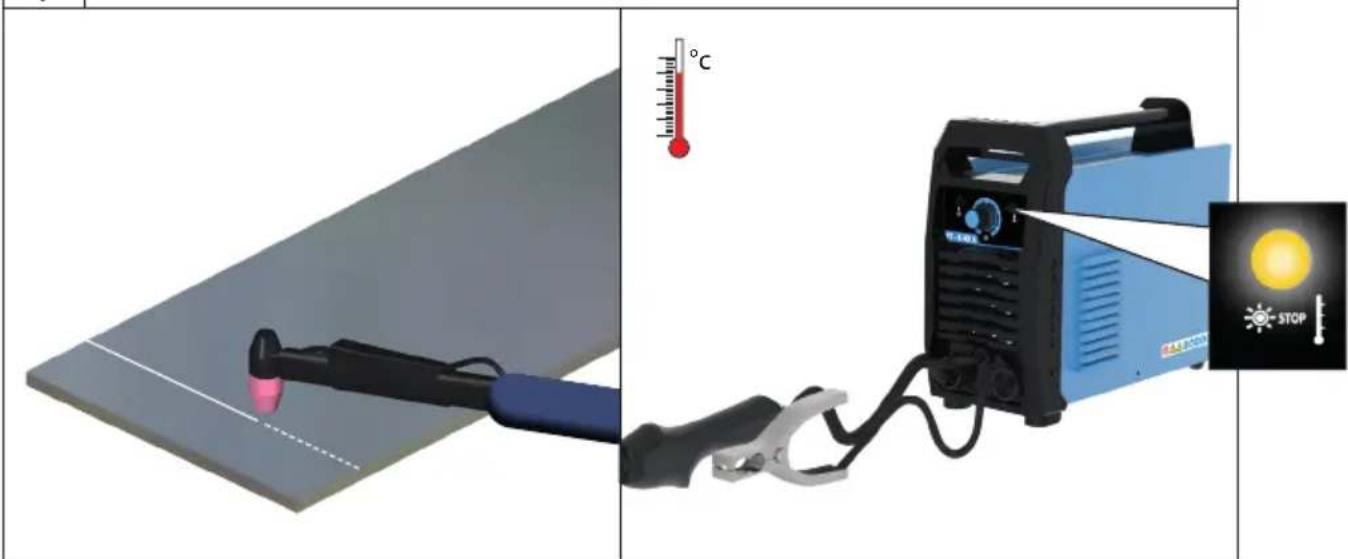

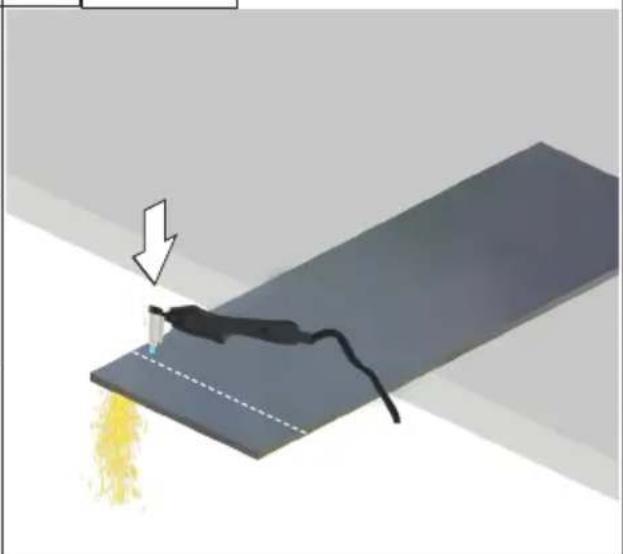

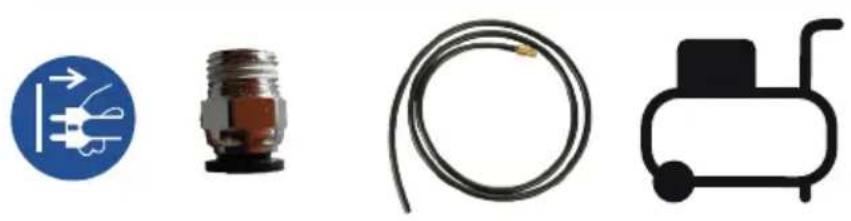

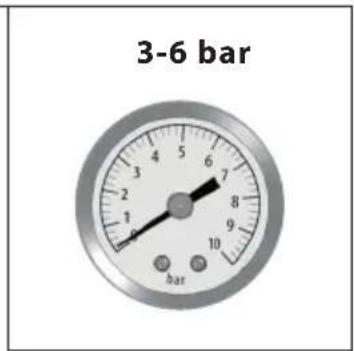

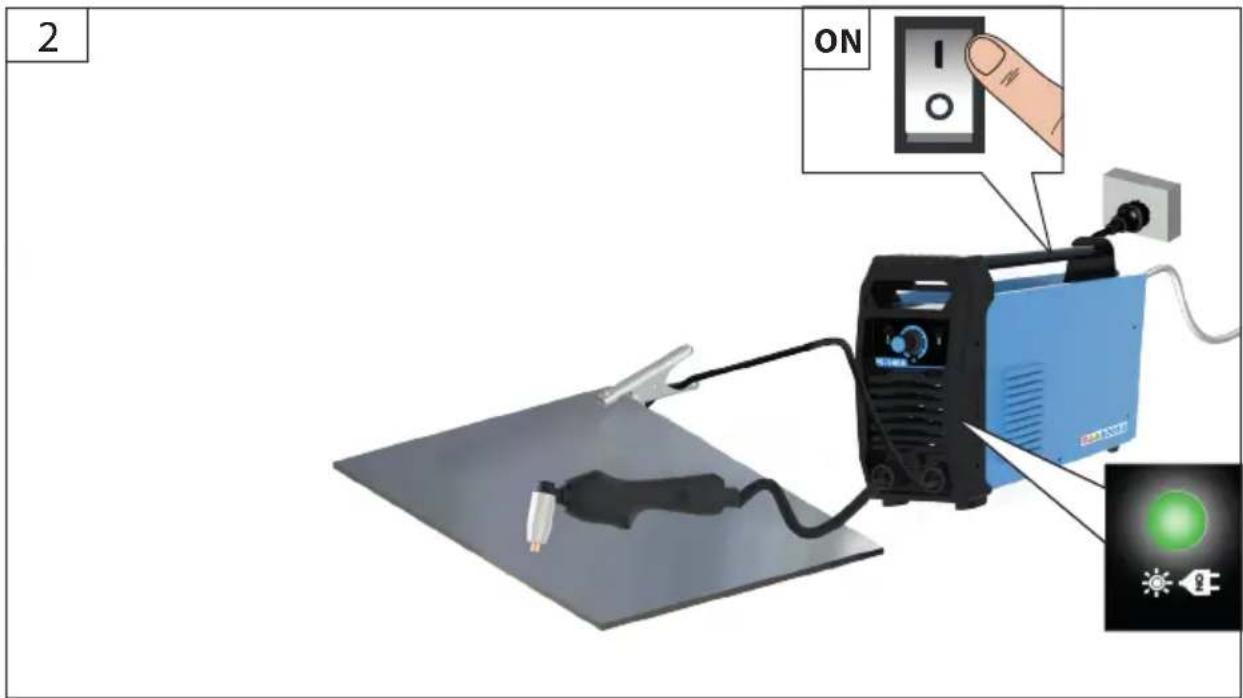

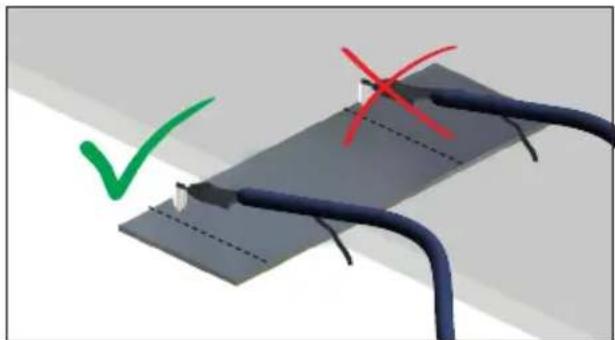

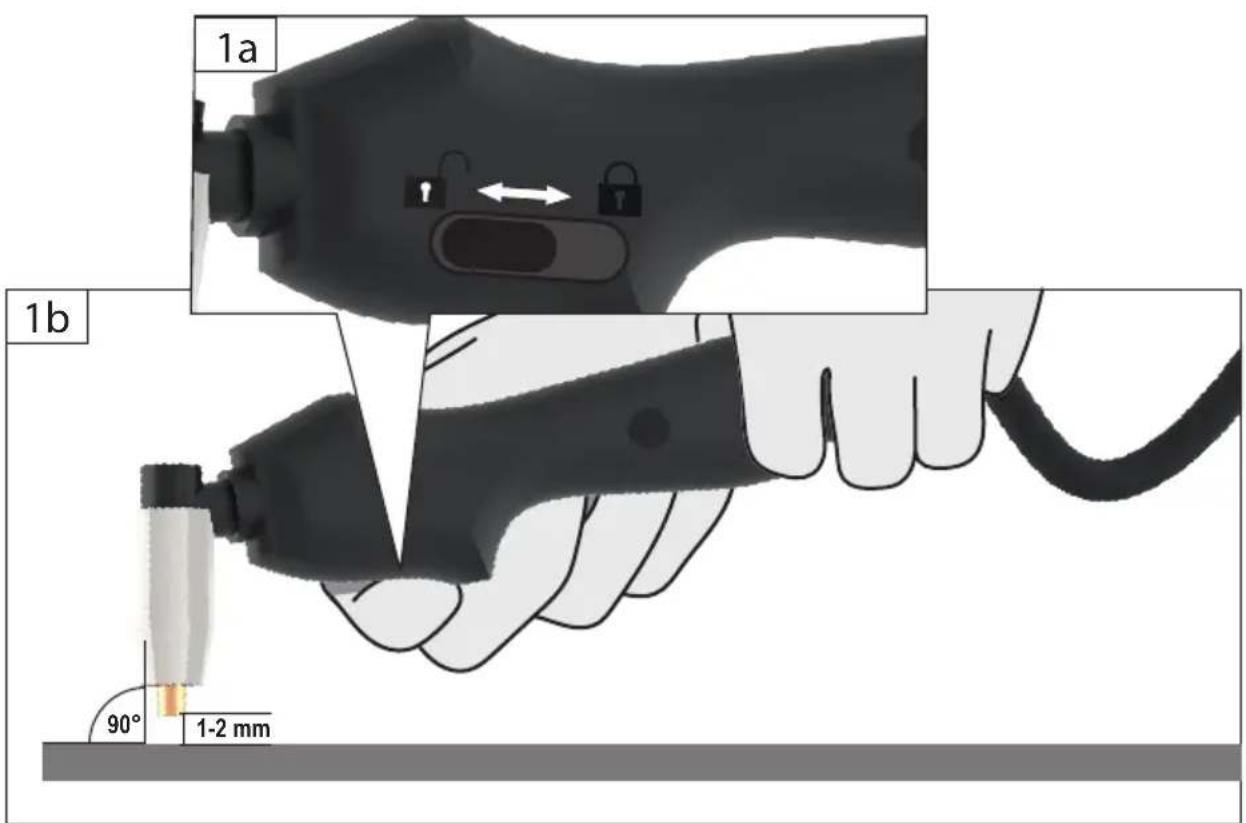

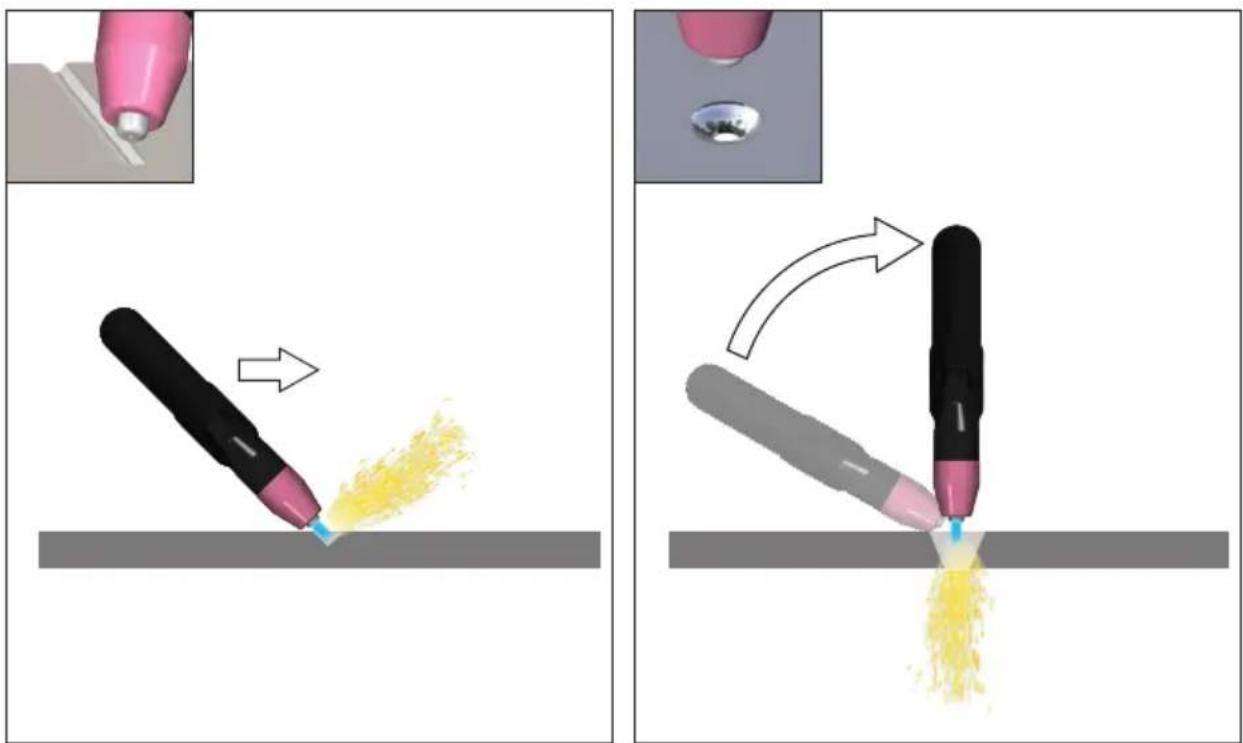

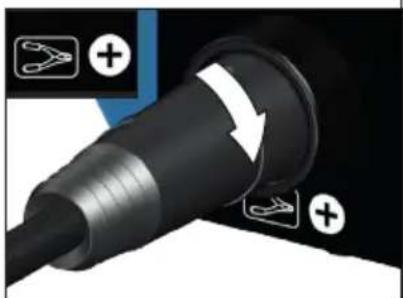

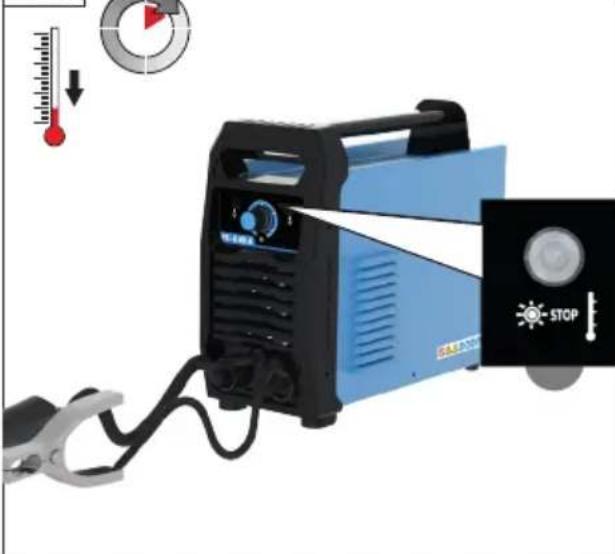

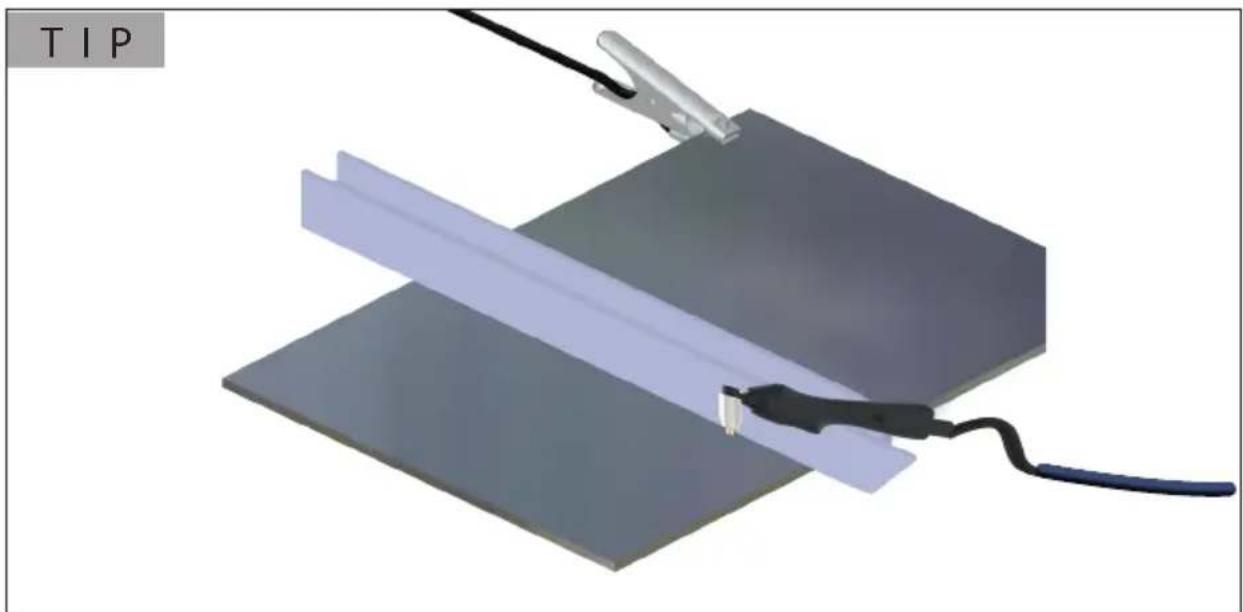

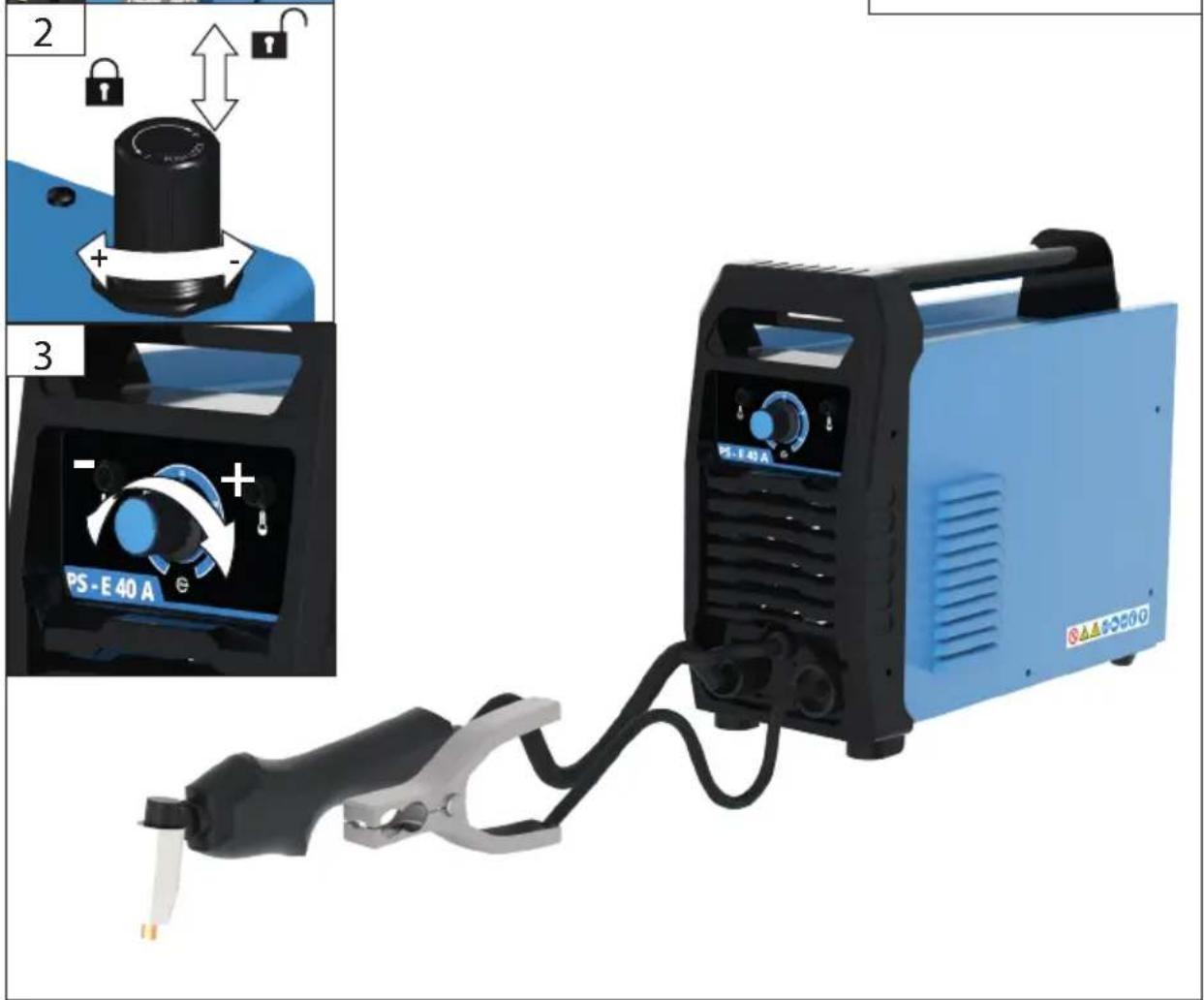

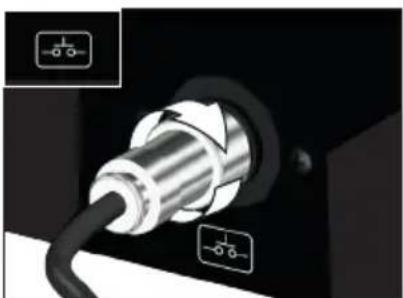

Starting-up the machine

Cleaning / Maintenance

Rated input voltage AC Current 230 V

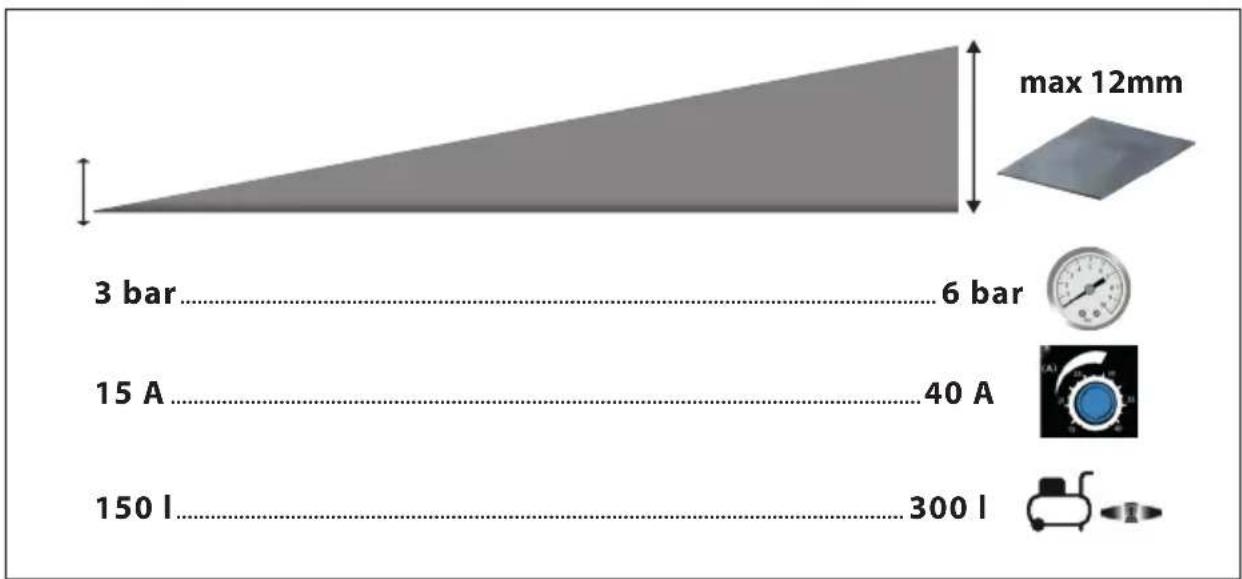

Performance range (Welding current / Load voltage) 15 A/86 V -40A/96V X Switch-on time The ratio of given duration time/the full-cycle time. *

• The ratio of given duration time/the full-cycle time. Switch-on time determined at 40°C using simulation This device consists of the following recyclable materials: Sheet steel, Copper, Aluminum, , ABS, PE ENGLISH Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. In case of any doubts about connection and operati

on refer please to our customer center Class A (IEC 60974-10): If you intend to use the apparatus in residential surroundings supplied by the low voltage mains supply, an electromagnetic lter may be required to suppress electrical disturbance to a level where they will no longer be a nuisance to the user. The apparatus may be used in industrial or other areas where power is not supplied by municipal LV mains. Class A apparatus are not intended for use in residential areas where power is supplied via municipal LV mains, since unfavourable power conditions may cause interference. As a user, you must make sure, after consultation with your energy provider, if necessary, that your point of connection on which the machine is to be operated meets the requirements above. The user is responsible for faults arising from the cutting. Specied Conditions of Use The plasma cutter with constant voltage characte- ristic may only be used to cut electrically conductive metals using air. Only use the ame-cutting torch supplied. Ambient temperature -10 °C - +40 °C Relative air humidity max. 50 % (40 °C), 90% (20 °C) Altitude above sea level max. 1000 m The ambient environment must be free from abnormal amounts of dust, acids, corrosive gases or substances. Respecting technical data and safety precautions. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.21 Requirements for operating sta The operating sta must carefully read the Opera- tingInstructions before using the appliance. Since the use of the device if handled incorrectly can entail considerable risks, only knowledgeable persons may be entrusted with the use of it. The operator must be appropriately trained in setting up, operating and using the machine. Qualication: Apart from the detailed instructions by aprofessional, no special qualication is necessary forappliance using. Minimum age: Persons over 18 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. Training: Using the appliance only requires corres

pondingtraining by a professional or the Operating Instructions. Nospecial training is necessary. The operator is responsible for accidents or risks to third parties. Instructions for the installation and oper- ation of an arc welding device to prevent possible electromagnetic interference:

As the manufacturer, we recommend that the following assessments and measures be carried out by a qualied electrician. General The user is responsible for setting up and operating the arc welding machines/cutting equipment in accordance with the manufactur- er’s instructions. If electromagnetic interference is detected, it is the responsibility of the user of the arc welding machines/cutting equipment to nd a solution with the technical assistance of the manufacturer. In some cases, the measure needed may simply consist of earthing the welding circuit (see note). In other cases, it may include complete electromagnetic shielding of the power source of the arc welding machine/ cutting equipment and the workpiece, com- bined with input lters. In all cases, electromag- netic interference must be reduced until it no longer causes any disturbance. Note The approach taken to earthing the welding circuit depends on the local safety regulations. Changing the earthing to improve electromag- netic compatibility may increase the risk of accidents or damage to equipment. Assessing the surroundings Before setting up the arc welding machines and/or cutting equipment, the user must assess possible electromagnetic problems in the sur- roundings. When doing so, the following factors must be taken into account: a) other mains cables, control cables, signal and telecommunication cables above, below and next to the arc welding machines and/or cutting equipment; b) Audio and television broadcast transmitters and receivers; c) Computers and other control devices; d) Safety equipment, e.g. protection for com

mercial facilities; e) the health of persons nearby, e.g. those using pacemakers and hearing aids; f) Calibration and measurement equipment; g) the resistance of other equipment in the vicinity to interference. The user must ensure that other equipment used in the environment is suitable for such a purpose. This may require additional protective measures; h) the time of day during which the welding, cutting, or other activities must be carried out. The extent of that surrounding area that must be considered depends on how the building is constructed, and the other activities taking place there. This area may extend beyond the limits of the premises Evaluation of the welding machine / cutting equipment In addition to the assessment of the area, the arc welding machines/cutting equipment can be evaluated to assess and resolve cases of interference. An assessment of electromagnetic interference should include in situ measure

ments, as specied in section 10 of CISPR 11:2009. In-situ measurements can also be made to gauge the eectiveness of any minimi- sation measures implemented. Guidance for minimisation measures: Public power supplies Welders machines/cutting equipment should be connected to the public power supply as per the manufacturer’s recommendations. If there is any interference, it may be necessary to take additional precautions, such as tting lters for the mains connection. Consider shielding the mains cable of permanently installed welding machines/cutting equipment with a metal pipe or similar. The shielding should be electrically connected for its entire length. The shielding should be connected to the welding machine/ cutting equipment power source to achieve good electrical contact between the sheath and the housing of the welding machine/cutter power source. ENGLISH EN22 Maintenance of the arc welding machines/cutting equipment Arc welding machines/cutting equipment should be regularly maintained as per the man- ufacturer’s recommendations. All access and service doors and covers should be closed and well secured when the welding machine/cutting equipment is in operation. With the exception of the changes and adjustments specied in the manufacturer’s instructions, the welding ma- chines/cutting equipment should not be modi- ed in any way. In particular, the spark gaps of arc ignition and stabilisation devices should be adjusted and maintained in accordance with the manufacturer’s recommendations. Welding cables Welding cables should be as short as possible, close together, and should run across or near the ground. Electrical bonding The electrical interconnection of all metallic parts in and next to a welding machine/cutting equipment should be taken into consideration. Metallic parts connected to the workpiece can increase the risk of the welder receiving an elec- tric shock from touching these metallic parts and the electrode at the same time. The welder should be electrically insulated from all of these connected metal parts. Earthing the workpiece It may be that the workpiece is not already connected to earth for reasons of electrical safety or because of its size and location, e.g. a ship’s hull or steel structures. If so, grounding the workpiece can reduce emissions in some, but not all, cases. Ensure that earthing the workpiece does not increase the risk of accident for the user or cause the destruction of other electrical equipment. If necessary, the work- piece must be grounded by a direct connection to the workpiece. In countries where a direct connection is prohibited, the connection should be achieved using suitable capacitors, selected in accordance with national regulations. Screening Selective screening of other cables and equip- ment in the vicinity can reduce irradiation. The screening of the entire welding/cutting set-up may be considered for special applications. Residual Risk Despite the observance of the operating instructions there still may be some hidden residual risks. Even when the plasma cutter is operated properly, there are still residual risks associated with the use of the device. Even when the plasma cutter is operated properly, there are still residual risks associated with the use of the device

• Eye injuries as a result of glare,

• Touching hot parts of the device or the workpiece (burn injuries),

• In the event of improper protection, the risk of accidents and re as a result of spraying sparks or slag particles,

• Emissions which have adverse health eects as a result of smoke and gas, in the event of lack of air and/or insucient extract ventilation in closed rooms. Reduce the residual risk by operating the plasma cut

ter carefully and properly and follow all instructions. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinfor

3. Number of injured persons,

General Safety Rules WARNING! Electric shock! There is a risk of an injury caused by electric shock! WARNING Read all safety warnings and all instructions. Failu- re to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. Keep your work area clean and tidy. Untidy work

places and workbenches increase the risk of accidents and injuries. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The device and packaging are not toys ENGLISH EN23 Do not look into the arc without eye protection; only use welding protective shield with the proper protective glass pursuant to DIN. The arc also emits UV radiation, in addition to light and heat radiation, which may cause glare and/or burns. The invisible ultraviolet radiation causes very painful conjunctivitis, which is only noticeable a few hours later, if sucient protection is not worn. In addition, the UV radiation causes damaging sunburn to areas of the body which are not protected. Comply with the local injury prevention regulations and safety regulations in the work area. Please note that permissible uses for the tool could be limited by national regulations. Do not use accessories which are not specically desi

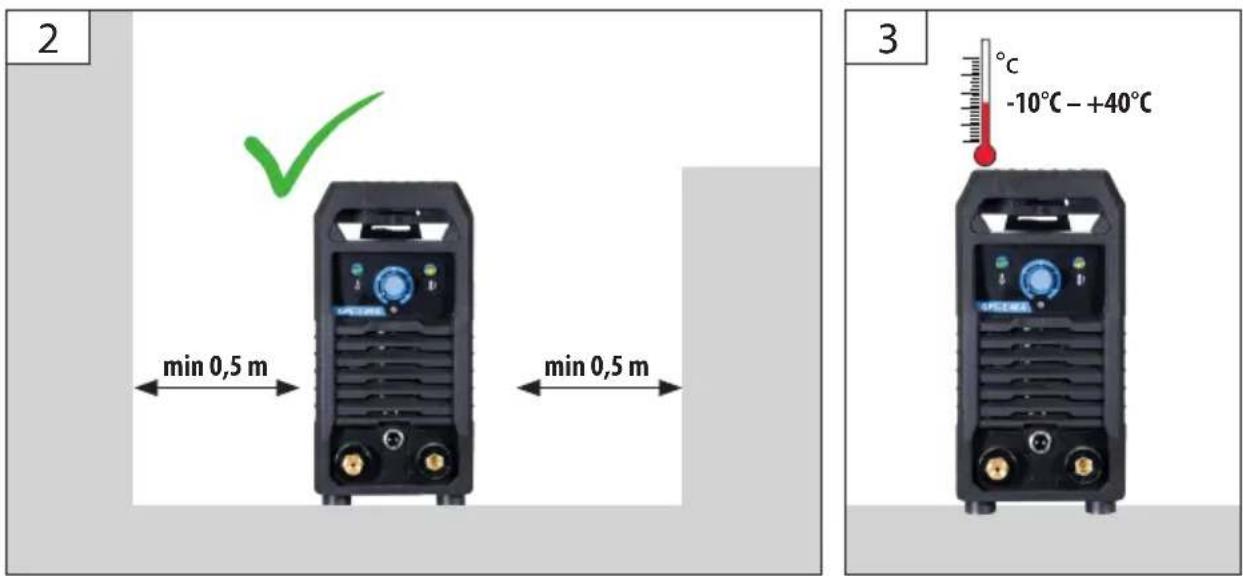

gned and recommended by the tool manufacturer. The device may not be placed in a narrow space or directly against a wall during functional operation. Only in this way can it be ensured that sucient air gets into the opening slit. CAUTION! Improper handling may lead to the plasma cutter overheating or to material damage. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. Check the machine for any damage WARNING The power cut-o should always be in the “o” position when the machine is left unattended. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. The device must not be operated if it is damaged in any way. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Maintain power tools. Check for misalignment or bin

ding of moving parts,breakage of parts and any other condition that may aect the power tool’soperation. If damaged, have the power tool repaired before use. Electrical safety Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA). Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations. Incorrect electrical installation, a supply voltage which is too high or incorrect handling may lead to an electric shock. Any electric shock may be fatal. Use extension cables with a maximum length of 5 meters and with a cable cross-section of not less than

1.5 mm2. Use of extension cables of dierent length

and cross-section and also of adapters and multiple sockets should be avoided.

Warning: This power tool generates an

electromagnetic eld during operation. Under certain circumstances, this eld may aect active or passive medical implants. To reduce the risk of serious or fatal injury, we recom- mend that individuals with medical implants consult your physician and the manufacturer of the medical implant before operating the machine. Persons with life support devices such as pacemakers should consult their doctor before approaching this apparatus, to ensure that magnetic elds and high electrical currents will not interfere with such devices. Caution! Danger due to electric shock!

• It is essential to take into account that the pro

tective conductor in electrical systems or devices may be destroyed by the cutting voltage in the event of negligence: If the arc is not burning, the no-load voltage between the earth terminal and the contact tip is U0. This voltage may be fatal if the welder touches the contact tip, burner nozzle, welding wire and the workpiece with bare hands. e.g. the earth terminal is placed on the plasma cutter housing, which is connected with the protective conductor of the electrical system. The welding work is carried out using a machine with a protective conductor connection. It is therefore possible to use the machine for cutting work without having axed the earth terminal on the machine.In this case, the cutting voltages moves from the earth terminal to the machine via the protective conductor. The high welding voltage may lead to the protective conductor melting.

• The fuses on the supply lines to the power sockets must comply with the regulations (VDE 0100). Therefore, according to these regulations, only fuse and/or automatic circuit breakers which correspond to the wire cross-section may be used (16 ampere circuit breakers). A fuse which does not correspond to the system may lead to a cable re and/or building re damage. Only connect the plasma cutter to a socket which is easily accessible so that you can quickly disconnect it from the power grid in the event of a fault. Overloaded supply networks and circuits may lead to faults for other users during the cutting process. In case of doubt, the electricity company must be consulted. Do not operate the plasma cutter if it has any visible damage or the power cable and/or mains plug is defective. ENGLISH EN24 Check the cable and/or socket for damages before the appliance putting into operation. Cables must always be fully unwound in order to prevent the hazard posed by increased electroma

gnetic elds. Damaged or entangled cords increase the risk of electric shock. Lay the power cable so that it does not become a trip hazard. Do not bend the power cable. Protect all cables against oil, sharp edges and high temperatures. Defective cable or plug may cause electric shock. Do not pull the service cable to pull the plug out of socket. The power supply cable is a high-quality cable which must not be damaged. When carrying out your work, ensure that you do not contact the cable with hot objects. If the connection cable is damaged, this must be replaced with a special connection cable which can be obtained from the manufacturer or its customer service department. The connection cable may only be replaced by the manufacturer or its customer service department or individuals with similar qualications. Safety instructions for plasma cutters WARNING! Risk of re! Improper handling may lead to serious res or injuries! IP21S protection degree of the welder. The welder must not be exposed to rain and moisture when being operated or stored. Check the voltage. Technical data given on the type label must correspond with electric network voltage. Ensure the welding cable, tip, burner and earth terminal are in excellent condition. Any wear to the insulation and the live parts may create a dangerous situation and reduce the quality of the welding work. The use of this device may lead to wear on certain parts. Therefore, it is important to check the device for any damage and defects on a regular basis. Ensure that you do not come into direct contact with the welding circuit. Protect the plasma cutter against moisture and only use it inside in dry conditions. Never immerse the plasma cutter, the power cable or mains plug in water or any other liquids. Never touch the plasma cutter or the mains plug with damp hands. The no-load voltage between the contact tip and the earth terminal may be dangerous. Never insert sharp and/or metallic objects into the device. Do not expose yourself or other persons without pro

tection to electric arc or hot metal. Spraying cutting pearls may cause burns. Contact with the hose bundle nozzle and the material being processed may cause burns. A suitable welding shield, protective clothes and protective gloves to be worn at all times. Work with an exhaust system or in well ventilated spaces. Ensure that there are no persons who are not wearing protective clothing and eye protection within a range of 15 m of the arc. Protect yourself and any persons who are nearby against the possible hazards caused by the arc! WARNING! Risk of injury Improper handling may lead to serious injuries! Leave the cable assembly tip and workpiece to cool down after operation. Fumes which may be harmful are released during arc welding. Long-term working with the appliance may damage hearing. Hearing protection to be used at all times. Avoid direct inhalation of gases. Long-term inhalation of welding gases may be harmful to your health. Make sure the cutting smoke is exhausted or the place of cutting ventilated well. Caution! Risk of accidents due to splashing slag particles The slag becomes hard and brittle after it has soli

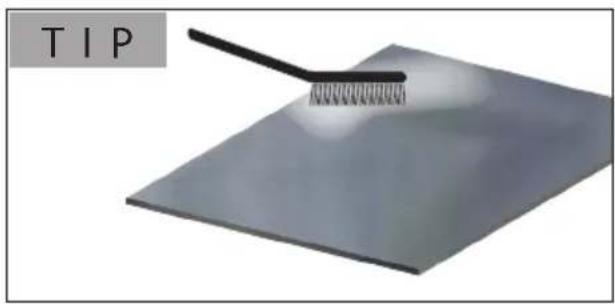

died. The slag hammer is then used to break the slag up into small pieces with sharp edges, which is associated with a risk of eye injuries. Therefore, ensure that your eyes are protected with suitable safety goggles when removing the slag. Burning slag and sparks may cause res and explosi

ons. The device must never be used in a ammable environment. Caution! Risk of beams and burns

• At the workstation, it is important to make refe

rence to the risk of eye injury with a sign which reads “Caution – do not look into the ames!”.

• The workstations should be shielded o as much as possible to protect people who are nearby.

• Unauthorised persons must not be involved with the welding work.

• In xed workstations which are nearby, the walls should not be painted in a light colour and should not be shiny.

• Windows must be protected against light shing through or reecting beams up to at least head height, e.g. using suitable paint. Keep the plasma cutter, the mains plug and the po

wer cable away from open ames and hot surfaces. Do not weld on containers, vessels or pipes which ENGLISH EN25 have contained ammable liquid or gases. Wood, sawdust, „varnishes“, petrol, kerosine, natural gas, acetylene, propane and similar ammable materials must be removed from the place of work and the surrounding area or protected against sparks ying away. To extinguish re, a suitable re extinguisher must be made ready nearby. Caution! Fire hazard due to spraying sparks If the molten or burning metal or slag particles land on ammable substances, these may ignite and cause a re. Therefore, remove all ammable objects from your workspace before commencing welding work. Keep a suitable re extinguisher to hand. In this regard, take the following materials into consideration in particular:

• Paints and solvents No cutting on vessels and pipes if they are open, containing materials able to explode due to heat or moisture or able to cause other dangerous reactions. WARNING! No welding or cutting on closed vessels and pipes. Caution! Explosion hazard and re hazard due to welding sparks Both the welding sparks and the welding point itself, which is heated to high temperatures, may cause explosions. Therefore, do not use the device in a potentially explosive environment where substances such as ammable liquids, gases and paint mist are present. Please note:

• When the plasma cutter is in operation, do not place the burner on the plasma cutter itself nor on any other electrical device.

• Before nishing your welding work, do not touch the contact tip itself nor any other metal objects which touch the contact tip.

• Disconnect the power supply to the device im

mediately after completing your welding work.

• It is essential to ensure that no cables become wrapped around your body.

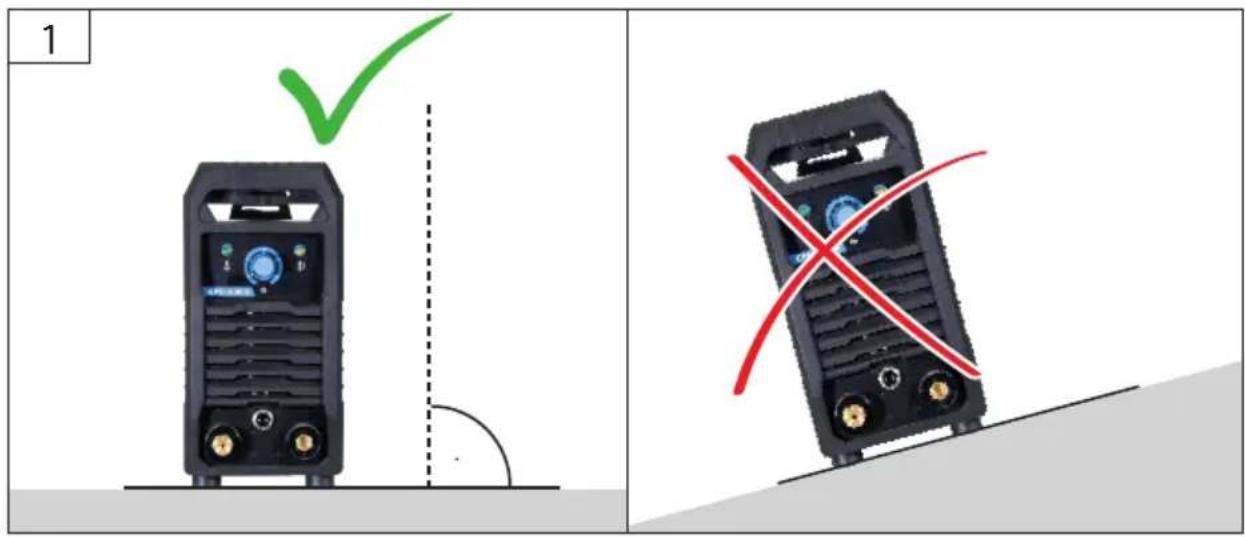

• It is essential to ensure that you are not within the welding circuit. The burner and earth must always be on the same side. The plasma cutter may only be positioned on an even and at base. The respective national guidelines and laws must be observed when carrying out welding work. This relates, in particular, to the respective accident pre

vention provisions. Welder may only be used on a at surface and with a properly secured gas bottle. In order to prevent damage to the device, it must only be transported in an upright position. Potential hazards Only have work relating to the power supply, e.g. cables, plugs, sockets etc., carried out by an expert. This applies, in particular, to the creation of intermedi- ate cables. In the event of an accident, disconnect the welding power source from the mains immediately. In the event of electrical contact voltage, turn the device o immediately and have it inspected by an expert. Always ensure the electrical contacts are good with regard to the welding power. When welding, always wear insulating gloves on both hands. These protect against electric shock (no-load voltage of the welding circuit), against harmful radiation (heat and UV radiation) and against burning metal and slag spray. Wear sturdy, insulated footwear; the shoes should also perform their insulation function when wet. Low-rise shoes are not suitable since burning metal droplets which fall downwards cause burns. Wear suitable clothing and do not wear any synthetic clothing. Persons or assistants near to the arc must also be made aware of the risks and provided with the neces

sary protective equipment. If necessary, protective walls are to be constructed. No welding work may be carried out on containers in which gases, fuels, mineral oils or similar have been stored, even if they have been empty for a long time already, as residues lead to an explosion hazard. In spaces at risk of re and explosion, special regula

tions apply. Small and hot rooms Caution! Danger of poisoning / Danger of asphyxiation

• Signicant quantities of smoke and gases are created during welding work. Ensure that the smoke and gases can always be removed via a sui

table opening. However, an oxygen supply must never be added. This increases the re hazard. When using welding transformers for welding work in situations with an increased electrical risk, e.g. ENGLISH EN26

in small rooms with electrically conductive walls (boilers, pipes etc.), in hot rooms (sweat-soaked work clothes), the output voltage of the plasma cutter may not exceed 48 V~ in idling conditions (eective value). The device may thus be operated in this case on the basis of its output voltage in idling conditions.When working in small or hot rooms, insulating bases and interim layers, as well as gauntlets made from leather or other non-conductive materials, are to be used to insulate the body against the oor, walls, conductive parts of the device and similar.Protective clothingCaution! Risk of accident due to spraying sparksThe spraying cutting sparks may lead to painful burn injuries.Therefore, always observe the following instruc tions:• Always wear a leather apron.• Use leather gloves.• Wear suitable head protection when cutting overhead.• Ensure that your trouser legs cover the tops of your shoes.• Wear sturdy, insulating footwear.Whilst working, the welder’s entire body must be protected against radiation and burns by means of the clothing and face protection.Gauntlets made from a suitable material (leather) must be worn on both hands. These must not be damaged. Special welding gloves to be worn at all times. Suitable aprons must be worn to protect the clothing against ying sparks and burns. If the nature of the work, e.g. overhead welding, requires this, a protective suit must worn and, where necessary, this must also include suitable head protection.The protective clothing which is used, as well as all the accessories, must be compliant with the “Per-sonal Protective Equipment” Directive (2016/425).SYMBOLSWARNING/CAUTION!Ground before useWARNING - Read the operating instruc-tions to reduce the risk of injury.Use a welding mask!Special welding gloves to be worn at all times.Wear safety cut through resistant shoes with safety sole and steel toe !Protective apron to be usedUnplug the machine before any work on it.Wear dust maskWarning against toxic fumes!Warning against hot surfaces!Warning against dangerous voltageThe appliance must be stored in a dry place and protected from frost.Keep the machine out of reach of children.Never expose tool to rain. 40A96V25.8A15A40A/26V10A/84V30A90.3V20A88V GPS 40A Class H GÜDE GmbH & Co. KG·Birkichstr.6 ·74549 Wolpertshausen·www.guede.com Artikelnummer: 20063 Baujahr: 2017Seriennummer:Made in P.R. China370V

Fan Keep dry at all times. ENGLISH27

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres. CE marking MAINTENANCE Machine to be always unplugged before any adjustment and servicing work on it. Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug. WARNING The appliance must not be used if da- maged or safety equipment is defective. Replace any worn-out and damaged parts. If necessary, a list of spare parts can be found at www. guede.com. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts. Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Use a soft brush to remove the deposited dust from the ventilation hole and moving parts after each use. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www.guede.com. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Storage The appliance must be stored in a dry place and protected from frost. Leave the device to cool after use. Do not cover the device directly after use or place in a cabinet. Lock the device in a proper place to protect it from unauthorised use. Disposal The disposal instructions are based on the icons placed on the appliance or its package. Transport packaging disposal The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Re

turning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children. Do not dispose of electrical appliances in household waste; use the local collection points. Ask your local authority where the collection points are to be found. If electrical equipment is disposed of in an uncontrolled manner, weathering can lead to dangerous substances entering the groundwater and from there the food chain, or the ora and fauna can be poisoned for years. If you replace the device with a new one, the seller is legally obliged at the least to take back the old one to be disposed of free of charge. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com- mences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the ope

rating and assembly instructions and common wear are also not included in the guarantee. ENGLISH28 Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureau- cracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Seriennummer Artikelnummer Baujahr Important information for the customer Please note that returns within or outside the warran- ty period should always be in the original packaging. This measure eectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing. Failure removal Issue Causes Removal Electric arc turned o Poor contact between earth pliers and the respective part Tighten the pliers and check them Remove paint and rust Short circuit between current nozzle and gas supply pipe Clean or replace the current and gas nozzle Current nozzle without dirt, paint and rust remains Too loose current nozzle Tighten the current nozzle rmly Welder suddenly stops working after longer operation Welder has overheated due to too long use and the thermal protection has activated Let the welder cool down
