Product Type	VHF Dual Channel Professional Wireless Microphone System
Brand and Model	Skytec STWM712H
Carrier Frequency	200.175 MHz / 201.400 MHz
Maximum Range	Up to 50 meters (under good conditions)
Frequency Response	40 Hz - 20 kHz
Signal-to-Noise Ratio	>100 dB
Total Harmonic Distortion (THD)	<0.5%
Modulation	FM
Receiver Power Supply	220-240 VAC, 50 Hz
Microphone Power Supply	9V battery (not included)
Microphone Battery Life	Approximately 8 hours of continuous use
Microphone Type	Unidirectional dynamic
Audio Outputs	CHA, CHB, MIX (unbalanced and balanced)
Antennas	Two unfoldable antennas
Operating Temperature	-10°C to 50°C
Maintenance	Clean with a damp cloth; do not use liquids or aerosols
Safety	Unplug before cleaning; do not open the casing; repair by qualified technician
Spare Parts	Use only original or equivalent components
General Information	Professional wireless system suitable for presentations, home use, and karaoke parties

Frequently Asked Questions - STWM712H Skytec

How to install the STWM712H system?

Plug the receiver power cord into a 220-240V outlet. Connect the audio output (CHA, CHB or MIX) to your amplifier. Turn on the receiver. Insert a 9V battery into the microphone and set the switch to ON. Speak into the microphone and adjust the volume.

How to change the microphone battery?

Unscrew the battery compartment cover at the bottom of the microphone. Remove the old battery and insert a new 9V battery respecting the indicated polarity (+/-). Screw the cover back on.

What is the maximum range of the system?

The maximum range is 50 meters under good conditions (line of sight, no obstacles). In normal use, it can be about 30 meters, and up to 20 meters in difficult conditions.

What to do if the sound is cut off or of poor quality?

First check the microphone battery: if it is low, replace it. Make sure the microphone and receiver are on the same channel. Move away from sources of interference. If the problem persists, contact a technician.

How to clean the microphone and receiver?

Unplug the receiver from the mains before any cleaning. Use a damp cloth (not wet) to clean the surfaces. Do not use liquids, aerosols, or solvents.

Can I use two microphones at the same time?

Yes, this system is a dual channel system (CHA and CHB). You can use two microphones simultaneously without interference, each on its dedicated channel.

What to do in case of malfunction?

Do not attempt to repair yourself. Unplug the device and contact a qualified technician or your dealer. Opening the casing may cause a risk of electric shock.

What safety precautions should be observed?

Read the manual before use. Do not place the device near heat sources or direct sunlight. Unplug during prolonged non-use. Use only original accessories. Do not dispose of batteries with household waste.

Where should I place the receiver for best reception?

Place the receiver in an open area, away from metal walls and sources of electromagnetic interference. Unfold both antennas vertically for optimal reception.

How to recycle the device at the end of its life?

This product bears the recycling symbol. Do not dispose of it with household waste. Take it to an authorized recycling center or return it to your dealer. Batteries must be removed and recycled separately.

USER MANUAL STWM712H Skytec

MICROPHONE RECEIVER SKYTEC STWM722 Wireless microphone receiver VOL-A AF AF VOL-B MIN MAX RF PWR RF MIN MAX

VHF WIRELESS MICROPHONE SYSTEM

179.178 / 179.180 / 179.183 / 179.185

Instruction Manual Gebruiksaanwijzing Gebrauchsanleitung Notice d’utilisation Instrukcja obsługi

V1.3

EN

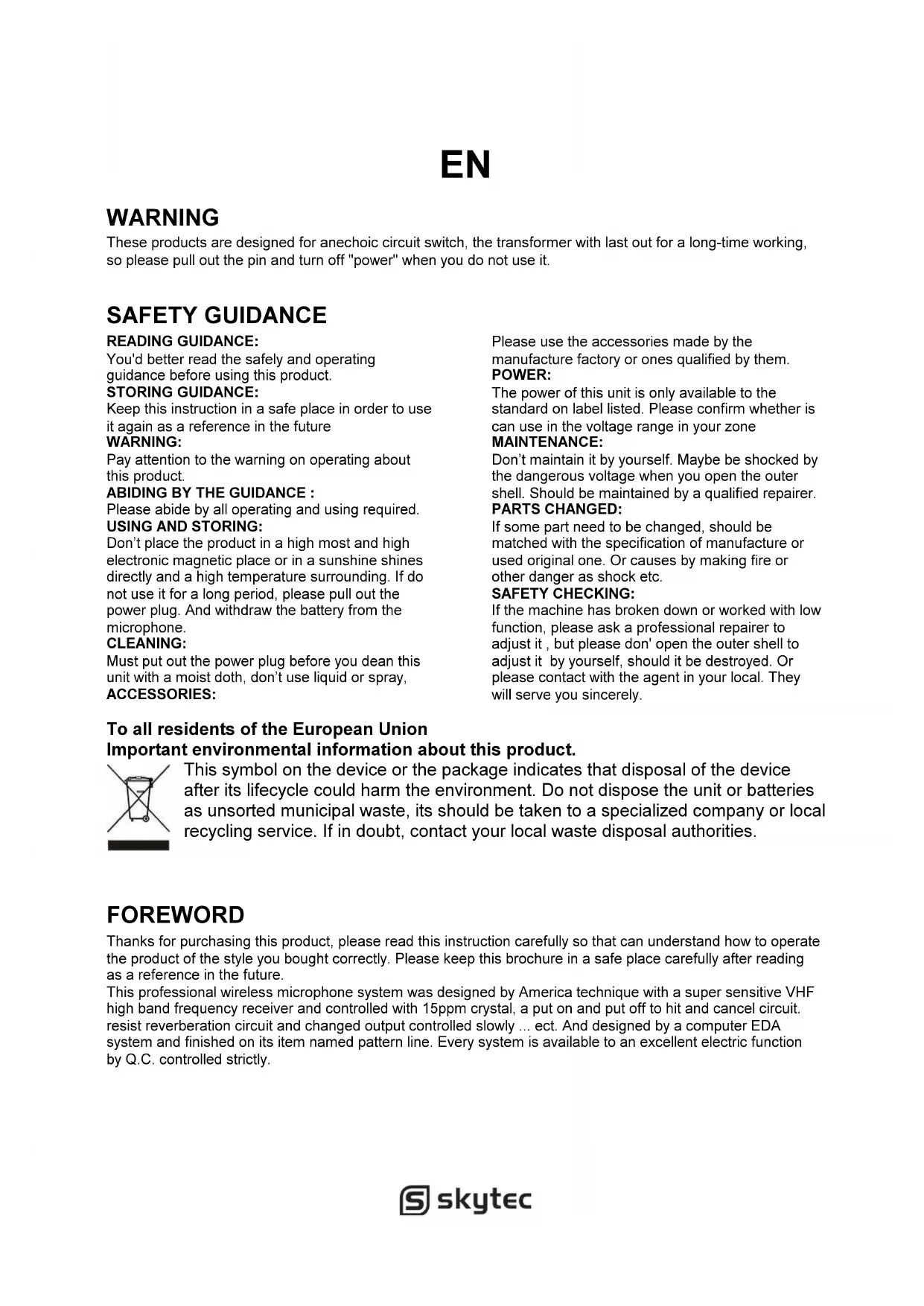

WARNING

These products are designed for anechoic circuit switch, the transformer with last out for a long-time working, so please pull out the pin and turn off "power" when you do not use it.

SAFETY GUIDANCE

READING GUIDANCE:

You'd better read the safely and operating guidance before using this product.

STORING GUIDANCE:

Keep this instruction in a safe place in order to use it again as a reference in the future

WARNING:

Pay attention to the warning on operating about this product.

ABIDING BY THE GUIDANCE :

Please abide by all operating and using required.

USING AND STORING:

Don't place the product in a high most and high electronic magnetic place or in a sunshine shines directly and a high temperature surrounding. If do not use it for a long period, please pull out the power plug. And withdraw the battery from the microphone.

CLEANING:

Must put out the power plug before you dean this unit with a moist doth, don't use liquid or spray,

ACCESSORIES:

Please use the accessories made by the manufacture factory or ones qualified by them.

POWER:

The power of this unit is only available to the standard on label listed. Please confirm whether is can use in the voltage range in your zone

MAINTENANCE:

Don't maintain it by yourself. Maybe be shocked by the dangerous voltage when you open the outer shell. Should be maintained by a qualified repairer.

PARTS CHANGED:

If some part need to be changed, should be matched with the specification of manufacture or used original one. Or causes by making fire or other danger as shock etc.

SAFETY CHECKING:

If the machine has broken down or worked with low function, please ask a professional repairer to adjust it, but please don't open the outer shell to adjust it by yourself, should it be destroyed. Or please contact with the agent in your local. They will serve you sincerely.

To all residents of the European Union

Important environmental information about this product.

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose the unit or batteries as unsorted municipal waste, its should be taken to a specialized company or local recycling service. If in doubt, contact your local waste disposal authorities.

FOREWORD

Thanks for purchasing this product, please read this instruction carefully so that can understand how to operate the product of the style you bought correctly. Please keep this brochure in a safe place carefully after reading as a reference in the future.

This professional wireless microphone system was designed by America technique with a super sensitive VHF high band frequency receiver and controlled with 15ppm crystal, a put on and put off to hit and cancel circuit. resist reverberation circuit and changed output controlled slowly ... ect. And designed by a computer EDA system and finished on its item named pattern line. Every system is available to an excellent electric function by Q.C. controlled strictly.

FEATURES

• Wide frequency response, high S/N ratio.
• Resist disturbing strongly, be standing by noises output to zero.
  • Super silent function, low T.H.D.
• No hitting when putting on the switch, so can protect the amplifier and speakers.
• With a complete working state and power level indicating.
• With a wide using range for over 30m in a good surrounding, for 20m in a duplicate one.
• Duel channel designed, two microphones can use at the same time to sing without any disturbing caused by.
  • Used in the entertainment places as a larger and a middle stage,
• Karaoke hall or at home ... ect.

NAME OF RECEIVER AND MICROPHONE

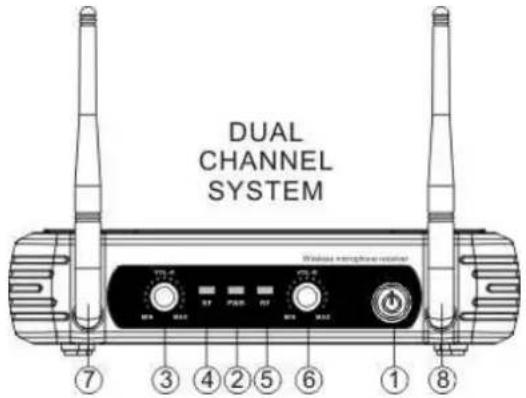

DUAL CHANNEL SYSTEM Wireless microphone controller ⑦ ③ ④ ② ⑤ ⑥ ① ⑧

1. Power switch
2. Power signal lamp
3. CHA volume control
   4, CHA signal lamp
4. CHB signal lamp
5. CHB volume control
6. CHA antenna input terminal
7. CHB antenna input terminal
8. AF out

10.AF mixing out

11.AC Power cord

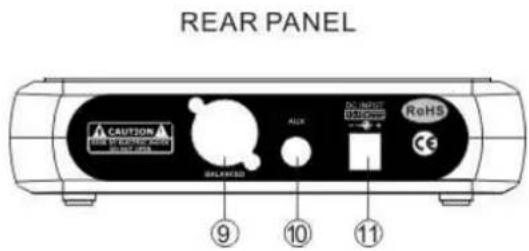

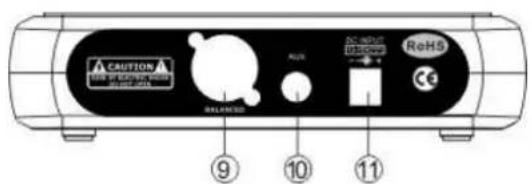

REAR PANEL CARROTION ON DIRECTION WITH SOLVENTUS SOLVENTUS ALOX IN-INPUT SOLVENTUS ReHS ⑨ ⑩ ⑪

In this Manual 4 Models are summed up :

179.178 : VHF Microphone System 2 channel Headset mic.
179.180 : VHF Microphone System 2 channel combi ( handheld and bodypack)
179.183 : VHF Microphone System 2 channel handheld mic.
179.185 : VHF Microphone System 1 channel handheld mic.

NAME OF MICROPHONE

Diagram of a handheld device with labeled parts including a camera and indicator lights

Technical diagram of a device front panel with labeled components and an inset view showing a control panel with buttons and a display.

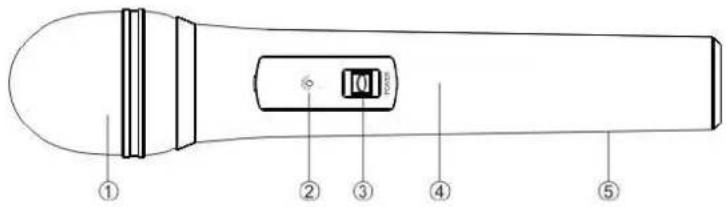

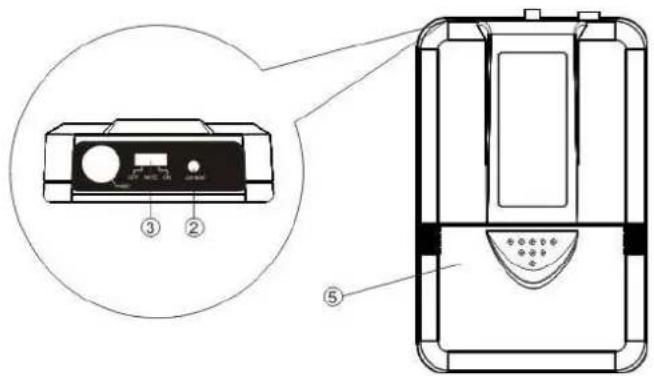

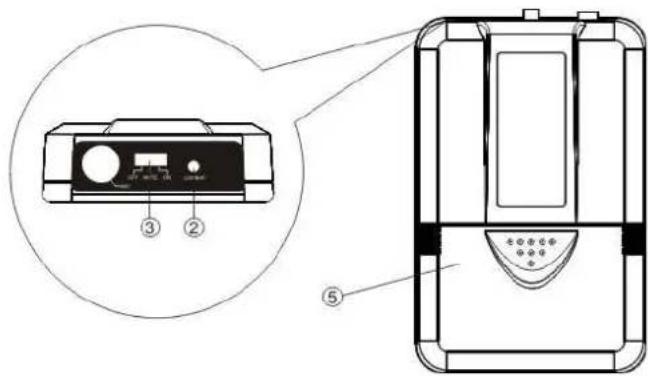

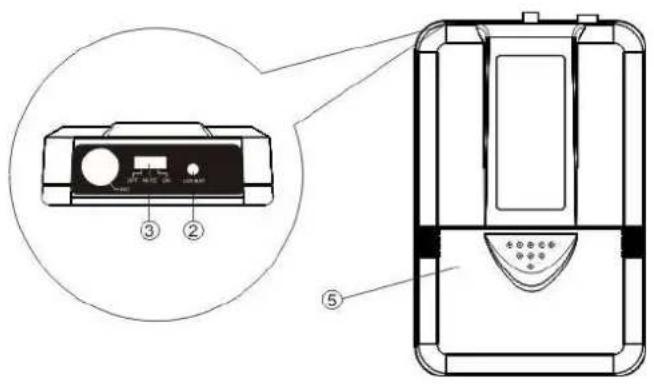

1. Grill
2. Low Battery led Indicator
3. ON/STB/OFF/SWITCH
4. Body-phone
5. Battery cover

USING GUIDE INSTRUCTION

OPERATION

• Put the receiver near the audio adjustor, connect with power and the signal protected cord with A.OUT, B.OUT or MIX.OUT. And then connect with the amplifier or the microphone of the audio adjustor (MIC IN). Draw out two antennas completely. Put on the power switch, The power indicator shines. This receiver is being standing by. (Don't put the receiver in a corner in order to work in a good condition)
• Unscrew the cover of battery case, install the battery correctly, then light it up. (There are labels on battery and battery case, don't install the battery oppositely)
• Put the switch to ON position. The signal lamp will shine at that time. the signal on the receiver available to the signal channel on. It means that the signal is available for the receiver from the microphone. Adjust the signal volume switch and the volume switch on the amplifier, keep this system a bit of volume. Speak to the microphone and output the signals.
• If the signal on the microphone is off or dusky, the battery is being low voltage. means that it needs to replace a new battery.

Notice

When the power pressure is lower than 7V, il may cause the instability of signal, the shorter effective distance and the timbre maybe not as good as normal, so please change new battery to avoid these.

TECHNICAL SPECIFICATION

OVERALL SYSTEM

Carrier frequency range 200.175 MHz / 201.400 MHz

Frequency stability .... <0.005%

Modulation Mode ...... FM

Maximum deviation range 15 kHz

Frequency response 40 Hz - 20 kHz

S/N Ratio ....>100 dB

Audio Dynamic Range >100 dB

T.H.D. < 0.5%

Service areas 50 meters (in the best conditions)

Temperature Range....-10 °C – 50 °C

RECEIVER

Receiver System ...... Fixed frequency by quartz controlled

Receiving Sensitivity 60 dB S/N ratio (12dBU)

S/N Ratio >100 dB

Audio Output Level ...... Unbalanced mode of CHA+B 0\~0.5V / 5kOhm

Balanced mode of CHA+B 0\~0.5 / 50kOhm

Power Supply 220\~240Vac / 50 Hz

MICROPHONE

RF Power output 30 mW (max)

Spurious Emissions ....>45 dB carrier wave

Antenna ...... Built in

Microphone Element ...... Unidirectional Dynamic Microphone

Battery 9 V

Current Consumption.... About 25 mA

Battery Life ...... Over 8 hours continuous operation

1622

In the EU only for licencefree use in NL and PT and in DK for the hearing impaired, in the UK the frequency range is not for use as well as in S, BE, FR and IT. Use in PL and ES with restrictions. For DE apply for an individual license and contact Federal Network = BundesNetzAgentur. The enduser must apply for an assignment in other EU countries due to several restrictions.

NL

Diagram of a handheld device with labeled parts including a 10-pin connector and five numbered parts.

Technical diagram showing a device with labeled components and an inset view of its internal structure.

Line drawing of a vintage electronic device with ports and cables (no text or symbols)

Technical line drawing of a USB device with two leads and a central button (no text or symbols)

DUAL CHANNEL SYSTEM Wireless wireless receiver ⑦ ③ ④ ② ⑤ ⑥ ① ⑧

RÜCKSEITE

CAUTION AIRS OF LEMON WITH INFLUORE BILLOREN RUN NC INPUT FUNCTION ReHS ⑨ ⑩ ⑪

Diagram of a handheld device with labeled parts including a sensor and indicator lights

Technical diagram of a device front panel with labeled components and an inset view showing a device with ports and labels ①, ②, ③.

Illustration of a portable electronic device with ports and cables, no visible text or symbols

Technical line drawing of a mechanical device with two protruding blades and a central button (no text or symbols)

Diagram showing audio equipment connections with speaker, audio jack, and audio unit

Maxi Deviation 15 kHz

Frequenzgang 40 Hz - 20 kHz

Störabstand >100 dB

CAUTION THE AIR CONSTRUCTION AIR CONTROL BALANCE AUX DC INPUT DISPONE ReHS ⑨ ⑩ ⑪

Diagram of a handheld device with labeled parts including a USB flash unit and five numbered components.

Technical diagram of a device rear panel with labeled components and an inset view showing a control panel with ports and indicators.

DUAL CHANNEL SYSTEM Wireless microphone receiver ⑦ ③ ④ ② ⑤ ⑥ ① ⑧

Diagram of a handheld device with labeled parts including a USB flash unit and five numbered components.

Technical diagram of a device front panel with labeled components and an inset view showing a device with control buttons.

In the EU only for licencefree use in NL and PT and in DK for the hearing impaired, in the UK the frequency range is not for use as well as in S, BE, FR and IT. Use in PL and ES with restrictions. For DE apply for an individual license and contact Federal Network = BundesNetzAgentur. The enduser must apply for an assignment in other EU countries due to several restrictions.
