Kingcool - Air Conditioning OneConcept - Free user manual and instructions

Brand	OneConcept
Model	Kingcool
Category	Air conditioning (air cooler)
Power supply	220-240 V ~ 50/60 Hz
Power	95 W
Maximum air volume	500 m³/h
Water tank capacity	8 L
Sound pressure	< 65 dB
Dimensions (W x D x H)	390 mm x 285 mm x 724 mm
Weight	5.8 kg
Main functions	Power, Timer (0.5/1/2/4 h), Oscillation, Cool (evaporative cooling), Anion, Speed (low/medium/high), Modes (normal/natural wind/night)
Remote control	Yes, same functions as control panel
Control type	Touch and remote control
Number of speeds	3 (low, medium, high)
Oscillation	Yes (left/right)
Anion generator	Yes
Casters	Yes, for easy movement
Cleaning	Wipe the housing with a damp cloth; do not use chemicals
Tank maintenance	Empty and rinse the tank with fresh water; clean the wet wick regularly
Water change	Every 3 days maximum
Safety	Automatic timed shut-off; child protection (8 years+); do not cover; stable surface
Protection rating	IPX0 (indoor use only)
Recycling	Compliant with WEEE (2012/19/EU) and batteries (2006/66/EC)
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

Frequently Asked Questions - Kingcool OneConcept

How to turn on the OneConcept Kingcool air cooler?

Plug the device into a 220-240 V outlet, then press the POWER button on the control panel or remote control. The device starts at low speed.

How to set the timer?

Press the TIMER button several times to select a duration among 0.5 h, 1 h, 2 h, or 4 h. The device will turn off automatically after the selected time.

How to activate evaporative cooling (Cool mode)?

Ensure the water tank contains water (max 8 L), then press the COOL button. The corresponding indicator lights up. To deactivate, press COOL again.

What to do if the device is not cooling enough?

Check that the water tank is filled and that the wet wick is clean and in place. Also ensure that COOL mode is activated and the speed is set to high.

How to clean the water tank and wet wick?

Unplug the device. Remove the tank, empty the water and rinse it with fresh water. Clean the wet wick with a little dish soap, rinse and let dry before reassembling.

Can the device be used in a bathroom?

No, the device is designed for indoor use in dry rooms only. Do not use it in a bathroom or any humid place.

How to change the fan speed?

Press the SPEED button several times to go from low to medium, then to high. The indicator shows the active speed.

Can children use this device?

Yes, from 8 years of age under adult supervision, after receiving instructions on safe use and understanding the risks.

What to do if the power cord is damaged?

Do not use the device. Have the cord replaced by the manufacturer, an authorized service or a similarly qualified person.

How to recycle the device at end of life?

Do not dispose of it with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with Directive 2012/19/EU. Batteries must be removed and recycled separately.

USER MANUAL Kingcool OneConcept

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Product Description 12

Operation 12

Cleaning and Care 14

Hints on Disposal 14

Producer 14

TECHNICAL DATA

Item number 10031341, 10031342
power supply 220-240 V ~ 50/60 Hz
Power consumption 95 W
Max air volume 500 m³/h
Water tank 8 L
Noise <65 dB
Dimensions 390 mm x 285 mm x 724 mm
Weight 5.8 kg

SAFETY INSTRUCTIONS

• Check the voltage on the rating plate before use. Only connect the appliance to sockets which correspond to the voltage of the appliance.
• Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
• Do not place the cord under carpets. Do not cover the cord with small clothes, shirts or other similar elements. Place the cord away from traffic areas in order to avoid any risk of tripping over.
• Do not operate the appliance if the cable or plug is damaged.
• If the supply cord or plug is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Indoor use only.
• Do not cover the machine during using.
• Place the appliance on a stable flat horizontal surface. Make sure the appliance is in an upright position during use.
• Ensure the appliance is switched OFF before connecting to the mains power supply.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not leave this appliance unattended when it's in use. Turn off and disconnect the appliance when you leave the room for an extended period.
• Switch off the appliance and unplug from the mains socket when not in use, before filling, cleaning or other maintain.
• To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Use the appliance only as described in this manual.
• Do not insert your fingers in the openings of the guard.
• Do not leave hair, tissue, tablecloths, clothes or curtains near all openings of the fan, they could be sucked into the fan and be taken within the internal moving parts that could cause injury or damage.
• Do not use the appliance in wet or damp locations such as bathrooms.
• Do not operate the appliance when it's not mounted on its wheels or if it's lying on the side.

• Make sure the cord is completely extended before use.

• When in operation, evaporative coolers moisturize the ambient air. Overhumidification of residential rooms should be avoided. Recommendation: 40 - 50% relative humidity. Excessive humidity of the air can damage the home and cause health problems.

• The appliance may only be set up on water- and moisture-proof flooring materials (spilling some drops of water is unavoidable when the content of the tank is changed).
• With each and every change of tank content, completely remove residual water from the equipment. To prevent nucleation, remove residual water from the equipment and water tank every time after three days of use.

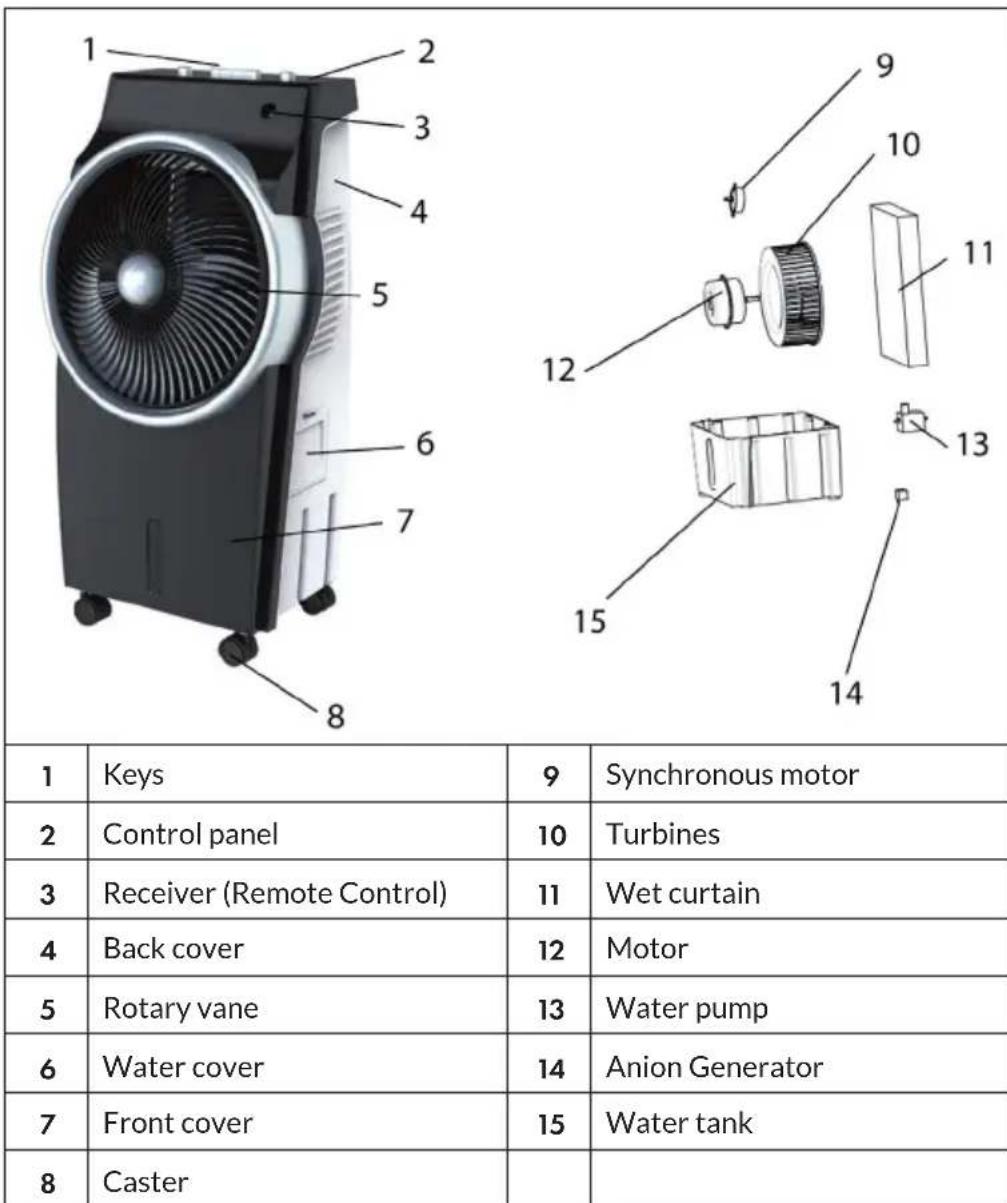

PRODUCT DESCRIPTION

OPERATION

Water Injection

• First opened the door of water injection, add water to the specified value.
• Then close the door of water injection.

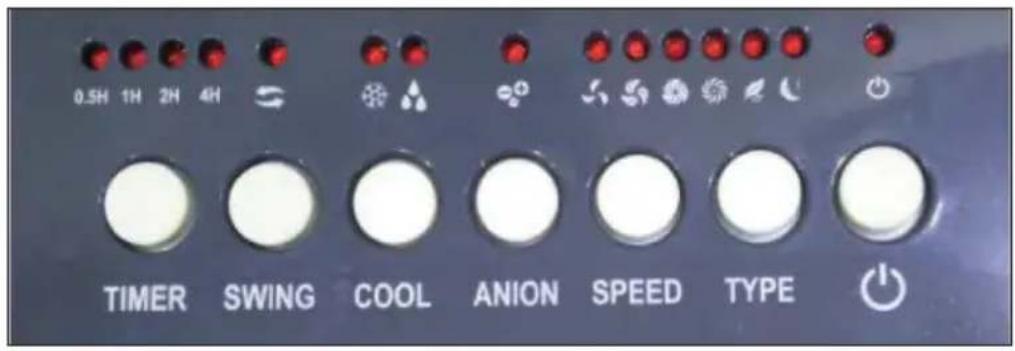

Control Panel and Keys

POWER

Plug the plug into the socket and press the POWER button. The device starts at low speed. To turn the unit off, press the POWER button again.

TIMER

Press the TIMER button several times to set one of the following switch-off timers: 0.5 hour >1 hour >2 hours >4 hours.

SWING

Press the button to swing the fan blade back and forth.

COOL

Press the button to activate the cooling by evaporation.

ANION

Press the button to refresh the air.

SPEED

Press the button several times to select one of the following speeds: Slow>Medium>Fast.

TYPE

Press the button several times to select one of the following modes: Normal> Natural Wind> Night Mode.

Note: When you select a specific function, the appropriate indicator lights up. The buttons on the remote control have the same function as the buttons on the control panel.

CLEANING AND CARE

• Before cleaning always remove the plug from the electrical socket.
• Please use a soft cloth to wipe the shell. Do not use water gasoline, or other chemical solutions.
• Story and dry place to keep away from heat and sunlight.
• Loose scrow,You can clean wet curtain and filter after take out the back.
• Clean the body with a little mild detergent on a soft cloth..
• Cleaning the water tank add water into the water tank through water inlet, open the rubber plug at the bottom of the water tank to drain the water off, wash several times.
• Clean the body with a little mild detergent on a solf cloth.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

PRODUCER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
