USER MANUAL St. Oberholz XL OneConcept
Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.
Technical Data
| Item number 10031328 10031329 |
| Power supplay 12 V DC |
| Power Consumption 5 W |
| Active oxygen output < 0.05 ppm |
| Weight Ca. 1.6 kg |
Safety Instructions
- Unplug the Ionizer before removing the stainless steel collector
- Do not use the unit outdoors
- Keep the unit away from water
- Do not attempt to dismantle the unit.
Operation
How it works
The Air Innovations 18 inch Tower Ionizer &Air Cleaner helps remove harmful pollutants from the air, using negative ion technology and safe levels of ozone to naturally deodorize the air creating a cleaner healthier environment. This powerful 18 inch Tower features a large stainless steel collector along with a fan to help move the air for superior filtration in heavily polluted areas.
ON
Plug the unit into an outlet. Rotate the rotary switch to "on", you will notice a "red" LED is illuminated indicating that ionizer is "ON". The 18 inch Tower Ionizer is now cleaning the air silently.
High
Rotary switch to "HIGH", you will notice a "yellow" LED is illuminated indicating that the unit is now work on high mode.

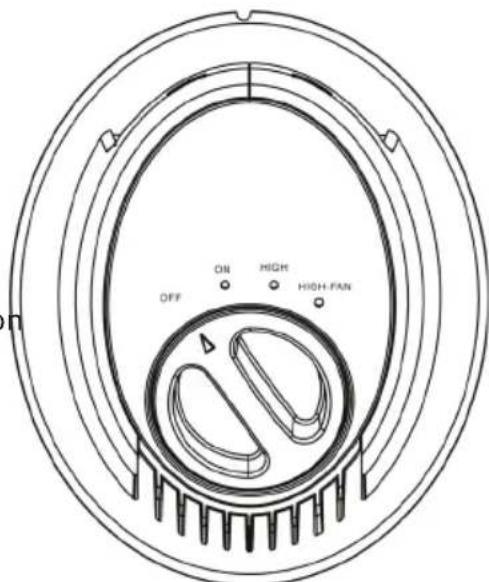

Fan feature
As indicated above, this Ionizer comes with a fan feature. The fan will increase the air flow circulation through the ionizer collection blades thus increasing the air cleaning effectiveness. Rotate the rotary switch to "High-FAN', you will notice a "green" LED is illuminated indicating that the FAN is "ON".
Cleaning

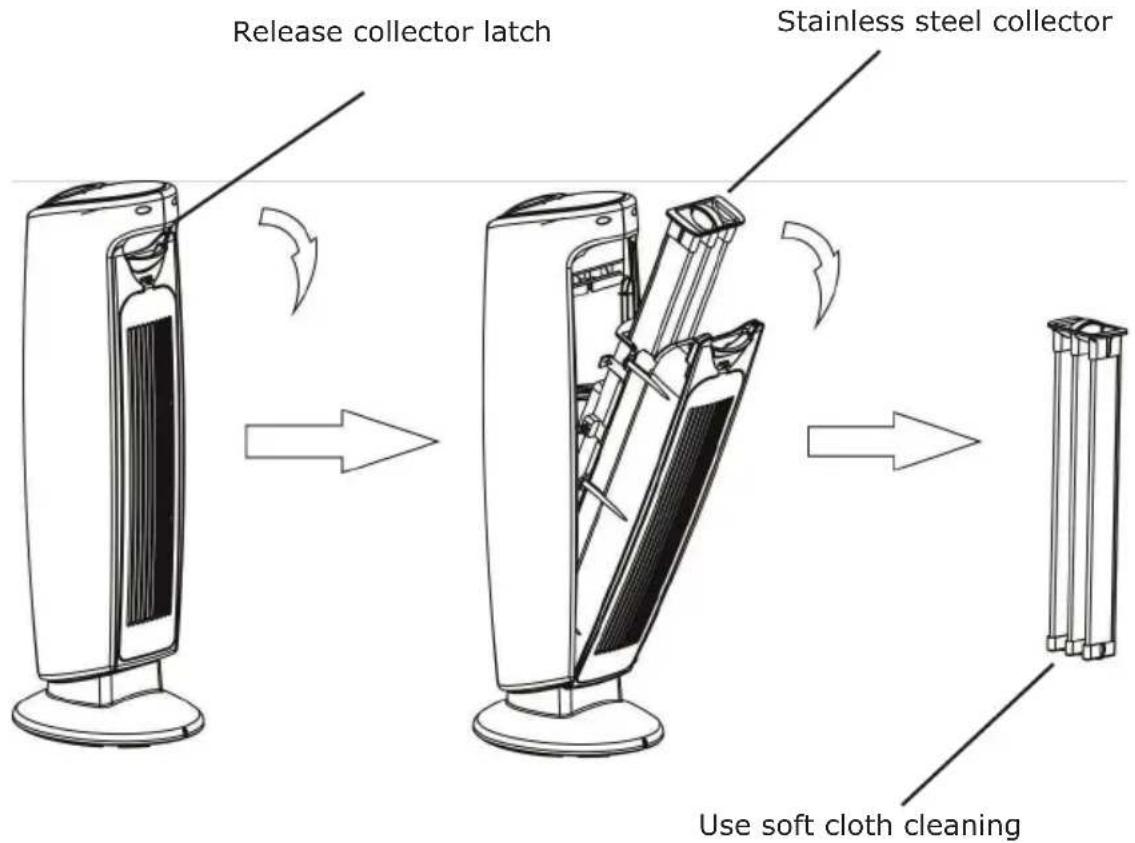

Clean stainless steel collector
Disposal Considerations
According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
Declaration of Conformity
This product is conform to the following European Directives:
2014/30/EU (EMC)
2011/65/EU (RoHS)
2014/35/EU (LVD)
