Product type	Solar garden fountain
Brand	Blumfeldt
Model	Korinth
Operating voltage	9 V DC
Power supply	3 W solar panel + Li-ion battery 7.4 V 2000 mAh
Solar panel power	3 W
Maximum water flow	250 l/h
Pump protection class	IP68
Housing protection class	IP44
Battery capacity	2000 mAh
Battery life	Up to 6 hours (depending on charge)
LED lighting	4 white LEDs, automatic lighting at night
Operation	Solar with backup battery
Control	Rotary switch with charge indicator (green/orange/red)
Estimated dimensions	Height 45 cm, diameter 30 cm
Estimated weight	2.5 kg
Material	Weather-resistant composite
Use	Outdoor only
Assembly	Simple installation with pump and LED connection
Maintenance	Regular cleaning of solar panel and pump
Safety	Do not hit the panel, use fresh water only

Frequently Asked Questions - Korinth Blumfeldt

How to turn on the pump of the Korinth fountain?

Briefly press the button to start the pump. The pump will run for a few hours depending on the battery status, then automatically switch to solar mode.

How to charge the battery?

Hold the button pressed for 3 seconds to turn off the pump and charge the battery with solar energy. The indicator shows the status: green (full), orange (half), red (low).

The pump does not work even though the solar panel is in the sun. What to do?

Check the connections between the panel and the pump. If the impeller is blocked, remove the cover and clean it with a small brush.

How to clean the solar panel?

Wipe the solar panel regularly with a soft, damp cloth. Do not use abrasive products.

Can the fountain work at night?

Yes, the battery allows operation up to 6 hours after sunset. The LEDs turn on automatically at night.

What is the battery life?

The battery life depends on the charge: about 4-6 hours when fully charged (green light), 2-4 hours half charged (orange), less than one hour when red.

What to do if the pump runs but no water comes out?

Check that the hose and filter are not blocked by limescale deposits. Clean them with fresh water.

Can I use the fountain in cloudy weather?

Yes, the battery stores solar energy. In cloudy weather, the pump runs on battery for a few hours if switched on. The battery only recharges in sunlight.

How to change the battery?

Open the hatch at the back of the fountain, disconnect the battery and replace it with an identical Li-ion battery (7.4 V, 2000 mAh). Make sure to respect the polarity.

What are the important safety precautions?

Do not strike the solar panel, use only fresh water, do not run the pump dry, and keep the fountain out of reach of children.

USER MANUAL Korinth Blumfeldt

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

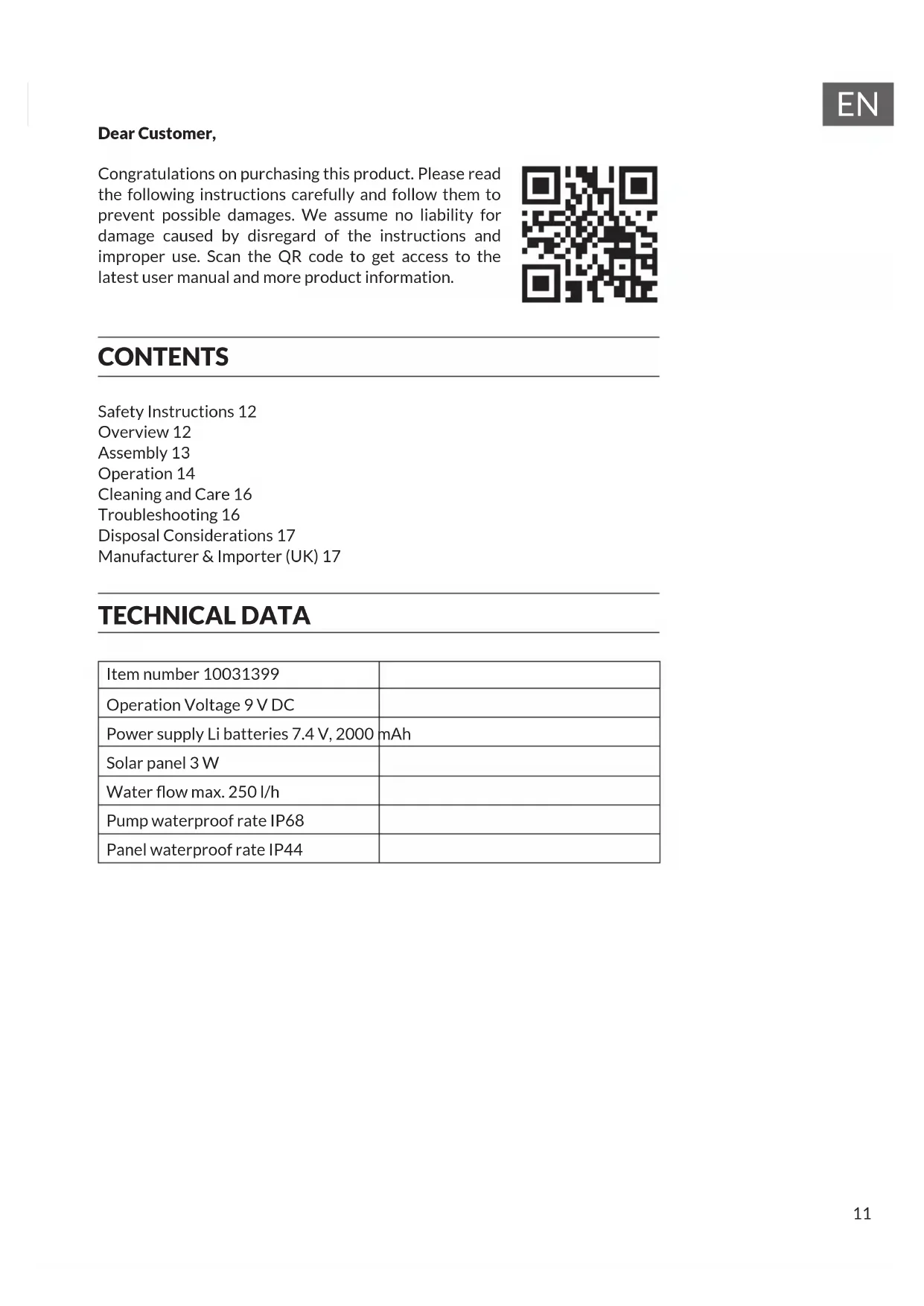

Dear Customer,

Congratulations on purchasing this product. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 12
Overview 12
Assembly 13
Operation 14
Cleaning and Care 16
Troubleshooting 16
Disposal Considerations 17
Manufacturer & Importer (UK) 17

TECHNICAL DATA

Item number 10031399
Operation Voltage 9 V DC
Power supply Li batteries 7.4 V, 2000 mAh
Solar panel 3 W
Water flow max. 250 l/h
Pump waterproof rate IP68
Panel waterproof rate IP44

SAFETY INSTRUCTIONS

• Do not strike the solar panel
• Do not let the pump run dry for long time
• Do not lift the pump by the power cord.
• Operate in freshwater only.

OVERVIEW

The solar pump is designed for fountain, pond or outdoor use. In order for the solar pump to operate, the solar panel needs to be in direct sunlight.

This solar pump is equipped with battery pack and can be switched on and off by a touch switch on the control housing. In evening, four built-in white LEDs will give light automatically to enhance the beauty scene of the water jet.

Operating principle

This solar pump is designed primarily to operate in sunlight hours and always charge extra energy to battery to allow use later "on demand" in cloudy day or night time. The pump will turn to solar mode automatically on next day in sunlight hours. The pump will never run on battery mode until your press the button.

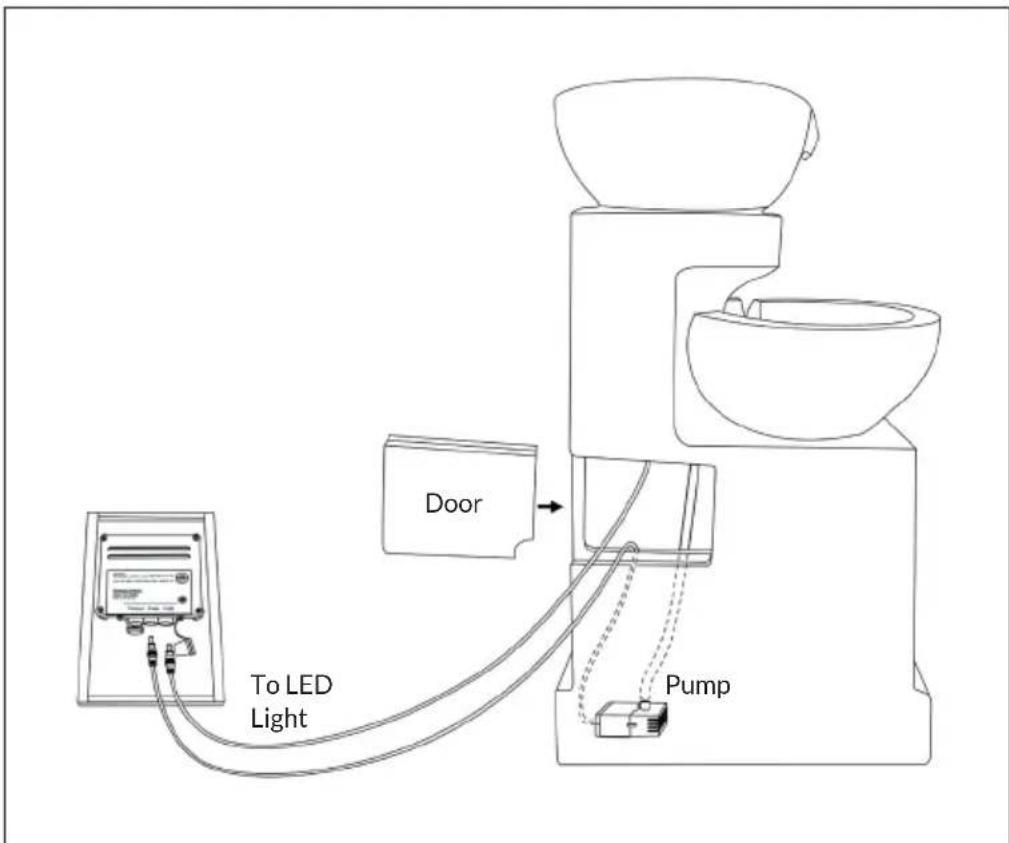

ASSEMBLY

1 Take out all parts of the packaging. Please keep in mind that some water may splash over the rim of a bowl, do not set up the cascade fountain on a surface which may be damaged by water.
2 Open the door behind the fountain.
3 Fill the cascade fountain with clean tap water.
4 Connect the pump to the tube and place the pump underwater and make sure that, it is fully immersed in water..
5 Connect the pump cable to the socket of the control housing on the rear side of the solar panel;
6 Connect the LED light cable to the socket of the control housing.
7 Close the door behind the fountain. Make sure direct sunlight shines on the solar module.
8 The solar cascade fountain is now ready for use.

OPERATION

Turn on the pump: short press to turn on the pump, the pump will run certain hours (ref to battery status) and turn to solar mode automatically. The pump will operate automatically next day in direct sunlight.

Charge the battery: press and hold on 3 seconds to Turn OFF the pump and charge the full solar energy to battery during day time, turn on the pump when you need it (on demand).

Battery status:

Green: battery is full charged. Pump will run around 4-6 hours.

Orange: battery is half charged. Pump will run around 2-4 hours.

Red: battery needs charges. Pump will run less than 1 hours.

NOTE: The indicator light is blinking when pump on, the indicator light is solid when pump off.

Pump performance in different weather conditions

Weather	1. Pump on. 2. Charge extra solar energy to battery.	1. Pump off. 2. Charge full solar energy to battery
	Solar runs the pump and charges the battery. Pump performance is maintained when the clouds pass. Pump runs on fully 1 hour longer into the evening.	Battery should fully charged in 1 day.
	Solar runs the pump and supplies extra energy to the battery. Performance is maintained when the clouds pass. Pump will only run a shorter period of time into the evening.	Battery will take 2 to 3 days to fully charge.
	Pump will only run when there is sufficient power from the battery. Little or no battery charging occurs so pump performance is not maintained.	Battery will take several days to fully charge.
	No solar power is available, pump will not run and battery will not charge.	Battery will not charge.
If the pump stop running when cloudy or night, and you want to force the pump running for certain hours, short press to turn on the pump, the pump will run certain hours until battery flat. Note: LED lights will only function at night.

CLEANING AND CARE

Solar panel

The panel should be cleaned periodically with a soft tissue. Regular cleaning of the panel is advised to maintain optimum conversion of the sun's energy into direct current.

Pump

If, after a period of time, the pump starts to lose power or stops working check for the build up of sediment, scale or dirt in the filter. Remove the pump cover and the impeller cover. Take out the impeller and remove any sediment, scale or dirt that has built up. Take out the 2pcs of filter from two side of the pump and clean them by fresh water.

TROUBLESHOOTING

Pump does not operate even though the solar module is in full sunlight.

• No connection to the solar module - check connection to the solar module.
• Impeller is blocked - To clean the pump, remove the front plate and the impeller. Use a small brush or steam of water to remove any debris.

Pump does operate but there is no water running through the fountainhead.

• Check for the build up of sediment or scale in the tubes or the filter-clean the tubes and the filte.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
