Athea - Garden fountain Blumfeldt - Free user manual and instructions

Product type	Garden fountain
Brand	Blumfeldt
Model	Athea
Article number	10035919
Power supply	220-240 V / 12 V ~ 50 Hz (via adapter)
Power consumption	12 W
Pump flow rate	800 l/h
Main functions	Submersible pump, integrated lighting (LED)
Material	Weather-resistant plastic
Assembly	Simple, tool-free
Care and cleaning	Clean with a soft cloth and clean water
Safety	Low-voltage transformer, do not open the housing, repair by specialist
Spare parts available	Pump, hose, screen, adapter
Repairability	Call a qualified technician for any repairs
Recycling	Do not dispose with household waste, follow the WEEE directive
Package contents	Fountain, pump, adapter, hose, screen
Country of manufacture	Germany (manufacturer: Chal-Tec GmbH)

Frequently Asked Questions - Athea Blumfeldt

How to assemble the Athea fountain?

Follow the steps in the manual: connect the pump to the hose, plug in the lighting cable, route the cables through the provided opening, connect the adapter, then place the screen in the basin. Your fountain is then ready for use.

Why is the fountain not working?

First check that the plug is inserted into a powered socket. Make sure the pump flow control is not closed (turn it clockwise). If the hose is bent, straighten it. Finally, check that there is enough water in the basin.

How to adjust the water flow?

Turn the flow control on the pump clockwise to increase the flow, and counterclockwise to decrease it.

What to do if the water does not flow well?

Check that the flow setting is sufficiently open. Add water to the basin if the level is low. If air is present in the pump, turn it off and restart it after a few moments.

How to maintain the fountain?

Clean the fountain regularly with a soft cloth and clean water. Do not use abrasive or volatile products. Empty the water when not using the fountain for an extended period.

Can I leave the fountain outdoors in winter?

It is recommended to completely empty the water and store the fountain in a frost-free place. Frozen water could damage the pump and hoses. Protect it from the weather.

How to replace the pump?

Unplug the device. Disconnect the hose and the lighting cable. Remove the old pump and install the new compatible pump (reference: contact the manufacturer). Reconnect all components and test.

The lighting is not working, what to do?

Check that the lighting cable is properly connected to the pump and the adapter. If the lighting is integrated, it may require repair by a professional. Do not attempt to open the housing.

What safety precautions should I follow?

Do not open the device (risk of electric shock). Do not use with wet hands. Do not place heavy objects or open flames on it. Have repairs done only by a specialist. Supervise children.

How to recycle the fountain at end of life?

Do not dispose of the device with household waste. Follow the European Directive 2012/19/EU (WEEE). Dispose of it at a separate collection point for electrical and electronic equipment.

USER MANUAL Athea Blumfeldt

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

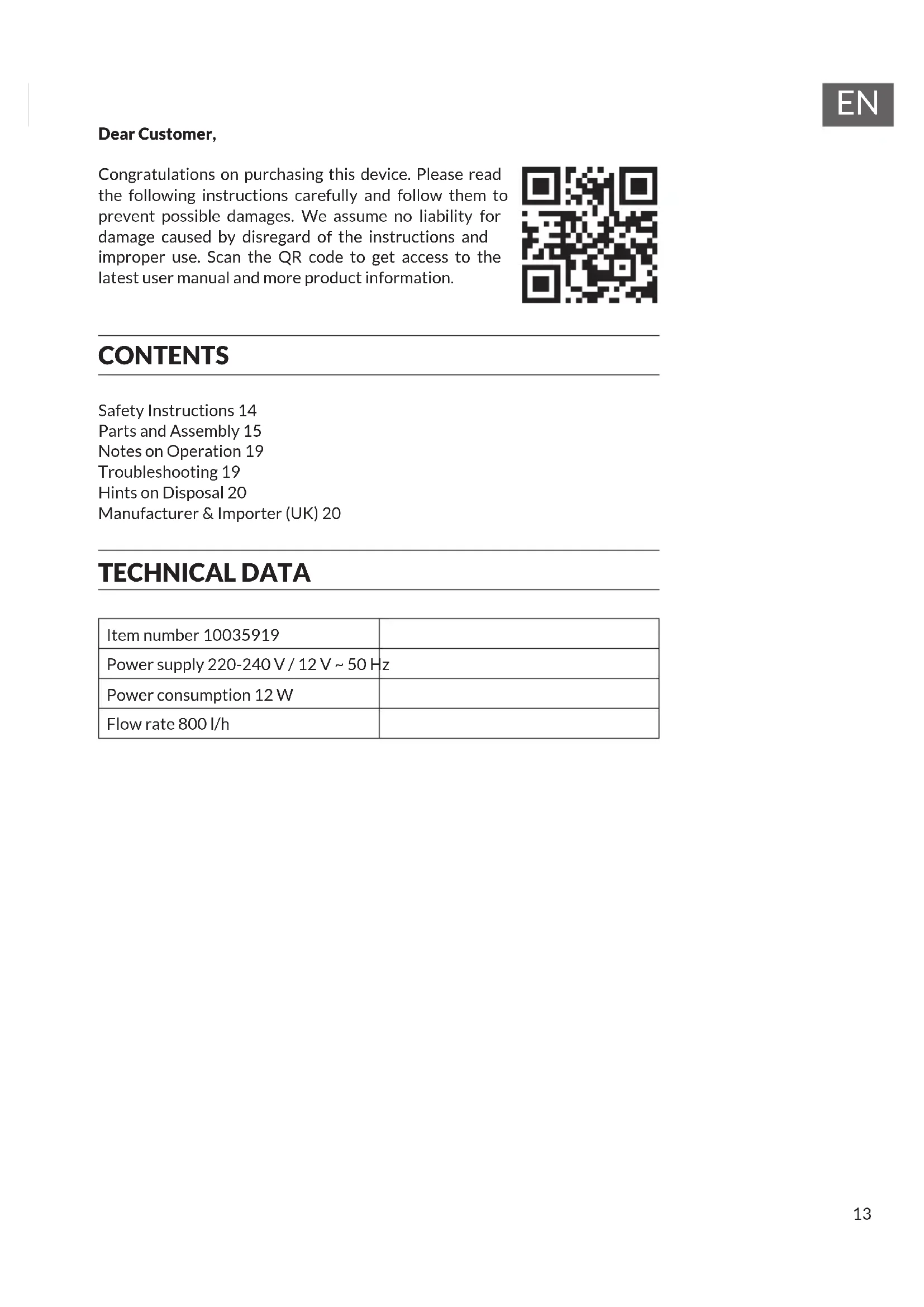

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 14
Parts and Assembly 15
Notes on Operation 19
Troubleshooting 19
Hints on Disposal 20
Manufacturer & Importer (UK) 20

TECHNICAL DATA

Item number 10035919
Power supply 220-240 V / 12 V ~ 50 Hz
Power consumption 12 W
Flow rate 800 l/h

SAFETY INSTRUCTIONS

• To reduce the risk of electric shock, do not remove any of the covers. The unit contains parts that are not accessible to the user.
• Do not drop metal objects on this unit.
• Do not place heavy objects on top of this unit.
• Only use accessories and attachments approved by the manufacturer.
• Unplug this appliance from the wall outlet when it is exposed to lightning, storms or prolonged periods of inactivity. This will prevent damage.
• Have repairs carried out only by qualified specialists.
• Repair is required if the product has been damaged in any way, i.e. if objects have fallen on it, if it does not function properly or if it has been dropped. Do not attempt to repair the unit yourself. Opening the cover may result in electric shock or other injury.
• Do not pull, bend, or place heavy objects on the cable.
• Do not handle the plug with wet hands.
• Do not place open flame sources, such as burning candles, on the product.
• Never let the pump run empty.
• Do not place the unit on top of other equipment that may become hot. This heat could damage the unit.
• Do not use volatile liquids such as insect sprays. Excessive pressure when wiping may damage the surfaces.
  Children 8 years of age and older, mentally, sensory and physically impaired persons may only use the device if they have been thoroughly familiarized with its functions and safety precautions by a supervisor responsible for them and understand the associated risks.

PARTS AND ASSEMBLY

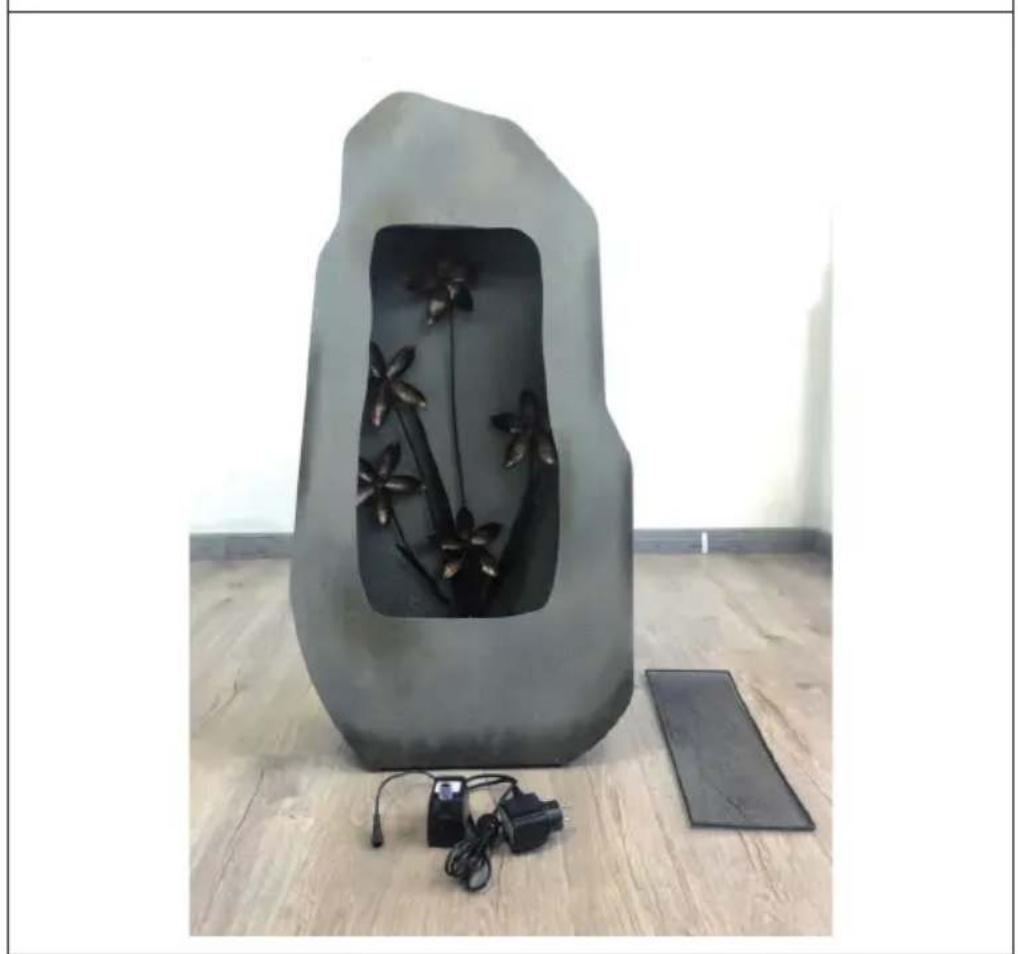

1: Parts

2: Connect the pump to the hose.

EN

3: Connect the light cables.

4: Lead the cable through the opening on the left inner side of the fountain.

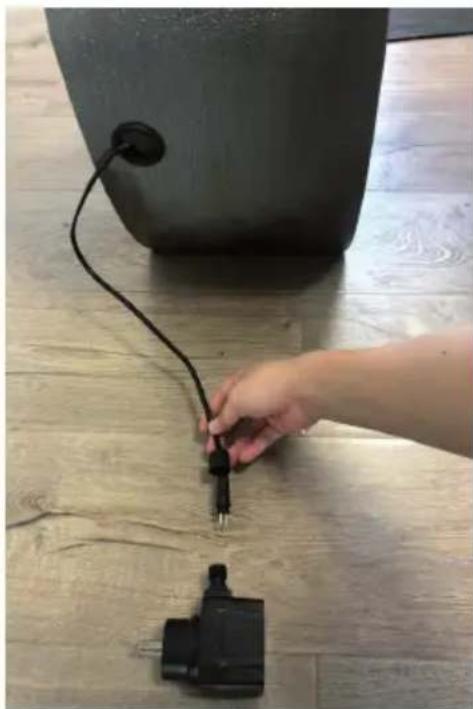

5: Connect the cable to the adapter.

6: Place the sieve in the fountain basin.

7: The fountain is now completely assembled and ready for use.

NOTES ON OPERATION

• Fill in enough cleaner water before using the fountain.
• If you no longer use the fountain, turn off the pump and remove the water.
• If the fountain is dirty, clean it with a soft cloth.

TROUBLESHOOTING

Problem Possible cause	Solution
The fountain's not running.	The fountain is not connected to the power supply.	Insert the plug into the socket.
	The flow control of the pump is not turned on.	Turn the flow control of the pump clockwise to increase the flow.
	The water pipe is bent. Straighten the pipe.
The water's not flowing right.	The flow control of the pump is not turned on.	Turn the flow control of the pump clockwise to increase the flow.
	Not enough water in the fountain.	Put more water in the fountain.
	Air trapped in the pump.	Switch off the pump and restart it.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom
