USER MANUAL Ayana Blumfeldt

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 14

Parts and Assembly 15

Notes on Operation 19

Troubleshooting 20

Hints on Disposal 20

TECHNICAL DATA

Item number 100359	14 10035915
Name Ayana (black)	Ayana (white)
Power supply 220-240 V / 12 V ~ 50 Hz 220-240 V / 12 V ~ 50 Hz
Power consumption 1	2 W 12 W
Flow rate 800 l/h 800 l/h

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

SAFETY INSTRUCTIONS

• To reduce the risk of electric shock, do not remove any of the covers. The unit contains parts that are not accessible to the user.
• Do not drop metal objects on this unit.
• Do not place heavy objects on top of this unit.
• Only use accessories and attachments approved by the manufacturer.
• Unplug this appliance from the wall outlet when it is exposed to lightning, storms or prolonged periods of inactivity. This will prevent damage.
• Have repairs carried out only by qualified specialists.
• Repair is required if the product has been damaged in any way, i.e. if objects have fallen on it, if it does not function properly or if it has been dropped. Do not attempt to repair the unit yourself. Opening the cover may result in electric shock or other injury.
• Do not pull, bend, or place heavy objects on the cable.
• Do not handle the plug with wet hands.
• Do not place open flame sources, such as burning candles, on the product.
• Never let the pump run empty.
• Do not place the unit on top of other equipment that may become hot. This heat could damage the unit.
• Do not use volatile liquids such as insect sprays. Excessive pressure when wiping may damage the surfaces.
  Children 8 years of age and older, mentally, sensory and physically impaired persons may only use the device if they have been thoroughly familiarized with its functions and safety precautions by a supervisor responsible for them and understand the associated risks.

PARTS AND ASSEMBLY

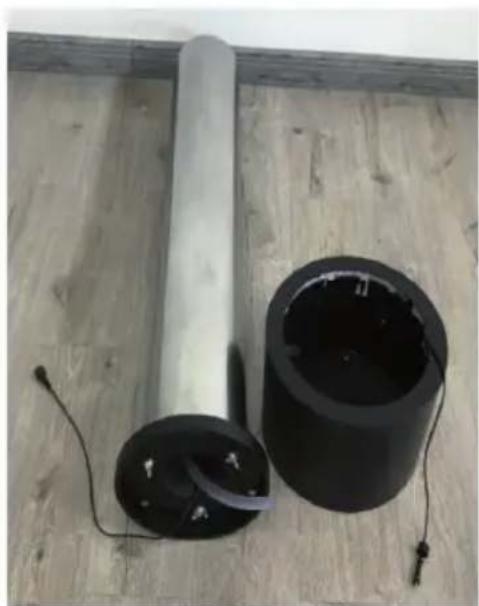

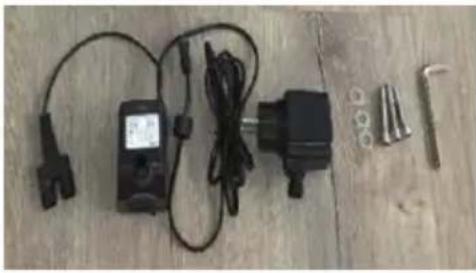

1: Parts

Fountain attachment (1x)

Fountain basin (1x)

Pump (1x)

Adapter (1x)

Gaskets (3x)

Screws (3x)

(Tools required: Allen key)

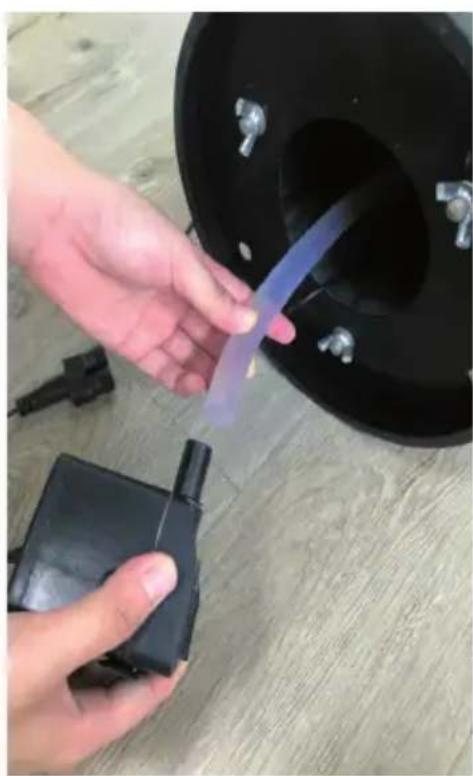

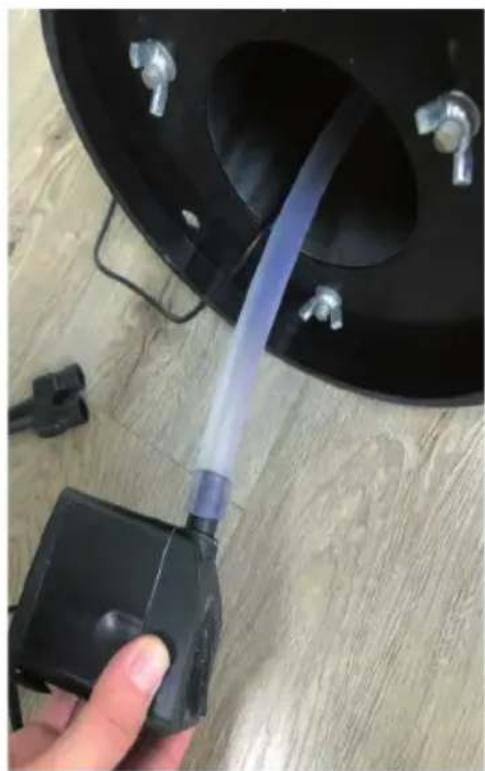

2: Connect the pump to the hose.

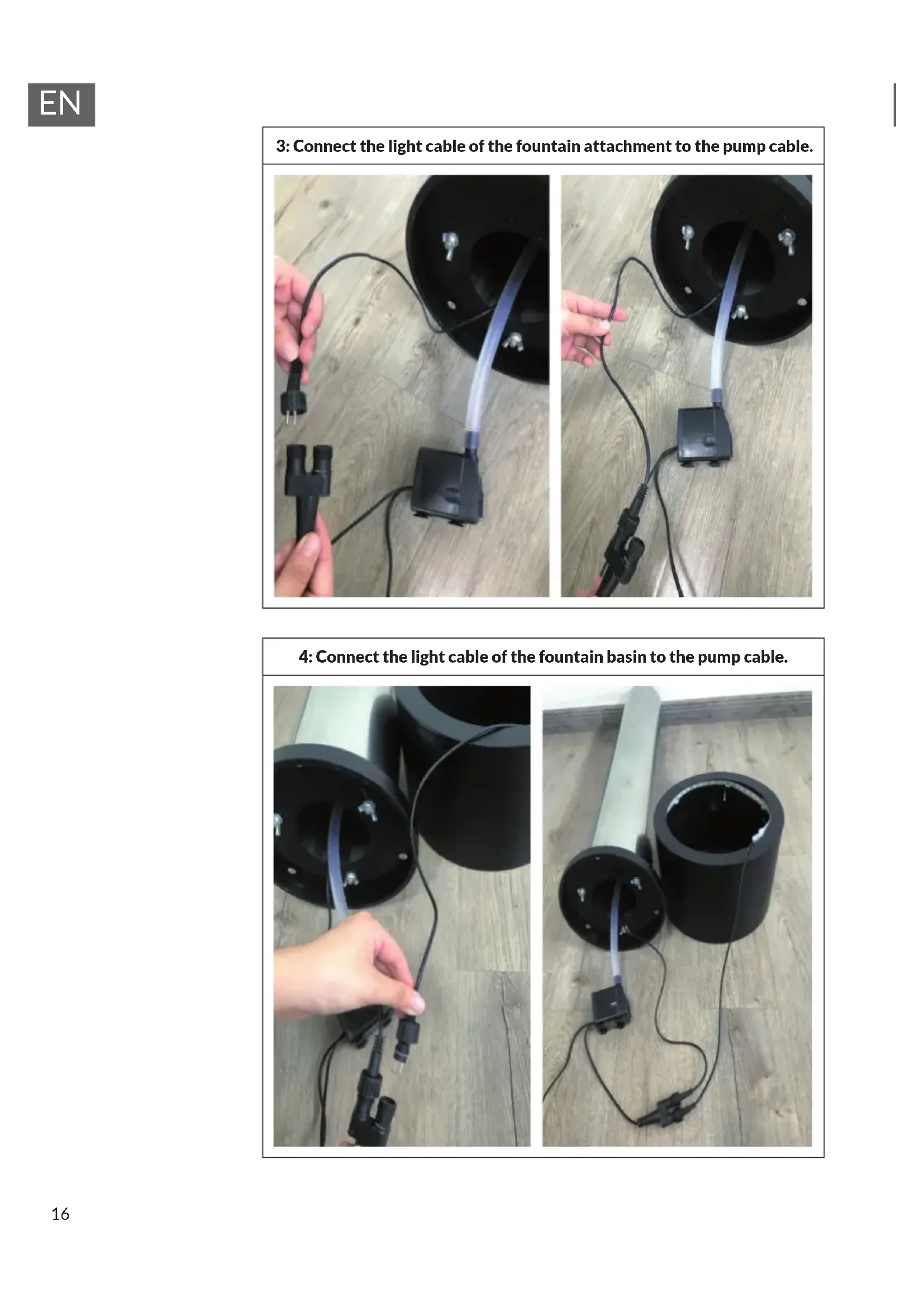

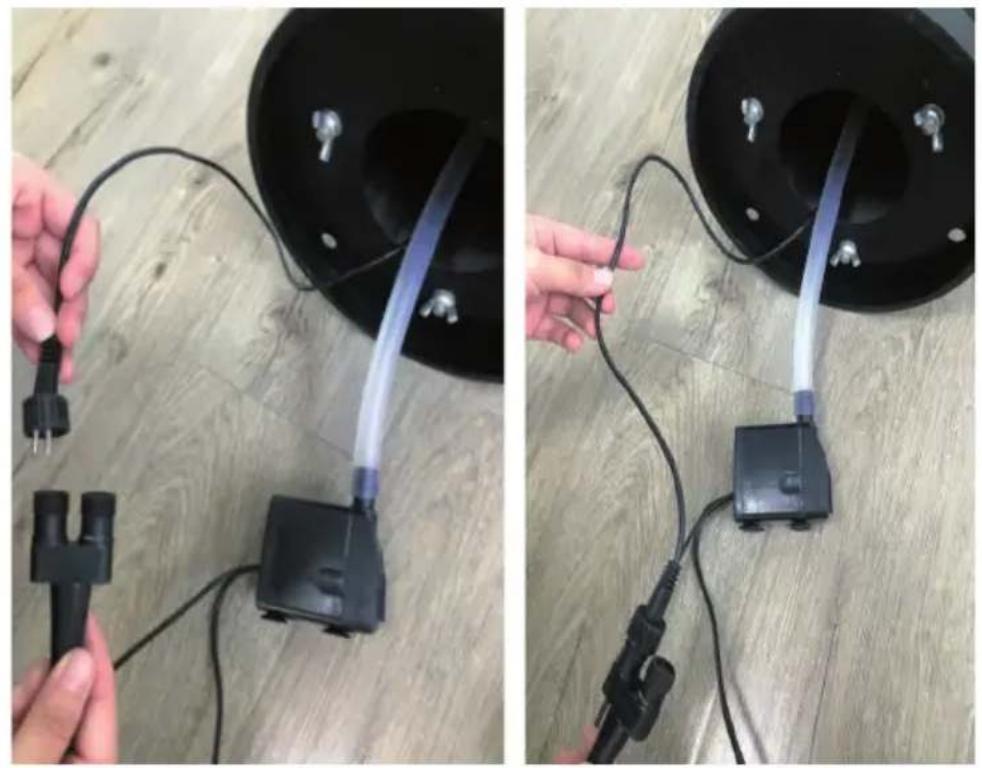

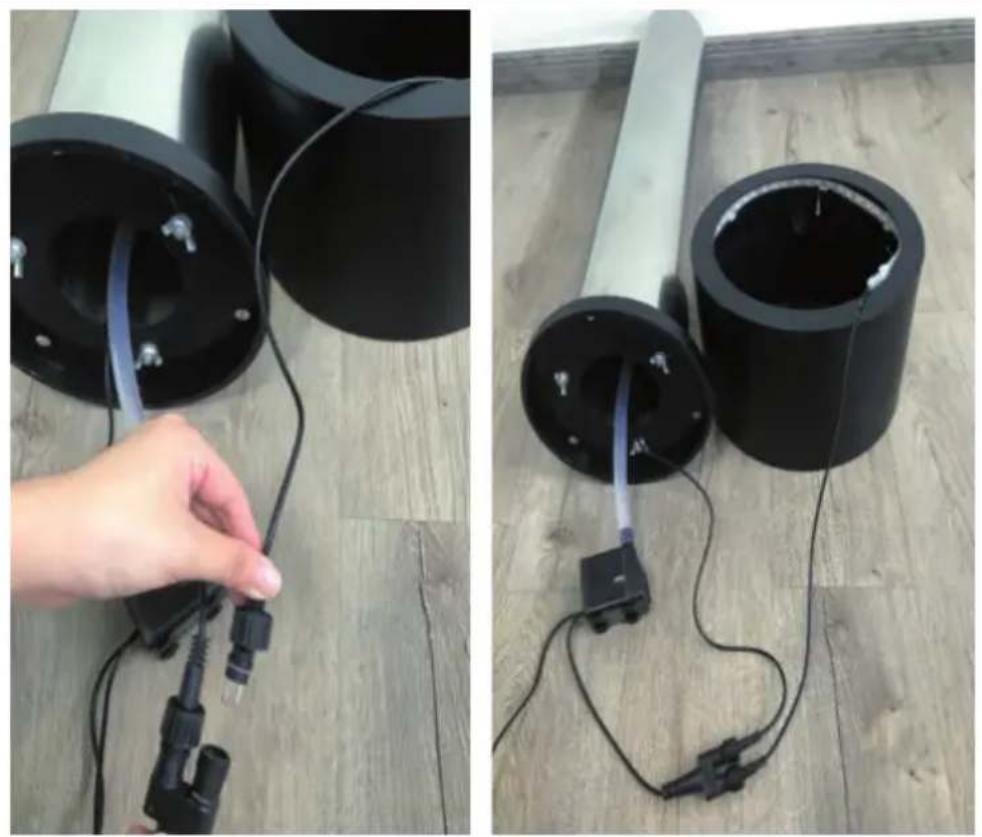

3: Connect the light cable of the fountain attachment to the pump cable.

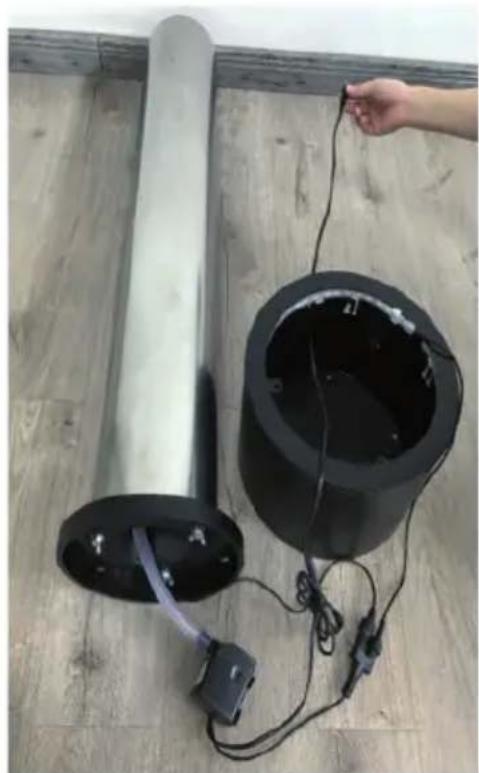

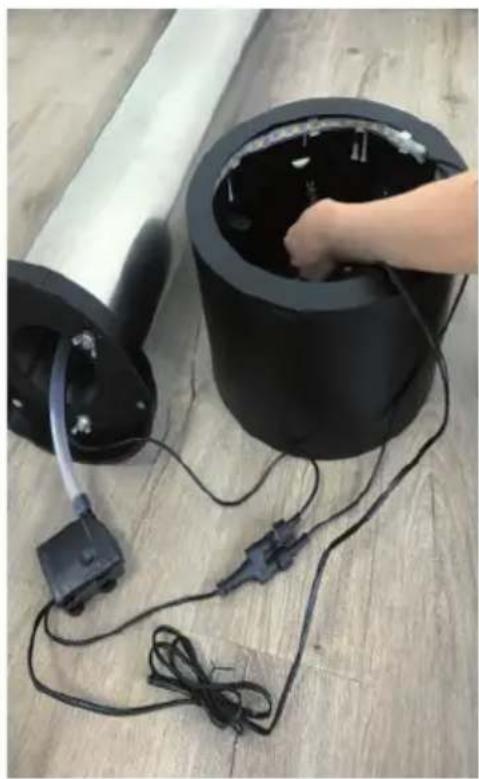

4: Connect the light cable of the fountain basin to the pump cable.

5: Lead the cable through the cable outlet of the fountain basin to the outside.

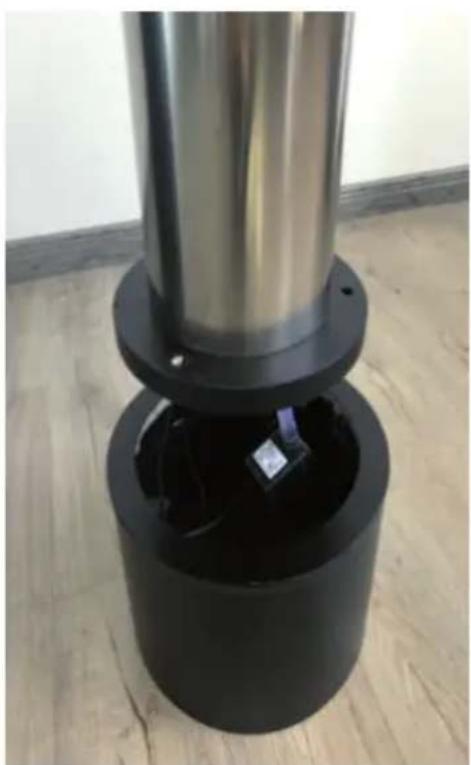

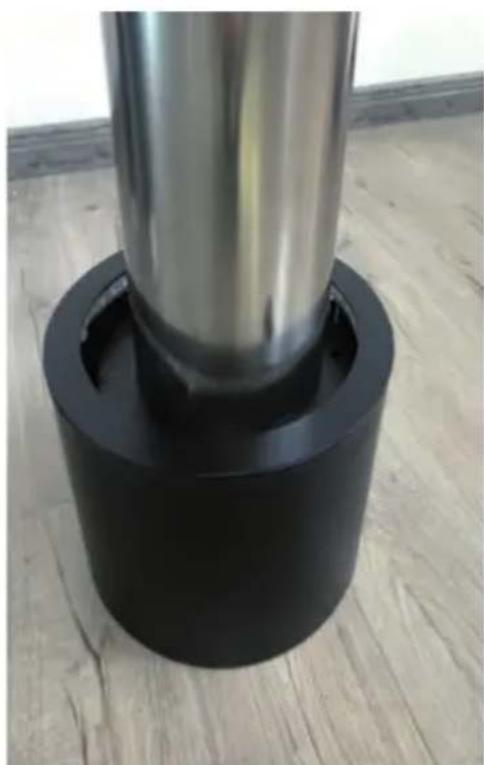

6: Place the fountain attachment on the fountain basin.

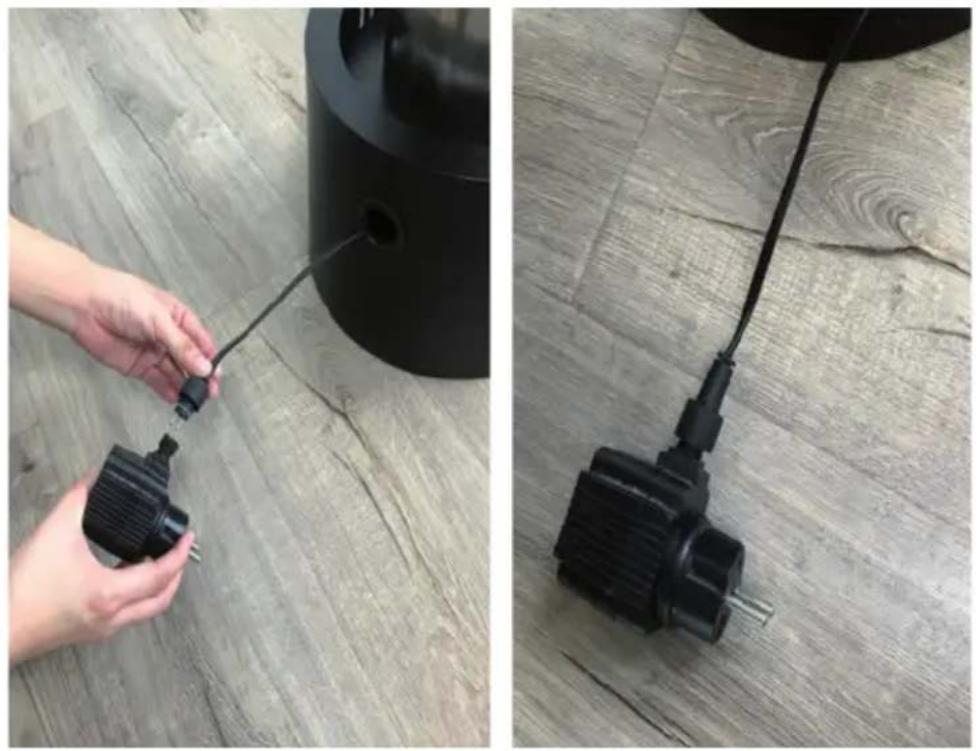

7: Connect the cable to the adapter.

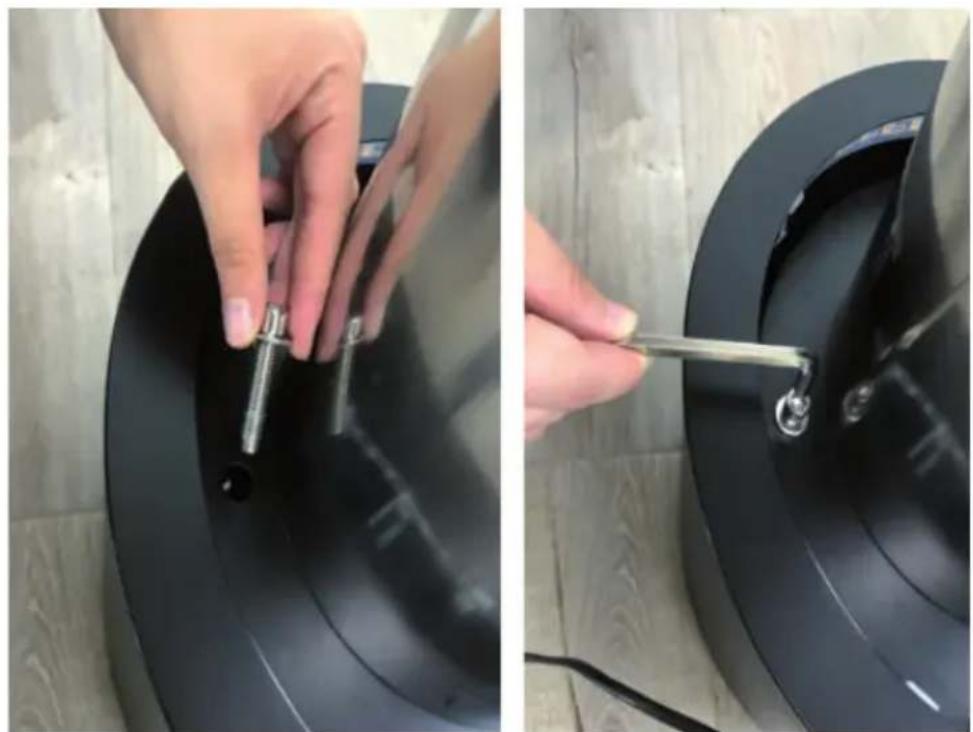

8: Fix the fountain attachment to the fountain basin with screws and gaskets.

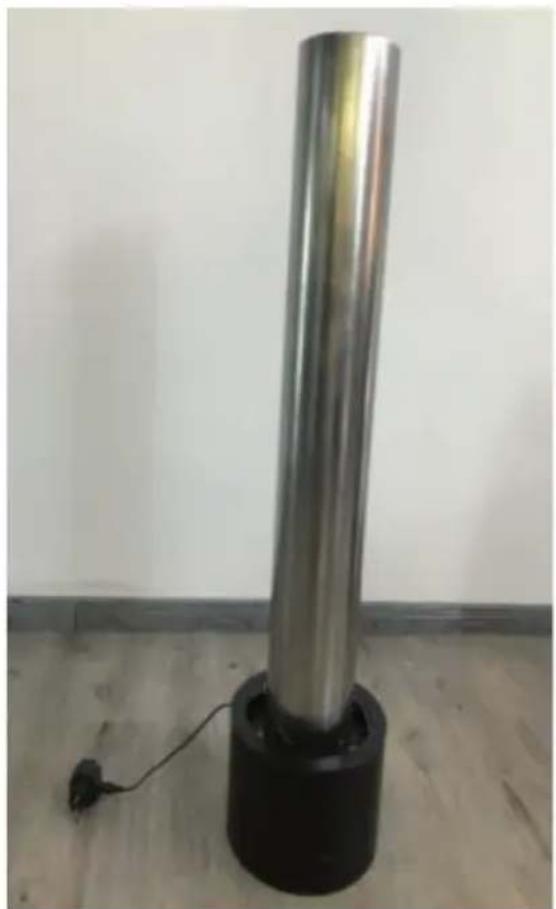

9: The fountain is now completely assembled and ready for use.

NOTES ON OPERATION

• Fill in enough cleaner water before using the fountain.
• If you no longer use the fountain, turn off the pump and remove the water.
• If the fountain is dirty, clean it with a soft cloth.

TROUBLESHOOTING

Problem Possible cause	Solution
The fountain is not running.	The fountain is not connected to the power supply.	Insert the plug into the socket.
	The flow control of the pump is not turned on.	Turn the flow control of the pump clockwise to increase the flow.
	The water pipe is bent. Straighten the pipe.
The water is not flowing right.	The flow control of the pump is not turned on.	Turn the flow control of the pump clockwise to increase the flow.
	Not enough water in the fountain.	Put more water in the fountain.
	Air trapped in the pump.	Switch off the pump and restart it.

HINTS ON DISPOSAL

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
