Product type	Electric cultivator
Reference	GEGF 1540.1
Order number	94378
Supply voltage	230 V ~ / 50 Hz
Motor power	1500 W
Working width	400 mm
Number of blades	6
Blade diameter	200 mm
Rotation speed	350 min⁻¹
Working depth	200 mm
Net weight	11.55 kg
Gross weight	13.84 kg
Protection class	II
Protection degree	IP X4
Sound pressure level	80.5 dB(A)
Guaranteed sound power level	92.3 dB(A)
Vibration emission value	1.549 m/s² (K=1.5 m/s²)
Intended use	Preparation of small to medium-sized soil areas, incorporation of mulch, peat, sand, fertilizer, compost
Maintenance	Clean ventilation slots, treat moving parts with ecological oil
Safety	Wear PPE (goggles, gloves, safety shoes, hearing protection), keep children away (min. 15m), unplug before maintenance
Warranty	12 months industrial use, 24 months end consumer
After-sales service	www.guede.com, [e-mail], +49 (0) 79 04 / 700-360
Spare parts	Use only original parts
Repairability	Repairs by authorized qualified personnel

Frequently Asked Questions - GEGF 1540.1 Güde

How to start the Güde GEGF 1540.1 cultivator?

Before starting, ensure the device is properly assembled and the work area is clear. Plug the power cord into a 230 V ~ / 50 Hz socket. Hold the handle with both hands, then press the on/off switch. Keep the switch pressed during operation. Never lock the switch.

What to do if the circuit breaker trips during use?

If the circuit breaker trips, immediately stop the device and unplug it. Check if the roller is blocked (remove debris). Let the motor cool down for about 15 minutes before trying again. If the problem persists, check the power supply and extension cord.

How to maintain the cultivator blades?

Before any maintenance, unplug the device and wait for the blades to stop completely. Wear protective gloves. Inspect the blades for any damage or dullness. Replace worn or damaged blades with original parts. Lubricate moving parts with ecological oil.

Can I use the cultivator on slopes?

Yes, but with caution. Ensure the machine is stable. Do not work on excessively steep slopes. Be especially careful when changing direction. Walk, do not run. Keep a safety distance of 15 m from other people.

What protective equipment is recommended for use?

Always wear safety goggles, hearing protection, protective gloves and safety shoes with non-slip soles and steel toes. Wear long trousers and avoid loose clothing or jewelry that could be caught.

What to do in case of unusual vibrations?

If the device vibrates unusually, stop the motor immediately and unplug the device. Check the condition of the blades: they may be damaged or unbalanced. Replace blades if necessary. Tighten all screws and nuts. If vibrations persist, contact after-sales service.

How to store the device after use?

Clean the device with a damp cloth (do not spray water). Store it in a dry, dark, frost-free place. Unplug the power cord and coil it properly. Keep the device out of reach of children.

What is the maximum working depth of the GEGF 1540.1?

The maximum working depth is 200 mm (20 cm). This depth can be adjusted as needed, but do not exceed this limit to avoid overloading the motor or damaging the device.

How to proceed with replacing the power cord?

Replacement of a damaged power cord must be carried out by the manufacturer, its agent or a qualified electrician. Do not attempt to do it yourself. Only use an original cord specified by Güde to avoid any electrical risk.

Where to find the serial number for a warranty claim?

The serial number, product number and year of manufacture are on the rating plate of the device. Also keep the original proof of purchase (receipt) with the date of purchase for any warranty claim.

USER MANUAL GEGF 1540.1 Güde

Translation of the original instructions Electric garden tiller

Black-and-white photo of a manual lawn mower with a power tool, no visible text or symbols on the device itself.

GEGF 1540.1

94378

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

CE

Güde

®

ENGLISH Please read the instructions carefully before starting the machine.

Technical diagram showing exploded view of a mechanical device with labeled parts, including motor, frame, and housing components.

English Technical Data /Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service 17

3D rendering of a mechanical device with an open box and a directional arrow, no text or symbols present

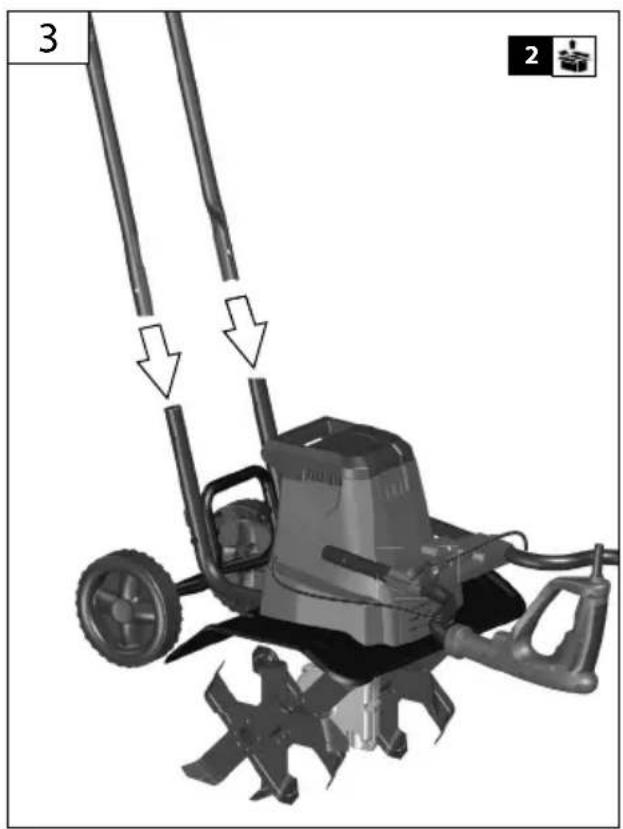

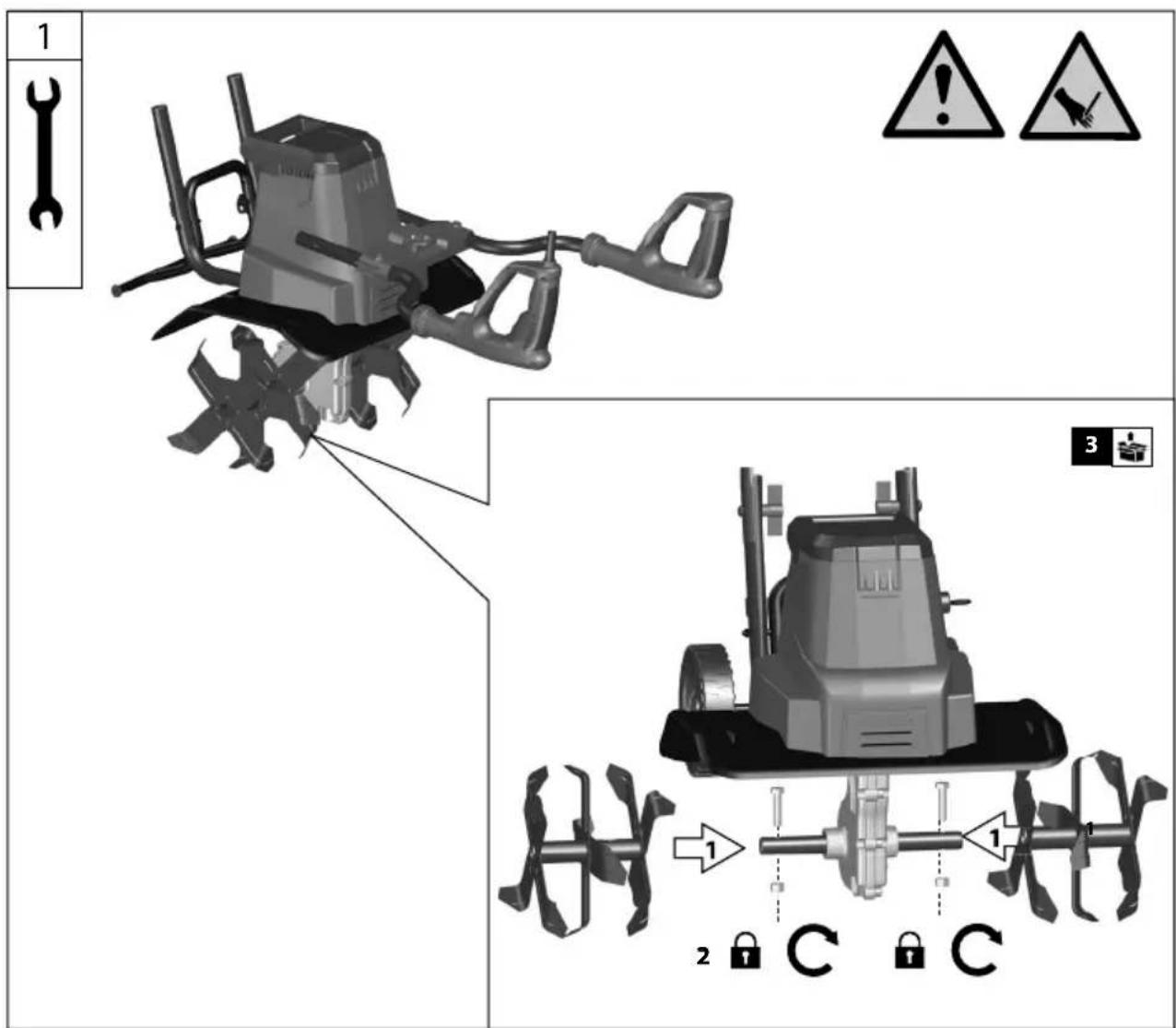

1 2 C C 3

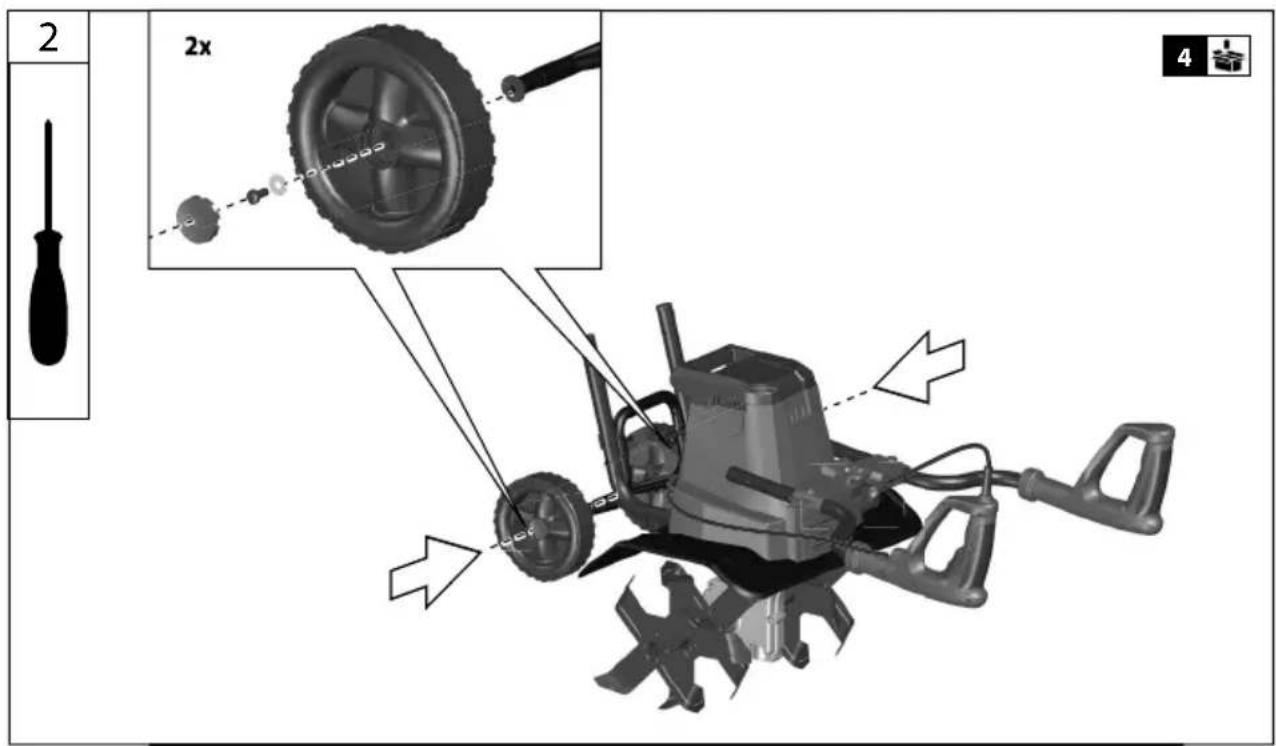

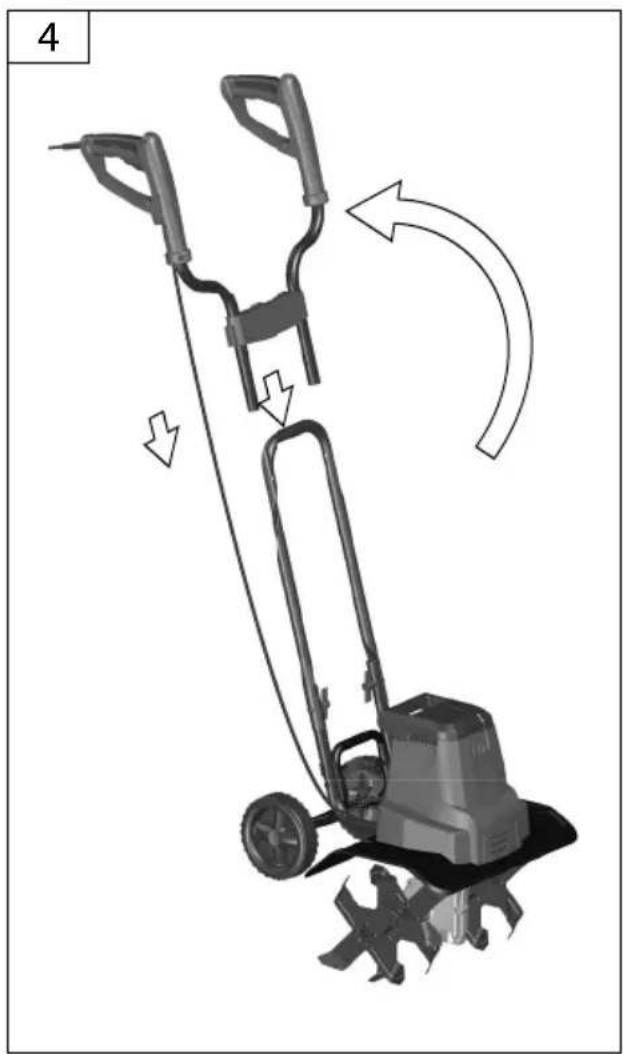

2 2x 4

Mechanical tiller with two blades and a handle, shown in grayscale (no text or symbols)

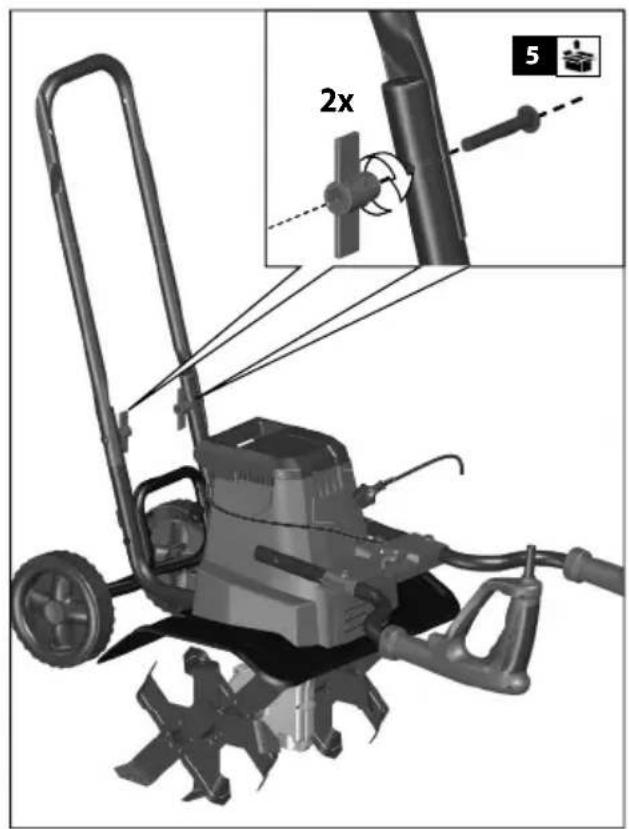

2x 5

Mechanical tool diagram showing a lathe machining process with arrows indicating motion (no text or symbols)

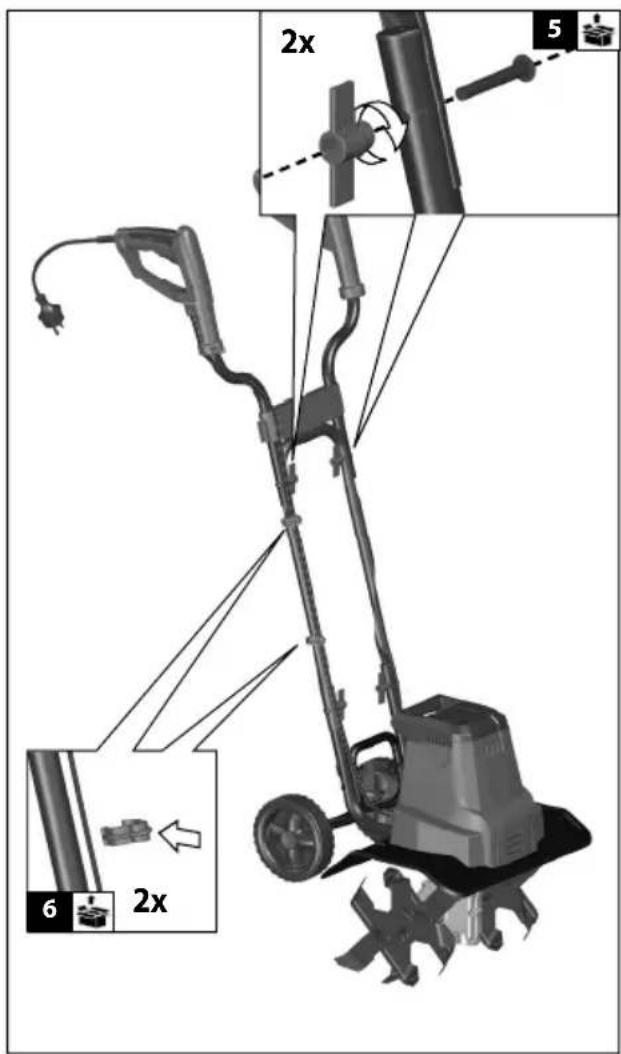

2x 5 6 2x

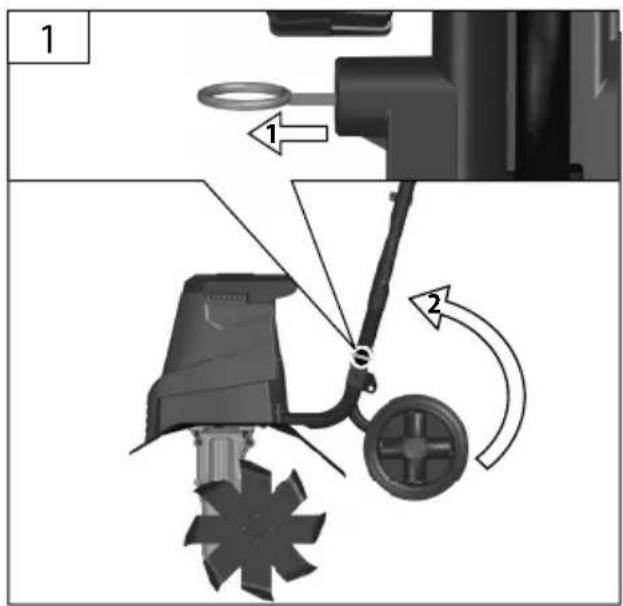

1 1 2

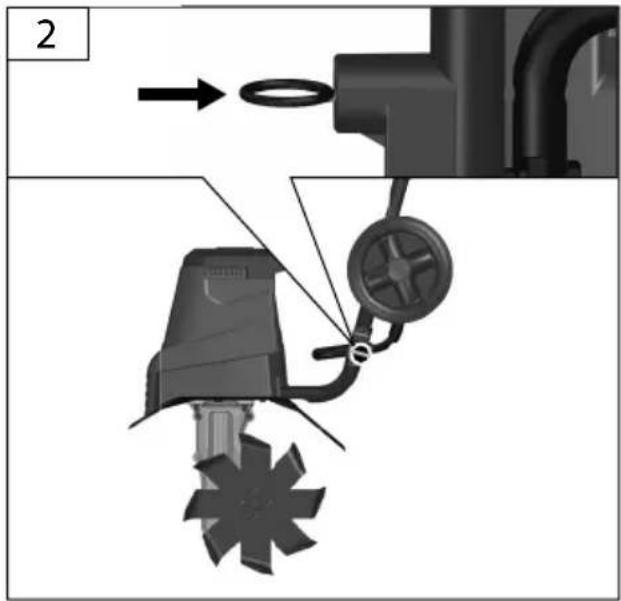

2

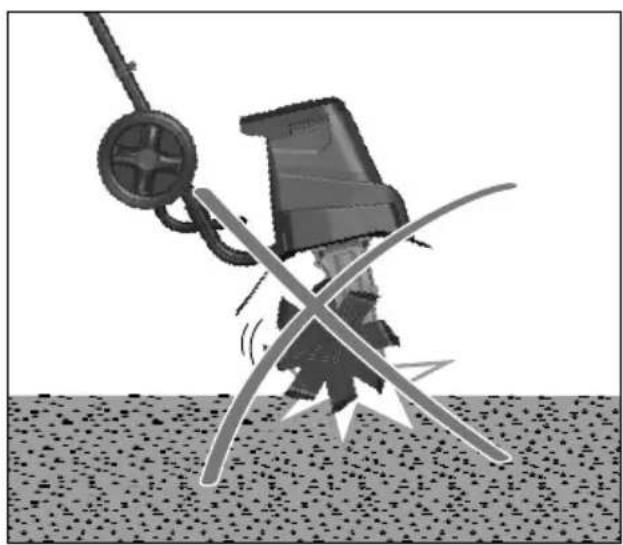

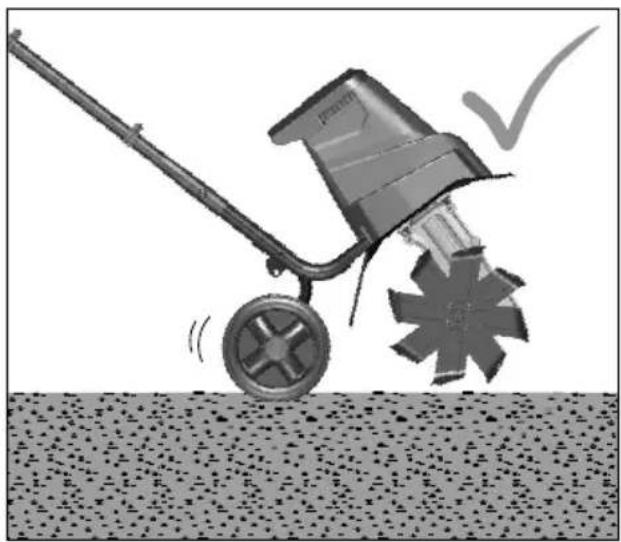

Illustration of a mechanical device with rotating arm and curved blades, resting on textured ground (no text or symbols)

Illustration of a manual tiller with a blade and cutter tool, moving on a textured surface (no text or symbols)

Illustration of a mechanical device with rotating blades and a gear-like component, set against a field background (no text or symbols)

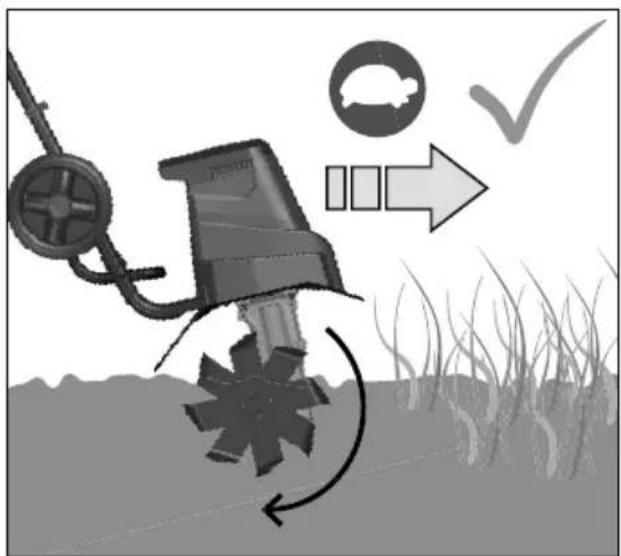

Illustration of a precision agricultural machine tool in operation with arrows indicating rotation and decision (no text or symbols)

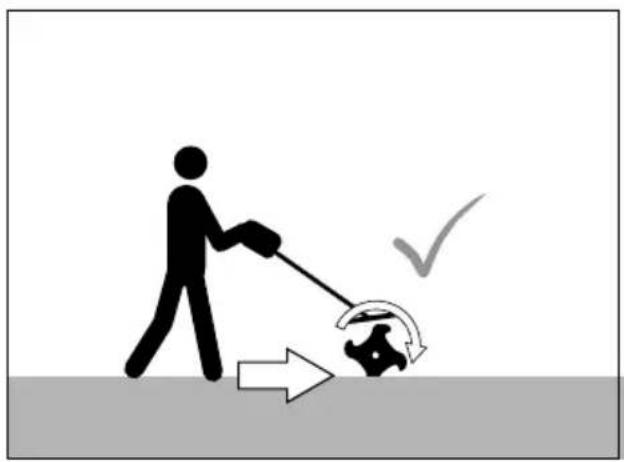

Silhouette of a person pushing a dog with a checkmark and arrow, no text or symbols present

Diagram illustrating two methods of trash: one using a lever and another with a crossed handle, both marked with checkmarks and crossed leaves.

Two pictographic scenarios: a person using a tool to walk and walk the ground, and a person crossing over a curved road with a warning sign (no text or symbols on figures)

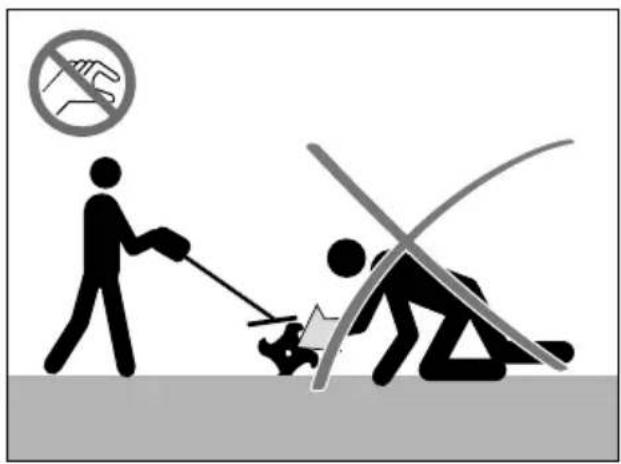

Illustration of two figures pulling a cart with a diagonal pole, one carrying a heavy load and the other holding a hand (no text or symbols)

Illustration of a person crossing a road with directional arrows and a warning sign (no text or symbols)

Two-panel illustration showing a person digging with tools and a crossed tool, both without any text or symbols.

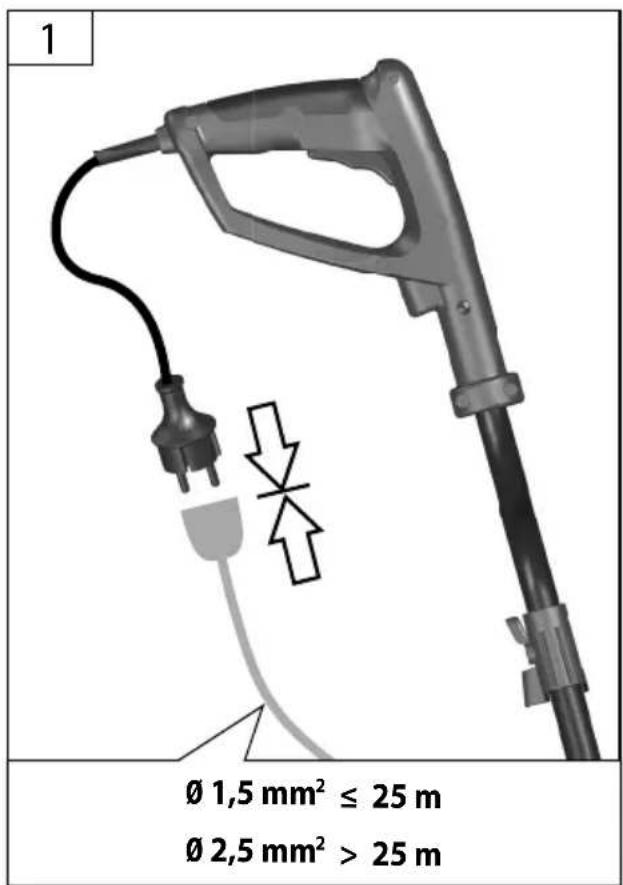

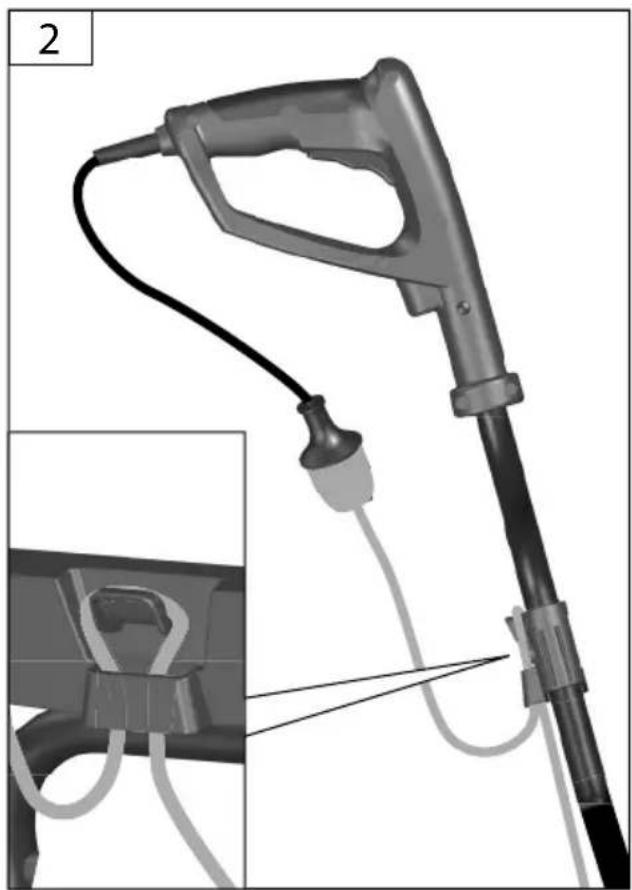

1 Ø 1,5 mm² ≤ 25 m Ø 2,5 mm² > 25 m

Medical device with attached cable and connector, shown in two views (no text or symbols visible)

Diagram of an electric vehicle fuel nozzle with labeled parts 1 and 2, showing directional arrows indicating flow or movement.

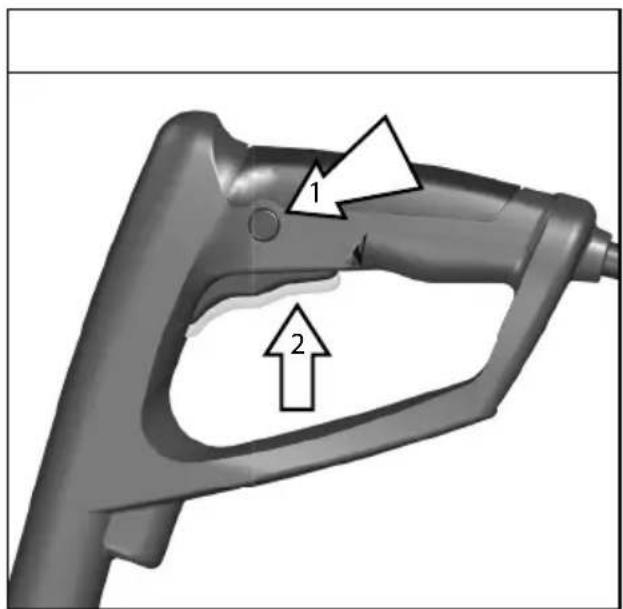

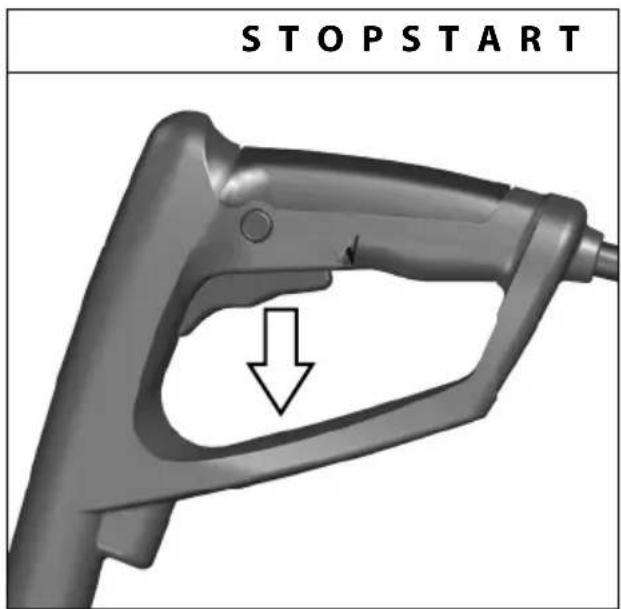

STOPSTART

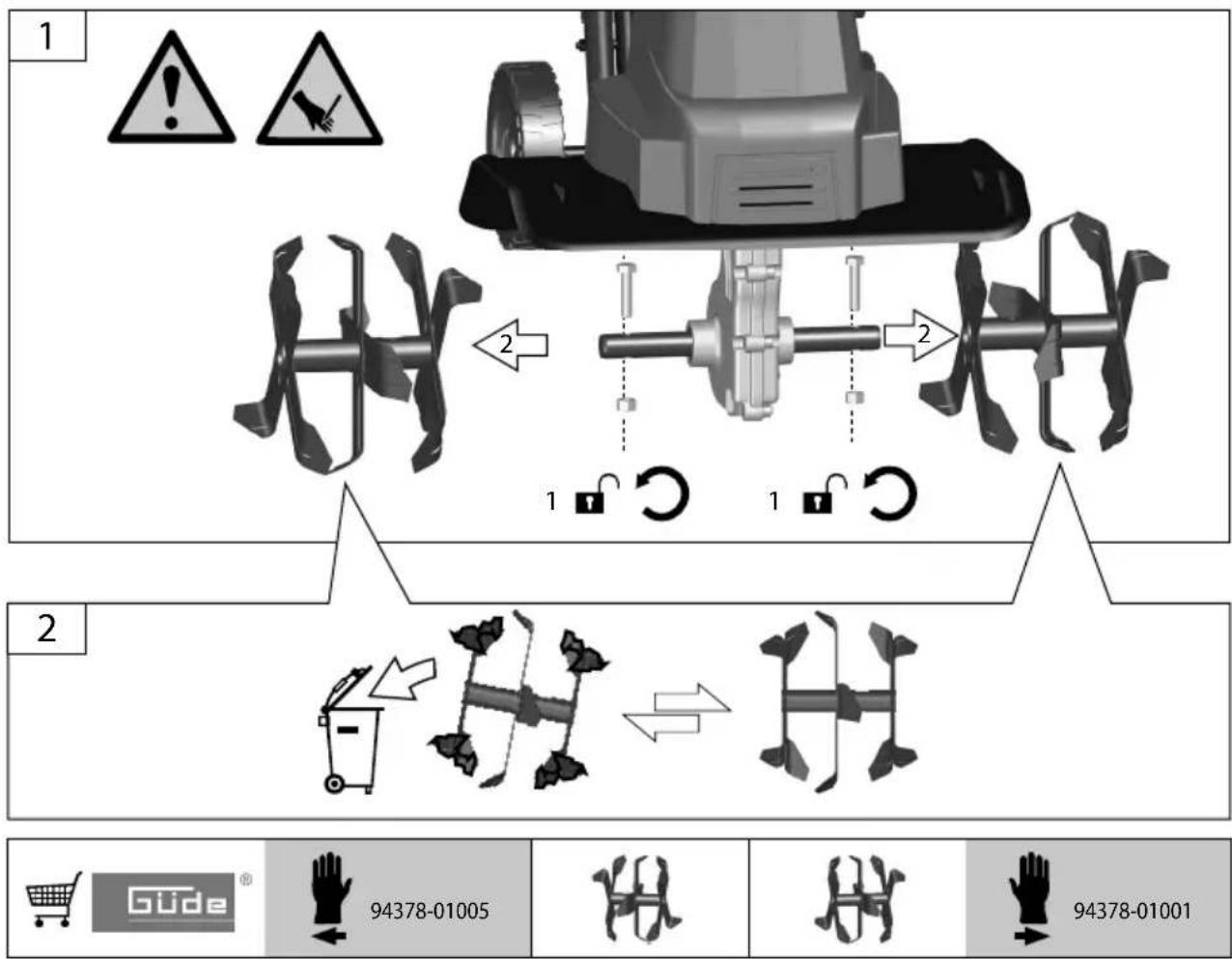

1 1 2 1 1 2 2 Gude® 94378-01005 94378-01001

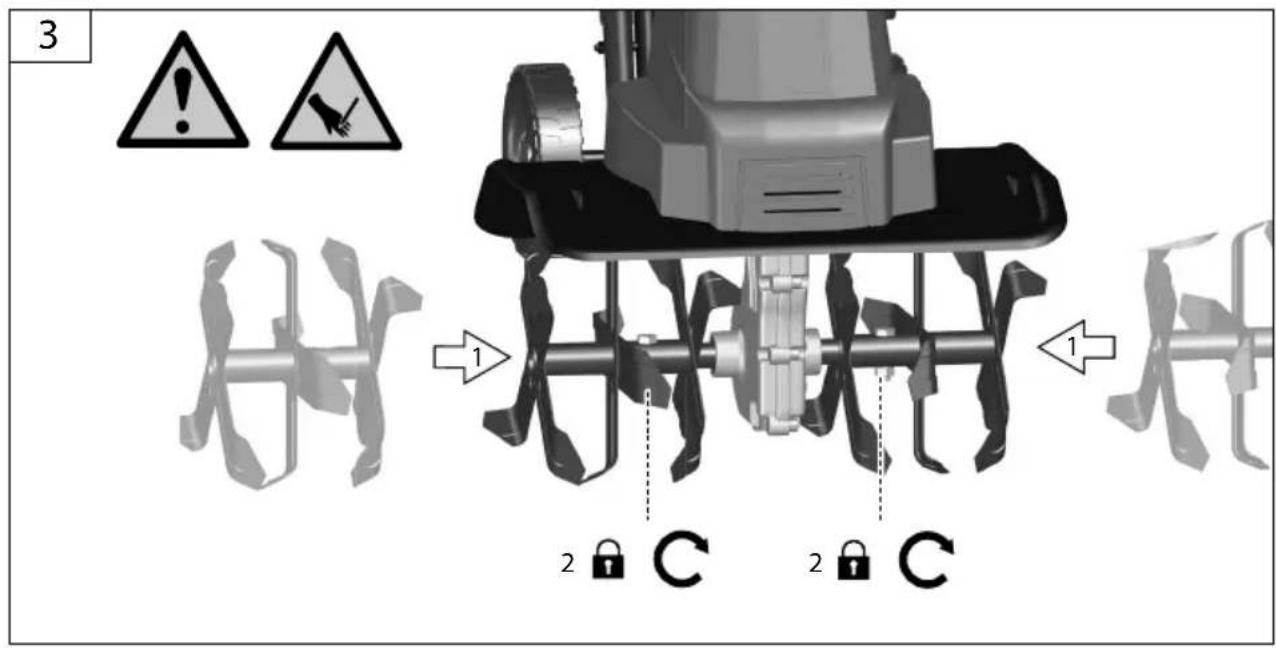

3 1 2 C 2 C

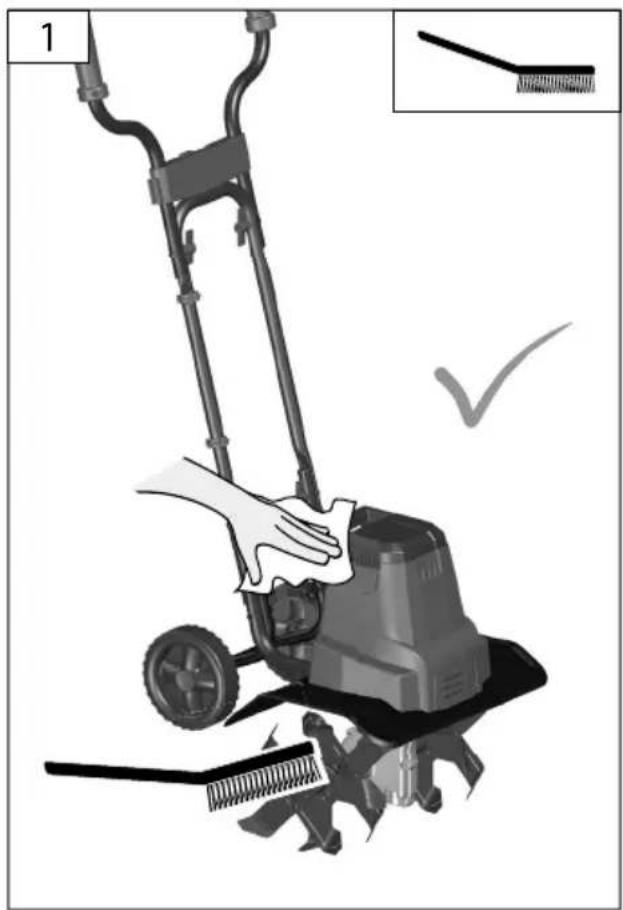

Illustration of a lawn mower with a hand cleaning it, showing tool and component details (no text or symbols)

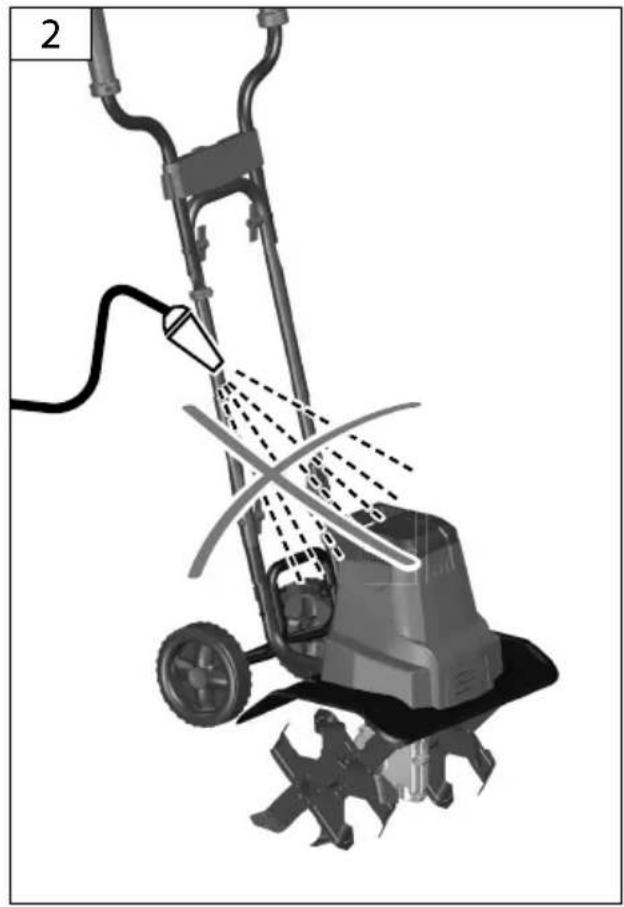

Diagram of a lawn mower with water spray and tool path (no text or symbols)

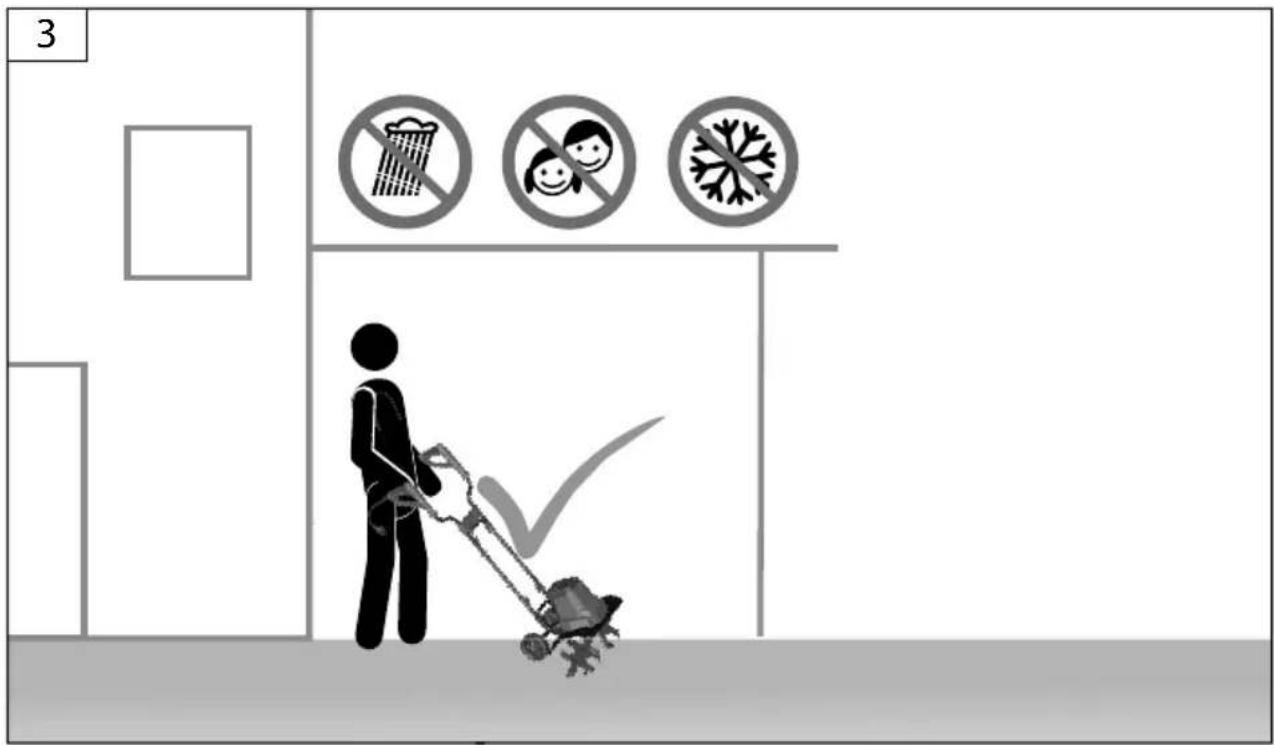

3 No litter No face No snow

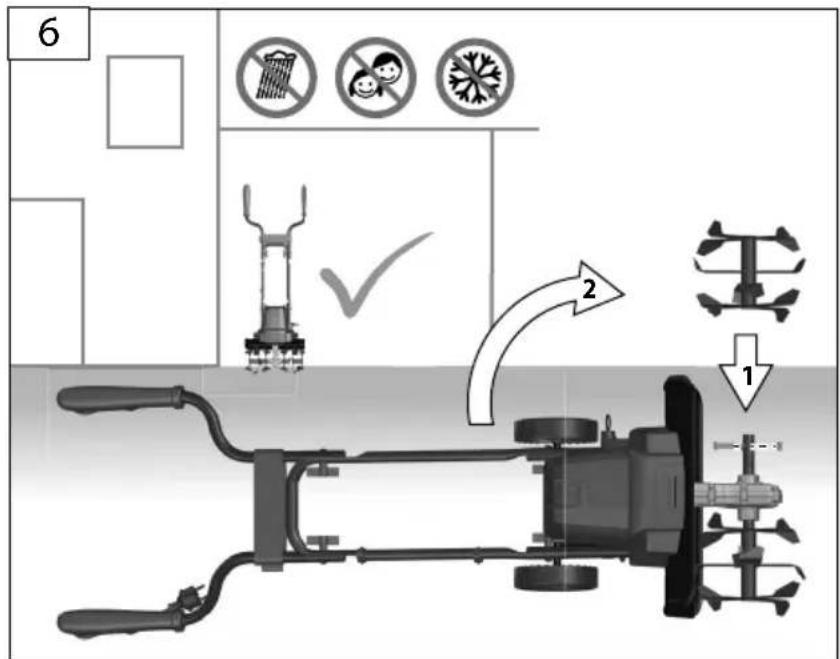

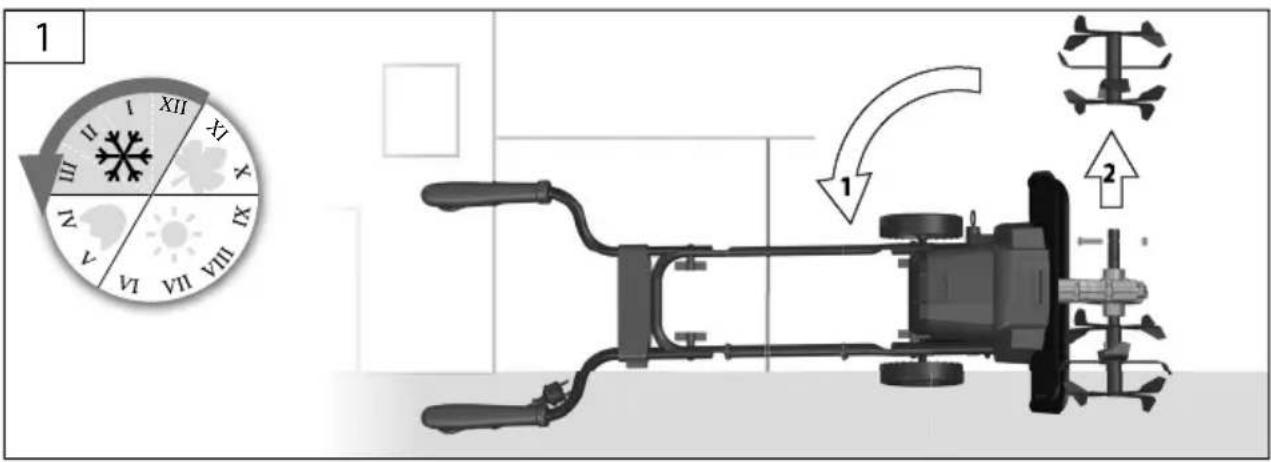

1 Ⅰ Ⅱ Ⅲ Ⅳ Ⅴ Ⅵ Ⅶ Ⅷ Ⅸ Ⅹ Ⅺ Ⅻ Ⅼ Ⅽ Ⅾ Ⅿ ⅰ ⅱ ⅲ ⅳ ⅴ ⅵ ⅶ ⅷ ⅸ ⅹ ⅺ ⅰ ⅱ ⅲ ⅳ ⅴ ⅵ ⅶ ⅷ ⅸ ⅹ ① ②

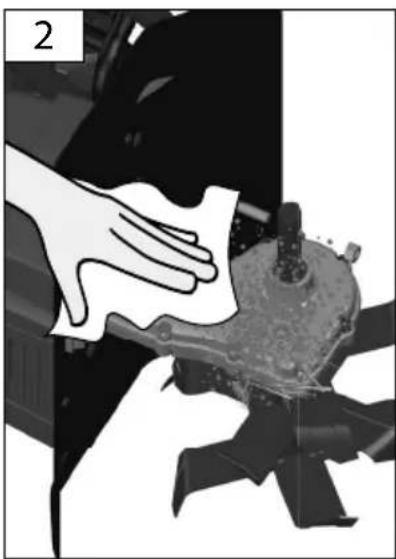

Close-up of a hand cleaning a car engine with a cloth (no text or symbols visible)

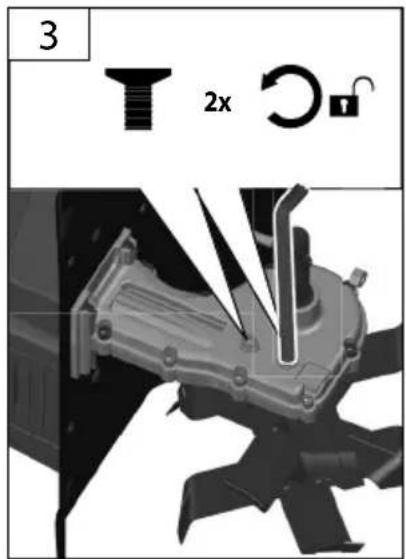

3 T 2x

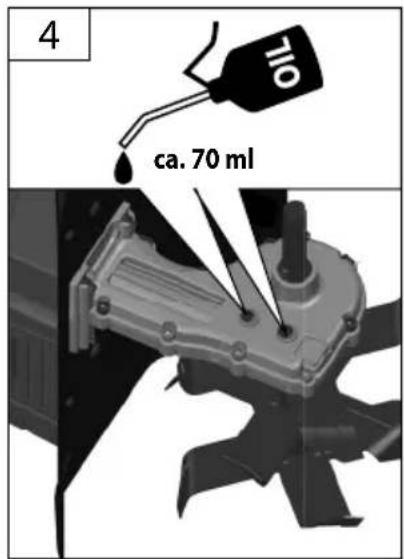

4 ca. 70 ml

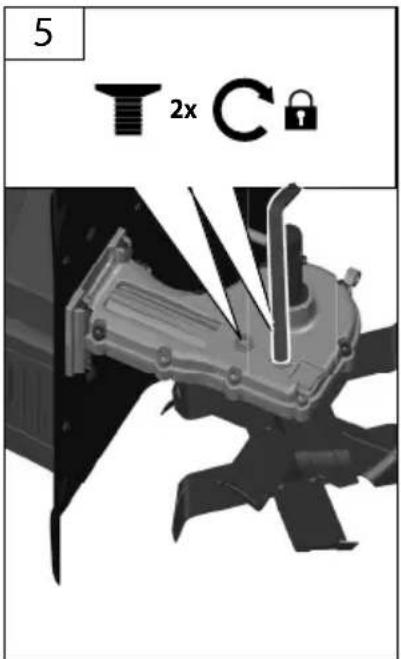

5 T 2x C

6 ✓ 2 1

Technische Daten

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another. An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and

how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Children must be supervised in order not to play with the machine.

Specified Conditions of Use

For soil preparation in small to medium-sized areas. For incorporating mulch, peat, sand, manure or compost.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Residual Risk

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

Never touch under the housing body when the engine is running. Wear gloves! Wear safety cut through resistant shoes with safety sole and steel toe!

Thrown-off stones or soil may lead to uries.

Before mowing, check the area to be mowed for any undesirable objects. Wear safety goggles when working.

Risk of electric shock

Damaged mains cords pose a hazard of electrocution. Keep the connection and extension cables away from dangerous moving parts to avoid damaging them.

Poor lighting/light conditions represent a h safety risk.

Provide adequate lighting or good lighting conditions when working with the machine.

Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

Damage to health arising from vibrations and arms if the device is used for a g time or if the device is not guided and luated properly. Take frequent work breaks. It the amount of exposure per day.

Damage resulting from catching / winding

The rotating blades may catch the connecting cable, leads, cords or clothing and wind and/or cut through these. Whilst working, always maintain a sufficient distance from the cable on the ground and do not run over the cable. ZBefore mowing, check the area to be mowed for any undesirable objects. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information:

1. Accident site,
2. Accident type,
3. Number of injured persons,
4. Injury type(s)

Symbols

Warning / Caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles! Wear ear protectors!

Wear gloves!

Wear safety cut through resistant shoes with safety sole and steel toe!

Slow

Unplug the machine before any servicing or repair!

Warning against thrown-off items

Warning against sharp knives. Keep hands and feet away. Knives keep running for a short time after the appliance is switched off.

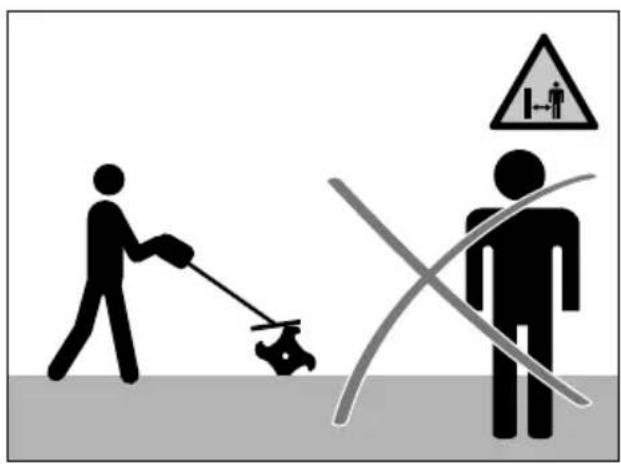

Keep bystanders in safe distance from the appliance (at least 15m)

Unplug the mains plug if the cable becomes damaged or tangled.

Warning against cutting injuries

Warning: draw-in hazard

Risk of injury Keep hands and feet away.

Unplug the machine before any servicing or repair!

Switch off the engine before any work on it.

Always keep children and unauthorised persons out of reach of the appliance.

Keep dry at all times. Never expose tool to rain.

Never reach into the danger area of the plane when it is running.

Safety class II

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Guaranteed sound power level L_WA

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool and battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce

personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for garden tillers

Risk of injury

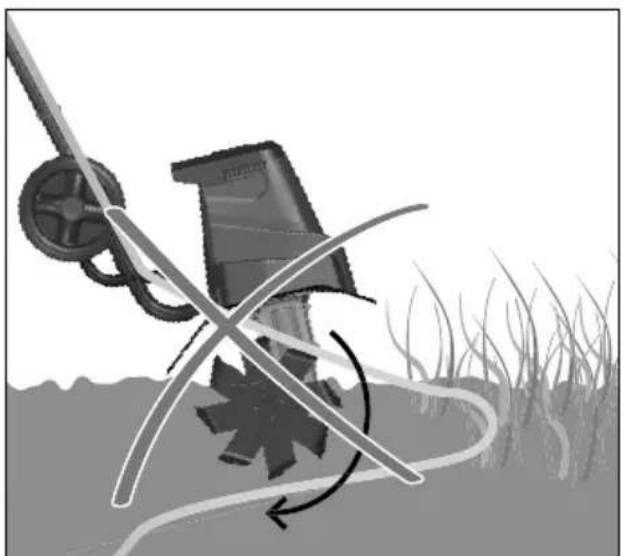

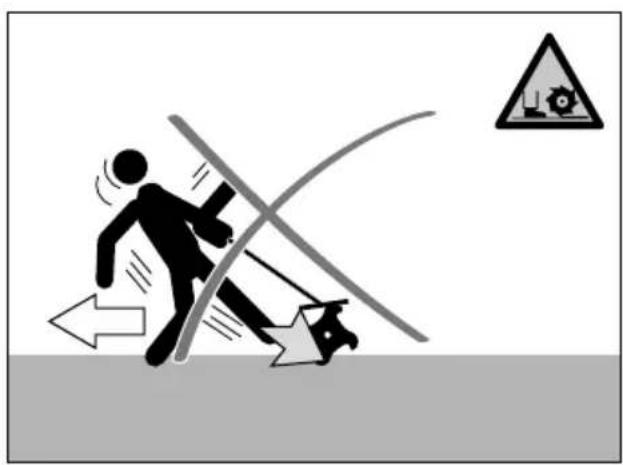

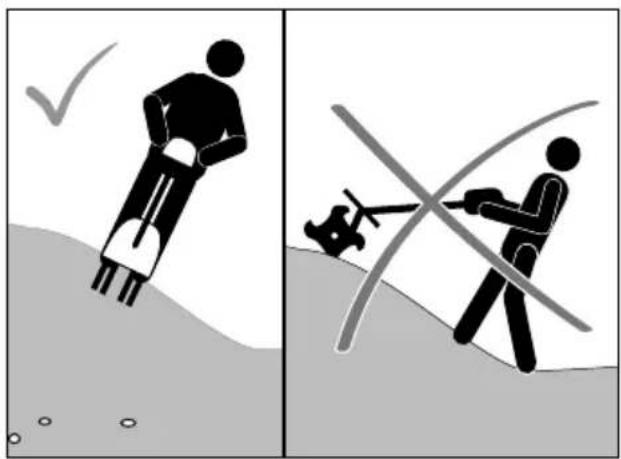

Be sure to have a firm footing, particularly on slopes.

Do not work on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

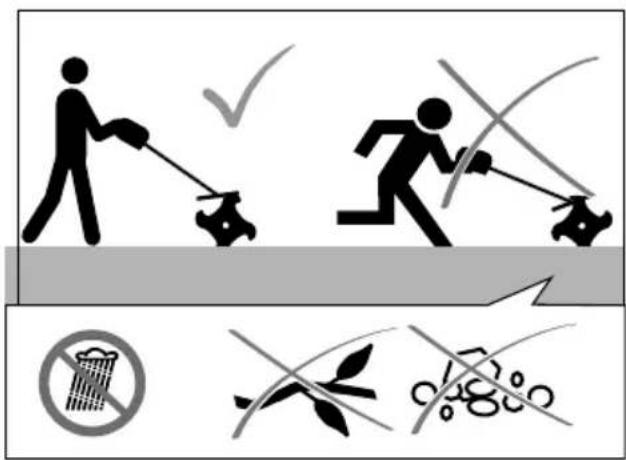

Walk! Never run!

Carefully check the terrain where the appliance is going to be used and remove all objects that could get caught or thrown off by the appliance such as stones, branches, wires, animals, etc.

Keep children and bystanders away while operating a power tool. Minimum safe distance is 15 m.

Do not use the appliance in bad weather, especially when there is a risk of storm.

Start the motor carefully in accordance with the manufacturer's instructions and ensure that you keep your feet a sufficient distance away from the tool(s). Never place your hands or feet on or under turning parts.

Never lift or carry a machine whilst the motor is running.

Ensure that the extension cable can move freely at all times and keep the extension cable away from the blade unit. You must never run over the extension cable.

Be sure to maintain the safety distance required by the handle frame.

Always guide the device with both hands on the handlebar.

Stop the device and disconnect it from the power supply

• whenever you leave the lawnmower
• before removing blockages
• before checking, cleaning or working on the device
• after contact with a foreign object, to check the device for damage

In the event of a blockage, switch the device off immediately and wait until the machine has stopped completely. Then remove the object. Use protective gloves when handling the blades.

Wear personal protective equipment. Wear solid shoes and long trousers. Do not operate the machine with bare feet or with open sandals.

The ON/OFF switch and safety switch must not be locked.

All protection covers and safety devices must be correctly attached to operate the device.

Before use check appliance, cable, extension cord and plug for any damages or material fatigue. If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.

Before each use, check (visual inspection) the blade unit and its fixing devices for any damage. In order to avoid imbalance, worn or damaged parts and fixing bolts may only be replaced as a set.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately. Generally, vibrations are a warning against operating failure.

Warning! This power tool generates an electromagnetic field during operation. Under certain circumstances, this field may affect active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend that individuals with medical implants consult their physician and the manufacturer of the medical implant before operating the machine.

Do not use the device near flammable liquids or gases. Risk of fire and explosion in case of short circuit..

MAINTENANCE

⚠️ Danger – Rotating blades.

Wait until all rotating parts have stopped and the appliance has cooled down.

Switch off the apparatus, disconnect it from mains by unplugging and allow it to cool down before setting up, retrofitting, cleaning, performing maintenance, storing or transporting the apparatus.

Always keep the device clean, as well as the ventilation slots in particular. Never spray water on the device body. Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Apply environment-friendly oil to all moving parts.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee..

Important information for the customer

Please note that returns within or outside the warranty period should always be in the original packaging. This measure effectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Failures Possible causes Recommended solution

Device does not work No power or power outage Check power supply, socket, fuse
	Extension cable defective Check extension cable and replace a defective cable without undue delay.
	Mains plug, motor or switch defective.	Have the mains plug, motor or switch checked or repaired by a professional and/or replaced with original parts.
	Circuit breaker has been triggered.	1. Roller is blocked -> remove the blockage! Leave the motor to cool down for approx. 15 minutes before continuing to work.
Unusual noises Roller is blocked. Remove the blockage.
	Loose screws, nuts or other fastening parts.	Tighten all parts well and contact the service team if you again hear the noises.
Unusual vibrations Blade is damaged or blunt. Replace the blades.
Unsatisfactory result Blunt blades Replace the blades.

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

☐ Annex IV Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

2016/1628/EU

Emission No.:

2000/14/EC_2005/88/EC
