USER MANUAL Freeze Me OneConcept

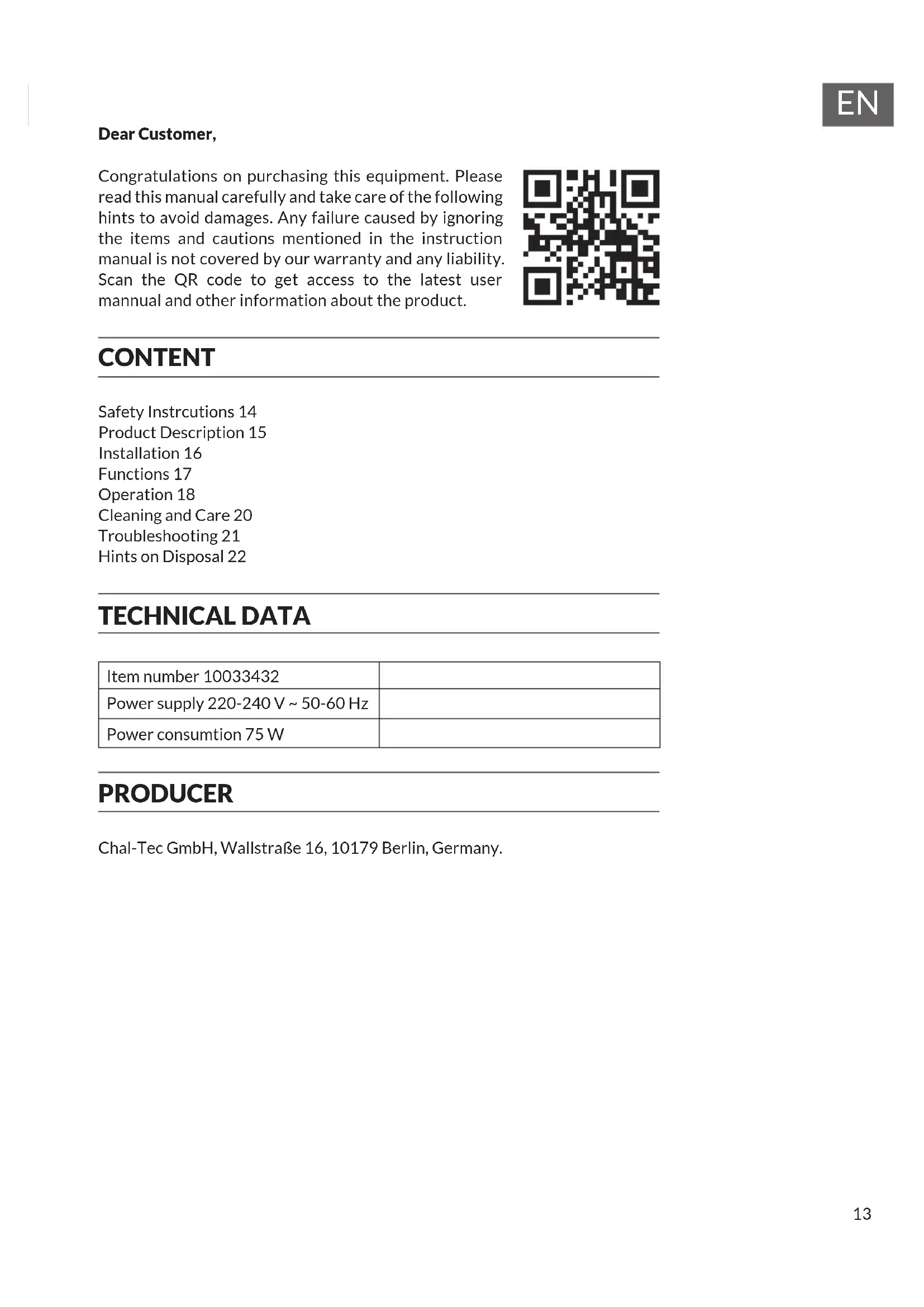

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user mannual and other information about the product.

CONTENT

Safety Instructions 14

Product Description 15

Installation 16

Functions 17

Operation 18

Cleaning and Care 20

Troubleshooting 21

Hints on Disposal 22

TECHNICAL DATA

Item number 10033432
Power supply 220-240 V ~ 50-60 Hz
Power consumption 75 W

PRODUCER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

SAFETY INSTRUCTIONS

• Connect to a main power supplier of 220-240V~50-60 Hz only.
• Keep the appliance and cable away from sources of heat, sharp objects or anything that may cause damage.
• Do not place the cord under carpets. Do not cover the cord with small clothes, shirts or other similar elements. Place the cord away from traffic areas in order to avoid any risk of tripping over.
• Do not operate the appliance if the cable or plug damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Indoor use only.
• Do not cover the machine during using.
• Always operate on a stable flat horizontal surface.
• Ensure the appliance is switched OFF before connecting to the mains power supply.
• Always ensure that hands are dry before operating or adjusting any switch on the product or touching the plug and mains supply connections.
• Do not leave this appliance unattended when it's in use. Turn off and disconnect the appliance when you leave the room for an extended period.
• Switch off the appliance and unplug from the mains socket when not in use, before filling, cleaning or other maintain.
• To disconnect the appliance, switch it "OFF", and then remove the plug from outlet. Do not pull the cord to disconnect the plug.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Use the appliance only as described in this manual.
• Do not insert your fingers in the openings of the guard.
• Do not leave hair, tissue, tablecloths, clothes or curtains near all openings of the fan, they could be sucked into the fan and be taken within the internal moving parts that could cause injury or damage.
• Do not use the appliance in wet or damp locations such as bathrooms.
• Do not operate the appliance when it's not mounted on its wheels or if it's lying on the side.
• Make sure the cord is completely extended before use.

• Place the appliance on a flat horizontal surface. It must not be at an incline during use.

• When in operation, evaporative coolers moisturize the ambient air. Overhumidification of residential rooms should be avoided. Recommendation: 40 - 50% relative humidity. (Excessive humidity of the air can damage the home and cause health problems.)

• The appliance may only be set up on water- and moisture-proof flooring materials (spilling some drops of water is unavoidable when the content of the tank is changed).
• With each and every change of tank content, completely remove residual water from the equipment. To prevent nucleation, remove residual water from the equipment and water tank every time after three days of use.

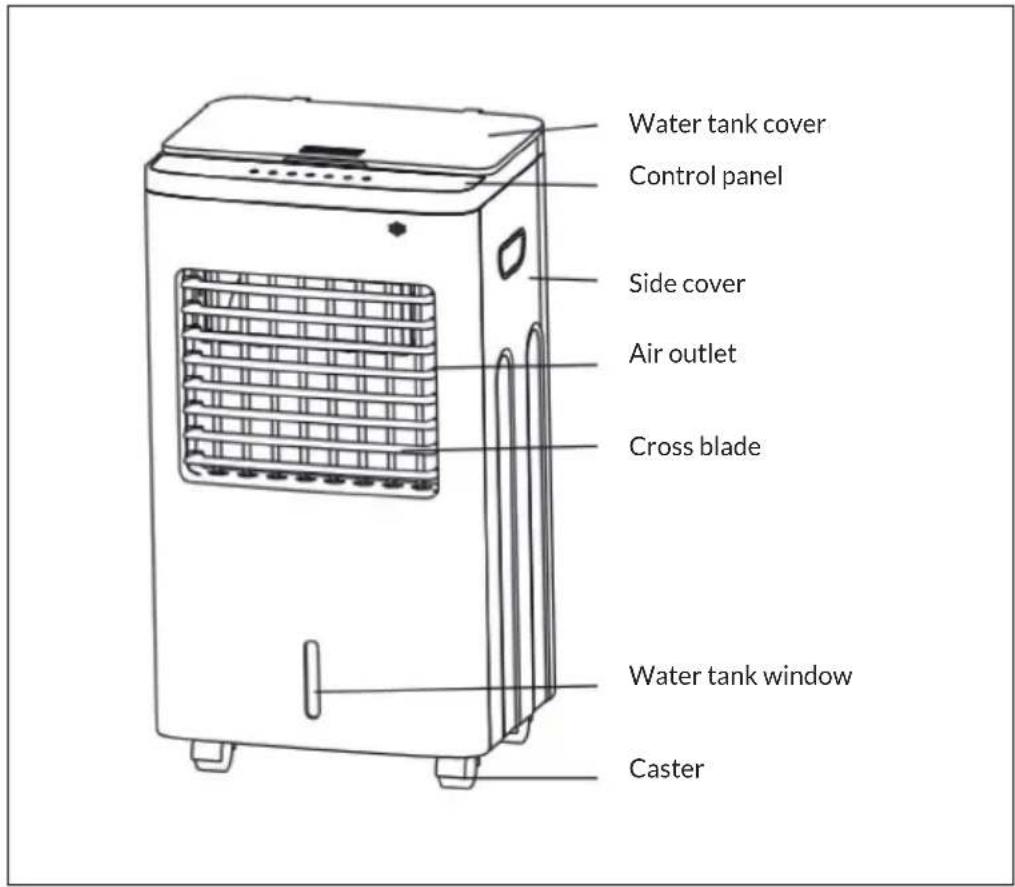

PRODUCT DESCRIPTION

INSTALLATION

Assembling castors

Put the appliance on a flat surface, take out the wrench from foam box, then assemble the castors.

Watering:

Pull out the water tank 1/3 and fill it with clean water (see map 1).

a. Pay attention to the level of water tank when add water.(map 2)
b. The level of water tank should not over "MAX" scale at any time, when humidifying, the total level of water tank should not below "MIN" scale.
c. Put ice or frozen ice box to the water tank if you want to strengthen the efficiency of cooling. But the total level of water tank should not over "MAX" scale.

Map 1 Map 2

Note: Alternatively, you can also fill the Air Cooler conveniently from above. Open the corresponding flap on the top of the unit and fill the water directly into the water circuit.

FUNCTIONS

Principle of Cooling:

Water is taken from the water tank by pump to the top, then the water drops into paper evaporator. When the water in paper evaporator evaporates to water vapor, the air is cooled. People will feel cool wind when the cool air is delivered by fan.

Electronics control:

Safe and durable, attractive appearance.

Adjustable speed and fan mode:

Have three speeds and fan types, blow at a wide angle.

Cool:

Adopt the technology of ice crystal cooling and air humidifying, fall down the temperature from air vent and raise relative humidity, prevent air drying. You could put the ice box into the top tank and down tank to make the cooling be better.

Deliver wind at a wide angle:

Swing the blades automatically, deliver wind at horizontal wide angle. Swing the blades transversely manually, select the direction discretarily.

Far-range remote control:

6 meters far-range remote control, receive at 60 degree wide angle.

Buzzer:

Vocalise when operating the effective keypad, use conveniently.

OPERATION

On/Off:

At the back side: Please find this key and turn on the power at the BACK of appliance, the air cooler will be ready. When the appliance need stop to work, please turn off.

Power:

On control panel: Press the key, turn on the appliance, second press, shut it down.

Speed:

Press this key, start the appliance, the corresponding function changes as follows when you press the key serially: LOW > MEDIUM > HIGH > LOW.

Cool

Press the key to start cooling system. It cancels this function when you press again.

Note: Please be sure there is enough water in the water tank before press this key.

Time:

Press this key, the timer from 0.5 to 7.5 hours options with step 0.5 hours. It will shutdown if the timer finished.

Swing:

Press this key to change the wind direction. The swing icon will appear on the screen when the function is activated. Press the button again to stop the oscillation. The vertical direction of air flow can be adjusted manually by directing the outlet louvers up and down.

Wind type:

Press this key, you can choose the normal wind, natural wind and sleeping wind circularly. Under the situation of normal wind it has no corresponding indicator light, but others have.

The use of remote control

• Fit on batteries, it can works.

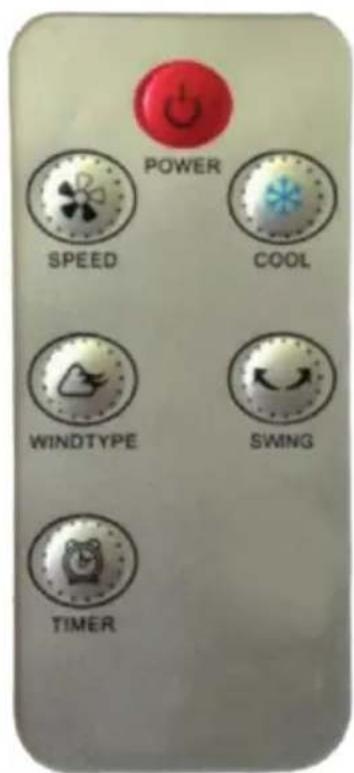

• There are 6 keys on the remote control, and have the same function as control panel.
• Should aim at the remote control reception window when you use.
• When the remote control is not in use, please put away it for using next time.

Important notes:

• Do not mix old battery with the new one in use.
• Please take out the batteries for long time nonuse.
• The remote control has no mode key, so press the key by your hands.

The use of ice box

The ice box has a particular feature of keeping cool, it can absorb heat and cool the environmental temperature.

• Put the ice box into the refrigerator to make sure that it iced absolutely.
• Open the door, put the frozen ice box into the water tank.
• There are two ice boxes for using circularly.
• The ice box no need to add water. Do not open it and prevent children from eating it!

CLEANING AND CARE

Note: Ensure that the fan is switched off from the supply mains before removing the air filter screen.

1. Clean the air filter screen

• Cut off the power supply, pull the handle of air filter screen, remove it from appliance.
• Clean the air filter screen with neutral detergent and banister brush, then clean it with clear water.
• Finally, reinstall to the appliance.

2. Clean the wetted pad

• Cut off the power supply, take down the air filter screen, then draw the wetted pad from support.
• Clean the wetted pad with neutral detergent and banister brush, then clean it with clear water.
• Finally, reinstall to the appliance.

Attention: the wetted pad must be installed horizontally, in order to avoid leaking.

3. Clean the water tank

• Cut off the power supply, open the door, take out the water tank, clean it with neutral detergent, and wash it with clear water.
• Then reinstall to the appliance.

4. Clean the shell

Clean with neutral detergent and soft cloth.

Note: cut off the power supply when clean the appliance as there have a high pressure in the body. Do not leave any water on the surface of control panel.

TROUBLESHOOTING

Malfunction Causes Solution
The device is not responding.	The main switch is in the "Off" position or the mains plug is not plugged in.	Plug the mains plug into the socket and set the main switch to the "On" position.
	The humidification effect does not work properly.	Press the ON button on the control panel.
The device does not react or shows malfunctions.	The air filters are blocked by dust.	Clean the air filters.
	The air inlet is blocked by foreign objects.	Remove the foreign objects.
Das Gerät reagiert nicht oder weiß Fehlfunktionen auf.	No cause recognizable. Contact your service representative.
	Water has entered the interior of the unit or foreign bodies are stuck in the ventilation opening.	Contact customer service.

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be dis-posed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
