USER MANUAL Blown Away OneConcept

Exterior view of a black rectangular air conditioner unit with a digital display and fan (no visible text or symbols)

10032583

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

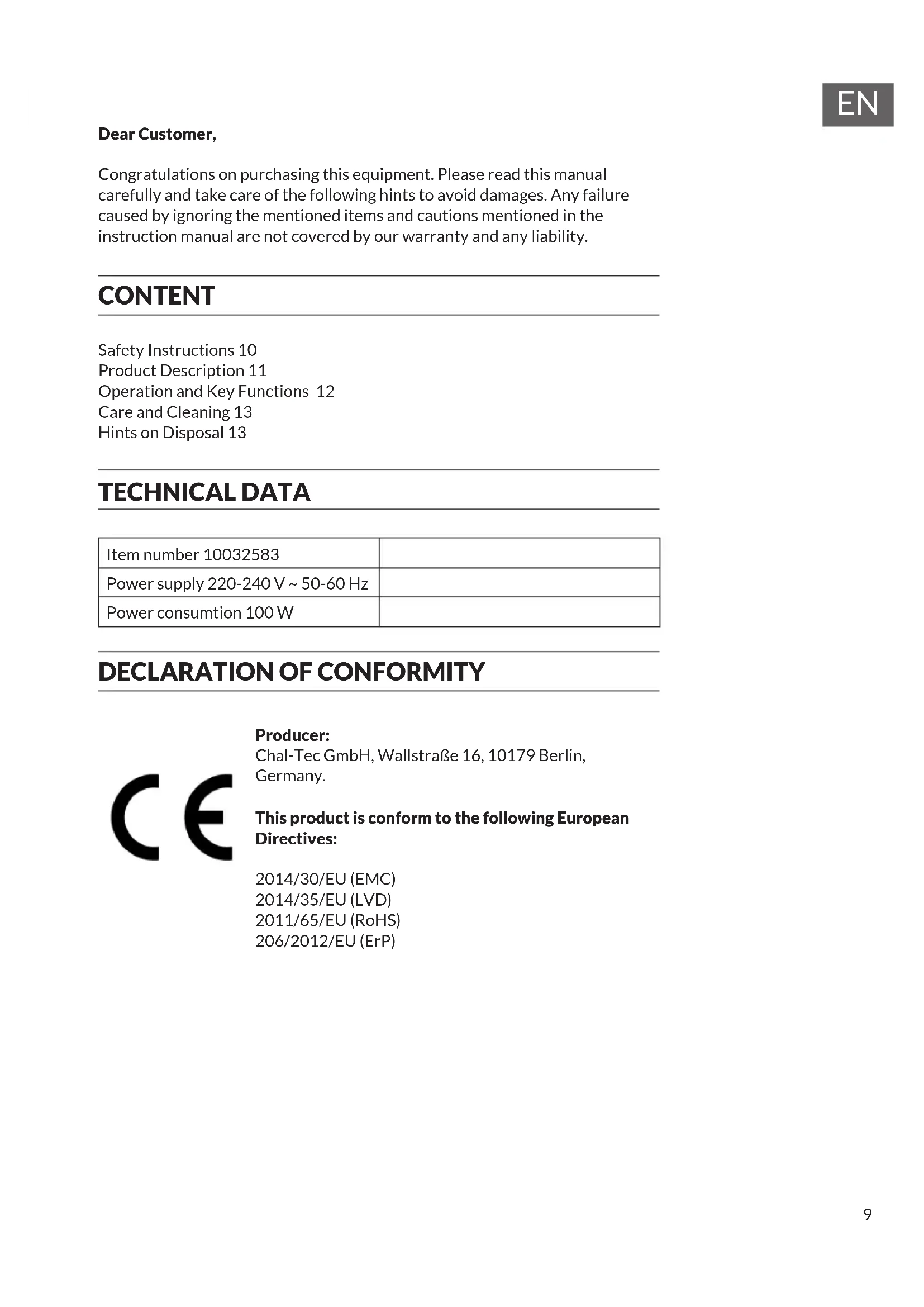

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 10

Product Description 11

Operation and Key Functions 12

Care and Cleaning 13

Hints on Disposal 13

TECHNICAL DATA

Item number 10032583
Power supply 220-240 V ~ 50-60 Hz
Power consumption 100 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Before use, check that the voltage used is the same as the one identified on the unit.

- When the fan is not assembled, do not turn on the power, and turn off the power when moving the fan.

- Do not use wet hands to remove the power plug, to avoid the risk of electrification or electric shock.

- Do not insert your fingers or sharp objects into the guard when the fan is running.

- Use the fan away from high temperature, high humidity, acid and alkali oil, insecticide, curtains and other articles that are easy to be sucked in.

- Babies and the elderly should not be directly under high wind for a long time.

- Do not place the fan on uneven floor to prevent the fan from overturning.

- Before use, it is necessary to first check any damage with the power cord and the plug. If the power cord is damaged, in order to avoid danger, it must be replaced by professional workers from the manufacturer's maintenance department or similar department.

- When leaving the machine or when the machine is not used for a long time, turn off the power and remove the power plug, so as to avoid the circuit failure.

- Do not place it in a place where curtains, etc. may be sucked in or covered.

- Do not cover any items when used.

- The fan is not intended for extended use by persons (including children) with reduced physical capabilities.

- During the transport, assembly and storage, observe not to collide and squeeze the fan, especially the blade must be properly kept, resulting in no deformation, so as not to affect the performance of the fan.

- In case of any abnormal noise, smell, smoke and other phenomena during the use, lose no time to shut off the power and send to our after-sales service department for maintenance.

- Do not blow against the stove or gas.

- Before removing the protective housing, make sure that the fan is disconnected from the power supply.

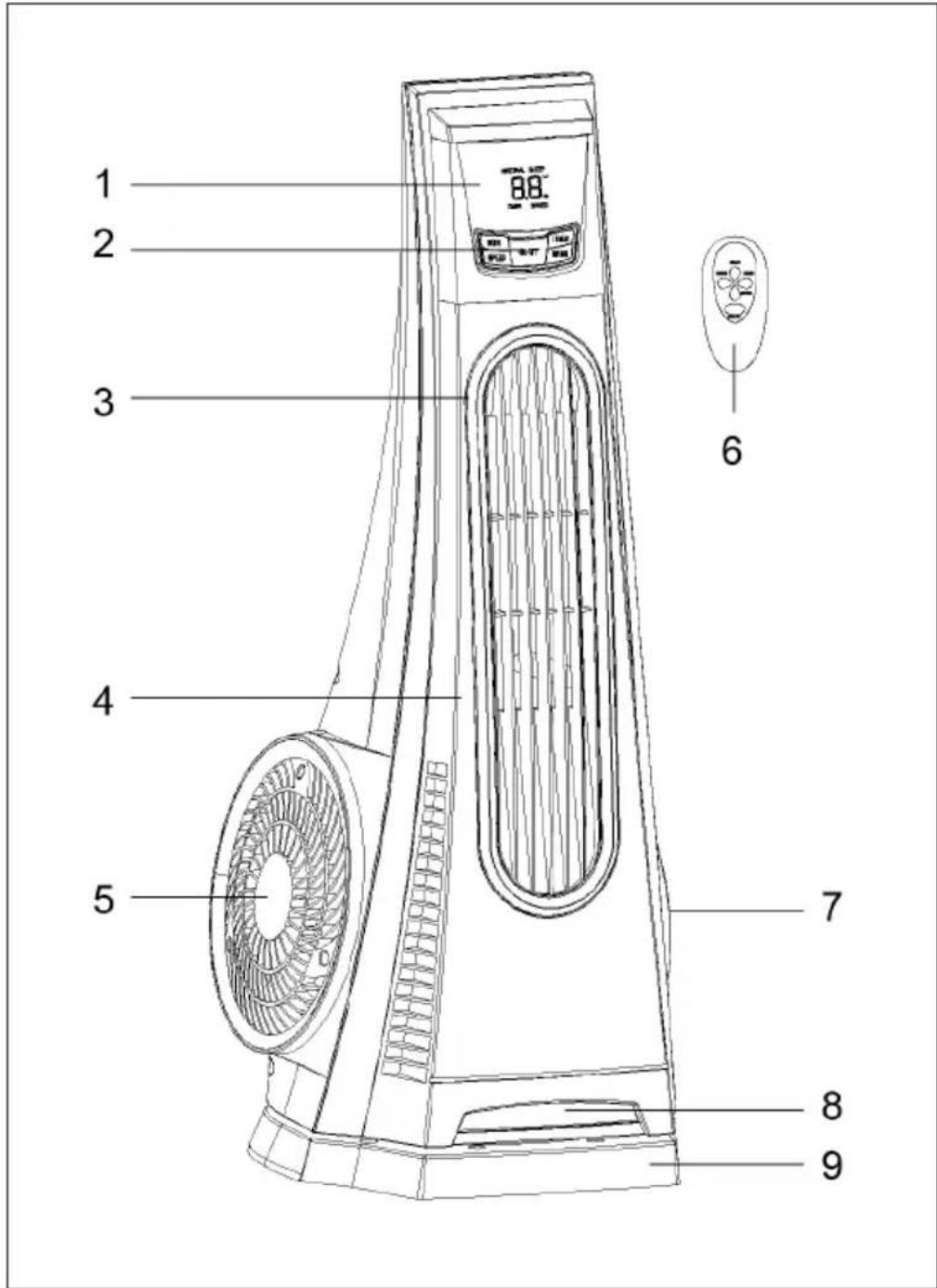

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 9

Note: The remote requires 2x AAA 1.5V batteries. The batteries are not included.

1 LED display
2 Control panel
3 Decorative ring
4 Body
5 Left grille
6 Remote control
7 Right grille
8 Decorative cover
9 Base

OPERATION AND KEY FUNCTIONS

Note: You can operate the ventilator using either the buttons on the control panel or the supplied remote control. The functions are the same.

Key Function
Timer With the power on, press the	button to set thetimer to 1 h, 2 h, 3 h, 4 h, 5 h, 6 h, 7 h or 8 h. Each time the button is pressed, the timer is increased by one hour. After the timer has counted down the time, the fan goes off automatically.
Swing With the power on, press the	button to allow thefan to swing to the left and right at an angle of 70^ .
Speed With the power on, press the	button to select oneof the 3 speeds: low > medium > high.
On/Off Press the button to turn the	device on and off.
Mode With the power on, press the	button to select oneof the modes in the following order: normal wind > natural wind > sleep mode > normal wind.

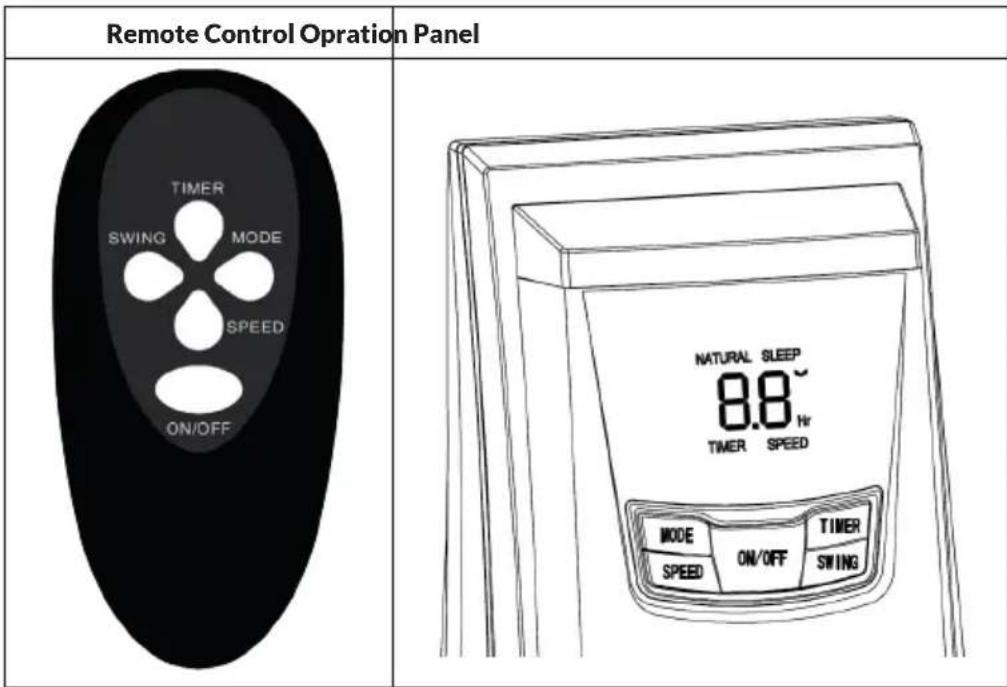

Remote Control Opration Panel TIMER SWING MODE SPEED ON/OFF NATURAL SLEEP 8.8° Rt TIMER SPEED MODE SPEED ON/OFF TIMER ON/OFF SWING

CARE AND CLEANING

• Before cleaning this product, make sure that the power is turned off first.
• Do not use water or other liquid to clean the electrical components (such as switching power supply, motor, etc.) and the electrical components can be wiped clean with a clean cloth.
• Do not use any grinding tools and solvents that can damage the surface to clean the product. You can wash the product with detergent and wipe dry with a clean cloth.
• Do not take the product apart for modification. It is recommended to inspect and clean the product annually as to extend its service life.

HINTS ON DISPOSAL

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
